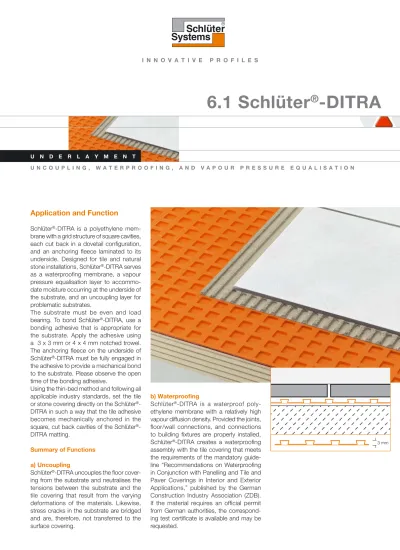

6.1 Schlüter -DITRA. Application and Function

(1)

Application and Function

Schlüter®_{-DITRA is a polyethylene} mem-brane with a grid structure of square cavities, each cut back in a dovetail confi guration, and an anchoring fl eece laminated to its underside. Designed for tile and natural stone installations, Schlüter®_{-DITRA serves} as a waterproofi ng membrane, a vapour pressure equalisation layer to accommo-date moisture occurring at the underside of the substrate, and an uncoupling layer for problematic substrates.

The substrate must be even and load bearing. To bond Schlüter®_{-DITRA, use a} bonding adhesive that is appropriate for the substrate. Apply the adhesive using a 3 x 3 mm or 4 x 4 mm notched trowel. The anchoring ﬂ eece on the underside of Schlüter®_{-DITRA must be fully engaged in} the adhesive to provide a mechanical bond to the substrate. Please observe the open time of the bonding adhesive.

Using the thin-bed method and following all applicable industry standards, set the tile or stone covering directly on the Schlüter® -DITRA in such a way that the tile adhe sive becomes mechanically anchored in the square, cut back cavities of the Schlüter® -DITRA matting.

Summary of Functions a) Uncoupling

Schlüter®_{-DITRA uncouples the ﬂ oor} cover-ing from the substrate and neutralises the tensions between the substrate and the tile covering that result from the varying deformations of the materials. Likewise, stress cracks in the substrate are bridged and are, therefore, not transferred to the surface covering.

b) Waterprooﬁ ng

Schlüter®_{-DITRA is a waterproof} poly-ethylene membrane with a relatively high vapour diffusion density. Provided the joints, fl oor/wall connections, and connections to building fi xtures are properly installed, Schlüter®_{-DITRA creates a waterproofi ng} assembly with the tile covering that meets the requirements of the mandatory guide-line “Recommendations on Waterproofi ng in Conjunction with Panelling and Tile and Paver Coverings in Interior and Exterior Applications,” published by the German Construction Industry Association (ZDB). If the material requires an offi cial permit from German authorities, the correspond-ing test certifi cate is available and may be requested.

6.1 Schlüter

®

_-DITRA

U N D E R L A Y M E N T

U N C O U P L I N G , W A T E R P R O O F I N G , A N D V A P O U R P R E S S U R E E Q U A L I S A T I O N

(2)

Thus, Schlüter®_{-DITRA protects the} sub-strate against damage due to moisture penetration and aggressive substances. c) Equalisation of vapour pressure The interconnected air channels between the cavities on the underside of the Schlüter® -DITRA matting remain open. This allows moisture in the substrate to evaporate, thus neutralising vapour pressure.

d) Load distribution (load impact) The bottom of the square cavities in Schlüter®_{-DITRA, which are filled with} thin-bed adhesive, directly transfer the load impact on the tile covering to the sub-strate. As a consequence, tile coverings installed on top of Schlüter®_{-DITRA are} highly load resistant. If high trafﬁ c loads are expected (e.g. in industrial locations), the tiles selected for the installation must be of the corresponding thickness and pressure stability. The requirements of the mandatory guideline “Ceramic Floor Coverings With High Impact Resistance,” published by the German Construction Industry Association (ZDB) must be followed.

In areas with high impact loads, the tiles must be fully embedded in the thin-bed adhesive. The contact surface of Schlüter® -DITRA amounts to approximately 50% of the total surface. This can reduce the load bearing capacity in case of point loads. For high point loads, select a tile thickness that is capable of distributing the loads. Ceramic tile coverings should not be exposed to the direct impact of hard objects. The tile dimensions should be at least 50 mm x 50 mm.

e) Adhesive properties

Due to the bonding of the anchoring ﬂ eece into the thin-bed adhesive on the under-side and the mechanical anchoring of the adhesive in the cut back cavities, Schlüter® -DITRA achieves a good adhesion of the tile covering to the substrate (laboratory test values: ~ 0.25N/mm2_{). Consequently,} Schlüter®_{-DITRA can be used for wall and} ﬂ oor coverings. Anchor plugs may be used with wall coverings if necessary.

Material

Schlüter®_{-DITRA is a polyethylene sheet with} a grid structure of square cavities, each cut back in a dovetail conﬁ guration. An anchor-ing ﬂ eece is laminated to the underside. The rib height is approximately 3 mm. Polyethyl-ene is not permanently UV stable. Prolonged exposure to intensive sunlight should be avoided when storing the material.

Material Properties

and Areas of Application

Schlüter®_{-DITRA is ﬂ exible, bridges cracks,} and will not rot. In addition, it is highly resist-ant to watery solutions, salts, acids, and alkalis, as well as many organic solvents, alcohols, and oils.

Its resistance to speciﬁ c stresses must be examined separately on the basis of the expected concentration, temperature, and exposure time. The vapour diffusion density is relatively high. The material is physiologi-cally safe.

Schlüter®_{-DITRA is used with a great variety} of applications. Its suitability for speciﬁ c chemical or mechanical conditions must be evaluated for each individual case. The instructions below provide some general guidelines.

Coverings constructed with Schlüter® -DITRA may have a certain hollow sound when they are walked upon with hard shoes or tapped with a hard object.

Note

The thin-bed adhesive and the covering materials selected for use with Schlüter® -DITRA must be suitable for the correspond-ing application and must meet the require-ments of the site. Materials used in exterior applications must be waterproof as well as resistant to frost and weather.

Schlüter®_{-DITRA should be used primarily} as a waterprooﬁ ng layer when installing cover materials that are sensitive to moisture (e.g. natural stone or synthetic resin panels) or if moisture is expected to build up on the underside (e.g. in the case of green screed). When Schlüter®_{-DITRA is installed} in exterior applications, special pro tective a

b

c

d

e

directly to the substrate equalisation moisture sensitive substrates

stresses Uncoupling neutralises Waterprooﬁ ng protects Vapour pressure Load tranfer Uncoupling neutralises Waterprooﬁ ng protects Vapour pressure Load tranfer Adhesion Adhesion Adhesion properties 0.25 N/mm2_{= 25 t/m}2

directly to the substrate equalisation moisture sensitive substrates

(3)

The use of rapid setting thin-bed adhesives may be an advantage for certain projects. Schlüter®_{-DITRA should be covered with} protective running boards if the transport of material makes it necessary to walk over the matting.

Note on movement joints:

Schlüter®_{-DITRA must be separated at the} existing movement joints. If Schlüter®_-DITRA is used as a waterprooﬁ ng layer, the joints between the sheets must be covered with Schlüter®_{-KERDI-FLEX band.}

Movement joints must be continued in the tile covering, as specifi ed by the applica-ble industry standards. In all other cases, large area fl oor assemblies installed over Schlüter®_{-DITRA must be subdivided into} smaller fi elds with the help of movement joints. The distance between such control joints in exterior applications (balconies and terraces) should not exceed 3 metres. Depending on the construction of the sub-strate, fi eld sizes may need to be smaller. Please refer to our Schlüter®_{-DILEX profi le} series. Install the corresponding profi les such as Schlüter®_{-DILEX-BT or Schlüter}® -DILEX-KSBT over expansion joints in accordance with the expected movements.

It must be assured that no tension can build at the edge of coverings, e.g. at upright construction elements or fl oor/wall transi-tions. The edge profi les and connective joints have to meet the requirements of the corresponding construction standards and must be suitable to prevent the build up of tensions. Please refer to our Schlüter® -DILEX profi le series.

Substrates for Schlüter

®

_-DITRA

It must be veriﬁ ed that substrates which are to receive the Schlüter®_{-DITRA matting are} even, load bearing, clean, and compatible. Bond inhibiting surfaces must be removed. Any unevenness or height and slope differ-ences in the substrate must be levelled prior to the application of Schlüter®_-DITRA. Concrete

Concrete is subject to lengthy deforma-tion processes due to shrinkage. Concrete and pre-stressed concrete may build up tension because of deﬂ ection. Schlüter® -DITRA absorbs inherent stresses between the concrete and tile covering so that the tile can be installed as soon as the con-crete is hard enough to be walked upon. Mortar screeds

According to the applicable standards, mortar screeds must cure a minimum of 28 days prior to the installation of tile, and their residual moisture content must be below 2% (percentage by volume). In par-ticular, ﬂ oating screeds and heated screeds tend to change shape or develop cracks after installation, e.g. due to load stresses or temperature changes. With Schlüter® -DITRA, tiles can be installed as soon as the screed can be walked upon.

Gypsum based screeds

According to the applicable standards, the residual moisture of gypsum based screeds should not exceed 0.5% (percentage by volume) prior to the installation of tiles. With the application of Schlüter®_-DITRA, tile coverings can be installed as soon as the residual moisture is below 2.0% (per-centage by volume).

If required, the screed surface may need to be pretreated (sanding, priming) in accord-ance with the applicable industry standards and manufacturers’ recommendations. Schlüter®_{-DITRA can be applied using} thin-bed tile adhesives that are suitable for the substrate. Schlüter®_{-DITRA protects the} screed against moisture penetration from the surface. Gypsum based screeds are sensitive to moisture and must be protected from additional moisture penetration, espe-cially on the underside.

(4)

Radiant heated screeds

Schlüter®_{-DITRA may be used over heated} screeds as described in the sections on mortar screeds and gypsum based screeds. With Schlüter®_{-DITRA, tiles can be heated} seven days subsequent to installation. Starting at 77 ºF (25 ºC), the radiant heated ﬂ oor temperature can be raised gradually by +9 °F (+5 °C) per day, to a maximum of 104 ºF (40 ºC). The air channels of Schlüter® -DITRA allow for a quick and even distribution of heat below the tile covering.

Note: For radiant heated ﬂ oors, we espe-cially recommend our system Schlüter® -BEKOTEC-THERM, the ceramic thermal comfort ﬂ oor.

Schlüter®_{-DITRA is also recommended} for uncoupling of radiant heated floors consisting of thin electric heating mats. Schlüter®_{-DITRA may be installed either} above or below the heating mat. However, the uncoupling function is more effective if Schlüter®_{-DITRA is installed above the} heating mat.

Masonry/mixed substrates

Masonry consisting of brick, stone, lime-stone, cement block, lightweight concrete, or similar is generally a suitable substrate for Schlüter®_{-DITRA. Uneven areas must} be levelled in advance. Particularly in refur-bishments or extensions, different materi-als (mixed masonry) may be encountered. At the transitions, movement can cause cracks. With Schlüter®_{-DITRA, stresses and} cracks do not transfer to the tile covering. Stucco/ plaster

Plaster substrates should be examined in accordance with the applicable building codes to ensure they are dry. The surface may need to be pretreated with a primer. Schlüter®_{-DITRA can be applied using} thin-bed tile adhesives that are suitable for the substrate.

Balconies / terraces

As an uncoupling membrane, Schlüter® -DITRA neutralises the stresses between the substrate and the tile covering that are caused by the frequent and extensive tem-perature changes occurring on balconies. Furthermore, Schlüter®_{-DITRA serves as a} bonded waterproofi ng assembly together with the tile covering (see notes on water-proofi ng). The substrate (concrete, screed) must be suffi ciently sloped.

For refurbishments, the existing surface assembly can generally remain, provided it is suffi ciently sloped and load bearing. Prior to the application of Schlüter®_{-DITRA over} existing and cracked tile fl oors, the loose tiles must be removed and the remaining cavities fi lled using an appropriate mortar. The preparations also include ensuring a proper slope in the substrate.

Rooftop terraces

Rooftop terraces over enclosed living or utilisation spaces below are subject to the applicable standards and building codes for roof construction and must feature the required insulation to serve as vapour barrier, heat insulation, and top insulation. A drain-age system such as Schlüter®_{-TROBA or} Schlüter®_{-TROBA-PLUS must be installed} over this top insulation layer. This is then topped with screed to act as a load distribu-tion layer. Schlüter®_{-DITRA is installed over} this screed as an uncoupling layer with the tile covering and as a moisture barrier for the screed. As an uncoupling mat, Schlüter® -DITRA neutralises the stresses between the substrate and the tile covering that are caused by the frequent and extensive tem-perature changes occurring on terraces. Synthetic fl ooring and surface coatings In principle, the surface must be load bearing and prepared in such a way that a suitable tile adhesive will adhere to it and anchor the fl eece on the underside of the Schlüter® -DITRA matting. The compatibility of the adhesive for the substrate and Schlüter® -DITRA must be verifi ed ahead of time.

(5)

Plywood and Oriented Strand Board (OSB)

These materials are particularly prone to deformation under the infl uence of mois-ture (or signifi cant changes in atmospheric humidity). The plywood or OSB panels used in construction should therefore be exterior grade. In principle, plywood and OSB can be used as backing materials for Schlüter®_{-DITRA on both fl oors and walls} in interior applications. The thickness of the panels must be suffi cient to ensure stability in conjunction with a suitable supporting construction. Attach the panels with screws set at the required minimum spacing. The joints must feature tongue and groove connections and should be secured with additional adhesive. Movement joints of at least 10 mm must be left at the transition to other construction parts. Schlüter®_-DITRA neutralises the stress occurring in the tile covering and prevents the penetration of moisture.

Structural plank subﬂ ooring

Suffi ciently load bearing structural plank subfl ooring in tongue and groove construc-tion, with the appropriate screws in place, in principle is suited as a substrate for ceramic tiles. The timber substrate should have reached the equilibrium moisture content prior to installing Schlüter®_-DITRA. However, an additional layer of plywood or OSB panels is recommended. Uneven fl oors must be levelled using an appropriate level-ling compound.

Bituminous screed (paving grade asphalt)

Schlüter®_{-DITRA allows for the installation} of ceramic tile coverings over load bear-ing bituminous screeds built accordbear-ing to industry standards in interior and exterior applications. The surface needs to be sanded or must be suitable to allow for the proper adhesion of the thin-bed tile adhesive for the installation of Schlüter®_-DITRA.

Installation

1. The substrate must be free of bond-inhibiting components, load bearing, and even. Any unevenness in the substrate must be levelled prior to the application of Schlüter®_-DITRA.

2. The type of bonding adhesive used to apply Schlüter®_{-DITRA depends on the} type of substrate. The adhesive must bond to the substrate and mechanically anchor the ﬂ eece on the underside of the Schlüter®_{-DITRA matting. Verify the} compatibility of all materials prior to instal-lation.

3. Apply the bonding adhesive to the sub-strate using a 3 x 3 mm or 4 x 4 mm notched trowel.

4. Individual courses of Schlüter®_{-DITRA are} cut to size. Solidly embed the anchoring fleece on the underside of Schlüter® -DITRA in the adhesive so that its entire surface is bonded, and immediately work it into the adhesive using a ﬂ oat or screed trowel. Please observe the open time of the bonding adhesive. When initially posi-tioning Schlüter®_{-DITRA, it is advisable} to align and position the matting while slightly stretching it.

Application is made easier with a second person. The side edges and ends of individual courses are cut straight and abutted.

Note: If Schlüter®_{-DITRA is only installed} as an uncoupling membrane, side edges and ends of individual courses do not need to be sealed with Schlüter®_-KERDI- KEBA. Please refer to the instructions for waterprooﬁ ng if the membrane is to serve as a waterprooﬁ ng layer.

5. Once installed, the matting must be pro-tected against heavy mechanical loads to avoid loosening it from the substrate or other damage. It is advisable to place running boards (especially in the centre of material transports) to protect Schlüter® -DITRA. Other protective measures, such as shielding of direct sunlight or protection from precipitation in exterior applications, may also be required. Carefully remove any moisture that may have gathered in the indentations of the studs before apply-ing the thin-bed tile adhesive.

(6)

6. Immediately after the Schlüter®_-DITRA matting is installed, the tiles can be set using the thin-bed method and using a bonding tile adhesive that matches the requirements of the covering. It is recom-meded to ﬁ ll the square cavities with the smooth side of the trowel and to establish a regular pattern in the bonding adhesive with the notched side of the trowel in one application. The tiles are fully embedded in the adhesive. Fully embedded installation of tiles in accordance with the applicable professional standards is particularly important for coverings with high trafﬁ c loads and in outdoor areas. The notches of the trowel must match the thickness of the tiles. Please observe the open time of the adhesive.

7. For movement joints as control joints, expansion joints, or connection joints please follow the instructions given in this product data sheet as well as the applicable industry regulations.

Waterprooﬁ ng with Schlüter®_-DITRA

By carefully sealing the mat joints and con-nections with fi xtures and walls, Schlüter® -DITRA can be used for achieving a water-proofing layer in a tile assembly that is equal to the requirements of the applicable guideline of the German Construction Industry Association, covering the moisture load classifi cations 0 through C specifi ed therein. If the material requires an offi cial permit from German authorities, the cor-responding test certifi cate is available and may be requested.

We recommend the use of our waterproof-ing membrane Schlüter®_{-KERDI (see} prod-uct data sheet 8.1 Schlüter®_{-KERDI) for} applications of Utilisation Class B, “pools.” Schlüter®_{-DITRA therefore protects the} sub-strate from damages due to the penetration of moisture and aggressive substances. The abutting joints are covered with the sealing adhesive Schlüter®_-KERDI-COLL and Schlüter®_{-KERDI Band (minimum} width: 12.5 cm) is solidly embedded over the joint.

For floor/wall connections, adhere the Schlüter®_{-KERDI-BAND in the appropriate} width. The sealing band should overlap at least 5 cm.

Schlüter®_{-KERDI-BAND is also well suited} for sealing joints with existing fi xtures such as door frames, window frames, and bal-cony edge profi les of metal, wood, or plastic. Start by applying Schlüter®_{-KERDI-FIX to} the part of the fi xture that is to be adhered. The remaining width is fully embedded on Schlüter®_{-DITRA, using the adhesive} Schlüter®_-KERDI-COLL.

The suitability of Schlüter®_{-KERDI-FIX for the} material of the corresponding ﬁ xtures must be veriﬁ ed ahead of time.

Cut Schlüter®_{-DITRA above structural and} seismic expansion joints; then cover the joint with Schlüter®_-KERDI-FLEX.

Schlüter®_{-KERDI-FLEX can also be used} for fl exible fi nishing edges. Alternatively, Schlüter®_{-KERDI-BAND may be used,} pro-vided a loose fold is left above the joint. Note on fl oor drains:

Schlüter®_{-KERDI-DRAIN is a floor drain} speciﬁ cally designed to allow connections to a bonded waterproofing membrane. This allows the simple and fast connection of Schlüter®_{-DITRA to the ﬂ oor drain, using} the Schlüter®_{-KERDI collar.}

(7)

Product overview:

Schlüter®_-DITRA

Length = m 5 30

Width = 1 m • •

Schlüter®_{-KERDI-KEBA (Band)} Thickness = 0.1 mm Length = m 5 30 Width = 8.5 cm • • Width = 12.5 cm • • Width = 15 cm • • Width = 18.5 cm • • Width = 25 cm • • Schlüter®_-KERDI-FLEX Thickness = 0.3 mm Length = m 5 30 Width = 12.5 cm • • Width = 25 cm • • A B

Schlüter®_{-KERDI-KM (Pipe collar)} Thickness = 0.1 mm Dim. 17 x 17 / Hole 22 mm KM 5117 / 22 Set = 5 pieces C Schlüter®_-KERDI-DRAIN (Floor drains)

see product data sheet 8.2

G Schlüter®_{-KERDI-KERECK} Thickness = 0.1 mm Internal Corner 2 Pc. 5 Pc. 10 Pc. prefabricated • • pre-cut section • External Corner 2 Pc. 5 Pc. 10 Pc. prefabricated • • pre-cut section • D

Schlüter®_{-KERDI-FIX (Installation adhesive)}

Cartridge grey / 290 ml brilliant white / 290 ml grey / 600 ml see product data sheet 8.3

F A B C D D F G E Schlüter®_-KERDI-COLL Sealant adhesive 4.25 kg see product data sheet 8.4

(8)

Text template for tenders:

Accurately bond in accordance with the manu-facturer’s speciﬁ cations

_____ m2_Schlüter®_{-DITRA as}

■ uncoupling matting

■ waterproofi ng and uncoupling matting for tile consisting of a crack bridging polyethylene membrane with a grid structure of square cavi -ties, each cut back in a dove tail confi guration, and an anchoring fl eece laminated to its under-side, to an existing, even and load bearing substrate on the

■ ﬂ oor, consisting of ____________________

■ wall, consisting of ____________________ with a suitable

■ tile adhesive, as suggested by the supplier.

■ tile adhesive, Type ____________________ Connections to pipes and ﬂ oor drains:

■ are to be included in unit prices;

■ are to be charged as extra.

Material: ________________________ .../m2 Labour: _________________________ .../m2 Total: ___________________________ .../m2

Accurately bond in a professional manner and according to the manufacturer’s specifi cations _____ running metres of Schlüter® -KERDI-KEBA as a polyethylene waterproofi ng strip, covered on both sides with fl eece material for the sealing of

■ butt joints

■ ﬂ oor/wall connections

■ connections

to ﬁ xed installation parts of the Schlüter®_-DITRA waterprooﬁ ng membrane.

Internal and external corners

■ are to be included in unit prices;

■ are to be charged as extra. Width of the KERDI-KEBA:

■ 8.5 cm ■ 12.5 cm ■ 15 cm

■ 18.5 cm ■ 25 cm

Material: _________________________.../m Labour: __________________________.../m Total: ____________________________.../m

Bond in a professional manner and according to the manufacturer’s speciﬁ cations

_____ running metres of Schlüter®_-KERDI-FLEX as a highly fl exible polyethylene waterproofi ng strip, covered on both sides with fl eece fabric and an approximately 30 mm wide fl eece free central zone to serve as sealing of

■ ﬂ exible butt joints

■ ﬂ exible ﬂ oor/wall connections

■ ﬂ exible connections of

Schlüter®_{-DITRA waterprooﬁ ng membrane to} building elements. Width of KERDI-FLEX: ■ 12.5 cm ■ 25 cm Material: _________________________.../m Labour: __________________________.../m Total: ____________________________.../m

Supply and bond in a professional manner and according to the manufacturer’s speciﬁ cations _____ pieces of Schlüter®_{-KERDI-KM as a} polyethylene pipe sleeve, covered on both sides with ﬂ eece fabric.

Material: _____________________ .../Piece Labour: ______________________ .../Piece Total: ________________________ .../Piece
