Working width m

(1)

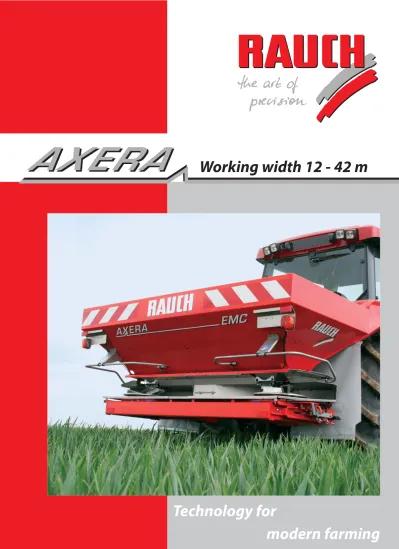

Working width 12 - 42 m

Technology for

(2)

The brilliant combination of a

state-of-the-art hydraulic drive

and spreading technology with

extremely accurate, fully

automatic metering electronics

gives way to sensational service

dimensions for crop growing

specialists looking to the future

whilst keeping an eye on the costs.

Uncompromised

Fertilising

The innovative, hydraulic AXERA spreader drive maintains a con-stant disc speed and, therefore, the working width, even when the tractor engine speed varies. The tractor speed can, as such, always be selected as fuel saving.

Hydraulic drive technology stands for increased precision at greater cost-effectiveness.

Technology Hand-in-Hand

with Innovation

(3)

In fertilising technology the electronic metering control, EMC, is a pioneering system. It captures and regulates the spreading volume for the first time online on the left and right metering slide separately. This makes EMC another decisive factor towards greater economy and ecology in fertilising.

All the functions of hydraulic drive technology and EMC metering electronics can be operated via remote control at the touch of a button both quickly and comfortably from the QUANTRON-P operating terminal.

QUANTRON-P with serial interface RS 232 and the ISOBUS preparation

is best suited to precision farming activities.

(4)

The harmonic interplay of the remote controlled feeding point and disc speed adjustment is incredibly flexible and enables an easy and quick response to different applications between 12 and 42 m working width with only one set of spreader discs. The desired speed is constantly monitored and regulated by sensors.

The fine setting which is optimally

matched to the disc speed and the

feeding point enables precise

spreading patterns, even for

granu-lates which are sensitive to pressure

and problematic spreader features

in initial and late fertilising

as well as during boundary, edge

and wedge spreading.

The characteristics of a safe AXERA

spread pattern are wide,

triangu-lar spreading edges and therefore

also wide overlapping zones.

The AXERA-H EMC shows off its strengths during edge and boundary spreading.

At the field boundary constant spreading volumes with steeply dropping spreading edges are decisive for the applica-tion of expensive fertiliser in accordance with needs and environmental protection.

The Spread

Pattern Optimiser

Modern crop production

needs flexible solutions

Environmentally optimised boundary spreading

(5)

With the Standard Operating Terminal

At the quick and easy press of a button, QUANTRON-P allows the AXERA-H EMC to switch to edge or bound-ary spreading on the left or right whilst travelling. Even on wedge-shaped tapering surfaces, the working width is adapted to the boundary outline by remote control in steps. Typically for RAUCH, all functions can be comfortably selected from the cab both for the right and left spreading side.

Through the precise setting of the edge and boundary spreading characteristics, only via the speed and feed point adjustment, the use of additional deflectors and blade blocks is not required.

It is precisely in the case of large working widths, or fertilisers which are sensitive to pressure, with prob-lematic flying characteristics where considerably bet-ter spreading results are achieved in the field and along the field boundary.

Perfection on the Field Boundary

right initial and late fertilising left initial and late fertilising

right edge spreading left edge spreading

right boundary spreading left boundary spreading

right wedge spreading left wedge

(6)

EMC boasts a speed-dependent flow measurement and maintenance

system for solids. A calibration test is not required since the control system calculates the correct flow factor after a few seconds, even in the event of unknown fertiliser characteristics, both for the right and left slide opening and sets the dosing slide separately accordingly. Even with the smallest deviations from the set flow volume a new slide position is automatically calculated and implemented. Changes to the pourability as a result of weather and fertiliser quality, amongst others, are automatically compensated.

The oil pressure sensors on the hydraulic motors allow the driving torque of the spreader discs to be easily and safely determined dur-ing operation. Intelligent control electronics calibrate the complete system in regular, short intervals.

EMC:

Metering Electronics

for Anyone

Who Wants More

The pioneering feature of the

electronic metering control and

regulation, EMC, for the

hydrauli-cally driven AXERA-H is the

separate monitoring and

regula-tion of the metering volume on

both the right and left-hand side.

The EMC system is based on the

following brilliant discovery:

The drive torque of the disc is

proportional to the fertiliser flow

volume on the dosing slide.

(7)

In QUANTRON-P the oil pressure sensor data are evaluated online the optimal slide positions are calculated and controlled via electric actuators.

The hydraulic control block keeps the disc speed constant even when the oil supply fluctuates.

AXERA-H EMC can be driven with constant

current or load sensing tractor hydraulic systems.

Optionally, AXERA, as ISOBUS variant can, alternatively to QUANTRON-P, also be controlled directly via a universal terminal on the plant.

ISOBUS universal terminal

QUANTRON-P metering electronics

(8)

AXERA-performance data

Performance data Working width m Hopper volume l Maximum payload kg Filling height cm Hopper size cm Weight kg Model Total volume l Filling width cm Filling height cm Container size cm Weight kg AXERA-H EMC 12 – 42 1100 3500 95 250 x 115 400 B 713 1800 240 + 10 250 x 115 + 50 B 910 2000 240 + 30 250 x 115 + 50 B 1210 2300 240 + 42 250 x 115 + 70 GLB 1000 2100 270 + 30 280 x 115 + 65 GLB 1400

Possible extension combinations (up to max. 3200 l): B 910 + B 713, B 910 + B 910, B 1210 + B 713, B 1210 + B 910,

GLB 1000 + GL 700, GLB 1400 + GL 700

2500 270 + 43 280 x 115 + 80

Spreader discs

D4 H VxR 12 – 42 m

D5 H VxR 12 – 16 m suitable for boundary spreading

Required hydraulic connections (Hydraulic performance tractor): min. 45 l/min at 150 bar in continuous operation Constant current hydraulic system 1 dw control valve (lockable) and 1 fail-safe return flow

Load sensing hydraulic system 1 external LS connection, 1 power connection, 1 fail-safe return flow

Extensions and extension combinations

Standard equipment

- Electronic metering control EMC

- Dosing computer QUANTRON-P (not required with ISOBUS) - Hydraulic drive

- Lighting BLO 8

- Double spreader vanes with special coating - Connection category II / III

- Mudflaps

- Proportional DfC scale

- Slowly rotating star agitator (20 rpm) - Three-section filling screen

Option

- Boundary spreading device GSE 5 - Hopper extensions

- Tarpaulin - Parking rollers - Pressure filter

(9)

Decisive Factors for Successful Fertilising

Maximum Flexibility in Practice

The hydraulic drive enables outstanding spreading precision and remote controlled, exact boundary, edge or wedge spreading option-ally on the right or left without having to alight or stop.

High Profitability

The engine speed of the tractor can be selected as cost-saving. All working widths between 12 and 42 m are performed precisely with only one pair of spreader discs.

Increased Precision with EMC

EMC means convincing metering precision without a calibration test through two automatic online control systems both on the right and left-hand side. This means that the metering volume on each slide opening is controlled separately and corrected if required.

Ease and Comfort in Operation

and a large, clear display is offered by QUANTRON-P. At the press of a button, all functions can be selected from the tractor's cabin for the hydraulic spreading system, the EMC metering electronics and the operating data documentation. The logical structure of the menu guide allows working securely, stress-free in hard practical applications.

Boundary and edge spreading in accordance with European environmental standards

Perfect, clean limited edge and boundary spreading patterns through the combined speed and feeding point adjustment.

More percussive force through double spreader vanes

High flow volumes, i.e. even in the case of large working widths high travelling speeds are possible, e.g. 440 kg /ha KAS, 36 m working width, travelling speed 15 km/h.

Fertiliser-Friendly Agitators (20 rpm))

Guide even pressure-sensitive fertiliser granulates from the hopper into the double spreader vane up to the field with extra care. High quality bearings, seals and the stainless steel agitator shaft

ensure operational safety without maintenance. The agitators switch off automatically in the foreland when the slides are closed.

Reduced spreader vane wear

Standard, high quality VxR coated double spreader vanes extend service life considerably.

Easy and quick cleaning

Good access to all components and generous amounts of space make light work of cleaning and maintenance tasks.

Optimum corrosion protection

The high-quality paint, based on two-pack epoxy resin, the high proportion of stainless steel used and the use of UV-stabilised plastics protect against rust and help retain value.

(10)
