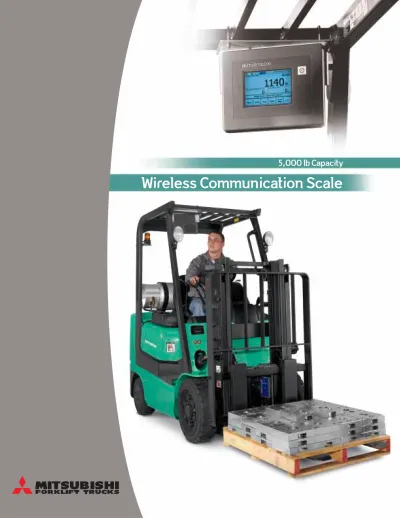

Wireless Communication Scale
5,000 lb Capacity
Scale Up Productivity
In today’s fast-paced business climate, every ounce matters. Inaccurate or estimated weights can add up to serious lost revenue. For years, the only scales available to the forklift industry often complicated forklift operation, compromised operator visibility, and required expensive, off-site maintenance. No longer.
Our legal-for-trade, wireless scale delivers robust functionality, intuitive control, and real-time data collection—without weighing down your budget in operating costs or your operators in complexity. The result of a collaboration between industry leaders METTLER TOLEDO®and Mitsubishi Forklift Trucks, this compact
integral scale is the first of its kind to feature radio frequency (RF) communication, eliminating wires that can lead to costly repairs. Not only is it the most consistent product on the market, it also arrives direct from the factory, integrated in the carriage, per your specifications.
Compare our scale to others, and we’re sure you’ll agree: it’s worth its weight in gold.
Standard Features
• • • • • • • • • • Legal-for-tradeWireless communication - Scale and terminal Accurate and repeatable - 5 lb to 5,000 lb Ergonomic
Easy to Use Durable
Upgradeable software and hardware Wireless networking capability Easy to service in the field Factory-direct
4
Factory-Direct For Easy Setup
And Support
Unlike most other forklift scales, this scale arrives installed and calibrated, and fully backed by Mitsubishi Forklift Trucks and your local Mitsubishi forklift truck dealer. Setup is as easy as selecting your location on the color display terminal. After-market technical support is also provided by your local Mitsubishi forklift truck dealer.
Durability You Can Rely On
Our scale works in a range of high-cycle applications without needing routine adjustments. The terminal’s wireless communication design, strategic positioning and 60,000 lb rated Flexure system enhance durability.
Technology You Can Trust
This innovative scale incorporates the most advanced wireless technology available. It is both highly accurate and highly repeatable, and you can add attachments without affecting weighing accuracy.
You can also download data the way you need it: via Ethernet, serial, USB, or PCMCIA expansion slot. Choose from a range of real-time data collection and wireless networking opportunities. This saves you time and cost by eliminating manual paperwork, data input errors, and allowing you to accelerate invoicing cycles.
This is the first forklift scale terminal with an operating system capable of being upgraded in the field. Future enhancements to its Microsoft Windows®-based system,
new drivers for bar code scanners, or emerging technologies such as RFID can easily be incorporated.
The elimination of cables between the carriage and the terminal helps minimize maintenance costs and downtime.
Taking Serviceability
To A New Level
Software service tools assist with routine
maintenance, and log files simplify troubleshooting. Technicians can look directly at sensor outputs, radio communications, systems setup and more. Errors are explained easily on the terminal.
Pr
oducti
6
The user-friendly terminal features a large, high-resolution color display screen that is easy to read and understand.
Easy To Use - Hard To Bump
One shift with this scale, and your operators will wonder how they ever worked without it. A Windows®-based
touch-screen and one-push-button functionality make the interface as easy to use as a cell phone, eliminating the need for a keyboard. The terminal is also strategically placed to avoid interference with the operator.
See The Difference Good
Visibility Makes
Operator visibility is an issue we don’t take lightly. Our scale’s integral carriage mount and the terminal’s slim, cable-free design provide good visibility for your operator.
Recover Lost Revenue
With our scale, your operators can quickly and easily check skid weights, comparing actual shipment weight to estimated weights supplied by your customers. Invoices can be adjusted accordingly, generating additional revenue and paying you back quickly for your investment.
R
Specifica
SPECIFICATIONS
SAFETY STANDARDS
These trucks meet American Society of Mechanical Engineers (ASME) B56.1, part III Safety Standards for powered industrial trucks. UL-Classified by Underwriters
SCALE CARRIAGE
Type Fits ITA class II carriage Size 36 in wide x 22 in high Scale Capacity 5000 lb
Readability 5 lb Legal, 1 lb Commercial
Load Cells (2) Stainless Steel hermetically sealed Chain Sensors, 5000 lb Capacity (2) Stainless Steel hermetically sealed Mast Sensors, 1250 lb Capacity
Electronics 7 channel high speed data acquisition module with up to 1 part in 500,000 resolution. Integrated dual channel inclinometer. (1) 915 MHZ, 130 channel radio used to communicate with scale terminal
Power Rechargeable NiMH battery pack with 40 hour life (includes two batteries and one charger)
TERMINAL
Enclosure Nema 4X Cast Aluminum Alloy Power 12 VDC, 1 Amp
Display 5 inch, Color TFT, with touch screen Data Input Touch screen display
Memory 64K RAM (expandable), 32K Compact Flash (expandable) Processor Pentium Class 300 MHz
Serial Interfaces (2) RS-232 (2) USB (1) Keyboard (1) Mouse Network Interfaces (1) Ethernet
Scale Link (1) 915 MHz, 130 channel radio used to communicate to load cell and sensor network Expansion Slot (1) PCMCIA (Soon available with 802.11 lb wireless network radio for real time data capture) Operating System Windows®CE.NET Version 4-2 or later
Operating Temperature -20C to +45C at 10% to 95% relative humidity, non-condensing
APPROVALS
UL, Cul, FCC, NTEP
Development Team
This revolutionary scale is brought to you by two proven market leaders, Mitsubishi Forklift Trucks and METTLER TOLEDO, a global supplier of precision instruments and the world’s largest manufacturer of industrial weighing equipment. Both companies are committed to total quality, product excellence and technological innovation —so you can be sure of a sound investment.
10
Ask For A Demonstration
Discover how innovative Mitsubishi forklift trucks can handle your applications and complement the way your operators work. Ask your Mitsubishi forklift truck dealer for a demonstration.
Wireless Communication Scale
5,000 lb Capacity
