Features and Benefits
Traffic rates up to 800 TCAP transactions per second, or 450 ISUP or TUP calls per second Supports up to 16,384 simultaneous transactions in TCAP, INAP, GSM-MAP, or IS41-MAP Supports up to 16,384 circuits in ISUP
Up to 12 SS7 signaling links in 12 linksets
Intel®2U carrier grade NEBS-3/ETSI carrier grade server Connects to up to 32 application hosts over IP
Dual fault-resilient configurations
Dual redundant hot-swap power supply option
Supports SS7 protocols, including: MTP, ISUP, TUP, SCCP, TCAP, INAP, GSM-MAP, and IS41-MAP Supports many local protocol variants, including ANSI, ITU, ETSI, UK, France, China
Includes driver for Linux*, Windows* 2000, Windows NT* operating systems-based application hosts
Applications
SS7 service node creation, including
■ Wireless nodes — short message service center (SMSC), home location register (HLR), roaming gateways
■ Wireless short messaging service (SMS) platforms/gateways
■ Intelligent Networking service control point (SCP), IP
■ Voice-activated dialing (VAD), voice portal, interactive voice response (IVR) or voice mail systems
Intel in Communications

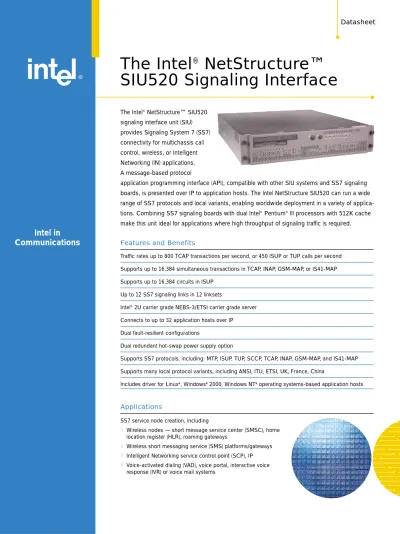

The Intel®NetStructure™ SIU520 signaling interface unit (SIU) provides Signaling System 7 (SS7) connectivity for multichassis call control, wireless, or Intelligent Networking (IN) applications.
A message-based protocol
application programming interface (API), compatible with other SIU systems and SS7 signaling boards, is presented over IP to application hosts. The Intel NetStructure SIU520 can run a wide range of SS7 protocols and local variants, enabling worldwide deployment in a variety of applica- tions. Combining SS7 signaling boards with dual Intel®Pentium®III processors with 512K cache make this unit ideal for applications where high throughput of signaling traffic is required.
The Intel ® NetStructure™
SIU520 Signaling Interface
SIU Architecture
The Intel NetStructure SIU520 provides access to all layers of the SS7 stack from MTP3 upwards. A driver on the application host sends and receives API messages over IP to and from the SIU. This architecture frees the application hosts to concentrate processor and memory resources on the application, making it ideal for high-performance distributed systems.
Distributed Transaction Server
The Distributed Transaction Server (DTS) module lets TCAP instances run on multiple application hosts. Routing to the hosts may be on an SCCP subsystem number (SSN) or TCAP transaction ID, letting hosts run different TCAP-user protocols such as GSM-MAP or INAP on different appli- cation hosts, and ensuring that transactions are traced back to the appropriate host.
DTS allows for greater flexibility in system design, tailoring the loading of system elements to the particular application. TCAP and other application host binaries must be purchased separately.
System Resilience
Two Intel NetStructure SIU520s can be configured to share the same SS7 point code, providing fully resilient operation within a single point code. In normal operation, signaling can be load- shared across the two units. If one unit fails, the remaining unit handles all signaling.
2
Application Hosts
Ethernet SIU520 Pair
Single Linkset SS7 Links
The Intel
®NetStructure™ SIU520 Signaling Interface Unit
Datasheet
Technical Specifications**
Intel
®NetStructure™ SIU520 Signaling Interface Unit
CapacitySlots per chassis 3
Physical links per unit
T-1/E-1 Up to 6
V.11 (V.35 compatible) Up to 6 SS7 links per unit 4, 8, or 12 SS7 linksets per unit 4, 8, or 12 Max. call control (ISUP) 450 calls/second Max. TCAP transactions/second 800
Number of hosts supported 32
Hardware
LAN interface 2 x 10/100 MB Ethernet
Line interface: CEPT E-1 (balanced)
Electrical 120 Ohms
Connector RJ-45
Bit rate 2.048 Mb/s
Line interface: T-1
Electrical 100 Ohms
Connector RJ-45
Bit rate 1.544 Mb/s
Line interface: Serial
Electrical V.11 (V.35 compatible)
Connector D-type (26-pin high density)1
Bit rate 4.8 Kb/s to 64 Kb/s
Power
DC supply –38 Vdc to –75 Vdc (nominal –48 Vdc to –60 Vdc)
AC supply 100 Vrms to 127 Vrms
200 Vrms to 240 Vrms
Frequency 47 Hz to 63 Hz
Maximum power 250 W fully equipped
Physical Dimensions
Enclosure 2U high in a standard DIN 41494 (19 in./482.21 mm) rack All cabling is at the rear
Height: 3.5 in. (89 mm) Width: 17.5 in. (445 mm) Depth: 20 in. (508 mm)
Environmental
Operating temperature +5° C to +40° C Storage temperature –40° C to +70° C
4
Technical Specifications**
(cont.)MTBF
Bellcore* Method @ 40º C 35,900 hours (1 signaling card and single psu configuration).
Software
Host system requirements Microsoft Windows* 2000, Microsoft* Windows NT, Linux
The Intel
®NetStructure™ SIU520 Signaling Interface Unit
Datasheet
1 Standard rear transition is 2 ×V.35 and 8 T-1/E-1. An alternative rear transition card with 4 ×V.35 is available.
