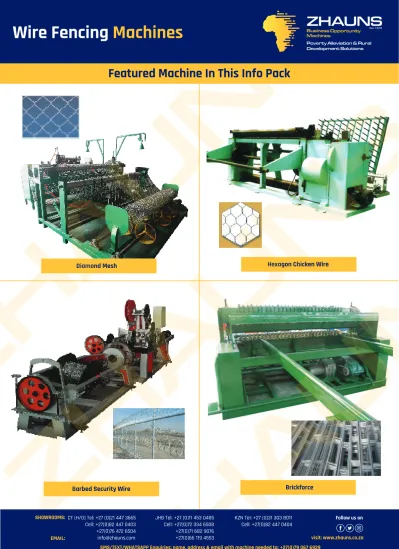

Wire Fencing Machines

(1)

Diamond Mesh Hexagon Chicken Wire

Barbed Security Wire Brickforce

Wire Fencing Machines

Featured Machine In This Info Pack

SMS/TEXT/WHATSAPP Enquiries: name, address & email with machine needed to: +27(0)79 067 6929

*Subject to change/enquire Errors and Omissions excluded (E.&O.E.) *Picture for illustration purposes only; Model & Design may vary CT (H/O) Tel: +27 (0)21 447 3665

Cell: +27(0)82 447 0403 +27(0)76 472 6504 [email protected]

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

KZN Tel: +27 (0)31 303 8011 Cell: +27(0)82 447 0404 SHOWROOMS:

EMAIL:

Follow us on visit: www.zhauns.co.za

(2)

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

EMAIL:

Follow us on visit: www.zhauns.co.za Tennis Court/ Chain Link Fence

Makes Diamond Mesh Fully Auto

2M Wide - SEE PRICE LIST (can make any size up to 2m)

- SEE PRICE LIST 2.5M Wide

(can make any size up to 2.5m) 3M Wide - SEE PRICE LIST (can make any size up to 3m) 4M Wide - SEE PRICE LIST (can make any size up to 4m)

The mesh is widely used in:

•Farmland,

•Boxes for animal buildings,

•Sport Fencing etc.

Specs for 2.5M Wide machine:

Model: 2.5

Mesh size: 2 inch (50.8mm) Wire diameter: 1.6mm - 4.0mm Mesh width: 2.5mm

Motor: 2.2kw Weight: 4t

Size: 4.7 x 1.0 x 1.65m

Speed of production: Up to 50m²per hour

1 Sqm of tennis court fencing requires +/- 27.88 meters of wire (75x75mm)

Wire Fencing Machines

Make Hexagon/Chicken Wire

Width of main machine: 2.5m Mesh size: 2 inch/ 3 inch Power: 3.0kw

Dimensions: 4650x1980x1450mm Weight: 3.25ton

Speed: 80m/hour

Brickforce Machine

Various models available

Tennis Court/ Chain Link Fence

Makes Diamond Mesh Fully Auto

- - -

4M Wide - LIST 2.5

*Subject to change/enquire Errors and Omissions excluded (E.&O.E.) *Picture for illustration purposes only; Model & Design may vary

Wire Diameter: 1.5 – 2.5mm Width or Weld: 1000mm Wire Form: Coil Speed: 50-60times/min Power: 120Kva Weight: 1.5 Ton

(3)

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076

EMAIL:

Follow us on

visit: www.zhauns.co.za SMS/TEXT/WHATSAPP Enquiries: name, address & email with machine needed to: +27(0)79 067 6929

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

EMAIL:

SCREEN WIRE DIAMETER 2.5 - 3mm 2 - 2.5 mm 1.6 - 1.8 mm 3, 4, 5 & 6 inches

Low Carbon Steel Wire, Thermo-plated with Zinc

1500 kg 3 Kw MAIN WIRE DIAMETER

BARBED FORMING WIRE DIAMETER BARB PITCH

WIRE MATERIAL TOTAL WEIGHT MOTOR POWER

MAIN DRIVE SHAFT SPEED 402 r/min 76 - 150 mm 3.5 Pc 70 Kg/n

195 X 95 X 130 cm 176 X 55 X 76 cm THORN DISTANCE

TWIST NUMBER THEORETICAL YIELD DIMENSION OF MAIN PART Dimension of Take-Twisting part

SPECS COULD VARY

Wire Fencing Machines

Make Barbed/ Security Wire

GENERAL

The material used are general hot plated low carbon steel wire & plastic coated wire.The products are widely used in national defense, railway, agriculture, animal husbandand other industries.

(4)

*Subject to change/enquire Errors and Omissions excluded (E.&O.E.) *Picture for illustration purposes only; Model & Design may vary*Subject to change/enquire Errors and Omissions excluded (E.&O.E.) *Picture for illustration purposes only; Model & Design may vary

Razor Barbed Wire

Punched barbed wire machine:

Model: 9-strip

Voltage: depending on customers requirement Power: 4.5KW

Production speed: (220-280)m/h*9 Pressure: 63 Ton

Weight: 2200kgs

Blade thickness: Max. 0.5 +-0.05mm Dimensions: 1100x1000x2000mm Coiling machine:

Power: 1.5KW

Wire diameter: Max. 2.7mm Production speed: 80kgs/hr Weight: 300kgs

Dimensions: 1100x750x1200mm

Wire Fencing Machines

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

EMAIL:

(5)

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

EMAIL:

Follow us on visit: www.zhauns.co.za Example of finished welded wire sheet with bend

Wire Fencing Machines

Model; EHW-5-1

Welded Wire Fencing Machine

Wire Bending Machine

Wire diameter: 3-6mm Mesh size: 100x10-200x200mm Welding Width: 3050 mm

Line Wire Pre-cut using the wire straightening and cutting machine

Feeding Line wire automatically

Cross wire Pre-cut using the wire straightening and cutting machine

Pulling mesh Using servo motor cycle cable Cross wire dropping Electric dropping wire system Main motor Using frequency control brake Transformer: 6x160KVA

Welding speed: 55times/min Welding electrodes: 31 System PLC control system Voltage According to your need Cooling system water cooling system Dimension of the machine: 5.5x3.5x1.9m Machine Weight: 3.5tons

Wire straighten and cutter machine 2 set

(6)

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

EMAIL:

SPEC IF IC ATIONS:

M O D EL : : P O W ER

: V O LTA G E

: EFFICIEN CY

: IN N ER W IRE D IA M ETER ED GE W IRE D IA M ETER :

: W EIG H T

: D IM EN S IO N

ITK - 16 5 2 .5 k w 7

3 8 0 V

4 5 ro w s/m in

Ø 1 .8 - 2 .5 m m Ø 1 .8 - 3 .5 m m 3 To ns.4

3 . 2 x 3 .0 x 2 .4 m

Wire Fencing Machines

Cattle Fencing Machine

**Up to: *200 Sq.m per day for:**

Height of: 1194mm

(For higher

please enquire)

(7)

15/09/2021 - PRICES VALID FOR 3 MONTHS

Prices subject to change -

All prices Excl. VAT

Date:

Price List

JHB Tel: +27 (0)11 453 0485 Cell: +27(0)72 334 6508 +27(0)71 682 9076 +27(0)66 119 4553

EMAIL:

Wire Fencing Machines

Diamond Mesh Hexagon Chicken Wire

Barbed Security Wire Brickforce

Wire Fencing Machines

Featured Machine In This Info Pack

Makes Diamond Mesh Fully Auto

The mesh is widely used in:

Wire Fencing Machines

Make Hexagon/Chicken Wire

Brickforce Machine

Various models available

Makes Diamond Mesh Fully Auto

Wire Fencing Machines

Make Barbed/ Security Wire

GENERAL

Razor Barbed Wire

Wire Fencing Machines

Wire Fencing Machines

Welded Wire Fencing Machine

Wire Bending Machine

Wire Fencing Machines

Cattle Fencing Machine

**Up to: *200 Sq.m per day for:**

Height of: 1194mm

(For higher

please enquire)

15/09/2021 - PRICES VALID FOR 3 MONTHS

Prices subject to change -

Date:

Price List

Diamond mesh fully auto up_to_4M_Wide R 799 999.00 $53 299.00 Barbed_security wire double_twist R 299 999.00 $19 999.00

Hexagon_chicken wire R 949 999.00 $63 299.00

Brickforce machine R 449 999.00 $29 999.00

Cattle field fencing R 599 999.00 $39 999.00

Welded Wire fencing R 749 999.00 $49 999.00

Welded Wire bending machine 3M Wide R 399 999.00 $26 699.00

Razor barbed wire machine 2300kg_24h R 749 999.00 $49 999.00
