EE 242 EXPERIMENT 5: COMPUTER SIMULATION OF THREE-PHASE CIRCUITS USING PSPICE SCHEMATICS
1Objective:
To build, simulate, and analyze three-phase circuits using OrCAD Capture Pspice Schematics under balanced and unbalanced conditions, and to understand the characteristic of 3-phase power transmission circuits.
Prelab:

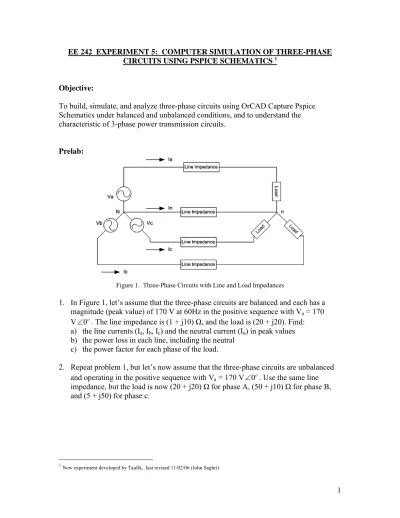

Figure 1. Three-Phase Circuits with Line and Load Impedances
1. In Figure 1, let’s assume that the three-phase circuits are balanced and each has a magnitude (peak value) of 170 V at 60Hz in the positive sequence with V
a= 170 V ∠ . The line impedance is (1 + j10) Ω, and the load is (20 + j20). Find: 0
oa) the line currents (I
a, I
b, I
c) and the neutral current (I
n) in peak values b) the power loss in each line, including the neutral
c) the power factor for each phase of the load.
2. Repeat problem 1, but let’s now assume that the three-phase circuits are unbalanced and operating in the positive sequence with V
a= 170 V 0 ∠ . Use the same line
oimpedance, but the load is now (20 + j20) Ω for phase A, (50 + j10) Ω for phase B, and (5 + j50) for phase c.
Background
Electronic circuit design requires accurate methods for evaluating circuit performance.
Because of the enormous complexity of modern integrated circuits, computer aided circuit analysis is essential and can provide information about circuit performance that is almost impossible to obtain with laboratory prototype measurements.
Computer Simulations are used in industry to shorten the overall design process, since it is usually easier to study the influence of a parameter on the system behavior in simulation, as compared to accomplishing the same in the laboratory on a hardware breadboard.
Cadence Pspice is software that allows you to perform circuit analysis by literally drawing the schematic of the circuit, and therefore can provide an intuitive insight of the circuit. Numerous circuit analysis tasks can be done using Cadence Pspice such as time domain analysis, dc sweep and ac sweep. In this experiment, we will learn how to build the schematic of three-phase circuits and then perform the time domain analysis on them using the Cadence Pspice.
Getting Started With Capture Pspice
• Turn on the PC and under the “Start” menu in Windows, find “Cadence SBP 15.7”
program and select “Design Entry CIS”. Ignore the TLK0015 warning message that appears by clicking on “ok”. From the menu that appears next, choose” Allegro PCB Design CIS L”
• In the next window, select “PCB Design Studio with Capture CIS” and then hit OK.
See Figure 3.
Figure 3. Selection window at the start of the program
• You should now see “Capture CIS” main window. Go “File” on the menu and select
“New” and then “Project” as shown in Figure 4.
Figure 4. Opening up a new project
• The “New Project” window should appear by now as shown in Figure 5. The default choice is “Schematics”. Please change this and select “Analog or Mixed A/D”
instead. Then, assign a name to your new project, and specify where you want to save the associated files. Hit the “Browse” button if you want to store the files in another directory or path.
• A small window “Create Pspice Project” pops up. Select the “Create a blank project”
option as shown in Figure 6.
• You should now see the main Schematic window on your screen as shown in Figure 7. You are now ready to draw the schematic of your circuit.
Figure 5. New Project window
Figure 6. Create Pspice Project window
Figure 7. The main Schematic Window
Procedure:
1. Three-Phase Balanced Circuits
a. Build the three-phase circuits of Figure 1 onto the Schematic window
b. To get parts, click button on the right hand side menu. Alternatively, you could also get parts by going to the top menu, click on Place, and then select
“Part” as shown in Figure 8.
Figure 8. Getting the parts for the Circuit Schematic
c. If no library is shown on the Place Part window, then you will have to manually add the library by clicking the “Add Library” button (see Figure 9). Look for a library called “Source” and click on it (see Figure 10). The “SOURCE” library should now be listed on the “Place Part” window.
Figure 9. The Place Part window
Figure 10. Obtaining a particular library
d. The three-phase voltages are made up of three ac sinusoidal single-phase voltage sources as shown in Figure 11. Use “Vsin” under the “SOURCE” library to build the three-phase voltages. Once the Vsin part is on the schematic, double click on it to assign its parameter values:
AC=0 DC=0 FREQ=60 PHASE=0 VAMPL=170 VOFF=0 Note that the other two Vsin voltages should have the same parameter values as above except their phases (for V2 and V3) should be -120
oand + 120,
respectively (assuming the phase sequence is positive).
Figure 11. Three-phase Voltage sources
e. Passive components such as Resistor, Inductor, or Capacitor can be found under the “ANALOG” library. For the given impedances in the Prelab part 1, determine the resistor and inductor values. These are the values that you will need to assign for the Resistors and Inductors on the schematic.
Figure 12. Three-phase Voltage sources
f. Connect a “0/source” ground to the neutral points (node n and N in Figure 1). The ground can be obtained by clicking on the right side bar menu, and then select
“0/SOURCE” in the “Place Ground” window as shown in Figure 13 below.
Figure 13. Selecting the Ground
g. Place one “0/SOURCES” ground on the schematic as shown in Figure 14
Figure 14. Putting passive components
h. Connect all the components with wire using the on the right bar menu, or alternatively the wire can also be obtained by going to “Place” on the top menu and then select “Wire”. Do not assume that Pspice will always automatically place a connecting wire between two components if you move them close to each other. It is advisable that you actually see the connecting wire between the
components.
Figure 15. Wiring the components
i. After the schematic is done, go to “Pspice” on the top menu, and select “New Simulation Profile”. A window appears asking you to name the simulation profile.
Type in any name, but preferably something that relates to your schematic, such as “three-phase”. Then, hit OK and the following window appears.
Figure 12. Simulation Setting window
j. Enter the following values for the simulation settings and then hit OK:
Run to time=1050ms, Start saving data after=1000ms, Maximum step size=0.1ms
Check the box for the “Skip the initial transient bias point calculation (SKIPBP)”
k. Run Pspice Simulation by selecting “Run” under “Pspice” on the menu. Once the simulation is completed, a Probe window will appear as shown in Figure 13.
However, if there is an error or more on your schematic then the simulation will stop. You should then go back to the schematic page and trouble-shoot the schematic.
l. To show various waveforms (voltage, current, power) from the schematic, go back to the schematic window and then place the markers or probes to any place of your interest on the schematic. The probes are located just below the top menu and there are four probes available: voltage (V) , voltage differential (V+V-) , current (I) and power (W). Note that you should run your
simulation again every time you add or remove probes.
m. To observe the input voltage waveforms, place the Voltage markers on top of each Vsin symbol on your schematic. This will automatically generate the
waveforms on the Probe window. Switch to the Probe window and you should see the waveforms of balanced three-phase voltages as shown in Figure 14. Copy and paste the plot into Word by going to “Window” and then “Copy to Clipboard”.
To save ink on the printer select the following items in the “Copy to Clipboard- Color
Filter” probe window as shown below. Load a new document in Microsoft Word and
then paste the plot.
Figure 13. The probe window (note that your probe window will start from 1000 ms instead of 0 ns shown in this graph)
Figure 14. Three-phase voltage waveforms
n. Remove voltage probes for Phase B and Phase C from the schematic, and add a current probe into Phase A. See Figure 15.
o. Switch back to the Probe Window, you should now see the Phase A voltage and the line current A as shown in Figure 16.
L1a
R2
R2a
Rn L1
L2a
L3 R3
R3a V
I R1a
L3a V1
FREQ = 60 VAMPL = 170 VOFF = 0
0
V2 FREQ = 60 VAMPL = 170 VOFF = 0
Ln L2
V3
FREQ = 60 VAMPL = 170 VOFF = 0
R1
Figure 15. Voltage and current probes or markers on Phase A
p. Rescale the current waveform by a factor of 10 to see the current waveform more clearly. This is done by double clicking the name of the current waveform (I(R1) in Figure 16), a new window will appear. In the text box titled “Trace
Expression”, you should see the name of the current waveform. Multiply the waveform by 10 by typing *10 following the name of the waveform. See Figure 17. Click on the OK button, and the current waveform should now be more visible as shown on Figure 18.
Figure 17. Voltage and current waveforms on the Probe Window
q. Zoom in to the zero crossings (i.e., crossing of the waveform with the x-axis) of the voltage and current waveforms at a appropriate location similar to the area highlighted in the Figure 19 below. Use the “Zoom Area” function provided in the probe window. The “Zoom Area” is located on the upper left corner of the probe window. Click on and select an area around the adjacent zero crossing of both waveforms (both waveforms should be either rising or falling). Figure 20 shows the resulting plot after the area is zoomed.
Figure 19. Voltage and current after rescaling the current waveform
Figure 20. Voltage and current after rescaling the current waveform
r. To determine the times when these zero crossings occur, you may use the cursors
of left click and right click of your mouse. At this point, the two cursors should be on one of the waveforms. To find out which waveform the cursors are currently on, look at the names of the waveforms (bottom left of the plot). If the legend of the waveform is surrounded by a square then the cursors will be assigned to the waveform. Also, if you look at the bottom right of the plot, you should also see a small window entitled “Probe Cursor” which shows the location of the cursors (x and y coordinates) on the plot. See Figure 21.
Figure 21. Zooming in to the zero crossing points
