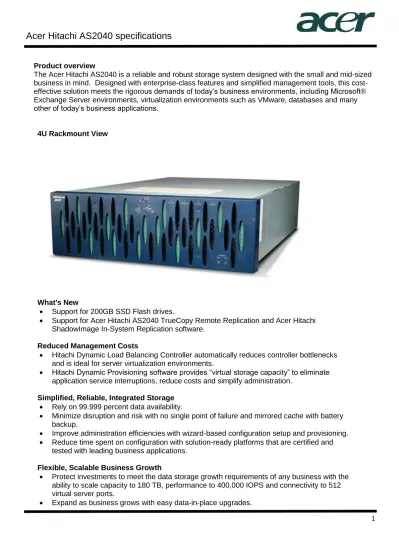

Acer Hitachi AS2040 specifications
Product overview
The Acer Hitachi AS2040 is a reliable and robust storage system designed with the small and mid-sized business in mind. Designed with enterprise-class features and simplified management tools, this cost-effective solution meets the rigorous demands of today’s business environments, including Microsoft® Exchange Server environments, virtualization environments such as VMware, databases and many other of today’s business applications.
4U Rackmount View
What's New
Support for 200GB SSD Flash drives.
Support for Acer Hitachi AS2040 TrueCopy Remote Replication and Acer Hitachi ShadowImage In-System Replication software.
Reduced Management Costs
Hitachi Dynamic Load Balancing Controller automatically reduces controller bottlenecks and is ideal for server virtualization environments.
Hitachi Dynamic Provisioning software provides “virtual storage capacity” to eliminate application service interruptions, reduce costs and simplify administration.
Simplified, Reliable, Integrated Storage
Rely on 99.999 percent data availability.
Minimize disruption and risk with no single point of failure and mirrored cache with battery backup.
Improve administration efficiencies with wizard-based configuration setup and provisioning.
Reduce time spent on configuration with solution-ready platforms that are certified and tested with leading business applications.
Flexible, Scalable Business Growth
Protect investments to meet the data storage growth requirements of any business with the ability to scale capacity to 180 TB, performance to 400,000 IOPS and connectivity to 512 virtual server ports.
2
Acer Hitachi AS2040 specifications
Compliance and Data Protection
RAID-6 ensures high availability and protection where any two drives can fail without the loss of data.
Hi-Track® Monitor for 24/7 diagnostics keeps potential issues from becoming problems.
Within-system volume replication or incremental copies.
Flexible sparing eliminates the need to copy back after a RAID group rebuild.
Audit logging tracks all system changes.
Hitachi Data Retention Utility software protects data from overwrites.
PRODUCT SPECIFICATIONS Physical Characteristics
Raw Capacity SATA: 180 TB
SAS: 180 TB
Internal Disk Drives 300 GB SAS (15K RPM)
600 GB SAS (15K RPM) 2 TB SAS (7200 RPM) 1 TB SATA2 (7200 RPM) 2 TB SATA2 (7200 RPM)
Internal Flash Drives 200 GB SAS Flash SSD
Host interfaces
Fibre Channel: 8 Gb/s iSCSI: 1 GbE
Minimum/Maximum number of disk drives
5-90
Maximum number of flash SSD drives
30
Number of disk drives per tray 15
Maximum number of expansion trays 5
Maximum configuration 1 base unit + 5 expansion trays (90 drives)
Number of controllers 2
Maximum host connections (per controller)
2 Fibre Channel or 2 iSCSI or
2 Fibre Channel and 2 iSCSI
Controller cache (per controller) 2 GB
Maximum attached hosts through virtual ports (per controller)
256
Backend SAS links (per controller) 8
3
Acer Hitachi AS2040 specifications
Maximum LUN size 60 TB
Note: All capacities are based on 1 GB = 1,000,000,000 bytes; 1 TB = 1000 GB.
RAID Support
Supported RAID levels RAID 0 (SAS only)
RAID 1 RAID 1+0 RAID 5 RAID 6
Maximum number of RAID groups 50
Availability
Non-disruptive component replacement
Major FRU
Non-disruptive hot-pluggable disks Yes
Non-disruptive microcode updates Yes
Call home service Hi-Track® Monitor
Software
Management software Hitachi Storage Navigator Modular 2
LUN change ownership LUN Manager
Online LUN grow/LUN shrink Yes
Online RAID group expansion Yes
Dynamic storage tuning to move data between RAID groups
Modular Volume Migration software
Role based system security Account Authentication and Audit Logging
Host storage domains Virtual Storage Ports, Multiple LUN0/port
Cache binding Hitachi Cache Residency Manager
Logical cache partitioning Hitachi Cache Partition Manager
Storage management security SSL/TLS
Maintenance port security SSL/TLS
SNMP agent support Yes
4
Acer Hitachi AS2040 specifications
Technical specifications
Dimensions (approximate) 25.6 (L) x 19.0 (W) x 6.9 (H) inches (64.9 x 48.3 x 17.4 cm)
Form Factor 4U
Weight (approximate) of base unit 110 lbs (50 kg)
Electrical specifications
Volts AC 100/200 (89 to 127/178 to 254)
Frequency (Hz) 50/60 +/- 1
Number of Phases, Cabling Single phase plus ground (3 wire)
Steady-state Current (amps)1,2 3.8 x 2 / 1.9 x 2
Breaking Current (A) 16.0
Heat Value (kJ/h) 2,670 or less
Required Power3
Steady State Current (VA/W) 760/740 or less Starting State (VA/W) 760/740 or less
Electrical Insulation Performance
Insulation Withstands Voltage AC 1,500 V (10 mA, 1 min) Insulation Resistance DC 500 V, 10 MΩ or more
1
The power current of Nx2 described in this table is required for operation by a single power supply unit. 2
When one of the two power supply units fails, the other power supply provides the total power to the unit that the two supplies together did before the failure. The operating power supply therefore draws the same current as the two supplies did before the failure. To make sure that either power supply can operate in this manner, ensure that the PDUs in the rack can supply twice the normal power of the units plugged into it.
3
5
Acer Hitachi AS2040 specifications
Environmental specifications
Temperature
In operation (Celsius) In non-operation (Celsius) In transport/storage Temperature change rate
Humidity
In operation (%) In non-operation (%)
Maximum wet bulb temperature (Celsius) Vibration In operation (m/s2) In non-operation (m/s2) In transport (packed) (m/s2) Acoustic Noise (dB) 10 to 401 -10 to 50 -30 to 60 10 or less 8 to 802 8 to 903 29 (non-condensing)
2.5 or less (within 5 seconds) 5.0 or less (Resonance pt:10Hz or less)
5.0 or less 604
1
NEBS specification: 5°C to 40°C, -5°C to +55°C/16 hours. 2
NEBS specification: 5% to 85%. 3
NEBS specification: 5% to 100%. 4
Environmental temperature: 32°C or less. Measured in the A scale at the position one meter away from the front end of the array and one. The standard value may be exceeded when the maximum load continues under high temperature environment or when a failure occurs in one part of the system because the internal
6
Acer Hitachi AS2040 specifications
Optional Software
Thin provisioning Hitachi Dynamic Provisioning software
Remote copy (over IP and Fibre Channel networks)
Hitachi TrueCopy® Synchronous and Hitachi TrueCopy Extended Distance software
Point-in-time copy Hitachi ShadowImage® Replication and Hitachi Copy-on-Write Snapshot software
Backup Hitachi Data Protection Suite, powered by
CommVault®
Heterogeneous data replication Hitachi Dynamic Replicator software
Storage system based WORM data protection
Hitachi Data Retention Utility software
Performance troubleshooting Hitachi Tuning Manager software
Operating System Support
Microsoft® Windows® 2000 Microsoft® Windows® Server 2003 Microsoft® Windows® Server 2008 Microsoft® Hyper-V™
VMware Red Hat Linux
SUSE Linux Asianux
Oracle Enterprise Linux IBM® AIX®
HP-UX HP Tru64 UNIX
Oracle Solaris Apple MAC OS
Novell NetWare HP OpenVMS
IBM z/OS® (when externally attached to models of the Hitachi Universal Storage Platform® family)
7
Acer Hitachi AS2040 specifications
Service and support
Acer Servers offer a comprehensive service suite to take care of daily IT needs. Users can select the 3-year parts/labor/onsite standard warranty or choose extended warranties and services.
In a continuing effort to improve the quality of our products, information in this document is subject to change without notice. Images shown are only representations of some of the configurations available for this model. Availability may vary depending on region.
© 2011. All rights reserved.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
NOTE: Extension warranty services may vary by country. Please contact Acer authorized resellers for
8
Acer Hitachi AS2040 specifications
Acer Hitachi AS2040 Models Part Number
Base FC SAS
Acer Hitachi AS2040 4X8Gbps FC Storage System, Dual Controllers, 4GB cache, 5X300GB SAS HDDs, dual power cords, dual battery, rail kit, HiTrack® Monitor software, Storage Navigator Modular 2 software license,
documentation
TS.R7300.025
Performance FC SAS
Acer Hitachi AS2040 4X8Gbps FC Storage System, Dual controllers, 4GB cache, 5X600GB SAS HDDs, dual power cords, dual battery, rail kit, HiTrack® Monitor software, Storage Navigator Modular 2 software license,
documentation
TS.R7300.023
Performance 1GbE MP SAS
Acer Hitachi AS2040 4X8Gbps FC and 4X1GbE iSCSI Multiprotocol Storage System, Dual controllers, 4GB cache, 5X600GB SAS HDDs, dual power cords, dual battery, rail kit, HiTrack® Monitor software, Storage Navigator Modular 2 software license, documentation
TS.R7300.024
Base FC SATA
Acer Hitachi AS2040 4X8Gbps FC Storage System, Dual Controllers, 4GB cache, 5X1TB SATA HDDs, dual power cords, dual battery, rail kit, HiTrack® Monitor software, Storage Navigator Modular 2 software license,
documentation
TS.R7300.014
Performance FC SATA
Acer Hitachi AS2040 4X8Gbps FC Storage System, Dual Controllers, 4GB cache, 5X2TB SATA HDDs, dual power cords, dual battery, rail kit, HiTrack® Monitor software, Storage Navigator Modular 2 software license,
documentation
TS.R7300.015
Performance 1GbE MP SATA
Acer Hitachi AS2040 4X8Gbps FC and 4X1GbE iSCSI Multiprotocol Storage System, Dual controllers, 4GB cache, 5X2TB SATA HDDs, dual power cords, dual battery, rail kit, HiTrack® Monitor software, Storage Navigator Modular 2 software license, documentation
TS.R7300.020
Acer Key Options
Acer Hitachi SAS Hard Drives
Acer Modular 300 GB SAS 3.5” 15K RPM HDD TP.R4100.002 Acer Modular 600 GB SAS 3.5” 15K RPM HDD TP.R4100.156 Acer Modular 2 TB SAS 3.5” 7.2K RPM HDD TP.R4100.165
Acer Hitachi SATA Hard Drives
9
Acer Hitachi AS2040 specifications
Acer Hitachi SAS Flash SSD
Acer Modular 200 GB SAS Flash SSD TP.R4100.166
Acer Hitachi Modular Expansion Tray
Acer Hitachi Modular HDD Expansion Tray Bundle, 3U, holds up to fifteen 3.5” HDDs, rail kit, power cords
TP.R4100.027
Acer Hitachi AS2040 Software
Acer Hitachi AS2040 Dynamic Provisioning Software Bundle
NOTE: Thin provisioning software.
TP.R7400.001
Acer Hitachi AS2040 In-System Replication Software Bundle
NOTE: Volume-level mirrors and point-in-time snapshots. Includes
TP.R7400.005 + TP.R7400.006.
TP.R7400.004
Acer Hitachi AS2040 ShadowImage In-System Replication Software Bundle
NOTE: Volume-level mirrors.
TP.R7400.005
Acer Hitachi AS2040 Copy-on-Write Snapshot Software Bundle
NOTE: Point-in-time snapshots.
TP.R7400.006
Acer Hitachi AS2040 TrueCopy Remote Replication Software Bundle
NOTE: Synchronous remote copy.
TP.R7400.007
Acer Services
Acer Installation Service for AS2040
Telephone pre-delivery site survey conducted to confirm power,
location of Equipment, access and expectations
Telephone consultation to determine optimum configuration
Physical inspection for shipment damage
Physical connection of cable interfaces
Installation of any additional features and options, including
software enablement (functionality only)
Installation of resource and configuration management
program(s) using your PC
Consultation to determine optimum configuration and operation
Full and complete configuration of logical units (LUNs) to ensure
accessibility from each host system. Maximum five (5)
hosts/servers – five (5) LUNs per host/server
Installation, configuration and testing of Hi-Track
Confirmation of maintenance provisions and call handling
procedures
10
Acer Hitachi AS2040 specifications
Training: Basic handling of Equipment and configuration
NOTE: REQUIRED option when not purchasing an installation service from an authorized dealer.
Acer Hitachi AS2040 Upgrade from 3 years Parts/Labor/Onsite Maintenance to 5 years Parts/Labor/Onsite Maintenance
