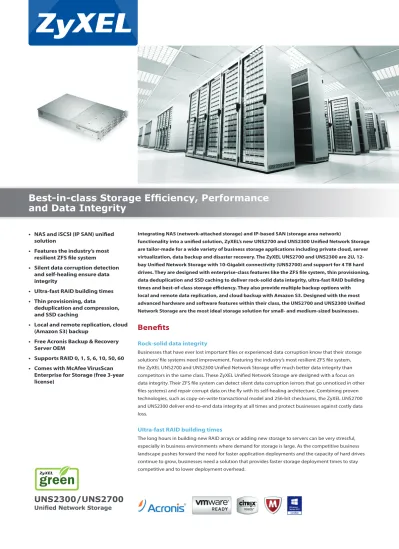

Best-in-class Storage Efficiency, Performance and Data Integrity

(1)

Integrating NAS (network-attached storage) and IP-based SAN (storage area network)

functionality into a unified solution, ZyXEL’s new UNS2700 and UNS2300 Unified Network Storage are tailor-made for a wide variety of business storage applications including private cloud, server virtualization, data backup and disaster recovery. The ZyXEL UNS2700 and UNS2300 are 2U, 12-bay Unified Network Storage with 10-Gigabit connectivity (UNS2700) and support for 4 TB hard drives. They are designed with enterprise-class features like the ZFS file system, thin provisioning, data deduplication and SSD caching to deliver rock-solid data integrity, ultra-fast RAID building times and best-of-class storage efficiency. They also provide multiple backup options with local and remote data replication, and cloud backup with Amazon S3. Designed with the most advanced hardware and software features within their class, the UNS2700 and UNS2300 Unified Network Storage are the most ideal storage solution for small- and medium-sized businesses.

Benefits

Rock-solid data integrity

Businesses that have ever lost important files or experienced data corruption know that their storage solutions’ file systems need improvement. Featuring the industry’s most resilient ZFS file system, the ZyXEL UNS2700 and UNS2300 Unified Network Storage offer much better data integrity than competitors in the same class. These ZyXEL Unified Network Storage are designed with a focus on data integrity. Their ZFS file system can detect silent data corruption (errors that go unnoticed in other files systems) and repair corrupt data on the fly with its self-healing architecture. Combining proven technologies, such as copy-on-write transactional model and 256-bit checksums, the ZyXEL UNS2700 and UNS2300 deliver end-to-end data integrity at all times and protect businesses against costly data loss.

Ultra-fast RAID building times

The long hours in building new RAID arrays or adding new storage to servers can be very stressful, especially in business environments where demand for storage is large. As the competitive business landscape pushes forward the need for faster application deployments and the capacity of hard drives continue to grow, businesses need a solution that provides faster storage deployment times to stay competitive and to lower deployment overhead.

• NAS and iSCSI (IP SAN) unified

solution

• Features the industry’s most

resilient ZFS file system

• Silent data corruption detection

and self-healing ensure data

integrity

• Ultra-fast RAID building times

• Thin provisioning, data

deduplication and compression,

and SSD caching

• Local and remote replication, cloud

(Amazon S3) backup

• Free Acronis Backup & Recovery

Server OEM

• Supports RAID 0, 1, 5, 6, 10, 50, 60

• Comes with McAfee VirusScan

Enterprise for Storage (free 3-year

license)

(2)

The ZyXEL UNS2700 and UNS2300 Unified Network Storage utilize advanced ZFS technology to deliver ultra-fast RAID building times that put competitors to shame. Compared to other solutions that use legacy file systems, the UNS2700 and UNS2300 offer significant performance improvements in building new RAID arrays, recovering from outages, and replacing hard drives. For example, it takes merely 1 minute for a UNS2300 to build a RAID 5 array with six (6) 1 TB hard drives, while a competitor running on a legacy file system will take over 3 hours to complete the same task. With the ZyXEL UNS2700 and UNS2300, users can literally have the storage up and running in less than 10 minutes.

RAID Initialization Comparison

Model File System Hard Drives Level Volume Size Build Time

ZyXEL UNS2300 ZFS 6 x 1 TB RAID 5 5 TB 1 min

Other brand EXT3 6 x 1 TB RAID 5 5 TB 3 hrs 3 mins 12 secs

Extraordinary storage efficiency

The ZyXEL UNS2700 and UNS2300 Unified Network Storage provide enterprise-class features like thin provisioning, data deduplication and compression, and SSD caching to optimize disk utilization and storage efficiency.

• Thin provisioning allocates storage capacity dynamically, which maximizes the utilization of available storage and minimizes wasted storage space. The result is much improved disk utilization and more flexible resource management.

• Data deduplication and compression allow businesses to get the most out of their available storage space. It reduces data volume and eliminates duplicate copies of repeating data. This function allows the ZyXEL UNS2700 and UNS2300 to save up to 90% storage space*1_.

• SSD caching can vastly improve deduplication and synchronous write speeds to provide faster data backup, database and NFS applications. Each storage pool supports up to 4 SSDs for read cache and 2 SSDs for write cache. Test results show that SSD caching boosts data backup throughput with deduplication enabled by up to 210% and synchronous write IOPS (input/output operations per second) by up to 310%.

Complete backup solution

The ZyXEL UNS2700 and UNS2300 Unified Network Storage offer a complete backup solution to fulfill every backup demand of small- to medium-sized businesses. They provide multiple backup options including local file and volume cloning, remote file and volume replication, as well as cloud backup and disaster recovery with Amazon S3. To form a complete backup solution, these ZyXEL Unified Network Storage support Apple Time Machine, a total of 4,096 snapshots, and comes with Acronis Backup & Recovery Server OEM.

Advanced data protection

In addition to the more commonly supported RAID levels 0, 1, 5, 6 and 10, the ZyXEL UNS2700 and UNS2300 Unified Network Storage offer more advanced data protection options than competitors with support for RAID 50 and RAID 60. RAID 50 is a RAID 0 array striped across the distributed parity of RAID 5, and RAID 60 combines RAID 0 with the distributed double parity of RAID 6. With support for RAID 50 and RAID 60, the ZyXEL UNS2700 and UNS2300 offer both better performance and better protection against drive failures than competitors within their class.

Additionally, the ZyXEL UNS2700 and UNS2300 come with McAfee’s award-winning VirusScan Enterprise for Storage to provide continuous protection for storage data and to prevent malicious files from spreading in the system. Together with advanced data integrity features and multiple backup options, the

240 GB

0%

Data Backup Throughput with Deduplication Enabled

100%

50% 150% 200% 250%

Data backup throughput tested by copying 240 GB of data with deduplication turned on.

8 KB Random

0%

Synchronous Write Input/

Output Operations per Second (IOPS)

100%

50% 150% 200% 250% 300% 350%

512 KB Sequential

512 KB sequential write and 8 KB random write IOPS tested.

No SSD caching SSD caching with 2 SSDs

(3)

Key Applications

SMB NAS deployment

SMB iSCSI (IP SAN) deployment

Remote User

GS2200-24 24-port GbE L2 Switch USG 300

Unified Security Gateway

XGS3700 Series 24/48-port GbE L2+

Switch with 10GbE Uplink _UNS2300

Unified Network Storage Internet

51 49 PWR1PWR2SYSALMMASTGS3700-4810/100/1000Base-T Port (1-48)

123456789101112131415161718 1920 21 23 2224152627282930313233 35 3436373839404142434445 47 4648 1G SFP Port (49-52) 5052MGMT CONSOLE STACK ID Server Farm R&D Dept. NFS and FTP Services AD/LDAP Server Anti-virus protection Sales Dept. CIFS and AFP Services

Gigabit

WebDAV remo_{te acces}

s Traditional Servers USG 300 Unified Security Gateway XGS3700 Series 24/48-port GbE L2+ Switch with 10GbE Uplink UNS2700

Unified Network Storage iSCSI LUN iSCSI LUN iSCSI LUN iSCSI LUN App App OS App App OS Virtualization Servers Internet App App App App Guest OS Guest OS Virtualization OS

App App App App Guest OS Guest OS Virtualization OS

(4)

Backup solution

Specifications

Model UNS2700 UNS2300

Hardware

Form factor 2U, 12-bay rackmount 2U, 12-bay rackmount

CPU Quad-core Intel® Xeon® Processor E3-1225 v2_{(3.2 GHz)} Dual-core Intel® Processor i3-3220_{(3.3 GHz)}

RAM (GB) 16 (DDR3, ECC) 8 (DDR3)

Internal drives 12 x 3.5” HDD or 2.5” HDD/SSD 12 x 3.5” HDD or 2.5” HDD/SSD

Max. capacity (TB) 48 48

Host interface 2 x 10GbE and 2 x 1GbE 6 x 1GbE

Backend SATA III SATA III

USB port 4 x USB 2.0 4 x USB 2.0

COM port 1 1

Power

Input 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz

Max. power consumption (watt) 214 210

Power rating (watt) 549 549

Redundant power supply Yes Yes

80 Plus certified Platinum Platinum

Physical Specifications

Item Dimensions (WxDxH)(mm/in.) 442 x 711 x 88/17.4 x 28 x 3.46 442 x 711 x 88/17.4 x 28 x 3.46

Weight (kg/lb.) 15.8/34.83 15.8/34.83

Packing Dimensions (WxDxH)(mm/in.) _{Weight (kg/lb.)} 590 x 910 x 230/23.23 x 35.83 x 9.06 590 x 910 x 230/23.23 x 35.83 x 9.06

24/52.91 24/52.91

Environmental Specifications

Operating Temperature_Humidity 0°C to 40°C/32°F to 104°F 0°C to 40°C/32°F to 104°F

10% to 90% (non-condensing) 10% to 90% (non-condensing)

Storage Temperature -30°C to 70°C/-22°F to 158°F -30°C to 70°C/-22°F to 158°F

Humidity 10% to 90% (non-condensing) 10% to 90% (non-condensing)

MTBF (hr) 120,000*2 _120,000*2

Heat dissipation (BTU/hr) 730.198 716.55

Certifications

EMC FCC Part 15 (Class A); CE EN 55022: 2010/AC: 2011, EN 55024: 2010;

USG 300 Unified Security

Gateway XGS3700 Series24/48-port GbE L2+ Switch with 10GbE Uplink

UNS2700

Unified Network Storage

10GbE Fiber Gigabit Remote replication with deduplication and compression Local cloning and snapshot backup UNS2300

Unified Network Storage Servers

Cloud backup to Amazon S3

Disaster recovery

Internet

Amazon S3

123456789101112131415161718 1920 21 23 2224152627282930313233 35 3436373839404142434445 47 4648 1G SFP Port (49-52) 5052MGMT CONSOLE STACK ID Apple Ti me Machine backup Server bac kup with Acron is Encrypted storage RAID pool iSCSI Volume NAS File System

iSCSI Volume NAS File System

(5)

Features

Operating System

• Embedded Linux

Supported Clients

• Microsoft Windows XP, Vista, 7, 8 • Windows Server 2003, 2003 R2 • Windows Server 2008, 2008 R2, 2012 • Red Hat Linux 5, 6 • Mac OS X • Solaris 10, 11

Supported Browsers

• Microsoft Internet Explorer 8, 9 • Mozilla Firefox 8, 9, 10 • Apple Safari 4, 5 • Google Chrome

File System

• Internal hard drive: ZFS • External hard drive: EXT3, EXT4, NTFS, FAT32

Networking

• TCP/IP (IPv4 & IPv6: dual stack) • Multiple Gigabit NICs with jumbo frame: ■

Multi-IP settings

■

Port trunking/NIC teaming (modes: balance-

rr, IEEE 802.3ad link aggregation and balance-alb) • Virtual LAN (VLAN) • DHCP client • Protocols: CIFS/Samba (3.6.4), AFP (v3.3), NFS (v3, v4), FTP, HTTP(S), SSH, iSCSI, SNMP, SMTP

Backup

• Local clone: ■

Manual & scheduled backup

■

Local cloning (volume to volume)

■

Local cloning (file system to file system)

• Remote replication: ■

Manual & scheduled backup

■

Remote UNS (volume to volume)

■

Remote UNS (file system to file system)

• Server backup via Acronis Backup & Recovery Server OEM for Windows • Apple Time Machine support with backup management • Cloud data backup and disaster recovery with Amazon S3 • Total of 4,096 snapshots supported

Security

• IP filtering and policy-based automatic IP blocking • CIFS host access control for shared folders • McAfee anti-virus protection • Storage pool-based encryption • Instant alert via email, instant messaging (Windows Messenger), and buzzer

Disk Management

• Single disk, RAID 0, 1, 5, 5 + hot spare, 6, 6 + hot spare, 10, 10 + hot spare, 50 + hot spare, 60 + hot spare • Online pool capacity expansion • Bad block scan & hard drive S.M.A.R.T. • Pool scrubbing • Dedicated hot spare drive • RAID recovery

iSCSI (IP SAN)

• iSCSI target: ■

Multi-LUNs per target

■

Up to 256 targets/LUNs combined

■

Online LUN capacity expansion

■

Supports SPC-3 persistent reservation

■

Supports MPIO & MC/S

• iSCSI LUN backup, one-time snapshot, and restore

Server Virtualization & Clustering

• Supports VMware vSphere • Supports Citrix XenServer • Supports Windows Server 2012 Hyper-V & failover clustering

Power Management

• Wake on LAN • Internal hard drive standby mode • Automatic power on after power recovery • Console and network UPS support with SNMP management

Access Right Management

• Max. no. of local accounts: 10,000 • Max. no. of local groups: 512 • Batch user creation • Import/Export users • User quota management • Subfolder permissions support for CIFS/ Samba, AFP, FTP and Web file manager

Domain Authentication Integration

• Microsoft Active Directory (AD) • LDAP server

• Domain user login via CIFS/Samba, AFP, FTP

Storage Plug & Play

(6)

Accessories

Disk Pack

Item Capacity/Amount Speed Type
