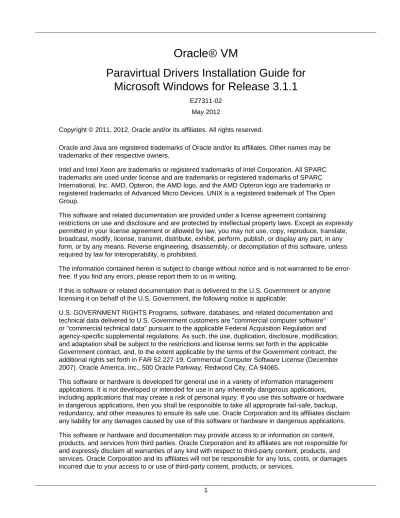

Paravirtual Drivers Installation Guide for

Microsoft Windows for Release 3.1.1

E27311-02 May 2012

Copyright © 2011, 2012, Oracle and/or its affiliates. All rights reserved.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group.

This software and related documentation are provided under a license agreement containing

restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is prohibited.

The information contained herein is subject to change without notice and is not warranted to be error- free. If you find any errors, please report them to us in writing.

If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on behalf of the U.S. Government, the following notice is applicable:

U.S. GOVERNMENT RIGHTS Programs, software, databases, and related documentation and technical data delivered to U.S. Government customers are "commercial computer software"

or "commercial technical data" pursuant to the applicable Federal Acquisition Regulation and agency-specific supplemental regulations. As such, the use, duplication, disclosure, modification, and adaptation shall be subject to the restrictions and license terms set forth in the applicable Government contract, and, to the extent applicable by the terms of the Government contract, the additional rights set forth in FAR 52.227-19, Commercial Computer Software License (December 2007). Oracle America, Inc., 500 Oracle Parkway, Redwood City, CA 94065.

This software or hardware is developed for general use in a variety of information management applications. It is not developed or intended for use in any inherently dangerous applications, including applications that may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its safe use. Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this software or hardware in dangerous applications.

This software or hardware and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.

(2)

Abstract

This document is intended for users and administrators of Oracle VM guests running the Microsoft Windows operating system. It includes a brief introduction of the Windows paravirtual (PV) drivers, how to install them, and describes potential issues and the corresponding workarounds you may encounter while using the drivers.

Oracle recommends that you read this document before installing and using the Windows PV drivers for Oracle VM.

Table of Contents

1. Overview of the Windows Paravirtual Drivers ... 2

2. What's New in Windows Paravirtual Drivers? ... 2

3. Supported Oracle VM Releases ... 2

4. Supported Guest Operating Systems ... 3

5. Installing the Windows PV Drivers ... 3

5.1. Installing Windows PV Drivers on Windows XP and Windows Server 2003 ... 3

5.2. Installing Windows PV Drivers on Windows Server 2008, Windows Server 2008 R2, Windows Vista, and Windows 7 ... 7

6. Known Limitations and Workarounds ... 9

6.1. Windows Guest Kernel Panic ... 9

6.2. Found New Hardware Window Displayed During Installation or Uninstallation ... 9

6.3. Guest Cannot Use More Than Eight vCPUs ... 9

6.4. Crash Dump and Hibernation Fails on Windows Server 2008 R2, Windows Server 2008, and Windows Vista or Windows 7 ... 9

6.5. Network Performance Issues ... 9

7. Documentation Accessibility ... 10

1. Overview of the Windows Paravirtual Drivers

The Windows PV drivers for Oracle VM provide a performance boost for network and block (disk) devices on Microsoft Windows guests running in a virtual environment on Oracle VM.

Download the Windows PV drivers from:

http://edelivery.oracle.com/oraclevm

The Windows PV drivers installer installs paravirtualized drivers for block (disk) and network devices.

2. What's New in Windows Paravirtual Drivers?

The new features and enhancements in Release 3.1.1 include:

• Support for Storport miniport driver, which delivers improved performance compared to SCSI port driver.

• For features introduced in the previous 2.0 release, see the Oracle VM Windows Paravirtual (PV) Drivers 2.0: New Features whitepaper at: http://www.oracle.com/us/technologies/virtualization/oraclevm/

winpv20-newfeatures-wp-080929.pdf

3. Supported Oracle VM Releases

(3)

Table 1. Support Matrix of Windows PV Drivers on Oracle VM Releases Oracle VM Release Windows PV

Driver 1.0.8

Windows PV Driver 1.0.11

Windows PV Driver 2.0.7

Windows PV Driver 3.0.1

Oracle VM 2.1.5 Yes Yes No No

Oracle VM 2.2.0 Yes Yes No No

Oracle VM 2.2.1 No Yes Yes No

Oracle VM 2.2.2 No Yes Yes No

Oracle VM 3.0.1 No No Yes Yes

Oracle VM 3.0.2 No No Yes Yes

Oracle VM 3.0.3 No No Yes Yes

Oracle VM 3.1.1 No No Yes Yes

4. Supported Guest Operating Systems

The Windows PV drivers are supported on the following Microsoft Windows operating systems:

Table 2. Supported Guest Operating Systems

Guest Operating System X86 (32-bit) X64 (64-bit)

Microsoft Windows Server 2003 R2 SP2 Yes Yes

Microsoft Windows Server 2008 SP2 Yes Yes

Microsoft Windows Server 2008 R2 SP1 N/A Yes

Microsoft Windows 7 SP1 Yes Yes

Microsoft Windows Vista SP2 Yes Yes

Microsoft Windows XP SP3 Yes Yes

5. Installing the Windows PV Drivers

There are two procedures for installing the Windows PV drivers, depending on the guest's operating system.

5.1. Installing Windows PV Drivers on Windows XP and Windows Server 2003

To install the Windows PV drivers:

1. Create a new guest with one of the following operating systems installed:

• Windows Server 2003 (X86 or X64)

• Windows XP (X86 or X64)

2. Copy the Windows PV drivers (Setup.exe) to the guest.

3. Double click the Setup.exe file to start the Windows PV drivers installer. The Start Install window is displayed.

(4)

Figure 1. Start install window

The installer prompts you to start the install. Click Install to start the Windows PV drivers installation.

The installer copies files to the guest and installs the Windows PV drivers.

4. Due to a known issue, on some operating systems the Found New Hardware Wizard is displayed behind the Windows PV drivers Installer window.

Figure 2. Found New Hardware Wizard

(5)

Click Cancel to ignore the wizard.

5. Due to a known issue, the Software Installation window is displayed warning the driver has not been signed by Microsoft.

Figure 3. Driver Installation window

Click Yes.

(6)

Figure 4. Software Installation window

Click Continue Anyway.

6. You are prompted to restart the guest.

Figure 5. Installation complete window

(7)

5.2. Installing Windows PV Drivers on Windows Server 2008, Windows Server

2008 R2, Windows Vista, and Windows 7

To install the Windows PV drivers:

1. Create a new guest with one of the following operating systems installed:

• Windows Server 2008 (X86 or X64)

• Windows Server 2008 R2 (X64)

• Windows Vista (X86 or X64)

• Windows 7 (X86 or X64)

2. Copy the Windows PV drivers (Setup.exe) to the guest.

3. Double click the Setup.exe file to start the Windows PV drivers installer. The Start Install window is displayed.

Figure 6. Start install window

The installer prompts you to start the install. Click Install to start the Windows PV drivers installation.

The installer copies files to the guest and installs the Windows PV drivers.

4. The Windows Security window is displayed and prompts you to confirm the installation of the paravirtual device drivers and trust the certificate from Oracle.

(8)

Figure 7. Windows Security window

Check Always trust software from "Oracle America, Inc." and select Install.

5. The installer copies the Windows PV drivers files, and installs the drivers in the guest. The Installation Complete window is displayed.

Figure 8. Installation Complete window

(9)

Check Yes, restart the system now and click Finish. The guest is restarted.

6. Known Limitations and Workarounds

This section contains information on known limitations and workarounds for the Windows PV drivers.

6.1. Windows Guest Kernel Panic

Windows guests may experience kernel panic when the virtual machine is stopped and started several times. This may also occur if there is intensive I/O. The error in this case is:

(XEN) p2m_pod_demand_populate: Out of populate-on-demand memory!

Workaround: Set the Maximum Memory and the Memory fields to the same value in the Create/Edit Virtual Machine wizard in Oracle VM Manager.

6.2. Found New Hardware Window Displayed During Installation or

Uninstallation

During the installation or uninstallation of the Windows PV drivers, the Found New Hardware window is displayed when the guest restarts.

Workaround: Click Cancel to ignore the message and close the window.

6.3. Guest Cannot Use More Than Eight vCPUs

If you use the Windows PV drivers, the maximum number of virtual CPUs (vCPUs) is eight.

6.4. Crash Dump and Hibernation Fails on Windows Server 2008 R2, Windows

Server 2008, and Windows Vista or Windows 7

To avoid the stop error "0x000000D1" when doing crash dump and hibernation on Windows Server 2008 R2, Windows Server 2008, and Windows Vista or Windows 7, download and install this Microsoft hotfix from: http://support.microsoft.com/kb/2320550/.

6.5. Network Performance Issues

Network performance issues may be experienced with Windows PV drivers Release 2.0.7 on Oracle VM Release 3.0.x. To improve network performance, use Windows PV drivers Release 3.0.1.

Workaround: Disable Large Send Offload support for all network cards available in the Windows virtual machine. Follow these steps to disable Large Send Offload:

1. Open Device Manager.

2. Open Network Adapters, right-click the Oracle VM Virtual Ethernet adapter and select Properties.

3. Select the Advanced tab.

4. Select Large Send Offload in the Property field, select Disabled in the Value field, and then click OK.

The network card will restart automatically and network performance should improve.

(10)

7. Documentation Accessibility

For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program website at http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.

Access to Oracle Support

Oracle customers have access to electronic support through My Oracle Support. For information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.com/pls/topic/lookup?

ctx=acc&id=trs if you are hearing impaired.
