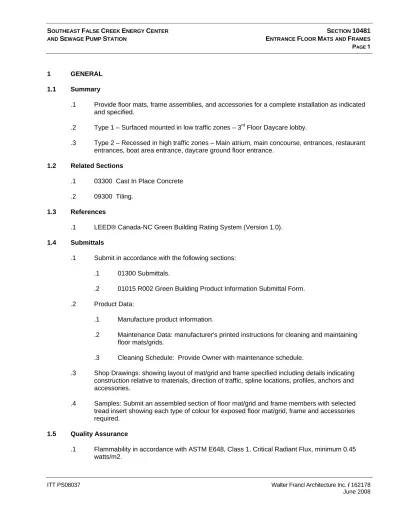

.1 Provide floor mats, frame assemblies, and accessories for a complete installation as indicated and specified.

(1)

1 GENERAL 1.1 Summary

.2 Type 1 – Surfaced mounted in low traffic zones – 3^rd Floor Daycare lobby.

.3 Type 2 – Recessed in high traffic zones – Main atrium, main concourse, entrances, restaurant entrances, boat area entrance, daycare ground floor entrance.

1.2 Related Sections

.1 03300 Cast In Place Concrete .2 09300 Tiling.

1.3 References

.1 LEED® Canada-NC Green Building Rating System (Version 1.0). 1.4 Submittals

.1 Submit in accordance with the following sections: .1 01300 Submittals.

.2 01015 R002 Green Building Product Information Submittal Form. .2 Product Data:

.1 Manufacture product information.

.2 Maintenance Data: manufacturer's printed instructions for cleaning and maintaining floor mats/grids.

.3 Cleaning Schedule: Provide Owner with maintenance schedule.

.3 Shop Drawings: showing layout of mat/grid and frame specified including details indicating construction relative to materials, direction of traffic, spline locations, profiles, anchors and accessories.

.4 Samples: Submit an assembled section of floor mat/grid and frame members with selected tread insert showing each type of colour for exposed floor mat/grid, frame and accessories required.

1.5 Quality Assurance

.1 Flammability in accordance with ASTM E648, Class 1, Critical Radiant Flux, minimum 0.45 watts/m2.

(2)

SOUTHEAST FALSE CREEK ENERGY CENTER SECTION 10481

AND SEWAGE PUMP STATION ENTRANCE FLOOR MATS AND FRAMES PAGE 2

.2 Slip resistance in accordance with ASTM D2047-96, Coefficient of Friction, minimum 0.60 for accessible routes.

.3 Standard rolling load performance to be 1000 lb. /wheel (Load applied to a solid 5" x 2" wide polyurethane wheel, 1000 passes without deformation).

.4 Single Source Responsibility: Obtain floor mats/grids and frames from one source of a single manufacturer.

.5 Utilize superior structural aluminium alloy 6105-T5 for rail components. 1.6 Delivery, Storage and Handling

.1 Deliver materials to the project site ready for use and fabricated in as large sections and assemblies as practical, in unopened original factory packaging clearly labelled to identify manufacturer.

1.7 Project Conditions

.1 Field measurements: Check actual openings for mats/grids by accurate field measurements before fabrication. Record actual measurements on final shop drawings. Coordinate fabrication schedule with construction progress to avoid delay of work.

.2 For recess application coordinate frame installation with concrete construction to ensure recess and frame anchorage are accurate and that the base is level and flat. Defer frame installation until building enclosure is complete and related interior finish work is in progress.

1.8 Warranty

.1 Provide manufacturer’s written fifteen (15) month warranty as required by Owner. .2 Provide installer’s written fifteen (15) month warranty as required by Owner. .3 Submit warranty in accordance with Section 01700 Project Closeout. 2 PRODUCTS

2.1 Manufacturers

.1 Subject to compliance with specifications the following manufacturers are acceptable: .1 Construction Specialties Inc.

.2 Or approved alternative.

.2 Drawings and specifications are based on manufacturer's literature from Construction Specialties, Inc. unless otherwise indicated. Other manufacturers must comply with the minimum levels of material and detailing indicated on the drawings and specified herein.

(3)

.2 Flexible and prime PVC extrusions. .3 Tread insert options - refer to section 2.5. 2.3 Floor Mats

.1 Type 1 - Model: G3 PediTred LP, Manufactured by Construction Specialties Group. .2 Or approved alternate

2.4 Mat Frames

.1 Type 1 - Tapered Aluminum Frame shall be a 1 1/2"(38.1mm) wide 6063-T6 aluminum alloy and permanently positions mat for surface mounted applications. Anodized finish.

2.5 PediTred Insert

.1 Type 1 - exterior carpet Insert shall be solution dyed polypropylene fibers with 50/50 blend of 600/12-denier multi filament and 595/D1 monofilament. The texturized fibers have ultraviolet blockers and color as an integral part of the filament. Each carpet fiber and monofilament shall be fusion-bonded to a rigid two-ply backing to prevent fraying and supplied in continuous splice- free lengths. Waterproof fibers do not get soggy, rot, fade or stain. Carpet weight shall be 32- oz./yd². Colour to be selected by Consultant from manufacturer’s full range.

3 EXECUTION 3.1 Examination

.1 Examine areas to receive entrance floor mats and frames with Installer present. .2 Correct unsatisfactory conditions.

.3 Start of work indicates acceptance of conditions as suitable for a satisfactory installation. 3.2 Preparation

.1 Manufacturer shall offer assistance and guidance to provide a template of irregular shaped mat/grid assemblies to ensure a proper installation.

3.3 Installation

.1 Install work of this section in accordance with manufacturer's recommendations and reviewed Shop Drawings.

.2 Set mat/grid at height recommended by manufacturer for most effective cleaning action. .3 Coordinate top of mat/grid surfaces with bottom of doors that swing across to provide ample

clearance between door and mat/grid.

(4)

AND SEWAGE PUMP STATION ENTRANCE FLOOR MATS AND FRAMES PAGE 4

3.4 Cleaning

.1 Provide Owner with a maintenance schedule which includes regular vacuuming and extraction that correctly matches amount of traffic the mat incurs. Submit in accordance with Section 01700 Project Closeout.

3.5 Protection

.1 After completing required frame installation and concrete work, provide temporary filler of plywood or fiberboard in recess, and cover frames with plywood protective flooring. Maintain protection until construction traffic has ended and project is near time of substantial completion. .2 Defer installation of floor mats/grids until time of substantial completion of project.

END OF SECTION

(5)

1 GENERAL 1.1 Summary

.1 Provide washroom accessories as indicated, scheduled and specified. 1.2 Related Sections

.1 06100 Rough Carpentry. .2 09250 Gypsum Wallboard. .3 09300 Tiling.

1.3 References

.1 Vancouver Building By-Law 2007. 1.4 Submittals

.1 Submit in accordance with the following sections: .1 01300 Submittals.

.2 01015 R002 Green Building Product Information Submittal Forms. .2 Product Data: Provide catalogue cuts of each item specified.

1.5 Quality Assurance

.1 Mock-ups: Provide a mock-up of one washroom complete with accessories and sealants. 1.6 Project Conditions

.1 Coordinate work of this Section with work of other Sections to assure proper location of cutouts, backing, and recess framing. Furnish templates and printed instructions as required to prepare work of other Sections to receive work of this Section.

(6)

AND SEWAGE PUMP STATION WASHROOM ACCESSORIES

PAGE 2

2 PRODUCTS

2.1 Washroom Accessories

.1 Provide the following washroom accessories:

ITEM MAKE MODEL DESCRIPTION

Grab Bars Bobrick B 68616 x 48

B 5893-99

Concealed mounting.

Peened grip, 1 ¼” diamter. Provide in toilets and shower stalls.

Shower Curtain Shower Curtain Hooks

Bobrick Bobrick

B 204-3 B 204-1

Vinyl, white, 0.2 mm thick, nickel plated brass grommets, one every 6 inches, width as indicated, with 204-1 stainless steel shower curtain hooks. Same number of hooks as grommets. Shower Curtain Rod Bobrick B 207 Heavy duty 20 ga. 1” diamter rod,

concrealed mounting. Coat Hooks Bobrick B 76717 18 gage (1.2 mm) concealed

mounting bracket. Mount at accessible height in shower rooms and accessible toilet rooms. Provide 2 per door in each toilet stall. Paper Towel

Dispenser

Bobrick B-262 Surface mounted

Waste Receptacle Bobrick B 367 Provide manufacturer’s standard removable black PVC bins locked into cabinet, one per receptacle, capacity 12 gallon.

Toilet Paper Dispenser

Bobrick B 2892 At accessible toilets, classic series, jumbo twin roll surface mounted, multi-roll dispenser with stainless steel finish. Holds 2, 10” diameter rolls.

Soap Dispenser Bobrick B 2112 Wall mounted. Shower Dressing

Area Seat

Bobrick B 5191 Frame: S.S. Type 304.

Seat: 8 mm thick solid phenolic with self-locking mechanism.

3 EXECUTION 3.1 Examination

.1 Examine areas to receive toilet accessories with Installer present.

(7)

3.2 Installation

.1 Install accessories in locations shown and specified. Install units plumb and true. .2 Fasten accessories securely with mechanical fasteners recommended by accessory

manufacturer. 3.3 Adjusting and Cleaning

.1 Remove protective coatings in accordance with manufacturer's instructions. .2 Adjust accessories, as applicable, for smooth operation.

.3 Clean exposed surfaces of accessories in accordance with manufacturer's instructions. END OF SECTION
