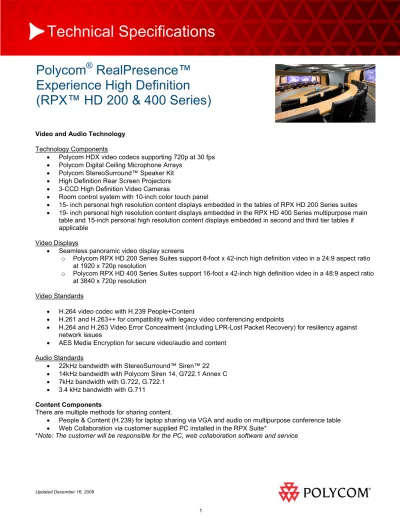

Technical Specifications

(1)

Technical Specifications

Video and Audio Technology Technology Components

• Polycom HDX video codecs supporting 720p at 30 fps • Polycom Digital Ceiling Microphone Arrays

• Polycom StereoSurround™ Speaker Kit

• High Definition Rear Screen Projectors • 3-CCD High Definition Video Cameras

• Room control system with 10-inch color touch panel

• 15- inch personal high resolution content displays embedded in the tables of RPX HD 200 Series suites • 19- inch personal high resolution content displays embedded in the RPX HD 400 Series multipurpose main

table and 15-inch personal high resolution content displays embedded in second and third tier tables if applicable

Video Displays

• Seamless panoramic video display screens

o_{Polycom RPX HD 200 Series Suites support 8-foot x 42-inch high definition video in a 24:9 aspect ratio} at 1920 x 720p resolution

o Polycom RPX HD 400 Series Suites support 16-foot x 42-inch high definition video in a 48:9 aspect ratio at 3840 x 720p resolution

Video Standards

• H.264 video codec with H.239 People+Content

• H.261 and H.263++ for compatibility with legacy video conferencing endpoints

• H.264 and H.263 Video Error Concealment (including LPR-Lost Packet Recovery) for resiliency against network issues

• AES Media Encryption for secure video/audio and content Audio Standards

• 22kHz bandwidth with StereoSurround™ Siren™ 22

• 14kHz bandwidth with Polycom Siren 14, G722.1 Annex C • 7kHz bandwidth with G.722, G.722.1

• 3.4 kHz bandwidth with G.711 Content Components

There are multiple methods for sharing content.

• People & Content (H.239) for laptop sharing via VGA and audio on multipurpose conference table • Web Collaboration via customer supplied PC installed in the RPX Suite*

*Note: The customer will be responsible for the PC, web collaboration software and service

Polycom

®

RealPresence™

Experience High Definition

(RPX™ HD 200 & 400 Series)

(2)

PC Requirements (customer supplied PC)

Chassis dimensions (not to exceed)

Power and noise (not to exceed) 20 inches

Height 50.8 cm DC Power Supply-wattage 350W 8 inches

Width

20.3 cm Heat Dissipation 1200 BTU/hr 20 inches

Depth

50.8 cm Sound Pressure Level 40 dBA 40 lbs

Weight

18.1 kg

Connectivity

Network and Analog Line Requirements

Video network requirements to support 720p high definition (including dedicated video bandwidth, IP traffic and management traffic)

Minimum

o_{Bandwidth per Polycom RPX HD 200 Series Suite: 5 Mbps} o Bandwidth per Polycom RPX HD 400 Series Suite: 10 Mbps o

Recommended:

o_{Bandwidth per Polycom RPX HD 200 Series Suite: 10 Mbps} o Bandwidth per Polycom RPX HD 400 Series Suite: 20 Mbps

Note: Bandwidth estimates are based on total bidirectional network traffic assuming an additional 25% to account for overhead bandwidth (i.e. management traffic)

Network Connection Requirements

(without a managed switch in the telepresence room)

o_{RPX HD 200 Series: 3 connections (2 for HDX platform, 1 for the balance of the components)} o RPX HD 400 Series: 5 connections (4 for HDX platform, 1 for the balance of the components) o One analog (POTS) line for voice add-on and VNOC help

Room Environment Seating Capacity

Polycom RPX HD Model # Video Displays Seats on camera/+ seats*

# Personal Content Displays

LAN ports for laptops (2 ports per table

leg)

RPX HD 204M 2 4/4 2 4

RPX HD 208M 2 8/4 6 6

RPX HD 210M 2 10/4 7 8

(3)

Minimum Suite Dimensions

RPX HD Minimum suite dimensions

(door in this dimension)

Model Units Room Width Room Depth Ceiling Height

(min) Room Area ft2 _ m2 ft/in 17 ft 5 ½ in 16 ft 8 ¼ in 8 ft 6 in 291 RPX HD 204M m 5.323 5.087 2.591 27.1 ft/in 17 ft 5 ½ in 21ft 4 ¼ in 9 ft 0 in 373 RPX HD 208M m 5.323 6.506 2.743 34.6 ft/in 18 ft 11 ½ in 21 ft 7 in 9 ft 0 in 409 RPX HD 210M m 5.776 6.578 2.743 38.0 ft/in 22 ft 7 in 26 ft 9 5/8 in 10 ft 0 in 605 RPX HD 218M m 6.885 8.170 3.048 56.3 ft/in 26 ft 8 ½ in 19 ft 6 ½ in 8 ft 6 in 522 RPX HD 408M m 8.138 5.958 2.591 48.5 ft/in 29 ft 2 ¾ in 23 ft 10 ¾ in 9 ft 0 in 698 RPX HD 418M m 8.912 7.284 2.743 64.9 ft/in 29 ft 3 in 29 ft 2 in 10 ft 0 in 853 RPX HD 428M m 8.918 8.888 3.048 79.3

(4)

Suite Placement Plans

RPX HD 204M RPX HD 208M

(5)

Power & Cooling

Electrical Power*

204M 208M 210M 218M 408M 418M 428M

Total Power (Watts) 2925 3553 3686 4219 5057 5965 6632

Heating & Cooling**

204M 208M 210M 218M 408M 418M 428M BTUs/hour (cooling in ton) 12985 [1.08] 16640 [1.39] 17852 [1.49] 22705 [1.89] 23273 [1.94] 30161 [2.51] 36229 [3.03]

*Note: The electrical power calculations above are based on 54W per laptop assuming all are running at the same time

**Note: The heating and cooling calculations above are based on suites at full occupancy. Environmental Conditions

• Conference room operating temperature: 41-86º F, 5-30º C • Relative Humidity: 10% to 95% (non-condensing)

Total Distributed Load

Model Units

Rear Wall Deck & Clouds

Multipurpose Conf Table

Dark Room & Clouds

Avg. Static Load lb/ft2_{- kg/m}2 lbs 1860 518 2231 15.8 RPX HD 204M kg 844 235 1012 77.2 lbs 3546 518 2361 17.2 RPX HD 208M kg 1608 235 1071 84.2 lbs 4083 518 2365 17.0 RPX HD 210M kg 1852 235 1073 83.2 lbs 6579 518 2431 15.7 RPX HD 218M kg 2984 235 1103 76.8 lbs 2585 1048 3155 13.0 RPX HD 408M kg 1173 475 1431 63.5 lbs 6264 1048 3285 15.2 RPX HD 418M kg 2841 475 1490 74.0 lbs 9700 1048 3876 17.1 RPX HD 428M kg 4400 475 1758 83.7

(6)

Regulatory Compliance • UL/CSA/IEC/EN/AS/NZS/60950 • CE Marking • RoHS • WEEE • FCC Part 15 Class A • CISPR22/EN55022 Class A • EN55024 Additional Specifications

Mid-back executive management chair(s)

• Black full grain, aniline dyed leather, lightly polished, finished with semi-aniline resilient topcoat • Tilt and swivel

• Black nylon base with soft tread casters • Seat dimensions 20” W x 18” D

• Seat height: 17” – 21” • Back: 20” W x 22” H

(7)

Different types of video conferencing systems use a different number of cameras and displays. Therefore, what you see on the displays depends on your type of system as well as the type of system at the far site. The following are some examples. There are many variations available that may not be depicted below.

DIRECT POINT TO POINT CALL MODES (without an MCU)

Codec-to-codec calls usually presenting people in real size and high definition video

If you make a call

between a… And a…

This is what you will see in the RPX HD 400 Series Suite…

This is what the far RPX HD 400 Series will see…

RPX HD 400 Series

If you make a call

This is what the far RPX HD 200 Series will see…

RPX HD 200 Series

If you make a call

This is what the far site RPX HD 200 Series will see…

RPX HD 400 Series

RPX HD 200 Series

The entire RPX HD 200 Series suite. Two seats are shown on the center right display and two seats are shown on the center left display. The far left and far right displays are blank.

The four center seats at the RPX HD 400 Series main table. Two seats are shown on each display.

If you make a call

This is what the far site TPX HD 306M will see…

RPX HD 400

Series TPX HD 306M

The entire TPX HD 306M. Two seats are shown on the right display, two seats are shown on the center right display and two seats are shown on the center left display. The far left display is blank.

The center six center seats at the RPX HD 400 Series main table. Two seats on the far left side of the main table will not be seen.

(8)

If you make a call

This is what the far site TPX HD 306M will see…

RPX HD 200

Series TPX HD 306M

The entire TPX HD 306M room. Three seats on the right display and three seats on the left display.

The entire RPX HD 200 Series room. Two seats on the left display and two seats on the center display. The right display will be blank.

If you make a call

This is what the far site HDX Series or other traditional video conferencing endpoint will see… RPX HD 400 Series Traditional video conferencing system (such as the Polycom HDX platforms)

The people at the far site on the center right display. The remaining displays are blank.

The center right two seats at the RPX HD main table.

If you make a call

This is what the far site HDX Series or other traditional video conferencing endpoint will see… RPX HD 200 Series Traditional video conferencing system (such as the Polycom HDX platforms)

The people at the far site on the right

(9)

BRIDGED POINT TO POINT CALL MODES (two sites connecting via an MCU)

MCU is engaged in order to deliver a particular view

If you make a call

This is what the far site RPX HD 200 Series will see…

RPX HD 400 Series

RPX HD 200 Series

The entire RPX HD 200 Series suite. Two seats are shown on the center right display and two seats are shown on the center left display. The far left and far right displays are blank.

All the participants at the RPX HD 400 Series main table. Four on the far right and four on the far left.

If you make a call

This is what the far site HDX or traditional videoconferencing endpoint will see…

RPX HD 400 Series HDX or other traditional video conferencing endpoint

The people at the far site on the center right display. The remaining displays are blank.

All of the participants in the RPX HD 400 Series main table.

If you make a call

This is what the far site HDX or traditional videoconferencing endpoint will see…

RPX HD 200 Series HDX or other traditional video conferencing endpoint

The HDX Series participants on the right display. The left display is blank.

All of the participants in the RPX HD 200 Series suite.

(10)

MULTIPOINT CALL MODES

Three or more sites in an MCU

If you make a call

between a… And a… This is what you will see in the RPX HD 400 Series Suite…

RPX HD 400 Series

Four other RPX HD 400 Series (multipoint call)

If you make a call

between a… And a… This is what you will see in the RPX HD 200 Series Suite…

RPX HD 200 Series Four other RPX HD 200 Series (5 way multipoint call)
