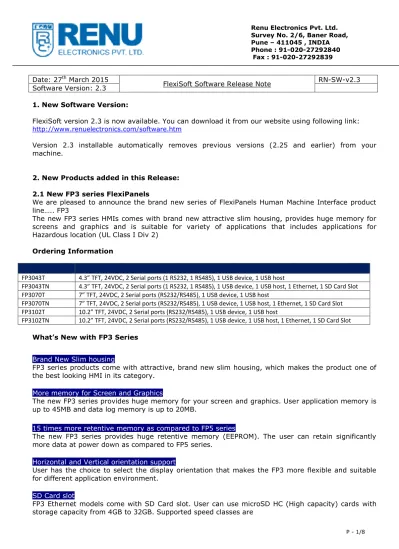

Date: 27th March 2015
FlexiSoft Software Release Note RN-SW-v2.3
Software Version: 2.3 1. New Software Version:
FlexiSoft version 2.3 is now available. You can download it from our website using following link: http://www.renuelectronics.com/software.htm
Version 2.3 installable automatically removes previous versions (2.25 and earlier) from your machine.
2. New Products added in this Release: 2.1 New FP3 series FlexiPanels
We are pleased to announce the brand new series of FlexiPanels Human Machine Interface product line….. FP3
The new FP3 series HMIs comes with brand new attractive slim housing, provides huge memory for screens and graphics and is suitable for variety of applications that includes applications for Hazardous location (UL Class I Div 2)
Ordering Information
FP3043T 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB host
FP3043TN 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot FP3070T 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host
FP3070TN 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot FP3102T 10.2” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host
FP3102TN 10.2” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot What’s New with FP3 Series
Brand New Slim housing
FP3 series products come with attractive, brand new slim housing, which makes the product one of the best looking HMI in its category.
More memory for Screen and Graphics
The new FP3 series provides huge memory for your screen and graphics. User application memory is up to 45MB and data log memory is up to 20MB.
15 times more retentive memory as compared to FP5 series
The new FP3 series provides huge retentive memory (EEPROM). The user can retain significantly more data at power down as compared to FP5 series.
Horizontal and Vertical orientation support
User has the choice to select the display orientation that makes the FP3 more flexible and suitable for different application environment.
SD Card slot
FP3 Ethernet models come with SD Card slot. User can use microSD HC (High capacity) cards with storage capacity from 4GB to 32GB. Supported speed classes are
and
Right now the SD card is used to download the application and firmware to the unit or upload the application and firmware from the unit, just like USB stick.
We have tested following brands of SD card with FP3 products:
Toshiba 4GB class 4
Samsung 8GB Class 6
Sandisk 8GB Class 4 and 16GB Class 10
Transcend 8GB Class 2 and 16GB Class 4
Strontium 16GB Class 6
rage 16GB Class 10
Kingston 16GB UHS-I
HP 32GB Class 10
2.2 New FL005 expandable series FlexiLogics PLCs
We are pleased to announce the brand new series of FlexiLogics® programmable logic controller ….. FL005.
The new FL005 expandable PLC series comes with brand new attractive housing, highly reliable with fast logic operations, various functional features, expandable IO’s and is suitable for variety of complex machine control applications that includes applications for Hazardous location (UL Class I Div 2)
Ordering Information
FL005 -1616P CPU model with 16DI, 16DO PNP type ,2 Serial ports (1 RS232, 1 RS485), 1 USB device, Expandable up to 16 IO modules
FL005 -1616P0201L CPU model with 16DI, 16DO PNP type , 2 AI,1AO,2 Serial ports (1 RS232, 1 RS485), 1 USB device, Expandable up to 16 IO modules
FL005 -1616P0201L-S1 CPU model with 16DI, 16DO PNP type , 2 AI,1AO,2 Serial ports (1 RS232, 1 RS485), 1 USB device, Non Expandable
FL005 -1616N0201L CPU model with 16DI, 16DO NPN type ,2 AI,1AO,2 Serial ports (1 RS232, 1 RS485), 1 USB device, Expandable up to 16 IO modules
What’s New with FL005 Series High speed Inputs(200KHz)
The FL005 PLCs have 4 high speed counter channels with two operating modes: 1. Single Phase Up-counters
2. Quadrature counters (4x)
It has two reset inputs and two configurable forced outputs. It also has 2 preset registers for compare purpose .These modes are suitable in many cut-to-length applications.
High speed outputs(200KHz)
The FL005 PLCs have two high frequency outputs of P.T.O./PWM type . It has output modes such as variable duty cycle mode, Pulse/Dir Mode, CW/CCW Mode, Fixed Pulse Mode. This output can be used to drive a high switching frequency servo as well as stepper motor.
Expandability
With the introduction of these models, FL005 series is now expandable as up to 16 IO modules can be connected to the base PLC.
True Remote Display support
FP3035-5 model can be directly powered from FL005 PLC. It can read and write directly to registers and devices in the FL005. It makes it a companion remote display in true sense.
3. Following Drivers are added in this release:
Following is the list of new drivers supported over Ethernet port: AB PLC EIP PCCC (Ethernet IP)
Logix 5000 PLCs
Following is the list of new drivers supported over Serial port: FL Smidth Loadcell on Com2 port
New models are added for Toshiba Inverters PLC:
VF - nC3 VF - AS1 VF - S11 VF - FS1 VF - PS1 VF - MB1 P9 VF-S15 4. New Features:
4.1 Application conversion across the screen size:
FlexiSoft v2.3 allows user to convert the application across different screen sizes. That means, now user can easily migrate from a 4.3” screen to 7” screen or vice-versa without too much efforts. This feature is available for the products with screen sizes 3.5”, 4.3”, 5.7”, 7” and 12.1”.
4.2 Application conversion across the PLC products:
FlexiSoft v2.3 allows user to convert the application across different products of FlexiLogics series PLCs. That means, now user can easily migrate from a FL010 to FL005 and vice-versa without too much efforts.
4.3 Ladder debugging for Native programming environment:
FlexiPanels and FlexiLogics series product now supports native ladder debugging. This functionality is useful tool for debugging simple to complex ladder logics with step by step debugging. Maximum 8 breakpoints are supported and execution of ladder logic is controlled by these breakpoints.
4.4 Control of multiple process variables at a time using PID5 function:
FlexiSoft now supports PID5 instruction for FlexiPanels and FlexiLogics series products in native ladder programming which can be used to control process variables such as temperature, pressure, liquid level, flow rate etc. User can now take any number of PID5 instructions and can control different processes at a time.
4.5 Trigonometric instructions support for IEC 61131-3 programming environment: Following trigonometric instructions are now supported for IEC 61131-3 programming environment SIN COS TAN ASIN ACOS ATAN ATAN2 USEDEGREES
4.6 Mathematical instructions support for IEC 61131-3 programming environment:
Following mathematical instructions are now supported for IEC 61131-3 programming environment POW LN LOG EXP EXPT ScaleLin
4.7 Direct I/O and Calendar instructions support for IEC 61131-3 programming
environment:
Following Direct I/O and Calendar instructions are now supported for IEC 61131-3 programming environment
ReadPhyInputs WitePhyOutputs Set_Calendar Cld_Operation
4.8 Vertical display orientation support:
Vertical display orientation is supported for following products FP4030MT series FP4035 series FP4057 series FP5043 series FP5070 series FP5121 series
For newly launched FP3 series, this feature is added by default.
4.9 Tag name and address search across the logic block with Native programming
environment:
With this version of FlexiSoft, tag name and address used in ladder instruction can be searched across the logic block for Native programming environment as well. Earlier, it was possible only with IEC 61131-3 programming environment.
4.10 Copy/Paste tasks across different task lists:
4.11 New Date format support for Date object:
Till now the date object supported only two date formats: ‘DD/MM/YY’ and ‘MM/DD/YY’. This version of FlexiSoft introduces following additional date formats
YY/MM/DD DD/MM/YYYY MM/DD/YYYY YYYY/MM/DD
4.12 Minimum and Maximum value of Bargraph can be changed at runtime:
With this version of FlexiSoft, the minimum and maximum value of bargraph can also be changed at runtime.
4.13 Import Popup screen:
Till now only base screens were imported using import screen feature. With this version of FlexiSoft, user can also import popup screens.
4.14 Upload ASCII data to USB stick:
With this version of FlexiSoft, user can upload ASCII data of a screen to USB stick. This feature is supported for FP5 and new FP3 series products.
5. Improved Features:
5.1 Improvements in Webserver functionality:
Following Quick buttons are supported on Web screen
o Go To Next Screen o Go To Previous Screen o Set Bit
o Reset Bit
o Toggle Bit
o Write Value to Tag o Add Value to Tag
o Subtract Value from Tag
o Add Tag B to Tag A
o Subtract Tag B from Tag A
Visibility animation support for following objects
o Numerical Data Entry
o Bit Data Entry
o Numerical Data Display o Bit Data Display
o Quick buttons
o Picture
o Multilingual Text
Flash animation support for following objects
o Numerical Data Display
o Bit Data Display o Multilingual Text
Webpage header is now made optional, so now it has become user’s choice whether he wants to use header or not.
Screen Navigation pane is now made optional and user can select whether to have it or not.
The border around the webpage is also made optional now and user can select whether to have border or not.
5.2 Automatic removal of expansion tags when expansion is removed:
With this version of FlexiSoft, whenever user removes an expansion module, the tags related to that module shall be removed automatically.
5.3 More application memory for FP5 products:
With this version of FlexiSoft, application memory for FP5 products is increased from 10MB to 45MB.
5.4 Products are arranged under product series for selection while creating new
application:
We have arranged HMI, PLC and Gateway products under product series to make it more user friendly when user wants to select the model for creating an application.
5.5 Keep memory area range is increased:
For FP5 series products keep memory area range is modified to 1000 words from 100 words. Enough memory is available now to save complex program data whenever power goes OFF.
5.6 Improved DHCP implementation:
With this version of FlexiSoft, the DHCP implementation is improved and now it fully complies with RFC 2131.
5.7 Space around Data Entry and Data Display is optimized:
The unnecessary space around Data Entry and Data Display objects is minimized for Windows font.
5.8 Minimum and Maximum Range support for Numeric Data Entry with Float data type:
With this version of FlexiSoft, user can define Minimum and Maximum ranges for Numeric Data Entry object, also with Float data type. Till now it was possible for all other data types except float.
5.9 Node name shows actual product name:
Till now, the node name was showing ‘Operator Panel’ for any FP or FL model. With this version of FlexiSoft, node name shows exact product code.
6. Limitations:
1. S7-300 Driver is not supported for FP3 series, FP4030 and FP4020 and FlexiLogics. 2. Offline simulation may not work properly in this version.
3. Although FL5 expandable series supports 16 expandable IO modules, if user wants to connect FLD-HS-0808XX (High speed expansion modules) then he can connect 11 at a time. Trying to connect more than 11 high speed modules will exceed available memory for application.
7. Backward compatibility:
All applications created with previous version of FlexiSoft are compatible with FlexiSoft v2.3.
Note: While sending/copying a project from one PC to another, please include the corresponding
folder along with project file.
e.g.: User wants to send a project “MyProject1.pzm” which is saved at path “C:\Sample” then he has to send the project file along with a folder named “Myproject1” from the same path, i.e. “C:\Sample\MyProject1”
8. Known Issues:
1. Communication between GE SNP and FP30xx series products does not get established at power on. The communication only gets established when a screen is displayed. That means power on tasks will not work.
2. While monitoring, sometimes USB communication may break and does not get recovered automatically until power cycle.
