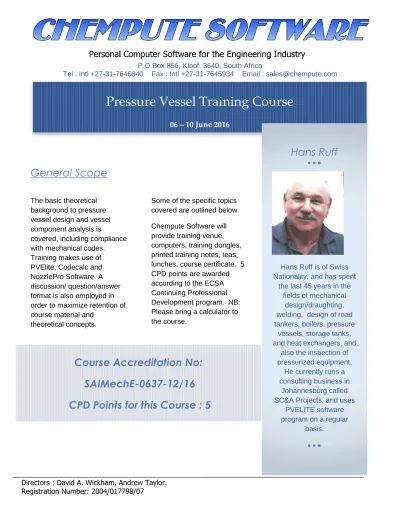

Pressure Vessel Training Course

(1)

Directors : David A. Wickham, Andrew Taylor. Registration Number: 2004/017798/07

General Scope

The basic theoretical background to pressure vessel design and vessel component analysis is

covered, including compliance with mechanical codes. Training makes use of PVElite, Codecalc and NozzlePro Software. A discussion/ question/answer format is also employed in order to maximize retention of course material and

theoretical concepts.

Some of the specific topics covered are outlined below. Chempute Software will provide training venue, computers, training dongles, printed training notes, teas, lunches, course certificate. 5 CPD points are awarded according to the ECSA Continuing Professional Development program. NB: Please bring a calculator to the course.

Pressure Vessel Training Course

06 – 10 June 2016

Hans Ruff



Hans Ruff is of Swiss Nationality, and has spent

the last 45 years in the fields of mechanical

design/draughting, welding, design of road tankers, boilers, pressure

vessels, storage tanks, and heat exchangers, and

also the inspection of pressurized equipment.

He currently runs a consulting business in

Johannesburg called SC&A Projects, and uses

PVELITE software program on a regular

basis. 

Course Accreditation No:

SAIMechE-0637-12/16

CPD Points for this Course : 5

(2)

Course contents

ASME VIII Div 1 Code overview Internal pressure on shells and heads External pressure on shells and heads Nozzle reinforcement and Failure Path Calculations

Cones and Conical sections Welded Flat Heads

Large Openings Half-Pipe Jackets

Flange Design and Analysis Gaskets / Bolting

ASME VIII Div 2 Code

Comparison of vessel codes* Flange Leakage

PD5500 Code Corrosion

Appendix 1-7 Large Nozzles

Flanged and flued and metal bellows expansion joints

Tall Vertical Towers

Heat Exchanger Floating Heads and Spherically dished covers

Heat Exchanger Tubesheets, including the TEMA fixed tubesheet requirements Local Stresses / WRC107

Horizontal Vessels on Saddle Supports Vibration Analysis

Wind and Seismic loads Load combinations Skirt and base ring design

Support Legs, Support Lugs, Lifting Lugs Welds

Fracture Mechanics Theory Control of Fracture

Thermal Stress
