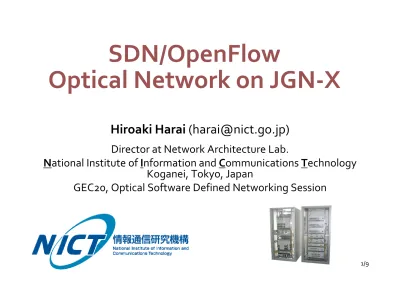

SDN/OpenFlow Optical Network on JGN X

(1)

Hiroaki Harai

([email protected])

Director at Network Architecture Lab.

National Institute of Information and Communications Technology

Koganei, Tokyo, Japan

GEC20, Optical Software Defined Networking Session

1/9

SDN/OpenFlow

(2)

Optical

SDN

• My mission at NICT

• Making optical packet & circuit integrated switching node

stable, operatable, and interwork with SDN

• And others …

• How for the 1st _mission?

• Verification of optical nodes and networks

• Test on field optical fibers

• Use nation‐wide SDN/Openflow test environment

• _Interop_test_with_other_optical_systems

(3)

Optical

Packet

&

Circuit

Integrated

Network

 User view: A “high‐speed, inexpensive” service and

“low delay, low data‐loss” service on a single optical network

 Network provider view: Large switch capacity (>100Gbps

Optical Packet), energy saving, and flexible & efficient resource

use under a simple control

3/9

packets circuits

Sensors, tags Packet sequence

(4)

Fukuoka Hiroshima _Sendai

NICT Koganei

Wireless Testbed Kanazawa Kagawa Okinawa Nagoya Kochi Osaka Iwate Tokyo Sapporo

JGN‐X: Nation‐Wide R&D Network

Testbed

StarBED: Large‐scale Emulation

Testbed

Promoting verifications and demonstrations of NWGN R&D

activities of Industries, Univs., & Foreign Research Institutes.

South Korea USA Thailand Singapore

Hong Kong

Bandwidth International

DCN

DCN DCN plane

OF OF

OF OpenFlow plane

RISE VN

VN

Virtual Node plane VN

VN

VLAN‐based testbed network

40G 10G DF

Ex

1G

Japan‐ USA： 10Gbps Japan ‐Korea： 10Gbps Japan – Hong Kong： 10Gbps Hong Kong ‐Singapore 2.4Gbps Singapore ‐Thailand： 622Mbps

Optical Testbed

Koganei‐Otemachi Otemachi～Otemachi

4

Large‐scale

emulation testbed

StarBED3

(5)

RISE

 RISE = Research Infrastructure for large‐Scale network Experiments

 Reorganized our OpenFlow network environment on JGN2plus as a testbed

 Ver. 1.0: started to accept public users (October 2011)

 Ver. 2.0: multi‐user model (April 2012)

 We now provide OpenFlow‐based user‐slices in which users can use their own

controllers

5

(6)

Stable,

Operational,

and

SDN

‐

capable

Optical

Packet

&

Circuit

Integrated

Network

6

 Performance of packet error rate is compliant with ITU‐T Y.1541

 5‐hop, 244 km 100Gbps optical packet switching ■ 8 buffer embedded

 Longest prefix matching of optical packet header, management system connected

 Testbed experiment

 Our lab net is accessible to the Internet via

OPCInodes  OpenFlow/OPCI node interwork on JGN‐X (RISE)

T. Miyazawa et al., SDN Workshop at IEEE Globecom 2013.

(7)

Page 7

iPOP2014, Tokyo, Japan

Software Defined Transport Networking

WDM Core OPS Metro ROADM Metro

Elastic 

aggregation Access

NW controller (NMS)

Elastic 

aggregation Access OF Adapter Data center OF Adapter NW Controller (OFC) NW Controller (OFC)

• Need to dynamically setup high-volume pipe via multiple core/metro/access optical networks for data centers

• Ability to create optical paths with flexible bandwidth based on data center request over multiple optical networks.

Data center

10Gb/s 1Gb/s

SDN controllers on VM

Data center Data center

Flowvisor

(8)

Page 8

iPOP2014, Tokyo, Japan

Software Defined Transport Networking

iPOP2014 Showcase Network

100Gbit/s wavelength division multiplexing network 100Gbit/s wavelength division multiplexing network ONUs Virtual L2 SW

Active ODN Integrated control system Core Network Metro Network Access Network Data Center 10Gbit Ethernet(※)

10Gbit Ethernet(※) 10Gbit Ethernet10Gbit Ethernet

10Gbit Ethernet

10Gbit Ethernet 10Gbit Ethernet10Gbit Ethernet

1Gbit Ethernet 1Gbit Ethernet (※) Ethernet is a registered trademark of Fuji Xerox.

100Gbit/s class

Optical packet and circuit integration switch network

100Gbit/s class

Optical packet and circuit integration switch network

OLTs

(9)

What I am Thinking is …

• Our optical packet switch looks up part of (“whole of” in future) IP

address so IP and optical work together simply.

• _Circuit_‐_switched_part_is_solid_(although_upgrade_to_100Gbps_or

400Gbps is another issue)

• Packet‐switched part may be modified according to SDN

operators’ requests.

• Cloud and DC requests SDN, SDN configures optical core, metro,

and access properly.

• Not covered in my talk but

• ID‐based communication lies in the access (mobile hosts and

fixed/mobile server) for mobility, heterogeneity and security.

• Automatic installation as well as path computation is also

useful to (Optical) SDN.

9/9

(10)

(11)

Architecture of RISE 2.0

RISE Physical

Infrastructure (OFSs + VMs)

User‐defined

OpenFlow

Networks (Slices)

Underlay

Infrastructure

(MPLS pseudo wires) Yoshihiko Kanaumi et al., “Deployment and Operation of Wide‐area

Hybrid OpenFlow Network,” in proc. of IEEE/IFIP MANFI 2012.

11

(12)

Open

Ring

Network

Testbed in

JGN

‐

X

12

 Two nodes are placed in Koganei, and

one node is placed in Otemachi

 42.5 km field fibers between Koganei

and Otemachi

 Guest users can use the OPCI testbed

when they connect to access points on

JGN‐X L2 services

User 1

User 4

Ohtemachi AP

Dojima

AP

User 3

Koganei1

AP

Node 1 Node 2 Node 3

Optical Packet Optical Path SMF:42.5km SMF: 33km 10.0.1.0/24 10.0.3.0/24 10.0.2.0/24 User 2

Koganei

Otemachi

SMF

(one way:

42.5km)

Tokyo, Japan JGN‐X Dark Fibers

Koganei

Otemachi

Osaka

AP：Access Point

Ethernet Optical

(13)

Internet

Access

via

the

OPCI

Nodes

13

Router Lab Net

Center of Tokyo

NOC

The Internet

OPCI Node#1 OPCI Node#2

L2SW

Optical Packet

Backup route

West Tokyo

L2SW

Web Browsing

NW:133.69.36.0/24

133.69.32.249/30

133.69.32.250/30 133.69.32.246/30

133.69.32.245/30

133.69.36.1/24

133.69.36.100

(14)

Optical

SDN:

Centralized

OpenFlow

×

Distributed

OPCInode Interwork

 Edge Net or Data‐Center Net requests route with required quality

information

 OPCI Net sets up proper path routes or packet routing table

14 T. Miyazawa et al., SDN Workshop at IEEE Globecom 2013. OpenFlow Switch #1 OpenFlow Controller Config

VID#1 OUT1 VID#2 OUT2

Request

1-2 a Wavelength Path 1-2 Optical Packet

Config VID#1 OUT1 VID#2 OUT1

1

2 1

2

OPCInode

#1 OPCInode_#2

1 2 1 2 OPCInet 1 2 26.3 ms 1.9 ms 1.9 ms 1.9 ms Packet Route 31.0 ms 1.7 ms 1.6 ms 1.6 ms Path Route OpenFlow Switch #2

(15)

HIMALIS

for

heterogeneity

inclusion

and

mobility

adaptation

thru

locator/ID

separation

 Application and transport layers are

independent of network layer

 Mobility, multihoming,

heterogeneity support

 Access and data security

15

IPv6 Network

IPv4 Network

IPv6 Network

Mobile (session is kept)

Heterogeneous communication

Authentication

Multihome

cf) V. P. Kafle, et al., IEEE Com. Mag., Feb 2010.

Network layer

(IPv4, IPv6, 6LoWPAN, …) Network Manager

Signaling

State Manager Session Manager

Identity sublayer

Transport layer

Link and PHY layer
