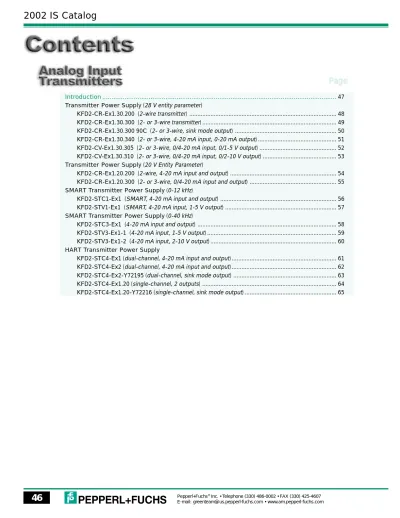

2002 IS Catalog. Page

(1)

Page

Introduction ...47

Transmitter Power Supply (28 V entity parameter) KFD2-CR-Ex1.30.200 (2-wire transmitter) ...48

KFD2-CR-Ex1.30.300 (2- or 3-wire transmitter) ...49

KFD2-CR-Ex1.30.300 90C (2- or 3-wire, sink mode output) ...50

KFD2-CR-Ex1.30.340 (2- or 3-wire, 4-20 mA input, 0-20 mA output) ...51

KFD2-CV-Ex1.30.305 (2- or 3-wire, 0/4-20 mA input, 0/1-5 V output) ...52

KFD2-CV-Ex1.30.310 (2- or 3-wire, 0/4-20 mA input, 0/2-10 V output) ...53

Transmitter Power Supply (20 V Entity Parameter) KFD2-CR-Ex1.20.200 (2-wire, 4-20 mA input and output) ...54

KFD2-CR-Ex1.20.300 (2- or 3-wire, 0/4-20 mA input and output) ...55

SMART Transmitter Power Supply (0-12 kHz) KFD2-STC1-Ex1 (SMART, 4-20 mA input and output) ...56

KFD2-STV1-Ex1 (SMART, 4-20 mA input, 1-5 V output) ...57

SMART Transmitter Power Supply (0-40 kHz) KFD2-STC3-Ex1 (4-20 mA input and output) ...58

KFD2-STV3-Ex1-1 (4-20 mA input, 1-5 V output) ...59

KFD2-STV3-Ex1-2 (4-20 mA input, 2-10 V output) ...60

HART Transmitter Power Supply KFD2-STC4-Ex1 (dual-channel, 4-20 mA input and output)... 61

KFD2-STC4-Ex2 (dual-channel, 4-20 mA input and output)... 62

KFD2-STC4-Ex2-Y72195 (dual-channel, sink mode output) ...63

KFD2-STC4-Ex1.20 (single-channel, 2 outputs)... 64

(2)

Transmitter power supplies transfer 4-20 mA signals from transmitters in hazardous areas and

supply them with power. They deliver an electrical signal that is proportional to a measured value

such as temperature, pressure or flow from hazardous areas to safe areas. The power supply and

signal are transferred through the same conductors in 2-wire transmitters allowing only 4-20 mA

signals. The power supply and signal are isolated from one another in 3-wire transmitters allowing

for 0 mA signals. These mA signals can then be repeated on the safe side of the isolator or can be

converted to other usable signals such as voltage. SMART transmitter power supplies repeat the

transmitter current in addition to a digital signal, which is modulated onto the 4-20 mA signal.

SMART transmitters can be calibrated remotely. This allows the transmitter’s span and zero set point

to be modified in the safe area and information on scheduled maintenance or statistical data to be

accessed on-line. SMART transmitters normally operate in a 2-wire mode. This 2-wire connection

is usually interfaced with a hand-held terminal or a PC for data transmission or accumulation.

P+F SMART transmitter power supplies are shipped with terminal blocks to allow easy access to

communication leads. SMART transmitters from ABB, Bailey, Chessel, Edress+Hauser,

Fisher-Rosemount, Foxboro, Honeywell, Smar and Yokogawa have been successfully tested with P+F

isolators. Please note that some higher communication frequencies require use of the

KFD2-STC3-Ex1 or the KFD2-STV3-KFD2-STC3-Ex1. These isolators are rated for frequencies up to 40 kHz.

(3)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CR-Ex1.30.200

KFD2-CR-Ex1.30 200 7

Transmitter

Power Supply

This single-channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter in hazardous areas. It has an open circuit voltage of 25 V with a minimum of 17.6 V at 20 mA. The transmitter must be connected to terminals 1 and 3 so the 4-20 mA transmitter current flows into the measurement circuit via terminal 3.

A maximum load of 1 kΩ can be

connected between terminals 7 and 8.

■

Single-channel

■

2-wire transmitter power supply

■

1 k

Ω

max. output load

■

3-way isolation

■

Suitable for Division 2 mounting

Safe Area or Div 2

Power Supply Power rail or terminals 11+,

12-Nominal voltage 20-35 VDC

Power consumption ≤ 1.6 W

Input (intrinsically safe) Terminals 1+,

3-Input Signal 4-20 mA

Available voltage at 20 mA 17.6 VDC

Output (not intrinsically safe) Terminals 7-, 8+,

9-Output signal 4-20 mA

Available voltage 20 VDC

Load ≤ 1 kΩ

Ripple < 20 µAss

Transfer Characteristics

Calibrated accuracy ±10 µA nonlinearity, load fluctuations

Temperature drift ± 0.2 µA/ºC range 0-60ºC

Rise time ≈ 50 µs (at 250 Ω load)

Entity Parameters Terminals 1+,

3-FM control drawing no. 116-0129

Voltage VOC 29 V

Current I_SC 96.1 mA

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.13 µF 0.39 µF 1.05 µF Max. external inductance (La) 3.60 mH 15.79 mH 31.91 mH

Mechanical

Housing Type A4 (see page 387)

Dimensions (mm) 107 x 20 x 115

Weight 3.5 oz. (100 g)

Ambient Temperature -20ºC to +60ºC (-4ºF to +140ºF)

CSA approvals available upon request

Class I, Div 1, Group A-G, Zone 0, IIC

(4)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CR-Ex1.30.300

12 + 11 7 9 KFD2-CR-Ex1.30 300 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2 24VDC 8

This single-channel isolator powers and repeats a 0/4-20 mA signal from a 2- or 3-wire transmitter in hazardous areas. It also repeats a 0/4-20 mA current source signal. 2-wire transmitters are connected to terminals 1 and 3 so the 0/4-20 mA transmitter current flows to terminal 3. A minimum of 13.6 V at 20 mA is available between terminals 1 and 3.

The power supply is available at terminals 1 and 2 in 3-wire transmitters with the transmitter current flowing to terminal 3. Approximately 16.5 V is available at 25 mA between terminals 1 and 2 for the transmitter. Terminals 2 and 3 are used for connections in applications requiring repeating source currents. This configuration has no terminal 1 connections.

A maximum load of 1 kΩ can be connected

between terminals 7 and 8.

■

Single-channel

■

2- or 3-wire transmitter

power supply

■

24 VDC power supply

■

1 k

Ω

max. output load

■

3-way isolation

■

Suitable for Division 2 mounting

Input 0/4-20 mA

Available voltage (term. 1+, 2-) 16.5 V at 25 mA Available voltage (term. 1+, 3) 13.6 V at 20 mA Input resistance (term. 2-, 3) ≈ 220 Ω

9-Output signal 0/4-20 mA

Load ≤ 1 kΩ

Ripple ≤ 20 µAss

Rise time ≈ 50 µs

Entity Parameters Terminals 1+, 3 2-, 3

FM control drawing no. 116-0129

Voltage V_OC 28 V 4.4 V

Current I_SC 93 mA 22.2 mA

Explosion group A&B C&E D, F&G Terminals 1+, 3

Max. external capacitance (Ca) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (L_a) 4.18 mH 16.83 mH 34.21 mH Terminals 2-, 3

Max. external capacitance (Ca) 1000 µF 3000 µF 8000 µF Max. external inductance (La) 67.8 mH 239 mH 597 mH

Mechanical

Dimensions (mm) 107 x 20 x 115 mm

Weight 100 g (3.5 oz.)

(5)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CR-Ex1.30.300 90C

KFD2-CR-Ex1.30 300 90C 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2 24VDC 12 + 11 7 9 8

This single-channel isolator powers and repeats the 4-20 mA signal from a 2- or 3-wire transmitter in hazardous areas. It also repeats a 4-20 mA current source signal. This isolator is specially designed with a sink mode output to work with a Moore Products SAM input card that supplies (sources) current. Two-wire transmitters are connected to terminals 1 and 3 so the 4-20 mA transmitter current flows to terminal 3. A minimum of 13.6 V at 20 mA is available between terminals 1 and 3.

The power supply is available on terminals 1 and 2 in 3-wire transmitters with the transmitter current flowing to terminal 3. Approximately 16.5 V is available at 25 mA between terminals 1 and 2 for the transmitter. Terminals 2 and 3 are used for connections in applications requiring repeating source currents. This configuration has no terminal 1 connections.

between terminals 8-9.

■

Single-channel

■

2- or 3-wire transmitter

power supply

■

24 VDC power supply

■

1 k

Ω

max. output (sink mode)

■

3-way isolation

■

Suitable for Division 2 mounting

Transmitter

Power Supply

Power Supply Power Rail or terminals 11+,

Input (intrinsically safe) Terminals 1+, 2-, 3

Input 0/4-20 mA

Output (not intrinsically safe) Terminals 8+,

Load ≤ 1 kΩ (with 475 Ω external resistor)

Ripple ≤ 20 µAss

Temperature drift ≤ ± 0.2 µA/ºC range 0-60ºC

Entity Parameters Terminals 1+, 3 2-, 3

Voltage V_oc 28 V 4.4 V

Current I_sc 93 mA 22.2 mA

Max. external capacitance (C_a) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (L_a) 4.18 mH 16.83 mH 34.21 mH Terminals 2-, 3

*Consult factory for additional certifications and entity parameters

Mechanical

(6)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CR-Ex1.30.340

12 + 11 7 9 KFD2-CR-Ex1.30 340 3 (+) 1 2 24VDC I (+) 1 3 3 3 2 (+) 1 2 8

This single-channel isolator powers and repeats a 4-20 mA signal from a 2- or 3-wire transmitter in hazardous areas. It also repeats a 4-20 mA current source signal.

Two-wire transmitters are connected to terminals 1 and 3 so the 4-20 mA transmitter current flows into terminal 3. A minimum of 13.6 V at 20 mA is available between terminals 1 and 3.

between terminals 8 and 9.

■

Single-channel

■

2- or 3-wire transmitter

power supply

■

24 VDC power supply

■

4-20 mA input

■

0-20 mA output

■

Suitable for Division 2 mounting

Input 0/4-20 mA

Load ≤ 1 kΩ

Ripple ≤ 20 µAss

Temperature drift ± 0.5 µA / ºC range 0-60ºC

Entity Parameters Terminals 1+, 2-, 3

Voltage V_oc 28 V 4.4 V

Current Ioc 93 mA 22.2 mA

Max. external capacitance (Ca) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (L_a) 4.18 mH 16.83 mH 34.21 mH Terminals 2-, 3

Mechanical

(7)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CV-EX1.30.305

KFD2-CV-Ex1.30 305 0/1-5V + 11 7 9 8 24VDC 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2

Transmitter

Power Supply

This single-channel isolator powers and repeats a 0/4-20 mA signal from a 2- or 3-wire transmitter in hazardous areas and converts it into a voltage output. It also repeats a 0/4-20 mA signal from a current source. Two-wire transmitters are connected to terminals 1 and 3 so the 0/4-20 mA transmitter current flows to terminal 3. A minimum of 16.8 V at 20 mA is available between terminals 1 and 3.

The measurement current is converted into a proportional voltage signal once transmitted to the output.

The output circuit has two sets of terminal blocks for the parallel connection of two voltage measurement circuits. The voltage measurement circuits must have a resistance

of at least 2 kΩ.

■

Single-channel

■

2- or 3-wire transmitter

power supply

■

0/4-20 mA input

■

0/1-5 V output

■

Suitable for Division 2 mounting

Input signal 0/4-20 mA

Available voltage (term. 1+, 2-) ≥ 15.3 V at 25 mA Available voltage (term. 1+, 3) ≥ 16.8 V at 20 mA Input resistance (term. 2-, 3) 56 Ω

Output (not intrinsically safe) Terminals 7, 8+, 9-, 10+

Output signal 0/1-5 V

Load 2 kΩ

Ripple ≤ 5 mV_pp

Calibrated accuracy ≤ 5 mV

Temperature drift ≤ 0.005% of span/ ºC

Rise time 5.2 ms Entity Parameters BASEEFA no. Ex 97D2085 Voltage V_oc 26 V Current Isc 93 mA Explosion group II A II B II C

Max. external capacitance (Ca) 0.792 µF 0.297 µF 0.099 µF Max. external inductance (La) 33.6 mH 12.6 mH 4.2 mH

Mechanical

(8)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CV-Ex1.30.310

12 + 11 KFD2-CV-Ex1.30 310 3 (+) 1 2 7 8 24VDC I (+) 1 3 3 3 2 (+) 1 2 0/2-10V

This single-channel isolator powers and repeats a 0/4-20 mA signal from a 2- or 3-wire transmitter in hazardous areas and converts it into a voltage output. It also repeats a 0/4-20 mA current source signal. Two-wire transmitters are connected to terminals 1 and 3 so the 0/4-20 mA transmitter current flows to terminal 3. A minimum of 16.8 V at 20 mA is available between terminals 1 and 3. The power supply is available on terminals 1 and 2 in 3-wire transmitters with the transmitter current flowing to terminal 3.

Approximately 15.3 V is available at 25 mA between terminals 1 and 2 for the transmitter. Terminals 2 and 3 are used for connections in applications requiring repeating source currents. This configuration has no terminal 1 connections.

The measurement current is converted into a proportional voltage of 0/2-10 V once transmitted to the output.

The output circuit has two sets of terminal blocks to allow the parallel connection of two voltage measurement circuits. The voltage measurement circuits must have a resistance

of at least 2 kΩ.

■

Single-channel

■

2- or 3-wire transmitter

power supply

■

0/4-4-20 mA input

■

0/2-10 V output

■

Suitable for Division 2 mounting

Input signal 0/4-20 mA

Available voltage (term. 1+, 2-) 15.3 V at 25 mA Available voltage (term. 1+, 3) 16.8 V at 20 mA Input resistance (term 2-, 3) 56 Ω

Output (not intrinsically safe) Terminals 7-, 8+, 9-, 10+

Output signal 0/2-10 V

Load 2 kΩ

Ripple ≤ 10 mV_pp

Calibrated accuracy ≤ 10 mV

Temperature drift ± 0.005% of span/ºC

Rise time 5.2 ms

Entity Parameters

BASEEFA no. Ex 97D2085

Voltage V_oc 26 V

Current Isc 93 mA

Explosion group IIA IIB IIC Max. external capacitance 0.792 µF 0.297 µF 0.099 µF

Max. external inductance 33.6 mH 12.6 mH 4.2 mH

Mechanical

(9)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CR-Ex1.20.200

KFD2-CR-Ex1.20 200 7 24VDC (+) 1

This single-channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter in hazardous areas. This isolator is specially designed for transmitters with entity parameters less than 28 V.

The open circuit voltage of the isolator is 18 V with a minimum of 16 V at 20 mA. The transmitter must be connected to terminals 1 and 3 so the 4-20 mA transmitter current flows into the measurement circuit across terminal 3.

between terminals 8-9.

■

Single-channel

■

2-wire transmitter power supply

■

24 VDC power supply

■

1k

Ω

max. output load

■

3-way isolation

■

Special design with low entity

parameters

■

Suitable for Division 2 mounting

Transmitter

Power Supply

3-Input signal 4-20 mA

Available voltage 16 VDC at 20 mA

Load ≤ 1 kΩ

Ripple ≤ 20 µA_ss

Voltage V_oc 20 V

Current I_sc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.34 µF 1.01 µF 2.70 µF Max. external inductance (L_a) 4.18 mH 16.84 mH 34.23 mH Mechanical

(10)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-CR-Ex1.20.300

12 + 11 7 9 KFD2-CR-Ex1.20 300 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2

This single-channel isolator powers and repeats a 0-20 mA signal from a 2- or 3-wire transmitter in hazardous areas. It can also repeat a 0-20 mA signal from a current source. This isolator is specially designed for transmitters with entity parameters of less than 28 V.

Two-wire transmitters are connected to terminals 1 and 3 so the 0-20 mA transmitter current flows to terminal 3. A minimum of 12 V at 20 mA exist between terminals 1 and 3. The power supply is available on terminals 1 and 2 in 3-wire transmitters with the transmitter current flowing to terminal 3. Approximately 16 V are available at 25 mA between terminals 1 and 2 for the transmitter. Terminals 2 and 3 are used for connections in applications requiring repeating source currents. This configuration has no terminal 1 connections.

■

Single-channel

■

2- or 3-wire transmitter

power supply

■

24 VDC power supply

■

1 k

Ω

max. output load

■

Special design with low entity

parameters

■

Suitable for Division 2 mounting

Input 0/4-20 mA

Available voltage (term. 1+, 2-) 16.5 V at 25 mA Available voltage (term. 1+, 3-) 13.6 V at 20 mA Input resistance (term. 2-, 3) 220 Ω

Output (not intrinsically safe) Terminals 8+,

Load ≤ 1 kΩ

Entity Parameters

Terminals 1+, 3 2-, 3 1+, 2-, 3

Voltage Voc (Vt) 20 V 4.4 V 20 V

Current Isc (It) 93 mA 22.2 mA 115 mA

Explosion group A&B C&E D, F&G Terminals 1+, 2-, 3

Max. external capacitance (Ca) 0.34 µF 1.01 µF 2.70 µF Max. external inductance (L_a) 2.65 mH 11.35 mH 22.21 mH Mechanical

(11)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC1-Ex1

This single-channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter inside hazardous area.

This isolator can also repeat a maximum 12 kHz digital signal that is modulated on the 4-20 mA signal. A processing system, field device or hand-held terminal generates this digital information, which is transferred bidirectionally by the isolator. This allows the operator to interrogate and reprogram the transmitter from a safe area using uncertified communication equipment. Hand-held terminals can be connected as shown in the circuit diagram. These isolators have KF-STP-BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

■

Single-channel

■

24 VDC power supply

■

SMART communication to

12 kHz (-1dB)

■

4-20 mA output

■

Suitable for Division 2 mounting

SMART Transmitter

Power Supply

KFD2-STC1-Ex1

9 11

3-Input 4-20 mA

Available voltage at 20 mA 16.5 VDC at 20 mA

Output (not intrinsically safe) Terminals 9+, 10-, 11+

Output signal 4-20 mA, max. load 500 Ω

Calibrated accuracy ≤ 10 µA

Temperature drift ≤ 0.002% of span/ºC

Freq. range (250 Ω load) Hazardous area into safe area Band width at 1 mAppSignal 0 Hz to 12 kHz (-1 dB) Freq. range (250 Ω load) Safe area into hazardous area Band width at 1 VppSignal 1 Hz to 12 kHz (-1 dB)

Rise/fall time 40 µs/40 µs

Voltage Voc 28 V

Current I_sc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (Ca) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (La) 4.18 mH 16.83 mH 34.21 mH

Mechanical

(12)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STV1-Ex1

KFD2-STV1-Ex1 9 11

This single-channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter inside a hazardous area. This 4-20 mA current is converted into a 1-5 V signal. This isolator can also repeat a maximum 12 kHz digital signal that is modulated on the 4-20 mA signal. A processing system, field device or hand-held terminal generates this digital information, which is transferred bidirectionally by the isolator. This allows the operator to interrogate and reprogram the transmitter from a safe area using uncertified communication equipment. Hand-held terminals can be connected as shown in the circuit diagram. These isolators have KF-STP-BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

Note:

Terminal 12 is placed across an internally applied capacitance. Active input cards, such as Foxboro FMB 18, can operate using this connection.

■

Single-channel

■

24 VDC power supply

■

SMART communication to

12 kHz (-1dB)

■

1-5 V output

■

Suitable for Division 2 mounting

3-Input 4-20 mA

Available voltage 15.8 V at 20 mA

Output (not intrinsically safe) Terminals 9+, 10-, +12

Output signal 1-5 V

Voltage Voc 28 V

Current I_sc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (Ca) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (La) 4.18 mH 16.83 mH 34.21 mH

Mechanical

(13)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC3-Ex1

KFD2-STC3-Ex1

This single-channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter inside the hazardous area.

This isolator can also repeat a maximum 40 kHz digital signal that is modulated on the 4-20 mA signal. A processing system, field device or hand-held terminal generates this digital information, which is transferred bidirectionally by the isolator. This allows the operator to interrogate and reprogram the transmitter from a safe area using uncertified communication equipment. Hand-held terminals can be connected as shown in the circuit diagram. These isolators have BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

■

Single-channel

■

24 VDC supply

■

SMART communication to 40

kHz (-1dB)

■

4-20 mA output

■

3-way isolation

■

Suitable for Division 2 mounting

SMART Transmitter

Power Supply

Available voltage 16.5 V @ 20 mA

Output signal 4-20 mA, max. load 1 kΩ

Ripple ≤ 0.05% output signal range

Calibrated accuracy ≤ 0.05% of output signal

Freq. range (250 Ω load) Hazardous area into safe area Band width at 1 mA_ppSignal 0 Hz to 40 kHz (-1 dB) Freq. range (250 Ω load) Safe area into hazardous area Band width at 1 VppSignal 0 Hz to 40 kHz (-1 dB)

Voltage V_oc 28 V

Current I_sc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (La) 4.18 mH 16.83 mH 34.21 mH

Mechanical

(14)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STV3-Ex1-1

KFD2-STV3-Ex1-1

This single channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter inside the hazardous area. This isolator can also repeat a maximum 40 kHz digital signal that is modulated on the 4-20 mA signal. A processing system, field device or hand-held terminal generates this digital information, which is transferred bidirectionally by the isolator. This allows the operator to interrogate and reprogram the transmitter from a safe area using uncertified communication equipment. Hand-held terminals can be connected as shown in the circuit diagram. These isolators have KF-STP-BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

Note:

■

Single-channel

■

24 VDC supply

■

SMART communication to 40

kHz (-1dB)

■

1-5 V output

■

3-way isolation

■

Suitable for Division 2 mounting

3-Input 4-20 mA

Output signal 1-5 V, internal resistance ≈ 305 Ω

Enity Parameters Terminals 1+,

Voltage V_oc 28 V

Current Isc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (Ca) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (L_a) 4.18 mH 16.83 mH 34.21 mH Mechanical

(15)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STV3-Ex1-2

KFD2-STV3-Ex1-2

This single-channel isolator powers and repeats the 4-20 mA signal from a 2-wire transmitter inside the hazardous area. This 4-20 mA current is repeated or converted into a or 2-10 V signal

This isolator can also repeat a maximum 40 kHz digital signal that is modulated on the 4-20 mA signal. A processing system, field device or hand-held terminal generates this digital information, which is transferred bidirectionally by the isolator. This allows the operator to interrogate and reprogram the transmitter from a safe area using uncertified communication equipment. Hand-held terminals can be connected as shown in the circuit diagram. These isolators have KF-STP-BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

Note:

■

Single-channel 24 VDC

power supply

■

SMART communication to 40

kHz (-1dB)

■

2-10 V output

■

3-way isolation

■

Suitable for Division 2 mounting

SMART Transmitter

Power Supply

Output (not intrinsically safe) Terminals 10-, 11+, +12

Output signal 2-10 V, internal resistance ≈ 305 Ω

Freq. range (250 Ω load) Hazardous area into safe area

Band width at 1 mAppSignal 0 Hz to 40 kHz (-1 dB) Safe area into hazardous area

Band width at 1 mA_ppSignal 0 Hz to 40 kHz (-1 dB)

Enity Parameters Terminals 1+,

Voltage V_oc 28 V

Current Isc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.14 µF 0.43 µF 1.14 µF Max. external inductance (L_a) 4.18 mH 16.83 mH 34.21 mH Mechanical

(16)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC4-Ex1

The SMART transmitter power supplies supply a 2-wire SMART transmitter within a hazardous area and transfer the analog 4-20 mA signal from the hazardous area to the safe area.

Digital signals which can be modulated onto the analog signal, can also be transmitted bidirectionally on the hazardous or safe side. Hand-held terminals can be connected as shown in the block diagram.

Hand-held terminals can be connected as shown in the circuit diagram. These isolators have BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

■

Single-channel

■

HART compatible

■

24 VDC power supply

■

3 way isolation

■

Suitable for Division 2 mounting

If the communicator is connected in the safe area, the load resistance must not be less than 230 Ω Safe Area or Div 2

KFD2-STC4-Ex1 12 + 11 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2 7 8 4-20mA

Input 4-20 mA

Available voltage 16 V at 20 mA

Output (not intrinsically safe) Terminals 7-, 8+

Output signal 4-20 mA

Load resistance* 0-550 Ω

Ripple ≤ 50 µAss

Freq. range (250 Ω load) Hazardous area into safe area Band width at 1 mA_ppSignal 0 Hz to 7.5 kHz (-3 dB) Freq. range (250 Ω load) Safe area into hazardous area Band width at 1 VppSignal 300 Hz to 7.5 kHz (-3 dB)

Rise/fall time 20µs/20µs

3-UL control drawing no. 116-0173

Voltage V_oc 25.4 V

Current I_sc 88.2 mA

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.095µF 0.808 µF 2.88 µF

Max. external inductance (L_a) 4.2 mH 17 mH 33 mH

Mechanical

(17)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC4-Ex2

KFD2-STC4-Ex2

The SMART transmitter power supplies supply a 2-wire SMART transmitter within a hazardous area and transfer the analog 4-20 mA signal from the hazardous area to the safe area.

Digital signals which can be modulated onto the analog signal, can also be transmitted bidirectionally on the hazardous or safe side. Handheld terminals can be connected as shown in the block diagram.

Hand-held terminals can be connected as shown in the circuit diagram. These isolators have KF-STP-BU and KF-STP-GN terminals with test probe access holes for the easy interface of hand-held terminals.

■

Dual-channel

■

HART compatible

■

24 VDC power supply

■

3 way isolation

■

Suitable for Division 2 mounting

HART Transmitter

Power Supply

If the communicator is connected in the safe area, the load resistance must not be less than 230 Ω.

Input (intrinsically safe) Terminals 1+, 3-; 4+,

6-Input 4-20 mA

Available voltage 16 V at 20 mA

Load resistance 0-550 Ω

Ripple ≤ 50 µAss

Freq. range (250 Ω load) Hazardous area into safe area Band width at 1 mA_ppSignal 0 Hz to 7.5 kHz (-3 dB) Freq. range (250 Ω load) Safe area into hazardous area Band width at 1 VppSignal 300 Hz to 7.5 kHz (-3 dB)

Rise/fall time 20µs/20µs

Entity Parameters Terminals 1, 3; 4, 6

UL control drawing no. 116-0173

Voltage V_oc 25.2 V

Current I_sc 93 mA

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.095µF 0.808 µF 2.88 µF Max. external inductance (L_a) 4.2 mH 17 mH 33 mH Mechanical

(18)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC4-Ex2-Y72195

■

Dual-Channel

■

HART compatible

■

24 VDC power supply

■

Sink mode output

■

3-way isolation

■

Suitable for Division 2 mounting

The SMART transmitter power supplies supply a 2-wire SMART transmitter within a hazardous area and transfer the analog 4-20 mA signal from the hazardous area to the safe area. This isolator is designed to provide a sink mode output on the safe area terminals.

The SMART transmitters are normally delivered with the BU and KF-STP-GN terminals. Connector jacks are integrated in these terminals for the connection of the handheld terminals.

KFD2-STC4-Ex2-Y72195

20-35VDC

Input 0/4-20 mA

Output (not intrinsically safe) Terminals 7-,8+; 10-, 11+

Output signal 0/4-20 mA

Load resistance 0-550 Ω

Temperature drift ≤ 1µA/ºC

Freq. range (250 Ω load) Hazardous area into safe area Band width at 1 V_pp-Signal 0 Hz to 7.5 kHz (-3 dB) Freq. range (250 Ω load) Safe area into hazardous area Band width at 1 Vpp-Signal 300 Hz to 7.5 kHz (-3 dB)

Entity Parameters Terminals 1, 3, 4, 6

UL control drawing no. 116-0173

Voltage V_oc 25.2 V

Current Isc 93.0 mA

Explosion group A&B C&E D, F&G Max. external capacitance (Ca) 0.093µF 0.798 µF 2.808 µF Max. external inductance (La) 4.6 mH 18 mH 36 mH

Mechanical

(19)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC4-Ex1.20 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2 24VDC 7 8 11 10 14 15

KFD2-STC4-Ex1.20

■

Single-channel

■

Dual outputs

■

HART compatible

■

4-20mA current source

outputs

■

3-way isolation

SMART transmitter power supplies supply a 2-wire SMART transmitter within a hazardous area and transfer the analog 4-20 mA signal from the hazardous area to the safe area as two current sources.

HART Transmitter

Power Supply

Input signal 4-20 mA

Available voltage (term. 1, 3) ≥16 V at 20 mA

Ripple ≤ 75 µA_pp

Temperature drift ≤ 1 µA/ºC

Freq. range (250 Ω load) (Hazardous area into safe area) Band width at 0.5 V_ppSignal 0 Hz to 7.5 kHz (-3 dB)

(Safe area into hazardous area) Band width at 0.5 V_ppSignal 300 Hz to 7.5 kHz (-3 dB)

Interference rejection Unaffected by 260 V, 50 Hz common

mode input signal with any safe side terminal grounded, and 27 MHz walkie-talkies

Voltage V_oc 25.4 V

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.01 µF 0.081 µF 2.89 µF

Mechanical

Ambient Temperature -20ºC to +60ºC (-4ºF to +140ºF )

(20)

Connection Diagram

Model Number

Analog Input T

ransmitters

KFD2-STC4-Ex1.20-Y72216 3 (+) 1 2 I (+) 1 3 3 3 2 (+) 1 2 24VDC 7 8 11 10 14 15 20-35VDC 20-35VDC

KFD2-STC4-Ex1.20-Y72216

■

Single-channel

■

Dual outputs

■

HART compatible

■

Sink mode outputs

■

3-way isolation

SMART transmitter power supplies supply a 2-wire SMART transmitter within a hazardous area and transfer the analog 4-20 mA signal from the hazardous area to the safe area as two current sink outputs. Digital signals which can be modulated onto the analog signal, can also be transmitted bidirectionally on the hazardous or safe side. Handheld terminals can be connected as shown in the block diagram.

Input signal 4-20 mA

Available voltage (term. 1, 3) ≥16 V at 20 mA

Ripple ≤ 75 µA_pp

Temperature drift ≤ 1 µA/ºC

Freq. range (250 Ω load) (Hazardous area into safe area) Band width at 0.5 V_ppSignal 0 Hz to 7.5 kHz (-3 dB)

(Safe area into hazardous area) Band width at 0.5 V_ppSignal 300 Hz to 7.5 kHz (-3 dB)

Interference rejection Unaffected by 260 V, 50 Hz common

mode input signal with any safe side terminal grounded, and 27 MHz walkie-talkies

Voltage V_oc 25.4 V

Explosion group A&B C&E D, F&G Max. external capacitance (C_a) 0.01 µF 0.081 µF 2.89 µF

Mechanical

Ambient Temperature -20ºC to +60ºC (-4ºF to +140ºF )
