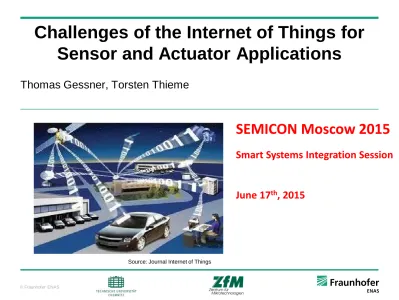

Challenges of the Internet of Things for Sensor and Actuator Applications

(1)

Challenges of the Internet of Things for

Sensor and Actuator Applications

Thomas Gessner, Torsten Thieme

Source: Journal Internet of Things

SEMICON Moscow 2015

Smart Systems Integration Session

(2)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



_Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(3)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



_Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(4)

Internet of

Things

– a new dimension

Until now the Internet was blind

…

the Internet only connects

people

at

anytime

and

anywhere

,

but the environment of these

people could not be connected

With

the Internet of Things

a new dimension could be

connected:

ANYTHING

Source: Journal

(5)

Internet of Things Definition according to Yole

Développement

“Internet of Things

devices is the

aggregation of all

sensing modules

which are linked to

the Cloud – either

directly or through a

gateway – and with

which data is

processed and

valorized in any

manner.“

(6)

smart car

E2_MS Electronic Engineering & Manufacturing Services

The Internet of Things consists of „Systems of Cyber-Physical Systems“

Real World Virtual World cont rol rep res en t rep res en t cont rol communication

(7)

Smart fab – industry 4.0

Real World Virtual World cont rol rep res en t rep res en t cont rol communication

(8)

smart me

E2_MS Electronic Engineering & Manufacturing Services Real World Virtual World cont rol rep res en t cont rol communication rep res en t

(9)

Internet of Things - anywhere

Home

Office

Car

Industry

Shops

Street

Hotels

Hospital

Ski Slope

…

(10)

Smart Cities

Cities cover 2% of the earth’s surface In cities live 50% of the earth’s population Cities consume 75% of global energy Cities are responsible for 80% of global carbon emissions

If we do not want to collapse in our own emissions smart system solutions for Mobility, Energy, Health ... are necessary;

(11)

© Fraunhofer ENAS 0 50 100 150 200 250 300 350 400 450 1985 1990 1995 2000 2005 2010 2015 2020 PERSONAL COMPUTER MAINFRAMES SMARTPHONE AND TABLET CELLPHONE NEXT? PC M o b ile “T hi ng s” ~10% ~10% ~30% ~35%

Internet of Things Connections Early 2000s 2011 ~10% 2020 Consumer Electronics Buildings Energy Automotive Healthcare Other ~1 12 50

The Internet of Things

will drive the next industrial growth wave

Bringing the industry over $400bn

CONNECTED DEVICES IN USE

(in bn units)

ICT INDUSTRY REVENUE

(in bn US$)

~5%

3

2020

(12)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



_Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(13)

Internet of Things - Threats and Questions

 … data privacy

 … undesirable control of persons

 … protection against health defects (caused by radiation and foreign substances)

 … protection of environment (recycling of electronic waste)

 … increasing requirement for energy  … regulating the causer pays principle

(who is responsible for defaults of the system?)

 … protection against cyber crime  …

(14)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(15)

Internet of Things – enabling Technologies

 Low power consuming devices ( Electronics and sensors)  Sensing devices: MEMS/NEMS

 NFC (Near Field Communication)

 RFID (Radio Frequency Identification)

 Smart Systems Integration  New materials like polymers  New technologies

 New radio standards for bandwidth and frequencies

 Alternative energy sources, energy harvesting and low-power chipsets  …

(16)

Internet of Things – enabling Social Needs

 Create laws and control by an impartial governance authority

(e.g. UN or an industrial consortium)

 Protection of privacy  Regulation of the liability  Protection of minorities

 Voluntary use of the smart things

 Creation of sensitive areas without networking

 Creation of the IoT by the general public (e.g. public forums, round tables)

 Education

 At the school: to learn the critical use of the IoT

(17)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



_Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(18)

Fields of application

(19)

IoT Structure according to Yole

Yole report lists 112 companies and research institute

(20)

Need for diversified sensors

Machine Vision Optical Ambient Light Position/Presence/Proximity Motion/Velocity/Displacement Humidity/Moisture Acoustic/Sound/Vibration Chemical/Gas Flow Force/Load/Torque Strain/Pressure Leaks/Levels Electric/Magnetic Acceleration Temperature

(21)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



_Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(22)

Smart Systems from the Technology Point of View

Silicon based technologies Non-silicon based technologies printing, polymer-based, embroidered… System integration technologies

hetero, hybrid light-weight structures, … Power Sensor & Actuator Processor & Memory Radio

(23)

Outline

1. Internet of Things



_{Definition, Explanation}



_{What are the threats of the Internet of Things?}



_{What do we need to enable the Internet of Things?}



_Technologies



_{Social needs}

2. General Trends

3. Smart Integrated Systems

4. Application Examples of Fraunhofer ENAS

(24)

Example 1: power line monitoring

Problem: increasing supply of renewable

energies (e.g. solar and wind) and its high

fluctuations

 Distribution of power from renewable sources is difficult (transport bottleneck)

 Safety margin (distance between power line and ground) reduce capacity utilization

Goal: online monitoring of the power lines

(temperature of the conductor, magnitude

of the current, conductor sag)

 Monitoring system allows evaluation and optimization of the capacity utilization

(25)

power line monitoring

Harvester electronic

Filter Outer conducting hull

(26)

power line monitoring

 Sensor nodes suspended at intervals of a few hundred meters along the high-voltage power line (e.g. at 110 kV or 380 kV)

 Transmission of sensor values (inclination, temperature, current) along the chain to a base station

 Self-organization of the network

 Wireless communication in 2.4 GHz frequency band

 Energy required to operate the system is harvested from the electrostatic fringing field of the power line

(27)

Characterization

Field test at a 110 kV power

line

Measurement of temperature

and inclination

 Approval of the concept: power transmission can be monitored by measurement of inclination

 Wireless communication in 2.4 GHz frequency band

(28)

Example 2: Grease Sensor

 Approximately 80 percent of all damages to

grease-lubricated bearings are caused by lubricants.

 Currently available sensors (structure-borne sound) are inapplicable, as they only detect a damage, which has already occurred.

 With grease sensors it is

possible to detect changes of state in grease long before damages to bearings occur.  Thus, the replacement of

grease can be defined precisely.

generation of heat

noise

overheating

vibration

Pre warn time (standardized

)

Co ndi tio n o f t he m ac hi ne [% ]

Chemical/Physical modification

(29)

printed circuit board

optical window

Sensor case

Primary electronics

(30)

Grease Sensor – Solution

Measurement categories:

 Temperature  Grease damage

 Contamination (abrasion, water)  Grease degradation (aging)

Parameter:

 Supply voltage: 12 – 36 V

 Range of temperature: 05 – 85 °C  Protection standard: IP68

 Communication interface:

 Power output (4 – 20 mA)

 Switching output (0 – 24 V)  CAN-Interface  Others:  Short-circuit proof  Overload protection  Inverse-polarity protection

(31)

Example 3: smart Sealing Ring

 Current industrial trends aim particularly at the functional integration of sensors in

machine parts:

 Minimization of system errors

 Preservation of competitive advantages

 Seals are suitable machine parts, as they separate critical elements from anothers  Challenges are in the:

 Development of novel multifunctional sensors

 Energy supply as well as communication opportunity, integration to an overall working system.

(32)

Challenges

 Reliability (range of temperature: -40 - +120 °C, lifetime: 10 years)  Aggressive surroundings (oil)

Functions

 Measurement of: temperature, wear out

of the seal and rotation speed every 3 seconds  Rectification of the generator ac voltage

smart Sealing Ring – Electronics & Signal Transmission

SPI SPI MOSI 1 MISO 1 SCLK 1 CS 2 μC CC2500 CC2500 MOSI 2 MISO 2 SCLK 2 CS 3 μC TXD RXD USB

(33)

Example 4: fully integrated micro fluidic cartridges for

in-vitro diagnostics

(34)

Smart Micro fluidic System:

Functions to be integrated

Fraunhofer ENAS works on full integration

of the following components:

 Reagents  Pumping  Heating  Control Electronics  Communication  Power supply  Sensing
