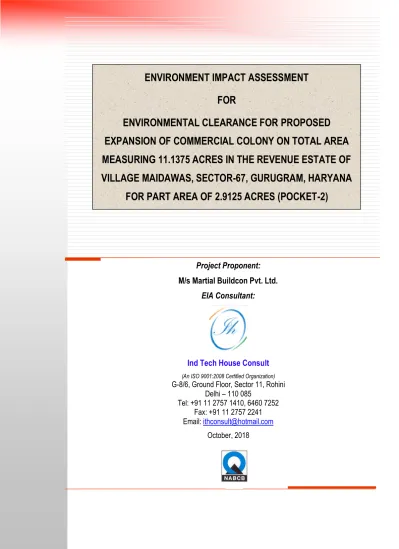

FOR
ENVIRONMENTAL CLEARANCE FOR PROPOSED
EXPANSION OF COMMERCIAL COLONY ON TOTAL AREA
MEASURING 11.1375 ACRES IN THE REVENUE ESTATE OF
VILLAGE MAIDAWAS, SECTOR-67, GURUGRAM, HARYANA
FOR PART AREA OF 2.9125 ACRES (POCKET-2)
Project Proponent:
M/s Martial Buildcon Pvt. Ltd.
EIA Consultant:
Ind Tech House Consult (An ISO 9001:2008 Certified Organization)
G-8/6, Ground Floor, Sector 11, Rohini Delhi – 110 085 Tel: +91 11 2757 1410, 6460 7252 Fax: +91 11 2757 2241 Email: [email protected] October, 2018 Q M 0
ENVIRONMENT IMPACT ASSESSMENT FOR PROPOSED EXPANSION
OF COMMERCIAL COLONY ON TOTAL AREA MEASURING 11.1375
ACRES IN THE REVENUE ESTATE OF VILLAGE MAIDAWAS,
SECTOR-67, GURUGRAM, HARYANA FOR PART AREA OF 2.9125 ACRES
(POCKET-2)
Project Proponent:
M/s Martial Buildcon Pvt. Ltd.
This report has been prepared by Ind Tech House Consult with all reasonable skill, care and diligence within the terms of the contract with the client, incorporating our general terms and conditions of business and taking account of the resources devoted to it by agreement with the client.
We disclaim any responsibility to the client and others in respect of any matters outside the scope of the above.
The document has been prepared for the titled project or named part thereof and should not be relied upon or used for any other project without an independent check being carried out as to its suitability and prior written authority of Ind Tech House Consult being obtained. Ind Tech House Consult accepts no responsibility or liability for the consequences of this document being used for a purpose other than the purpose for which it was commissioned. Any person using or relying on the document for such other purpose agrees, and will by such use or reliance be taken to confirm his agreement to indemnify Ind Tech House Consult for all loss or damage resulting there from. Ind Tech House Consult accepts no responsibility or liability for this document to any party other than the person by whom it was commissioned.
For and on behalf of:
Ind Tech House Consult
Approved by: Mr. Arvind Narayan DevikarSigned:
Position: EIA Coordinator
Declaration by Experts Contributing to the Rapid Environmental Impact Assessment for Proposed Expansion of Commercial Colony on total area measuring 11.1375 Acres in the revenue estate of village Maidawas, Sector-67, Gurugram, Haryana for Part Area of 2.9125 Acres (Pocket-2)
I, hereby, certify that I was a part of the EIA team in the following capacity that developed the above Report.
EIA coordinator: Mr. Arvind Narayan Devikar
Signature and Date
Functional Area Experts:
S. NO.
Functional areas
Name of the expert/s Signature and date
1 WP Mr. Suman Banerjee (FAE)
2 MSW Mr. Soumya Dwivedi (FAE)
3 LU Mr. Manish Shukla (FAE)
4 AP Mr. Suman Banerjee (FAE)
5 NV Dr. Manoj Kr. Mishra (FAE)
Mr. Suman Banerjee (Team Member)
6 EB Dr. Bideh Shukla (FAE)
7 SE Dr. Debashish Bhttacharya (FAE)
8 SC Dr. Bideh Shukla (FAE)
Signature For Ind Tech House Consult
Associate Staff
1. Mr. Indra Sharma
2. Mr. Saurabh Bharadwaj
Monitoring Laboratory Involved
Ind Research and Development House ( NABL Approved Lab)
TABLE OF CONTENTS
Section No. Contents Page No.
TOR Compliance 01-03
Executive Summary 04-10
Chapter-1: Introduction 11-14
1.0 Introduction 11
1.1 Project Background & Description of Project Proponent 11
1.2 Name and Contact Address of Project Proponent 11
1.3 Implementing Organization 11
1.4 Land Description 11
1.5 Legislation(s)/ Orders passed by any Court of Las/ any other Statutory Authority 12
1.6 Objective of the EIA Study 12
1.7 Scope of the Study 12-13
1.8 EIA Methodology 13
1.9 Purpose of the Report 14
1.10 Structure of the Report 14
Chapter-2: Project Description 15-36
2.0 Project Description 15
2.1 Goal and Objective of the Proposed Project 15
2.2 Significance of the Proposed Project at Regional Level 15-16
2.3 Significance of the Proposed Project at Local Level 16
2.4 Project Description 16
2.5 Site Selection Criteria 16-17
2.6 Nature and Size of the Project 17
2.7 Project Site Location 17
2.8 Environmental Liability of the Project Site 20
2.9 Site Connectivity 20
2.10 Project Site and Surrounding within 500 m radius 22
2.11 Internal Road Network and Main Road Connectivity 22
2.12 Project Components 24
2.12.1 Project Site Details 24
2.12.2 Land Use Distribution and Area Statement 24
2.12.3 Land Use Distribution 24
2.12.4 Area Statement & Project Salient Features 26-27
2.12.5 Population 27
2.13 Utilities & Infrastructure Required during Construction and Operation Phase 27
2.13.1 Water Requirement and Supply 27
2.13.2 Sewage Disposal 30
2.13.3 Solid Waste Facility 30-31
2.13.4 Rain Water Harvesting System 31
2.13.5 Power Requirement and Supply 33
2.13.6 Fuel Requirements 33
2.13.7 Parking 33
2.13.8 Landscaping & Green Area Details 34
2.13.9 Fire Fighting Facility 34
2.14 Major Construction Stages 35
2.15 Building Materials for Construction 35
2.16 Resettlement and Rehabilitation 36
2.17 Other Relevant Information 36
2.19 Cost of the Project 36
Chapter-3: Baseline Environmental Status 37-82
3.0 Baseline Environmental Status 37
3.1 Introduction 37
3.2 Methodology of Conducting Baseline Study 37
3.3 Criteria for Baseline Environment Study 37-38
3.4 Components and Parameters for Baseline Environmental Study 38
4.5 Physical Environment 41
3.5.1 Land Use Pattern 41
3.5.2 Landuse pattern within Project Site 41
3.6 Site Topography & Contour 44
3.7 Drainage Pattern 47 3.8 Geology 50 3.9 Soil Quality 50 3.9.1 Soil characteristics 50-51 3.9.1.1 Observations 52 3.9.1.2 Geomorphology 52 3.9.1.3 Seismicity 52 3.10 Air Environment 54
3.11 Metrological data from secondary sources 55
3.11.1 Temperature 55-56 3.11.2 Precipitation 56-57 3.11.3 Cloud Cover 57 3.11.4 Wind Speed 58 3.11.5 Wind rose 59 3.12 Atmospheric stability 64-65 3.13 Mixing height 65
3.14 Averaged Meteorological Data 65
3.15 Wind rose 65-66
3.16 Ambient Air Quality 67
3.16.1 Observations 79
3.17 Water Environment 69-74
3.18 Noise Environment 74-75
3.18.1 Noise Quality 75-76
3.18.2 Sources of Noise Emissions Surrounding the Site 76
3.18.3 Noise Level in the Project Influence Area 76
3.18.4 Observations 78
3.19 Ecological Environment 79-80
3.20 Socio Economic Development & Its Impacts 80
3.20.1 Demographic Profile of District 80-81
3.20.2 Amenities 82
Chapter-4: Anticipated Environmental Impacts & Mitigation Measures 83-102
4.0 Anticipated Environmental Impacts & Mitigation Measures 83
4.1 Pollution Sources 83
4.2 Potential Impacts 84-85
4.3 Impacts Due to Project Location 86
4.3.1 Displacement of People 86
4.3.2 Change of Land use 87
4.3.3 Landscaping and Shelterbelt Development 87
4.3.4 Shifting of Utilities 87
4.4 Impact Due To Project Construction 87
4.4.1 Pressure on Local Infrastructure 87
4.4.2 Denudation & Contamination of Soil 87-88
4.4.3 Impact on Water Quality 88
4.4.4 Impact on Air Quality 89
4.4.5 Noise Pollution 89-90
4.4.6 Traffic Congestion/ Increase 90
4.4.7 Public health and safety measures to be adopted during construction 90-92
4.4.8 Socio-economic Impacts 92
4.5 Impacts Due To Project Operation 92
4.5.1 Air Environment 93-94
4.6 Potential Air Environment Impact Assessment 95
4.7 Noise Environment 98
4.7.1 Noise Impact Assessment 98
4.7.2 Construction Phase 98
4.8 Wastewater Management and Disposal 99
4.8.1 Solid Waste 100
4.8.2 Hazardous Waste 100
4.9 Socio Economic Impacts 101
4.9.1 Induced Development 101
4.9.2 Positive Impacts on Infrastructure 101
4.9.3 Negative Impacts on Infrastructure 101-102
Chapter-5: Environment Management Plan 103-110
5.0 Environment Management Plan 103
5.1 Preamble 103
5.2 Environmental Management System 103
5.3 Sewage Treatment Plant 110
5.4 Emission From DG Sets 110
5.5 Hazardous Waste Management 110
Chapter-6: Environmental Monitoring Programme 111-116
6.1 Environmental Monitoring Programe 111
6.2 Preamble 111-114
6.3 Water Quality Monitoring 114
6.4 Air And Noise Quality Monitoring 114-115
5.5 Compilation And Analysis of Data and Reporting System 115-116
Chapter-7: Risk Assessment & Disaster Management Plan 117-124
7.0 Risk Assessment & Disaster Management Plan 117
7.1 Preamble 117
7.2 Objectives of Disaster Management Plan (DMP) 117
7.2.1 Risk Hazard & its control measures 118-119
7.3 Emergency Response Plan (ERP) 120
7.3.1 Response in case of Earthquake 120-121
7.3.2 Response in case of Fire 122-123
7.4 Resource Conservation 123
7.5 Resettlement and Rehabilitation 124
Chapter-8: Alternative Technology 125-131
8.0 Alternative Technology 125
8.1 Use of Environment Friendly Materials 125
8.2 Building Materials 125-126
8.3 Green Buildings 126-127
8.4 Direct and Indirect Environmental Impact 128
8.5 Resource Conservation and Recycling 128
8.6 Indoor Environmental Quality 128
8.7 Community Issues to be Kept In View at the Time of Designing 129
8.8 Energy Conservation 129
8.9 Awareness Programme 129-130
8.10 Environmental Attributes Management and Mitigation 130-131
8.11 Conclusion 131
Chapter-9: Project Benefits 132-133
10.0 Project Benefits 132
10.1 General 132
10.2 Physical Infrastructure 132
10.3 Economic Benefits 132
10.4 Corporate Environment Responsibility 132
10.5 Benefits To Women 132-133
10.6 Increase In Land Value 133
10.7 Wider Economic Growth 133
Chapter-11: Summary & Conclusion 134
LIST OF TABLES
Table No. Contents Page No.
1.0 Salient Features of the Proposed Project 04-05
2.0 Baseline Status Collected from Analysis of Secondary and Primary Data 07
1.1 General Conditions as per EIA Notification 2006 14
2.1 Area Statement & Salient Features of Project 26-27
2.2 Water Demand during Construction Phase 27
2.3 Water Demand during Operation Phase 28
2.4 Break up of Total Water Demand 28
2.5 Quantification of Waste during operation phase 30
2.6 RWH Structure Details of Proposed Project 31
2.7 Power Demand 32
2.8 Parking Details 32
2.9 List of Plant Species that are likely to be planted 33
2.10 List of Construction Materials 34
3.1 Summary of Environmental Legislation concerning Proposed Project 37-38
4.1 Various Environmental Attributes 47-48
4.2 Environmental Attributes: Frequency and Monitoring Method 49-50
4.3 Land use of 10 km radius of the Project Site 53
4.4 Main Surrounding Features 53
4.5 Geological Succession 59
4.6 Soil Analysis Result: March, 2016 to May, 2016 60-61
4.7 History of Earth Quake in NCR Region from April `1980 to March 2013 63
4.8 Primary Sources & Effects of Air Pollutants due to Proposed Project 64 4.9 Averaged Minimum Temperature Profile (1997 to 2011) –Met station Palam 65 4.10 Averaged Maximum Temperature Profile (1997 to 2011) –Met station Palam 65
4.11 Rainfall Data for Last Fifteen Years in Delhi (Palam) 66
4.12 Cloud Cover Data for Last Fifteen Years of Delhi (Safdarjung), Morning Hours
(8.30 IST) 66-67
4.13 Cloud Cover Data for Last Fifteen Years of Delhi (Safdarjung), Evening Hours
(17.30 IST) 67
4.14 Monthly Mean Wind Speed in KMPH (Year 1993 – 2005) 68
4.15 Monthly Mean Speed in KMPH (Year 2009 – 2012) 68
4.16 Frequency of Stability Class 73-74
4.17 Air Quality Monitoring Location 76
4.18 Average Results of Ambient Air Quality 78
4.19 Average Ground Water Quality Monitoring Results (Project Site) March, 2016 to May
2016 81-83
4.20 Primary Effects of Noise Pollution from Construction & Operation Activities of the
Site 84
4.21 Ambient Noise Standards as per CPCB 85
4.22 Noise Monitoring Results 87
4.23 List of Floral Species found within 10 km radius 88-89
4.24 List of Fauna Recorded in Study Area 89
4.25 DEMOGRAPHIC PROFILE OF THE DISTRICT 90-91
5.1 POTENTIAL POLLUTANT SOURCES &CHARACTERISTICS 93-94
5.3 Typical Noise Levels from Construction Equipment 99-100
5.4 Frequency of Stability Classes 104
5.5 Resultant Concentration Level of Pollutants 108
5.6 Noise Levels Generated from Construction Equipment 109
5.7 Characteristics of Wastewater and Treated Water 109
6.1 Environmental Management Plan 115-119
7.1 Suggested Monitoring Program for Proposed Project 121-124
7.2 Monitoring Programme during Construction and Operation Stage 124-125
7.3 Record Keeping Requirements 125-126
LIST OF ANNEXURE Annexure-1: ToR Letter
Annexure-2: Zoning Plan Annexure-3: License
Annexure-4: Water Assurance letter Annexure-5: Traffic Study
Annexure-6: Affidavits
Annexure-7: Power Assurance Letter Annexure-8: Aravali NoC
Annexure-9: Forest NoC
Annexure-10: Monitoring Reports
Annexure-11: Site Plan, Landscape Plan, Parking plan with traffic circulation Annexure-12: ECBC Compliance Report
Annexure-13: NABET Accreditation Letter Annexure-14: Lab Accreditation Letter Annexure-15: Certified Compliance Report
TOR COMPLIANCE S.
No. ToR Points Compliance
1. Examine details of land use as per Master Plan and land use around 10 km radius of the project site. Analysis should be made based on latest satellite imagery for land use with raw images. Check on flood plain of any river.
GMUC Master Plan and Google map showing the land use of the project site are given as Figure-2.1 and Figure-2.2 of REIA report. Land use map of the project site is shown as Figure-4.1 and covered in Table-4.3.
2. Submit details of environmentally sensitive places, land acquisition status, rehabilitation of communities/ villages and present status of such activities.
Details of environmentally sensitive places, rehabilitation of communities etc. is given in Table-4.4, of REIA report.
3. Examine baseline environmental quality along with
projected incremental load due to the project. Projected incremental load due to the proposed project is given in Section-5.6 of REIA report.
4. Environmental data to be considered in relation to the project development would be (a) land, (b) groundwater, (c) surface water, (d) air, (e) bio-diversity, (f) noise and vibrations, (g) socio economic and health.
The same has been covered under Chapter4 of REIA report. Average soil analysis and water quality monitoring results is given in Table-4.6 and Table- 4.18 respectively. Average result of ambient air quality has been given in Table-4.17, whereas, noise monitoring report has been covered in Table-4.23 of REIA report.
5. Submit a copy of the contour plan with slopes, drainage pattern of the site and surrounding area. Any obstruction of the same by the project
Contour plan and drainage map of the study area is shown as Figure-4.3 and Figure-4.5 of REIA report.
6. Submit the details of the trees to be felled for the
project. The project site is barren and there is no tree to be felled. 7. Submit the present land use and permission
required for any conversion such as forest, agriculture etc.
The land use of the study area is Commercial and shown on GMUC Master plan as Figure-2.1 of REIA report.
8. Submit Roles and responsibility of the developer etc for compliance of environmental regulations under the provisions of EP Act.
Roles and responsibility of the developer for compliance of environmental regulations under the provisions of EP Act has been covered in Section 10.4 and 8.3 of REIA Report.
9. Ground water classification as per the Central
Ground Water Authority. Covered in Chapter-4 of REIA report. 10. Examine the details of Source of water, water
requirement, use of treated waste water and prepare a water balance chart.
Details of source of water, water requirement, use of treated waste water and water balance chart has been covered in section 2.13.1 in REIA Report.
11. Rain water harvesting proposals should be made with due safeguards for ground water quality. Maximize recycling of water and utilization of rain
As the ground water table is at 3 to 5 m level, it is proposed to collect roof water in storage tank for reuse are proposed.
S.
No. ToR Points Compliance
water. Examine details.
12. Examine soil characteristics and depth of ground
water table for rainwater harvesting. Soil a characteristic of the study area is given in section 4.9.1 and details of rainwater harvesting has been discussed under Section-2.13.4 in REIA report.
13. Examine details of solid waste generation
treatment and its disposal. Details of solid waste generation, treatment and its disposal have been discussed under Section-2.13.3 of REIA report.
14. Examine and submit details of use of solar energy and alternative source of energy to reduce the fossil energy consumption. Energy conservation and energy efficiency.
Details of use of solar energy and alternative source of energy to reduce the fossil energy consumption have been discussed under Section-9.8 of REIA report. and solar generation plan is attached as Annexure 4. 15. DG sets are likely to be used during construction
and operational phase of the project. Emissions from DG sets must be taken into consideration while estimating the impacts on air environment. Examine and submit details.
Atmospheric dispersion modelling has been done to understand the impact due to operation of DG sets. It has been covered under Section-5.6 of REIA report.
16. Examine road/rail connectivity to the project site and impact on the traffic due to the proposed project. Present and future traffic and transport facilities for the region should be analyzed with measures for preventing traffic congestion and providing faster trouble free system to reach different destinations in the city.
The same has been covered under Section-2.9 of REIA report. Impact on the traffic due to the proposed project has been discussed under Section-2.11 of REIA report and traffic study repot is attached as Annexure 5.
17. A detailed traffic and transportation study should be made for existing and projected passenger and cargo traffic.
Traffic and transportation study has been covered under Section-2.11 of REIA report and traffic study repot is attached as Annexure 5.
18. Examine the details of transport of materials for construction which should include source and availability.
Details of transport of materials for construction and its source have been given under Section-2.15 of REIA report.
19. Examine separately the details for construction and operation phases both for Environmental Management Plan and Environmental Monitoring Plan with cost and parameters.
Environmental Management Plan and Environmental Monitoring Plan have been given as Chapter-6 in section 6.2 and Chapter-7 in REIA report.
20. Submit details of a comprehensive Disaster Management Plan including emergency evacuation during natural and man-made disaster.
Disaster Management Plan has been given as Chapter-8 in REIA report.
21. Details of litigation pending against the project, if
S.
No. ToR Points Compliance
Law against the Project should be given.
22. The cost of the project (capital cost and recurring cost) as well as the cost towards implementation of EMP should be clearly spelt out.
The cost of the project has been given under Section-2.20. and capital cost and recurring cost towards implementation of EMP is section 6.2 in chapter 6 of EIA report. 23. Any further clarification on carrying out the above
studies including anticipated impacts due to the project and mitigative measure, project proponent can refer to the model ToR available on Ministry website "http://moef.nic.in/Manual/Townships".
Noted.
Additional ToR as Per SEAC, Haryana
1. The PP should submit traffic study and impact on the air ambient quality alongwith mitigation measures.
Traffic impact assessment is conducted and attached as Annexure 5.
2. The PP should submit traffic circulation plan including traffic of nearby projects and overall impact of the national highway alongwith mitigation measurement.
Traffic impact assessment is conducted and attached as Annexure 5.
3. The PP should submit compliance report from Regional Director, MoEF as per OM dated 29th August, 2017.
EXECUTIVE SUMMARY 1.0 INTRODUCTION
M/S Martial Buildcon Pvt. Ltd. proposes for Expansion of Commercial Colony on total area measuring 11.1375 Acres in the revenue estate of village Maidawas, Sector-67, Gurugram, Haryana for Part Area of 2.9125 Acres (Pocket-2).
The Project falls under category 8(b) Category Project” – Township and Area Development Project/ large construction as per the Environmental Impact Assessment (EIA) Notification dated 14.09.2006 as amended till date.
This report includes the Identification and Prediction of significant environmental impacts due to the proposed project along with an appropriate Environmental Management Plan both for the construction phase and for its operation and maintenance later on the basis of the Environmental Impact Assessment (EIA) Notification dated September 14, 2006.
2.0 PROJECT DESCRIPTION
Proposed project is construction of commercial colony with basic facilities. Adequate parking area is proposed in basements and Surface. This illustrates the major project components and their locations on the project site. Location of the project site is shown in Figure-1.0.
PROJECT SUMMARY
Sl.
No. Description Quantity Unit
GENERAL
1 Total Plot Area (Entire Scheme Pocket 1 +Pocket 2) 45071.49 SQMT
3 Plot Area of Pocket – 2 11786.45 SQMT
4 Proposed Built Up Area 68221.350 SQMT
Proposed Total Builtup Area (Pocket1 and Pocket2) 179229.35 SQMT
5 Number of Building Blocks 1 No.
6 Max Height of Building (Upto Terrace) 83.78 M
7 Max No of Floors 3B+LG/UG+18 No.
8 Expected Population (All Floating) 7922 No.
9 Cost of Project 122 CR
AREAS
10 Permissible Ground Coverage Area 4734.815 SQMT 11 Proposed Ground Coverage Area 4724.334 SQMT
13 Proposed FAR Area 35234.897 SQMT
14 Non FAR areas - Total Basement Area 23437.897 SQMT
15 Other Non FAR areas 9549.265 SQMT
16 Proposed Total Built Up Area 68221.350 SQMT
WATER
17 Total Water Requirement 260 KLD
18 Fresh water requirement 92 KLD
19 Treated Water Requirement 168 KLD
20 Waste water Generation 140 KLD
21 Proposed Capacity of STP 170 KLD
23 Treated Water Recycled 112 KLD
24 Additional treated water required 56 KLD
RAIN WATER HARVESTING
25 Rain Water Harvesting Potential 2387.91 KL
26 No of RWH of Pits Proposed 3 No.
PARKING
27 Total Parking Required as / Building Bye Laws 692 ECS
28 Proposed Total Parking 705 ECS
29 Parking on Surface 42 ECS
30 Parking in Basements (All levels incl Stack Parking) 663 ECS
GREEN AREA
31 Proposed Green Area (25%% of pocket area) 2947 SQMT
WASTE
32 Total Solid Waste Generation 1.05 TPD
33 Organic waste 0.44 TPD
34 Quantity of Hazardous waste Generation 3.78 LPD 35 Quantity of Sludge Generated from STP 71 KG/DAY
ENERGY
36 Total Power Requirement 4463 KW
3.0 BASELINE STUDY OF THE PROJECT
The baseline environmental status was assessed based on primary and secondary data collected through on-site field observations and obtained from agencies such as IMD, Geological Survey of India, State Ground Water Department, Central Ground Water Board, State Pollution Control Board, Census of India and Local Forest Department. The following environmental components were focused at during this study:
Air Environment (Ambient Air Quality)
Water Environment (Quality and Quantity of Surface and Groundwater sources)
Land Environment (Geology, Hydrogeology, Land use)
Ecological Environment (Terrestrial and Aquatic Flora & Fauna)
Socio-Economic Environment (Demographic profile)
Baseline study was carried out for the month of March 2018 to May 2018.
Baseline monitoring was carried out by M/s Ind Research and Development House Pvt. Ltd, Noida an NABL accreditation No. TC-5912 valid up to 29/06/2019.
The baseline status collated from analysis of secondary and primary data is summarized in Table-2.0.
Table-2.0: Baseline Status Collated from Analysis of Secondary and Primary Data
Attribute Baseline status
Meteorology In summer, i.e. from March to June, the weather remains hot and the temperature ranges from a maximum of 48 °C to a minimum of 28 °C. Monsoon season prevails during mid-June to mid-September.
The cold waves from the Himalayan region makes the winters in the study area chilly and harsh. Temperatures fall to as low as 3 to 4 °C at the peak of winters. Study area also has fog problem. In January, a dense fog envelops the city, reducing visibility on the streets. (Source: IMD 1961-1991)
Ambient Air Quality Ambient air quality was monitored at five locations in the study area. The value of PM2.5 varies from 111.65 µg/m3 to 117.23 µg/m3 , PM10 varies from 170.19 µg/m3 to 177.81 µg/m3 , SO2 varies from 21.46 µg/m3 to 24.65 µg/m3, NO2 varies from 32.31 µg/m3 to 36.04 µg/m3 and CO was observed 0.71 to 0.75 mg/m3. (Source: Primary data
from Baseline information for the period March, 2018 to May 2018 (IR&DH))
Noise Levels Noise monitoring was carried out at five locations. The results of the monitoring program indicate that the daytime noise level varies from 51.70 to 52.16 dB(A) and night time levels ranges between 43.18 to 43.76 dB(A). (Source: Primary data from Baseline information for
the period March, 2018 to May 2018 (IR&DH))
Water Quality Ground water & surface water samples were analyzed to access the water quality of the study area. Ground water in the area conforms to the IS:10500.
Soil Quality Two number of soil sample was analyzed to access the soil quality of the study area. Primary nutrient shows that the soil is moderately
Attribute Baseline status
fertile. The conductivity was found 338 to 354.0 µS/cm, whereas, Moisture Content was found 10 to 11 % by mass. Water Holding capacity in the soil sample was found 38 to 40 % by mass. Phosphorous and Chloride were found 9.4 to 11.0 & 458 to 468 mg/kg respectively. (Source: Primary data from Baseline
information for the period March, 2018 to May 2018 (IR&DH))
Biological Environment The regions are covered by indigenous floral species. Common animals and birds are predominant in the area. There is no rare or endangered species and the project site is devoid of nesting or breeding ground. Impact on flora and fauna has been assessed but it was found to be insignificant.
Socio-economy The area is predominantly Commercial and the surrounding of the project site is as per local development plan of HUDA.
4.0 ENVIRONMENT IMPACT ASSESSMENT
- Impact of the project during construction phase, operation phase has been predicted.
- Impact in air due to the construction and operation stages of the project were predicted quantitatively using models such as AERMOD for air dispersion calculations.
- Impact on ground water and noise level has been predicted.
- Impact on flora and fauna has been assessed but it was found to be insignificant. - It is summed up that the impacts are minimum and temporary in nature
5.0 ENVIRONMENT MONITORING PLAN
Environmental monitoring plan has been formed as a part of the EIA report to ensure that there is no vulnerable change in the environmental parameters due to the project and the proposed Management Plan is being implemented.
6.0 ENVIRONMENT MANAGEMENT PLAN
The project proponent will be responsible for implementing the Environmental Management Plan. For the effective implementation of the EMP, an Environmental Management System (EMS) will be established at the proposed project. The EMS will include the following:-
- An Environmental Management cell - Environmental Monitoring Program - Personnel Training
- Documentation – Standard operating procedures Environmental Management Plans and other records.
7.0 ENVIRONMENTAL MITIGATION MEASURES Air Pollution
- During the construction phase, operation of construction equipment and vehicles will be the main sources of pollution. A dust control plan will be implemented and regular maintenance of vehicles and equipment will be carried out.
- During the operation phase, emissions from DG sets and emissions due to vehicular movement. Adequate mitigation measures shall be implemented.
Noise Pollution
- During the construction phase, adequate mitigation measures such as controlled time of construction, job rotation and workers shall be provided with ear plugs etc. will be implemented.
- During the operation phase, the sources of noise emissions shall be from vehicular movement. Noise enclosures shall be provided wherever possible.
Water Pollution
- During the construction phase, a septic tank shall be provided to treat the domestic waste water generated due to labor settlements.
- During operation phase, runoff from the site will be drained to rainwater collection chamber, which will be reused for the gardening etc.
Ecology
There is no damage in the ecological environment. The project will have green area of 2947 sq.m. (25% of plot area), this will enhance the ambience of the project site.
Socio Economic Environment
The proposed project will lead to employment generation and will have a positive impact on the socio economic environment. Preference to local population shall be given and adequate mitigation measures will be ensured to reduce odor emissions and disease vectors from proposed site.
8.0 CONCLUSION
Implementation of this project will have multiple benefits:
Building construction project requires a large number of manpower in the form of labors. Though the surrounding area is urbanized, there are still plenty of unemployed persons who can be engaged as local labors. The total number of persons required for construction of the project will be around 80 including skilled, semi-skilled and unskilled persons, thus same number of persons will have earnings from this project.
maintenance staffs for this project which will have economical and social impact on the unemployed youths.
The community can look forward to benefit due to more jobs and also better access to utilities. The benefit relate to the direct employment associated with the construction.
During the operation phase there will be considerable opportunities of employment due to demand of domestic help and commercial offices.
1.0 INTRODUCTION
1.1 Project Background & Description of Project Proponent
M/S Martial Buildcon Pvt. Ltd. proposes for Expansion of Commercial Colony on total area measuring 11.1375 Acres in the revenue estate of village Maidawas, Sector-67, Gurugram, Haryana for Part Area of 2.9125 Acres (Pocket-2). Proposed project will be developed on a total plot area 45071.49 sq m with built up area 179229.35 sq m, falling under district Gurugram, Haryana. The proposed expansion is in Pocket 2 on plot area 11786.45 Sq.m. and Proposed built up area will be 68221.35 Sq.m. Environment Clearance of Pocket-2 for builtup area 46344.48 sqm has been obtained from SEIAA, Haryana vide No. SEIAA/HR/2018/601 dated 15.06.2018 The Project falls under category 8(b) Category Project” – Township and Area Development Project/ large construction as per the Environmental Impact Assessment (EIA) Notification dated 14.09.2006 as amended till date.
This report includes the Identification and Prediction of significant environmental impacts due to the proposed project along with an appropriate Environmental Management Plan both for the construction phase and for its operation and maintenance later on the basis of the Environmental Impact Assessment (EIA) Notification dated September 14, 2006.
1.2 Name and Contact Address Of Project Proponent
The contact name and address of M/S Martial Buildcon Pvt. Ltd. is as given below: Mr. Amar Nath Ichhpujani /Satya Pal Singh
Regd. Office 1221 A, Devika Tower, 12th floor, 6 Nehru Place, New Delhi M.No. 9711110147
Ph. 0124-4666700
1.3 Implementing Organization
M/S Martial Buildcon Pvt. Ltd. is the developer organization of the project and will done Expansion of Commercial Colony on total area measuring 11.1375 Acres in the revenue estate of village Maidawas, Sector-67, Gurugram, Haryana for Part Area of 2.9125 Acres (Pocket-2) as a part of its vision to develop state-of-the-art infrastructure for the Nation.
1.4 Land Description
Proposed project will be developed on a plot area of pocket 2- 11786.45 sq m with built up area 68221.35 sq m, falling under district Gurugram, Haryana.
Land Allotment and Status of Land Ownership
The proposed project is a commercial project and the land allotment letter along with details of land ownership has been submitted along with Form1 for ToR approval.
1.5 Legislation(s)/ Orders passed by any Court of Las/ any other Statutory Authority
There is no litigation pending or filled against the proposed project and / or directions orders passed by any court of law or any statutory authority against the project.
1.6 Objective of the EIA Study
The Urban Development Projects including housing and office complexes do have the potential in altering environmental resources of any area. They cause stress on local environmental assets of the urban area and thus become the potential source for limiting the growth of the city. Unplanned construction and operation of such projects usually result in impacts on various facets of the Environment. Keeping the above issues under consideration, an Environmental Impact Assessment (EIA) study is conducted.
The basic objective of this EIA study is to collect the baseline data within the impact zone to identify the associated impacts and propose suitable mitigation measures due to the construction and operation of the proposed development. The objectives of the EIA study can be summarized as follows:
i) To identify and describe the elements of the community and environment likely to be affected by the proposed project;
ii) To establish the baseline environmental and social scenario of the project surroundings; iii) To identify, predict and evaluate environmental and social impacts expected to arise during
the construction and operation phase of the project in relation to the sensitive receptors; iv) To develop EMP mitigation measures so as to minimize pollution, environmental
disturbance and nuisance during construction and operation of the proposed project. v) To design and specify the monitoring and auditing requirements necessary to ensure the
implementation and the effectiveness of the mitigation measures adopted. 1.7 Scope of The Study
The Project falls under category 8(b) Category Project” – Township and Area Development Project/ large construction as per the Environmental Impact Assessment (EIA) Notification dated 14.09.2006 as amended till date. The EIA/EMP report has been prepared on the basis of standard terms of reference (TOR).
The scope of study is to envisage the environmental changes expected due to the proposed project. To assess the environmental attributes of the study area, core area of 10 Km radius around the proposed project site is considered. The broad scope of the study includes:
i) Literature review to collect data relevant to the study area;
ii) Primary data collection coupled with secondary data collection so as to establish the baseline environmental status of the study area;
iii) Identify various existing pollution loads due to industrial and domestic activities in the study area;
ITHC/PRJ/18-19/EIA/115/Rev.01 13 IND TECH HOUSE CONSULT
v) Evaluate the predicted impacts on the various environmental attributes in the study area by using scientifically developed and widely accepted Environmental Impact.
vi) Identification of mitigation measures and preparation of an Environmental Management Plan (EMP) outlining the measures for improving environmental quality and scope for future projects for environmentally sustainable development;
vii) Identify critical environmental attributes required to be monitored regularly. 1.8 EIA Methodology
This EIA/EMP report is based on the observations made by the team during visits to the study area and collection of primary and secondary environmental data. Literatures have also been reviewed and relevant information has been collected for environmental and social baseline. Reconnaissance surveys have been conducted to identify the major environmental issues in the study area. The sampling locations were identified on the basis of:
Existing topography;
Location of water bodies;
Location of villages/ towns/ sensitive areas;
Accessibility, power availability, security of monitoring equipment; and
Areas, which represent baseline conditions.
The EIA study for the proposed project has been carried out as per the standard Terms of Reference (ToR. The EIA methodology for the proposed project has been described in Figure 1.1
Figure-1.1: EIA Methodology
Project Scoping
Identify potential sources of Impact
Predict consequences and likelihood of Impact
Evaluate the significance
Investigate options for mitigation
Prepare final EIA report (Along with EMP and DMP)
EC from regulatory authorities
In te ra ct io n w it h P ro je ct P ro p o n e n ts C o n su lta tio n w ith s ta ke h o ld e rs B as e lin e S tu d ie s( E xi st in g d a ta C o lle ct io n an d n e w s u rv e ys
1.9 Purpose of the Report
The Project falls under category 8(b) Category Project” – Township and Area Development Project/ large construction as per the Environmental Impact Assessment (EIA) Notification dated 14.09.2006 as amended till date, the proposed project being a construction project, none of the following General conditions (GC) are applicable for this development.
Table 1.1: General Conditions as per EIA Notification 2006
S.No. Criteria (within 10 km from boundary)
1 Protected Areas notified under the Wildlife (Protection Act), 1972 2 Critically Polluted Areas as notified by CPCB from time to time
3 Notified Eco-sensitive areas
4 Interstate boundaries and International boundaries
The purpose of this report is to document the outcome of the Environmental Impact Assessment (EIA) study for the Expansion of Commercial Colony on total area measuring 11.1375 Acres in the revenue estate of village Maidawas, Sector-67, Gurugram, Haryana for Part Area of 2.9125 Acres (Pocket-2). M/S Martial Buildcon Pvt. Ltd. has retained M/s Ind Tech House Consult to conduct the Environmental Impact Assessment study for the proposed project as per the structure, given in the EIA Notification 2006 (and subsequent amendment made thereof) and in accordance with the Standard Terms of Reference (ToR).
The purpose of the EIA report is to address the information on the nature and extent of potential environmental impacts, both negative and positive, during the construction and operative phase of the proposed project and related activities taking place concurrently.
1.10 Structure of the Report
The REIA Report presents the existing baseline scenario, assessment and evaluation of the environmental impacts that may arise during the construction and operation period. Following impact prediction, required mitigation measures and Environmental Monitoring Plan have been formulated. The content of the remainder part of the report is as follows:
Chapter 2: Project Description
Chapter 3: Legal & Administrative Framework Chapter 4: Baseline Environment Status
Chapter 5: Anticipated environmental impacts & Mitigation Measures Chapter 6: Environment Management Plan
Chapter 7: Environmental Monitoring Plan
Chapter 8: Risk Assessment & Disaster Management Plan Chapter 9: Alternative Technology
Chapter 10: Project Benefits
Chapter 11: Summary & Conclusion Chapter 12: Disclosure of Consultant
2.0 PROJECT DESCRIPTION
2.1 Goal and Objective of the Proposed Project The objectives of the EIA study are as follows:
To describe the proposed project and associated works together with the requirements for carrying out the proposed development.
To identify and describe the elements of the community and environment likely to be affected by the proposed developments.
To establish the baseline environmental and social scenario of the project site and its surroundings.
To identify, predict and evaluate environmental and social impacts expected to rise during the construction and usage of the project in relation to the sensitive receptors.
To develop an Environmental Management Plan that identifies the negative impacts and develops mitigation measures so as to minimize pollution, environmental disturbance and nuisance during construction and operation of the development.
To design and specify the monitoring requirements necessary to ensure the implementation and the effectiveness of the mitigation measures adopted.
2.2 Significance of the Proposed Project at Regional Level
The real estate sector in India assumed greater prominence with the liberalization of the economy, as the consequent increase in business opportunities and labour migration led to rising demand for commercial and housing space. At present, the real estate and construction sectors are playing a crucial role in the overall development of India’s core infrastructure.
Residential real estate industry has witnessed stupendous growth in the past few years owing to the following reasons:
Continuous growth in population Migration towards urban areas
Ample job opportunities in service sectors Growing income levels
Rise in nuclear families Easy availability of finance
At the same time, the government's decision to open up foreign direct investment (FDI) in multi-brand retail will also give boost to demand in several cities, including those in the NCR. At the same time, FDI in real estate has also started picking up as the sector has emerged as one of the best sector for investment. According to a report by Cushman and Wakefield, the total FDI in construction development has seen a significant fall since 2008.
But the current year has seen a strong rebound. According to the report, the first half of 2012 recorded nearly Rs 27,600 crore inflows, which is close to breaching the total level in 2011.
As investment increase in the sector, the construction activities are also likely to further pick up in the coming years. This will certainly add to fresh supply in the housing sector. But at the same time, the demand for residential real estate has also picked up in the country. 2.3 Significance of Proposed Project at Local Level
Achieving land potential in a rational and judicious manner is one of the prime objectives of this commercial development. This will be done by minimizing the impact on environmental resources, enhancing the infrastructure quality to allow uninhibited freedom for human resource development and provide gainful economic opportunities for employment. Urban environment on sustainable lines will be developed, by harnessing the existing environmental resources, adopting state of the art technologies to minimize waste generation (through recycling) and dependency on motorized modes of transportation.
This part of the district of Gurugram is experiencing new and an upgraded emerging trend in terms of improvement in infrastructure, new roads development etc with a real urgency of new area development. As the area will achieve good connectivity through the sector level road development, it is likely to attract the building construction sector to come up to provide the better infrastructure facility for the increased population.
The proposed project will lead to following benefits.
Improvement in social infrastructure by providing additional employment opportunities to the skilled as well as unskilled people;
Trigger growth in the district and in the region as the area will be developed and will result in associated development;
The planned development with modern infrastructure facilities and source of income would improve quality of life of local community.
Provision of residential development to cater to the increased. 2.4 Project Description
M/S Martial Buildcon Pvt. Ltd. proposes for Expansion of Commercial Colony on total area measuring 11.1375 Acres in the revenue estate of village Maidawas, Sector-67, Gurugram, Haryana for Part Area of 2.9125 Acres (Pocket-2). Proposed project will have all required amenities/facilities that would ensure sustainable development of the area without having any significant adverse impact on environment due to the proposed activity. Proposed development will have 1 No. of building blocks.
2.5 Site Selection Criteria
The overall development in Gurugram is governed as per local development plan of HUDA. The proposed site is selected as per the local development plan of HUDA. The project site and site surrounding areas do not have any ecological sensitive areas and will be designed
to minimize the environmental impact associated with the development. The design brief places a strong emphasis on achieving a high level of environmental performance, durability, and healthy indoor air quality through integrated design, best practices and emerging technologies. Sustainability is integrated into all phases of the design process using an integrated approach which balances social, economic, and environmental factors.
2.6 Nature and Size of the Project
As mentioned above, the project will be developed as a Commercial project. Total built up area of the project will be 68221.350 sq m.
The project will also involve internal development of basic infrastructure such as internal roads, power supply, water supply, sewer and storm water pipe network, waste management system along with landscape development, commercial building with all the ancillary facilities within the project premises.
2.7 Project Site Location
The proposed project site is strategically located within the National Capital Region of Gurugram in the State of Haryana. The proposed project site is located at village Maidawas, Sector-67, Gurugram, in the State of Haryana. The project location/site marked on Master Plan is given in (Figure-2.1).
2.8 Environmental Liability of the Project Site
The project site does not have any environmental liability. 2.9 Site Connectivity
Roads & Highways:
The sector roads are well connected to the major roads. The site is located NH 8- 6.5 KM NW, Dwarka Exp Way - 8.6 KM West and NH 236 - 9.35 KM North for the project site. Almost all the surrounding areas and nearby villages are well connected through road network.
Airport:
Indira Gandhi International Airport is situated at aerial distance of ~ 17.6 KM, N direction from the project site.
Railways:
The project site is approximately 11.8 KM, NW from Gurgaon Railway Station.
Overall the site is very well connected with NCR and nearby towns both by rail and road transport as shown in Figure-2.3.
2.10 Project Site and Surrounding within 500 m radius
The site surroundings comprise of residential/commercial setup and the land use in the surrounding area comprises of Residential/commercial set up. The details of the surrounding features have been given below and shown in Figure-2.4.
2.11 Internal Road Network and Main Road Connectivity
The project site is approachable through main road connecting to SH-13. The project will provide separate entry & exit gates for smooth flow of traffic and to avoid traffic congestion. The internal road network of the proposed project will be developed in such a manner that it will not only cater to various buildings but also integrate the whole complex in an interesting composition of built masses and open spaces as well will allow smooth traffic movement inside the complex.
2.12 Project Components 2.12.1 Project Site Details
Proposed project is construction of commercial colony. Adequate parking 705 (including visitors) is proposed in Surface and basements. This illustrates the major project components and their locations on the project site.
2.12.2 Land Use Distribution and Area Statement
The site layout diagram with all the activities is shown in Figure-2.5. This illustrates the major project components and their locations on the project site.
2.12.4 Area Statement & Project Salient Features:
Proposed development will have 1 no. of building blocks. The project will have facilities like water supply, power supply, power backup, adequate parking space in the surface and basement, firefighting system and beautiful landscape. Area statement and salient feature of the proposed project is given in Table-2.2
Table-2.2: Area Statement & Salient Features of Project
Sl.
No. Description Quantity Unit
GENERAL
1 Total Plot Area (Entire Scheme Pocket 1 +Pocket 2) 45071.49 SQMT
3 Plot Area of Pocket – 2 11786.45 SQMT
4 Proposed Built Up Area 68221.350 SQMT
Proposed Total Builtup Area (Pocket1 and Pocket2) 179229.35 SQMT
5 Number of Building Blocks 1 No.
6 Max Height of Building (Upto Terrace) 83.78 M
7 Max No of Floors 3B+LG/UG+18 No.
8 Expected Population (All Floating) 7922 No.
9 Cost of Project 122 CR
AREAS
10 Permissible Ground Coverage Area 4734.815 SQMT 11 Proposed Ground Coverage Area 4724.334 SQMT
13 Proposed FAR Area 35234.897 SQMT
14 Non FAR areas - Total Basement Area 23437.897 SQMT
15 Other Non-FAR areas 9549.265 SQMT
16 Proposed Total Built Up Area 68221.350 SQMT
WATER
17 Total Water Requirement 260 KLD
18 Fresh water requirement 92 KLD
19 Treated Water Requirement 168 KLD
20 Waste water Generation 140 KLD
21 Proposed Capacity of STP 170 KLD
22 Treated Water Available for Reuse 112 KLD
23 Treated Water Recycled 112 KLD
24 Additional treated water required 56 KLD
RAIN WATER HARVESTING
25 Rain Water Harvesting Potential 2387.91 KL
26 No of RWH of Pits Proposed 3 No.
PARKING
27 Total Parking Required as / Building Bye Laws 692 ECS
28 Proposed Total Parking 705 ECS
29 Parking on Surface 42 ECS
30 Parking in Basements (All levels incl Stack Parking) 663 ECS
GREEN AREA
31 Proposed Green Area (25%% of pocket area) 2947 SQMT
WASTE
32 Total Solid Waste Generation 1.05 TPD
34 Quantity of Hazardous waste Generation 3.78 LPD 35 Quantity of Sludge Generated from STP 71 KG/DAY
ENERGY
36 Total Power Requirement 4463 KW
37 DG set backup 4500 KVA
The project has been designed as per applicable building bye laws, NBC 2016. 2.12.5 Population
During construction phase, labor camp for 50 labors with provision of mobile toilets is planned at the site. However, few people from other nearby area may migrate in this area for business opportunities.
During the operation phase of the project, there will be permanent influx 3123 persons Commercial+ Visitor population 4799. Total population will be 7922.
2.13 Utilities & Infrastructure Required During Construction and Operation Phase 2.13.1 Water Requirement & Supply
Construction phase
The water requirement for the construction purposes is estimated to be 100 KLD during peak construction activity. Water requirement for laborers to be deployed at site for construction activities are also estimated, based on the assumption that they will be staying at the site. The estimated domestic water requirement during construction phase is approximately 4.25 KLD. During construction phase, water demand will be met through authorized tankers. Details of water requirement have been tabulated below:
Table-2.3: Water Demand during Construction Phase LABOR AT SITE
CAMP FLOATING TOTAL
50 Labour Camp 30 80
Water Requirement
Total 3.5 KLD 0.75 4.25
Fresh 2.25 KLD 0.45 2.7
Flushing 1.25 KLD 0.3 1.55
Waster Water Generation 3.05 KLD 0.66 3.71
Solid Waste Generation 15 Kg/Day 4.5 19.5
Operation phase
During operation phase, fresh water will be sourced from HUDA water supply system. The total water demand during operation phase is 260 KLD. Out of this, total fresh water requirement (met from HUDA water supply system) has been estimated as 92 KLD. The balance water demand will be met through recycling of treated wastewater from onsite STP. Details of water demand and source are given below in Table-2.4. & 2.5 (Water Balance Diagram Figure-2.6) respectively.
Table-2.4: Water Demand during operation phase
S. No Particular Details
1 Fresh 92 KLD
2 Reuse (Treated) 168 KLD
3 Total 260 KLD
Table-2.5: Break up of total water demand
SN Particulars Water Demand (KLD)
1 Total Water Demand 260
2 Fresh Water Requirement 92
3 Total Waste water Generation 140
4 Total treated water Required 168
Treated water Recycled 112
Flushing 66
DG Cooling 7
Gardening 9
HVAC 86
5 Additional Treated water requirement 56
2.13.2 Sewage Disposal
During the construction phase, it is expected that 3.71 KLD of waste water will be generated from labor camps & project site, which will be disposed off in septic tanks. The waste water from septic tanks will be disposed through mobile STP tankers.
During Operation Phase, the total waste water generated from the proposed project site will be 140 KLD. This wastewater generated will be treated in an on-site sewage treatment plants based on MBBR technique treated up to tertiary level having total design capacity of 170 KLD. The detail design of proposed STP is given in Figure-2.7.
Figure-2.7: Design of STP 2.13.3 Solid Waste Facility
During the operation phase, solid wastes would mainly be i) biodegradable kitchen wastes and other recyclable wastes such as paper wastes, glass, wood pieces, plastic bags etc., ii) e-waste from IT services. The waste generated during operation shall be collected, segregated, transported, disposed and treated in a scientific manner, based on the integrated approach. Waste quantification has been tabulated in Table-2.6.
Table-2.6: Quantification of Waste during operation phase
Total Waste Generation 1.05 TPD
Organic Waste Generation 0.44 TPD
Sludge Generation 71 KG/Day
Hazardous Waste Generation (DG Waste Oil) 3.78 Lts/day
The possible hazardous wastes during both phases would include used/spent oil from transformer/other utilities classified under hazardous waste category 5.1 as per Hazardous Wastes (Management and Handling) Amendment Rules, 2016. The project will handle and dispose of the hazardous wastes as per Hazardous Wastes (Management and Handling) Amendment Rules, 2016 in consultation with the State Pollution Control Board.
Waste quantification has been done based on the activities proposed in the project master plan. Waste generation factors are selected for each activity based on the National and
Equalisation Tank
FAB Reactor-I Tube Settler Tank
Pre Filter
Tank Filter Feed Pumps B a c k w a s h L i n e Screen Chamber Sludge Holding Tank Root Air Blowers
Electric Control Panel (Non-Compartmental) E l e c t r i c a l L i n e E l e c t r i c a l L i n e E l e c t r i c a l L i n e
FAB Media Tube Deck Media
FAB Reactor-II
Return effluent to Equalisation Tank for Retreatment Sewage Transfer Pumps PG Filter Press Sludge Disposal (Scope of Client) S qu eezed Wa ter Filter Press Feed Pumps E l e c t r i c a l L i n e E l e c t r i c a l L i n e PG E x c e s s S l u d g e Sludge Transfer Pumps PG A I R L I N E F R O M B L O W E R S E l e c t r i c a l L i n e E l e c t r i c a l L i n e E l e c t r i c a l L i n e Treated Water Tank Outlet from DMF Outlet from ACF
Dual Media Filter(MSEP) Activated Carbon Filter (MSEP) PG FILTERED WATER Feed Pumps E l e c t r i c a l L i n e UV T R E A T E D WA T E R Inlet
International standards applicable in similar setting. Following section give the details of the type of waste generated by different activities. The estimated municipal solid waste generation from the proposed project would be approximately 1.05 TPD.
2.13.4 Rain Water Harvesting System
To conserve the water resources, scientifically designed rain water harvesting structures will be installed at 3 locations. Details design along with number of RWH structure including runoff calculation of proposed project are given in Table-2.7 & Figure-2.8.
Calculations for Rain water Harvesting Pit Design
RAIN WATER HARVESTING STRUCTURE/PIT
PARTICULARS ROAD/PAVEMENT/PARKING AREAS GREEN AREA ROOF TOP AREA Area (Sq.m.) 4115 2947.00 4724.3 Runoff coefficient 0.7 0.2 0.9
Peak Hour Rainfall (m) 0.045 0.045 0.045
Volume of one hour
Rainfall 129.6 26.5 191.33 15 Minutes Volume 32.4 6.6 47.8 Total 15 Minutes Volume 86.87 Volume of one recharge Pit 30
No. of recharge pits
required 2.90
Proposed no. of
2.13.5 Power Requirement and Supply Construction phase
During construction phase, power requirement will be met through DG sets & through temporary connection of capacity 500 KVA.
Operation phase
During operation phase, power demand for the project will be sourced from Dakshin Haryana Bijli Vitaran Nigam LImited. Total load for the proposed development is 4463 KW. Appropriate arrangements for drawing power from electrical sub-stations (ESS) and suitable distribution arrangements will be made.
Power back up will be supplied by DG sets of 4500 KVA (3X1500) capacities. The DG sets will be placed inside the project premises and will be provided with stacks of height 6m above the roof. Each stack will have sampling port and sampling platform as per Emission Regulation Part III of Central Pollution Control Board. DG sets procured will be of silent type and will maintain CPCB noise emission criteria. All the DG sets will be kept within inbuilt acoustic enclosure. Further the DG sets will be equipped with inbuilt pollution control measures and the emission will conform to the CPCB prescribed standard. Total power demand & back up supply details has been tabulated in Table 2.8.
Table-2.8: Power Demand POWER
ELECTRICAL - DEMAND LOAD 4463 KW
POWER BACK UP - DG SETS 4500 KVA
NO OF DG SETS (3X1500)
DG STACK HEIGHT As per CPCB norms
2.13.6 Fuel Requirements
The fuel (HSD) required for the DG sets will be stored in limited quantity onsite as a reserved stock and it will be stored in drums with proper identification mark/labels in an identified area. All fire and safety measures will be taken as per the guidelines from the concerned authorities. 2.13.7 Parking
Adequate parking facility has been provided in the form of basement parking. Detail of parking required and provided in the proposed project is given in Table-2.9.
Table-2.9: Parking Details
1 Parking Required as/Byelaws 692 ECS
2 Parking proposed 705 ECS
3 Parking on surface 42 ECS
2.13.8 Landscaping & Green Area Details
Proposed project has dedicated 2947 sq m (approx. 25% of Plot Area) green area. Landscape development plan prepared for the project includes peripheral & avenue plantation with local species, ornamental as well as large and dense foliage plants especially on the periphery. Green area also includes ground cover, lawns at selected locations and shrubs for shade and reduction of Air and Noise pollution. Trees and plant species for plantation in the project will be selected from the list given below in Table-2.10.
Tree Shrubs Herbs
Acacia nilotica (Babul) Adhatoda vascica Acalypha indica
Acacia tortilis (israeli kikar) Ageratum conyzoides Achyranthes aspera
Albizzia procera (Siris) Calotropis procera (Ak) Aerva lanata
Azadirachta indica (Neem) Cassia occidentalis Amaranthus caudatus
Bauhinia variegata (kachnar) Datura metel (krishna datura) Amaranthus spinosus
Butea monopserma (Palash) Thevetia nerifolia Ambrosia artimisfolia
Cassia siamea (Kassod) Langerostomia speciosa
(Queen’s Flower)
Argemon exicana
Dalbergia sissoo (Shisham) Climber Argemone glauca
Eucalyptus spp. (Safeda) Cuscuta reflexa (Akash Bel) Bidens pilosa
Ficus religiosa (Pipal) Tribulus terrestris (Gokhru) Cannabis sativa
Leucaena leucocephala (So-Babul) Vallaris heyni(Dudhi ) Chenopodium alba
Melia azadirachta (Bakain) Chenopodium murale
Prosopis juliflora (Vilayati kikar) Cleome gynandra
Terminalia arjuna (Arjun) Croton achnocarpus
Grasses Ristida purpurea Cynodon dactylon
Cyperus bulbosus
Table-2.10: List of Plant Species that are likely to be planted 2.13.9 Fire Fighting Facility
The Proposed project will be planned, designed and constructed with adequate fire fighting installations like wet risers, sprinklers, internal hydrants etc. The fire detection will be through ionization based smoke detectors. Addressable analogue fire detection and alarm system will be installed on every floor of different blocks. In addition, manually operated 'break-glass' type electrical fire alarm system will be provided.
All the fire fighting provisions shall be as per National Building Code of India 1983 Part "N (Amendment No. 3 Dated January, 1997) published by the Bureau of Indian Standards. Approval from the concerned authority for the layout plan has been obtained.
2.14 Major Construction Stages
The major construction stages can be listed as under:
Earthwork Concrete RCC Brickwork Wood work Flooring Roofing Finishing
Site development, utilities & services 2.15 Building Materials for Construction
Construction materials as concrete, aggregates etc will be required and shall be made available from the local markets. Aluminium, bricks, stones, marbles, paint, tiles, electrical ware, glass will be purchased from reputed manufacturers. Construction materials and machineries required for the project construction are given in Table-2.11.
Table-2.11: List of Construction Materials
1 Adhesive 19 Hydrochloric Acid
2 Aggregate – Brick 20 Araldite
3 Aggregate - Over Burnt 21 Hardner
4 Aggregate – Stone 22 Flow Control Agent
5 Aggregate - Stone Chipping 23 Plasticizer
6 Aluminum 24 Bhusa
7 Asbestor Cement Product 25 Hessian Cloth
8 Bitumen Felt Fibres Base 26 Spun Yarn
9 Bitument Hot Sealing Compound 27 Bleaching Powder
10 Butument & Coal Tar 28 Cramp
11 Brackets 29 Distemper
12 Bricks 30 Fly Ash
13 Brushes 31 Fittings (for doors & windows)
14 Cement 32 Butt hinges
15 Lime 33 Tower bolt
16 Caustic Soda 34 Brass fitting
17 Water Proofing Compound 35 Cement stays
18 Polymer 36 Cupboard lock
19 Fine Aggregate/Sand 20 Steel
