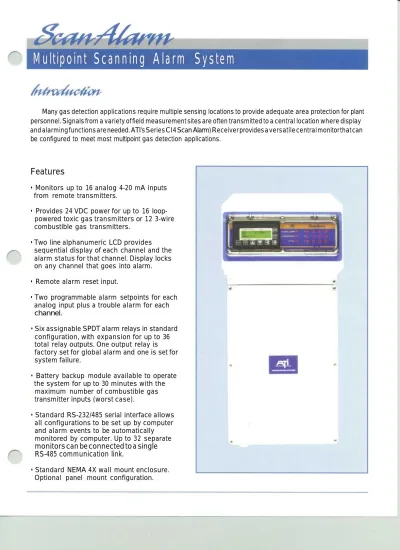

Multipoint Scanning Alarm System

(1)

Multipoint Scanning Alarm System

Many gas detection applications require multiple sensing locations to provide adequate area protection for plant

personnel. Signals from a variety of field measurement sites are often transmitted to a central location where display

and alarming functions are needed. ATI's Series Cl4 Scan Alarm) Receiver provides a versatile central monitor that can

be configured to meet most multipoint gas detection applications.

Features

• Monitors up to 16 analog 4-20 mA inputs

from remote transmitters.

• Provides 24 VDC power for up to 16

loop-powered toxic gas transmitters or 12 3-wire

combustible gas transmitters.

• Two line alphanumeric LCD provides

sequential display of each channel and the

alarm status for that channel. Display locks

on any channel that goes into alarm.

• Remote alarm reset input.

• Two programmable alarm setpoints for each

analog input plus a trouble alarm for each

channel.

• Six assignable SPDT alarm relays in standard

configuration, with expansion for up to 36

total relay outputs. One output relay is

factory set for global alarm and one is set for

system failure.

• Battery backup module available to operate

the system for up to 30 minutes with the

maximum number of combustible gas

transmitter inputs (worst case).

• Standard RS-232/485 serial interface allows

all configurations to be set up by computer

and alarm events to be automatically

monitored by computer. Up to 32 separate

monitors can be connected to a single

RS-485 communication link.

• Standard NEMA 4X wall mount enclosure.

Optional panel mount configuration.

(2)

Multipoint Scanning Alarm System

Analog Inputs:

A/D Conversion:

Relay Outputs:

Relay Contacts:

Serial Output:

Display:

Power:

Alarm Setpoints:

Failure Alarm:

Alarm LEDs:

Audible Alarm:

Temperature:

16 single ended,4-20 mA DC

(Internal 24 VDC power supply for

external transmitters)

14 bit internal resolution

6 SPDT relays standard,

28 additional open collectors for

expansion relays

10 A at 120 VAC, 5 A at 220 VAC,

resistive

Selectable RS-232 or RS-485,

2400 or 9600 baud

2 line x 16 character backlit

alphanumeric LCD

90-264 VAC, 47-63 Hz.,

or 12 VDC

Two independent setpoints per

channel

Activated on loss of input

or-10% zero shift

16 LED indicators mounted

on front panel

Standard on NEMA 4X units

Storage;-20° to 60°C

Operating; 0° to 40°C

Ordering Information

Model C14-1 ScanAlarm Multipoint Alarm System complete in NEMA 12 wall mount enclosure.

Base system includes 6 alarm relays.

Model C14-2 ScanAlarm Multipoint Alarm System in panel mount configuration.

Power supply and interface boards supplied separately.

Options

00-0057 Battery Backup Unit

00-0734 NEMA 4X Enclosure with 8 Expansion Relays

00-0735 NEMA 4X Enclosure with 16 Expansion Relays

00-0736 NEMA 4X Enclosure with 24 Expansion Relays

00-0737 NEMA 4X Enclosure with 32 Expansion Relays

00-0038 8 Relay Expansion Module, DIN Rail Mount

Represented By:

ANALYTICAL • TECHNOLOGY, INC.

680 Hollow Road, Box 879

Oaks, PA 19456

800/959-0299

Phone; 610/917-0991

Fax:610/917-0992

E-Mail: [email protected]

Web: www.analyticaltechnology.com

PDS-C14(898}

(3)

Series C14 ScanAlarm

-Page 1 of 10

General Arrangement Diagram

SYSTEM DIAGRAM

SERIES B12 2-WIRE TRANSMITTER

SS-C14RA.PM5, DATE: 7/25/97, DRAWN: A.W., APPD:

SERIES C14 ScanAlarm

RS232/RS485

RELAY OUTPUTS

MAX. 28 EXTERNAL RELAYS BATTERY BACKUP POWER 85-255 VAC, 50/60Hz OR 12VDC MAXIMUM 16 INPUTS (2 OR 3 CONDUCTOR CABLE FOR EACH INPUT)

INPUTS MAY BE LOOP-POWERED 4-20mA OR POWERED 4-20mA (SEE PAGE 5&6)

MODEL B12-17 COMBUSTIBLE GAS

TRANSMITTER

OTHER MFG'S TRANSMITTER

MODEL A12 UniSens 2-WIRE TRANSMITTER

(4)

Series C14 ScanAlarm

-WALL MOUNT VERSION - ENCLOSURE DIMENSIONS

SS-C14RA, (7/97) 21.31" 541 mm **6.50" 165 mm **13.62" 346 mm **.60" 15 mm 10.0" 254 mm **9.72" 239 mm HINGE HINGE 9.48" 241 mm 6.68" 170 mm 7.1" 180 mm 4.37" 111 mm (20) Pg 16 KNOCKOUTS (4) Pg 21/29 KNOCKOUTS ** MOUNTING DIMENSIONS (2) Pg 16/21 KNOCKOUTS

BOTTOM VIEW

FRONT VIEW

SIDE VIEW

PANEL MOUNT VERSION - FRONT PANEL STACK

NOTES

1) Enclosure Ratings:

Nema-4X/IP 65

2) Enclosure Material:

Polystyrene base and cover, hinged

transparent door with push-release

latch.

3) Knockouts:

Pg 16 (.90" dia.)

Pg 21 (1.15" dia.)

Pg 29 (1.50" dia.)

Dimensional Diagrams

ATI-0247 ATI-0255 GLOBAL ALARM SYSTEM FAULT AC FAIL A B C 1 2 3 4

(5)

Series C14 ScanAlarm

-Page 3 of 10

PANEL CUTOUT - FRONT PANEL STACK

SS-C14RA, (7/97)

Dimensional Diagrams - Panel Mount Version

POWER SUPPLY / I/O PCB ON SUB-PANEL

CUTOUT (6) .166" DIA. 9.14" 232 mm _4.57" 116 mm 4.47" 114 mm 8.94" 227 mm 3.43"O.C. 87 m m 3.08"O.C. 78 m m 21.0" 533 mm 19.24" 489 mm 13.0" 330 mm 11.24" 286 mm

(4) 3/8" DIA. MOUNTING HOLES HARDWARE IS CUSTOMER SUPPLIED

ATI-0254

ATI-0257

(6)

Series C14 ScanAlarm

-SS-C14RA, (7/97)

GENERAL CUSTOMER CONNECTIONS

System Wiring

(7)

Series C14 ScanAlarm

-Page 5 of 10

A12 UniSens 2-WIRE TRANSMITTER INTERCONNECTIONS

System Wiring

SERIES B12 2-WIRE TRANSMITTER INTERCONNECTIONS

SS-C14RA, (7/97)

SIG

GND

+24

C14 ScanAlarm I/O PCB

TB5

STOP DRAIN AT CASE WALL (IF USED), DO NOT EXTEND DRAIN OR

SHIELD INTO CASE WALL

CHANNEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

DRAIN OR SHIELD IF USED 2 COND. 20 AWG UNSHIELDED OR SHIELDED

CABLE, 5000 FT. MAX (NO POLARITY REQUIREMENT)

GROUND TERMINAL

SENSING MODULE AUTO-TEST OPTION LOOP POWER

EARTH GROUND (OR CONDUIT)

GND TERMINAL LOCATED NEXT TO RELAY BASE SHIELD TB1

SIG

GND

+24

C14 ScanAlarm I/O PCB

TB5

CHANNEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

DRAIN OR SHIELD IF USED 2 COND. 20 AWG UNSHIELDED OR SHIELDED

CABLE, 5000 FT. MAX (NO POLARITY REQUIREMENT)

SHIELD

TB1

STOP DRAIN AT CASE WALL (IF USED), DO NOT EXTEND DRAIN OR SHIELD INTO

CASE WALL

RECEIVER CONNECTION (NO POLARITY REQUIREMENT)

B12 SENSOR/TRANSMITTER (TYP. WIRING OF 2-WIRE LOOP POWERED INPUT) ATI-0256

(8)

Series C14 ScanAlarm

-B12-17 COMBUSTIBLE TRANSMITTER INTERCONNECTIONS

POWERED 4-20mA INPUT TRANSMITTER INTERCONNECTIONS

System Wiring

SS-C14RA, (7/97)

C14 ScanAlarm I/O PCB

SIG

GND

2 COND. 20 AWG UNSHIELDED OR SHIELDED

TB5 SHIELD TB1

+24

POWERED 4-20mA OUTPUT TRANSMITTER (SUPPLIED BY OTHERS)

DRAIN OR SHIELD IF USED COMBUSTIBLE SENSOR

3 COND. SHIELDED CABLE

B12-17 COMBUSTIBLE GAS SENSOR/TRANSMITTER (TYP. WIRING OF 3-WIRE INPUT)

SHIELD TB5 TB1

GND

SIG

+24

CHANNEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

DRAIN OR SHIELD IF USED

ATI-0251

ATI-0250

CHANNEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

(9)

Series C14 ScanAlarm

-Page 7 of 10

2 RELAY MODULE, ENCLOSURE DIMENSIONS

Relay Module Option

7.09" 180 mm

10.0" 254 mm

FRONT VIEW

SIDE VIEW

9.41" 239 mm MOUNTING DIMENSIONS 4.37" 111 mm KNOCKOUTS MOUNTING DIMENSIONS 6.50" 165 mm

BOTTOM VIEW

80-0040R

NOTES

1) Enclosure Ratings:

Nema-4X/IP 65

2) Enclosure Material:

Polystyrene base and cover

3) Knockouts:

Pg 16 (.90" dia.)

Pg 21 (1.15" dia.)

Pg 29 (1.50" dia.)

4) Enclosure may be close coupled to

ScanAlarm enclosure using bulkhead fit

ting supplied with relay module enclosure.

(10)

Series C14 ScanAlarm

-4 RELAY MODULE, ENCLOSURE DIMENSIONS

Relay Module Option

FRONT VIEW

SIDE VIEW

14.21" 361 mm 9.72" 239 mm 10.0" 254 mm 13.62" 346 mm MOUNTING DIMENSIONS 4.37" 111 mm
