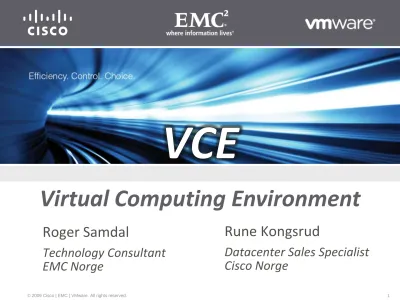

Virtual Computing Environment

(1)

Virtual Computing Environment

Roger Samdal

Technology Consultant

EMC Norge

Rune Kongsrud

Datacenter Sales Specialist

Cisco Norge

(2)

News Announcement – Imagine the Power of Three

The Virtual Computing Environment coalition. Cisco and EMC, together with VMware, have

committed to extensive and on-going collaboration to lead the journey to pervasive virtualization and private cloud with technology innovation, business partnership, venture investments and partner ecosystem leverage.

Technology Innovations

Vblock Infrastructure Packages. Integrated best-of-breed packages from Cisco and EMC,

together with VMware – engineered, tested, and validated to deliver revolutionary TCO and pervasive virtualization at scale in today’s most demanding use cases.

Integrated Pre-Sales, Services and Support

Vblock Unified Customer Engagement. Dedicated pre-sales, professional services and single

support experience to provide a seamless, end-to-end customer experience.

Solutions Venture and Investment

Acadia. A Cisco-EMC joint venture to build, operate, and transfer Vblock infrastructure to

organizations who want to accelerate their journey – available Q1 CY2010.

Partner Ecosystem Leverage

(3)

Neste generasjons datarom

Virtual Datacenter Operating System

Virtualiserte Servere

Virtualisert Lagring

(4)

Byggeklosser

VMware vSphere

Cisco UCS

EMC Unified Storage

Cisco Nexus

(5)

Dagens virtuelle datasenter

Virtualisering av

Tier 1 applikasjoner

vil redusere kost og

kompleksitet

Tier 2 – Virtuelle

VMware VMware

(6)

Tier 1 + Tier 2 Virtual

Virtualisering av alle tjenester

Infrastrukturen må

støtte høyere krav til

tjenestenivåer og

samtidig gi lavere

kost.

VMware VMware VMware VMware

(7)

VCE Alliansen

• _{Virtual Computing Environment}

• Det beste fra

EMC – VMware – Cisco

• Ferdige infrastruktur løsninger

tilpasset ulike kundebehov.

(8)

vBlock Arkitektur

EMC Clariion/V-Max

Cisco Nexus/MDS9000

Cisco UCS

VMware vSphere

EMC Ionix

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

vBlock

(9)

vBlock Arkitektur

Datalagring

Nettverk

Compute Nodes

Virtualisering

Felles Administrasjon

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

(10)

vBlock Arkitektur

EMC Clariion/V-Max

Cisco Nexus/MDS9000

Cisco UCS

VMware vSphere

EMC Ionix

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

App

lik

asjo

n

(11)

Virtual Computing Environment

EFD Pool

FC/SAS Pool

SATA Pool

EMC FAST : Automatisk fordeling mellom tiers

Server

VMware vSphere

Tjenester og roller kan lett flyttes fra server til server

CNAs CNAs CNAs CNAs CNAs

Cisco Nexus

Felles

Adminis

tr

asjo

n

Lastbalansert Virtualisert disk Lastbalansert Virtualisert disk Lastbalansert Virtualisert disk

EMC Unified Storage

(12)

Neste generasjon datasenter

(13)

Designed for a Broad Range of Organizations

Product Coverage: Registered Vblocks

Vblock Core Platform Details

Vblock 2 (3000 to 6000+ VMs)

 A high-end configuration that is

completely extensible to meet the most demanding IT needs of large

enterprises or service providers

Vblock 1 (800 to 3000+ VMs)

 A midsized configuration to deliver a broad range of IT capabilities to organizations of all sizes

Vblock 0 (300 to 800+ VMs)

 An entry-level configuration to meet the IT needs of small data centers

 A test/development platform for partners and customers

(14)

 Single experience for onsite and remote support

 Cross-company,

cross-product-trained support experts

 Cooperative engineering groups

 Common metrics and alignment  Shared problem resolution and  Unified intercompany

collaboration tool  Joint problem

re-creation labs

VMware, Cisco, and EMC Have Combined People,

(15)

Integrated Customer Engagement Model Delivers

Flexible, Easy-to-Access Support

VMware Customer vcesupport.com EMC Field Services Cooperative Engineering Groups Joint Problem Re-Creation Labs Virtual Multivendor Support Center

X-Company, X-Product Trained Support Reps, Knowledge Sharing, Common Case Management

System, Collaboration (IM/TP) Support Process

VMware EMC Cisco

Cisco Field Services

EMC Cisco

(16)

Virtual Computing Environment Coalition Services

Value & Strategy Architecture & Design Deployment & Execution Virtualization &

Private Cloud

Design and Implementation

Services

• Private Cloud Strategic Impact Advisory Service • Cloud-based Business

Advisory Service

• Private Cloud Architecture Impact Advisory Service • Virtual Desktop Advisory

Service

• Vblock Design and Implementation Service • Cloud Computing Strategy Service Architecture Advisory Services Executive Advisory Services Strategy Services

(17)

Vblock Infrastructure Packages

Architecture Details



Enables incremental scaling with

predictable performance,

capability and facilities impact



Best of breed technologies

Compute: Cisco UCS family

Network: Cisco Nexus family, Cisco MDS 9000 series

Storage: EMC Symmetrix V-Max or EMC Unified Storage (Celerra, CLARiiON)

Virtualization: VMware vSphere 4 Unified Infrastructure management framework

(18)



Compute

Cisco UCS B-series



Network

Cisco Nexus 1000V Cisco MDS 9506



Storage

EMC CLARiiON CX4



Hypervisor

VMware vSphere 4



Management

EMC Ionix Unified Infrastructure Manager VMware vCenter

EMC NaviSphere EMC PowerPath Cisco UCS Manager Cisco Fabric Manager

(19)



Compute

Cisco UCS B-series



Network

Cisco Nexus 1000V Cisco MDS 9506



Storage

EMC Symmetrix V-Max



Hypervisor

VMware vSphere 4



Management

EMC Ionix Unified Infrastructure Manager VMware vCenter

EMC Symmetrix Management console EMC PowerPath

Cisco UCS Manager Cisco Fabric Manager

(20)

Vblock: O/S and Application Support



Vblock accelerates virtualization of

applications by standardizing IT

infrastructure and IT processes



Broad range of O/S support



Over 300 Enterprise Applications

explicitly supported



Vblock applications

–

SAP

–

VMware View 3.5

–

View 4 in-test

–

Oracle RAC

–

Exchange

–

SharePoint

Windows NT 4.0 Windows 2000 Windows Server 2003 Windows Server 2008 Windows Vista Windows XP RHEL5 RHEL4 RHEL3 RHEL2.1 SLES10 SLES9 SLES8 Ubuntu 7.04 Solaris 10 for x86 NetWare 6.5 NetWare 6.0 NetWare 6.1 Debian CentOS FreeBSD Asianux SCO OpenServer SCO Unixware …

(21)

Vblock Management Needs Across the Stack

virtualization your applications unified infrastructure Vblocks Storage Network Compute Infrastructure Services Application Services

vCompute vNetwork vStorage Availability Security Scalability

Vblock Management 1. Control Vblock configuration change and compliance 2. Manage virtualization layer 3. Build, optimize, deploy,

patch, & audit application stack 4. Fast & accurate visibility across the stack

(22)

Unified Vblock Element Management

Unified Vblock Element Management

vCenter UCS Manager

Ionix Unified Infrastructure Manager (UIM) V1

Policy-Based Management

Unified Provisioning, Config & Change Cross Domain Context

Configuration Compliance

Analysis

Enterprise Management Platforms

Configuration Events Compliance Events Standalone Component Unified Multi-Vblock Element Management Deep Visibility Manages one or more Vblocks
