Research article
Perturbations in the impact of mutational activity on V
λλ
genes in
systemic lupus erythematosus
Thomas Dörner*, Sabine Kaschner*, Arne Hansen*, Axel Pruss
†and Peter E. Lipsky
‡*Department of Medicine and †Institute of Transfusion Medicine, University Hospital Charite, Berlin, Germany ‡National Institutes of Arthritis, Musculoskeletal and Skin Diseases, National Institutes of Health, Bethesda, MD, USA
Correspondence: Thomas Dörner, MD, Department of Medicine, University Hospital Charite, Schumannstr. 20/21, 10098 Berlin, Germany. Tel: +49 30 4505 13017; fax: +49 30 4505 13917; e-mail: [email protected]
Introduction
Systemic lupus erythematosus (SLE) is a systemic autoim-mune disease characterized by the production of a number of autoantibodies [1]. To date, the etiology of this disorder remains unknown, although genetic, environmental, and hor-monal factors appear to influence disease manifestations.
There is little information about the molecular mechanisms underlying autoantibody production by SLE patients. It has been suggested that autoantibodies may arise from somatic hypermutation of immunoglobulin genes that have minimal capacity to bind autoantigens in their germline configuration [2–9]. Support for an important role of
Abstract
To assess the impact of somatic hypermutation and selective influences on the Vλ light chain repertoire in systemic lupus erythematosus (SLE), the frequency and pattern of mutations were analyzed in individual CD19+ B cells from a patient with previously undiagnosed SLE. The mutational
frequency of nonproductive and productive rearrangements in the SLE patient was greater (3.1 × 10–2
vs 3.4 × 10–2, respectively) than that in normal B cells (1.2 × 10–2vs 2.0 × 10–2, both P< 0.001). The
frequencies of mutated rearrangements in both the nonproductive and productive repertoires were significantly higher in the patient with SLE than in normal subjects. Notably, there were no differences in the ratio of replacement to silent (R/S) mutations in the productive and nonproductive repertoires of the SLE patient, whereas the R/S ratio in the framework regions of productive rearrangements of normal subjects was reduced, consistent with active elimination of replacement mutations in this region. The pattern of mutations was abnormal in the SLE patient, with a significant increase in the frequency of G mutations in both the productive and nonproductive repertoires. As in normal subjects, however, mutations were found frequently in specific nucleotide motifs, the RGYW/WRCY sequences, accounting for 34% (nonproductive) and 46% (productive) of all mutations. These data are most consistent with the conclusion that in this SLE patient, the mutational activity was markedly greater than in normal subjects and exhibited some abnormal features. In addition, there was decreased subsequent positive or negative selection of mutations. The enhanced and abnormal mutational activity along with disturbances in selection may play a role in the emergence of autoreactivity in this patient with SLE.
Keywords:autoimmunity, B cells, SLE, somatic hypermutation, V genes Received: 15 May 2001
Revisions requested: 2 July 2001 Revisions received: 10 August 2001 Accepted: 24 August 2001 Published: 14 September 2001
Arthritis Res2001, 3:368-374
This article may contain supplementary data which can only be found online at http://arthritis-research.com/content/3/6/368
© 2001 Dörner et al, licensee BioMed Central Ltd (Print ISSN 1465-9905; Online ISSN 1465-9913)
commentary
review
reports
research article
somatic hypermutation comes from the observation that immunization of mice with pneumococcal polysaccharide can lead to the emergence of anti-dsDNA autoantibodies by somatic hypermutation [3,10]. In addition, V gene rearrangements encoding high-affinity dsDNA anti-bodies in mouse and man are highly mutated [10] and back mutation of mutated human V genes to the germline sequence results in a loss of anti-DNA binding [9]. Despite the likelihood that autoantibodies may arise from somatic hypermutation, there is only limited information on the nature and extent of immunoglobulin-gene mutations in patients with SLE. Moreover, the human Vλ gene reper-toire has not been examined in detail, largely because it has been delineated only recently [11,12]. The potential importance of the Vλ repertoire in autoimmunity is sug-gested by the apparent overrepresentation of Vλ gene products in autoantibodies [8,13–18].
The production of autoantibodies in SLE is thought to rep-resent an example of immune dysregulation with a resul-tant break in tolerance. However, the nature of the abnormality in immunoregulation remains a matter of debate. We have previously found a number of abnormali-ties in patients with SLE that could contribute to the emer-gence of autoimmunity [19,20], including an increase in the mutational activity directed toward VH and Vκ genes [21,22] and an enhancement of receptor editing/revision [19,20]. In this study, we examined the impact of somatic hypermutation on Vλrearrangements, which could be par-ticularly important because of the frequent use of Vλ genes by autoantibodies [8,13–18].
The data derived by single-cell polymerase chain reaction (PCR) analysis of genomic DNA from individual B cells clearly document two abnormalities, namely, enhanced muta-tional activity with a bias of G mutations, and diminished selection. Together, these abnormalities could have con-tributed to the emergence of autoimmunity in this patient.
Materials and methods
See Supplementary material.
Results
Frequency of mutations in peripheral B cells of a patient with SLE
Of the 57 nonproductive VλJλ rearrangements analyzed, 45 (79%) contained one or more nucleotide changes. Only 12 nonproductive sequences (21%) were unmu-tated. Of the 108 productive VλJλ gene rearrangements, 95 (88%) were mutated and 13 (12%) did not harbor mutations. In normal subjects studied previously [23], 27/55 nonproductive Vλrearrangements (49%) contained mutations. In the productive repertoire of the normal sub-jects, 100/174 sequences (58%) harbored mutations. Overall, the VλJλrepertoires of the patient with SLE exhib-ited a significantly greater frequency of mutated
sequences in both the nonproductive and the productive repertoire (P< 0.001 for both).
The mutational frequencies of the nonproductive and pro-ductive repertoires are shown in Table 1. There was a sig-nificantly higher mutational frequency in the productive than in the nonproductive rearrangements when the entire set of VλJλ genes was considered (P= 0.022) but not when only the mutated Vλrearrangements were analyzed. In normal subjects, by comparison, the mutational fre-quency of the productive rearrangements with mutations (2.0 × 10–2 per base pair) was significantly greater than
that of the mutated nonproductive repertoire (1.2 × 10–2
per base pair, P< 0.001).
Further analyses assessed mutations in the complemen-tarity-determining regions (CDRs) and framework regions (FRs). Of all mutations of Vλin the patient with SLE, 42% (174/412) of the nonproductive and 44% (356/807) of the productive rearrangements were in CDRs, while the respective values for FRs were 58% (238/412) and 56% (451/807). The corresponding values in normal controls were 65% of the nonproductive and 58% of the produc-tive mutations in CDRs, versus 35% and 42%, respec-tively, in FRs [23]. In normal subjects, the frequency of mutations was significantly higher in the CDRs than in the FRs (P< 0.005), in both nonproductive and productive rearrangements, contrasting with the SLE patient’s signifi-cantly higher frequency of FR mutations in both reper-toires (P< 0.005).
Comparison of ratios of replacement mutations to silent mutations (R/S)
The frequency of replacement (R) mutations in the CDRs and FRs in the nonproductive and productive repertoires was comparable in the SLE patient (Table 2), whereas the normal subjects had a reduced R/S ratio in the FRs of the productive repertoire (P< 0.05). Overall, the R/S ratios found in the nonproductive and productive repertoires of the patient with SLE did not greatly differ. However, this patient had a significantly higher R/S ratio in the CDRs than in FRs compared with normal subjects, in both the nonproductive (P< 0.01) and the productive (P< 0.001) repertoire.
In comparison with the normal subjects, the patient with SLE had a significantly higher R/S ratio in CDRs (P< 0.005) but not in FRs.
Distribution of mutations in VλλJλλgene rearrangement
See Supplementary material.
Nature of base-pair substitutions
and the assumption of a random mutational process, the expected distribution of mutations would be as follows: T, 23%; C, 31%; A, 21%; and G, 25%. However, in the patient, 41% of Gs were mutated (169/412; Fig. 1), sig-nificantly exceeding the expected frequency of 25% (P< 0.001). In contrast, 23% of As were mutated (95/412) – a value close to the 21% that would be expected by chance. The frequencies of mutations of T (14%, 59/412) and C (22%, 89/412) were significantly lower than would be expected (both P< 0.001).
Similarly, in the productive repertoire, 40% of Gs (319/807, P< 0.001) were mutated significantly more than expected, whereas T (89/807, 11%, P< 0.001) and
C (152/807, 19%, P< 0.001) were mutated significantly less than expected. Again A (31%, 247/807) was mutated at a frequency not significantly different from the fre-quency of the occurrence of A in the germline of the pro-ductive repertoire (25%).
[image:3.612.55.559.130.293.2]Comparison of specific mutations between the nonpro-ductive and prononpro-ductive repertoires (Fig. 1) shows that in the patient with SLE, mutations of A were significantly more frequent in the productive (31%) than in the nonpro-ductive repertoire (23%, P< 0.005). In this patient, similar frequencies of mutations were found for G, C, and T in the nonproductive versus the productive repertoire. (For addi-tional data, see Supplementary material).

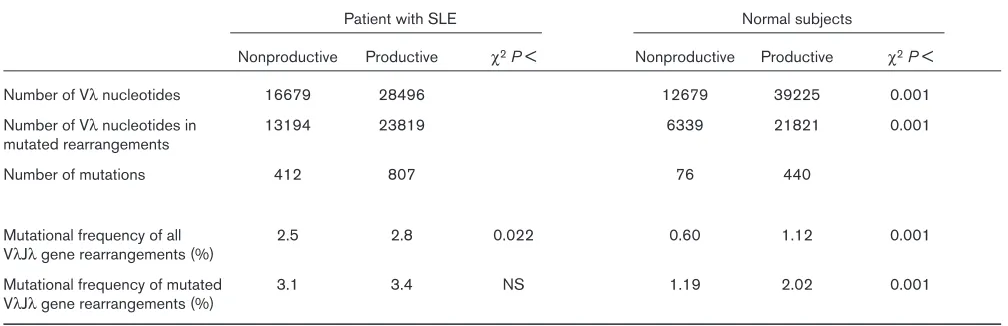

Table 1
Mutational frequency of the nonproductive and productive Vλλrepertoires of the patient with systemic lupus erythematosus (SLE) and normal subjects
Patient with SLE Normal subjects
Nonproductive Productive χ2P< Nonproductive Productive χ2P<
Number of Vλnucleotides 16679 28496 12679 39225 0.001
Number of Vλnucleotides in 13194 23819 6339 21821 0.001
mutated rearrangements
Number of mutations 412 807 76 440
Mutational frequency of all 2.5 2.8 0.022 0.60 1.12 0.001
VλJλgene rearrangements (%)
Mutational frequency of mutated 3.1 3.4 NS 1.19 2.02 0.001
VλJλgene rearrangements (%)
J = joining [region]; NS = not significant; V = variable [region].
Table 2
Ratio (R/S) of replacement mutations to silent mutations in regions of Vλλin a patient with SLE and in normal human subjects
Patient with SLE Normal subjects*
Region of Vλ Nonproductive rearrangements Productive rearrangements Nonproductive rearrangements Productive rearrangements
FR1 1.0b (4/4) 7.3b (29/4) 0.0 (0) 1.8 (9/5)
CDR1 7.8 (47/6) 6.3a(113/18) 3.0 (12/4) 3.9a (55/14)
FR2 3.1 (49/16) 2.5 (95/38) 0.0b (11/0) 1.8b (51/29)
CDR2 8.2 (41/5) 10.9 (76/7) 10.0 (10/1) 4.8 (48/10)
FR3 2.9 (112/39) 3.1 (185/59) 4.0 (12/3) 2.4 (66/28)
CDR3 8.7 (52/6) 8.0a (96/12) 3.0 (15/5) 3.7a (81/22)
FRs 2.8 (165/59) 3.1a(309/101) 7.7b (23/3) 2.0a,b(126/62)
CDRs 8.2 (140/17) 7.7a(285/37) 3.7 (37/10) 4.0a(184/46)
Total 4.0 (305/76) 4.3a(594/138) 4.6 (60/13) 2.9a(310/108)
*The data for normal subjects have been published elsewhere [23]. aSignificant difference between ratio in SLE patient and normal subjects; P< 0.05 (χ2test). bSignificant difference between ratio in nonproductive and productive rearrangements; P< 0.05 (χ2test).
[image:3.612.57.557.347.526.2]In the nonproductive and productive repertoires of the SLE patient, purine transversions (37% and 38%, respec-tively) and purine transitions (30% and 32%, respecrespec-tively) were the most frequent substitutions (Table 3). Pyrimidine transversions (17% and 15%, respectively) and pyrimidine transitions (16% and 14%, respectively) were found sig-nificantly less frequently in both repertoires (P< 0.001 for both). In the normal subjects, purine transversions (30%) and purine transitions (25%) were more frequent than pyrimidine transversions (21%) and pyrimidine transitions (24%), although these differences were not significant.
Detailed analysis of the findings for the SLE patient revealed that G-to-A substitutions occurred frequently in the nonproductive (21.6%) and productive (18.6%) reper-toires. By contrast, mutations from T to A (2.7%) were infrequent. Mutations from A to G were significantly differ-ent between the nonproductive (8.0%) and productive (13.0%) repertoires (P= 0.01). Mutations of G to A were significantly increased in the CDRs versus FRs in both the nonproductive and productive repertoires (5.8% vs 15.8%, P< 0.005, in the nonproductive repertoire and 6.9% vs 11.7%, P< 0.005, in the productive repertoire).
Mutations within RGYW and WRCY motifs – analysis of mutational targeting in the patient with SLE
Since previous studies identified the RGYW motif on both DNA strands as a target of the mutational machinery [24–27], we made further analyses to determine the tar-geting of these motifs in the nonproductive and productive gene repertoires of this patient with SLE.
In the nonproductive Vλ repertoire, 94/412 mutations (23%) were part of RGYWs and 49/412 mutations (12%) were found in the inverse repeat of RGYW, WRCY. Alto-gether, 143/412 (35%) mutations were located within these motifs in the nonproductive repertoire. In the pro-ductive repertoire, 200/807 mutations (25%) were included within RGYW and 168/807 mutations (21%) were included within WRCY sequences. Thus, 368/807 mutations (46%) were found within these targeted motifs
commentary
review
reports
[image:4.612.55.298.91.222.2]research article
Figure 1
Frequency of mutated base pairs of the nonproductive and productive Vλgene repertoires of the patient with systemic lupus erythematosus in comparison with those found in normal subjects. NHS = normal human subjects; SLE = systemic lupus erythematosus.
Table 3
Nature of base-pair substitutions
Substitution to
Nonproductive Vλrearrangements Productive Vλrearrangements Region of
substitution Substitution from T C A G T C A G
CDR T - 2.9 1.0 0.5 - 1.9 1.4 1.1
C 2.9 - 0.2 3.4 3.0 - 1.1 1.3
A 5.8 2.4 - 4.1 7.0 3.1 - 6.7
G 7.8 5.3 5.8b - 6.1 4.7 6.9b
-FR T - 2.6 1.7 3.1 - 2.9 1.7 2.0
C 7.5 - 3.4 4.1 6.8 - 2.0 4.5
A 4.2 2.7 - 3.9 5.0 2.6 - 6.3
G 5.3 3.4 15.8b - 5.3 4.8 11.7b
-Total T - 5.5 2.7 3.6 - 4.8 3.1 3.1
C 10.4 - 3.6 7.5 9.8 - 3.1 5.8
A 10.0 5.1 - 8.0a 12.0 5.7 - 13.0a
G 13.1 8.7 21.6 - 11.4 9.5 18.6
[image:4.612.59.557.478.723.2]in the productive repertoire. The contribution of mutations within RGYW/WRCY sequences was significantly differ-ent between the nonproductive and productive repertoires (P< 0.001). Similarly, there was a significant difference between the mutations within RGYW/WRCY sequences in the nonproductive (38%) and the productive repertoires (51%) of normal subjects (P= 0.033) [23], but there were no significant differences between normal subjects and the SLE patient.
Discussion
In this study, we analyzed the frequency and distribution of mutations of Vλchain rearrangements obtained from indi-vidual peripheral B cells of a patient with early, previously undiagnosed SLE and compared the findings with previ-ous findings for normal subjects. A previprevi-ous study of the V gene usage of the patient showed that central receptor editing of the Vλ and peripheral editing of Vκ gene rearrangements were more active than in normal subjects [19,20]. Recent analysis of mutations of VH and Vκ rearrangements from this patient also revealed significant differences in comparison with normal subjects [21,22], including a greater mutational frequency, enhanced muta-tions of Gs, comparable targeting of RGYW/WRCY motifs, and apparent abnormalities of selective influences shaping the mutated V gene repertoire.
Differences between the patient and normal subjects in the frequencies and patterns of mutations in the nonpro-ductive repertoire are likely to reflect abnormalities in mutational activity. The current study indicates that the mutational machinery was significantly more active in this untreated SLE patient than in normal subjects, as judged from the number of mutated Vλ genes and from the mutational frequencies; these findings are consistent with findings of Vκ and VH rearrangements from this patient [21,22]. These results suggest that the entire immunoglobulin-gene repertoire was mutated to a greater degree than in normal subjects. By contrast, de Wildt et al [28] recently reported no differences in the mutational activity in SLE patients from that in normal subjects. However, that study analyzed individual rearrangements of IgG+ B cells from two patients with
‘SLE–mixed connective tissue disease’. Differences between the patients analyzed, the impact of treatment, the effects of preincubating individual B cells with EL-4 B5 thymoma cell lines, and the selection of B cells pro-ducing immunoglobulin in that study could explain appar-ent differences from our presappar-ent study. In addition, the mutational frequencies estimated in the study of de Wildt
et al [28] (ranging from 4.8% to 8.8%) cannot be
com-pared with our present data, because of methodological differences (analysis of mRNA from a defined subpopula-tion and stimulasubpopula-tion before the analysis). Moreover, detailed mutational analyses were not reported, preclud-ing a firm conclusion.
Another indication of abnormal activity was the over-whelming contribution of G mutations. In the patient with SLE, 41% of all mutations in the nonproductive repertoire and 40% in the productive repertoire were nucleotide changes of G. The same overabundance of G mutations was found in VHrearrangements (39% in the nonproduc-tive and 42% in the producnonproduc-tive repertoire) and Vκ rearrangements (50% in the nonproductive and 53% in the productive repertoire) of this patient [21,22]. This is noteworthy because previous analyses of VH(26% in the nonproductive and 26% in the productive repertoire) [24] and Vκgene rearrangements (30% in the nonproductive and 28% in the productive repertoire) [29] in normal sub-jects provided no evidence for preferential mutation of G. Alternatively, it cannot be formally excluded that the prefer-ential mutation of G mutations is an idiosyncrasy of this SLE patient. Additional studies will be necessary to assess this possibility.
Although the mutational machinery was markedly enhanced in peripheral B cells of this patient in compari-son with that in normal subjects, it remains likely that the CD19+B cells analyzed contained a higher percentage of
memory B cells. Therefore, comparison with the previously reported IgM+B cells may have overestimated the
appar-ent mutational frequency in the SLE patiappar-ent. Significantly more mutated Vλrearrangements were found in the SLE patient than in CD19+B cells of a normal individual [23] –
a finding consistent with the conclusion that the frequency of memory B cells is higher in SLE. Indeed, a recent study [30] identified a higher proportion of CD27+ memory B
cells carrying somatically mutated V rearrangements in the periphery of SLE patients. However, even when analyses were confined to VλJλrearrangements with mutations, the mutational frequencies of the nonproductive and produc-tive repertoires were significantly greater in the SLE patient, indicating that, in addition, the impact of muta-tional activity on memory cells of this patient was greater than in normal subjects.
Additional evidence of major abnormalities in selection became apparent when the mutational frequencies of pro-ductive and nonpropro-ductive Vλrepertoires were compared. Whereas there were clear indications of positive selection of mutations in Vλrearrangements in normal subjects, with increased mutational frequencies in productive compared with nonproductive repertoires (1.2% vs 2.0%, respec-tively, P< 0.001) [23], no such difference was noted in the Vλ repertoires of the SLE patient. A similar pattern was previously noted in the Vκ[21] and VH gene reper-toires [22,24].
of mutations within codons, and the R/S ratios of produc-tive and nonproducproduc-tive rearrangements, which are all con-sistent with the conclusion that the imprint of selection as evidenced by differences between the nonproductive and productive repertoires was not as evident as previously identified in normal subjects.
Although there was evidence of differences in mutational activity in the SLE patient, overall targeting of mutations to RGYW motifs on both DNA strands, as manifested in normal subjects [23,24,26,31–34] by an increased muta-tional frequency of RGYW/WRCY motifs on the sense strand [23,27,33], appeared to be intact in the SLE patient. However, the lack of positive selection of RGYW mutations (mutational frequency 16% in both the nonpro-ductive and the prononpro-ductive repertoire) was remarkably dif-ferent from what is seen in normal subjects, who manifested clear evidence of positive selection of RGYW mutations. The increase of WRCY mutations from the non-productive (10%) to the non-productive (17%) repertoire was very similar to normal subjects and patients with another autoimmune disease, Sjögren’s syndrome [31,35] These findings suggest that there are unique abnormalities in the selection of mutations in patients with SLE.
Our study identified markedly enhanced mutational activity and distinct abnormalities in mutational targeting, in a patient with active, untreated SLE compared with normal subjects. In addition, there was decreased subsequent positive or negative selection. These abnormalities may be involved in the emergence of autoreactivity in this patient with SLE.
References
1. Tan EM: Antinuclear antibodies: Diagnostic markers for autoimmune diseases and probes for cell biology. Adv Immunol 1989, 44:93-151.
2. Suzuki N, Harada T, Mihara S, Sakane T: Characterization of a germline encoding cationic anti-DNA antibody and role of receptor editing for development of the autoantibody in patients with systemic lupus erythematosus. J Clin Invest 1996, 98:1843-1850.
3. Ray SK, Putterman C, Diamond B: Pathogenic autoantibodies are routinely generated during the response to foreign antigen: a paradigm for autoimmune disease. Proc Natl Acad Sci U S A 1996, 93: 2019-2024.
4. Manheimer-Lory AJ, Monhian R, Splaver A, Gaynor B, Diamond B: Analysis of V kappaI family: germline genes from an SLE patient and expressed autoantibodies. Autoimmunity1995, 20: 259-265.
5. Naparstek Y, Ben-Yehuda A, Cohen IR, Bar-Tana R: Cross-reac-tivity of anti-DNA antibodies. Immunol Today1990, 11:388-389. 6. Scharff MD, Poltoratsky V, Green NS: The promotion of V
region hypermutation. J Exp Med1997, 185:185-188. 7. Ravirajan CT, Rahman MA, Papadaki L, Griffiths MH, Kalsi J,
Martin AC, Ehrenstein MR, Latchman DS, Isenberg DA: Genetic, structural and functional properties of an IgG DNA-binding monoclonal antibody from a lupus patient with nephritis. Eur J Immunol1998, 28:339-350.
8. Roben P, Barbas SM, Sandoval L, Lecerf JM, Stollar BD, Solomon A, Silverman GJ: Repertoire cloning of lupus anti-DNA autoan-tibodies. J Clin Invest 1996, 98:2827-2837.
9. Winkler TH, Fehr H, Kalden JR: Analysis of immunoglobulin variable region genes from human IgG anti-DNA hybridomas. Eur J Immunol 1992, 22:1719-1728.
10. Manheimer-Lory AJ, Zandman-Goddard G, Davidson A, Aranow C, Diamond B: Lupus-specific antibodies reveal an altered pattern of somatic mutation. J Clin Invest 1997, 100:2538-2546.
11. Williams SC, Frippiat JP, Tomlinson IM, Ignatovich O, Lefranc MP, Winter G: Sequence and evolution of the human germline V lambda repertoire. J Mol Biol1996,264:220-232.
12. Farner NL, Dörner T, Lipsky PE: Molecular mechanisms and selection influences the generation of the human VλλJλλ reper-toire. J Immunol1999, 162:2137-2145.
13. Elagib KE, Borretzen M, Thompson KM, Natvig JB: Light chain variable (VL) sequences of rheumatoid factors (RF) in patients with primary Sjögren’s syndrome (pSS): moderate contribution of somatic hypermutation. Scand J Immunol 1999, 50:492-498.
14. Ravirajan CT, Rahman MA, Papdaki L, Griffiths MH, Kalsi J, Martin ACR, Ehrenstein MR, Latchman DS, Isenberg DA: Genetic, struc-tural and functional properties of an IgG DNA-binding mono-clonal antibody from a lupus patient with nephritis. Eur J Immunol1998, 28:339-350.
15. Sestak AL, Harley JB, Yoshida S, Reichlin M: Lupus/Sjögren’s autoantibody specificities in sera with paraproteins. J Clin Invest1987, 80:138-144.
16. Suzuki H, Takemura H, Suzuki M, Sekine Y, Kashiwagi H: Molecu-lar cloning of anti-SS-A/Ro 60 kDa peptide Fab fragments from infiltrating salivary gland lymphocytes of a patient with Sjögren’s syndrome. Biochem Biophys Res Commun 1997, 232:101-106.
17. Eulitz M, Ch’ang LY, Zirkel C, Schell M, Weiss DT, Solomon A: Distinctive serologic, chemical, and molecular properties of human lambda IV light chains. J Immunol 1995, 154:3256-3265.
18. Ermel RW, Kenny TP, Wong A, Solomon A, Chen PP, Robbins DL: Preferential utilization of a novel Vλλ3 gene in monoclonal rheumatoid factors derived from the synovial cells of rheuma-toid arthritis patients. Arthritis Rheum1994, 37:860-868. 19. Dörner T, Foster SJ, Farner NL, Lipsky PE: Immunoglobulion
kappa chain receptor editing in systemic lupus erythemato-sus.J Clin Invest 1998, 102:688-694.
20. Dörner T, Farner NL, Lipsky PE: Immunoglobulin lambda and heavy chain gene usage in early untreated systemic lupus erythematosus suggests intensive B cell stimulation. J Immunol1999, 163: 1027-1036.
21. Dörner T, Heimbächer C, Farner NL, Lipsky PE: Enhanced muta-tional activity of Vκκgene rearrangements in systemic lupus erythematosus. Clin Immunol 1999, 92:188-196.
22. Jacobi AM, Hansen A, Burmester GR, Dörner T, Lipsky PE: Enhanced mutational activity and disturbed selection of muta-tions in VH gene rearrangements in a patient with systemic lupus erythematosus. Autoimmunity2001, 33:61-79.
23. Monson NL, Dörner T, Lipsky PE: Targeting and selection of mutations in human Vlambda rearrangements. Eur J Immunol 2000, 30:1597-1605.
24. Dörner T, Brezinschek HP, Brezinschek RI, Foster SJ, Domiati-Saad R, Lipsky PE: Analysis of the frequency and pattern of somatic mutations within non-productively rearranged human VHgenes. J Immunol 1997, 158:2779-2789.
25. Rogozin IB, Kolchanov NA: Somatic hypermutagenesis in immunoglobulin genes. II. Influence of neighbouring base sequences on mutagenesis. Biochem Biophys Acta 1992, 1171:11-18.
26. Dörner T, Foster SJ, Farner NL, Lipsky PE: Somatic hypermuta-tion of human immunoglobulin heavy chain genes: targeting of RGYW motifs on both DNA strands. Eur J Immunol1998, 28: 3384-3396.
27. Dörner T, Foster SJ, Brezinschek HP, Lipsky PE: Analysis of the targeting of the hypermutational machinery and the impact of subsequent selection on the distribution of nucleotide changes in human VHDJHrearrangements. Immunol Rev 1998, 162:161-171.
28. De Wildt RMT, Tomlinson IM, van Venrooij WJ, Winter G, Hoet RMA: Comparable heavy and light chain pairings in normal and systemic lupus erythematosus IgG+ B cells. Eur J Immunol, 30:254-261.
29. Foster SJ, Dörner T, Lipsky PE: Targeting and subsequent selection of somatic hypermutations in the human V kappa repertoire. Eur J Immunol 1999, 29:3122-3132.
commentary
review
reports
30. Odendahl M, Jacobi A, Hansen A, Feist E, Hiepe F, Burmester GR, Lipsky PE, Radbruch A, Dörner T: Disturbed peripheral B lymphocyte homeostasis in systemic lupus erythematosus. J Immunol 2000, 165:5970-5979.
31. Dörner T, Brezinschek HP, Foster SJ, Brezinschek RI, Farner NL, Lipsky PE: Delineation of selective influences shaping the mutated expressed human immunglobulin heavy chain reper-toire. J Immunol1998, 160:2831-2841.
32. Neuberger MS, Milstein C: Somatic hypermutation. Curr Opin Immunol1995, 7:248-254.
33. Foster SJ, Dörner T, Lipsky PE: Somatic hypermutation of Vkap-paJkappa rearrangements: targeting of RGYW motifs on both DNA strands and preferential selection of mutated codons within RGYW motifs. Eur J Immunol1999, 29:4011-4021. 34. Bross L, Fukita Y, McBlane F, Demolliere C, Rajewsky K, Jacobs
H: DNA double-strand breaks in immunoglobulin genes undergoing somatic hypermutation. Immunity 2000, 13:589-597.
35. Heimbächer C, Hansen A, Pruss A, Jacobi A, Reiter K, Lipsky PE, Dörner T: Immunoglobulin Vkappa chain gene analysis in patients with Sjögren’s syndrome. Arthritis Rheum 2001, 44: 626-637.
Supplementary material
Supplementary materials and methods
The patient analyzed fulfilled the revised criteria for classi-fication of SLE [S1] and the case has been described in detail previously [19,20].
Preparation of peripheral blood mononuclear cells, fluores-cence-activated cell sorting of individual CD19+ B cells,
and the method of PCR amplification of human Vλgene rearrangements have been described in detail recently [S2].
The single-cell PCR methodology used made it possible to amplify genomic DNA of immunoglobulin-gene rearrangements from peripheral B cells and, thereby, avoid biases inherent in analyzing cell lines or cDNA libraries [S3,S4]. Since genomic DNA was amplified, productive as well as nonproductive Vλ rearrangements could be amplified, sequenced, and analyzed. Analysis of the non-productive repertoire is especially important in assessing the immediate impact of somatic hypermutation, as the nonproductive rearrangements do not encode a protein and therefore do not influence selection of B cells expressing these rearrangements. In contrast, the distribu-tion of B cells can be shaped by a variety of selective influ-ences during development and subsequent antigenic stimulation, based upon the nature of the expressed immunoglobulin heavy or light chain.
Determination of Taq polymerase fidelity and the frequency of potential sequence errors
The PCR error rate for this analysis has been documented to be approximately 1 × 10–4errors/base pair [24]. Thus,
few if any of the nucleotide changes encountered in this analysis can be ascribed to amplification errors.
Statistical analysis
The previously published [23] mutational frequency and pattern of hypermutation of VλJλrearrangements from two healthy normal male donors (26 and 45 years old) served as a basis of comparison. Both the nonproductive and productive repertoires of these two normal, age-disparate donors exhibited an overall similar usage of Vλ and Jλ gene elements [S2].
Sequences were analyzed with the χ2test to compare the
differences in the mutational frequencies between the VλJλ rearrangements of the SLE patient and the normal subjects. The goodness-of-fit χ2 test was used to
compare the nature of individual mutations of nucleotides to their expected mutational frequencies based on their occurrence in the germline. Pvalues < 0.05 were consid-ered to be statistically significant.
Mutational ‘hot spots’ were identified by determining the mean number of mutations of each codon and identifying codons that had more mutations than the mean +1.96 SD (95% confidence interval) of the mean mutations of the group [24]. In this analysis, the overall mutations of both nonproductive and productive gene repertoires were assessed excluding the portions of FR1 that could not be analyzed because of the primers used.
Supplementary results
Distribution of mutations in VλλJλλgene rearrangement
Previous analyses in normal subjects detected specific codon positions with a higher mutability within the Vλ rearrangements [23]. Thus, in normal subjects, codon position 51 was found to be mutated significantly more frequently in the nonproductive repertoire, whereas codon positions 38, 50, 51, 53, 95a, and 95b of productive gene rearrangements were more frequently mutated.
The patient with SLE, however, manifested some notable differences (Supplementary Fig. 1). Significantly more mutations (outside of the 95% confidence interval) were detected in codon positions 53 and 94 of nonproductive rearrangements and in positions 33, 38, 50, 51, 53, 66, and 94 in the productive repertoire. No mutations occurred in codon positions 23, 35, 40, 44, 63, or 88 of the nonproductive or 63 of the productive repertoire. Thus, whereas mutational hot spots at positions 38, 50, 51, and 53 in the productive repertoire were similar between normal subjects and the patient with SLE, there were additional hot spots in FRs of the patient.
Nature of base-pair substitutions
more frequent in the patient’s repertoire (41%) than in the controls (25%, P< 0.005). Base substitutions of A and C occurred at comparable frequencies in the patient and in normal subjects.
In the productive repertoires, substitutions of G were also found significantly more frequently in the patient (40%) than in normal subjects (29%, P< 0.001). By contrast, C (27%) and T (17%) nucleotides were mutated significantly more frequently in normal subjects than in the patient (C, 19%; T, 11%; P< 0.005 each).
RGYW/WRCY mutations
When the number of RGYW/WRCY mutations was com-pared with the occurrence of these motifs in the germline sequences, 16% of RGYW sequences (94/601) and
10% of WRCY motifs (49/487) contained mutations in the nonproductive repertoire. The difference in these mutational frequencies was significant (16 versus 10%,
P< 0.007). In the productive repertoire, 16% (200/1250) and 17% (168/993), respectively, of these sequences were also found to be mutated and the frequency of muta-tions did not differ significantly between them (P= 0.56). Only the difference of WRCY mutations was significant when the nonproductive and productive repertoires were compared (10% vs 16%, P< 0.001). Overall, there was a significant difference between the mutational frequency of RGYW/WRCY quartets in the nonproductive repertoire (13%, 143/1088) and the productive repertoire (16%, 368/2243, P= 0.014, Supplementary Fig. 2).
Supplementary references
S1. Tan EM, Cohen AS, Fries JF, Masi AT, McShane DJ, Rothfield NF, Schaller JG, Talal N, Winchester RJ: The 1982 revised criteria of systemic lupus erythematosus. Arthritis Rheum 1982, 25: 1271-1277.
S2. Farner NL, Dörner T, Lipsky PE: Distribution of Vλλand Jλλgene usage in normal individuals. J Immunol 1999, 162:2137-2145. S3. Brezinschek HP, Foster SJ, Brezinschek RI, Dörner T,
Domiati-Saad R, Lipsky PE: Analysis of the human VH gene repertoire: differential effects of selection and somatic hypermutation on human peripheral CD5+/IgM+ and CD5-/IgM+ B cells. J Clin Invest 1997, 99:2488-2499.
S4. Brezinschek HP, Brezinschek RI, Lipsky PE: Analysis of the heavy chain repertoire of human peripheral B cells using single-cell polymerase chain reaction.J Immunol 1995, 155: 190-201.
commentary
review
reports
research article
Supplementary Figure 1
Distribution of mutational events within the nonproductive (left panel) and productive (right panel) Vλrearrangements in CD19+B cells from a patient with systemic lupus erythematosus. The percentages of mutated codon positions are given and the mutational hot spots are indicated. Mutational hot spots were determined as described in Supplementary materials and methods. Codons used only by a few rearrangements were not considered in the diagram. CDR = complementarity-determining region.
Supplementary Figure 2
