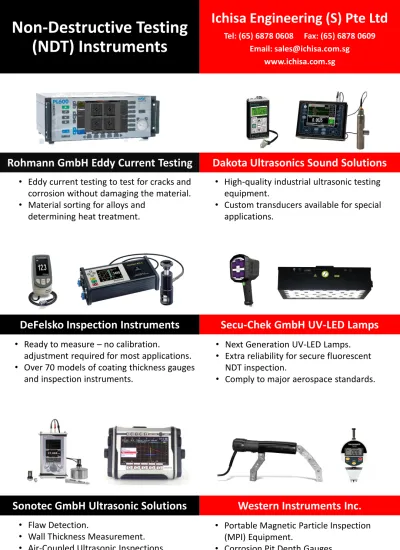

Non-Destructive Testing (NDT) Instruments

Non-Destructive Testing (NDT) Instruments

• Eddy current testing to test for cracks and corrosion without damaging the material.

• Material sorting for alloys and determining heat treatment.

• High-quality industrial ultrasonic testing equipment.

• Custom transducers available for special applications.

• Ready to measure – no calibration.

adjustment required for most applications.

• Over 70 models of coating thickness gauges and inspection instruments.

• Next Generation UV-LED Lamps.

• Extra reliability for secure fluorescent NDT inspection.

• Comply to major aerospace standards.

• Flaw Detection.

• Wall Thickness Measurement.

• Air-Coupled Ultrasonic Inspections.

• Portable Magnetic Particle Inspection (MPI) Equipment.

• Corrosion Pit Depth Gauges.

Ichisa Engineering (S) Pte Ltd

Tel: (65) 6878 0608 Fax: (65) 6878 0609 Email: [email protected]

www.ichisa.com.sg

Rohmann GmbH Eddy Current Testing Dakota Ultrasonics Sound Solutions

DeFelsko Inspection Instruments Secu-Chek GmbH UV-LED Lamps

Sonotec GmbH Ultrasonic Solutions Western Instruments Inc.

• Alignment, Measurement & Weld Measuring Gauges.

• Checking Weld Thickness, Butt Welds, Pits, Undercuts, and more.

• Super-Strong, Water-Proof, All- Weather Self-Adhesive Tapes.

• Can be used in various applications and industries.

• Wide range of LED lights for different industries.

• Explosion proof.

• Extremely strong magnet.

General Industry Products

Ichisa Engineering (S) Pte Ltd

Tel: (65) 6878 0608 Fax: (65) 6878 0609 Email: [email protected]

www.ichisa.com.sg

Adhesives Tapes

Furnaces Remote Viewing Inspection

• SVHC tests through Germany TÜV Rheinland.

• Abrasive Mesh with Velcro back.

• Multi-Hole Pads & Air Tools.

Net Abrasives

• High quality thermal processing equipment.

• Industrial Furnaces & Industrial Ovens.

• Portable Industrial Video Endoscope.

• Different cable lengths and diameters are available.

Welding Gauges LED Lights

Specifications are subject to change without notification. | Data accurate as of 09 Sep. 2020

R

The R Series 2K is a revolutionary camera system that delivers simultaneous LIVE and SLOW MOTION video streams while transferring images at 10G Ethernet speed to your computer.

Its compact size is ideal for a wide range of applications spanning from live broadcast action sports to quick troubleshooting of fast events. The R Series supports an image resolution of 2048 x 1080 @ 360 fps and has an image storage capacity of 16 GB DDR RAM. The camera comes standard with a USB-C Signal Hub (1473-0100), 24V Power Supply (1467- 0110), 5m USB-C Cable (1421-0402-1) and Varizoom VZ- Stealth-LX LANC Controller (1503-0100).

• Global Shutter for blur-free images

• 360 fps at 1080p

• Dual 3G SDI

• 10G Ethernet APPLICATIONS

Media & Entertainment, Visual Inspection

Model 2K

KEY FEATURES

Maximum Resolution 2048 x 1080 Maximum FPS @ Maximum

Res 360 fps

Maximum FPS 19,709 @ 2048 x 8

Operating Temperature -40+50°C / -40+122°F

FRAME PROPERTIES

Sensor Type CMOSIS

Sensor Size 11.3 x 6.0 mm

Sensor Format 2/3 inch

Pixel Size (micron) 5.50 x 5.50 um Pixel Depth 10 bit mono 30 bit color

Sensitivity 2000 ISO Color

Min. Exposure Time 1µs

Array 2.2 megapixel

Quantum Efficiency 1

MECHANICAL

Weight 0.58 kg or 1.2 lbs

Dimensions 71 x 51 x 123 mm (W x H x L) Shock & Vibration Shock: 20G / Vibration: 20G – All axes

Mount C-Mount (Standard)

IMAGE CAPACITY

DDR 16GB

TRIGGERING AND SYNCHRONIZATION

Sync Out Frame sync / Strobe

Trigger TTL & Switch/Circular buffer with on- camera or software trigger

HDSDI Dual 3G SDI

POWER

Input Voltage 10-12 VDC @ Camera

COMMUNICATION INTERFACE

Ethernet 10G Ethernet

EMBEDDED LOGIC

Debayering Color Cameras Only

Temporal Noise Reduction Standard Dynamic Noise Reduction Standard User defined ROI’s and LUT’s Standard

SOFTWARE

Clips Download Manager Windows 32/64 – MAC OS X

SPECIFICATION SHEET

Ichisa Engineering (S) Pte Ltd Tel : (65) 6878 0608

Fax : (65) 6878 0609 Email : [email protected]

Ichisa Engineering (S) Pte Ltd Tel : (65) 6878 0608

Fax : (65) 6878 0609 Email : [email protected]

Ichisa Engineering (S) Pte Ltd Tel : (65) 6878 0608

Fax : (65) 6878 0609 Email : [email protected]

12mm /

0.48 Quick Release

Adapter for 0˚ Probe

Side View REMOVABLE

INTEGRAL

REGULAR, FNDS & FTS

FRS

& FTRS

F0S & N0S WITH ADAPTER

F45S

& N45S

F90S, F90ES

& N90S

ALL GAGES COME COMPLETE with precision plastic shim(s), protective rubber holster with belt clip, wrist strap,

3 AAA alkaline batteries, instructions, protective lens shield, convenient carrying case, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, PosiSoft Software, two (2) year warranty.

SIZE: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1") WEIGHT: 140 g (4.9 oz.) without batteries

Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/

D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

WiFi Probe Details

(All probe details can be found online at www.defelsko.com/p6000/probes)

Options

Coating Thickness Standards to fulfill both ISO and in-house quality control requirements Probe Foot Rings

Durable Delrin ring allows the probe to slide easily while scanning Telescopic Probe Extender for use with the PosiTector 6000 FS, NS, FNS, FXS, FNDS, NAS and FTS probes.

n­ Provides up to 124 cm (49”) of reach and collapses to 47 cm (18.5”) for easy storage

©DeFelsko Corporation USA 2019. All Rights Reserved. Technical Data subject to change without notice. • Printed in USA • P6000.v.LW/ W1901

For a complete list of product features and available options visit www.defelsko.com

Compatible

Coating Thickness Gages for ALL Metal Substrates

DeFelsko Corporation•

800 Proctor Ave.

•

Ogdensburg, New York 13669-2205 USA

Toll Free 1-800-448-3835•

Tel: +1-315-393-4450

•

Fax: +1-315-393-8471 t e c h s a l e @ d e f e l s k o . c o m

•

w w w. d e f e l s k o . c o m

Includes protective rubber holster

3 Powerful Scan Modes

Advanced models only

Ferrous probes measure non-magnetic coatings on ferrous metals. Non-Ferrous probes measure non-conductive coatings on non-ferrous metals. 1) FXS/FHXS Xtreme probe series with Alumina wear face and braided cable — ideal for rough or hot surfaces up to 250˚ C (500˚ F). 2) FHXS probe measures non-conductive coatings on steel only. 3) See website for full FNDS probe accuracy information. 4) FNGS probe measures non-conductive coatings on all metals. 5) Accuracies are stated as a fixed value plus a percentage of the gage’s actual reading.

Our most popular Integral and

Cabled probe models

90°

Regular probe for

tight spots

Ideal for duplex coating systems

Ideal for hot and rugged applications

Ideal for anodized aluminum

Microprobes – Our smallest probes

for small parts or hard-to-reach areas

Integral and Cabled probes for thick protective coatings; epoxy, rubber, intumescent

fireproofing and more

Standard Advanced

F1 F3

FS1 FS3

FRS1 FRS3

FXS1¹ FXS3¹

F0S1 F0S3

F45S1 F45S3

F90S1 F90S3

F90ES1 F90ES3

FT1 FT3

FTS1 FTS3

FTRS1 FTRS3

FHXS1^{1, 2} FHXS3^{1, 2}

FKS1 FKS3

FJS1 FJS3

FLS1 FLS3

Standard Advanced

N1 N3

NS1 NS3

NRS1 NRS3

NAS1 NAS3

N0S1 N0S3

N45S1 N45S3

N90S1 N90S3

NKS1 NKS3

Standard Advanced

FN1 FN3

FNS1 FNS3

FNRS1 FNRS3

FNDS1³ FNDS3³

FNTS1 FNTS3

FNGS1⁴ FNGS3⁴

Range 0 – 60 mils 0 –1500 µm

0 –80 mils 0 –2000 µm

Ferrous: 0 – 45 mils and 0 –1150 µm Non-Ferrous: 0 – 25 mils and 0 – 625 µm

0 – 250 mils 0 – 6 mm

0–400 mils 0–10,000 µm

0–500 mils 0–13 mm

0–1.0 in.

0–25 mm 0–1.5 in.

0–38 mm 0–2.5 in.

0–63.5 mm

Accuracy⁵

+(0.05 mil + 1%) 0-2 mils

+(0.1 mil + 1%) >2 mils

+(1 µm + 1%) 0-50 µm

+(2 µm + 1%) >50 µm

+(0.02 mil + 1%) 0-4 mils

+(0.1 mil + 3%) >4 mils

+(0.5 µm + 1%) 0-100 µm

+(2 µm + 3%) >100 µm

+(0.5 mil + 1%) 0-100 mils

+(0.5 mil + 3%) >100 mils

+(0.01 mm + 1%) 0-2.5 mm

+(0.01 mm + 3%) >2.5 mm

+(0.1 mil + 3%)

+(2 µm + 3%)

+(1 mil + 3%)

+(0.02 mm + 3%)

+(0.01 in. + 3%)

+(0.2 mm + 3%)

Matching DeFelsko Calibration Standards

STDS1

STDA1 STDS4 STDS2

STDA2 STDP1 STDP7 STDP5 STDP2 STDP8

FERROUSNON-FERROUS

NEW

COMBINATION

PosiSoft.net

A web-based application offering secure centralized management of readings. Includes customizable, templated PDF Report Generator. Access your data from any web-connected device.

PosiTector App

Mobile app connects PosiTector Advanced instruments, the PosiTector SmartLink and the PosiTest AT-A to your iOS or

Android smart device.

PosiSoft Desktop

Powerful desktop software for downloading, viewing, printing and storing measurement data.

Includes customizable, templated PDF Report Generator. No internet connection required.

Quality high-flex cable and strain relief Solvent, acid, oil resistant, high grade, industrial strength housing

Multi-function navigation button Sealed USB Port for communicating with a PC or Mac

Scratch/solvent/impact resistant lens Water and dust resistant

High contrast color LCD with backlit display

Advanced Model shown in Memory Mode

Thick Probes series for thick protective coatings: epoxy, rubber, fireproofing and more For measuring paint, powder, etc.

on all metals...

...and for measuring galvanizing, plating, anodizing and more.

Microprobe series for small parts and hard-to-reach areas Xtreme Probes with Alumina wear faces

and braided cables for hot/rough surfaces Duplex Probe measures individual layer thicknesses

of zinc and paint in a duplex coating system

Simple

n NEWFaster measurement speed—60+ readings per minute

n Ready to measure—no adjustment required for most applications

n Enhanced one-handed menu navigation

n Flashing display—ideal in a noisy environment

n RESET feature instantly restores factory settings

Durable

n Solvent, acid, oil, water and dust resistant—weatherproof

n Wear-resistant probe tip

n Shock-absorbing, protective rubber holster with belt clip

n Two year warranty on gage body AND probe

Accurate

n Certificate of Calibration showing traceability to NIST or PTB included

n Built-in temperature compensation ensures measurement accuracy

n Hi-RES mode increases displayed resolution for use on applications that require greater precision

n Conforms to national and international standards including ISO and ASTM

Versatile

n PosiTector body accepts all PosiTector 6000, 200, DPM, RTR, SPG, SST, SHD, BHI and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester or ultrasonic wall thickness gage

n Multiple calibration adjustment options including 1 point, 2 point, known thickness, average zero

n Selectable display languages

n High contrast LCD with backlit display

n Flip Display enables right-side-up viewing

n Extended cables available (up to 75 m/250 ft) for remote measuring

n Uses alkaline or rechargeable batteries (built-in charger)

Powerful

n Continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring

n Screen Capture—save screen images for record keeping and review

n HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits

n NEWEnhanced FAST mode— 90+ readings per minute for quick inspection

n Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.

n PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.

n Every stored measurement is date and time stamped

n Includes PosiSoft suite of software for viewing and reporting data (see right panel)

Probes available for a variety of applications

Removable Probes can be detached and replaced with any one of our wide variety of probes

Cabled Probe Style

Rugged Features...

Strong wear-resistant ruby-tipped probe Stainless steel probe with knurled finger grip

All Regular Cabled Probes are suitable for underwater use

All Gages Feature...

Standard Models

Includes ALL features as shown on left plus...

n Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

n Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches

n Live graphing of measurement data

n 3 Scan Modes — increase measurement speed to 180+ readings per minute

n Normal – take continuous readings without lifting the probe n NEWStatistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning

n NEWLimited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.

n Multiple stored calibration adjustments for measuring on a variety of substrate conditions

n SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels

n PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings

n WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

n 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

n Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard

Select from a variety of measurement ranges and probe styles

(see back page ordering guide)

Integral Probe Style

Regular 45

˚

0

˚

90

˚

Thick

FREE SOLUTIONS for viewing, analyzing and reporting data:

PosiSoft

^®

...

PosiSoft USB Drive

A simple gage interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players. No software to install or internet connection required.

Award Winning Compatibility!

l Coating Thickness

l Surface Profile

l Environmental Conditions

l Shore Hardness

l Salt Contamination

l Ultrasonic Wall Thickness n Wirelessly connect PosiTector 6000

probes to your smart device

PosiTector SmartLink

^™

NEWPrompted Batch Mode

Create pre-defined batches with onscreen text and image prompts for each reading and upload to PosiTector 6000 Advanced models only.

Ideal for ensuring a consistent measurement pattern for repetitive jobs.

PosiSoft.net

A web-based application offering secure centralized management of readings. Includes customizable, templated PDF Report Generator. Access your data from any web-connected device.

PosiTector App

Mobile app connects PosiTector Advanced instruments, the PosiTector SmartLink and the PosiTest AT-A to your iOS or

Android smart device.

PosiSoft Desktop

Powerful desktop software for downloading, viewing, printing and storing measurement data.

Includes customizable, templated PDF Report Generator. No internet connection required.

Quality high-flex cable and strain relief Solvent, acid, oil resistant, high grade, industrial strength housing

Multi-function navigation button Sealed USB Port for communicating with a PC or Mac

Scratch/solvent/impact resistant lens Water and dust resistant

High contrast color LCD with backlit display

Advanced Model shown in Memory Mode

Thick Probes series for thick protective coatings: epoxy, rubber, fireproofing and more For measuring paint, powder, etc.

on all metals...

...and for measuring galvanizing, plating, anodizing and more.

Microprobe series for small parts and hard-to-reach areas Xtreme Probes with Alumina wear faces

and braided cables for hot/rough surfaces Duplex Probe measures individual layer thicknesses

of zinc and paint in a duplex coating system

Simple

n NEWFaster measurement speed—60+ readings per minute

n Ready to measure—no adjustment required for most applications

n Enhanced one-handed menu navigation

n Flashing display—ideal in a noisy environment

n RESET feature instantly restores factory settings

Durable

n Solvent, acid, oil, water and dust resistant—weatherproof

n Wear-resistant probe tip

n Shock-absorbing, protective rubber holster with belt clip

n Two year warranty on gage body AND probe

Accurate

n Certificate of Calibration showing traceability to NIST or PTB included

n Built-in temperature compensation ensures measurement accuracy

n Hi-RES mode increases displayed resolution for use on applications that require greater precision

n Conforms to national and international standards including ISO and ASTM

Versatile

n PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, SST, SHD and UTG probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, Shore hardness durometer or ultrasonic wall thickness gage

n Multiple calibration adjustment options including 1 point, 2 point, known thickness, average zero

n Selectable display languages

n High contrast LCD with backlit display

n Flip Display enables right-side-up viewing

n Extended cables available (up to 75 m/250 ft) for remote measuring

n Uses alkaline or rechargeable batteries (built-in charger)

Powerful

n Continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring

n Screen Capture—save screen images for record keeping and review

n HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits

n NEWEnhanced FAST mode— 90+ readings per minute for quick inspection

n Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.

n PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.

n Every stored measurement is date and time stamped

n Includes PosiSoft suite of software for viewing and reporting data (see right panel)

Probes available for a variety of applications

Removable Probes can be detached and replaced with any one of our wide variety of probes

Cabled Probe Style

Rugged Features...

Strong wear-resistant ruby-tipped probe Stainless steel probe with knurled finger grip

All Regular Cabled Probes are suitable for underwater use

All Gages Feature...

Standard Models

Includes ALL features as shown on left plus...

n Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

n Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches

n Live graphing of measurement data

n 3 Scan Modes — increase measurement speed to 180+ readings per minute

n Normal – take continuous readings without lifting the probe n NEWStatistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning

n NEWLimited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.

n Multiple stored calibration adjustments for measuring on a variety of substrate conditions

n SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels

n PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings

n WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

n 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

n Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard

Select from a variety of measurement ranges and probe styles

(see back page ordering guide)

Integral Probe Style

Regular 45

˚

0

˚

90

˚

Thick

FREE SOLUTIONS for viewing, analyzing and reporting data:

PosiSoft

^®

...

PosiSoft USB Drive

A simple gage interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players. No software to install or internet connection required.

Award Winning Compatibility!

l Coating Thickness

l Surface Profile

l Environmental Conditions

l Shore Hardness

l Salt Contamination

l Ultrasonic Wall Thickness n Wirelessly connect PosiTector 6000

probes to your smart device

PosiTector SmartLink

^™

NEWPrompted Batch Mode

Create pre-defined batches with onscreen text and image prompts for each reading and upload to PosiTector 6000 Advanced models only.

Ideal for ensuring a consistent measurement pattern for repetitive jobs.

12mm /

0.48 Quick Release

Adapter for 0˚ Probe

Side View REMOVABLE

INTEGRAL

REGULAR, FNDS & FTS

FRS

& FTRS

F0S & N0S WITH ADAPTER

F45S

& N45S

F90S, F90ES

& N90S

ALL GAGES COME COMPLETE with precision plastic shim(s), protective rubber holster with belt clip, wrist strap,

3 AAA alkaline batteries, instructions, protective lens shield, convenient carrying case, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, PosiSoft Software, two (2) year warranty.

SIZE: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1") WEIGHT: 140 g (4.9 oz.) without batteries

Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/

D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

WiFi Probe Details

(All probe details can be found online at www.defelsko.com/p6000/probes)

Options

Coating Thickness Standards to fulfill both ISO and in-house quality control requirements Probe Foot Rings

Durable Delrin ring allows the probe to slide easily while scanning Telescopic Probe Extender for use with the PosiTector 6000 FS, NS, FNS, FXS, FNDS, NAS and FTS probes.

n­ Provides up to 124 cm (49”) of reach and collapses to 47 cm (18.5”) for easy storage

©DeFelsko Corporation USA 2019. All Rights Reserved. Technical Data subject to change without notice. • Printed in USA • P6000.v.LW/ W1908

For a complete list of product features and available options visit www.defelsko.com

Compatible

Coating Thickness Gages for ALL Metal Substrates

Includes protective rubber holster

3 Powerful Scan Modes

Advanced models only

Ferrous probes measure non-magnetic coatings on ferrous metals. Non-Ferrous probes measure non-conductive coatings on non-ferrous metals. 1) FXS/FHXS Xtreme probe series with Alumina wear face and braided cable — ideal for rough or hot surfaces up to 250˚ C (500˚ F). 2) FHXS probe measures non-conductive coatings on steel only. 3) See website for full FNDS probe accuracy information. 4) FNGS probe measures non-conductive coatings on all metals. 5) Accuracies are stated as a fixed value plus a percentage of the gage’s actual reading.

Our most popular Integral and

Cabled probe models

90°

Regular probe for

tight spots

Ideal for duplex coating systems

Ideal for hot and rugged applications

Ideal for anodized aluminum

Microprobes – Our smallest probes

for small parts or hard-to-reach areas

Integral and Cabled probes for thick protective coatings; epoxy, rubber, intumescent

fireproofing and more

Standard Advanced

F1 F3

FS1 FS3

FRS1 FRS3

FXS1¹ FXS3¹

F0S1 F0S3

F45S1 F45S3

F90S1 F90S3

F90ES1 F90ES3

FT1 FT3

FTS1 FTS3

FTRS1 FTRS3

FHXS1^{1, 2} FHXS3^{1, 2}

FKS1 FKS3

FJS1 FJS3

FLS1 FLS3

Standard Advanced

N1 N3

NS1 NS3

NRS1 NRS3

NAS1 NAS3

N0S1 N0S3

N45S1 N45S3

N90S1 N90S3

NKS1 NKS3

Standard Advanced

FN1 FN3

FNS1 FNS3

FNRS1 FNRS3

FNDS1³ FNDS3³

FNTS1 FNTS3

FNGS1⁴ FNGS3⁴

Range 0 – 60 mils 0 –1500 µm

0 –80 mils 0 –2000 µm

Ferrous: 0 – 45 mils and 0 –1150 µm Non-Ferrous: 0 – 25 mils and 0 – 625 µm

0 – 250 mils 0 – 6 mm

0–400 mils 0–10,000 µm

0–500 mils 0–13 mm

0–1.0 in.

0–25 mm 0–1.5 in.

0–38 mm 0–2.5 in.

0–63.5 mm

Accuracy⁵

+(0.05 mil + 1%) 0-2 mils

+(0.1 mil + 1%) >2 mils

+(1 µm + 1%) 0-50 µm

+(2 µm + 1%) >50 µm

+(0.02 mil + 1%) 0-4 mils

+(0.1 mil + 3%) >4 mils

+(0.5 µm + 1%) 0-100 µm

+(2 µm + 3%) >100 µm

+(0.5 mil + 1%) 0-100 mils

+(0.5 mil + 3%) >100 mils

+(0.01 mm + 1%) 0-2.5 mm

+(0.01 mm + 3%) >2.5 mm

+(0.1 mil + 3%)

+(2 µm + 3%)

+(1 mil + 3%)

+(0.02 mm + 3%)

+(0.01 in. + 3%)

+(0.2 mm + 3%)

Matching DeFelsko Calibration Standards

STDS1

STDA1 STDS4 STDS2

STDA2 STDP1 STDP7 STDP5 STDP2 STDP8

FERROUS NON-FERROUS

NEW

COMBINATION

Ichisa Engineering (S) Pte Ltd Tel : (65) 6878 0608

Fax : (65) 6878 0609 Email : [email protected]

Suite of Software

A web-based application offering secure centralized management of readings. Access your data from any web-connected device.

n Synchronize data when connected via USB or WiFi

n Synchronize measurement data including readings, notes and pictures with PosiSoft Desktop and PosiTector App

n Securely store measurement data in the cloud and share with authorized users via a secure login

Four FREE and unique ways to view and report your PosiTector and PosiTest data

n View and print readings and graphs using universal PC/Mac web browsers and file explorers

n Measurement data can be printed quickly from a formatted HTML report or exported in .CSV format for further analysis in spreadsheets

n Simple file management - Copy and paste measurement data from the PosiTector to a local folder on your computer, network folder or cloud drive

n Access stored screen captures (snapshots) of the PosiTector display Jobs Batches Readings

A simple gage interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players. No software to install or internet connection required.

Powerful desktop software for downloading, viewing, printing and archiving measurement data. No internet connection required.

n Import readings directly from the gage via USB or from legacy PosiSoft desktop versions

n Synchronize measurement data including readings, notes and pictures to and from PosiSoft.net

n Import/Export Templates and Jobs to share with other users

n Import PDF forms and overlay Custom Fields for automatic population of inspection and measurement data

n Report preview automatically refreshes as changes are made

Mobile app connects PosiTector Advanced instruments, the PosiTector SmartLink and the PosiTest AT-A to your iOS or

Android smart device.

n Auto pairing Bluetooth BLE connection

n Automatically generate user-formatted reports and share via email, text, cloud storage services like Dropbox, and more

n Export readings to PosiSoft Desktop or synchronize readings to and from PosiSoft.net for further reporting and archival options

n Include inspection information such as on-site pictures, screen captures, notes and more to communicate important details

n Create and save multiple custom layouts as templates – insert cover pages, add logos/images, and select font and point size

n Select the information to include for each product type – charts, histograms, readings, time stamps and more

n Compile multi-batch reports from one or more probes and instrument types

n Export readings as comma separated value (.CSV) files which can easily be imported into Excel and other supporting applications

Jobs feature consolidates batches into groups to keep measurement data organized and to quickly create multi- batch reports (not available on PosiTector App)

PosiSoft Custom PDF Report Generator

Easily create reports from your measurement data in seconds.

PosiSoft

featured on PosiSoft Desktop PosiSoft.net PosiTector App

Prompted Batch Mode

Create pre-defined batches with onscreen text and image prompts for each reading and upload to PosiTector 6000 gages (Advanced models only).

n Ideal for ensuring a consistent measurement pattern for repetitive jobs or when specific measurement locations are required

n Create and store multiple templates for different jobs

PosiTector and PosiTest AT-A instruments can integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry- standard communication protocols.

PosiSoft.net — Web-based

PosiSoft Desktop — PC/Mac PosiTector App — Mobile

PosiSoft USB Drive — Gage Based

PosiTector Developer Resources

including Bluetooth 4.0, WiFi, USB Keyboard, and USB Serial

©DeFelsko Corporation USA 2019. All Rights Reserved. Technical Data subject to change without notice. Printed in USA. PSoft.v.LW/W1908

Ultrasonic a-scan/B-scan thickness GaUGe

SONOWALL 70

For NoN-destructive testiNg

Made iN gerMaNy

serVice & sUPPort

SONOTEC preserves the right to change technical specifications without further notice. (Rev. 1/ 2016-10-21)

Certified according to ISO 9001

hiGh Performance a-scan/B-scan thickness GaUGe for a wide ranGe of aPPlications and enVironments

technical data

standards DIN EN 15317, DIN EN 61326,

ASTM E 1324, ASTM E 317 operating temperature -20 to +60 °C

screen 5“ TFT Screen, 800 x 480 pixels,

60 Hz

measurement methods Single-Echo, Echo-Echo, Multi-Echo transmitter: frequency 0.5 to 10 MHz (up to 30 MHz optional) Pulse Negative rectangle (single pulse) Pulse width 20 to 500 ns, in steps of 5 ns amplitude 0 to 400 V, in steps of 10 V output impedance 50 Ohm, 400 Ohm

receiver: dynamic range 110 dB amplifier bandwidth 0.2 to 25 MHz input impedance 500 Ohm (in T/R-mode)

measurement range Up to 10 000 mm

Probe connectors 2x LEMO (IP 67 compliant)

software options - V/W error correction

- Floating gates

- Subsequent measurement of frozen A-scan

- High penetration option - Backwall echo attenuation via extra gate

- Time encoded B-scan option The new thickness gauge SONOWALL 70 is perfectly suited for

various ultrasonic thickness applications.

P Precision measurement P Corrosion testing

P Through-coat measurement

The robust aluminium casing, its compact size, the high- resolution anti-glare 5“ graphic-display and IP 67 makes the SONOWALL 70 the perfect partner for every environment.

 Ergonomic design for easy operation and flip screen

 Small size and lightweigth design with only 990 g, but robust construction

 Aluminum casing and IP 67

 Simple operation due to clearly structured menu, intuitive usability and full text menu

 Compatible with dual and single element transucers

 Intelligent probe identification via RFID

 Integrated data logger

 Multiple measurement modes: thickness, A- and B-scan

 Multi-layer measurement

 Upgradeable to full option flaw detector

 Fast data transfer via microSD and miniUSB

Ichisa Engineering (S) Pte Ltd Tel : (65) 6878 0608

Fax : (65) 6878 0609 Email : [email protected]

Thickness Gauges

D A K O T A U L T R A S O N I C S

S O U N D S O L U T I O N S

ZX Series ZX Series

Thickness Gauges

Performance & Simplicity!

Platform:

▶ Powered by: 120MHz FPGA timing.

▶ 150 volt square wave pulser.

▶ Pulse-echo measurement.

▶ Adjustable gain (40-52dB), in 3dB steps

(vlow, low, med, high, vhi).

▶ Selectable manual or auto zero.

▶ Dual element transducers (1-10MHz options).

▶ Low temperature custom LCD display

(-22 F / -30C).

▶ USB-C connectivity (ZX-5 series).

▶ CDC compatible serial over USB.

Optional serial RS232 or bluetooth module (ZX-5).

▶ Data Storage: 32 megabit

flash memory (ZX-5 DL).

▶ IP65 protection rating.

▶ 5 year limited

warranty.

Performance & Simplicity!

Z X S E R I E S T H I C K N E S S G AU G E S

Physical

Weight:

11 ounces (with batteries).

Size:

Width (2.5 in / 63.5 mm) Height (5.17 in / 131.3 mm) Depth (1.24 in / 31.5 mm) Operating Temperature:

-22 to 167F (-30 to 75C).

Case:

Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).

Keypad

Sealed membrane that is resistant to both water and petroleum products.

Nine tactile-feedback keys.

Transducer

Dual-element (transmit and receive).

1 to 10 MHz frequency range.

Locking quick disconnect LEMO connectors.

4 foot cable.

Custom transducers available for special applications.

Warranty

5 year limited.

Power Source

Two 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells.

Typically operates for 45 hours on alkaline and 23 hours on NiCad.

Low battery indicator on display. Auto shut-off after 5 minutes of inactivity.

Line power USB-C connected to PC or power adapter (ZX-5 series).

Display

Multi-function 7 segment 4.5 digit liquid crystal display with 0.500 in digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values.

Additional icons to indicate features and modes.

Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options.

Bar graph indicates stability of reading.

Data

Sequential data storage, 40 files of 250 readings per file, for 10,000 readings (ZX-5 DL).

Software

Comes complete with USB download cable (ZX-5 DL). No software required, comma separated file type (.csv).

Certification

Factory calibration traceable to NIST &

MIL-STD-45662A.

Measuring

Range:

Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.

Units: English & Metric Resolution:

0.001 inches (0.01 millimeters) Velocity Range:

0.0120 to .7300 in/μs (305 to 18,542 m/sec) PRF: 200Hz

Display Update Rate: 10Hz Gain: 40-52dB range in 3dB steps.

Features

Zero:

Manual or auto zero option.

Probe Diameter:

Selectable probe diameter for improved linearity.

High Speed Scan:

Display the lowest reading found during a scan. Scan speed at 100Hz.

Differential Mode:

Display the +/- difference from a nominal value entered (ZX-5 series).

Alarm Mode:

High & low alarm limits with audible and visual indicatiors (ZX-5 series).

VX velocity:

Measure in terms of velocity for nodularity testing (ZX-5 series).

M A D E I N T H E U S A

Distributed by:

The ZX series of thickness gauges offer a performance solution built to withstand the roughest industry conditions. The features included in the ZX Series offer a quality tool that will meet or exceed your application requirements. Our 5 year limited warranty indicates how we feel about the reliability and durability of the ZX Series gauges.

Applications: Corrosion & Pitting • Tube & Pipe • Tanks • Boilers • Glass • Variety of Applications

S P E C I F I C A T I O N S

�

Ichisa Engineering (S) Pte Ltd Tel : (65) 6878 0608

Fax : (65) 6878 0609 Email : [email protected]
