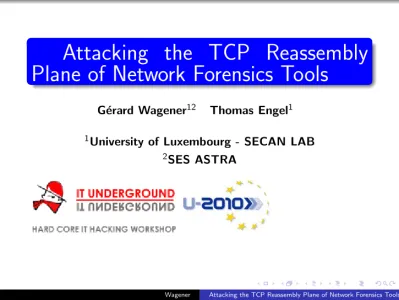

Attacking the TCP Reassembly Plane of Network Forensics Tools

(1)

Attacking the TCP Reassembly

Plane of Network Forensics Tools

G´erard Wagener12 Thomas Engel1

1_{University of Luxembourg - SECAN LAB}

(2)

(3)

Definitions and terminology

A PCAP filecontains network packets

Analyst is the person that is analyzing a PCAP file An attacker is the person that tries to lure the analyst

A4-tupleis (source IP, source port, destination IP, destination port)

A TCP session

Starts with the TCP ESTABLISHED state Ends with the TCP CLOSED state

(4)

TCP reassembly 1 2 3 3 1 2 4 5 6 7 8 9 Stream P1 P2 P3 P4 P5 S Y N A C K A C K A C K F IN 4 5 6 7 8 9 TCP header TCP payload byte (S ource IP , S ource P ort , D est in at ion I P, Dest ina tion P or t)

(5)

TCP reassembly isnotnew . . . and some attacks still work . . . TCP Reassembly Attacks for Network Intrusion Detection Systems

Tools

Fragrouter → NIDS benchmark

Attack countermeasures

Traffic Normalization → remove ambiguities

Reference

Nidsbench, describes NIDS tests and attacks A lot of IDS approaches are neglected in Network Forensics

(6)

Targetedtools

Tcpflow Tcptrace

Wireshark Tcpick

Usedtools

Tcpdump User Mode Linux Fragrouter

Iptables Socat Nc

(7)

Error Tcptrace Tcpflow Tcpick

Invalid read s=4 5 0 0 occ.

Invalid read s=1 2 11 0 occ.

Definitely lost 345 0 16 bytes

Possibly lost 49152 0 0 bytes

Invalid fd 36196 0 0 occ.

(8)

Definition

Most of the forensics tools have their own TCP/IP implementation

TCP/IP implementations are often incomplete or defective Example

IP fragmentation is not implemented

The implementation is vulnerable to fragment attacks The TCP implementation does not completely respect the standard TCP state machine

(9)

Attack requirements

An attacker must control his/her TCP/IP stack

Change behavior i.e. force fragmentation, fake checksums

Possible solutions

Forge TCP/IP packets with tools like scapy and hping

Problems

A lot of work for forging only one connection

Connections with their payloads must be known in advance Interfering with the TCP stack

Concurrency problems, race conditions with the regular TCP/IP stack

(10)

Attacker setup UML switch tap0 UML switch tap1 Target Attacker 10.0.0.2 eth0:10.0.0.3 eth1:10.0.1.1 10.0.1.2 Router/fragrouter tcpdump

(11)

Constraints

Attacker and target need to be on different subnets

Cause: Fragrouter eats ARP responses from the attacker

On the router UML, /proc/sys/net/ipv4/ip forward must be 0

Avoid race conditions between attacker TCP/IP stack and fragrouter

(12)

Methodology

At the router UML

Launch fragrouter with an attack on eth0

Launch fragrouter with IP forwarding on eth1 → return packets tcpdump -n -s0 -w packets.cap

At the target UML

nc -l -p 2000 > receive.dat

At the attacker UML

cat data.dat | nc target 2000

Was the attack successful? → diff data.dat receive.dat

(13)

Fragrouter attacks

Attacks are named after the command line switches Check capture process → B1 is regular IP forwarding Ordered 16-byte fragments, fwd-overwriting → F7 3-whs, bad TCP checksum FIN/RST, ordered 1-byte segments → T1

(14)

Results

Attack Tcpflow Wireshark Tcptrace Tcpick

B1 √ √ √ √

T1 × × × ×

T5 × × × ×

F7 × √ × ×

IPv61 × √ √ ×

In Wireshark was used the follow TCP stream feature √

packets were correctly reassembled

× packets were not at all/wrongly reassembled

(15)

Definition

This attacks target errors not directly to the TCP reassembly code butother implementation flaws.

Example

Stream identifier Resource management

Incomplete knowledge of the reassembly tool like network topology

(16)

PCAP bomb

Problem

A vulnerable reassembly tool assumes that: A TCP session is a 4-tuple

Consequences

Different streams are mixed in one file

Offset between streams due to random ISN (Initial Sequence Number)

Target

Fill analyst’s hard disk

(17)

PCAP bomb SYN 1 SYN 2 3 ACK FIN ISN₁ SYN 1 SYN 2 3 ACK FIN ISN₂ 1 2 3 ? ? ? 1 2 3 ISN 2 - ISN1 Stream (Source IP, Source Port, Destination IP, Destination Port)

TCP header TCP payload byte

(18)

PCAP bomb Proof of concept Shell tcpdump -i lo -s0 -w pcap-bomb.cap i=1235 while [ 1 ]; do j=0 while [ $j -lt 5 ]; do

cat req.txt | socat - tcp:localhost:80, sourceport=$i,reuseaddr sleep 1 let j=$j+1 done let i=i$i+1 done

(19)

PCAP bomb

On average each flow has a size of 2GB.

Tune attack: Write a small PCAP program that maximize ISN difference

(20)

Problem

A vulnerable reassembly tool assumes that: A TCP session is identified by a 4-tuple Target

Hide intended web request i.e. rootkit download How the attack works

Send dummy data ( or just establish a TCP connection ) Download the real data using the same source port

(21)

Proof of Concept Shell

$ tcpdump -i lo -s0 -w hidden-stream.cap

$ cat empty.txt | socat - tcp:localhost:80,sourceport=1235, reuseaddr

$ cat req.txt | socat - tcp:localhost:80,sourceport=1235, reuseaddr

Notes

empty.txt is an empty file

req.txt contains an HTTP request to download a file

(22)

Problem

TCP reassembly tools assume that information is transmitted in thepayloadof TCP packets (not covering covert channel)

Areas to hide data

TCP options Ethernet padding Sequence numbers

Old attacking technique

Modify ethernet padding, choose sequence numbers etc

Network forensic tools should do

Statistical analysis of those areas

Automated analysis of those areas (test of 0 bytes) Simple solution: Perl / Python scripts based on libpcap.

(23)

Problem

How does the reassembly tool knows how the packets are handled by the recipient?

Attack

Forge a stream and replay it

Use the tool tcprewrite to modify recorded TCP packets Use perl scripts to modify the fields tcprewrite does not want to modify

Use tcpreplay to send the TCP packets

Tune the attack: Modify TTL such that the packets do not reach the target (old technique but network forensic tools forget about it)

(24)

Case study

Experiment: Comparing reassembled streams

Launch multiple TCP reassembly tools on a PCAP file and compare the generated files

Used tools Tcpflow Tcptrace Tcpick

(25)

Experiment: Comparing reassembled streams Data capture Shell tcpdump -s1500 -w test.cap Table: Results Number of TCP packets 41609423

Number of capture length differences 23781098

Streams generated by Tcptrace 66395

Streams generated by Tcpick 66151

Streams generated by Tcpflow 37022

(26)

Checking input data 1/2

Inspect the header information of the parameters that is passed to the PCAP callback function

Ensure that caplen = len

Tools that do not explicitly notify the analyst3 tcpflow, tcptrace, tcpick

(27)

Checking input data 2/2

Example

#!/usr/bin/perl

use Net::Pcap qw /pcap open offline pcap loop/; sub process packet{

my($user data, $header, $packet) = @ ; print $header->caplen.” ”.$header->len.”\n”; }

my $pcap = pcap open offline($pcapFile, \$err) or die ”Cannot open pcap file: cause: $err\n”; pcapi loop($pcap, -1, \&process packet, ”)

(28)

Countermeasures

Choose the right capture location (e.g. TTL attack) Before analyzing a capture, know how the capture has been performed

Filter out spoofed packed with a packet filter

Traffic normalization/scrubing before the capture takes place

Reassemble fragments

Discard packets with wrong checksums Discard packets with wrong TTL

(29)

(30)

(31)

(32)

TCP reassembly is often seen as a trivialtask Two attacks families were presented

Attacks on the TCP reassembly implementation

Network Intrusion Detection benchmarks were done to test popular TCP reassembly tools

TCP reassembly design attacks were presented

PCAP bomb

Hiding entire streams

Stream illusions aiming to deceive the analyst

Attack mitigation techniques and a case study were presented

Lack of user notification of anomalies needed for network

forensics

TCP reassembly attacks still work and some more effort is required for improving network forensic tools

(33)
