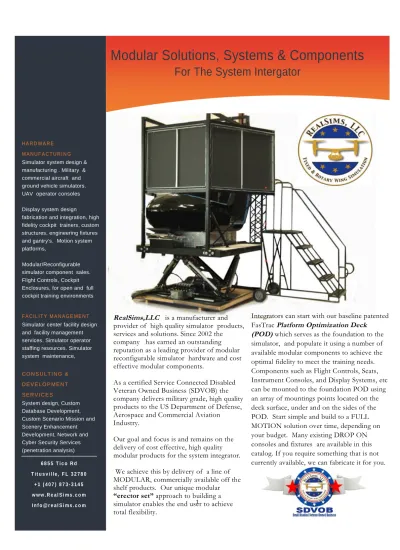

For The System Intergator

(1)

1

C O N S U L T I N G

Information Technology Solutions

6 8 5 5 T i c o R d T i t u s v i l l e , F L 3 2 7 8 0

+ 1 ( 4 0 7 ) 8 7 3 - 3 1 4 5 w w w . R e a l S i m s . c o m I n f o @ r e a l S i m s . c o m

RealSims,LLC is a manufacturer and

provider of high quality simulator products,

services and solutions. Since 2002 the

company has earned an outstanding

reputation as a leading provider of modular

reconfigurable simulator hardware and cost

effective modular components.

As a certified Service Connected Disabled

Veteran Owned Business (SDVOB) the

company delivers military grade, high quality

products to the US Department of Defense,

Aerospace and Commercial Aviation

Industry.

Our goal and focus is and remains on the

delivery of cost effective, high quality

modular products for the system integrator.

We achieve this by delivery of a line of

MODULAR, commercially available off the

shelf products. Our unique modular

“erector set” approach to building a

simulator enables the end user to achieve

total flexibility.

Integrators can start with our baseline patented

FasTrac

Platform Optimization Deck

(POD) which serves as the foundation to the

simulator, and populate it using a number of

available modular components to achieve the

optimal fidelity to meet the training needs.

Components such as Flight Controls, Seats,

Instrument Consoles, and Display Systems, etc

can be mounted to the foundation POD using

an array of mountings points located on the

deck surface, under and on the sides of the

POD. Start simple and build to a FULL

MOTION solution over time, depending on

your budget. Many existing DROP ON

consoles and fixtures are available in this

catalog. If you require something that is not

currently available, we can fabricate it for you.

H A R D W A R E M A N U F A C T U R I N G

Simulator system design & manufacturing . Military & commercial aircraft and ground vehicle simulators. UAV operator consoles Display system design fabrication and integration, high fidelity cockpit trainers, custom structures, engineering fixtures and gantry’s. Motion system platforms,

Modular/Reconfigurable simulator component sales. Flight Controls, Cockpit Enclosures, for open and full cockpit training environments

F A C I L I T Y M A N A G E M E N T

Simulator center facility design and facility management services. Simulator operator staffing resources. Simulator system maintenance,

C O N S U L T I N G & D E V E L O P M E N T S E R V I C E S

System design, Custom Database Development, Custom Scenario Mission and Scenery Enhancement Development, Network and Cyber Security Services (penetration analysis)

Modular Solutions, Systems & Components

For The System Intergator

(2)

Flight Controls... Generic Helicopter Collective With Twist Throttle and Optional Head Single Position Bell 206B/OH58 Helicopter Collective With Twist Throttle Dual Position Bell 206B/OH58 Helicopter Collective With Twist Throttle Single Position Helicopter Cyclic ...

Dual Position Helicopter Cyclic ... US Army AH64D Apache Front Seat Folding Cyclic

US Army AH64D Apache Collective ...

F18/A10 High Fidelity Deck/Surface Mounted Stick with Functional Grip F16 Style High Fidelity Throttle Assembly with Functional Buttons F18/F16 Side Stick Controller Housing with Grip

F18 Control Grip ... F18 Dual Engine Throttle... Cockpits Platform Bases & Seats ...

Generic LOW PROFILE Removable FASTRAC Vertical Adjustable Fighter Seat Assembly Dual Helicopter Seats ...

Generic Adjustable Seat Assembly ... RealSims FASTRAC ™ Platform Optimization Deck (POD US Army OH58D Cockpit Enclosure ... Bell 206B Cockpit Enclosure... Split Helicopter Cockpit Enclosure ... Transportable Helicopter Cockpit Enclosure

220 Degree Field of View (FOV) Simulator Enclosure Turnkey Simulators & Structures ...

Custom Manufacturing of Fixtures & Platforms

FasTrac Pro-Series™ Six Degree of Freedom Helicopter Simulator with Motion

TURNKEY FASTRAC Pro-SERIES Helicopter Flight Training Device with 220 Degree Field Of View Display System Option Transportable Helicopter Simulator ...

FasTrac Single Pilot Open Cockpit Part Task Trainer

Flight Controls

PN

DESCRIPTION

PHOTO or RENDERING

FC-H-001-Cl

_{Generic Helicopter Collective With Twist Throttle}

and Optional Head

A Bell 206/OH 58D style collective

control . This base unit stick can be configured with either an Bell 206, OH58 or H60 style control heads. Unit includes a USB/HID compliant interface and can be mounted to a collective mounting plate provided on the Optional Open Cockpit FasTrac , directly to the rear section of the left console or on a mounting plate included on the generic helicopter seat option .

PRICE

US $

FC-H-002-Cl

_{Single Position Bell 206B/OH58 Helicopter}

Collective With Twist Throttle

A Bell 206B style collective control . This unit is configured with the Bell 206B style control head. Unit includes a USB/HID compliant interface and can be mounted to a collective mounting plate provided on the optional Open Cockpit FasTrac POD, directly to the rear section of the left console or on a mounting plate included on the generic helicopter seat option .

PRICE

US $

FC-HD-003-Cl

_{Dual Position Bell 206B/OH58 Helicopter}

Collective With Twist Throttle

A Bell 206B style DUAL collective control for Pilot and Co-Pilot operation . This unit is configured with a Pilot side Bell 206B style control head and tactical co-pilot lever similar to the actual aircraft.. Unit includes a USB/HID compliant interface and can be mounted to the deck surface of the Bell 206 Cockpit enclosure behind the pilot and co-pilot seats with places the levers in the proper operational position (pilot between the two seats and co-pilot on the left (co-pilot seat side).

PRICE

US $

FC-HS-004-CY

Single Position Helicopter Cyclic

Includes the Bell 206B style control head with PTT trigger and trim button. Unit includes a USB/HID compliant interface and can be mounted below the seat in the optional Bell 206 cockpit enclosure, or enclosed if using a the optional box that can be mounted to the deck surface of the FasTrac Open Cockpit POD.

(4)

PN

DESCRIPTION

PHOTO or RENDERING

FC-HD-005-CY

_{Dual Position Helicopter Cyclic}

_{Used for dual pilot}

operation includes the Bell 206B style control heads with PTT trigger and trim buttons. Unit includes a USB/HID compliant interface and can be mounted below the seat if using the optional Bell 206 cockpit enclosure, or enclosed in an optional box that can be mounted to the deck surface of the FasTrac Open Cockpit POD.

PRICE

US $

FC-H-005-CY

US Army AH64D Apache Front Seat Folding

Cyclic

A replication of the AH 64D gunner cyclic assembly. A folding unit that can be tucked away when not used to control/fly the aircraft wired with a USB/HID electronic interface.

PRICE

US $

FC-H-004-C

_{US Army AH64D Apache Collective}

A console mounted AH 64D Apache Pilot Collective with programmable functional switches and buttons similar to those used in the aircraft wired with a USB/HID

electronic interface.

PRICE

US $

FC-F-001-STK

_{F18/A10 High Fidelity Deck/Surface Mounted}

Stick with Functional Grip

An F18/A10 style surface mounted stick assembly.

This base unit stick can be configured with either an

A10 or F18 style grip. Unit includes a USB/HID

compliant interface and is surface mounted to

mounting points provided on the FasTrac deck.

PRICE

US $

FC-F-001-TTL

_{F16 Style High Fidelity Throttle Assembly with}

Functional Buttons

An F18 style left console mounted throttle assembly with programmable buttons and switches. Unit includes a USB/HID compliant interface and is mounted via quick disconnect DZUS fasteners to the left side console of the low profile FasTrac Open Cockpit Instrument Console

(5)

PN

DESCRIPTION

PHOTO or RENDERING

FC-F-002-STK

F18/F16 Side Stick Controller Housing

with Grip

The controller unit mounts into the left side console of the optional FasTrac Generic LOW PROFILE Cockpit to DZUS rails provided, The control includes a USB/HID compliant interface and can be configured with either F18 or F16 Grips that are tactically equal to that found in the aircraft. The buttons and switches on the control are user programmable.

PRICE

US $

FC-F-001-GRP

F18 Control Grip

The F18 Grip mounts to the base of the Side Stick Controller Housing. Grips are tactically equal to that found in the F18 aircraft.

Include a USB interface to control buttons and switches which are pre wired to the interface and user programmable.

PRICE

US $

F18 Dual Engine Throttle

The F18 Dual Throttle Assembly includes the Controller Housing. And includes a USB interface to control the tactically equal buttons and switches located on the throttle grips. Switches and buttons are pre wired and user programmable. The Throttle Controller Housing is designed to mount into the console of the left side console of the

Generic

LOW PROFILE Removable FASTRAC - Open

Cockpit Instrument Console using DZUS fasteners.

(6)

Cockpits Platform Bases & Seats

PN

DESCRIPTION

PHOTO or RENDERING

CPT-F-001-GEN

Generic LOW PROFILE Removable FASTRAC

-Open Cockpit Instrument Console

A low profile instrument console with glare shield and built in LCD instrument display (used for display of customer furnished virtual instrumentation panel) . Also includes right and left side consoles with mounting support for included fighter style USB HID side stick and throttle assemblies. An optional single seat with fwd/aft

adjustable position rails for easy egress is available. The entire unit is removable from the FasTrac POD for easy replacement of additional future aircraft and/or driver consoles. Finish is satin gray & black powder coat

PRICE

US $

SEA-F-001-EJ

Vertical Adjustable Fighter Seat Assembly

A high quality adjustable ejection style seat. Includes a seat base assembly mounted to the FasTrac POD Deck mounting points to provide VERTICAL (UP DN) travel adjustment up to 3“

PRICE

US $

SEA-HD-001

Dual Helicopter Seats

Designed to fit into Bell 206 or OH58 Cockpit Enclosure. Shown here with optional 5 point restraints and generic helicopter collective. Standard Seats mount to an included seat plate. An optional seat frame designed to fit into our cockpit enclosures or onto the deck surface of our FasTrac POD of open cockpit configurations is available.

PRICE

US $

SEA-HS-001

Generic Adjustable Seat Assembly

A robust high quality adjustable (non aircraft specific) cockpit seat. Includes a seat base assembly that mounts to the FasTrac POD Deck via mounting points . VERTICAL (Up/Dn and HORIZONTAL (Fwd/Aft) adjustment allows the seat to be moved far enough back to enable pilot egress via the right side of the cockpit area.

(7)

PN

DESCRIPTION

PHOTO or RENDERING

POD-MP-001

RealSims FASTRAC

™ Platform Optimization

Deck (POD

) shown here with the optional

OBSERVATION PLATFORM STEP FasTrac is a patented RUGGED general purpose simulator mounting fixture built to withstand the rigors of daily flight training use.

Designed for the US Military. FasTrac is a modular, reconfigurable platform base that supports the

mounting of many interchangeable, Fast Jet, Helicopter and Ground Vehicle cabin configurations and optional flight control components. Optional components can be quickly mounted using an ARRAY of mounting points located on the platform deck, below the deck and along the sides of the structure. This enables cabin fixtures such as: Consoles, Seats, Controls surfaces, Display mounts etc to be properly positioned. Ample room under the deck surface is available for the mounting of rack computers, audio systems, dynamic control loading actuators and linkage

PRICE

US $

ENC-H-001-58

US Army OH58D Cockpit Enclosure

Shown here with an OPTIONAL Basic Frame Structure, is a cockpit enclosure modeled from the US Army’s OH58D KIOWA aircraft. This enclosure differs from the Bell 206N Cockpit enclosure in that the OH58 overhead roof area is larger to accommodate the additional equipment used in this aircraft. The enclosure shown includes many of the options available

OPTIONAL EQUIPMENT INCLUDE:

 FasTrac Mounting POD,

 Basic Mounting Frame as shown in the OH58 enclosure

 High or Low Profile Skids (with or without casters)

 Windshield Glass, (Front Door and Chin Bubble  Windshield Dividing Rail



Center LCD Display Mount



Consoles and Switch Panels

PRICE

US $

ENC-H-206-FUL

Bell 206B Cockpit Enclosure

A FULL cockpit enclosure modeled from the Bell 206B Jet Ranger aircraft. This enclosure differs from the OH58D Cockpit enclosure in that the Bell 206B enclosure does not include the overhead roof area that the OH58 aircraft enclosure requires. The enclosure shown is the standard enclosure.

 FasTrac Mounting POD

 Center LCD Display Mount



Consoles and Switch Panels

(8)

PN

DESCRIPTION

PHOTO or RENDERING

ENC-H-206-SPT

Split Helicopter Cockpit Enclosure

A SPLIT cockpit enclosure modeled from the Bell 206B Jet Ranger aircraft.

This enclosure is similar to the Bell 206B enclosure except it is delivered in two sections. The enclosure does not include the overhead roof area that the OH58 aircraft enclosure requires. The enclosure shown is the standard enclosure.

 Center LCD Display Mount  Consoles and Switch Panels

PRICE

US $

ENC-H-206-TP

Transportable Helicopter Cockpit Enclosure

A transportable cockpit enclosure modeled from the Bell 206B Jet Ranger aircraft. Ideal for confined spaces where simulator must fit through a standard 36x80 door opening. Unit breaks down in 15-20 minutes for transport by one person.

 Center LCD Display Mount  Consoles and Switch Panels

PRICE

US $ - $ with Skids

ENC-220-GP

220 Degree Field of View (FOV) Simulator

Enclosure

This enclosure is a modular simulator containment room used to house most fixed or rotor flight training device and operator stations. Aircrew and instructor operators are confined within a quiet, secure training environment. The enclosure includes: a 220 x 90 degree FOV CURVED Screen, Three high end DLP Projectors, projection system mounting truss assembly and the blend and warp software needed to produce a seamless wide viewing area of 220 degrees. The enclosure has ample room to house any RealSims fixed or rotor wing simulator, cockpit enclosures, computers and Instructor Operator Console.

 External 60” LED Displays for mounting on enclosures exterior walls and interior IOS area  RealSims helicopter enclosures and simulators as

required

(9)

Turnkey Simulators & Structures

PN

DESCRIPTION

PHOTO or RENDERING

PFM-GS-650

Custom Manufacturing of Fixtures & Platforms

RealSims can design and manufacture custom fixtures, consoles, gantry’s, display structures and other platforms to meet your engineering or simulator needs. Shown here is an Avionics Engineering Test Platform built for the Gulf Stream 650 aircraft

. The fixture

includes a full set of flight controls with control

loading, pilot and co-pilot seats and front and

center re-configurable instrument consoles where

avionic systems and Nav Comm equipment can be

easily attached using DZUS rails for quick connect

and disconnect

PRICE

US $

TK-6DOF-206B

FasTrac Pro-Series™ Six Degree of Freedom

Helicopter Simulator with Motion

A

Bell 206B Turbine Helicopter Training Device Includes : Dual Position (Pilot & CoPilot) flight controls, 206 front virtual instrument panel and center instrument consoles populated with nav comm. radios., Garmin 430 GPS, functional overhead switch console for turbine engine start, run-up and shut-down procedures, Can be configured with or without FAA AATD certification, includes (3) channel 180 degree field of view integrated projection system with three 70” screens. Other display options are available upon request. Can be built with an enclosed collimated display system and on platform operator compartment if required.

PRICE

US $

TK-220-206B

TURNKEY FASTRAC Pro-SERIES Helicopter

Flight Training Device with 220 Degree Field Of

View Display System Option

Bell 206B Turbine Helicopter Training Device Includes : Dual Position (Pilot & CoPilot) flight controls, 206 front virtual instrument panel and center instrument consoles populated with nav comm. radios, GPS, functional overhead switch console for turbine engine start, run-up and shut-down procedures. Simulator can be configured with or without FAA AATD certification, 220 degree field of view curved, blended three channel DLP projector based display with truss optional flight simulator

software with a global hi-fidelity database. The instructor operator console/station is also optional, purchase hardware only and have your team integrate your own simulator software environment we can provide the service for you.

(10)

PN

DESCRIPTION

PHOTO or RENDERING

TK-H-206-TP

Transportable Helicopter Simulator

Our Transportable helicopter trainer was designed under a US Army contract. The cockpit can quickly disassembled and moved through a standard 36x80” door opening by one person. This design includes a removable roof, rapid disconnect instrument console, front display LCD mount and built in castors. With the cockpit roof removed (using snaps that hold the roof in place) it can be lifted onto its built in castors and rolled to the location required. The entire process can be completed by one person in 15-20 minutes. Mounting provisions under the seats are included to house simulator computers and audio equipment. Our Dual Position Bell 206B/OH58 Helicopter Collective With Twist Throttle, Dual Position Helicopter Cyclic, Dual Anti Torque Pedals and Dual Helicopter Seats, are included in the price LCD, CPU’s, SW and DISPLAYS ARE OPTIONAL

PRICE

US $

TK-PTT-H60-SFT

FasTrac Single Pilot Open Cockpit Part Task

Trainer

Originally designed and manufactured under a US Navy contract, this open cockpit part task trainer is a re-configurable/modular system based on our FasTrac POD (PN XXXXX). Shown here this POD is configured with a US Navy H60 virtual instrument console using game quality flight controls to reduce cost. The optional surround observation deck allows easy access to the student by the flight instructor and provides safe easy egress. Multiple PODS can be affordably networked for mutti-student classroom instruction under control of a single instructor. PODS were designed for confined space use and fit through a standard door opening.

PRICE

US $

TK-PTT-H60-DFT

FasTrac Dual Pilot Open Cockpit Part Task

Trainer

This Open Cockpit Part Tsak Trainer uses two FasTrac PODS located side by side for dual crew classroom training. Many optional MODULAR LINE REPLACABLE instrument console and vehicle control component and cockpit enclosures can be installed on the POD deck to emulate just about any type of rotor, fixed wing, fighter, corporate or commercial jet or vehicle such as a construction cab, Hum-Vee or MRAP vehicle. Ample room under the POD deck is provided for the installation of rack computers audio systems, control actuators and linkage. If you require another type of simulator you only need to replace the modular consoles and/or controls resulting in a totally new simulator training environment.

For The System Intergator

Information Technology Solutions

RealSims,LLC is a manufacturer and

provider of high quality simulator products,

services and solutions. Since 2002 the

company has earned an outstanding

reputation as a leading provider of modular

reconfigurable simulator hardware and cost

effective modular components.

As a certified Service Connected Disabled

Veteran Owned Business (SDVOB) the

company delivers military grade, high quality

products to the US Department of Defense,

Aerospace and Commercial Aviation

Industry.

Our goal and focus is and remains on the

delivery of cost effective, high quality

modular products for the system integrator.

We achieve this by delivery of a line of

MODULAR, commercially available off the

shelf products. Our unique modular

“erector set” approach to building a

simulator enables the end user to achieve

total flexibility.

Integrators can start with our baseline patented

FasTrac

Platform Optimization Deck

(POD) which serves as the foundation to the

simulator, and populate it using a number of

available modular components to achieve the

optimal fidelity to meet the training needs.

Components such as Flight Controls, Seats,

Instrument Consoles, and Display Systems, etc

can be mounted to the foundation POD using

an array of mountings points located on the

deck surface, under and on the sides of the

POD. Start simple and build to a FULL

MOTION solution over time, depending on

your budget. Many existing DROP ON

consoles and fixtures are available in this

catalog. If you require something that is not

currently available, we can fabricate it for you.

Modular Solutions, Systems & Components

For The System Intergator

Table of Contents

Flight Controls

PN

DESCRIPTION

PHOTO or RENDERING

FC-H-001-Cl

Generic Helicopter Collective With Twist Throttle

and Optional Head

PRICE

US $

FC-H-002-Cl

Single Position Bell 206B/OH58 Helicopter

Collective With Twist Throttle

PRICE

US $

FC-HD-003-Cl

Dual Position Bell 206B/OH58 Helicopter

Collective With Twist Throttle

PRICE

US $

FC-HS-004-CY

Single Position Helicopter Cyclic

PN

DESCRIPTION

PHOTO or RENDERING

FC-HD-005-CY

Dual Position Helicopter Cyclic

PRICE

US $

FC-H-005-CY

US Army AH64D Apache Front Seat Folding

Cyclic

PRICE

US $

FC-H-004-C

US Army AH64D Apache Collective

_{Generic Helicopter Collective With Twist Throttle}

_{Single Position Bell 206B/OH58 Helicopter}

_{Dual Position Bell 206B/OH58 Helicopter}

_{Dual Position Helicopter Cyclic}

_{US Army AH64D Apache Collective}

_{F18/A10 High Fidelity Deck/Surface Mounted}

_{F16 Style High Fidelity Throttle Assembly with}
