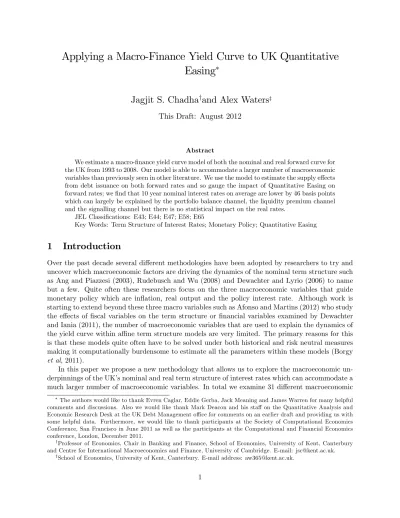

Applying a Macro-Finance Yield Curve to UK Quantitative Easing

Applying a Macro-Finance Yield Curve to UK Quantitative

Easing

Jagjit S. Chadha

and Alex Waters

This Draft: August 2012

Abstract

We estimate a macro-…nance yield curve model of both the nominal and real forward curve for the UK from 1993 to 2008. Our model is able to accommodate a larger number of macroeconomic variables than previously seen in other literature. We use the model to estimate the supply e¤ects from debt issuance on both forward rates and so gauge the impact of Quantitative Easing on forward rates; we …nd that 10 year nominal interest rates on average are lower by 46 basis points which can largely be explained by the portfolio balance channel, the liquidity premium channel and the signalling channel but there is no statistical impact on the real rates.

JEL Classi…cations: E43; E44; E47; E58; E65

Key Words: Term Structure of Interest Rates; Monetary Policy; Quantitative Easing

1

Introduction

Over the past decade several di¤erent methodologies have been adopted by researchers to try and uncover which macroeconomic factors are driving the dynamics of the nominal term structure such as Ang and Piazzesi (2003), Rudebusch and Wu (2008) and Dewachter and Lyrio (2006) to name but a few. Quite often these researchers focus on the three macroeconomic variables that guide monetary policy which are in‡ation, real output and the policy interest rate. Although work is starting to extend beyond these three macro variables such as Afonso and Martins (2012) who study the e¤ects of …scal variables on the term structure or …nancial variables examined by Dewachter and Iania (2011), the number of macroeconomic variables that are used to explain the dynamics of the yield curve within a¢ ne term structure models are very limited. The primary reasons for this is that these models quite often have to be solved under both historical and risk neutral measures making it computationally burdensome to estimate all the parameters within these models (Borgy

et al, 2011).

In this paper we propose a new methodology that allows us to explore the macroeconomic un-derpinnings of the UK’s nominal and real term structure of interest rates which can accommodate a much larger number of macroeconomic variables. In total we examine 31 di¤erent macroeconomic The authors would like to thank Evren Caglar, Eddie Gerba, Jack Meaning and James Warren for many helpful comments and discussions. Also we would like thank Mark Deacon and his sta¤ on the Quantitative Analysis and Economic Research Desk at the UK Debt Management o¢ ce for comments on an earlier draft and providing us with some helpful data. Furthermore, we would like to thank participants at the Society of Computational Economics Conference, San Francisco in June 2011 as well as the participants at the Computational and Financial Economics conference, London, December 2011.

y_{Professor of Economics, Chair in Banking and Finance, School of Economics, University of Kent, Canterbury}

and Centre for International Macroeconomics and Finance, University of Cambridge. E-mail: [email protected].

variables spread across …ve key groups of data that may drive both the nominal and real term structures. These …ve groups are in‡ation, real activity, monetary and …scal policy, …nancial and international. The estimation is performed in two stages; …rstly adopting the state space method-ology similar to that of Diebold et al (2006) and Afonso and Martins (2012). We estimate a four factor Svensson (1994, henceforth referred to as Svensson) forward curve of both the UK nominal and real term structure using a Kalman …lter and maximum likelihood estimation. Then using seemingly unrelated regression (henceforth, SUR) we test down from 31 di¤erent macroeconomic and …nancial variables to determine whether or not macroeconomic factors can provide a good …t of both the nominal and real forward curve.

Our main contribution to the literature is a detailed analysis of which macroeconomic and …nancial factors drive not only the nominal term structure but also the real term structure of interest rates. For the nominal curve we can identify a net supply e¤ect for government debt at various maturities, that in‡ation expectations are more important than actual in‡ation, and that the exchange rate and macroeconomic announcements from Germany have a signi…cant impact on the term structure but there is no apparent e¤ect from the U.S. For the real curve we also identify a net supply e¤ect that suggests that at di¤erent maturities the liquidity of the bond market matters and that there is some evidence of anchoring of in‡ation expectations with no change in long-term real forwards. Of the 31 variables, 9 are needed to explain movements in the nominal curve. Amongst these are the variables that concern monetary policy makers, debt-to-GDP and international variables such as the e¤ective exchange rate and measures of German real activity. For the real dynamic factors the macroeconomic variables do less well and there are only four variables that drive the real curve, debt-to-GDP, in‡ation expectations, the Libor spread and notes and coins.

To examine the performance of the model, we examine an out-of-sample forecast over the period when Quantitative Easing (QE) was …rst used as a tool for monetary policy by the Bank of England from March 2009 to January 2010. We de…ne QE as large scale purchases of government bonds with Central Bank reserves when the policy rate is at its e¤ective zero lower bound. It is probable that QE will impact on the curve through three channels, the portfolio balance channel, the liquidity premium channel and the signalling channel. The portfolio balance channel re‡ects a supply e¤ect; where the imperfect substitutability of di¤erent assets can allow the relative supply of bonds determine the price of the asset. The liquidity premium channel exists because the Central Bank intervenes and becomes a large scale purchaser of bonds which can improve the functioning of the bond market and reduce the liquidity premium. Both of these channels should exert downward pressure on longer-term yields to ease …nancial conditions and stimulate growth. The signalling channel refers to the market’s expectations of the future path of interest rates based on the signals the market receives from both the monetary authorities and wider the macroeconomy leaving the impact on the yield curve ambiguous. The signalling e¤ect can be uncovered and analysed through risk-adjusted market interest rates used to gauge the expected path of interest rates.

If the macroeconomic and …nancial variables are able to determine the path of the nominal and real term structure then we are able to provide a counterfactual path of forward rates at di¤erent maturities which we are then able to compare to the observed forward rates. The out-of-sample forecast, given the macroeconomic variables overestimates the observed data by a similar amount to the event study analysis of Caglar et al (2011) and Meaning and Zhu (2012) with the …ve year forward and the ten year forward on average overestimating the actual curve by 67 and 46 basis points respectively. We …nd the overestimate of the forward rates is correct both in terms of timing and maturities targeted; the overestimate occurs as of March 2009 and maturities greater than 24 months show an over prediction. The forecast of the real curve does not demonstrate any persistent deviation from the realised path of interest rates: a particularly appealing result as the Bank of England did not undertake any QE operations with real bonds.

We decompose the forecast error using the estimated and calculated e¤ects of the portfolio balance channel, the liquidity premium channel and the signalling channel. Overall all three chan-nels exert downward pressure on the yield curve and we uncover that it is the signalling channel that plays the most prominent role when QE was …rst implemented but this e¤ect dissipates as QE purchases are extended. The portfolio balance channel has the largest e¤ect at the end of the sample as the amount of purchases increases. This channel alone is found to reduce yields by as much as 136 basis points at 10 years. The liquidity premium channel does play a small role in reducing yields at the 5 year forward but not for the 10 year forward. On average the forecast error at 5 and 10 years is 67 and 46 basis points respectively and the average estimated impact that the three channels have on the yield curve are 88 and 86 basis points respectively.1

This paper is further divided into …ve sections. Section Two outlines the methodology used to …t the term structure, the econometric speci…cation and estimation techniques as well as the impulse responses. Section Three outlines the forward curve data, the estimated yield curve factors and the macroeconomic variables and data and the overall …t of the estimated term structure across the sample period. Section Four presents the empirical results from the impulse responses and post estimation analysis. Section Five outlines the forecast exercise performed over the QE period as well as the decomposition of the forecast error and section Six concludes.

2

Methodology

Presented below is the two-stage methodology. The …rst stage begins with outlining the Svensson (1994) methodology that …ts the term structure and employing an approach similar to that of Dieboldet al (2006) and Afonso and Martins (2012). We estimate four latent forward curve factors which we call the level, slope and two curvatures by means of the Kalman …lter. The second stage is to then take these estimated latent factors and using Seemingly Unrelated Regression with macroeconomic and …nancial variable we produce impulse responses that demonstrate upon announcement or revelation how each variable a¤ects the shape of the forward curve.

2.1 Term Structure Model

The functional form that has been used to …t the term structure of interest rates in this analysis is that of Svensson (1994). This parametric model is simple to implement and provides a parsimonious description of the term structure of interest rates. Svensson as a function of di¤erent factor weights and parameters _i produces a smooth …t of the yield curve. The functional form of Svensson is:

y( ) = ₁+ ₂ 1 e 1 1 + ₃ 1 e 1 1 e 1 ₊ 4 1 e 2 2 e 2 _{: (1)}

The Svensson methodology representation can then be interpreted as a dynamic latent factor model where ₁, ₂, ₃ and ₄ become time varying parameters that capture the level Lt, slope

St, the …rst curvature C1;t and the second curvature factorC2;t of the yield curve at time t. The functional form of Svensson can then be expressed as:

y( ) =Lt+St 1 e 1 1 +C1;t 1 e 1 1 e 1 _+C 2;t 1 e 2 2 e 2 _{: (2)}

1_{That the impact of the three channels sum to more than the forecast error suggests a further factor such as credit}

The yield is denoted asy( )and is the maturity. WhereLt,St,C1;tandC2;t are time varying parameters and the parameters 1 and 2 remain constant throughout estimation. Lambda is used to determine the maximum loading of C1;t and C2;t. Together they determine the rate of exponential decay of the factor weights; the smaller the value of lambda, the slower is the decay and the greater the …t of longer maturities and larger values of lambda produce a better …t of short-term maturities. The parameters Lt, St,C1;t and C2;t are the parameters which correspond to their appropriate factor loadings. The loading onLt is 1 at all maturities and is regarded to be a long-term factor and is known as the level, any shift in the level has an equal e¤ect across all yields. The factor loadings of St has a functional form that starts at 1 but decays monotonically and quickly to 0 and is viewed as a short-term factor and is called the slope. The …nal two factors

C1;t and C2;t have loadings that begin at 0, which increase and then decay back to zero. These factors are medium-term factors and are known as the curvatures. Any changes in C1;t and C2;t will change medium-term yields and therefore change the curvature of the yield curve.

We assume that Lt, St, C1;t and C2;t follow a …rst order vector autoregressive process which allows the model to form a state-space system and by means of the Kalman …lter we are able to obtain the maximum-likelihood estimates of the parameters and the implied estimates of Lt, St,

C1;t and C2;t. The transition equation, which determines the dynamics of the state vector is: 0 B B @ Lt St C1;t C2;t 1 C C A= 0 B B @ L S C1 C2 1 C C A+ 0 B B @ a11 a12 a13 a14 a21 a22 a23 a24 a31 a32 a33 a34 a41 a42 a43 a44 1 C C A 0 B B @ Lt 1 St 1 C1;t 1 C2;t 1 1 C C A+ 0 B B @ L;t S;t C1;t C2;t 1 C C A: (3)

Wheret= 1; :::; T, in this case _L, _S, _C1 and _C2 are constants and _L;t, _S;t, _C1;t and _C2;t are the disturbances of the autoregressive process of the latent factors. The measurement equation relates a set of N observed zero-coupon yields of di¤erent maturities to the four latent factors of the yield curve and is given by:

0 B B B @ yt( 1) yt( 2) .. . yt( N) 1 C C C A = 0 B B B B B B @ 1 1 e 1 1 1 1 1 e 1 1 1 1 e 1 1 1 e 1 2 1 2 e 1 2 1 1 e 2 1 2 1 1 e 2 1 2 1 e 2 1 1 e 2 2 2 2 e 2 2 .. . ... ... ... 1 1 e N 1 N 1 1 e N 1 N 1 e N 1 1 e N 2 N 2 e N 2 1 C C C C C C A 0 B B @ Lt St C1;t C2;t 1 C C A+ 0 B B B @ " 1;t " ₂;t .. . " N;t 1 C C C A: (4)

Wheret= 1; :::; T and" 1;t," 2;t,...," N;t are the measurement errors of the observed forwards at every maturity at timetand the implied yields determined by the shape of the …tted Svensson curve. In matrix notation, the state-space form of the model can be written as:

Xt = +AXt 1+ t t i:i:d:(0; ): (5)

Yt = BXt+"t "t i:i:d:(0; 2 I): (6)

Where A and B are the transition and measurement matrices respectively. For the Kalman …lter to be the optimal linear …lter it is assumed that the initial conditions of the state vector are

uncorrelated with the innovations in both systems. The disturbances of both the measurement and the transition equations are i.i.d. and uncorrelated. The variance-covariance matrix of the disturbances for the transition equation is non-diagonal and the variance-covariance matrix of the measurement equation 2 I is diagonal. Implying that at any maturity the residual between the …tted and the zero-coupon yield is not correlated with the residual at any other maturity. Given some set of initialisations for the four latent factors and the parameters (the coe¢ cients of the A and B matrices, the variance-covariance matrices and the choice of lambdas) the one step-ahead prediction errors and the variance of these prediction errors are used to compute the log-likelihood function. The Kalman …lter produces the maximum likelihood estimates and optimal …ltered and smoothed estimates of the underlying latent factorsLt,St,C1;t andC2;t.

2.2 Macro-Finance Speci…cation and Estimation

The joint macro-…nance model is speci…ed as a system of regression equations with a lagged de-pendent variable. The dede-pendent variables are the estimated forward curve factors for the nominal and real curve and only the lagged dependent variable of the respective forward curve factor will appear on the right hand side. The system of equations has the following form:

Yt= + t+ Yt 1+Xt +dt +"t: (7)

Y is the vector of dependent variables, is a vector of constants and is a time trend, all of which are 4 1 vectors. X is a x 1 vector of the independent variable; the macroeconomic variables and is the 4 x matrix of their coe¢ cients where x can be as large as 31 (explained below). We use dummy variables to explain any large residuals, sodis anm 1 vector of dummy variables and is a4 n matrix of coe¢ cients for the dummy variables.

The transition equation of the Kalman …lter assumes that the error terms of the four factors are correlated and so it is appropriate to take account of this in the econometric analysis and so we use seemingly unrelated regression. We estimate the system of equations with feasible generalised least squares (henceforth, FGLS) and the standard errors are bootstrapped. FGLS is preferable to OLS for two reasons, the greater the correlation between the residuals in each equation, the greater the e¢ ciency gain obtained by FGLS. Secondly, the less correlation there is between the X matrices, the greater the gain to FGLS. Thus, estimating SUR with all of the information within the system of equations makes it more e¢ cient than estimating each individual equation.

Within each yield curve factor equation we adopt a general-to-speci…c selection criterion for each macroeconomic variable. Only those macroeconomic variables that remain signi…cant will remain in each equation. Post-estimation we perform exclusion restrictions on the coe¢ cients within each equation as well as testing each macroeconomic variable across each equation to determine if they are jointly signi…cant.

After initial estimations we found that the residuals wereI(1) for both the nominal and real equations (not shown). So to deal with theseI(1)residuals and any trending independent variables we include a deterministic time trend, rendering the residuals stationary.

2.3 Impulse Responses

We calculate impulse responses to show how each macroeconomic variable alters the dynamics of the yield curve, this being the relative change in the shape of the yield curve following the announcement of the variable and by how many basis points the curve can be expected to shift. The e¤ect of the macroeconomic variables on the latent variables is determined by the coe¢ cients of the SUR estimations. Using equation 2 we substitute the coe¢ cients from the SUR estimations in for the parameter values that …t the curve to produce the impulse response as shown below:

IRj = ^j;L+ ^j;S 1 e 1 1 + ^j;C1 1 e 1 1 e 1 _{+ ^} j;C2 1 e 2 2 e 2 _{: (8)}

WhereIRare the impulse responses and^j are the coe¢ cients of any one of the macroeconomic variables j, wherej = 1;2; ::;31:The lambda values used for the impulse response are the same as those used to estimate the forward curve factors. One set back of these impulse responses is the weighting placed on the level. As it has the largest factor weighting, any possible level e¤ect may dominate the impulse response (albeit, this may be appropriate for some variables) but given this, the overall dynamics of the impulse responses do not change. The impulse responses are presented along with 95% con…dence intervals. The con…dence intervals are calculated as2:

I:R 1:96 S where S=

s ^

X0 _X0^ 1_X 1_X^ _:

The con…dence interval of the impulse response is calculated from the estimated coe¢ cients and standard deviation of each independent variable, ^. The components of the vectorX are the four coe¢ cients from each one of the forward curve factors with respect to each separate macroeconomic variable.

3

Data

The choice of UK government liability forwards we use to de…ne the nominal curve are 9, 12, 15, 18, 21, 24, 30, 36, 48, 60, 72, 84, 96, 108 and 120 maturities expressed in months giving a total of 15 di¤erent nominal forwards. To …t the real curve we use 10 di¤erent index-linked forwards with maturities of 48, 54, 60, 66, 72, 78, 84, 96, 108 and 120 months. We start at 9 months for the nominal and 48 months for the real as the shorter maturities have too many missing observations. All forward rates are zero-coupon forwards3 and all observations are end-of-month as the majority of all macroeconomic announcements are made towards the latter end of month.

The estimation sample spans from March 1993 to December 2008 giving a total of 190 observa-tions. This sample period starts shortly after the Bank of England’s use of in‡ation targeting but also covers the …nancial crises and the recession but ends two months before the start of the Bank of England’s use of Quantitative Easing as a monetary policy tool. The purpose of this is to then forecast across the QE period to determine whether or not macroeconomic variables can provide a counterfactual nominal and real term structure that may highlight the e¤ects of QE.

The macroeconomic variables are divided into 5 groups, in‡ation, real activity, policy, …nancial and international. We test down from 31 di¤erent macroeconomic time series but present only the signi…cant results. The full list of variables is shown in Table 1. The initial set of macroeconomic and …nancial variables are guided by Clarke and Mortimer-Lee (2008) who analyses the relationship between UK interest rates and key announcements of macroeconomic variables. For in‡ation we use

2_{The degrees of freedom are the number of data observations minus the number of variables on the right-hand-side}

of equation 8, which gives a t-value of 1.96 at 95% con…dence. See Draper and Smith. (1998), pages 158-160.

3_{The methodology on how these forwards curves were constructed can be seen in Anderson and Sleath (1999)}

where they have been adjusted for coupon payments (so all forward rates here are zero coupon) and in the case of the index-linked bonds, the indexation lag. The estimates for the forwards are derived from a cubic spline based technique.

in‡ation expectations which are the average one-year-ahead in‡ation forecast from HM Treasury.4 Real activity has two variables, a real activity index and unemployment. For policy we include the Bank rate and for a measure of …scal policy we use debt-to-GDP expressed as a percentage. To measure money supply we use a series of notes and coins.5 For foreign variables we include the e¤ective exchange rate, German retail sales, the IFO index of business climate, U.S. Non-Farm Payrolls expressed as year-on-year changes and the Fed Funds Rate. The …nal group of macroeconomic variables are the …nancial group and for this we use an index of the annual returns of three di¤erent equity series and we use a measure of the Libor spread, which is calculated as the di¤erence between the three month Libor rate and the monetary policy rate of the Bank of England. Normally the Libor spread is the di¤erence between the 3 month Libor and Overnight Interest Rate Swaps but as the OIS data does not go back to 1993 we use the policy interest rate as a proxy.

3.1 Principal Component Analysis

For the measures of real activity and …nancial returns we created two indexes using the …rst principal component of correlated series. The index of real activity is extracted from three di¤erent measures of real activity; UK production, UK retail sales (the volume of sales measure is used which removes the e¤ects of price changes) and the claimant count which were previously transformed to year-on-year changes. The …rst principal component explains 69% of the variance of the three variables. The NIESR construct a monthly estimate of real GDP from monthly indicators such as industrial production and retail sales. The NIESR measure was included amongst the initial set of variables but was found to be statistically insigni…cant in each equations but our constructed index was found to be signi…cant. Both share a correlation of 93% and the relative standard deviation of the index to the NIESR measure is 0.68. The correlation between this variable and the three measures of real activity are 88% with production, -95% with the claimant count and 48% with that of retail sales.

The index of …nancial returns is created using the annualised returns of three di¤erent equity series namely, the Standard and Poor’s index of the 500, the DAX 30 and the FTSE 100. Just like the real activity index we take the …rst principal component of the three series. This …rst principal component explains 90% of the variance of the constituent variables. The correlation between the principal component and the individual series are 97% with the FTSE 100, 95% for the S & P 500 and 93% with the DAX 30.

3.2 Fitting the Forward Curve

For the nominal curve there are 15 maturities, the vectors Yt and "t are 15 1. B is a 15 4 matrix and 2 I is a 15 15 matrix. For the transition equation there are 30 parameters that need to be estimated. The 16 elements of the 4 4 transition matrix A, the four elements of and the 16 elements of the 4 4 variance-covariance matrix . The 15 diagonal elements of 2 I

also need to be estimated for the nominal forwards and 10 for the real forwards. So in total 45 parameters must be estimated for the nominal curve and 40 for the real. The values of lambda are

4

We refer the reader to “Forecasts for the UK Economy: a comparison of independent forecasts” for more infor-mation.

5

This is a measure of real money and we use the Bank of England’s notes and coins in circulation (series code LPMAVAB) de‡ated by RPI. Notes and coins are used to represent narrow money where M0 was the Bank’s main narrow money measure. But when the Bank introduced its Money Market Reform in May 2006, the Bank ceased publication of M0 and instead began publishing a series for reserve balances to accompany Notes and Coin in circulation. Notes and coins are the longest available measure of narrow money.

…xed prior to estimation.6 For the nominal curve we use the values 0.07456 for 1 and 0.03 for 2 and for the real curve 0.0557 1 and 0.0238 for 2.

Table 2 presents the estimates of theAand matrices and the vector of constants . Knowing that the transition equation follows an AR(1) process the estimates of A for the nominal curve show that the level and slope are non-stationary but the two curvatures are not. As with the Nelson-Siegel literature the diagonal elements ofAshow declining persistence as we move from the level through to the second curvature but the shock volatility in increases. The estimates of the real factors do not show the same relationship as the nominal in A. The level and …rst curvature are non-stationary unlike the slope and curvature but there is increasing volatility through the matrix.

The Svensson methodology …ts the data very well for the nominal forwards; Table 3 shows the mean and standard deviation of the …tting error in basis points at each maturity. The average …tting error is less than a basis point except at 9 months and the …t improves as the maturity increases.7 _{The estimated real factors …t the real curve very well at the short-end but do less well}

from 108 months onwards with the 120 month forward being over …tted on average by 3 basis points.

The estimated nominal factors and real factors are presented in Figures 1 and 2 respectively. The level factors for both the nominal and the real are very persistent. With the nominal level remains positive throughout and the real level is positive expect for January, August and November 2009. Over the period of Quantitative Easing the two curvature factors of the nominal curve display considerable volatility. For the real curve, the slope and the second curvature behave in a similar fashion to those of their nominal counterparts. The …rst curvature looks as if there is a structural break in the data given that the series declines when the government introduced the Pensions Act in 1995 which became e¤ective as of April 1997 and was responsible for reducing long-term yields dramatically.8 A simple Chow test con…rms that there is no structural break in the data at either one or 5 percent signi…cance so we feel that we are able to continue our analysis with these estimated factors.

4

Results

The results presented below are by means of impulse responses that were outlined in Section 2.3. Rather than directly using the coe¢ cients of the macroeconomic variables from the SUR estimations we use the total e¤ects,^i=1 ^. All impulse responses can be read as being increasing or decreasing in hundreds of basis points and all impulse responses are shown with 95% con…dence intervals.

Figures 3a and 3b present the impulse responses of the nominal curve. 3a presents the three fundamental variables for monetary policy plus the …scal policy measure 3b presents the …nancial and foreign variables. Figure 4 presents the impulse responses of the macroeconomic variables that have an e¤ect on the real curve.

6_{We solve for the optimal values of}

1, 2, 3, 4, 1 and 2 using constrained optimisation by minimising the residual sum of squares between the average UK term structure across the entire sample period and the …tted curve from the Svensson methodology. The imposed constraints are that 1 and 2 have to be greater than zero.

7

The authors …nd that the Svensson methodology has an improved …t over the Nelson and Siegel methodology, particularly at the longer term maturities but the di¤erences are not statistically di¤erent at 5% or 1% for the nominal curve. For the real curve the di¤erence in the …tting errors between the Nelson-Siegel function form and Svensson are statistically signi…cant so we continue the analysis for both curves with the functional form of Svensson.

8_{This is the Minimum Funding Requirement of the Pension Act. This requirement was introduced by the}

gov-ernment to ensure the solvency of UK pension funds which led to an increase in demand for long-dated nominal and index-linked bonds by institutional investors.

4.1 Nominal Curve Responses

4.1.1 In‡ation Expectations

A 1% shock to in‡ation expectations increases the nominal curve by about 100 basis points at the short-end and 140 basis points at the long-end. The results of Gürkaynaket al (2005) suggest that post-independence of the Bank of England that announcements of various in‡ation measures have no impact on the curve which would suggest that the Bank of England is credible whereas our explicit measure of in‡ation expectations …nds a very signi…cant and increasing e¤ect through the nominal term structure. The results of Dieboldet al (2006) …nd the level increases as a result of an increase in in‡ation expectations but the results of the slope are di¤erent. They …nd that the short end of the term structure increases, which is consistent with the actions of monetary policy makers. They use spot rates so this then accounts for the di¤erence in the results as noted in Gürkaynaket al (2005); the behaviour of forwards and spot yields can vary to the same macroeconomic shock. This could then further explain why there is a di¤erence in the results between those found here and also those of Ang and Piazzesi (2003) and Anget al (2009) who …nd a ‘hump’in the medium term yields as a result of a positive in‡ation shock which simultaneously leads to a negative term spread as short rates are pushed up higher than long-term rates.

4.1.2 Real Activity

With a 1% shock to real activity we …nd that the long end of the curve increases over the short end, this is the result of an increase in the second curvature factors. A shock to real activity increases the long end of the curve by about 50 basis points but it is on the medium term yields that real activity has the largest impact, with the 60 month forward increasing up to 70 basis points.

Dieboldet al (2006) …nd that a shock to real activity that the yield curve behaves in a similar fashion to that of in‡ation with their spot rates. Both the level and the slope increases, particularly at the short end which is again consistent with a rise in the policy rate to try and reduce the growth rate of the economy. The results of Ang and Piazzesi (2003) and Ang et al (2009) …nd that the yield curve dynamics are similar for a positive output shock as they found for an in‡ation shock. Our results show that interest rates move more in response to in‡ation expectations rather changes in real activity as suggested by a Taylor rule.

As with the other literature we examine the correlation between the estimated level and slope and the measures of in‡ation and real activity. We …nd that the in‡ation and the nominal level has a correlation of 0.49 suggesting that there is a link between in‡ation expectations and the level. The real activity index and the slope have a correlation of 0.65 which suggests that the slope factor is indeed a business cycle factor as suggested by the other literature and long-term forwards rise when real activity increases.

4.1.3 Bank of England Policy Rate

A 100 basis point increase in the policy rate leads to a fall in the forward rates. The e¤ect of a policy rate increase reduces the level and the …rst curvature and increases the slope but the curvature and level e¤ect dominates leading to a fall in the impulse response. A similar result was found by Gürkaynak et al (2005), they …nd that their ten year forward falls with an increase in the policy rate. One suggestion put forward is that an increase in the policy rate of a credible policy maker will cause in‡ation expectations to fall.

Responses to by the long end of the yield curve to macro variables are consistent with more persistent representations of the monetary transmission mechanism, see for example Chadha and

Holly (2010).9

4.1.4 Debt-to-GDP

A 1% increase in debt relative to GDP is likely to increase the 10 year maturity by 9 basis points.10 There is very little change in short-term rates but the supply e¤ect becomes larger as we move along the curve. This may capture the di¤erences in the relative liquidity of the sections of the yield curve, as the short-end of the curve is more liquid than the long-end.

4.1.5 Notes and Coins

A £ 1 billion increase in notes and coins suggests that there is a fall in all yields with the greatest e¤ect being on the short-term yields of about 5 basis points. This may be a slight overestimate in the elasticity of the e¤ect in notes and coins but we would expect these dynamics to be correct as private agents substitute their excess balances of money for nominal bonds.

4.1.6 E¤ective Exchange Rate

The e¤ects of an appreciation of the e¤ective exchange rate reduce the level of the term structure causing long-term rates to fall relative to short-term rates. This is consistent with a slowdown in real activity and an easing of in‡ationary pressures. It appears that a one point increase in the e¤ective exchange rate reduces the nominal 120 month forward by about 20 basis points and with very little impact on the short-term, so any changes in future interest rates are quite slow to an appreciation of the exchange rate.

4.1.7 IFO and German Retail Sales

For the IFO business climate index for Germany, we estimate an increase in the short-term matu-rities as the slope e¤ect comes to dominate the impulse responses. The short-term interest rates rise relative to the long-term interest rates. A one percent increase in German Retail Sales has a similar result to that of the IFO index, with the slope e¤ect being the only signi…cant result. At the 120 month forward the results for both variables are similar but at the short-end the impact varies with the forward curve being in‡uenced more by the impact of retail sales than business manager’s sentiment on the prospects of the economy.

These results suggest then that with an increase in foreign real activity and foreign interest rates rising one would expect a capital to ‡ow out of the UK, leading to a sterling depreciation and an increase in domestic interest rates. This demonstrates that foreign factors can have an impact on the UK term structure through an exchange rate transmission mechanism. This result is somewhat corroborated by Ehrman et al (2011) …nd that an increase in the IFO index lead to an increase in yields of Euro area yields.

9

The authors examine the impact of the three important macroeconomic variables for monetary policy on the yield curve using a DSGE model with three di¤erent sticky-price models. The key di¤erence between the models is the timing conventions that output and in‡ation follow. One model being purely forward looking, the second a hybrid model that has both leads and lags and the third a purely backward looking model. Their results show that the second moments of the backward model are closest to the second moments of the data and the greater the persistence of long-term interest rates after a macroeconomic shock.

1 0_{Using the total net debt for the UK over the sample period this would suggest an average issuance of approximately}

4.1.8 Libor Spread

The e¤ects of an increase in the Libor spread by 100 basis points only impacts on the slope. There is a dominant e¤ect on the short-end of the curve but there is pass through to longer-term maturities with the long-end increasing 17 basis points but the short-end increases by 112 basis points. The Libor spread is often used as a measure of health of the banking sector because an increase in the Libor rate is destabilising for the economy as lending to other banks and business becomes more expensive. Generally a decrease in the policy rate will do little to stem banks’ lending to other banks and businesses. However these results are very similar to that of Dewachter and Iania (2010). They call a shock to their Libor spread a ‘credit crunch’shock. They …nd that the level increases as a result of this shock, the slope increase, leading to a ‡attening of the yield curve, and an increase in the short-end of the curve reduces the curvature. They …nd that the credit crunch factors appear to have a stag‡ationary e¤ect on the economy.

4.2 Real Curve Responses

4.2.1 In‡ation Expectations

For the real curve a shock to in‡ation increases the curve at medium-term yields by approximately 130 basis points but longer term yields show very little movement suggesting that there may be some anchoring of in‡ation expectations. The di¤erence between the nominal and the real curve at 120 months is 124 basis points, so at this maturity in‡ation expectations and break-even rates increase by a similar amount with some possible in‡ation premium being attributed to the break-even rate.

4.2.2 Debt-to-GDP

A one percent increase in the debt-to-GDP ratio causes an increase in all yields by approximately 9 basis points. This is an appealing result for the following reason; the nominal bond market is deeper and more liquid in every segment of the yield curve and so should carry less liquidity premia. A lot of the available yields below 5 years are of remaining maturity as opposed to direct issuance and so the larger supply e¤ect for the real curve at maturities less than 120 months is readily explained but as the real market becomes more liquid, especially around maturities of 120 months the supply e¤ect is almost identical.

4.2.3 Notes and Coins

With an increase in real money of £ 1bn we …nd that the real term structure ‡attens and there is an increase in yields. This suggests that real money balances and real bonds are not substitutes as one would …nd with nominal bonds. Although the rate of return of real bonds are in‡ation protected it maybe that the opportunity cost is not large enough relative to nominal bonds to encourage people to switch out of money and into real bonds and this maybe also the cause to why the fall in nominal bonds is larger in absolute terms when compared to the negligible rise in real yields.

4.2.4 Libor

We …nd that a 100 basis point Libor shock has very a very similar a¤ect to that of the nominal curve. It is only the slope factor that is a¤ected which leads to a ‡attening of the term structure. Also, the size of the responses between the nominal and real curves is almost identical at the same maturities. We …nd then, that if there was a credit shock, it does not suggest that there is any stag‡ationary pressure, in fact at 120 months the real term structure is higher than that of the nominal by a few basis points suggesting a fall in in‡ation over longer horizons.

4.3 Within Sample Fit and Residuals

Post estimation we perform two types of exclusion restrictions on the independent variables with the results presented in Table 4. The …rst test is shown in the top section of the table and tests whether or not all macroeconomic variables in each equation are signi…cant. As the result show, the macroeconomic variables in each equation are jointly signi…cant. The second exclusion restriction is shown in the lower section of the table sand this tests whether or not each macroeconomic variable is signi…cant across equations. The results show that each macroeconomic variable are jointly signi…cant across the di¤erent equations in which they appear. Together these results imply that macroeconomic variables can explain changes in forward rates and alter the dynamics of the term structure of interest rates. The descriptive statistics of the estimations are shown in Table 5. The R2 is high across all four of the nominal equations, particularly the level and slope equations. As found in the other literature, we struggle to try and …nd some better macroeconomic explanations for the curvature factors. These results are somewhat reinforced with the root-mean-squared-errors, with the results being smaller for the very well explained level and slope. For the real equations the R2 are not as high as those as the nominal except for the …rst curvature which has an R2 value of 0.95. The second curvature is poorly explained by the macroeconomic variables. The RMSE of the real curve is larger than that of the nominal which highlights that the real curve is harder to predict.

The tests for autocorrelation, heteroscedasticity and normality show that the residuals do not su¤er with autocorrelation. Heteroscedasticity is a concern for the …rst curvature factor of the real curve. The only problem that is apparent is normality, particularly for the nominal level and the second curvature but also for the …rst curvature factor of the real curve. The estimated residuals have been shown to be stationary around a trend, rendering the forward curve factors stationary.11 Dummy variables were used to take account of some of the larger residuals. For the nominal curve only one dummy variable was used and this was for the November of 2008. For the real curve there were three dummy variables used: October, November and December of 2008.

5

Assessment of Quantitative Easing by Out-of-Sampling

Fore-casting

On March 5th 2009 the Bank of England’s Monetary Policy Committee (MPC) announced, along with its interest rate cut that it would partake in large scale asset purchases whereby the Bank would create central bank reserves to purchase …nancial assets such as gilts and corporate bonds. Over the next ten months the MPC held its o¢ cial interest rate at 0.5% (the e¤ective zero lower bound) and purchased almost £ 200bn pounds worth of nominal government liabilities.12 Only nominal paper was purchased because the nominal market is much larger than the in‡ation index-linked market13 as there were fears that large asset purchases might distort segments of the real yield curve because issuance at these maturities are often less than £ 4 billion.14 The actions undertaken by the MPC were initially intended to lower the yields of gilts with a remaining maturity greater than 5 years but lower than 25 years but from the August that same year the maturities purchased were extended to any remaining maturity greater than 3 years. This provides a natural testing ground for our model. We hope to …nd that the nominal forward curve overestimates the actual

1 1_{Table available upon request.} 1 2

By the end of QE1 the Bank of England had also purchased £ 1.956 billion of sterling corporate bonds.

1 3

In 2009 the amount of nominal gilts in issue was approximately 4 times larger than the amount of in‡ation-indexed gilts in issue. See the UK Debt Management O¢ ce website for more details: http://www.dmo.gov.uk

1 4_{On the 5}th_{March 2009 the Asset Purchase Facility issued a notice to the market stating which gilts were eligible for}

curve and that there is no signi…cant di¤erence between the forecasted real curve and the actual real curve.

Using a dynamic forecast we project the estimated model of the previous section over the period of QE to produce a counterfactual forward curve that can aid in the identi…cation of the total impact of QE on the nominal and real curve.15;16 _{Table 6 gives the point estimates of the forecast error (in}

basis points) for the nominal forward curves for the macro-…nance yield curve when it is projected out-of-sample from January 2009 to January 2010. The …rst column in Table 6 reports the one-step ahead standard error. Figure 5 shows the 1, 5 and 10 year …tted forward rates and forecast errors. In general we …nd that the forward curve over predicts the actual curve from March onwards from 21 and 24 month forwards. The over prediction averages approximately 67 basis points at the 60 month forward and 46 basis points for the 120 month forward. This result is somewhat consistent with the implementation of QE with regards to its timing. That maturities greater than 2 years are a¤ected by QE and the over prediction begins in the March with the start of purchases. Prior to QE the model under predicts the curve on average at 60 months by approximately 45 basis points and 80 basis points at 120 months. There may have been solvency issues regarding the UK government over this time that may increase yields and our …scal policy variable is unable to capture the markets forward looking concerns. Given this, it is reasonable to ascribe the total change in yields from the pre-QE period to the QE period to the QE event, thus the overall change in model residuals around the QE event from March 2009 to January 2010 relative to the January and February of 2009 is a reduction in the 120 month nominal forwards of some 120-130bp. This results fall in line with the event study results of Caglaret al (2011) and Meaning and Zhu (2012). The forecast of the 60 and 120 month …tted and forecast errors of the real curve are shown in Figure 6 and the forecast errors and standard errors are shown in Table 7. Figure 6 shows that the actual forwards move in a very narrow range whereas the forecasted curve is somewhat more volatile. At 60 months, the average error forecast error is an over prediction of 6 basis points and given that the average forecast error from the March to January 2010 is only 3 basis points, the impact on the real curve is negligible at best. For the 120 month forward the average forecast error is smaller than that of the 60 months and the average error over the QE purchases is an overestimate of 19 basis points. For any maturity there is no persistent deviation away from the actual path of real bonds which is a result that is consistent with the Bank of England not purchasing any index-linked bonds as part of their QE program.

5.1 Forecast Error Decomposition

The forecasts of the nominal and real forward curves o¤er intuitive results because the deviation between the actual and the forecasted nominal curve and the timing of the overestimate suggests that QE has reduced actual yields. Secondly, the forecast of the real curve shows no persistent deviation from actual rates which are consistent with there being no purchases of index-linked debt. However it would not be appropriate to attribute all of the di¤erence between the actual and forecasted curve to QE. One reason is that both the real and nominal forecasts in Figures 5 and 6 are within one standard deviation of the actual path of interest rates and over the same period there were a multitude of events that would impact on the term structure that cannot be captured by our model but we are able to provide some intuition for. To explain how QE

1 5

With this methodology we are unable to test whether or not QE had an e¤ect on macroeconomic variables. But if QE leads to higher output, that would raise both the actual and the …tted curve and so not have any impact on the residual.

1 6_{Our model is able to forecast the path of interest rates at each maturity quite accurately over other sample}

periods (not shown). We feel this allows us to perform the forecasting exercise over QE. Any deviation from the estimated path of interest rates then can be attributed to QE.

may have impacted on the forward curve we provide a decomposition of the 60 and 120 month forecast errors over the QE period based on some rather strong assumptions about QE and the channels that it was expected to have worked its way through the transmission mechanism. For the UK’s experience, Dale (2011) outlines three channels in which QE was intended to have worked through the transmission mechanism and impacted on the yield curve: portfolio balance, liquidity and signalling. All of these channels would have an immediate impact on the yield curve through the daily operations and announcement e¤ects, thus allowing us to show the immediate …nancial market impact of QE on the nominal term structure. A related analysis is undertaken by Breedon

et al (2012) who examine the impact of debt purchases on both monthly and daily bond yields over the same period as well as duration e¤ects of the changing nominal bond portfolio brought about by the large scale asset purchases.

5.1.1 Debt-to-GDP E¤ect

The variable debt-to-GDP captures a pure supply e¤ect on the forward curve and not any other factors such as perceived credit risk and that the purchases of gilts undertaken by the APF for QE are the same as a reduction of the debt-to-GDP ratio as the purchases made reduces the amount of available supply to the private sector. This implies that the overall impact of QE reduces the debt-to-GDP ratio. We calculate the total number of bonds purchased each month at the reverse auctions and determine the equivalent size of debt-to-GDP, for example in the March the Bank of England purchased 1.1% of the total supply of bonds relative to GDP and by the January 2010 they had purchased approximately 14% of the total supply of bonds relative to GDP. Treating the purchases as a stock e¤ect, we take the cumulative amount of purchases made from one month to the next. Given this we can estimate the impact of QE on bond yields at …ve and 10 years using the impulse response in Figure 3a.

5.1.2 Liquidity Channel

The second channel in which QE may have worked through is the liquidity channel. The asset purchases made by the central bank should ease any liquidity issues that may have arisen from the …nancial crises and the recession. The Bank of England’s behaviour as a large purchaser of gilts should improve the functioning of the gilt market and reduce the liquidity premium that is embedded within the term premia. The size of the liquidity premium will vary from one maturity to another depending on how deep and liquid the market is at that particular maturity, in this case bonds that have a remaining maturity of …ve and ten years. This premium is calculated17 and the liquidity e¤ect is subtracted from forecast error. The liquidity premium is there as a guide only to suggest which way the liquidity premium (if any exists) as the liquidity premium is determined by spot rates as opposed to the forward rates that we use but the a¤ects would pass through to forwards rates.

5.1.3 Signalling Channel

To measure the signalling channel we use a risk adjusted measure of a market interest rate. Statis-tically the chosen interest rate should be able to predict the policy rate but the presence of term

1 7_{One way to measure the liquidity premium is to look at the spread between an o¤-the-run bond (a bond in the}

secondary market that is at 10 years to maturity) and the on-the-run bond (a bond that is issued into the primary market). Any di¤erence between the two would represent a liquidity premium. In this case we subtract the average weighted accepted yield at each auction for 5 and 10 year nominal bond purchases and subtract this from the closing price of the same day. We sum the results across each month and as this is a ‘‡ow’variable and so we do not take the cumulative impact. We would like to thank the UK DMO for providing closing prices for …ve and ten year nominal bonds.

premia and di¤erences in the maturity, liquidity and credit quality may blur the signal for the future path of the Bank rate. The policy rate can be forecasted using a simple regression of the form:

it;t+1= + (ft;t+1 it) +"t;t+1: (9)

Where it;t+1 is the realised Bank rate one year ahead, it is Bank rate observed today, ft;t+1 is the forward rate observed today for one year ahead and"t;t+1 is an error term. The parameters and should be equal to 0 and1 respectively if the pure expectations hypothesis were to hold. A more relaxed version of the expectations hypothesis18 _{would expected 6= 0 which implies there}

is some constant term premium and if is statistically di¤erent to 1 suggests that there is some time-varying term premium. Gürkaynak et al (2007) and Piazzesi and Swanson (2008) use similar equations and analysis to examine market-based measures of the expected path of the Fed rate in the U.S. The data we use is the Bank of England’s own commercial bank liability curve which is based on Libor interest rates and other market rates of various derivative instruments linked to the Libor such as forward rate agreements, short-term interest rate futures and Libor swaps.19 _This

measure is based on an unsecured lending and so the interest rate at one year should include default risk and as Libor is a money market rate some liquidity risk will also be present.

We look at the expected path of interest rates for one year only and we use end of month data over the same sample period as that of Sections 3 and 4. We correct the standard errors for heteroscedasticity and autocorrelation using Newey-West procedure with 5 lags. The R2 over this sample period 0.37 suggesting at a year out that our chosen measure can explain some of the variation in Bank rate. The coe¢ cient has a value of -0.85 which suggests that the forward rates in general overestimate the actual outcome by 85 basis points, this result is consistent with a positive forward premium. The coe¢ cient on of 0.96 is very close to one and with a general restriction test with a null hypothesis that = 1, we do not reject the null hypothesis which implies that there is no time-varying term premium at this maturity for this particular instrument.

What we call the signalling e¤ect here is the di¤erence between the policy rate and the markets expected path of interest rates. Taking the forward rate for one year ahead of the bank liability curve we subtract the estimated constant term premium (which is alpha in equation 9) as well as the policy rate at each month. This provides a measure of where the market expects the policy rate is supposed to be relative to today. The signalling e¤ect is expected to occur within the month and should be di¤erent from one month to the next and we assume it is the same impact on both the 5 and 10 year forwards.

5.1.4 A Trial Decomposition

The forecast error can then be explained by three channels of QE. The portfolio balance channel where the imperfect substitutability of di¤erent assets can allow the relative supplies determine the price of the asset, this is the debt-to-GDP e¤ect, the liquidity channel is explained by the measure of liquidity premium and the signalling channel by forwards. This channel capture the markets expectations of the future path of the Bank rate or any other macroeconomic information that may determine the path of interest rates that is not already explained within the model and captured by the forecasts. The portfolio and liquidity channel are expected to put downward pressure on the yield curve but the signalling e¤ect may be ambiguous because while the Bank of England undertake QE the market may believe that the Bank will hold interest rates at their current level or maybe reduce them further. But if there are in‡ationary pressures the market may expect the

1 8

Which still requires well behaved residual. We remove a unit root by taking the policy rate away from both sides.

1 9_{For more information we direct the reader to the following note by the Bank of England:}

Bank to pursue lower and stable in‡ation and change interest rates if the market is to believe what they observe to be the monetary authorities reaction function.

Tables 8 and 9 show the decomposition of the residual at both …ve and ten years respectively from the March of 2009 from when QE was implemented. The debt-to-GDP e¤ect becomes larger as the amount of gilt purchases increases and can explain as much as 98 to 126 basis points at 5 and 10 years respectively. For almost all of the gilt purchases at …ve years there is a fall in the liquidity premium. Suggesting that non-bank …nancial institutions were willing to substitute their 5 year bonds for cash and that the Bank of England were willing to pay a premium to ensure this was so. For ten year government paper the liquidity premium is positive (except for the March and April) although the reverse auctions were well covered.20 Although market participants were willing to sell ten year bonds at a premium, the Bank of England’s Asset Purchase Facility was not willing to pay a premium like they were for the …ve year bonds, which may simply be because the medium-term segment of the curve was the focus of the purchase strategy.21

Whereas the debt-to-GDP e¤ect becomes larger and exerts more downward pressure on the yield curve as time progresses and the amount of purchases increases, it is the signalling channel that has the largest impact at the start of QE and has less of an impact as the amount of bond purchases increases. In the March when QE was announced the MPC made the decision to cut the policy rate to 0.5% and our model already takes account of this change in the out-of-sample forecast. Initially, the signalling channel has a large impact on the curve with the market expecting interest rates to fall a further 48 basis points below the new policy rate of 0.5% suggesting that market participants were pricing the policy rate to be closer to zero. The largest impact of the signalling channel occurs in the March when QE was …rst announced but in the following months when the Bank announces further bond purchases the market expected interest rates to be lower than the current level of the base rate (except for August). The smaller size of these impacts suggests that market participants had already been expecting further rounds of purchases. Over this period in‡ation expectations had begun to rise from 1.9% in the March to 2.4% in December. The market may then feel that if in‡ation follows its trend it would be close to 3% in a years’time which the market may then expect some response from the Bank of England to contain the rise in in‡ation. But with the announcement of further asset purchases the market can expect the Bank to hold interest rates steady for the foreseeable future. Clearly the signalling impact has had a large initial impact on the curve which explains some of the downward pressure on actual yields but in the later stages of QE it was the debt e¤ect that became dominant.

5.1.5 Credit E¤ects

The trial decomposition suggests that QE had a large impact on the forward curve but there remains a persistent residual to be explained. In e¤ect the three channels more than account for the forecast residual, which suggests that another factor may have been driving up nominal yields. The remaining residual might well re‡ect some change in the perceived credit worthiness of UK bonds or some time variation in estimated impact of the other channels, in particular that of our debt-to-GDP variable that captures supply e¤ects. Any default risk premium would be a source of upward pressure on the curve and so experimented with CDS spreads and the spread of Libor

2 0

Individual auction data is available for each bond at each one of its auctions from the QE data set from the Bank of England conference ‘Learning the lessons from QE and other unconventional monetary policies’. The data set is available at http://www.bankofengland.co.uk/publications/Pages/events/qeconference/qedataset.aspx

2 1_{The short-term is 3 to 7 year maturities and medium-term maturities are from 7 to 15 years. Data regarding}

the breakdown of the UK government liability portfolio is available from the UK Debt Management O¢ ce and their website page http://www.dmo.gov.uk/index.aspx?page=Gilts/Portfolio_Statistics

rate forwards over nominal government forwards at the same maturity. We …nd that the Libor-forward spread has a correlation with the remaining residuals at 5 and 10 years of -0.51 and -0.81 respectively. The last two columns of Tables 8 and 9 shows the remaining forecast residual yet to be explained and the Libor-forward spread and we present the spread at both …ve and ten years in Figure 7. We observe that the Libor-forward spread at ten years is negative implying that the perceived likelihood of default by the government has increased over this period. Furthermore, it appears that the impact is greatest on long-term rates but due to data limitations we cannot estimate the impact the spread has on the yield curve so we are unable to make speci…c assertions about this channel but we want to develop a fully speci…ed model of default risk to assess this in future work.

6

Conclusion

We study a variety of macroeconomic and …nancial announcements and how they impact on the nominal and real term structure of UK government liabilities. The results are consistent with recent work undertaken by others in a joint macroeconomic and …nancial economic approach to understand the dynamics of the forward curve but our methodology is able to accommodate more a larger number of variables than the present literature.

The impulse responses give results similar to the other macro-…nance literature for the three key macroeconomic variables, policy rate, in‡ation and real activity but we identify nine key macro-economic variables that impact on the nominal yield curve, all of which provide intuitive results such as in‡ation expectations leading to an increase in yields and a positive supply e¤ect in the gilt market. Further to this, we …nd that key economic indicators from Germany impact on the UK curve but announcements from the U.S do not. For the real curve we …nd that there are only four variables that shift the real curve. Overall we …nd that the nominal curve is well explained by macroeconomic variables but the real curve does less well suggesting that something other than the state of the economy may determine the dynamics of the real yield curve such as government policy.

We perform an out-of-sample forecasting exercise over the …rst round of QE in the UK (March 2009 to January 2010) to determine the future path of the forward rates conditional on our macro-economic variables. We found that the nominal curve over-estimated the by 67 and 46 basis points for the …ve and ten year forwards. For the real curve there is no persistent over or under predic-tion of the curve which is consistent with both the timing and implementapredic-tion of QE. These results are similar to those found by Caglar et al (2011) and Meaning and Zhu (2012) who examine the immediate …nancial market impact of QE in the UK. We …nd that the forecast error can be readily explained by the portfolio balance, liquidity premium and signalling channels. When the Bank of England purchased gilts they were willing to pay a premium to purchase 5 year bonds from the market but not for the 10 year bonds suggesting that the Bank was willing to pay a higher price for bonds in relatively less liquid segments of the curve. The liquidity channel alone can explain up to as much as 30 basis points in any one month but it was the portfolio balance channel that had the greatest impact on the nominal yield curve which can account for as much as 125 basis points in January 2010. From when QE was implemented it was the signalling channel that ex-erted downward pressure on the forward curve as the market expected the policy rate to be cut further or at least to be hold at the zero lower bound for at least in the foreseeable future with this channel explaining around 50 basis points of the decomposition. Our work has to be extended to consider credit risk e¤ects on bonds and also the possibility of time variation but the identi…cation of a supply e¤ect on bond yields at this frequency allows us to have some con…dence that the …rst round of QE did have some impact on lowering bond yields.

References

[1] Anderson, N. and Sleath, J. (1999).“New Estimates of the UK Real and Nominal Yield Curves”. Bank of England Working Paper 126.

[2] Ang, A., Boivin, J., Dong, S. and Loo-Kung, R. (2009). “Monetary Policy Shifts and the Term Structure”.NBER Working Paper No. 15270.

[3] Ang, A. and Piazzesi, M. (2003). “A No-Arbitrage Vector Autoregression of Term Struc-ture Dynamics with Macroeconomic and Latent Variables”. Journal of Monetary Economics,

Vol.50(4), pp.745-787

[4] Afonso, A. and Martins, M. (2012). “Level, Slope, Curvature of the Sovereign Yield Curve, and Fiscal Behaviour”.Journal of Banking and Finance, Vol.36(6), pp.1789-1807

[5] Borgy, V., Laubach, T., Mesonnier, J.S. and Renne, J.P. (2011). “Fiscal Policy, Default Risk and Euro Area Sovereign Bond Spread”.Banque De France Working Paper No.350

[6] Breedon, F., Chadha, J.S. and Waters, A. (2012) “The Financial Market Impact of UK Quan-titative Easing”. Forthcoming in theOxford Review of Economic Policy

[7] Caglar, E., Chadha, J.S., Meaning, J., Warren, J. and Waters, A. (2011). “Central Bank Balance Sheet Policies: Three Views From the DSGE Literature”. Interest Rates, Prices and Liquidity. Cambridge University Press, pp. 240-273

[8] Chadha, J.S. and Holly, S. (2011). “Macroeconomic Models and the Yield Curve: An Assess-ment of the Fit”. Journal of Dynamics and Control,Vol.34, pp.1343-1358

[9] Clarke, A., and Mortimer-Lee, P. (2008). “Joy of Stats, UK ed”. Published by BNP Paribas [10] Dale, S. (2011). “QE-One Year On”.Interest Rates, Prices and Liquidity. Cambridge University

Press, pp.222-239

[11] Dewachter, H. and Iania, L. (2011). “An Extended Macro-Finance Model with Financial Fac-tors”.Journal of Financial and Quantitative Analysis, Vol.46(6), pp.1893-1916

[12] Dewachter, H. and Lyrio, M. (2006). “Macro Factors and the Term Structure of Interest Rates”.

Journal of Money, Credit and Banking, Vol. 38(1), pp.119-140

[13] Diebold, F., Rudebusch, G. and Aruoba, S.B. (2006). “The Macroeconomy and the Yield Curve: A Dynamic Latent Factor Approach”.Journal of Econometrics,Vol.131(1-2), pp. 309-338

[14] Diebold, F., Piazzesi, M. and Rudebusch, G. (2005). “Modelling Bond Yields in Finance and Macroeconomics”.American Economic Review, Vol. 95(2), pp. 415-420

[15] Diebold, F. and Li, C. (2006). “Forecasting the Term Structure of Government Bond Yields”.

Journal of Econometrics,Vol.130(2), pp. 337-364

[16] Draper, N.R. and Smith, H. (1998). “Applied Regression Analysis”, 3rd edition, Wiley Series in Probability and Statistics.

[17] Ehrmann, M., Fratzcher, M., Gürkaynak, R. and Swanson, E. (2011). “Convergence and An-choring of Yields in the Euro Area”.The Review of Economics and Statistics, Vol. 93(1), pp. 350-364

[18] Gürkaynak, R, Sack, B and Swanson, E. (2005). “The Excess Sensitivity of Long Term Interest Rates: Evidence and Implications for Macroeconomic Models”. American Economic Review,

Vol. 95(1), pp. 425-436

[19] Gürkaynak, R, Sack, B and Swanson, E. (2007).“Market-Based Measures of Monetary Policy Expectations”.Journal of Business and Economic Statistics, Vol. 25, pp.200-212

[20] Meaning, J, and Zhu, F. (2011). “The Impact of Recent Asset Purchase Programmes”. BIS Quarterly Review, December 2011,pp.23-30

[21] Nelson, C. and Siegel, A. (1987). “Parsimonious Modelling of Yield Curves”. The Journal of Business, Vol. 60(4), pp. 473-489

[22] Piazzesi, M.and Swanson, E. (2008). “Futures Prices as Risk-Adjusted Forecasts of Monetary Policy”.Journal of Monetary Economics, Vol.55(4), pp.677-691

[23] Rudebusch, G. and Wu, T. (2008). “A Macro-Finance Model of the Term Structure, Monetary Policy, and the Economy”.The Economic Journal, Vol.118(7), pp. 906-926

[24] Svensson, L. (1994). “Estimating and Interpreting Forward Interest Rates: Sweden 1992 to 1994”. NBER Working Paper No. 4871.

Tables

Table 1. Initial Macroeconomic and Financial Variables. In‡ation Real Activity Policy Foreign Financial Inf. Expectations Real Activity* BoE UK E¤. ER Returns* RPI Unemployment M_P IFO Index Libor

CPI NIESR GDP PSNCR German R.S Nationwide House Prices RPIX Terms of Trade Debt-to-GDP U.S. NFP Oil

RPIY Trade Balance FFR Gold PPI ECB Policy Vix Vol.

Spot E.R: $/£ e/£

U/£

Note: Those variables marked with an asterisk are calculated as principal components. For further details see Subsection 3.1.

Table 2. Coe¢ cients of the A, and Matrices

Nominal Parameter Estimates Real Parameter Estimates EstimatedAMatrix Estimated AMatrix

Lt 1 St 1 C1;t 1 C2;t 1 Lt 1 St 1 C1;t 1 C2;t 1

Lt 1 0.980 -0.034 -0.018 0.038 Lt 1 0.948 0.408 -0.007 0.260

St 1 0.030 1.038 0.052 -0.034 St 1 -0.374 0.095 -0.224 -0.390

C1;t 1 0.079 -0.090 0.861 0.053 C1;t 1 0.648 1.047 1.221 0.449

C2;t 1 -0.146 0.096 0.161 0.824 C2;t 1 0.295 -0.086 0.062 0.211 Estimated Matrix Estimated Matrix

Lt St C1;t C2;t Lt St C1;t C2;t

Lt 0.019 Lt 0.046

St -0.026 0.042 St -0.052 0.132

C1;t 0.034 -0.061 0.107 C1;t 0.048 -0.178 0.263

C2;t -0.073 0.106 -0.151 0.293 C2;t -0.147 0.201 -0.214 0.491 Estimated Matrix Estimated Matrix

Lt 0.027 Lt 0.038

St -0.163 St 1.00

C1;t -0.410 C1;t -1.66

C2;t 0.856 C2;t -0.646

Note: These estimates correspond to the transition equation of Equation 5, which explains the dynamics of the estimated latent factors. The estimated standard deviations of Equation 6 are not shown.

Table 3. Average Fitting Error and Standard Deviations at Each Maturity Nominal Real

Maturity Mean Std. Dev. Maturity Mean Std. Dev. 9 1.00 4.159 48 0.018 0.14 12 -0.85 2.109 54 -0.018 0.27 15 -0.72 3.437 60 -0.026 0.23 18 -0.22 2.622 66 0.019 0.24 21 0.28 1.449 72 0.019 0.26 24 0.54 1.267 78 -0.013 0.16 30 0.48 2.682 84 -0.181 0.71 36 0.17 3.305 96 -0.741 2.17 48 -0.34 2.578 108 -1.649 4.52 60 -0.33 1.768 120 -3.077 7.70 72 -0.04 2.403 84 0.07 2.700 96 0.06 2.178 108 0.08 1.353 120 0.05 3.319

Note: The results are given in terms of basis points and give the …tting errors of the Svensson model across maturity.

Table 4. Exclusion Restrictions Tests Nominal Real Exclusion restrictions within equations Level 64.43 [0:0000] 34.38 [0:0000] Slope 131.95 [0:0000] 29.33 [0:0000] Curv. 1 22.01 [0:0000] 27.55 [0:0000] Curv. 2 19.91 [0:0000] 44.53 [0:0000] Exclusion restrictions across equations Inf. Exp. 10.27 [0:0059] 59.60 [0:0000] RA 12.75 [0:0004] BoE Policy Rate 68.67 [0:0000] Debt to GDP 10.33 [0:0013] 22.37 [0:0000] UK E¤. ER 32.84 [0:0000] IFO 12.59 [0:0004] GRS 28.34 [0:0000] M P _[0:19.80_{0000] [0:}60.54_0000] Libor 19.71 [0:0000] 5.28 [0:0216]

Note: The exclusion restriction tests have a null hypothesis for which all coe¢ cients included in each restriction test are jointly equal to zero. All tests have a Chi2distribution with four degrees of freedom. The top part of Table 4 shows the exclusion test within each equation, that is are all the macroeconomic variables used to explain that factor equation are jointly equal to zero. The lower part of the table is the exclusion test of each macroeconomic variable across each equation.

Table 5. Estimation Results for the Nominal Curve from March 1993 to December 2009

Nominal Real

Level Slope Curv.1 Curv.2 Level Slope Curv.1 Curv. 2 R2 0.95 0.95 0.86 0.73 0.88 0.90 0.94 0.59 RMSE 0.49 0.53 1.14 1.87 0.46 0.46 1.18 1.57 Durbin-Alt 0.02 [0:8865] 0.31 [0:5798] 0.76 [0:3834] 4.84 [0:0279] 14.49 [0:0001] 0.16 [0:6881] 7.34 [0:0067] 2.16 [0:1413] Breusch-Pagan 2.98 [0:0844] 1.63 [0:2018] 1.48 [0:2238] 6.56 [0:0104] 2.93 [0:0869] 1.05 [0:3046] 10.19 [0:0014] 0.20 [0:6548] Normality 19.09 [0:0000] 6.29 [0:0162] 0.62 [0:7319] 39.28 [0:0000] 2.37 [0:3053] 3.52 [0:1720] 11.04 [0:0040] 3.51 [0:1728]

Note: The Durbin-Alternative test (with one lag), with the null hypothesis that the errors are homoscedastic, with one degree of freedom. The Breusch-Pagan test has 1 degree of freedom and the null hypothesis is no autocorrelation, this test also has one degree of freedom. The normality test has two degrees of freedom and the null hypothesis is that the errors are normally distributed. All tests have a Chi2distribution and ** represents rejection of null at the 1% level and * represents rejection of the null at the 5% level.
