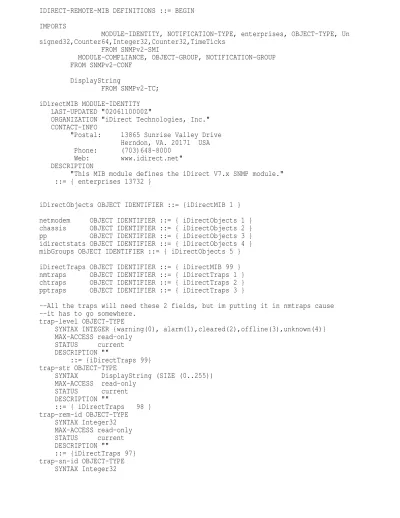

IDIRECT-REMOTE-MIB DEFINITIONS ::= BEGIN IMPORTS

MODULE-IDENTITY, NOTIFICATION-TYPE, enterprises, OBJECT-TYPE, Un signed32,Counter64,Integer32,Counter32,TimeTicks

FROM SNMPv2-SMI

MODULE-COMPLIANCE, OBJECT-GROUP, NOTIFICATION-GROUP FROM SNMPv2-CONF DisplayString FROM SNMPv2-TC; iDirectMIB MODULE-IDENTITY LAST-UPDATED "0206110000Z"

ORGANIZATION "iDirect Technologies, Inc." CONTACT-INFO

"Postal: 13865 Sunrise Valley Drive Herndon, VA. 20171 USA Phone: (703)648-8000

Web: www.idirect.net" DESCRIPTION

"This MIB module defines the iDirect V7.x SNMP module." ::= { enterprises 13732 }

iDirectObjects OBJECT IDENTIFIER ::= {iDirectMIB 1 } netmodem OBJECT IDENTIFIER ::= { iDirectObjects 1 } chassis OBJECT IDENTIFIER ::= { iDirectObjects 2 } pp OBJECT IDENTIFIER ::= { iDirectObjects 3 } idirectstats OBJECT IDENTIFIER ::= { iDirectObjects 4 } mibGroups OBJECT IDENTIFIER ::= { iDirectObjects 5 } iDirectTraps OBJECT IDENTIFIER ::= { iDirectMIB 99 } nmtraps OBJECT IDENTIFIER ::= { iDirectTraps 1 } chtraps OBJECT IDENTIFIER ::= { iDirectTraps 2 } pptraps OBJECT IDENTIFIER ::= { iDirectTraps 3 }

--All the traps will need these 2 fields, but im putting it in nmtraps cause --it has to go somewhere.

trap-level OBJECT-TYPE

SYNTAX INTEGER {warning(0), alarm(1),cleared(2),offline(3),unknown(4)} MAX-ACCESS read-only

STATUS current DESCRIPTION ""

::= {iDirectTraps 99} trap-str OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { iDirectTraps 98 } trap-rem-id OBJECT-TYPE SYNTAX Integer32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {iDirectTraps 97} trap-sn-id OBJECT-TYPE SYNTAX Integer32

(2)

MAX-ACCESS read-only STATUS current DESCRIPTION ""

::= {iDirectTraps 96} trap-rem-desc OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {iDirectTraps 95} -- Chassis chassisEntries OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {chassis 0 } ChassisEntry ::= SEQUENCE { chassisid Unsigned32, chassisname DisplayString, chstate INTEGER, chwarnings DisplayString, chalarms DisplayString} chassisTable OBJECT-TYPE

SYNTAX SEQUENCE OF ChassisEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { chassis 1 } chassisEntry OBJECT-TYPE SYNTAX ChassisEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {chassisid} ::= {chassisTable 1 } chassisid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { chassisEntry 1 } chassisname OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only

::= { chassisEntry 2 } chstate OBJECT-TYPE

SYNTAX INTEGER {green(0), yellow(1),red(2),yellowRed(3),offline(4)} MAX-ACCESS read-only

(3)

::= {chassisEntry 3} chwarnings OBJECT-TYPE

::= { chassisEntry 4 } chalarms OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { chassisEntry 5 } --Protocol Processors. ppEntries OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current

DESCRIPTION "Current Number of Protocol Processors" ::= {pp 0 } PPEntry ::= SEQUENCE { ppid Unsigned32, ppname DisplayString, ppteleportid Unsigned32, ppstate INTEGER, ppwarnings DisplayString, ppalarms DisplayString} ppTable OBJECT-TYPE

SYNTAX SEQUENCE OF PPEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { pp 1 } ppEntry OBJECT-TYPE SYNTAX PPEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {ppid} ::= {ppTable 1 } ppid OBJECT-TYPE SYNTAX Unsigned32 (0..65535) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ppEntry 1 } ppname OBJECT-TYPE

STATUS current DESCRIPTION "" ::= { ppEntry 2 }

(4)

ppteleportid OBJECT-TYPE SYNTAX Unsigned32 (0..65535) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ppEntry 3 } ppstate OBJECT-TYPE

::= {ppEntry 4} ppwarnings OBJECT-TYPE

STATUS current DESCRIPTION "" ::= { ppEntry 5 } ppalarms OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ppEntry 6 } --NetModem netModemEntries OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current

DESCRIPTION "Current Number of NetModem Entries" ::= {netmodem 0 } NetModemEntry ::= SEQUENCE { netdid Unsigned32, nmppid Unsigned32, networkid Unsigned32, nmteleportid Unsigned32, nmid Unsigned32, inroutegroupid Unsigned32, nmname DisplayString, ethipadr DisplayString, dcmslotnum Unsigned32, chassid Unsigned32, typeid INTEGER, nmstate INTEGER, nmwarnings DisplayString, nmalarms DisplayString, geoloc DisplayString} netModemTable OBJECT-TYPE

SYNTAX SEQUENCE OF NetModemEntry MAX-ACCESS not-accessible

::= { netmodem 1 } netModemEntry OBJECT-TYPE

(5)

SYNTAX NetModemEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {netdid} ::= {netModemTable 1 } netdid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { netModemEntry 1 } nmppid OBJECT-TYPE SYNTAX Unsigned32 (0..65535) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {netModemEntry 2 } networkid OBJECT-TYPE SYNTAX Unsigned32 (0..65535) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {netModemEntry 3 } nmteleportid OBJECT-TYPE SYNTAX Unsigned32 (0..65535) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {netModemEntry 4} nmid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION

"Unique ID for an iDIrect Netmodem" ::= { netModemEntry 5 } inroutegroupid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { netModemEntry 6 } nmname OBJECT-TYPE

::= { netModemEntry 7 } ethipadr OBJECT-TYPE

(6)

dcmslotnum OBJECT-TYPE SYNTAX Unsigned32 (0..65535) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {netModemEntry 9} chassid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { netModemEntry 10} typeid OBJECT-TYPE

SYNTAX INTEGER {txHub(0), rxHub(1),txRxHub(2),remote(3),

standby(4),fsRepeater(5),standbyFsRepeater(6)} MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= {netModemEntry 11} nmstate OBJECT-TYPE

::= {netModemEntry 12} nmwarnings OBJECT-TYPE

::= { netModemEntry 13 } nmalarms OBJECT-TYPE

::= { netModemEntry 14 } geoloc OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { netModemEntry 15 } --nmtraps snmpProxyStart NOTIFICATION-TYPE STATUS current

DESCRIPTION "snmpsvr process has started" ::= { nmtraps 1 }

snmpProxyStop NOTIFICATION-TYPE STATUS current

DESCRIPTION "snmpsvr process has stopped" ::= { nmtraps 2 }

upstreamSNR NOTIFICATION-TYPE

(7)

STATUS current

DESCRIPTION "Upstream SNR has gone outside specified limits" ::= { nmtraps 3 }

downstreamSNR NOTIFICATION-TYPE

OBJECTS {trap-level,trap-str,trap-rem-id,trap-sn-id} STATUS current

DESCRIPTION "Downstream SNR has gone outside specified limits" ::= { nmtraps 4 }

tempLimit NOTIFICATION-TYPE

DESCRIPTION "Onboard temperature has gone outside specified limits" ::= { nmtraps 5 }

acqHubModemCRC NOTIFICATION-TYPE

DESCRIPTION "Acquisition CRC count has exceeded upper limit" ::= { nmtraps 6 }

trafficHubModemCRC NOTIFICATION-TYPE

DESCRIPTION "Traffic CRC count has exceeded upper limit" ::= { nmtraps 7 }

latency NOTIFICATION-TYPE

DESCRIPTION "Latency measurement has exceeded upper limit" ::= { nmtraps 8 }

symbolOffset NOTIFICATION-TYPE

DESCRIPTION "Symbol offset has gone outside specified limits" ::= { nmtraps 9 }

ethernetUnplugged NOTIFICATION-TYPE

DESCRIPTION "Local LAN port is not functioning" ::= { nmtraps 10}

ucpLostContact NOTIFICATION-TYPE

DESCRIPTION "Protocol processor has lost contact with a remote" ::= { nmtraps 11}

llDown NOTIFICATION-TYPE

DESCRIPTION "Protocol processor's link layer interface for a remote has gone down"

::= { nmtraps 12}

ucpOutOfNetwork NOTIFICATION-TYPE

(8)

STATUS current

DESCRIPTION "Protocol processor declares a remote out of network" ::= { nmtraps 13}

latTimeout NOTIFICATION-TYPE

DESCRIPTION "Latency measurements are failing" ::= { nmtraps 14}

-- NOTE DO NOT USE 15, its obsoleted for backward compatibility reasons lackHubStats NOTIFICATION-TYPE OBJECTS {trap-level,trap-str,trap-rem-id,trap-sn-id} STATUS current DESCRIPTION "" ::= { nmtraps 16} remoteOffline NOTIFICATION-TYPE OBJECTS {trap-level,trap-str,trap-rem-id,trap-sn-id} STATUS current

DESCRIPTION "The NMS is no longer receiving hub statistics" ::= { nmtraps 17}

rxOverflowFramesHubModem NOTIFICATION-TYPE

DESCRIPTION "Receive Overflow Frames, data lost" ::= { nmtraps 18 }

downstreamPpsOverdrive NOTIFICATION-TYPE

DESCRIPTION "Packets-per-second overdrive between PP and line card" ::= { nmtraps 19 }

backplaneLost10Mhz NOTIFICATION-TYPE

DESCRIPTION "The line card lost the backplane 10 MHz clock signal" ::= { nmtraps 20 }

calibratedTxPower NOTIFICATION-TYPE

DESCRIPTION "Transmit power is above or below the calibrated limit" ::= { nmtraps 21 }

txFrequency NOTIFICATION-TYPE

DESCRIPTION "Transmit frequency is above or below the calibrated limit" ::= { nmtraps 22 }

mobileLostGps NOTIFICATION-TYPE

DESCRIPTION "Mobile remote lost the GPS signal" ::= { nmtraps 23 }

scpcRxErrors NOTIFICATION-TYPE

(9)

::= { nmtraps 24 }

fllDacErrors NOTIFICATION-TYPE

DESCRIPTION "Received FLL DAC error, data lost" ::= { nmtraps 25 }

lcFailure NOTIFICATION-TYPE

DESCRIPTION "Line card is failed" ::= { nmtraps 26 }

--chtraps...

powerAlarm1 NOTIFICATION-TYPE

OBJECTS {trap-level,trap-str,trap-rem-id} STATUS current

DESCRIPTION "Power supply 1 has failed" ::= { chtraps 1 }

fanAlarm NOTIFICATION-TYPE

DESCRIPTION "One of the fans has failed" ::= { chtraps 4 }

chassisDown NOTIFICATION-TYPE

DESCRIPTION "The NMS cannot contact the chassis" ::= { chtraps 5 }

rcmAAlarm NOTIFICATION-TYPE

DESCRIPTION "The Reference Clock Module control timer A is in error" ::= {chtraps 6 }

rcmBAlarm NOTIFICATION-TYPE

DESCRIPTION "The Reference Clock Module control timer B is in error" ::= {chtraps 7 }

--pptraps...

ppStateTrap NOTIFICATION-TYPE

(10)

STATUS current

DESCRIPTION "The NMS has stopped hearing from the protocol processor" ::= { pptraps 1 }

ipstatsTable OBJECT-TYPE

SYNTAX SEQUENCE OF IpstatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { idirectstats 1 } ipstatsEntry OBJECT-TYPE SYNTAX IpstatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {nmdid} ::= {ipstatsTable 1 } IpstatsEntry ::= SEQUENCE { nmdid Unsigned32, rxtcp Counter64, rxudp Counter64, rxicmp Counter64, rxigmp Counter64, rxhttp Counter64, rxother Counter64, txtcp Counter64, txudp Counter64, txicmp Counter64, txigmp Counter64, txhttp Counter64, txother Counter64, ipstatstime DisplayString} nmdid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 1 } rxtcp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 2 } rxudp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 3 } rxicmp OBJECT-TYPE SYNTAX Counter64

(11)

MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 4 } rxigmp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 5 } rxhttp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 6 } rxother OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 7 } txtcp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 8 } txudp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 9 } txicmp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 10 } txigmp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 11 } txhttp OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION ""

(12)

::= { ipstatsEntry 12 } txother OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { ipstatsEntry 13 } ipstatstime OBJECT-TYPE

::= { ipstatsEntry 14}

-- OTA Statistics Table otastatsTable OBJECT-TYPE

SYNTAX SEQUENCE OF OtastatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { idirectstats 2 } otastatsEntry OBJECT-TYPE SYNTAX OtastatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {otanmdid} ::= {otastatsTable 1 } OtastatsEntry ::= SEQUENCE { otanmdid Unsigned32, downstreamreliableBytes Counter64, downstreamunreliableBytes Counter64, downstreamoverheadBytes Counter64, downstreammulticastBytes Counter64, downstreambroadcastBytes Counter64, downstreamtotalKiloBytes Counter64, upstreamreliableBytes Counter64, upstreamunreliableBytes Counter64, upstreamoverheadBytes Counter64, upstreamtotalKiloBytes Counter64, otastatstime DisplayString} otanmdid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 1 } downstreamreliableBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current

(13)

DESCRIPTION "" ::= { otastatsEntry 2 } downstreamunreliableBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 3 } downstreamoverheadBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 4 } downstreammulticastBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 5 } downstreambroadcastBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 6 } downstreamtotalKiloBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 7 } upstreamreliableBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 8 } upstreamunreliableBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 9 } upstreamoverheadBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 10 }

(14)

upstreamtotalKiloBytes OBJECT-TYPE SYNTAX Counter64 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { otastatsEntry 11 } otastatstime OBJECT-TYPE

::= { otastatsEntry 12}

-- Remote UCP Table

remoteucpTable OBJECT-TYPE

SYNTAX SEQUENCE OF RemoteucpEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { idirectstats 4 } remoteucpEntry OBJECT-TYPE SYNTAX RemoteucpEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {ucpnmdid} ::= {remoteucpTable 1 } RemoteucpEntry ::= SEQUENCE { ucpnmdid Unsigned32, upsnr DisplayString, poweradjustment DisplayString, symboloffset Integer32, frequencyoffset Integer32, ucpstatstime DisplayString } ucpnmdid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remoteucpEntry 1 } upsnr OBJECT-TYPE

::= { remoteucpEntry 2 } poweradjustment OBJECT-TYPE

(15)

::= { remoteucpEntry 3 } symboloffset OBJECT-TYPE SYNTAX Integer32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remoteucpEntry 4 } frequencyoffset OBJECT-TYPE SYNTAX Integer32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remoteucpEntry 5 } ucpstatstime OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remoteucpEntry 6} -- Latency Table latencystatsTable OBJECT-TYPE

SYNTAX SEQUENCE OF LatencystatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { idirectstats 5 } latencystatsEntry OBJECT-TYPE SYNTAX LatencystatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {latnmdid} ::= {latencystatsTable 1 } LatencystatsEntry ::= SEQUENCE { latnmdid Unsigned32, latnmname DisplayString, latnmsn Unsigned32, mgmtipaddress DisplayString, latencyvalue DisplayString, networkname DisplayString, latstatstime DisplayString} latnmdid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { latencystatsEntry 1 } latnmname OBJECT-TYPE

(16)

STATUS current DESCRIPTION "" ::= { latencystatsEntry 2 } latnmsn OBJECT-TYPE SYNTAX Unsigned32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { latencystatsEntry 3 } mgmtipaddress OBJECT-TYPE SYNTAX DisplayString(SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { latencystatsEntry 4 } latencyvalue OBJECT-TYPE

::= { latencystatsEntry 5 } networkname OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { latencystatsEntry 6 } latstatstime OBJECT-TYPE

::= { latencystatsEntry 7} -- HUB Statistics Table

hubstatsTable OBJECT-TYPE

SYNTAX SEQUENCE OF HubstatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" ::= { idirectstats 6} hubstatsEntry OBJECT-TYPE SYNTAX HubstatsEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {linecarddid} ::= {hubstatsTable 1 } HubstatsEntry ::= SEQUENCE { linecarddid Unsigned32, linecardsn Unsigned32, txattempts Counter32,

(17)

txbytes Counter32, txerrors Counter32, acqcrcerrors Counter32, trafficcrcerrors Counter32, bursts Counter32, rxbytes Counter32, rxpower DisplayString, dmareset Counter32, tunnelrxerrors Counter32, tunneltxerrors Counter32, hubstatstime DisplayString} linecarddid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 1 } linecardsn OBJECT-TYPE SYNTAX Unsigned32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 2 } txattempts OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 3 } txbytes OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 4 } txerrors OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 5 } acqcrcerrors OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 6 } trafficcrcerrors OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 7 }

(18)

bursts OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 8 } rxbytes OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 9 } rxpower OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 10 } dmareset OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 11 } tunnelrxerrors OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 12 } tunneltxerrors OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { hubstatsEntry 13 } hubstatstime OBJECT-TYPE

::= { hubstatsEntry 14}

-- Remote Status Table

remotestatusTable OBJECT-TYPE

SYNTAX SEQUENCE OF RemotestatusEntry MAX-ACCESS not-accessible

(19)

remotestatusEntry OBJECT-TYPE SYNTAX RemotestatusEntry MAX-ACCESS not-accessible STATUS current DESCRIPTION "" INDEX {rsnmdid} ::= {remotestatusTable 1 } RemotestatusEntry ::= SEQUENCE { rsnmdid Unsigned32, downsnr DisplayString, txpower DisplayString, rsrxpower DisplayString, digitalrxgain DisplayString, flldac Unsigned32, rxcof Integer32, temp DisplayString, tdmlost Counter32, scpcerrors Counter32, timeticks TimeTicks, lanport DisplayString, ethmode DisplayString, ethspeed DisplayString, ethautonegotiate DisplayString, telnetsession DisplayString, isitesession DisplayString, remotestatstime DisplayString} rsnmdid OBJECT-TYPE SYNTAX Unsigned32 (0..4294967295) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 1 } downsnr OBJECT-TYPE

::= { remotestatusEntry 2 } txpower OBJECT-TYPE

::= { remotestatusEntry 3 } rsrxpower OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 4 } digitalrxgain OBJECT-TYPE SYNTAX DisplayString(SIZE (0..255)) MAX-ACCESS read-only

(20)

STATUS current DESCRIPTION "" ::= { remotestatusEntry 5 } flldac OBJECT-TYPE SYNTAX Unsigned32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 6 } rxcof OBJECT-TYPE SYNTAX Integer32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 7 } temp OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 8 } tdmlost OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 9 } scpcerrors OBJECT-TYPE SYNTAX Counter32 MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 10 } timeticks OBJECT-TYPE SYNTAX TimeTicks MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 11 } lanport OBJECT-TYPE

::= { remotestatusEntry 12 } ethmode OBJECT-TYPE

(21)

ethspeed OBJECT-TYPE

::= { remotestatusEntry 14 } ethautonegotiate OBJECT-TYPE

::= { remotestatusEntry 15 } telnetsession OBJECT-TYPE

::= { remotestatusEntry 16 } isitesession OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 17 } remotestatstime OBJECT-TYPE

SYNTAX DisplayString (SIZE (0..255)) MAX-ACCESS read-only STATUS current DESCRIPTION "" ::= { remotestatusEntry 18} resetAllStatTables OBJECT-TYPE SYNTAX Unsigned32 MAX-ACCESS read-write STATUS current

DESCRIPTION " This field will reset all the statistical

tables under the idirectstats OID. To reset the tables SET value = 1."

::= { idirectstats 7} statsStartTime OBJECT-TYPE

STATUS current

DESCRIPTION " This field will have the stats start up time" ::= { idirectstats 8}

chassisGroup OBJECT-GROUP OBJECTS {

chassisid, chassisname,

(22)

chstate, chwarnings, chalarms, chassisEntries } STATUS current DESCRIPTION

"A collection of objects providing Chassis entity." ::= { mibGroups 1 } ppGroup OBJECT-GROUP OBJECTS { ppid, ppteleportid, ppname, ppstate, ppwarnings, ppalarms, ppEntries} STATUS current DESCRIPTION

"A collection of objects providing Protocol Processor entity." ::= { mibGroups 2 } netModemGroup OBJECT-GROUP OBJECTS { netdid, nmppid, networkid, nmteleportid, nmid, inroutegroupid, nmname, ethipadr, dcmslotnum, chassid, typeid, nmstate, nmwarnings, nmalarms, geoloc, netModemEntries} STATUS current DESCRIPTION

"A collection of objects providing NetModem entity." ::= { mibGroups 3 } ipStatsGroup OBJECT-GROUP OBJECTS { nmdid, rxtcp, rxudp, rxicmp, rxigmp, rxhttp, rxother, txtcp, txudp,

(23)

txicmp, txigmp, txhttp, txother, ipstatstime} STATUS current DESCRIPTION

"A collection of objects providing IP Statistics entity." ::= { mibGroups 4 } otaStatsGroup OBJECT-GROUP OBJECTS { otanmdid, downstreamreliableBytes, downstreamunreliableBytes, downstreamoverheadBytes, downstreammulticastBytes, downstreambroadcastBytes, downstreamtotalKiloBytes, upstreamreliableBytes, upstreamunreliableBytes, upstreamoverheadBytes, upstreamtotalKiloBytes, otastatstime} STATUS current DESCRIPTION

"A collection of objects providing OTA Statistics entity." ::= { mibGroups 5 } remoteucpGroup OBJECT-GROUP OBJECTS { ucpnmdid, upsnr, poweradjustment, symboloffset, frequencyoffset, ucpstatstime} STATUS current DESCRIPTION

"A collection of objects providing Remote UCP entity." ::= { mibGroups 6 } latencyStatsGroup OBJECT-GROUP OBJECTS { latnmdid, latnmname, latnmsn, mgmtipaddress, latencyvalue, networkname, latstatstime} STATUS current DESCRIPTION

"A collection of objects providing Latency Statistics entity." ::= { mibGroups 7 }

hubStatsGroup OBJECT-GROUP OBJECTS {

(24)

linecarddid, linecardsn, txattempts, txbytes, txerrors, acqcrcerrors, trafficcrcerrors, bursts, rxbytes, rxpower, dmareset, tunnelrxerrors, tunneltxerrors, hubstatstime} STATUS current DESCRIPTION

"A collection of objects providing HUB Statistics entity." ::= { mibGroups 8 } remotestatusGroup OBJECT-GROUP OBJECTS { rsnmdid, downsnr, txpower, rsrxpower, digitalrxgain, flldac, rxcof, temp, tdmlost, scpcerrors, timeticks, lanport, ethmode, ethspeed, ethautonegotiate, telnetsession, isitesession, remotestatstime} STATUS current DESCRIPTION

"A collection of objects providing remote status entity." ::= { mibGroups 9 } netmodemNotificationsGroup NOTIFICATION-GROUP NOTIFICATIONS { snmpProxyStart, snmpProxyStop, upstreamSNR , downstreamSNR, tempLimit , acqHubModemCRC , trafficHubModemCRC , latency , symbolOffset , ethernetUnplugged , ucpLostContact , llDown , ucpOutOfNetwork , latTimeout ,

(25)

lackHubStats, remoteOffline, rxOverflowFramesHubModem , downstreamPpsOverdrive , backplaneLost10Mhz , calibratedTxPower , txFrequency , mobileLostGps, scpcRxErrors , fllDacErrors , lcFailure } STATUS current DESCRIPTION

"Netmodem Notifications group" ::= { mibGroups 10 } chassisNotificationsGroup NOTIFICATION-GROUP NOTIFICATIONS { powerAlarm1, powerAlarm2 , powerAlarm3 , fanAlarm , chassisDown , rcmAAlarm , rcmBAlarm } STATUS current DESCRIPTION

"Chassis Notifications group" ::= { mibGroups 11 } ppNotificationsGroup NOTIFICATION-GROUP NOTIFICATIONS { ppStateTrap } STATUS current DESCRIPTION

"Protocol Processor Notifications group" ::= { mibGroups 12 } commonGroup OBJECT-GROUP OBJECTS { resetAllStatTables, statsStartTime, trap-rem-desc, trap-sn-id, trap-rem-id, trap-str, trap-level} STATUS current DESCRIPTION

"A collection of common objects used." ::= { mibGroups 13 }
