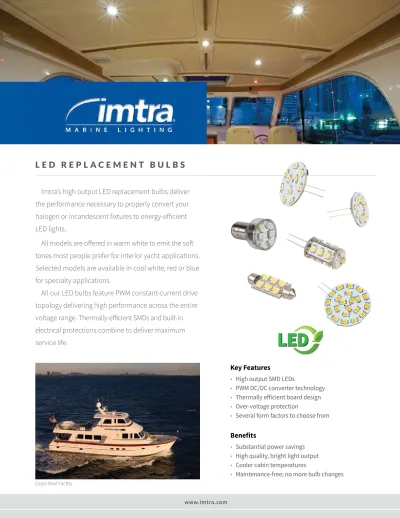

LED LED REPLACEMENT BULBS

(1)

L E D R E P L A C E M E N T B U L B S

Key Features

High output SMD LEDs

•

PWM DC/DC converter technology

•

Thermally efficient board design

•

Over-voltage protection

•

Several form factors to choose from

•

Imtra’s high output LED replacement bulbs deliver

the performance necessary to properly convert your

halogen or incandescent fixtures to energy-efficient

LED lights.

All models are offered in warm white to emit the soft

tones most people prefer for interior yacht applications.

Selected models are available in cool white, red or blue

for specialty applications.

All our LED bulbs feature PWM constant-current drive

topology delivering high performance across the entire

voltage range. Thermally-efficient SMDs and built-in

electrical protections combine to deliver maximum

service life.

LED

Benefits

Substantial power savings

•

High quality, bright light output

•

Cooler cabin temperatures

•

Maintenance-free; no more bulb changes

•

(2)

“X-Beam” Side Pin

Application: mid-size overhead spots and fixtures with side

pin halogen sockets.

Single colors Warm, Cool

Bi-colors Warm/Red, Cool/Blue

Halogen equivalency 15W

Voltage input 10-30VDC

Power consumption 2.2W

Viewing angle 120º

“Corona” Side Pin

Application: large overhead spots or fixtures with side pin

halogen sockets.

Halogen equivalency 20W Voltage input 10-30VDC Power consumption 3.0W Viewing angle 120º 0.35" (8.9mm) 1.37" (34.8mm) 0.42" (10.6mm) 0.44" (11.0mm) 0.35" (8.8mm) 1.18" (30.0mm) Single Color 0.29" (7.5mm) 1.13" (28.7mm) 1.17" (29.6mm) 0.45" (11.4mm) Bi-color

“X-Beam” Back Pin

Application: mid-size overhead spots, fixtures & reading/ chart lights with back pin halogen sockets.

Single colors Warm, Cool, Blue

Viewing angle 120º

G 4 / G U 4 S O C K E T

Our G4/GU4 LED replacement bulbs make excellent upgrades for boats fitted with dual pin halogen bulbs.

“Corona” Back Pin

Application: bunk, reading or chart lights with back pin

halogen sockets.

Halogen equivalency 20W Voltage input 10-30VDC Power consumption 3.0W Viewing angle 120º 1.18" (30.0mm) 0.31" (7.9mm) 1.18" (30.0mm)1.18" (30.0mm)(30.0mm)(25.9mm)1.18"1.02" 1.37" (34.8mm) 1.01" (25.7mm) 0.35" (8.9mm) Tiara Yachts

(3)

Abbracci Galley

G 1 3 ( T 8 - T 1 2 ) S O C K E T

Our 2' and 4' T8 lamps replace legacy T8/T10/T12

fluorescent lamps for superior flicker-free and

“dotless” illumination.

G13 (T8-T12) SOCKET

Single color Cool

Halogen equivalency 13W/25W fluoroescent

Voltage input 100-277VAC; 50/60Hz

Power consumption 10W (2'), 20W (4')

Viewing angle 120º

Application: UL-approved LED retrofit for 2' and 4' T8, T10 and T12 fluorescent lamps, patented rotating end cap.

W E D G E S O C K E T

This micro-designed LED replacement bulb fits

into existing miniature wedge bulb socket.

T-1 3/4 Miniature Wedge

Application: existing wedge sockets.

Single color Warm

Halogen equivalency <5W Voltage input 10-17VDC Power consumption 0.35W Viewing angle 120º 0.22" (5.6mm) 0.87" (22.1mm) 1.44" (36.5mm) 2' (598mm) 4' (1198mm)

(4)

Our “Mini” and “Tower” Bayonet base LED bulbs replace bulbs commonly found in reading and wall lights.

“Mini” Bayonet Base

Single colors Warm, Red

Viewing angle 120º

Application: reading lights. Offered in single and double

contact versions.

B A 1 5 D / B A 1 5 S S O C K E T

1.05" (26.6mm) 0.63" (16.1mm) 1.43" (36.3mm) 0.59" (15.1mm)

“Tower” Omni-Directional Bayonet Base

Application: wall lights. Single color Warm

Halogen equivalency 20W Voltage input 10-30VDC Power consumption 3.0W Viewing angle 360º 0.87" (22.1mm) 1.35" (34.2mm) 2.14" (54.4mm) 0.59" (15.1mm)

E 1 4 S O C K E T

Omni-directional bulb fits European miniature

screw base.

F E S T O O N S O C K E T

Available in 42 or 37mm (SV8.5) sizes.

“Tower” Omni-Directional E14 Base

Application: European-style wall appliqués, sconces, table

lamps.

Single color Warm

Halogen equivalency 20W Voltage input 10-30VDC Power consumption 3.0W Viewing angle 360º 0.87" (22.1mm) 1.35" (34.2mm) 0.67" (17.0mm) 2.40" (60.8mm)

37mm & 42mm Festoon

Application: many courtesy lights, overhead “dome” lights.

Single colors (37mm) Warm

(42mm): Warm, Red, Blue

Halogen equivalency 10W Voltage input 10-30VDC Power consumption 1.5W Viewing angle 120º 37mm Festoon _1.46" (37.0mm) 0.64" (16.2mm) 0.33" (8.5mm) 0.41" (10.3mm) 0.33" (8.5mm) 0.41" (10.3mm) 42mm Festoon _1.65" (42.0mm) 0.64" (16.2mm)

(5)

G 4 / G U 4 S O C K E T

Our G4/GU4 LED replacement bulbs make excellent upgrades for boats fitted with dual pin halogen bulbs.

“Mini” Back Pin

Application: smaller spots & reading/chart lights.

Single colors Warm, Cool, Blue

Halogen equivalency 10W Voltage input 10-30VDC Power consumption 2.2W Viewing angle 120º 0.9" (22.9mm) 1.01" (25.6mm) 0.30" (7.6mm)

“Mini” Side Pin

Application: smaller spots with side pin halogen sockets. Single colors Red, Blue

Halogen equivalency 10W Voltage input 10-30VDC Power consumption 1.5W Viewing angle 120º 0.9" (22.9mm) 0.30" (7.6mm)

Single colors Warm

Halogen equivalency <10W

Viewing angle 360º

Application: wall sconces, appliqués & pendant lights where all-around light output is desired.

Omni-Directional “Mini Tower” Back Pin

0.50" (12.8mm) 1.44" (36.5mm) 0.87" (22.1mm)

Application: Convert your existing #1156 (Single Contact) or #1142 (Double Contact) socket to G4 bi-pin. The swivel feature allows a side pin G4 bulb to be rotated so it is pointing in the correct direction regardless of socket orientation.

G4 Adapters for Bayonet Sockets

(6)

B A Y 1 5 D N A V I G A T I O N

Our “Tower” Navigation LED bulb uses 18 high

output SMD LEDs for 360

º

visibility. Bulbs exceed

COLREGS 3nm visibility requirements for vessels

up to 20m.*

Navigation

Application: all-around or anchor lights. Replaces Aqua Signal NO90005, Hella NO78290, Perko 0375 12V 10W. Use warm white with colored lens fixtures.

Viewing angle 360º

G U 5 . 3 S O C K E T

High output LEDs combined with special “4-up”

optical lens provide uniform and satisfying

illumination.

MR16 Back Pin

Application: uniform and satisfying illumination replacing 20W or 35W halogens.

Power consumption 5W

Viewing angle 30º

*Navigation lights are tested and approved as a fixture with the original equipment source (bulb) already installed. The operator of vessel assumes all liability when using this product as a replacement for the original approved light source. The use of this LED light source in individual navigation fixtures has not been evaluated for compliance to USCG, COLREG or any other navigational lighting standards or regulations.

1.97" (50.1mm) 1.81" (46.0mm) 0.87" (22.1mm) 1.35" (34.2mm) 2.14" (54.4mm) 0.59" (15.1mm)

Imtra Corporation

30 Samuel Barnet Boulevard, New Bedford, MA 02745

508.995.7000
