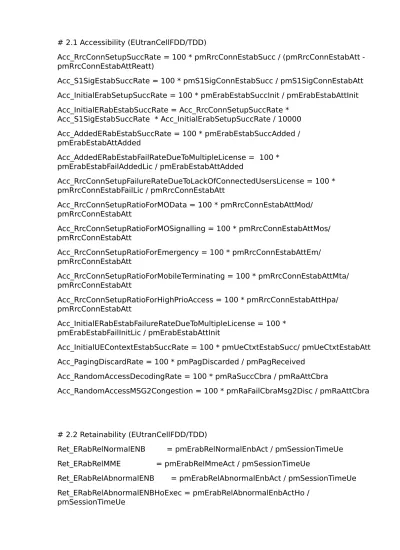

# 2.1 Accessibility (EUtranCellFDD/TDD)
Acc_RrcConnSetupSuccRate = 100 * pmRrcConnEstabSucc / (pmRrcConnEstabAtt - pmRrcConnEstabAttReatt)
Acc_S1SigEstabSuccRate = 100 * pmS1SigConnEstabSucc / pmS1SigConnEstabAtt Acc_InitialErabSetupSuccRate = 100 * pmErabEstabSuccInit / pmErabEstabAttInit Acc_InitialERabEstabSuccRate = Acc_RrcConnSetupSuccRate * Acc_S1SigEstabSuccRate * Acc_InitialErabSetupSuccRate / 10000 Acc_AddedERabEstabSuccRate = 100 * pmErabEstabSuccAdded / pmErabEstabAttAdded Acc_AddedERabEstabFailRateDueToMultipleLicense = 100 * pmErabEstabFailAddedLic / pmErabEstabAttAdded Acc_RrcConnSetupFailureRateDueToLackOfConnectedUsersLicense = 100 * pmRrcConnEstabFailLic / pmRrcConnEstabAtt Acc_RrcConnSetupRatioForMOData = 100 * pmRrcConnEstabAttMod/ pmRrcConnEstabAtt Acc_RrcConnSetupRatioForMOSignalling = 100 * pmRrcConnEstabAttMos/ pmRrcConnEstabAtt Acc_RrcConnSetupRatioForEmergency = 100 * pmRrcConnEstabAttEm/ pmRrcConnEstabAtt Acc_RrcConnSetupRatioForMobileTerminating = 100 * pmRrcConnEstabAttMta/ pmRrcConnEstabAtt Acc_RrcConnSetupRatioForHighPrioAccess = 100 * pmRrcConnEstabAttHpa/ pmRrcConnEstabAtt Acc_InitialERabEstabFailureRateDueToMultipleLicense = 100 * pmErabEstabFailInitLic / pmErabEstabAttInit
Acc_InitialUEContextEstabSuccRate = 100 * pmUeCtxtEstabSucc/ pmUeCtxtEstabAtt Acc_PagingDiscardRate = 100 * pmPagDiscarded / pmPagReceived
Acc_RandomAccessDecodingRate = 100 * pmRaSuccCbra / pmRaAttCbra
Acc_RandomAccessMSG2Congestion = 100 * pmRaFailCbraMsg2Disc / pmRaAttCbra
# 2.2 Retainability (EUtranCellFDD/TDD)
Ret_ERabRelNormalENB = pmErabRelNormalEnbAct / pmSessionTimeUe Ret_ERabRelMME = pmErabRelMmeAct / pmSessionTimeUe
Ret_ERabRelAbnormalENB = pmErabRelAbnormalEnbAct / pmSessionTimeUe Ret_ERabRelAbnormalENBHoExec = pmErabRelAbnormalEnbActHo /
Ret_ERabRelAbnormalENBHoPrep = pmErabRelAbnormalEnbActHpr / pmSessionTimeUe Ret_ERabRelAbnormalENBUeLost = pmErabRelAbnormalEnbActUeLost / pmSessionTimeUe Ret_ERabRelAbnormalENBTnFail = pmErabRelAbnormalEnbActTnFail / pmSessionTimeUe Ret_ERabRelAbnormalENBCdt = pmErabRelAbnormalEnbActCdt / pmSessionTimeUe
Ret_ErabRelAbnormal = Ret_ERabRelMME + Ret_ERabRelAbnormalENB Ret_ERabRetainability = Ret_ERabRelAbnormalENB + Ret_ERabRelMME + Ret_ERabRelNormalENB
Ret_MinPerDrop = 60 / Ret_ERabRetainability
Ret_ERabRetainabilityRate = 100 * (pmErabRelAbnormalEnbAct +
pmErabRelAbnormalMmeAct) / (pmErabRelMme + pmErabRelNormalEnb + pmErabRelAbnormalEnb)
Ret_UeCtxtRelAbnormal = (pmUeCtxtRelAbnormalEnbAct + pmUeCtxtRelMmeAct) / pmSessionTimeUe
Ret_UeCtxtRelAbnormal_2 = 100 * pmUeCtxtRelAbnormalEnbAct / (pmUeCtxtRelMme + pmUeCtxtRelNormalEnb + pmUeCtxtRelAbnormalEnb) Ret_UeCtxtRelMME = pmUeCtxtRelMmeAct / pmSessionTimeUe
Ret_UeCtxtRelAbnormalENB = pmUeCtxtRelAbnormalEnbAct / pmSessionTimeUe Ret_UeCtxtRelAbnormalENBHoExec = pmUeCtxtRelAbnormalEnbActHo / pmSessionTimeUe Ret_UeCtxtRelAbnormalENBUeLost = pmUeCtxtRelAbnormalEnbActUeLost / pmSessionTimeUe Ret_UeCtxtRelAbnormalENBTnFail = pmUeCtxtRelAbnormalEnbActTnFail / pmSessionTimeUe Ret_UeCtxtRelAbnormalENBCdt = pmUeCtxtRelAbnormalEnbActCdt / pmSessionTimeUe Ret_ERabDrop = 100 * (pmErabRelAbnormalEnbAct +
pmErabRelAbnormalMmeAct) / (pmErabEstabSuccInit + pmErabEstabSuccAdded) Ret_ERabDropENB = 100 * pmErabRelAbnormalEnbAct / (pmErabEstabSuccInit + pmErabEstabSuccAdded)
Ret_ERabDropMME = 100 * pmErabRelAbnormalMmeAct / (pmErabEstabSuccInit + pmErabEstabSuccAdded)
#Ratio of UE Ctxt Drop per Handover failures pmUeCtxtRelAbnormalEnbActHo/ (pmHoExecAttLteIntraF - pmHoExecSuccLteIntraF) How many of the failed handovers lead to a UE Context drop.
#Ratio of UE Context drops and Abnormal UE Context Releases (pmUeCtxtRelAbnormalEnbAct+pmUeCtxtMmeAct)/
(pmUeCtxtRelAbnormalEnb+pmUeCtxtMme)
#Ratio of eNB initated UE Context drops and Abnormal UE Context Releases (pmUeCtxtRelAbnormalEnbAct)/(pmUeCtxtRelAbnormalEnb)
#Ratio of MME initated UE Context drops and Abnormal UE Context Releases (pmUeCtxtMmeAct)/(pmUeCtxtMme)
# 2.3 Integrity (EUtranCellFDD/TDD)
Int_DlThroughput_kbps = 1000 * (pmPdcpVolDlDrb - pmPdcpVolDlDrbLastTTI + pmPdcpVolDlDrbTransUm) / pmUeThpTimeDl
Int_UlThroughput_kbps = 1000 * pmUeThpVolUl / pmUeThpTimeUl Int_DlLatency = pmPdcpLatTimeDl / pmPdcpLatPktTransDl
Int_DlPacketErrorLoss = 100 * (pmPdcpPktDiscDlPelr + pmPdcpPktDiscDlPelrUu + pmPdcpPktDiscDlHo + pmPdcpPktDiscDlEth) / (pmPdcpPktReceivedDl -
pmPdcpPktFwdDl + pmPdcpPktDiscDlEth)
Int_UlPacketLoss = 100 * pmPdcpPktLostUl / ( pmPdcpPktLostUl + pmPdcpPktReceivedUl)
Int_ActiveUEsDl = pmActiveUeDlSum / pmSchedActivityCellDl Int_ActiveDRBsDl = pmActiveDrbDlSum / pmSchedActivityCellDl Int_ActiveUEsUl = pmActiveUeUlSum / pmSchedActivityCellUl Int_ActiveDRBsUl = pmActiveDrbUlSum / pmSchedActivityCellUl Int_MacHarqDlSuccRate = 100 * (pmMacHarqDlAckQpsk +
pmMacHarqDlAck16qam + pmMacHarqDlAck64qam) / (pmMacHarqDlAckQpsk + pmMacHarqDlNackQpsk + pmMacHarqDlAck16qam + pmMacHarqDlNack16qam + pmMacHarqDlAck64qam + pmMacHarqDlNack64qam )
Int_MacHarqUlSuccRate = 100 * (pmMacHarqUlSuccQpsk +
pmMacHarqUlSucc16qam ) / (pmMacHarqUlSuccQpsk + pmMacHarqUlSucc16qam + pmMacHarqUlFailQpsk + pmMacHarqUlFail16qam)
Int_RlcArqDlSuccRate = 100 * pmRlcArqDlAck / (pmRlcArqDlAck + pmRlcArqDlNack)
Int_RlcArqUlSuccRate = 100 * pmRlcArqUlAck / (pmRlcArqUlAck+pmRlcArqUlNack)
Int_DlRadioThroughput = pmRadioThpVolDl / pmRadioThpResDl Int_UlRadioThroughput = pmRadioThpVolUl / pmRadioThpResUl
Int_DlRadioMeasCqiDistr = pmRadioUeRepCqiDistr Int_DlRadioMeasTxRankDistr = pmRadioTxRankDistr
Int_DlRadioMeasUeReportedTxRankDistr = pmRadioUeRepRankDistr
Int_AverageDlRlcDelay = pmRlcDelayTimeDl / pmRlcDelayPktTransDl Int_AverageDlMacDelay = pmMacDelayTimeDl / (pmMacHarqDlAckQpsk + pmMacHarqDlAck16qam + pmMacHarqDlAck64qam)
Int_DlPacketLossDueToHo = pmPdcpPktDiscDlHo/ pmPdcpPktReceivedDl Int_RadioRecInterferencePwr_fW = WeightedAverage(pmRadioRecInterferencePwr, [0.79432,0.89716,1.12946,1.42191,1.79008,2.25357,2.83708,3.57167,4.49647,5.6 6072,11.07925,27.82982,69.90536,175.59432,441.07,630.95]) Int_RadioRecInterferencePwr = 10*log10(Int_RadioRecInterferencePwr_fW / 1000000000000) Int_RadioRecInterferencePucchPwr_fW = WeightedAverage(pmRadioRecInterferencePwrPucch, [0.79432,0.89716,1.12946,1.42191,1.79008,2.25357,2.83708,3.57167,4.49647,5.6 6072,11.07925,27.82982,69.90536,175.59432,441.07,630.95]) Int_RadioRecInterferencePucchPwr = 10*log10(Int_RadioRecInterferencePucchPwr_fW / 1000000000000) Int_RadioUeRepCqiDistr = WeightedAverage(pmRadioUeRepCqiDistr, [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]) Int_SinrPucchDistr = WeightedAverage(pmSinrPucchDistr,[-15,-13.5,-10.5,-7.5,-4.5,-1.5,1.5,3]) Int_SinrPuschDistr = WeightedAverage(pmSinrPuschDistr,[-5,-3.5,0,4,8,12,15.5,17])
#Packet Error Loss rate in RLC/PDCP for packets where no transmission have started pmPdcpPktDiscDlPelr/ pmPdcpPktReceivedDl
#Packet Uu Loss rate in RLC/PDCP for packets where transmission have started pmPdcpPktDiscDlPelrUu/ pmPdcpPktReceivedDl
#UL radio measurement, N+I distribution pmRadioRecInterferencePwr #UL radio measurement, Power restriction ratio for uplink transport blocks pmRadioTbsPwrRestricted /pmRadioTbsPwrUnrestricted
#Interference per PRB in dBm
Int_RadioRecInterferencePwrPrb1 = 10*log10(pmRadioRecInterferencePwrPrb1 * . 00000000000005684341886080801486968994140625 / (900000 / 40) )
Int_RadioRecInterferencePwrPrb4 = 10*log10(pmRadioRecInterferencePwrPrb4 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb5 = 10*log10(pmRadioRecInterferencePwrPrb5 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb6 = 10*log10(pmRadioRecInterferencePwrPrb6 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb7 = 10*log10(pmRadioRecInterferencePwrPrb7 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb8 = 10*log10(pmRadioRecInterferencePwrPrb8 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb9 = 10*log10(pmRadioRecInterferencePwrPrb9 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb10 = 10*log10(pmRadioRecInterferencePwrPrb10 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb11 = 10*log10(pmRadioRecInterferencePwrPrb11 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb12 = 10*log10(pmRadioRecInterferencePwrPrb12 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb13 = 10*log10(pmRadioRecInterferencePwrPrb13 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb14 = 10*log10(pmRadioRecInterferencePwrPrb14 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb15 = 10*log10(pmRadioRecInterferencePwrPrb15 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb16 = 10*log10(pmRadioRecInterferencePwrPrb16 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb17 = 10*log10(pmRadioRecInterferencePwrPrb17 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb18 = 10*log10(pmRadioRecInterferencePwrPrb18 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb19 = 10*log10(pmRadioRecInterferencePwrPrb19 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb20 = 10*log10(pmRadioRecInterferencePwrPrb20 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb21 = 10*log10(pmRadioRecInterferencePwrPrb21 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb22 = 10*log10(pmRadioRecInterferencePwrPrb22 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb23 = 10*log10(pmRadioRecInterferencePwrPrb23 * . 00000000000005684341886080801486968994140625 / (900000 / 40) )
Int_RadioRecInterferencePwrPrb24 = 10*log10(pmRadioRecInterferencePwrPrb24 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb25 = 10*log10(pmRadioRecInterferencePwrPrb25 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb26 = 10*log10(pmRadioRecInterferencePwrPrb26 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb27 = 10*log10(pmRadioRecInterferencePwrPrb27 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb28 = 10*log10(pmRadioRecInterferencePwrPrb28 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb29 = 10*log10(pmRadioRecInterferencePwrPrb29 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb30 = 10*log10(pmRadioRecInterferencePwrPrb30 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb31 = 10*log10(pmRadioRecInterferencePwrPrb31 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb32 = 10*log10(pmRadioRecInterferencePwrPrb32 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb33 = 10*log10(pmRadioRecInterferencePwrPrb33 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb34 = 10*log10(pmRadioRecInterferencePwrPrb34 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb35 = 10*log10(pmRadioRecInterferencePwrPrb35 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb36 = 10*log10(pmRadioRecInterferencePwrPrb36 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb37 = 10*log10(pmRadioRecInterferencePwrPrb37 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb38 = 10*log10(pmRadioRecInterferencePwrPrb38 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb39 = 10*log10(pmRadioRecInterferencePwrPrb39 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb40 = 10*log10(pmRadioRecInterferencePwrPrb40 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb41 = 10*log10(pmRadioRecInterferencePwrPrb41 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb42 = 10*log10(pmRadioRecInterferencePwrPrb42 * . 00000000000005684341886080801486968994140625 / (900000 / 40) )
Int_RadioRecInterferencePwrPrb44 = 10*log10(pmRadioRecInterferencePwrPrb44 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb45 = 10*log10(pmRadioRecInterferencePwrPrb45 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb46 = 10*log10(pmRadioRecInterferencePwrPrb46 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb47 = 10*log10(pmRadioRecInterferencePwrPrb47 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb48 = 10*log10(pmRadioRecInterferencePwrPrb48 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb49 = 10*log10(pmRadioRecInterferencePwrPrb49 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb50 = 10*log10(pmRadioRecInterferencePwrPrb50 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb51 = 10*log10(pmRadioRecInterferencePwrPrb51 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb52 = 10*log10(pmRadioRecInterferencePwrPrb52 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb53 = 10*log10(pmRadioRecInterferencePwrPrb53 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb54 = 10*log10(pmRadioRecInterferencePwrPrb54 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb55 = 10*log10(pmRadioRecInterferencePwrPrb55 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb56 = 10*log10(pmRadioRecInterferencePwrPrb56 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb57 = 10*log10(pmRadioRecInterferencePwrPrb57 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb58 = 10*log10(pmRadioRecInterferencePwrPrb58 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb59 = 10*log10(pmRadioRecInterferencePwrPrb59 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb60 = 10*log10(pmRadioRecInterferencePwrPrb60 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb61 = 10*log10(pmRadioRecInterferencePwrPrb61 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb62 = 10*log10(pmRadioRecInterferencePwrPrb62 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb63 = 10*log10(pmRadioRecInterferencePwrPrb63 * . 00000000000005684341886080801486968994140625 / (900000 / 40) )
Int_RadioRecInterferencePwrPrb64 = 10*log10(pmRadioRecInterferencePwrPrb64 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb65 = 10*log10(pmRadioRecInterferencePwrPrb65 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb66 = 10*log10(pmRadioRecInterferencePwrPrb66 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb67 = 10*log10(pmRadioRecInterferencePwrPrb67 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb68 = 10*log10(pmRadioRecInterferencePwrPrb68 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb69 = 10*log10(pmRadioRecInterferencePwrPrb69 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb70 = 10*log10(pmRadioRecInterferencePwrPrb70 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb71 = 10*log10(pmRadioRecInterferencePwrPrb71 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb72 = 10*log10(pmRadioRecInterferencePwrPrb72 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb73 = 10*log10(pmRadioRecInterferencePwrPrb73 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb74 = 10*log10(pmRadioRecInterferencePwrPrb74 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb75 = 10*log10(pmRadioRecInterferencePwrPrb75 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb76 = 10*log10(pmRadioRecInterferencePwrPrb76 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb77 = 10*log10(pmRadioRecInterferencePwrPrb77 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb78 = 10*log10(pmRadioRecInterferencePwrPrb78 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb79 = 10*log10(pmRadioRecInterferencePwrPrb79 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb80 = 10*log10(pmRadioRecInterferencePwrPrb80 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb81 = 10*log10(pmRadioRecInterferencePwrPrb81 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb82 = 10*log10(pmRadioRecInterferencePwrPrb82 * . 00000000000005684341886080801486968994140625 / (900000 / 40) )
Int_RadioRecInterferencePwrPrb84 = 10*log10(pmRadioRecInterferencePwrPrb84 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb85 = 10*log10(pmRadioRecInterferencePwrPrb85 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb86 = 10*log10(pmRadioRecInterferencePwrPrb86 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb87 = 10*log10(pmRadioRecInterferencePwrPrb87 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb88 = 10*log10(pmRadioRecInterferencePwrPrb88 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb89 = 10*log10(pmRadioRecInterferencePwrPrb89 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb90 = 10*log10(pmRadioRecInterferencePwrPrb90 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb91 = 10*log10(pmRadioRecInterferencePwrPrb91 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb92 = 10*log10(pmRadioRecInterferencePwrPrb92 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb93 = 10*log10(pmRadioRecInterferencePwrPrb93 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb94 = 10*log10(pmRadioRecInterferencePwrPrb94 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb95 = 10*log10(pmRadioRecInterferencePwrPrb95 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb96 = 10*log10(pmRadioRecInterferencePwrPrb96 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb97 = 10*log10(pmRadioRecInterferencePwrPrb97 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb98 = 10*log10(pmRadioRecInterferencePwrPrb98 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb99 = 10*log10(pmRadioRecInterferencePwrPrb99 * . 00000000000005684341886080801486968994140625 / (900000 / 40) ) Int_RadioRecInterferencePwrPrb100 = 10*log10(pmRadioRecInterferencePwrPrb100 * .00000000000005684341886080801486968994140625 / (900000 / 40) ) # 2.4 Mobility (EUtranRelation)
Mob_HoPrepSuccRate = 100 * (pmHoPrepSuccLteIntraF + pmHoPrepSuccLteInterF) / (pmHoPrepAttLteIntraF + pmHoPrepAttLteInterF)
Mob_HoExecSuccRate = 100 * (pmHoExeSuccLteIntraF + pmHoExeSuccLteInterF) / (pmHoExeAttLteIntraF + pmHoExeAttLteInterF)
Mob_HoPrepRejInLicConnUsers = pmHoPrepRejInLicConnUsers Mob_HoPrepRejInLicMob = pmHoPrepRejInLicMob
Mob_HoPrepRejInLicMultiErab = pmHoPrepRejInLicMultiErab Mob_AnrNeighbrelAdd = pmAnrNeighbrelAdd
Mob_AnrNeighbrelRemove = pmAnrNeighbrelRem
Mob_SessionContinuityRel = pmUeCtxtRelSCCdma + pmUeCtxtRelSCEUtra + pmUeCtxtRelSCWcdma
#Mob_RatioOfReceivedMeasurementReportsThatLeadToHandoverPreparation = pmBestCellEvalReport / pmHoPrepAttLteIntraF
Mob_IRAT_Redirect = 100 * (pmUeCtxtRelSCCdma + pmUeCtxtRelSCGsm + pmUeCtxtRelSCWcdma) / pmUeCtxtEstabSucc
# 2.5 Availability (EUtranCellFDD/TDD)
Av_CellAvail = 100 * ( 900 - ( pmCellDowntimeAuto + pmCellDowntimeMan ) ) / 900 Av_CellDownMan = 100 * pmCellDowntimeMan / 900
Av_CellDownAuto = 100 * pmCellDowntimeAuto / 900
# Resource usage
Res_AvgNrOfRrcConnectedUsers = pmRrcConnLevSum / pmRrcConnLevSamp Res_PeakNrOfRrcConnectedUsers = pmRrcConnMax / pmRopCounter
Res_LicConnectedUsersDistr = pmLicConnectedUsersDistr Res_AverageLicConnectedUsers = pmLicConnectedUsersActual
Res_TimeCongestionLicConnectedUsers = pmLicConnectedUsersTimeCong Res_LicConnectedUsersCapacityRatio = pmLicConnectedUsersLicense / pmLicConnectedUsersHardLimit
#Res_AvgDlVolPerCell = (pmPdcpVolDlDrb + pmPdcpVolDlSrb) / M #Res_AvgDlVolPerCell = (pmPdcpVolUlDrb + pmPdcpVolUlSrb) / M #Res_AvgNrERabs = pmErabLevSum / pmErabLevSamp
#Res_AvgUeSessionTime = pmSessionTimeUe / M #Res_AvgDrbSessionTime = pmSessionTimeDrb / M
Oth_DrbVsUeSessionTimeRatio = pmSessionTimeDrb / pmSessionTimeUe Oth_Msg3RachRrcConsistencyCheck = pmRrcConnEstabAtt / pmRaSuccCbra Oth_UeCtxtEstablishmentAndReleaseConsistency = (pmUeCtxtRelMme +
pmUeCtxtRelNormalEnb + pmUeCtxtRelAbnormalEnb + pmUeCtxtRelSCCdma + pmUeCtxtRelSCEUtra + pmUeCtxtRelSCWcdma) / pmUeCtxtEstabSucc
#Ret_ErabDrop per QCI
De_ErabRelAbnormalEnbActQci = decompressArray(pmErabRelAbnormalEnbActQci) De_ErabRelAbnormalEnbQci = decompressArray(pmErabRelAbnormalEnbQci) De_ErabRelAbnormalMmeActQci = decompressArray(pmErabRelAbnormalMmeActQci) De_ErabRelMmeQci = decompressArray(pmErabRelMmeQci) De_ErabRelNormalEnbQci = decompressArray(pmErabRelNormalEnbQci) Ret_ERabDrop_Qci_1 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[1] + @{De_ErabRelAbnormalMmeActQci}[1] ) / ( @{De_ErabRelAbnormalEnbQci}[1] + @{De_ErabRelMmeQci}[1] + @{De_ErabRelNormalEnbQci}[1] ) Ret_ERabDrop_Qci_2 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[2] + @{De_ErabRelAbnormalMmeActQci}[2] ) / ( @{De_ErabRelAbnormalEnbQci}[2] + @{De_ErabRelMmeQci}[2] + @{De_ErabRelNormalEnbQci}[2] ) Ret_ERabDrop_Qci_3 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[3] + @{De_ErabRelAbnormalMmeActQci}[3] ) / ( @{De_ErabRelAbnormalEnbQci}[3] + @{De_ErabRelMmeQci}[3] + @{De_ErabRelNormalEnbQci}[3] ) Ret_ERabDrop_Qci_4 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[4] + @{De_ErabRelAbnormalMmeActQci}[4] ) / ( @{De_ErabRelAbnormalEnbQci}[4] + @{De_ErabRelMmeQci}[4] + @{De_ErabRelNormalEnbQci}[4] ) Ret_ERabDrop_Qci_5 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[5] + @{De_ErabRelAbnormalMmeActQci}[5] ) / ( @{De_ErabRelAbnormalEnbQci}[5] + @{De_ErabRelMmeQci}[5] + @{De_ErabRelNormalEnbQci}[5] ) Ret_ERabDrop_Qci_6 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[6] + @{De_ErabRelAbnormalMmeActQci}[6] ) / ( @{De_ErabRelAbnormalEnbQci}[6] + @{De_ErabRelMmeQci}[6] + @{De_ErabRelNormalEnbQci}[6] ) Ret_ERabDrop_Qci_7 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[7] + @{De_ErabRelAbnormalMmeActQci}[7] ) / ( @{De_ErabRelAbnormalEnbQci}[7] + @{De_ErabRelMmeQci}[7] + @{De_ErabRelNormalEnbQci}[7] ) Ret_ERabDrop_Qci_8 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[8] + @{De_ErabRelAbnormalMmeActQci}[8] ) / ( @{De_ErabRelAbnormalEnbQci}[8] + @{De_ErabRelMmeQci}[8] + @{De_ErabRelNormalEnbQci}[8] ) Ret_ERabDrop_Qci_9 = 100 * ( @{De_ErabRelAbnormalEnbActQci}[9] + @{De_ErabRelAbnormalMmeActQci}[9] ) / ( @{De_ErabRelAbnormalEnbQci}[9] + @{De_ErabRelMmeQci}[9] + @{De_ErabRelNormalEnbQci}[9] )
