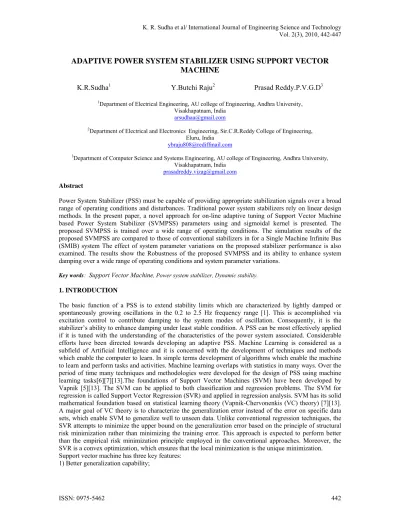

ADAPTIVE POWER SYSTEM STABILIZER USING SUPPORT VECTOR
MACHINE
K.R.Sudha1 Y.Butchi Raju2 Prasad Reddy.P.V.G.D3
1Department of Electrical Engineering, AU college of Engineering, Andhra University,
Visakhapatnam, India [email protected]
2Department of Electrical and Electronics Engineering, Sir.C.R.Reddy College of Engineering,
Eluru, India [email protected]
3Department of Computer Science and Systems Engineering, AU college of Engineering, Andhra University,
Visakhapatnam, India [email protected]
Abstract
Power System Stabilizer (PSS) must be capable of providing appropriate stabilization signals over a broad range of operating conditions and disturbances. Traditional power system stabilizers rely on linear design methods. In the present paper, a novel approach for on-line adaptive tuning of Support Vector Machine based Power System Stabilizer (SVMPSS) parameters using and sigmoidal kernel is presented. The proposed SVMPSS is trained over a wide range of operating conditions. The simulation results of the proposed SVMPSS are compared to those of conventional stabilizers in for a Single Machine Infinite Bus (SMIB) system The effect of system parameter variations on the proposed stabilizer performance is also examined. The results show the Robustness of the proposed SVMPSS and its ability to enhance system damping over a wide range of operating conditions and system parameter variations.
Key words: Support Vector Machine, Power system stabilizer, Dynamic stability.
1. INTRODUCTION
The basic function of a PSS is to extend stability limits which are characterized by lightly damped or spontaneously growing oscillations in the 0.2 to 2.5 Hz frequency range [1]. This is accomplished via excitation control to contribute damping to the system modes of oscillation. Consequently, it is the stabilizer’s ability to enhance damping under least stable condition. A PSS can be most effectively applied if it is tuned with the understanding of the characteristics of the power system associated. Considerable efforts have been directed towards developing an adaptive PSS. Machine Learning is considered as a subfield of Artificial Intelligence and it is concerned with the development of techniques and methods which enable the computer to learn. In simple terms development of algorithms which enable the machine to learn and perform tasks and activities. Machine learning overlaps with statistics in many ways. Over the period of time many techniques and methodologies were developed for the design of PSS using machine learning tasks[6][7][13].The foundations of Support Vector Machines (SVM) have been developed by Vapnik [5][13]. The SVM can be applied to both classification and regression problems. The SVM for regression is called Support Vector Regression (SVR) and applied in regression analysis. SVM has its solid mathematical foundation based on statistical learning theory (Vapnik-Chervonenkis (VC) theory) [7][13]. A major goal of VC theory is to characterize the generalization error instead of the error on specific data sets, which enable SVM to generalize well to unseen data. Unlike conventional regression techniques, the SVR attempts to minimize the upper bound on the generalization error based on the principle of structural risk minimization rather than minimizing the training error. This approach is expected to perform better than the empirical risk minimization principle employed in the conventional approaches. Moreover, the SVR is a convex optimization, which ensures that the local minimization is the unique minimization. Support vector machine has three key features:
3) Kernel functions for nonlinearity.
There are many linear classifiers (hyper planes) that separate the data. However only one of these achieves maximum separation.
Advantages and Limitations of SVR:
Support vector regression (SVR) has many attractive features: 1. It has the ability to model non-linear relationships;
2. It has the ability to select only the necessary data points (support vector) to solve the regression function, which results in a sparse solution;
3. The regression function is related to a quadratic problem (QP) which has a unique global solution in general;
4 VC theory characterizes properties the generalization error which enable SVR to generalize well to unseen data;
5 The SVR technique can be used when there are few samples than variables, which is also called small n large p problems .
Power systems is a highly non linear system operating over a wide range of operating conditions. The ability of SVM to model non-linear relationships is taken advantage of in designing a PSS to operate over wide range of operating conditions.
The dynamic responses following perturbation in excitation and perturbation in torque for a single machine connected to infinite bus bar are observed.
2. SYSTEM MODEL
The small perturbation block diagram of a synchronous machine connected to infinite bus system [2] is considered. The exciter is assumed to be of the thyristor type. Amortisseur effects, armature resistance, armature p terms and saturation are neglected. The linearized model parameters K1 to K6 vary with operating conditions with the exception of K3. The stabilization problem is to design a stabilizer, which provides supplementary stabilizing signals to increase the damping torque of the system.
An infinite bus is a source of constant frequency and voltage either in magnitude and angle. A schematic representation of this system is shown in fig 1.
Fig1 Single Machine Connected to infinite busbar
Conventional Lead-Lag PSS (CPSS):
Electromechanical oscillations of generator are damped by compensator that one type of it is shown in fig 3.
Fig.3 Block diagram of Conventional PSS
Where KS is the stabilization gain,
TW is the washout time constant,
T1 is the transient time constant and
T2 is the steady state time constant
Generally, we take Tw=2 and T2=0.05
3. KERNEL FUNCTION IN SUPPORT VECTOR MACHINE:
.
The idea of the kernel function is to enable operations to be performed in the input space rather than the potentially high dimensional feature space. Hence the inner product does not need to be evaluated in the feature space. We want the function to perform mapping of the attributes of the input space to the feature space. The kernel function plays a critical role in SVM and its performance. It is based upon reproducing Kernel Hilbert Spaces [10] [12][13].
) x
φ(
φ(x), ) x
K(x, (1)
If K is a symmetric positive definite function, which satisfies Mercer’s Conditions,
) 3 ( L g , 0 x )dxd x g(x)g( ) x K(x,
(2) 0
α
) x ( (x)φ φ α
) x K(x,
2 m m
m m
m
Then the kernel represents a legitimate inner product in feature space. The training set is not linearly separable in an input space. The training set is linearly separable in the feature space.
Choosing Kernel and Corresponding Parameters
1] Polynomial: A polynomial mapping is a popular method for non-linear modeling. The second kernel is usually preferable as it avoids problems with the hessian becoming Zero.
d
'
x
,
x
)
'
x
,
x
(
K
(4))
1
'
x
,
x
(
)
'
x
,
x
(
K
d
(5)2] Gaussian Radial Basis Function: Radial basis functions most commonly with a Gaussian form
2 2 2σ || x' x || exp ) x'
K(x, (6)
3] Exponential Radial Basis Function: A radial basis function produces a piecewise linear solution which
can be attractive when discontinuities are acceptable.
2 2σ || x' x || exp ) x'
K(x, (7)
Sigmoidal Kernal: The long established MLP, with a single hidden layer, also has a valid kernel representation ) ) x , x ( tanh( ) ' x , x (
K (8)
for certain values of the scale, , and offset, , parameters. Here the Support Vectors correspond to the first layer and the Lagrange multipliers to the weights.
SVM and non-Positive Semi -Definite (PSD) sigmoid kernels. In the support vector machines (SVM) framework , nonlinear classifiers require the use of a symmetric and positive semi-definite (PSD) kernel, which transforms the input space samples into a high-dimensional (possibly infinite) feature space, in which a linear classification is performed [11]. Many nonlinear kernels are available, such as linear, polynomial, Gaussian, or sigmoid-shaped functions. The sigmoid kernel has been proposed theoretically for SVM due to its origin from neural networks but, to date, it has not been extensively used in practice because it becomes a PSD kernel for only some combinations of its free parameters (slope and bias of the function) [2,12]. Given that sigmoidal activation functions have been widely proved to provide useful global classifiers in neural networks, its inclusion in the SVM framework is an interesting and open issue. In the present paper, the sigmoidal function is utilized for the design of PSS to operate over a wide range of operating conditions.
4. NUMERICAL SIMULATION:
To evaluate the stability of the SVM PSS over a wide range of operating conditions, we consider a typical example of a generator connected to infinite bus bar [2][8][9] with the data
xd=1.6, xd’=0.32, xq=1.55, Tdo=6,
H=5, xe=0.4, Te=. 05, Ke=200.
0 1 2 3 4 5 6 7 8 9 10 0
0.02 0.04 0.06 0.08 0.1 0.12
Time in Secs
c
h
an
ge
i
n d
e
lt
a
Fig.3 . Rotor angle response for (P,Q)=(1.0, 0.7);With conventional PSS; With SVMPSS
0 1 2 3 4 5 6 7 8 9 10
-6 -4 -2 0 2 4 6 8 10 12x 10
-4
Fig.4 . Speed deviation response for (P,Q)=(1.0, 0.7);With conventional PSS; With SVMPSS
0 1 2 3 4 5 6 7 8 9 10
0 0.02 0.04 0.06 0.08 0.1 0.12 0.14
Time in Secs
C
h
an
ge
i
n
de
lt
a
Fig 5. Rotor angle response for (P,Q)=(0.7, -0.5);With conventional PSS; With SVMPSS
0 1 2 3 4 5 6 7 8 9 10
-6 -4 -2 0 2 4 6 8 10 12x 10
-4
Time in Secs
C
h
an
ge
i
n s
p
e
ed
6. CONCLUSIONS:
In this study, Support Vector Machine based Power System Stabilizer (SVMPSS) using sigmoidal kernel is presented to adapt the PSS parameters to improve power system dynamic stability. Time domain simulations of the system with SVMPSS given a good speed deviation and change in rotor angle response at different type of loading condition. The results show that the performance of the SVMPSS parameters yields the less settling time and less overshoots as compared with conventional PSS parameters.
