RESEARCH ARTICLE
Decolorization of RhB dye
by manganese oxides: effect of crystal type
and solution pH
Hao‑Jie Cui
1, Hai‑Zheng Huang
2, Baoling Yuan
3and Ming‑Lai Fu
1*Abstract
Background: Organic dye pollution in water has become a major source of environmental pollution. Mn(III/IV) oxides have attracted a great deal of attention to remove organic dye pollutants due to their unique structures and physicochemical properties. Numerous studies have reported the removal of dye by various Mn(III/IV) oxides through catalytic degradation and adsorption. The crystalline structures of manganese oxides and solution pH may exert substantial impact on the removal of dyes. However, few studies have focused on the oxidative degradation of RhB dye using Mn(III/IV) oxides with different crystal structures during a spontaneous reaction. In the present study, three manganese oxides with different crystal type (α‑MnO2, β‑MnO2, and δ‑MnO2) were prepared by refluxing process to decolorize RhB dye in various pH solutions.
Results: The results showed that the decolorization efficiencies of RhB for the three manganese oxides all increase with decrease solution pH. α‑MnO2 exhibited highest activity and could efficiently degrade RhB at pH 2–6. The deg‑ radation of RhB by β‑MnO2 and δ‑MnO2 could be observed at pH 2–3, and only little adsorption RhB on manganese oxides could be found at pH 4–6. The UPLC/MS analysis suggests that the decolorization of RhB by manganese oxides consists of three main stages: (1) cleavage of the ethyl groups from RhB molecular to form Rh; (2) further destruc‑ tion of –COOH and –CNH2 from Rh to form the small molecular substances; (3) mineralization of the small molecular substances into CO2, H2O, NO3− and NH
4+.
Conclusions: Overall, these results indicate that α‑MnO2 may be envisaged as efficient oxidants for the treatment of organic dye‑containing wastewater under acid conditions.
Keywords: RhB, Manganese oxides, Crystal structure, Solution pH, Oxidation
© 2015 Cui et al. This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http:// creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/ zero/1.0/) applies to the data made available in this article, unless otherwise stated.
Background
Nowadays, organic dye pollution in water has become a major source of environmental pollution due to the fast development of dye industry [1, 2]. Discharging of the residual dyes creates acute problems to the ecosystem and human health [3]. For example, Rhodamine B (RhB), as an important cationic xanthene dye (Scheme 1), has been extensively used in textile, printing, and photo-graphic industries. It has been found to possess carci-nogenicity, neurotoxicity, and chronic toxicity towards
humans and animals [4]. Therefore, it is necessary to destroy the dyes from industrial effluents before they become detrimental to the natural environments.
In the recent years, Mn(III/IV) oxides have attracted a great deal of attention to remove organic dye pollutants due to their unique structures and physicochemical prop-erties [5–7]. The removal efficiencies of the dye pollutants by Mn(III/IV) oxides are dependent upon their crystal-lographic forms, which could display layered or tunnel structures through different arrangements of MnO6
octa-hedra [8, 9]. Up to now, numerous studies have reported the removal of dye by various Mn(III/IV) oxides through catalytic degradation and adsorption [5, 10–12]. Few studies have focused on the oxidative degradation of RhB
Open Access
*Correspondence: [email protected]
1 Institute of Urban Environment, Chinese Academy of Sciences,
Xiamen 361021, China
Page 2 of 8 Cui et al. Geochem Trans (2015) 16:10
using Mn(III/IV) oxides with different crystal structures during a spontaneous reaction. Moreover, as reported in the previous literatures, the Mn(III/IV) oxides were com-monly prepared by different methods including refluxing process, hydrothermal method, and calcination method [12–14]. The Mn(III/IV) oxides prepared using different methods often display different reactivity.
In the present work, three Mn(III/IV) manganese oxides (α-MnO2, β-MnO2, and δ-MnO2) with differ-ent crystal structures were prepared by similar reflux-ing process, and the products were used to decolorize RhB in various pH solutions to investigate the effects of
crystal type of manganese oxides and solution pH on the removal efficiencies and mechanisms of RhB dye from waters.
Results and discussion
Characterizations of the synthetic manganese oxides

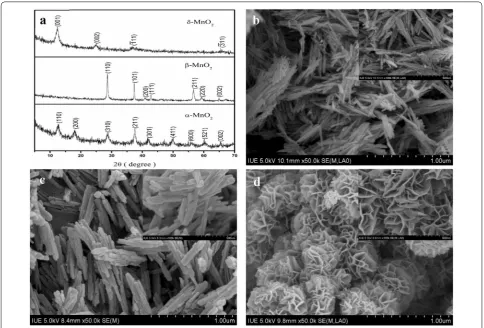

Figure 1a shows the XRD patterns of the as-prepared manganese oxides. All the diffraction peaks could be readily indexed to α-MnO2 (JCPDS 44-1386), β-MnO2 (JCPDS 24-0735) and δ-MnO2 (JCPDS 80-1098), respec-tively. The results indicate that purely crystalline α-MnO2, β-MnO2 and δ-MnO2 were successfully synthesized. The SEM images show that the as-prepared α-MnO2 samples consist of needle-like nanostructures with a diameter of 10–30 nm and a length of 300–1,000 nm (Fig. 1b). The synthetic β-MnO2 samples exhibit rod-like shape with a diameter of 50–100 nm and a length of 200–500 nm (Fig. 1c). The δ-MnO2 shows a three dimensional hier-archical microsphere with a diameter ranging from 300 to 500 nm, and the microspheres consist of nanoplates with a thickness of an approximately 10 nm (Fig. 1d). The BET surface area, average Mn oxidation state (AOS), and the point of zero charge (PZC) of the three manganese Scheme 1 Molecular structure of RhB.
oxides were also characterized and the results were listed in Table 1.
Decolorization of RhB dye by the manganese oxides at various pH values

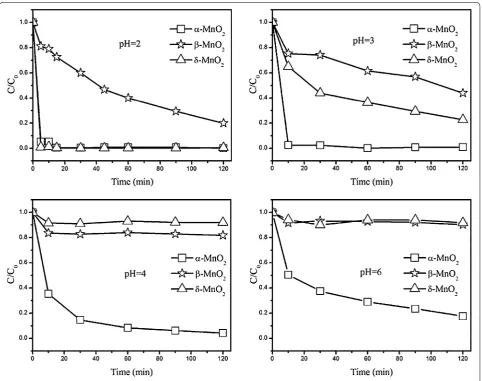

The results for decolorization of RhB dye by the three manganese oxides at different pH were shown in Fig. 2. In detail, at pH 2, α-MnO2 and δ-MnO2 both possessed high efficiency to decolorize RhB, and the degree of
decolorization reached above 90% within 5 min. How-ever, the decolorization of RhB by β-MnO2 is far slower than that of α-MnO2 and δ-MnO2, and only about 80% of initial of RhB was decolorized within 120 min. At pH 3, more than 90% of the RhB could be decolorized by α-MnO2 within 10 min, which is much faster than that of δ-MnO2 and β-MnO2. After reaction of 120 min, the decolorization efficiencies of RhB by δ-MnO2 and β-MnO2 are only about 80 and 50%, respectively. Dur-ing the reaction at pH 4, only less than 20% of RhB could be decolorized by δ-MnO2 and β-MnO2 within 120 min, and the decolorization proceeds with high efficiency is still observed for α-MnO2. Further increasing pH to 6, no obvious dye decolorization is observed for δ-MnO2 and β-MnO2 after 120 min, the degree of decolorization for α-MnO2 decreased to about 80%. These results indicated that the decolorization efficiency of RhB by manganese oxides depend on the crystal type and solution pH, and
Table 1 Selected properties of the synthetic manganese oxides
Samples BET surface area
(m2/g) Mn AOS PZC
α‑MnO2 83.5 3.89 4.7
β‑MnO2 27.9 3.96 3.8
δ‑MnO2 40.1 3.71 3.4
Page 4 of 8 Cui et al. Geochem Trans (2015) 16:10
α-MnO2 presents highest capability to decolorize RhB in pH 2-6.
UV–vis absorption spectra of the RhB solution treated with the three manganese oxides are shown in Addi-tional file 1: Figure S2. For α-MnO2, the intensity of the RhB peaks decreased sharply within 5–10 min, and the peak of 554 nm obviously shifted to 500 nm, which indi-cates that the decolorization of RhB by α-MnO2 is mainly attributed to the decomposition reaction at pH 2–6 [15, 16]. Meanwhile, the same blue shift of 554 nm peak was observed at low pHs for δ-MnO2 (pH 2 and 3) and β-MnO2 (pH 2). However, only a weak decrease of the intensity of the RhB peaks, and no peak shifts were found at pH 4 and pH 6. These results implied that the decom-position reaction only occurs at pH ≤ 3 and adsorption is responsible to the decolorization of the RhB at pH > 3. Therefore, the decolorization mechanism of RhB by man-ganese oxides depends on the crystal type of the oxides and the solution pH.
In this investigation, the three crystallographic MnO2
showed different activities for RhB degradation, which can be related to the variation in crystalline structure, AOS, BET surface area and other physicochemical prop-erties. At low pHs, the crystal stability of the layered structure of δ-MnO2 is weaker than that of the tunnel structures of α-MnO2 and β-MnO2, which is benefi-cial to the redox reaction between Mn(VI/III) and RhB. This may account for its faster oxidization of RhB at pH 2 than α-MnO2 and β-MnO2. With increasing solution pH to 4, the adsorption became fully responsive to the decolorization of RhB for δ-MnO2. However, the oxida-tion of RhB still could be found for α-MnO2 and β-MnO2 at pH 4. This may result in their higher decolorization rates. Compared with tunnel structure of α-MnO2 and β-MnO2, two-tunnel structured α-MnO2 showed higher activity than the single-tunnel structured β-MnO2 due to the more exposure of MnO6 edges [17], although the
β-MnO2 has a higher AOS (3.96). Moreover, the BET surface area of β-MnO2 is much smaller than that of α-MnO2 and δ-MnO2, which means higher crystalliza-tion degree for β-MnO2. Thus, the activation energy to break the crystal structure is more than that of α-MnO2 and δ-MnO2 during redox reactions. This may explain the lower oxidation capability of β-MnO2 for RhB at low pH solution.
The variation of the solution pH influenced the surface charge properties of the dye and the manganese oxides as well as their interactions. As shown in Scheme 1, the molecular of RhB contains carboxylic group and amino group. The carboxylic group exists in the protonated state by decreasing the solution pH beyond the pKS2
value, which corresponds to 3.22, and the amino group is protonated only under very weakly basic conditions
with the pKB value being 13.75 [18]. At pH ≤ 3.22, the
positively charged lead manganese oxides surface inter-acts more attractively with the uncharged carboxylic acid than with the positively charged amino group. At pH > PZCs of manganese oxides, the attractive interac-tion is established between the positively amino group and the negatively charged surface of manganese oxides. In our experiments, the decolorization efficiencies of RhB for the three manganese oxides all increased with decrease solution pH, which could be attributed to the increase of the redox potential, electron transfer, and the surface charge density of MnO2 at lower pH values. Thus,
the oxidation rate of RhB by the manganese oxides is dependent upon their physicochemical parameters, crys-tal structures, and solution pHs.
Reduction and dissolution of the synthetic manganese oxides by RhB dye

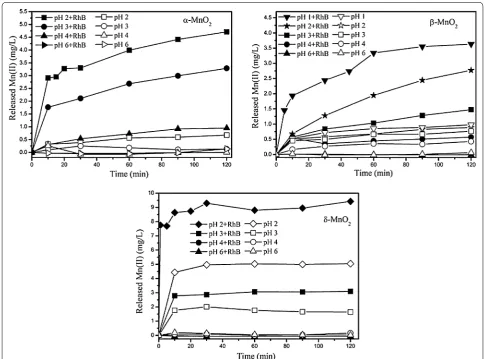

The degradation of organic compounds by manganese oxides commonly accompany release of Mn(II) from reductive dissolution of manganese oxides [19, 20]. Figure 3 shows the dissolution behavior of the three manganese oxides with and without RhB at differ-ent pH. When pH > PZC (MnO2), only a small amount
of released Mn(II) could been determined in the solu-tions, and the amount of Mn(II) with RhB treatments are closed to that of treatments without RhB, indicating that Mn(II) is mainly derived from the manganese oxides through slightly dissolving or ion-exchanging by H+.
When pH < PZC (MnO2), the amount of released Mn(II)
increased obviously with decreasing pH, and the amount of released Mn(II) with RhB treatments are much higher than that of the treatments without RhB, suggesting that the redox reaction occurs in the case of pH < PZC (MnO2). Moreover, it is observed that the amount of the
released Mn(II) from δ-MnO2 was much higher than that of α-MnO2 and β-MnO2 at pH 2, which could attrib-ute to the low AOS of Mn and the layered structures of δ-MnO2 [7]. To investigate the components and struc-tures of the residual manganese oxides, the XRD analy-sis was performed. The XRD patterns of the manganese oxides before and after duplicating the degradation reac-tion five times show no obvious differences, indicating that the unchanged structure of the manganese oxides after the surface oxidative degradation. These results demonstrate that the degradation of RhB dye dose not generate a new manganese oxide, and the Mn(III/IV) is ultimately reduced to Mn(II) which is then released into the solution.
Degradation mechanism of RhB by manganese oxides

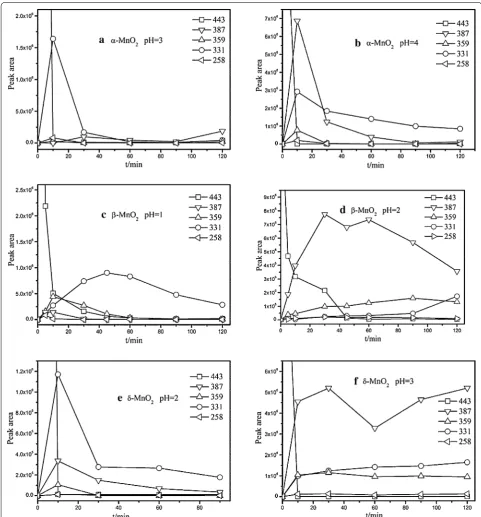

the intermediates of the reaction were analyzed using UPLC/MS technique. It is found that five peaks were observed at 3.05, 4.21, 4.70, 5.68, and 6.99 min in the UPLC/MS spectrum, which respectively correspond to the m/z = 331, 359, 387, 443, and 258. The signal at m/z = 443 could assign to the RhB parent ion [14]. The peaks at m/z = 387, 359, and 331 could refer to the for-mation of N-ehyl-N′-ethyl-rhodamine 110 (MMRh), N-ethyl-rhodamine 110 (MRh) and rhodamine 110 (Rh) intermediates, which predicted by the cleavage of two, three, and four ethyl group from RhB molecule, respec-tively [21–24]. The appearance of a peak at m/z = 258 could be due to cleavage of –COOH and –CNH2 from
Rh (m/z = 331). Additionally, the TOC concentration of the solution decreased from 18.2 mg/L of the initial solu-tion to 2.3 mg/L of treatment for α-MnO2 at pH 2. More-over, NO3− and NH4+ could be detected in the treated
solutions and the concentrations of them are 0.86 and 0.23 mg/L, respectively. These results indicated that most of the RhB could be degraded completely by manganese
oxides. Based on the above experimental observations, a plausible degradation mechanism of RhB was proposed (Additional file 1: Figure S6). It is suggested that the decolorization of RhB by manganese oxides consists of three main stages: (1) cleavage of the ethyl groups from RhB molecular to form Rh; (2) further destruction of – COOH and –CNH2 from Rh to form the small
molecu-lar substances; (3) mineralization of the small molecumolecu-lar substances into CO2, H2O, NO3− and NH4+.
Page 6 of 8 Cui et al. Geochem Trans (2015) 16:10
(Fig. 4), respectively, suggesting that RhB could not be degraded completely by β-MnO2 and δ-MnO2. These results reveal that the degradation mechanisms of RhB by the manganese oxides depend on the pH and crystal type.
Conclusions
decrease solution pH. α-MnO2 presented in needles and showed the highest activity for RhB degradation at pH 2–6. δ-MnO2 and β-MnO2 had microsphere and rod-like form, respectively. These two manganese oxides showed activity to degrade RhB at pH 2–3 and only exhibited a very low adsorption rate and adsorption capacity at pH 4–6. The redox reaction between manganese oxides and RhB result in dissolution of manganese oxides and release of Mn(II). The degradation of RhB by manga-nese oxides consists of three main stages: (1) cleavage of the ethyl groups from RhB molecular to form Rh; (2) further destruction of –COOH and –CNH2 from Rh to
form the small molecular substances; (3) mineralization of the small molecular substances into CO2, H2O, NO3−
and NH4+. These results indicate that manganese oxides
especially α-MnO2 may have potential applications in degradation of dye pollutants.
Methods
Preparation of the manganese oxides
Cryptomelane (α-MnO2) was prepared through oxida-tion of Mn(II) by permanganate under refluxing condi-tion [25]. Typically, 5.89 g of KMnO4 was dissolved in
100 mL of water and heated to boil, then a solution con-taining 8.8 g of MnSO4·H2O and 3 mL of concentrated
HNO3 was added to the boiling solution. The mixture
solution was refluxed for 24 h. The product was filtered, washed seven times with deionized water, and dried at 60°C for 24 h.
Pyrolusite (β-MnO2) was synthesized by reflux-ing process as reported in our previous work [12]. In a typical procedure, a mixture of 135 mL MnSO4 solution
(1.75 mol/L) and 13.6 mL concentrated HNO3 (16 mol/L)
was added quickly to 450 mL of boiled KMnO4
solu-tion (0.04 mol/L). The resultant dark brown slurry was refluxed for 36 h, then filtered and washed with deion-ized water several times until the pH reached ~7.0. The final products were dried in an oven at 60°C for 24 h.
Birnessite (δ-MnO2) was prepared by refluxing treat-ment of KMnO4 and HCl mixture solution [26]. In a
typi-cal synthesis, 45 mL of 6 mol/L HCl was added to 400 mL of boiled KMnO4 solution (0.4 mol/L) at the rate of 0.7 L/
min. The resultant dark brown slurry was refluxed for further 30 min. After being aged at 60°C for 12 h, the product was filtered, washed seven times with deionized water, and dried at 60°C for 24 h.
Characterization of the prepared manganese oxides
X-ray powder diffraction (XRD) was carried out using a Bruker D8 ADVANCE X-ray diffractometer equipped with monochromated Cu Kα radiation (λ = 0.1541 nm) at a tube voltage of 40 kV and a tube current of 40 mA. Scanning electron microscopy (SEM) images were
obtained with a Hitachi S-4800 emission scanning elec-tron microscope. ASAP 2020 M+C instrument was used to measure the superficial area and micropore size distributions of the materials. Samples were degassed in a vacuum at 250°C for about 10 h to remove water and other physically adsorbed species. The N2 isothermal
adsorption and desorption experiments were performed at relative pressures (P/P0) from 10−6 to 0.9916 and from
0.9916 to 0.047, respectively. The ζ-potential of man-ganese oxides were measured with an MALVERN ZEN 3600 electrophoretic light scattering spectrophotometer. The three manganese oxides dispersed into deionized water to form 0.5 g/L suspension solution and then treat it with ultrasonic for 60 min. Three suspension solutions were prefiltered through a 0.45 μm pore mill filter. The values of ζ-potential under different pH were measured.
The AOS of the three manganese oxide were measured by the oxalic acid-permanganate back-titration method. Briefly, 0.1 g of the samples were completely dissolved in 10 mL of 0.5 M H2C2O4 and 10 mL of 0.5 M H2SO4 to
reduce all of the manganese to Mn2+. The extra C
2O42−
was determined by back-titration at 60°C with standard-ized 0.02 M KMnO4 solution. The AOS was calculated on
the basis of both the titration result and the total amount of Mn determined by atomic absorption spectrophotom-eter (AAS) [27].
Decolorization of RhB dye by the manganese oxides at various pH
The concentration of RhB solution was 10 mg/L, and the dosage of manganese oxides is 0.5 g/L. The solution pH was adjusted to set value by HCl and NaOH. The mix-ture was allowed to react in room temperamix-ture with con-tinuous stirring. At given time intervals, an appropriate amount of suspension was taken out and quickly diluted the density to the point with distilled water. For opti-cal absorption measurements, the diluted solution was immediately centrifuged at 12,000 rpm for 10 min to remove the manganese oxide particles. The changes of absorptions at 554 nm were applied to identify the con-centrations of RhB, using a Shimadzu UV-2450 UV–vis spectrophotometer. The released of Mn(II) in the solu-tions were analyzed by AAS.
Page 8 of 8 Cui et al. Geochem Trans (2015) 16:10
ionization (ESI). The total organic carbon concentration in solution was analyzed using TOC analyzer (Shimadzu, TOC-vwp).
