TECHNICAL DATA

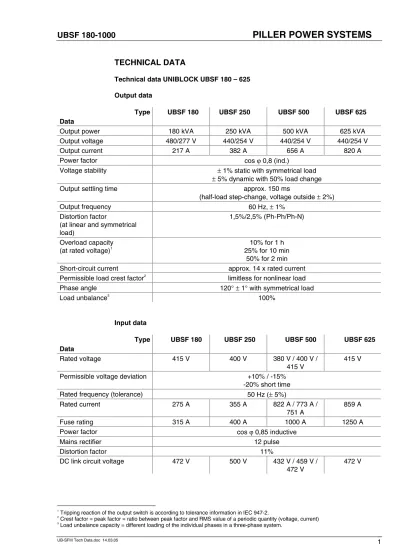

Technical data UNIBLOCK UBSF 180 – 625
Output data
Type Data
UBSF 180 UBSF 250 UBSF 500 UBSF 625
Output power 180 kVA 250 kVA 500 kVA 625 kVA
Output voltage 480/277 V 440/254 V 440/254 V 440/254 V
Output current 217 A 382 A 656 A 820 A
Power factor cos ϕ 0,8 (ind.)
Voltage stability ± 1% static with symmetrical load
± 5% dynamic with 50% load change
Output settling time approx. 150 ms
(half-load step-change, voltage outside ± 2%)
Output frequency 60 Hz, ± 1%
Distortion factor
(at linear and symmetrical load)
1,5%/2,5% (Ph-Ph/Ph-N)
Overload capacity (at rated voltage)1
10% for 1 h 25% for 10 min
50% for 2 min Short-circuit current approx. 14 x rated current Permissible load crest factor2
limitless for nonlinear load
Phase angle 120° ± 1° with symmetrical load
Load unbalance3
100%
Input data
Type Data
UBSF 180 UBSF 250 UBSF 500 UBSF 625
Rated voltage 415 V 400 V 380 V / 400 V /
415 V
415 V Permissible voltage deviation +10% / -15%
-20% short time Rated frequency (tolerance) 50 Hz (± 5%)
Rated current 275 A 355 A 822 A / 773 A /
751 A
859 A
Fuse rating 315 A 400 A 1000 A 1250 A
General data
Type Data
UBSF 180 UBSF 250 UBSF 500 UBSF 625
Dimensions1
Width 2438 mm 2438 mm 2740 mm 2740 mm
Depth 865 mm 860 mm 985 mm 985 mm
Height 1900 mm 1900 mm 1900 mm 1900 mm
Weight see table in section “Floor loading capacity”
Wall-mounting? yes
Several sets alongside each other?
yes
75 dB(A) 75 dB(A) 78 dB(A) 78 dB(A)
as per DIN ISO 3746 Noise level
(at a distance of 1 m)
reducing of noise level approx. 5 dB with silencer Air flow2 6120 m3 /h 6120 m3 /h 7900 m3 /h 7900 m3 /h Max. back pressure3
50 Pa to 75 Pa MTBF4
-value > 90 000 h
MTTR5-value ≤ 24 h
Temperature range 0 °C to 40 °C (≤ 35 °C daily mean average)
Rel. humidity 0 % to 95 % without condensation
Type of protection IP20 as per DIN/VDE 0470 part 1 11/92 IEC529
Efficiency6 88,5 % 88,6 % 89,1 % 90 %
Cooling Regarding room ventilation / air condition please contact us. No air condition is required in case the exhaust air is conducted
out of the room.
1
rounded dimensions
2
decreased slight with silencer, resp. air filter
3
Built-on accessories (ducts, etc.) must not exceed this value.
4
MTBF = Mean Time Between Failures
5
MTTR = Mean Time To Repair
6
Technical data UNIBLOCK UBSF 1000
Output data
Type Data
UBSF 1000 UBSF 1000
Output power 1000 kVA 1000 kVA
Output voltage 440/254 V 460/266 V
Output current 1312 A 1255 A
Power factor cos ϕ 0,8 (ind.)
Voltage stability ± 1% static with symmetrical load
± 5% dynamic with 50% load change
Output settling time approx. 150 ms
(half-load step-change, voltage outside ± 2%)
Output frequency 60 Hz, ± 1%
Distortion factor
(at linear and symmetrical load)
1,5%/2,5% (Ph-Ph/Ph-N) Overload capacity
(at rated voltage)1
10% for 1 h 25% for 10 min
50% for 2 min Short-circuit current approx. 14 x rated current Permissible load
crest factor2
limitless for nonlinear load
Phase angle 120° ± 1° with symmetrical load
Load unbalance3 100% Input data Type Data UBSF 1000 UBSF 1000 Rated voltage 380 V / 400 V / 415 V 380 V Permissible voltage deviation +10% / -15% -20% short time ±10%, -15% short time
Rated frequency (tolerance) 50 Hz
(± 5%)
Rated current 1626 A / 1530 A / 1486 A 1588 A
Fuse rating 1600 A
Power factor cos ϕ 0,85 inductive
Mains rectifier 12 pulse
General data Type Data UBSF 1000 Dimensions1 Width 3662 mm Depth 1320 mm Height 2266 mm
Weight see table in section “Floor loading capacity”
Wall-mounting? yes
Several sets alongside each other?
no Noise level
(at a distance of 1 m)
77 dB(A) as per DIN ISO 3746 Air flow2
10800 m3
/h
Max. back pressure3 50 Pa to 75 Pa
MTBF4
-value > 90 000 h
MTTR5
-value ≤ 24 h
Temperature range 0 °C to 40 °C (≤ 35 °C daily mean average)
Rel. humidity 0 % to 95 % without condensation
Type of protection IP20 as per DIN/VDE 0470 part 1 11/92 IEC529 Efficiency6
89,8 %
Cooling Regarding room ventilation / air condition please contact us. No air condition is required in case the exhaust air is conducted
out of the room. Specifications complied with
DIN VDE 0100
DIN VDE 0103; EN 60865-1; IEC 865-1 DIN VDE 0106 part 1; IEC 536
DIN VDE 0110; IEC 60664-1 DIN VDE 0160; EN 50178
DIN VDE 0470 part 1; EN 60529; IEC 60529 DIN VDE 0510 part 2; EN 60896-2
DIN VDE 0558 part 511; EN 50091-1-1 DIN VDE 0558 part 5; IEC 60146-4 DIN VDE 0558 part 520; EN 50091-2 EN 50091-1-1
DIN ISO 3746; ISO 3746 IEC 1000-4-2
IEC 1000-4-4
VDE 0839 part 81-2; EN 50098-2
VDE 0847 part 4-5; EN 61000-4-5; IEC 1000-4-5
1
rounded dimensions
2
decreased slight with silencer, resp. air filter
3
Built-on accessories (ducts, etc.) must not exceed this value.
4
MTBF = Mean Time Between Failures
5
MTTR = Mean Time To Repair
6
DIMENSIONS AND SPACE REQUIREMENTS
1. UNIBLOCK UBSF 180 – UB-SF 250Cable entry/output Air outlet 96,5 485 96, 5 245 19,5 902 12 ,5 782 Air inlet
Converter-cubicle Mains/Load cabinet Air outlet 5 1490 938 5 2438
A
A
808 865 190 0 Air inlet Option Filterdoor PILLER PILLEREscape acc. to VDE 100
Cable entry/output SECTION A-A 96 ,5 24 5 96,5 485 130,5 680 36 0 Ø16 Ø25 (4x) 65 67 0 51,5 1390 179 Ø14 ( 4x) 27 5 62 5 c a . 17 30 Dimensions are in mm
Cable entry/output
Escape acc. to VDE 100
SECTION A-A Converter-cubicle Mains/Load cabinet Air inlet Option Air outlet Option Air outlet Air inlet Option Filter door Option Big Touch Panel Cable entry/output Air outlet Option Air outlet Option Air outlet Dimensions are in mm 808 96 ,5 245 96,5 485 130,5 680 360 Ø25 (4x) Ø 16 65 670 51,5 1390 179 Ø14 ( 4x) 275 625 ca .1 7 3 0 5 938 1490 5 2438
A
A
1305 450 30 28 8 1 9 0 0 30 28 8 317 450 3 6 0 76, 5 245 96,5 485 83 0 1461,5 288 317 45 02. UNIBLOCK UBSF 500 – UB-SF 625 19 00 928 985 Option
filterdoor Air inlet
Air inlet Air outlet
Converter
cabinet Mains/Load cabinet
5 1060 1670 5 2740
A
A
Cable entry/output Air outlet 121,5 500 81 ,5 36 0 PILLER PILLER Cable entry/outputEscape acc. to VDE 100
Section A-A 121,5 500 146,5 770 44 0 24 0 80 36 0 Ø25 (4x) Ø16 51,5 1570 195 65 810 Ø14 ( 4x) 27 5 62 5 c a. 1 850 Dimensions are in mm
1900 360 2260 928 985 Converter cubicle Mains/Load cubicle Air outlet Air inlet 1060 1670 5 5 2740 Air inlet Option Filterdoor PILLER PILLER Cable entry/output Air outlet 120 500 80 360 390 80 360 55 810 1578 Cable entry/output Escape acc. to VDE 100
Section A-A 121,5 500 146,5 770 440 2 40 80 360 Ø25 (4x) Ø16 51,5 1570 195 65 810 Ø14 ( 4x) 275 625 ca . 1 8 5 0 Dimensions are in mm
3. UNIBLOCK UB-SF 1000
SECTION A-A Cable entry
Cable output
Air outlet
Top view without silencer Cable entry Cable output Cable entry Cable output Air outlet Air outlet Air inlet Air inlet Load cubicle
Mains cubicle Converter cubicle
Air outlet Air outlet
114 417 2672 347 113 12 0 640 12 0 640 76 1051 1410 1050 76 111 10 36 112 103 6 21 1160 1300 1160 3662 21 A 1270 19 00 3 66 1284 2 266 A 611 200 200 611 41 ,5 118 0 1 320 41 ,5 118 0
Air outlet
Air outlet Air outlet
Filter-cubicle Mains cubicle Converter Load cubicle
Filter-cubicle
Escape acc. to VDE 100 Place for mounting machine
(by lack of space, please contact us)
SECTION A-A
Dimensions are in mm
Air outlet Air outlet Cable entry
Cable output Cable entry Cable output 842 347 151 200 (2040) 200 81 417 842 130 630 43 11 80 1272,5 190 0 3 66 226 6 1286
A
A
1160 1300 1160 751,5 751,5 5123 Ø 21 Ø 1 8 160 0 62 5 275 2 186 75 905 75 2032,5 10 36 112 56,5 640 110 1050 1410 1050 110 640 56,5 Cable entry Cable output Cable entry Cable outputDimensions watercooling optional
1. UNIBLOCK UB-SF 180 – UB-SF 250
Air outlet for emergency service Converter cubicle Cool-aggregate Mains/Load cubicle
Air outlet for emergency bus
Cable entry Cable output
Air outlet for emergency bus
Air inlet for emergency bus 843 245 93 485 307 385 61 600 190 0 302 22 0 2 878 843 700 5 5 3138
A
A
938 1490 PILLER 105SECTION A-A
Connection forrefrigerant Cable entry Cable output 24 5 11 2 650 131 680 237 360 Ø 25 (4x) 67 0 65 82 52 600 100 1390 179 Ø (8*) 14
2. UNIBLOCK UB-SF 500 – UB-SF 625
Cable entry Cable output
Air outlet for emergency service
Air outlet for emergency service
SECTION A-A
Connection for refrigerant Escape acc. to VDE 100
Air inlet for emergency service Air outlet for
emergency service
Converter cubicle Cool
aggregate Mains/Load cubicle Dimensions are in mm 87,5 500 334 500 98 360 23 0 0 1900 400 963 998,5
A
A
5 5 3540 800 1670 1060 639, 5 75 62 5 2 7 5 81, 5 790 920 650 100 700 51,5 195 770 146,53. UNIBLOCK UB-SF 1000
Air outlet for emergency service Air outlet for
emergency service
Air inlet for emergency service Air inlet for
emergency service
Cool aggregate Mains cubicle Converter cubicle Load cubicle Cool aggregate
Cable entry Cable output Air outlet for
emergency service
Cable entry Cable output
Air outlet for emergency service 113 487 672 505 64 890 85 710 113 490 669 505 85 71 0 64 890 1 900 45 3 2353 Luftaustritt bei Notbetrieb A A 6062 1221 1160 1300 1160 1221 1338,5 1288 Connection for refrigerant SECTION A-A
Escape acc. to VDE 100
Place for mounting machine (in case of lack of space
please consult us) Connection for refrigerant
Cable entry Cable output Cable entry Cable output 83 1130 71 1100 105 1050 112 1036 100 660 458 253 905 253 80 1036 1050 106 1100 70 2202 62 5 1600 275
Floor loading capacity
The weights of the units require a minimum floor loading capacity. However, since these weights do not act upon the entire support surface but at points on the support surface, these support points must have adequate load bearing capacity. The individual weights can be obtained from the tables. A base is available as optional equipment.
Type Mains/Load cabinet1 kg MG-set kg Converter cabinet kg Silencer kg Complete system kg Cool aggregate kg Hood kg Filter cabinet kg UBSF 180 1390 2025 210 110 3735 400 84 UBSF 250 1390 2100 210 110 3810 400 84 UBSF 500 2270 3740 210 120 6340 420 116 UBSF 625 2270 3740 210 120 6340 420 116 -UBSF 1000 2375+1600 7600 210 255 12040 2 x 500 230 2 x 285
NOTE For the water cooling option the weights of the hood and the cooling aggregate should be added to the respective system. For the filter cabinet option the weights shown in the last table added to the respective system.
In the case of the mains/load cabinets and the cooling cabinets, the weights of the individual system components act on the feet and in the case of the converter cabinet on the floor rails. For all systems the compressive loads per unit area under the support points are shown in the table below.
Type compressive loads per
unit area per feet res. floor rails
kg/cm2
Number of feet / floor rails
Mains/Load cabinet 3.73 4 Converter cabinet 1.77 2 UBSF 180 -UBSF 250 Cool aggregate 1 4 Mains/Load cabinet 4.2 6 Converter cabinet 1.96 2 UBSF 500 Cool aggregate 1.05 4 Mains/Load cabinet 4.2 6 Converter cabinet 1.96 2 UBSF 625 Cool aggregate 1.05 4 Mains cabinet 6.19 4 Converter cabinet 1.89 2 Load cabinet 4 4 Cool aggregate 1.25 4 UBSF 1000 Filter cabinet 0.71 4 1
The floor loading capacity is an important factor in the overall strength of the supporting surface. It specifies the ratio between the weight of the unit and the installation area and is shown in the following table for all sizes of unit.
Type Floor loading capacity
kg/cm2 UBSF 180 0.142 UBSF 180 W 0.130 UBSF 250 0.145 UBSF 250W 0.130 UBSF 500 – 625 0.244 UBSF 500 – 625 W 0.213 UBSF 1000 0.257 UBSF 1000 Filter 0.194 UBSF 1000 W 0.169 Cable runs
Openings are provided in the roof and bottom of the AC input and load cabinets for cable entries and outlets.
NOTE The dimensions of the cable entries in the AC input and load cabinets are shown on the drawings Fig. 1 - Fig. 9.
The connecting terminals are located at the following points: ! UB-SF 180 – UB-SF 625:
Mains 1 lower and upper part at the back row left side
Outgoing feeder lower and upper part at the back row right side ! UB-SF 1000
Mains 1 in centre and bottom of AC input cabinet Outgoing feeder in bottom of load cabinet
All unused cable entries should remain closed to prevent the ingress of foreign objects. The used openings should be sealed with suitable materials.
IMPORTANT The cable entries should be sealed on completion of the electrical installation to prevent bypass air entering the system.
Attaching the connecting cables
The cables should be connected to the brackets of the respective terminal bars with bolts, nuts and two plain washers.
IMPORTANT Please note that in aluminium-copper connections the two metals form an electrochemical element under the influence of an electrolyte (e.g. moisture), which results in the aluminium being dissolved. If an aluminium-copper bond if formed when the UNIBLOCK is connected up, suitable corrosion protection measures must be taken at the connecting point.
Bolt sizes:
! M12 x 35 property class 8.8
Bolt tightening torque:
! UB-SF 180 – UB-SF 1000: 60 Nm
All cables should be fitted with DIN 46 234 cable lugs.
IMPORTANT Please ensure that the phase of AC connections are correct since incorrect connections can cause damage to the system. (Direction of rotation of MG-set: counter clockwise, viewed from above).
NOTE If there is sufficient space alongside the set, it is recommended that the side panels of the cabinets be removed when making connections. This will make work easier.
Cable ratings
Cable sizes may be varied by local regulations.
IMPORTANT Cables have to be specified by local contractor.
For reasons of symmetry, if possible, and where permitted, cable type NYCWY 3-core (sleeve with full cross-section) and a separate protective conductor should be used at the output.
Overview of electrical connections UNIBLOCK 1 L1 X1 2 L2 3 L3 N.1 N PE PE Mains distribution Mains 1 4 L1 X1 5 L2 6 L3 N.2 N PE PE A230/X6 3 L+24V.2 1 2 A230/X1 5 DGND.1 external ground 4 GND 6 8 7 10 9 11 A230/X3 3 10 A230/X1 C C 9 10 X1 8 4 5 7 PE 14 L1 X1 15 L2 16 L3 N.2 N PE PE X1 Output Output distribution 4 5 6 7 8 9 12 13 14 15 1 2 3 4 9 A720/X1 Remote control panel 1 2 3 4 5 6 8 S 14 15 16 N PE A231/X1 A231/X30 A231/X6 1 3 P N 3 4 5 6 1 2 8 9 7 11 12 11 4 5 A230/X1 14 C 12 10 GND L+24.2 Diesel operation max. 300V AC 16 17 18 19 3 13 X40
Ext. sectionalising switch open
Lowering the inverter
Tie breaker group 1
Tie breaker group 4 Tie breaker group 3 Tie breaker group 2
General failure Output switch on ext. synchronising voltage External button “converter disabled/off”
Horn off/quit general failure Remote start
Phaseregulation off
Diesel operation 16
10 ext. synchronisation preselected
18 19 20 PE RS485 5 6 GND +24V 7 8
