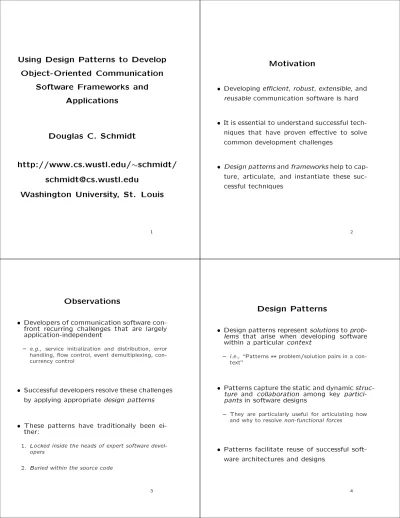

Using Design Patterns to Develop Object-Oriented Communication
Software Frameworks and Applications
Douglas C. Schmidt
http://www.cs.wustl.edu/
schmidt/
[email protected]
Washington University, St. Louis
1
Motivation
Developing ecient, robust, extensible, and reusable communication software is hard
It is essential to understand successful tech- niques that have proven e ective to solve common development challenges
Design patterns and frameworks help to cap- ture, articulate, and instantiate these suc- cessful techniques
2
Observations
Developers of communication software con- front recurring challenges that are largely application-independent
{
e.g., service initialization and distribution, error handling, ow control, event demultiplexing, con- currency control
Successful developers resolve these challenges by applying appropriate design patterns
These patterns have traditionally been ei- ther:
1. Locked inside the heads of expert software devel- opers 2. Buried within the source code
Design Patterns
Design patterns represent solutions to prob- lems that arise when developing software within a particular context
{
i.e., \Patterns text"
==problem/solution pairs in a con-
Patterns capture the static and dynamic struc- ture and collaboration among key partici- pants in software designs
{
They are particularly useful for articulating how and why to resolve non-functional forces
Patterns facilitate reuse of successful soft-
ware architectures and designs
Proxy Pattern
NETWORK
CLIENT
SERVER : BROKER
1: METHOD CALL
4: METHOD RETURN
: QUOTER
2: FORWARD REQUEST
3: RESPONSE
: QUOTER PROXY
Indent: provide a surrogate for another ob- ject that controls access to it
5
More Observations
Reuse of patterns alone is not insucient
{
Patterns enable reuse of architecture and design knowledge, but not code (directly)
To be productive, developers must also reuse detailed designs, algorithms, interfaces, im- plementations, etc.
Application frameworks are an e ective way to achieve broad reuse of software
6
Frameworks
A framework is:
{
\An integrated collection of components that col- laborate to produce a reusable architecture for a family of related applications"
Frameworks di er from conventional class libraries:
1. Frameworks are \semi-complete" applications 2. Frameworks address a particular application do- main 3. Frameworks provide \inversion of control"
Typically, applications are developed by in- heriting from and instantiating framework components
Di erences Between Class Libraries and Frameworks
APPLICATION SPECIFIC
LOGIC
USER INTERFACE
CLASS LIBRARIES
NETWORKING
MATH
ADT
SDATA BASE
APPLICATION SPECIFIC
LOGIC MATH
OBJECT - ORIENTED FRAMEWORK ADT
SINVOKES
CALL BACKS
NETWORKING USER
INTERFACE
DATABASE INVOKES
EVENT LOOP
EVENT LOOP
Tutorial Outline
Outline key challenges for developing com- munication software
Present the key reusable design patterns in an application-level Gateway
{
Both single-threaded and multi-threaded solutions are presented
Discuss lessons learned from using patterns on production software systems
9
Stand-alone vs. Distributed Application Architectures
PRINTER
SYSTEMFILE
PRINTER FILE SYSTEM
COMPUTER
(1)
(1) STAND-ALONESTAND-ALONE APPLICATIONAPPLICATION ARCHITECTUREARCHITECTURE
(2)
(2) DISTRIBUTEDDISTRIBUTED APPLICATIONAPPLICATION ARCHITECTUREARCHITECTURE
CD ROM
CD ROM NETWORK DISPLAY
SERVICE
FI LE SERVICE PRINT
SERVICE
CYCLE SERVICES
10
Concurrency vs. Parallelism
CONCURRENT SERVER
maxfdp1 read_fds
WORK REQUEST
SERVER
CLIENT
WORK
REQUEST WORK
REQUEST
WORK REQUEST CLIENT
CLIENT CLIENT
SERVER
CPU1 CPU2 CPU3 CPU4
WORK REQUEST
WORK
REQUEST WORK
REQUEST
WORK REQUEST CLIENT
CLIENT
CLIENT CLIENT
PARALLEL SERVER
Sources of Complexity
Distributed application development exhibits both inherent and accidental complexity
Inherent complexity results from fundamen- tal challenges, e.g.,
{
Distributed systems
.
Latency
.
Error handling
.
Service partitioning and load balancing
{
Concurrent systems
.
Race conditions
.
Deadlock avoidance
.
Fair scheduling
.
Performance optimization and tuning
Sources of Complexity (cont'd)
Accidental complexity results from limita- tions with tools and techniques, e.g.,
{
Lack of type-secure, portable, re-entrant, and ex- tensible system call interfaces and component li- braries
{
Inadequate debugging support
{
Widespread use of algorithmic decomposition
.
Fine for explaining network programming con- cepts and algorithms but inadequate for devel- oping large-scale distributed applications
13
OO Contributions
Concurrent and distributed programming has traditionally been performed using low-level OS mechanisms, e.g.,
{
fork/exec
{
Shared memory
{
Signals
{
Sockets and select
{
POSIX pthreads, Solaris threads, Win32 threads
OO design patterns and frameworks elevate development to focus on application con- cerns, e.g.,
{
Service functionality and policies
{
Service con guration
{
Concurrent event demultiplexing and event han- dler dispatching
{
Service concurrency and synchronization
14
Application-level Gateway Example
This example illustrates the reusable design patterns and framework components used in an OO architecture for application-level Gateways
Gateways route messages between Peers in a distributed system
Peers and Gateways communicate via a connection- oriented transport protocol
{
e.g., TCP/IP, IPX/SPX, TP4
Physical Architecture of the Gateway
WIDE AREA NETWORK
SATELLITES
TRACKING STATION
PEERS
STATUS INFO
COMMANDS
BULK DATA TRANSFER
LOCAL AREA NETWORK
GATEWAY
GROUND
STATION
PEERS
OO Software Architecture of the Gateway
: Reactor
GATEWAY
PEER2 PEER3 PEER4
CONNECTION REQUEST
CONNECTION REQUEST
OUTGOING MESSAGES : Output
Channel
INCOMING MESSAGES
: Channel Acceptor : Channel
Connector
PEER1 : Input Channel
: Routing
Table : Input
Channel
: Output Channel
17
Graphical Notation
PROCESS
THREAD
OBJECT
: CLASS
CLASS
CLASS CATEGORY
CLASS UTILITY
INHERITS
CONTAINS
INSTANTIATES
A
ABSTRACT CLASS
USES TEMPLATE
CLASS
18
Gateway Behavior
Components in the Gateway behave as fol- lows:
1. Gateway Peers to connect with and which routes to use parses con guration les that specify which 2. Channel Connector connects to Peers, then cre-
ates and activates the appropriate Channel sub- classes ( Input Channel or Output Channel ) 3. Once connected, Peers send messages to the Gate- way
{
Messages are handled by the appropriate Input Channel
{
Input Channels work as follows:
(a) Receive and validate messages (b) Consult a Routing Table
(c) Forward messages to the appropriate Peer(s) via Output Channel s
Design Patterns in the Gateway
Active Object Active Object
Half-Sync/
Half-Sync/
Half-Async Half-Async
Factory Factory Method Method Iterator
Iterator Template Template Adapter Adapter Method
Method
TACTICALTACTICAL PATTERNS PATTERNS STRATEGIC
PATTERNS
Connector
Connector Acceptor Acceptor Router
Router
Service Service Configurator Configurator
Reactor Reactor
The Gateway components are based upon
a family of design patterns
Tactical Patterns
Iterator
{
\Provide a way to access the elements of an ag- gregate object sequentially without exposing its underlying representation"
Factory Method
{
\De ne an interface for creating an object, but let subclasses decide which class to instantiate"
.
Factory Method lets a class defer instantiation to subclasses
Adapter
{
\Convert the interface of a class into another in- terface client expects"
.
Adapter lets classes work together that couldn't otherwise because of incompatible interfaces
21
Concurrency Patterns
Reactor
{
\Decouples event demultiplexing and event han- dler dispatching from application services performed in response to events"
Active Object
{
\Decouples method execution from method invo- cation and simpli es synchronized access to shared resources by concurrent threads"
Half-Sync/Half-Async
{
\Decouples synchronous I/O from asynchronous I/O in a system to simplify concurrent program- ming e ort without degrading execution eciency"
22
Service Initialization Patterns
Connector
{
\Decouples active connection establishment from the service performed once the connection is es- tablished"
Acceptor
{
\Decouples passive connection establishment from the service performed once the connection is es- tablished"
Service Con gurator
{
\Decouples the behavior of network services from point in time at which services are con gured into an application"
Application-Speci c Patterns
Router
{
\Decouples multiple sources of input from multiple sources of output to route data correctly without blocking"
The ADAPTIVE Communication Environment (ACE)
THREAD LIBRARY SYNCH SYNCH WRAPPERS WRAPPERS
COMMUNICATION COMMUNICATION SUBSYSTEM SUBSYSTEM
VIRTUAL MEMORY VIRTUAL MEMORY SUBSYSTEM SUBSYSTEM DYNAMIC DYNAMIC LINKING LINKING
MEMORY MEMORY MAPPING MAPPING SELECT
SELECT//
POLL POLL
SYSTEM SYSTEM V V IPCIPC STREAM
STREAM PIPES PIPES
NAMED NAMED PIPES PIPES
SYSV SYSV WRAPPERS WRAPPERS SPIPE
SAP
GENERAL UNIX AND WIN32 SERVICES C
APIC APISS
C++
C++
WRAPPERS WRAPPERS FRAMEWORKS
AND CLASS CATEGORIES
THREAD MANAGER
PROCESS/THREAD SUBSYSTEM
SOCKETS/ TLI
MEM MAP SHARED MALLOC ACCEPTOR CONNECTOR
DISTRIBUTED
SERVICES NAME
SERVER TOKEN
SERVER
LOGGING SERVER GATEWAY
SERVER
SOCK_SAP/ TLI_SAP
FIFO SAP
REACTOR LOG MSG
SERVICE CONFIG- URATOR ADAPTIVE SERVICE EXECUTIVE
(ASX)
SERVICE HANDLER
CORBA HANDLER
A set of C++ wrappers and frameworks based on common design patterns
25
ACE Components in the Gateway
GATEWAY GATEWAY CONNECTION
CONNECTION REQUEST
REQUEST CONNECTION
REQUEST
OUTGOING MESSAGES : Output
: Output Channel Channel
: Message : Message Queue Queue : SOCK : SOCK Stream Stream
INCOMING MESSAGES
: Acceptor : Acceptor
: SOCK : SOCK Acceptor Acceptor
: Connector : Connector
: SOCK : SOCK Connector Connector : Map: Map
Manager Manager
: Input : Input Channel Channel
: SOCK : SOCK Stream Stream
: Routing : Routing Table Table
: Map : Map Manager Manager
: Output : Output Channel Channel
: Message : Message Queue Queue : SOCK : SOCK Stream Stream
: Input : Input Channel Channel
: SOCK : SOCK Stream Stream
: Reactor : Reactor
PEERS PEERS
26
The Reactor Pattern
Intent
{
\Decouples event demultiplexing and event han- dler dispatching from the services performed in re- sponse to events"
This pattern resolves the following forces for event-driven software:
{
How to demultiplex multiple types of events from multiple sources of events eciently within a single thread of control
{
How to extend application behavior without requir- ing changes to the event dispatching framework
Structure of the Reactor Pattern
Reactor Reactor
handle_events() register_handler(h) remove_handler(h) expire_timers()
11 11
11
Event_Handler Event_Handler
handle_input() handle_output() handle_signal() handle_timeout() get_handle()
A 11
nn
nn Concrete Concrete Event_Handler Event_Handler
Timer_Queue Timer_Queue
schedule_timer(h) cancel_timer(h) expire_timer(h)
11
11 select (handles);
select (handles);
foreach h in handles { foreach h in handles { if (h is output handler) if (h is output handler) table[h]->handle_output () ; table[h]->handle_output () ; if (h is input handler) if (h is input handler) table[h]->handle_input ();
table[h]->handle_input ();
if (h is signal handler) if (h is signal handler) table[h]->handle_signal ();
table[h]->handle_signal ();
}}this->expire_timers ();
this->expire_timers ();
nn Handles Handles
11
APPLICATION APPLICATION -- DEPENDENT DEPENDENT APPLICATION
- INDEPENDENT
n
Participants in the Reactor pattern
Collaboration in the Reactor Pattern
program main
INITIALIZE REGISTER HANDLER
callback : Concrete Event_Handler
START EVENT LOOP
DATA ARRIVES OK TO SEND
reactor : Reactor
handle_events()
FOREACH EVENT DO
handle_input() select() Reactor() register_handler(callback)
handle_output()
SIGNAL ARRIVES TIMER EXPIRES
handle_signal() handle_timeout()
get_handle()
EXTRACT HANDLE
REMOVE HANDLER
remove_handler(callback)
INITIALIZATION MODEEVENT HANDLING MODEhandle_close()
CLEANUP
29
Using the Reactor for the Gateway
:: Reactor Reactor
REGISTERED REGISTERED OBJECTS OBJECTS
FRAMEWORKFRAMEWORK LEVELLEVELKERNELKERNEL LEVELLEVELAPPLICATIONAPPLICATION LEVELLEVEL
OS EVENT DEMULTIPLEXING INTERFACE
:Timer :Timer Queue
Queue : Signal: Signal
Handlers Handlers : Handle
: Handle Table Table : Event
: Event Handler Handler : Output : Output Channel Channel
: Event : Event Handler Handler : Output : Output Channel Channel
: Event : Event Handler Handler : Input : Input Channel Channel
1: handle_input() 1: handle_input() 4: send(msg)
4: send(msg)
2: recv(msg) 2: recv(msg) 3: route(msg) 3: route(msg)
30
The Router Pattern
Intent
{
\Decouple multiple sources of input from multiple sources of output to route data correctly without blocking"
The Router pattern resolves the following forces for connection-oriented routers:
{
How to prevent misbehaving connections from dis- rupting the quality of service for well-behaved con- nections
{
How to allow di erent concurrency strategies for Input and Output Channels
Structure of the Router Pattern
Routing Routing Table Table
find()
Output Output Channel Channel
send_msg() put()
Input Input Channel Channel
recv_msg()
1
nn
I/OI/O LAYERLAYER ROUTINGROUTING LAYERLAYER
Message Message Queue Queue
EVENT SOURCE AND SINK EVENT SOURCE AND SINK
Participants in the Router pattern
Collaboration in the Router Pattern
: Routing : Routing Table Table
recv_msg() find ()
I/O LayerI/O Layer : Input
: Input Channel Channel
FIND DESTINATIONS FIND DESTINATIONS ROUTE MSG ROUTE MSG
main() main()
SEND MSG SEND MSG
((QUEUE IF FLOWQUEUE IF FLOW CONTROLLED CONTROLLED))
put()
wakeup()
FLOW CONTROL FLOW CONTROL
ABATES ABATES DEQUEUE AND SEND DEQUEUE AND SEND MSG
MSG ((REQUEUE IFREQUEUE IF FLOW CONTROLLED FLOW CONTROLLED))
: Output : Output Channel Channel
RECV MSG RECV MSG
send_msg() INPUT PROCESSING PHASE
ROUTE SELECTION PHASE
OUTPUT PROCESSING PHASE
dequeue() enqueue()
send_msg()
schedule_wakeup()
33
Structure of the Single-Threaded Router Pattern
Routing Routing Table Table
find()
Output Output Channel Channel
handle_output() put()
Input Input Channel Channel
handle_input()
1
nn
Reactor Reactor nn 11
Event Event Handler Handler
REACTIVEREACTIVE LAYERLAYER ROUTINGROUTING LAYERLAYER
Message Message Queue Queue
34
Collaboration in Single-threaded Gateway Routing
: Routing : Routing Table Table
: Input : Input Channel Channel
7: put (msg) 7: put (msg)
1: handle_input() 1: handle_input() 2: recv_peer(msg) 2: recv_peer(msg) 3: find()
3: find()
:: MessageMessage Queue Queue
: Output : Output Channel Channel
5: send_peer(msg) 5: send_peer(msg)
ROUTE ROUTE ID
ID SubscriberSubscriber Set Set
4: put (msg) 4: put (msg)
::MessageMessage Queue Queue
: Output : Output Channel Channel
8: send_peer(msg) 8: send_peer(msg) 9: enqueue(msg) 9: enqueue(msg) 10: schedule_wakeup() 10: schedule_wakeup() ---
--- 11: handle_output() 11: handle_output() 12: dequeue(msg) 12: dequeue(msg) 13: send_peer(msg) 13: send_peer(msg)
The Active Object Pattern
Intent
{
\Decouples method execution from method invo- cation and simpli es synchronized access to shared resources by concurrent threads"
This pattern resolves the following forces for concurrent communication software:
{
How to allow blocking read and write operations on one endpoint that do not detract from the qual- ity of service of other endpoints
{
How to simplify concurrent access to shared state
Structure of the Active Object Pattern
Client Client Interface Interface
ResultHandle m1() ResultHandle m2() ResultHandle m3()
Activation Activation Queue Queue
insert() remove()
Scheduler Scheduler
dispatch() m1'() m2'() m3'()
Resource Resource Representation
Representation Method Method Objects Objects
loop {
m = actQueue.remove() dispatch (m)
}
INVISIBLE INVISIBLE
TO CLIENTSTO CLIENTS VISIBLE VISIBLE
TO CLIENTSTO CLIENTS
nn
11
11 11
11 11
The Scheduler is a \meta-object" that de- termines the sequence Method Objects are executed
37
Collaboration in the Active Object Pattern
INVOKE INVOKE
INSERT IN INSERT IN PRIORITY QUEUE PRIORITY QUEUE
cons(m1')
remove(m1')
DEQUEUE NEXT DEQUEUE NEXT METHOD OBJECT METHOD OBJECT
RETURN RESULT RETURN RESULT
EXECUTE EXECUTE
client
client : Client: Client Interface
Interface : Activation: Activation Queue Queue
insert(m1')
dispatch(m1')
METHOD OBJECTMETHOD OBJECT CONSTRUCTIONCONSTRUCTIONSCHEDULING/ EXECUTIONCOMPLETION
m1()
: Represent- : Represent-
ation ation : Scheduler
: Scheduler
CREATE METHOD OBJECT
reply_to_future() future()
RETURN RESULT RETURN RESULT
HANDLE HANDLE
38
Using the Active Object Pattern for the Gateway
:: Reactor Reactor
REGISTERED OBJECTS
FRAMEWORKFRAMEWORK LEVELLEVELKERNELKERNEL LEVELLEVELAPPLICATIONAPPLICATION LEVELLEVEL
OS EVENT DEMULTIPLEXING INTERFACE
:Timer :Timer Queue
Queue : Signal: Signal
Handlers Handlers : Handle
: Handle Table Table : Event
: Event Handler Handler : Output : Output Channel Channel
: Event : Event Handler Handler : Input : Input Channel Channel
: Event : Event Handler Handler : Input : Input Channel Channel
: Event : Event Handler Handler : Input : Input Channel Channel
1: handle_input() 1: handle_input() : Event
: Event Handler Handler : Output : Output Channel Channel
4: send(msg) 4: send(msg)
2: recv(msg) 2: recv(msg) 3: route(msg) 3: route(msg)
Collaboration in the Active Object-based Gateway Routing
: Routing Table
: Input
Channel
:MessageQueue: Output Channel 4: put (msg)
1: handle_input () 2: recv_peer(msg) 3: find()
:Message Queue
: Output Channel
5: send_peer(msg)
5: send_peer(msg)
ACTIVE
ACTIVE ROUTE
ID Subscriber
Set
Half-Sync/Half-Async Pattern
Intent
{
\Decouples synchronous I/O from asynchronous I/O in a system to simplify programming e ort without degrading execution eciency"
This pattern resolves the following forces for concurrent communication systems:
{
How to simplify programming for higher-level com- munication tasks
.
These are performed synchronously
{
How to ensure ecient lower-level I/O communi- cation tasks
.
These are performed asynchronously
41
Structure of the
Half-Sync/Half-Async Pattern
QUEUEINGQUEUEING LAYERLAYER ASYNCHRONOUSASYNCHRONOUS TASK LAYER TASK LAYER SYNCHRONOUSSYNCHRONOUS TASK LAYER TASK LAYER
S
YNC TASK1
SS
YNCYNCTASK TASK
33
SS
YNCYNC TASK TASK22 1, 4: read(data)
1, 4: read(data)
3: enqueue(data) 3: enqueue(data)
2: interrupt 2: interrupt
ASYNC ASYNC TASK TASK
EXTERNAL EXTERNAL EVENT SOURCES EVENT SOURCES MESSAGE QUEUES MESSAGE QUEUES
42
Collaborations in the Half-Sync/Half-Async Pattern
EXTERNAL EVENT
PROCESS MSG
read(msg)
EXECUTE TASK ENQUEUE MSG
External
Event Source Async
Task Sync
Message Task Queue
enqueue(msg) work()
DEQUEUE MSG
ASYNC PHASEQUEUEING PHASESYNC PHASE
RECV MSG
notification()
read(msg) work()
This illustrates input processing (output pro- cessing is similar)
Using the Half-Sync/Half-Async Pattern in the Gateway
QUEUEINGQUEUEING LAYERLAYER ASYNCHRONOUSASYNCHRONOUS TASK LAYER TASK LAYER SYNCHRONOUSSYNCHRONOUS TASK LAYER TASK LAYER 1: dequeue(msg) 1: dequeue(msg) 2: send(msg) 2: send(msg)
: Output : Output Channel Channel
2: recv(msg) 2: recv(msg) 3: get_route(msg) 3: get_route(msg) 4: enqueue(msg) 4: enqueue(msg)
1: dispatch() 1: dispatch() : Reactor : Reactor
MESSAGE QUEUES MESSAGE QUEUES
: Input : Input Channel Channel : Input : Input
Channel Channel
: Input : Input Channel Channel
: Output : Output Channel Channel : Output
: Output
Channel
Channel
The Connector Pattern
Intent
{
\Decouples active initialization of a service from the task performed once a service is initialized"
This pattern resolves the following forces for network clients that use interfaces like sockets or TLI:
1. How to reuse active connection establishment code for each new service 2. How to make the connection establishment code portable across platforms that may contain sock- ets but not TLI, or vice versa
3. How to enable exible service concurrency policies 4. How to actively establish connections with large number of peers eciently
45
Structure of the Connector Pattern
Reactor Reactor nn
11Event Event Handler Handler
Connector Connector
connect_svc_handler() activate_svc_handler() handle_output() connect(sh, addr)
SVC_HANDLER SVC_HANDLER PEER_CONNECTOR PEER_CONNECTOR
Concrete Concrete Connector Connector
Concrete_Svc_Handler Concrete_Svc_Handler SOCK_Connector SOCK_Connector
Concrete
11Concrete Svc Handler Svc Handler
SOCK Stream SOCK Stream
open()
nn
REACTIVEREACTIVE LAYERLAYERCONNECTIONCONNECTION LAYERLAYERAPPLICATIONAPPLICATION LAYERLAYER
handle_output()
A A
connect_svc_handler connect_svc_handler (sh, addr);
(sh, addr);
1:
1:
Svc Handler Svc Handler
PEER_STREAM PEER_STREAM
open() AA
INITS
activate_svc_handler activate_svc_handler (sh);
(sh);
2:
2:
nn
46
Collaboration in the Connector Pattern
Client
FOREACH CONNECTION INITIATE CONNECTION SYNC CONNECT
INSERT IN REACTOR
con : Connector
handle_input() reactor : Reactor Svc_Handlersh:
register_handler(sh) get_handle() EXTRACT HANDLE
DATA ARRIVES
svc() PROCESS DATA
connect(sh, addr)
connect() ACTIVATE OBJECT
: SOCK Connector
SERVICE PROCESSING PHASE
activate_svc_handler(sh) connect_svc_handler(sh, addr)
CONNECTION INITIATION/ SEVICE INITIALIZATION
PHASE
START EVENT LOOP FOREACH EVENT DO
handle_events() select() open()
Synchronous mode
Collaboration in the Connector Pattern
Client
FOREACH CONNECTION INITIATE CONNECTION ASYNC CONNECT INSERT IN REACTOR
START EVENT LOOP FOREACH EVENT DO
handle_events() select() CONNECTION COMPLETE
INSERT IN REACTOR
con : Connector
handle_input() reactor :
Reactor Svc_Handlersh:
handle_event()
register_handler(sh) get_handle() EXTRACT HANDLE
DATA ARRIVES
svc() PROCESS DATA
connect(sh, addr) connect()
ACTIVATE OBJECT
register_handler(con) : SOCK
Connector
CONNECTION INITIATION
PHASE
SERVICE INITIALIZATION PHASE
SERVICE PROCESSING PHASE
activate_svc_handler(sh) connect_svc_handler(sh, addr)
open()
Asynchronous mode
Using the Connector for the Gateway
: Connector
: Reactor
PENDING CONNECTIONS
ACTIVE CONNECTIONS
: Svc Handler : Channel
: Svc Handler : Channel : Svc
Handler : Channel : Svc Handler : Channel
: Svc Handler : Channel
: Svc Handler : Channel : Svc
Handler : Channel
49
The Acceptor Pattern
Intent
{
\Decouples passive initialization of a service from the tasks performed once the service is initialized"
This pattern resolves the following forces for network servers using interfaces like sock- ets or TLI:
1. How to reuse passive connection establishment code for each new service 2. How to make the connection establishment code portable across platforms that may contain sock- ets but not TLI, or vice versa
3. How to ensure that a passive-mode descriptor is not accidentally used to read or write data 4. How to enable exible policies for creation, con- nection establishent, and concurrency
50
Structure of the Acceptor Pattern
Reactor Reactor
11
Acceptor Acceptor
SVC_HANDLER SVC_HANDLER PEER_ACCEPTOR PEER_ACCEPTOR
Concrete Concrete Acceptor Acceptor
Concrete_Svc_Handler Concrete_Svc_Handler SOCK_Acceptor SOCK_Acceptor
Concrete
11Concrete Svc Handler Svc Handler
SOCK Stream SOCK Stream
open()
nn
REACTIVEREACTIVE LAYERLAYERCONNECTIONCONNECTION LAYERLAYERAPPLICATIONAPPLICATION LAYERLAYER
INITS INITS
Svc Handler Svc Handler
PEER_STREAM PEER_STREAM
open() A A
sh = make_svc_handler();
sh = make_svc_handler();
accept_svc_handler (sh);
accept_svc_handler (sh);
activate_svc_handler (sh);
activate_svc_handler (sh);
nn Event Event Handler Handler
handle_input()
A A
make_svc_handler() accept_svc_handler() activate_svc_handler() open()
handle_input()
Collaboration in the Acceptor Pattern
Server
REGISTER HANDLER
START EVENT LOOP
CONNECTION EVENT
REGISTER HANDLER FOR CLIENT I/O
FOREACH EVENT DO EXTRACT HANDLE INITIALIZE PASSIVE
ENDPOINT
acc : Acceptor
handle_input() handle_close()
reactor : Reactor
select() Svc_Handlersh:
handle_input()
register_handler(sh) get_handle()
EXTRACT HANDLE DATA EVENT
CLIENT SHUTDOWN
svc()
PROCESS MSG
open()
CREATE, ACCEPT,
AND ACTIVATE OBJECT
SERVER SHUTDOWN handle_close()
ENDPOINT INITIALIZATION PHASE
SERVICE INITIALIZATION PHASE
SERVICE PROCESSING PHASE
: SOCK Acceptor
handle_events() get_handle() register_handler(acc)
sh = make_svc_handler() accept_svc_handler (sh) activate_svc_handler (sh)
open()
Acceptor is a factory that creates, connects,
and activates a Svc Handler
Using the Acceptor Pattern in the Gateway
: Input : Input Acceptor Acceptor
:: Reactor Reactor
ACTIVE CONNECTIONS
: Svc Handler : Input : Input Channel Channel
: Svc : Svc Handler Handler : Output : Output Channel Channel
: Svc : Svc Handler Handler : Output : Output Channel Channel
: Svc : Svc Handler Handler : Input : Input Channel Channel
PASSIVE LISTENERS
: Output : Output Acceptor Acceptor
53
The Service Con gurator Pattern
Intent
{
\Decouples the behavior of network services from the point in time at which these services are con- gured into an application"
This pattern resolves the following forces for highly exible communication software:
{
How to defer the selection of a particular type, or a particular implementation, of a service until very late in the design cycle
.
i.e., at installation-time or run-time
{
How to build complete applications by composing multiple independently developed services
{
How to recon gure and control the behavior of the service at run-time
54
Structure of the Service Con gurator Pattern
Reactor Reactor nn
11Event Event Handler Handler
Concrete Concrete Service Object Service Object
REACTIVEREACTIVE LAYERLAYERCONFIGURATIONCONFIGURATION LAYERLAYERAPPLICATIONAPPLICATION LAYERLAYER
11
11
Service Service Config Config
nn Service Service Object Object
A suspend() suspend() resume() resume() init() init() fini() fini() info() info()
11
Service Service Repository Repository
11
Collaboration in the Service Con gurator Pattern
: Service : Service Config Config main()
main()
REGISTER SERVICE REGISTER SERVICE
START EVENT LOOP START EVENT LOOP INCOMING EVENT INCOMING EVENT FOREACH EVENT DO FOREACH EVENT DO
STORE IN REPOSITORY STORE IN REPOSITORY CONFIGURE
CONFIGURE
FOREACH SVC ENTRY DO FOREACH SVC ENTRY DO
svc : svc : Service_Object
Service_Object : Reactor: Reactor
run_event_loop()
handle_events() handle_input()
Service_Config()
: Service : Service Repository Repository
insert()
EXTRACT HANDLE EXTRACT HANDLE INITIALIZE SERVICE
INITIALIZE SERVICE init(argc, argv)
fini()
DYNAMICALLY LINK DYNAMICALLY LINK
SERVICE
SERVICE link_service()
unlink_service()
SHUTDOWN EVENT
SHUTDOWN EVENT handle_close()
UNLINK SERVICE UNLINK SERVICE
remove() register_handler(svc)
get_handle()
remove_handler(svc) CONFIGURATIONCONFIGURATION MODEMODEEVENT HANDLING MODE
process_directives()
CLOSE SERVICE CLOSE SERVICE
Using the Service Con gurator Pattern for the Gateway
: Service Config
SERVICE CONFIGURATOR
RUNTIME
: Service Repository
: Reactor : Service Object : Reactive
Gateway
: Service Object : Thread Pool Gateway
SHARED OBJECTS
: Service Object : Thread Gateway
Replace the single-threaded Gateway with a multi-threaded Gateway
57
Bene ts of Design Patterns
Design patterns enable large-scale reuse of software architectures
Patterns explicitly capture expert knowledge and design tradeo s
Patterns help improve developer communi- cation
Patterns help ease the transition to object- oriented technology
58
Drawbacks to Design Patterns
Patterns do not lead to direct code reuse
Patterns are deceptively simple
Teams may su er from pattern overload
Patterns are validated by experience rather than by testing
Integrating patterns into a software devel- opment process is a human-intensive activ- ity
Suggestions for Using Patterns E ectively
Do not recast everything as a pattern
{
Instead, develop strategic domain patterns and reuse existing tactical patterns
Institutionalize rewards for developing pat- terns
Directly involve pattern authors with appli- cation developers and domain experts
Clearly document when patterns apply and do not apply
Manage expectations carefully
Books and Magazines on Patterns
Books
{
Gamma et al., \Design Patterns: Elements of Reusable Object-Oriented Software" Addison-Wesley, Reading, MA, 1994.
{
\Pattern Languages of Program Design," editors James O. Coplien and Douglas C. Schmidt, Addison- Wesley, Reading, MA, 1995
Special Issues in Journals
{
\Theory and Practice of Object Systems" (guest editor: Stephen P. Berczuk)
{
\Communications of the ACM" (guest editors: Dou- glas C. Schmidt, Ralph Johnson, and Mohamed Fayad)
Magazines
{
C++ Report and Journal of Object-Oriented Pro- gramming, columns by Coplien, Vlissides, and De Souza
61
Conferences and Workshops on Patterns
Joint Pattern Languages of Programs Con- ferences
{
3rd PLoP
.
September 4
,6, 1996, Monticello, Illinois, USA
{
1st EuroPLoP
.
July 10
,14, 1996, Kloster Irsee, Germany
{
http://www.cs.wustl.edu/
~schmidt/jointPLoP
,96.html/
USENIX COOTS
{
June 17
,21, 1996, Toronto, Canada
{
http://www.cs.wustl.edu/
~schmidt/COOTS
,96.html/
62
Obtaining ACE
The ADAPTIVE Communication Environ- ment (ACE) is an OO toolkit designed ac- cording to key network programming pat- terns
All source code for ACE is freely available
{
Anonymously ftp to wuarchive.wustl.edu
{
Transfer the les /languages/c++/ACE/*.gz and
gnu/ACE-documentation/*.gz
Mailing lists
* [email protected]
* [email protected]
* [email protected]
* [email protected]
WWW URL
{
