Please read this guide completely before starting. For questions about this and other Andersen® products, call 1-888-888-7020.
For the most current version of this guide visit www.ander senwindows.com. Consult your local building code official for applicable building codes and regulations. Thank you for choosing Andersen® products.
Please leave this information with homeowner.
Use caution when working at elevated heights and around unit openings. Follow manufacturer’s instructions for safe use of ladder and/or scaffolding. Failure to do so may result in injury or death.
Use a reasonable number of people with sufficient strength when moving and installing units. Always use safe lifting techniques. Failure to do so may result in injury and/or product damage.
Follow manufacturer’s instructions for safe operation of hand/power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.
“Andersen” is a registered trademark of Andersen Corporation. All other marks where denoted are marks of Andersen Corporation. ©2006-2006 Andersen Corporation. All rights reserved.
Parts Included (1) Installation Guide (1) Top Sash (1) Bottom Sash or (1) Balance or
·
Tools Needed
• Safety Glasses
• Phillips Screwdriver

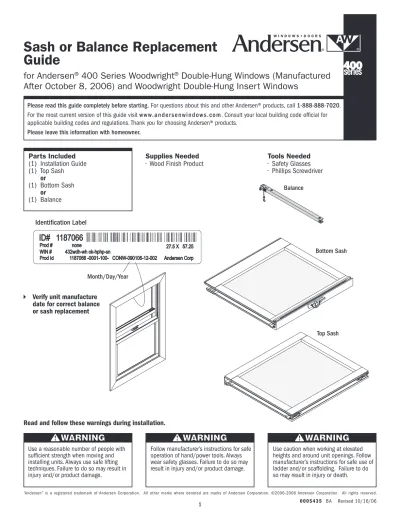

Sash or Balance Replacement Guide
for Andersen
®400 Series Woodwright
®Double-Hung Windows (Manufactured After October 8, 2006) and Woodwright Double-Hung Insert Windows
Supplies Needed
• Wood Finish Product
Bottom Sash
Top Sash Balance
Read and follow these warnings during installation.
4 Verify unit manufacture date for correct balance or sash replacement
Identification Label
Month/Day/Year
2
Interior
1
Interior Do not remove product performance
label before final inspection.
Glass
}
Tempered safety glass is not standard and must be special ordered. Check local building codes for required safety glass locations.
• Do not allow sealants to contact glass surface. Glass surface or exterior coating damage will result.
• If protective film is present, leave in place until unit is installed and job site construction is completed to protect glass surface.
• If suction cups are used while moving or installing unit, make sure that cups are not applied on the seam of the protective film.
• If suction cup is applied on the seam, the suction cup will lose adhesion, causing unit to slip or drop and potentially causing damage or injury.
Protective Film Seam
Suction Cup
• Do not remove protective film in an area where there are solvents or flammable materials. Do not dispose of protective film in a container that may also contain flammable materials.
• Removing the protective film may result in a static charge that could cause a shock or spark.
Static discharge caused when protective film is removed may ignite flammable materials.
If loop style balance is replaced, it is
4
recommended that both balances be changed to the clip style.
Raise bottom sash 4" from sill. Slide
wash assists down. Tilt bottom sash down and slide wash assists back up.
Loop Clip
4"
Wash Assist Wash
Assist
3
Interior
4
Interior
5
Interior
8
Interior
6
Interior
7
Interior
Lift one side of sash to free pivot pin.
or
Remove and replace balance. To reinstall sash, go to step 7. For top sash removal, go to step 8.
Balance Bottom Sash
Lower top sash 8" from sill. Slide tilt latches as shown.
Remove sash. If replacing top sash or top sash balance, set bottom sash aside and go to step 8.
Continue lifting until balance cords can be removed as shown.
Reverse steps 1-5 to reinstall bottom sash. Push sash down approximately 1"
to engage sash balances.
For sash replacement, transfer balances from existing sash to the replacement sash.
For balance replacement, remove existing balance and replace with replacement balance.
4
4 If sash balance is not re-engaged in
the track by first pushing down on the sash, it will quickly drop potentially causing injury.
For reinstallation, place bottom sash pivot pins in inner channel.
Pivot Pin
Loop Style Balance Cord
Clip Style Balance Cord
Tilt Latch Inner
Channel
9
Interior
10
Interior
12
Interior
13
11
Interior
14
Interior
Tilt top sash down. Continue lifting until balance cords can
be removed as shown.
Remove and replace balance. Properly discard all unused balance(s).
Balance
Reverse steps 8-12 to reinstall top sash.
Reverse steps 1-5 to reinstall bottom sash.
Installation is finished.
Lift one side of sash to free pivot pin.
Remove sash from frame.
or
Phillips Screwdriver
For reinstallation, place top sash pivot pins in outer channel.
If sash balance is not re-engaged in the track by first pushing down on the sash, it will quickly drop potentially causing injury.
For sash replacement, transfer balances from existing sash to the replacement sash.
For balance replacement, remove existing balance and replace with replacement balance.
4
4
Loop Style Balance Cord
Clip Style Balance Cord
Outer Channel Pivot Pin
}
Tape glass edge with painters tape prior to finishing or painting wood surfaces. Protective film is not a substitute for edge masking.Finishing
• Do not expose unfinished wood to high moisture conditions, excessive heat or humidity. Finish interior wood surfaces immediately after installation. Unfinished wood surfaces will discolor, deteriorate, and/or may bow and split.
• Do not stain or paint weatherstrip, silicone beads, vinyl, glass or hardware. Damage to product may occur and unit operation may be impaired.
Lower Check Rail
}
Finish interior wood surfacesincluding hidden surface at check rail immediately after installation.
}
Read and follow finishing manufacturer’s instructions and warnings on each container of finish material for priming, painting, staining, and varnishing.Protective film may pose suffocation hazard to children. Properly dispose of film immediately after removal and keep out of reach of children.
Do not apply any type of film or insulating materials such as window coverings, shutters, or other shading devices to glass. Glass may be damaged and condensation may result causing deterioration of windows and doors.
}
Start film removal from seam or}
corner of film using plastic scraper if needed. Peel off film. Remove protective film within one year of installation.
Clean glass surface using liquid glass cleaner, squeegee or clean cloth only.
Glass surface damage may result if abrasive cleaners are used.
}
Do not use abrasive cleaners or solutions containing corrosive solvents.}
Clean exterior frame, sash members, and insect screens using a mild detergent-and-water solution and soft cloth or brush.}
Clean persistent dirt or grime, using a nonabrasive cleaner, water-and- alcohol solution, or water-and- ammonia solution.}
Sand and refinish stained or mildewed wood immediately to prevent further discoloration or damage.1
Cleaning & Maintenance
For a copy of Andersen product care and maintenance guides, visit www.andersenwindows.com Do not install air conditioning unit in window. Injury and/or damage to the product or property could occur.
Acid solutions used for wash masonry/concrete will damage glass, fasteners, hardware, and metal flashing. If these solutions are used, follow the acid solution manufacturer’s instructions carefully.
Protect and/or cover Andersen products during the cleaning process to prevent acid contact. If acid does come in contact with unit, immediately wash all surfaces with clean water.
}
For further information, contact your local Andersen dealer. Dealers can be found in the yellow pages under windows.Do not use metal razor blades to clean glass or to remove print/finish or protective film from glass surface.
Glass surface or exterior coating damage may result.
