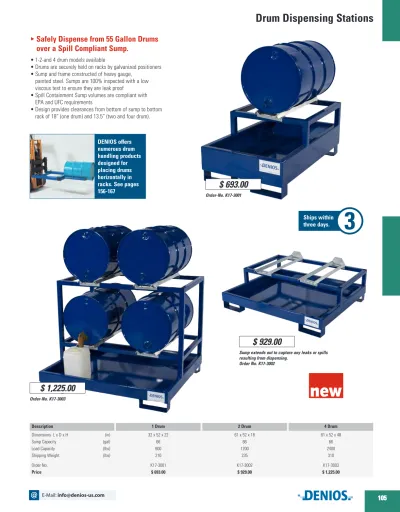

Drum Dispensing Stations
O Safely Dispense from 55 Gallon Drums over a Spill Compliant Sump.
• 1-2-and 4 drum models available
• Drums are securely held on racks by galvanized positioners
• Sump and frame constructed of heavy gauge, painted steel. Sumps are 100% inspected with a low viscous test to ensure they are leak proof
• Spill Containment Sump volumes are compliant with EPA and UFC requirements
• Design provides clearances from bottom of sump to bottom rack of 18” (one drum) and 13.5” (two and four drum).
$ 1,225.00
Order-No. K17-3003
$ 693.00
Order-No. K17-3001
$ 929.00
Sump extends out to capture any leaks or spills resulting from dispensing.
Order No. K17-3002
Description
Dimensions L x D x H (in)
Sump Capacity (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
1 Drum 32 x 52 x 22
66 600 210 K17-3001
$ 693.00
2 Drum 61 x 52 x 18
66 1200
235 K17-3002
$ 929.00
4 Drum 61 x 52 x 48
66 2400
310 K17-3003
$ 1,225.00
DENIOSoffers
numerous drum handling products designed for placing drums horizontally in racks. See pages 156-167
Ships within
three days.
Stackable Drum Racks and Sumps
2-Drum Rack and 3 16-gallon Drum Rack with Containment Sump, Dispensing shelf sold separately. Order No. K12-1110
Removable Metal Dispensing Shelf.
Order No. K17-1909
O Note: Individual component prices listed below.
O Prevent spills by using containment sumps positioned beneath the drum rack.
O Components allow you to organize a wide variety of combinations to suit your exact needs.
• By combining Stackable Drum Racks and Spill Sumps a variety of configurations are available
• Select the components you need to configure a layout suited to your specific needs
• Each Rack is easily lifted and relocated with a forklift
• Spill Containment Sumps are sized to comply with OSHA and EPA requirements
• These sumps catch drips and spills associated with dispensing, maintaining a neat, safe area
• All components are made of heavy gauge steel, galvanized to provide years of service with a rust-free appearance
2 each double stacked 1-Drum Racks and Containment Sump.
Dispensing shelf sold separately. Order No. K12-1117
$ 911.00
$ 728.00
2 each double stacked 2-Drum Racks and Containment Sump.
Dispensing shelf sold separately. Order No. K12-1112
$ 895.00
$ 83.00
Description
Appropriate Combinations Dimensions L x D x H (in) Storage Capacity
Stacking Capacity Order No.
Price
1-Drum Sump
28 x 50 x 10 55 gallons
K12-1101
$ 243.00
1-Drum Rack
33 x 25 x 33 1 x 55-gallon Drum
2-High K17-1904
$ 234.00
2 / 3 Drum Sump
50 x 50 x 6 55 gallons
K12-1102
$ 389.00
3 16-gallon Drum Rack
56 x 25 x 36 3 x 16-gallon Drum
2-High K17-1906
$ 311.00
2 - Drum Rack
56 x 25 x 36 2 x 55-gallon Drum
2-High K17-1905
$ 312.00
Stackable Drum Racks with Spill Pallets
• Sump of heavy gauge steel for extended life
• 66-gallon sump volumes meet EPA & UFC requirements
• Sump welds are 100% inspected with a low-viscous test to insure leaktightness
• Fully welded frame construction
• Complete with forklift pockets and stackable 2-high
8 Drum Spill Pallet with two Stackable Drum Racks for two 55-gallon drums.
(Dispensing Shelf not included.) Order No. K17-3113 Drum Rollers ease positioning of
55-gallon drum and allow drain to be rotated to the top to prevent dripping or leaks. Rollers only - cradles not included.
Order No. K17-1915
4 Drum Inline Spill Pallet with two Stackable Drum Racks for three 16-gallon drums.
Order No. K17-3112 Removable Metal Dispensing Shelf.
Order No. K17-1909
4 Drum Spill Pallet with a Transport Rack for three 16-gallon drums and a Transport Rack for two 55-gallon drums. (Dispensing Shelf not included.) Order No. K17-3110
$ 83.00
$ 225.00
$ 1,277.00
$ 1,760.00 $ 1,401.00
Appropriate Combinations Description
Dimensions L x D x H (in) Storage Capacity
Stacking Capacity Order No.
Appropriate Combinations 2-Drum
Pallet 54 x 34 x 14 2 x 55 gallon Drums
K17-3102
$ 623.00
1-Drum Rack 33 x 25 x 33 1 x 5 gallon Drums
2-high K17-1904
$ 234.00
4-Drum Pallet 54 x 50 x 10 4 x 55 gallon Drums
K17-3103
$ 755.00
4-Drum Inline Pallet 107 x 34 x 10 4 x 55 gallon Drums
K17-3104
$ 863.00
8-Drum Pallet 107 x 50 x 10 8 x 55 gallon Drums
K17-3105
$ 1,254.00
2-Drum Rack 56 x 25 x 36 2 x 55 gallon Drums
2-high K17-1905
$ 312.00
3 16-gallon Drum Rack 56 x 25 x 36 3 x 16 gallon Drums
2-high K17-1906
$ 311.00
Drum Racks with Spill Sumps
Store and dispense 4 drums over containment sump.
Dispensing Shelf sold separately. Order No. K34-1101
O Store and dispense 55-gallon drums in almost any combination. Combine vertical and horizontal
positioning to optimize your liquid chemical warehousing.
O Storage incorporates compliant spill containment sumps providing both security and improved housekeeping!
• Racking and Sumps promote multi-functional arrangements
• Beams are adjustable in 2”
increments to suit your needs
• Shipped knock-down Assembly in minutes
• Racking components are selected for proper load capacities
• Sumps are galvanized to maintain a like-new appearance
while resisting corrosion
• Rack components are powder coated enamel
• Horizontal/vertical drum configurations include galvanized grating for sump- purely horizontal configurations do not
Store 3 drums horizontally with 3 vertically on grating above the spill sump.
Order No. K34-1109
$ 2,079.00
$ 1,409.00
Description
Rack Dimensions L x D x H (in) Sump Dimensions L x D (in)
Sump Volume (gal)
Load Capacity (per shelf, uniform) (lbs)
Shipping Weight (lbs)
Order No.
Price
4-Drum Horizontal 66 x 36 x 96
60 x 50 66 2200
355 K34-1101
$ 1,409.00
2-Drum Horizontal / 4 Vertical 66 x 36 x 96
60 x 50 66 2200
373 K34-1103
$ 1,525.00
6-Drum Horizontal 102 x 36 x 96
96 x 50 82 2200
438 K34-1107
$ 1,772.00
3-Drum Horizontal / 6 Vertical 102 x 36 x 96
96 x 50 82 2200
554 K34-1109
$ 2,079.00 Corner Protectors
Grating Spill Sump Containment Cross Members Frame Dispensing Shelf Drum Cradle
Drum Roller Assembly
This exploded view highlights
the components of the Knock-Down
Containment Rack System.
Drum Racks with Spill Sumps
Accessories:
Metal Dispensing Shelf.
Order No. K17-1909 Drum Roller Assembly eases
positioning of 55-gallon drum and allows drain to be rotated to the top to prevent dripping or leaks.
Order No. K17-1915
• Galvanized Steel Grating provides secure platform for vertical drums
• Poly Sump Liners available for highly corrosive liquids
• Sump volumes meet or exceed EPA & UFC requirements
• Horizontal/vertical drum configurations include galvanized grating for sump- purely horizontal configurations do not
Store 9 drums horizontally above the spill sump. Dispensing Shelf sold separately.
Order No. K34-1117
$ 2,279.00
Rack for 4 horizontal drums and 2 vertical drums with extra room for smaller containers.
Order No. K34-1113
$ 1,950.00
$ 225.00 $ 83.00
Description
Rack Dimensions L x D x H (in) Sump Dimensions L x D (in)
Sump Volume (gal)
Load Capacity (per shelf, uniform) (lbs)
Shipping Weight (lbs)
Order No.
Price
6-Drum Horizontal 66 x 36 x 96
60 x 50 66 2200
334 K34-1111
$ 1,835.00
4-Drum Horizontal / 4 Vertical 66 x 36 x 96
60 x 50 66 2200
407 K34-1113
$ 1,950.00
9-Drum Horizontal 102 x 36 x 96
96 x 50 82 2200
498 K34-1117
$ 2,279.00
6-Drum Horizontal / 6 Vertical 102 x 36 x 96
96 x 50 82 2200
614 K34-1119
$ 2,588.00
Pallet Rack & Sump Combination Vertically
For Storing Drums Vertically
O Bring your chemical storage area into spill compliance while improving handling efficiency and safety.
DENIOS combines its Spill Pallet expertise with sturdy pallet racking to create a versatile storage system for drums.
• Components matched for required loads and volumes
• Sturdy galvanized grating provides secure, easy to load base for pallets on both levels
• Racks equipped with Pallet Stops and Galvanized Splash Guards
• Assembles in minutes with easy-to-follow instructions provided
• Each bay sized to accommodate 2 wooden pallets holding 4 Drums each
• Options include Corner Protectors and Galvanized Sump
Sections can be joined to accommodate the capacity and configuration best suited for each area. Order No. K34-4602
For additional safety, add Corner Protectors.
Order No. K34-3901 / Pair
Drums may be stored on pallets or directly on the sturdy, galvanized bar grating.
Order No. K34-4602
$ 3,115.00 Per Section
$ 3,115.00
$ 78.00 / Pair
Description
Dimensions L x D x H (in)
Load Capacity - Upper Rack (lbs) Load Capacity - Spill Sump (lbs)
Sump Volume (gal)
Shipping Weight (lbs)
Order No.
Price
16 Drum Rack 126 x 54 x 120
7500 7500 159 1410 K34-4602
$ 3,115.00
Pallet Rack & Sump Combination Horizontally
Combo Racks available for IBC’s.
See page 83!
O Provide a safe, compliant horizontal placement of drums with spill containment sumps extending forwards to catch drips and spills from dispensing.
$ 2,950.00
Order-No. K34-4608
Add optional Dispensing Shelf.
Order No. K17-1909
$ 83.00
The K34-4608 can be attached to/combined with K34-4602 configurations to provide horizontal and vertical storage. Contact factory for details.
For Storing Drums Horizontally
Organize your storage with efficient 2-tier drum storage in any combination to suit your material demands.
Combine with racks for vertical / palletized drums in any configuration you require.
Description
Dimensions L x D x H (in) Load Capacity - Upper Rack (lbs) Load Capacity - Spill Sump (lbs)
Sump Volume (gal)
Shipping Weight (lbs) Order No.
Price
8 Drum Rack 126 x 54 x 120
3000 3000 159 1050 K34-4608 $ 2,950.00
Spill Containment Sumps for Pallet Racks
O EPA - 40CFR 264.175
(3) The containment systems must have sufficient capacity to contain 10% of the volume of the containers or the volume of the largest container, whichever is greater.
O Additional sump sizes available.
O Call for quotation.
DENIOS Sumps provide spill containment beneath your existing pallet racks. Simply raise the lower tier level to accommodate the sump height, slide the sumps into place.
• Containment volumes meet EPA code requirements
• Sumps are constructed of heavy gauge galvanized steel for extended durability
• Raised sumps allow for easy cleaning and forklift access for transport
• Standard sumps models accommodate all rack depths up to 48 inches
Add optional
Corner Protectors for additional rack and sump security.
Order No. K34-3901
Sump positioned beneath a 108” pallet rack section provides compliant spill containment for up to 900 gallons of stored liquids = 16 drums.
Order No. K34-3913
Floor sump for 54” wide rack.
Order No. K34-3916
$ 839.00
$ 566.00 $ 78.00 / Pair
Description
Rack Size W x D (max) (in) Sump Dimensions W x D x H (in)
Sump Capacity (gal)
Shipping Weight (Ibs)
Order No.
Price
8 drum rack 54 x 48 53 x 50 x 10
68 183 K34-3916
$ 566.00
16 drum rack 96 x 48 95 x 50 x 8
82 278 K34-3919 $ 811.00
16 drum rack 108 x 48 107 x 50 x 8
90 300 K34-3913 $ 839.00
Sump Inserts for Pre-Existing Pallet Racks
For custom applications please provide us your rack dimensions (A, B, and C as shown) and we will build to your specifications.
A
B C
• Pallet Rack Sump inserts
consist of a spill containment sump and easily removable galvanized steel grating
• Made to fit exact pallet rack specifications; Sump Inserts provide economical retrofits
• Sump of heavy duty, corrosion resistant galvanized steel
• Sump welds are 100% inspected with a low-viscous test to insure leaktightness
• Load Capacity - 250 psf
• Sump volumes meet EPA requirements
• For Custom Sizes Call For Consultation
O Quickly and easily bring existing pallet rack storage into compliance.
Conveniently sized for standard 36” and 42” wide
rack systems. Sump rests on the rack beams. In addition to chemical storage application, these racks are great for refrigerated environments where slight melting/thawing may occur.
FOR RACK DIMENSIONS W X D
Nominal Dimensions A x B x C (in)
Sump Volume (gal)
Load Capacity (psf)
Shipping Weight (lbs)
Order No.
Price
96 x 36 95 x 29 x 42
58 250 335 K38-1140
$ 869.00
108 x 36 107 x 29 x 42
65 250 392 K38-1150
$ 975.00
96 x 42 95 x 36 x 50
70 250 387 K38-1160
$ 1,011.00
108 x 42 107 x 36 x 50
79 250 452 K38-1170
$ 1,135.00
Drum Cradles
Pallet Ramp
O Adjustable Pallet Ramp eases Drum Handling on and off Spill Pallets and Sumps.
• Versatile - adjusts to heights 9-11 inches
• Tough - built to last in everyday use
• Lightweight - aluminum plate for easy handling
• Secure - treadplate pattern for slip resistance
Pallet Ramps adjust to fit most pallet heights.
Order No. K17-1941,
(Pallet and Manual Drum Truck sold separately.)
• Use with any DENIOS Pallet or Storage System
• Heavy gauge steel frame. Easy to maneuver
• Keep drips and leaks from spilling onto floors and into aisles
• Store drums of chemicals over compliant spill containment sumps
• Simplify clean-ups while conserving your materials
• Sumps in images sold separately, please see page 86
Sturdy Dual Drum Cradle for 55-gallon drums.
Order No. K17-1902
Horizontal Drum Cradles
O Select Cradles for Dispensing from Single or Multiple Drums.
$ 281.00
$ 992.00
Cradle for one 55-gallon drum.
Order No. K17-1901
$ 247.00 $ 281.00
Cradle for two 55-gallon drums.
Order No. K17-1902 Description
Dimension W x L x H (in)
Load Capacity (lbs)
Shipping Weight (lbs) Order No.
Price
Pallet Ramp 30 x 60 x 9
1200 105 K17-1941
$ 992.00
Description
Dimensions L x D x H (in)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
1-Drum Cradle 24 x 24 x 14
600 48 K17-1901
$ 247.00
2-Drum Cradle 48 x 24 x 14
1200 70 K17-1902
$ 281.00
Steel Spill Decking - 2” Depth
Ramps with different dimensions
2” Spill Decking provides spill containment for smaller volumes in areas where mixing, dispensing or pumping operations lead to frequent drips and spills.
• Heavy gauge galvanized steel far outlasts plastic decks.
• Simplifies maintenance and facility cleanup
• Keeps spills from aisle or walkways
• Flexible design accommodates any area
• Easily relocated
• Complete system includes joining and anchoring components
• Easy to install
Retro-fit any area where drips and spills present ever-present hazards to your employees, or where spilt liquids present risk of leaching into and below the facility floors.
Call us with your dimensions for a complete proposal including all necessary joining components.
O DENIOS, the originator of heavy duty spill decking
Ramps allow for effortless material handling on and off decks. Model K42-1101 provides 20 square feet of leak free, protected work area
Corner Binder
Edge Binder
Spill Decking
Spacer
Corner Ramp Anchor
Ramp
From $ 723.00 Per Section
4’ x 5’
49 x 61 2 24 350 psf
222 K42-1101
$ 723.00
5’ x 5’
61 x 61 2 30 350 psf
276 K42-1102
$ 900.00
4’ x 6’
49 x 73 2 29 350 psf
263 K42-1105
$ 865.00
5’ x 6’
61 x 73 2 36 350 psf
331 K42-1106
$ 1,071.00 Description
Outside Dimensions (in)
Overall Height (in)
Sump Volume (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
Ramp
Outside Dimensions W x L (in)
Overall Height (in)
Shipping Weight (lbs)
Order No.
Price
4’
48 x 18 2 47 K42-1911
$ 328.00
5’
60 x 18 2 73 K42-1912
$ 410.00
6’
72 x 18 2 81 K42-1913
$ 489.00
Spill Decks can be grouped and joined together to form leak-free dispensing stations.
O Custom sizes available.
O For a complete proposal, call with dimensions and weight-load requirements.
O Each multiple section order shipped with easy to follow installation instructions including layout sketch.
Ramps provided in lengths matching standard spill decking dimensions.
Steel Spill Decking - 5” Depth
From $ 844.00
SPILL DECKING
Outside Dimensions (in)
Overall Height (in)
Sump Volume (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
4’ x 5’
49 x 61 5 66 350 psf
432 K42-1151
$ 844.00
5’ x 5’
61 x 61 5 77 350 psf
513 K42-1152
$ 1,052.00
4’ x 6’
49 x 73 5 74 350 psf
501 K42-1155
$ 1,014.00
5’ x 6’
61 x 73 5 93 350 psf
595 K42-1156
$ 1,261.00
RAMP
Outside Dimensions W x L (in)
Overall Height (in)
Shipping Weight (lbs)
Order No.
Price
4’
48 x 25 5 67 K42-1915
$ 399.00
5’
60 x 25 5 83 K42-1916
$ 509.00
6’
72 x 25 5 109 K42-1917
$ 604.00
Decks can be reinforced to allow for forklift traffic. Contact factory for details
5” Deep Modular Spill Decking provides economical compliance solutions for pre-existing areas
• Simplifies general house-keeping and maintenance in storage and dispensing areas
• Sump volumes are compliant with EPA and UFC spill containment regulations for 55-gallon drums
• Constructed of heavy gauge, corrosion resistant galvanized steel
• Welds are 100% inspected with low-viscous test to insure leaktightness
• Relocatable and expandable
• Easy to install and clean up
• Binder and Anchor Accessories secure systems in place
• For forklift and truck traffic, please call for consultation
Joining components and anchoring hardware available for systems, please call for quote.
Corner Binder
Edge Binder
Spill Decking
Spacer
Corner Ramp Anchor
Ramp
Steel Spill Decking - 5” Depth
Exclusive 5” decking provides secure spill containment
and leak barrier for larger volume dispensing.
Large Volume Dispensing Platforms
Large Volume
Dispensing Platforms
Designed to contain large volume spills from dispensing or pumping operations as well as storage applications.
• Single unit construction provides large uniform storage platform
• Large sump volumes allow for compliant spill containment even when storing multiple tanks, IBC’s or stacked drums
• High load capacity of 225 psf allow placement of heavy equipment or tanks
• Sumps are coated with chemical resistant mastic epoxy
• Custom configurations and load ratings available. Call for quotation
10’ x 7’ Platform with 246-gallon sump.
Order No. K42-5020
$ 4,488.00
$ 2,455.00
13’ x 9’ Platform accommodates loads to 26,500 pounds with 430 gallons of secondary spill containment volume.
Order No. K42-5040
Description
Dimension - L x D x H (in) Approx.. Floor Space (sq ft) Gross Spill Capacity (gal)
Load Capacity (psf)
Shipping Weight (lbs)
Order No.
Price
7’ x 3’
87 x 41 x 9 22 66 225 365 K42-5010
$ 1,691.00
10’ x 7’
120 x 88 x 9 69 246 225 1016 K42-5020
$ 2,455.00
16’ x 7’
197 x 88 x 9 114 422 225 1863 K42-5030
$ 4,178.00
13’ x 9’
157 x 110 x 9 115 430 225 1898 K42-5040
$ 4,488.00
Large Volume Dispensing Platforms
16’ x 7’ Platform is long enough for placement of 4 IBC’s with room in front for valve connection over the spill sump for extra protection.
Order No. K42-5030
O Choose from sizes up to 106 square feet with spill containment volumes to 430 gallons.
High load capacities allow you to add drum racks or shelving for increased storage Order No. K42-5020
