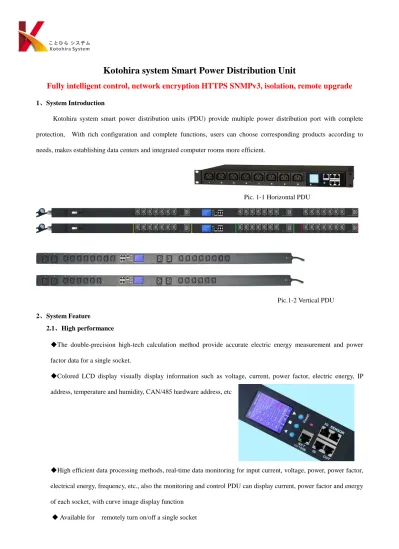

Kotohira system Smart Power Distribution Unit
Fully intelligent control, network encryption HTTPS SNMPv3, isolation, remote upgrade
1、System Introduction
Kotohira system smart power distribution units (PDU) provide multiple power distribution port with complete protection, With rich configuration and complete functions, users can choose corresponding products according to needs, makes establishing data centers and integrated computer rooms more efficient.
Pic. 1-1 Horizontal PDU
Pic.1-2 Vertical PDU 2、System Feature
2.1、High performance
◆The double-precision high-tech calculation method provide accurate electric energy measurement and power factor data for a single socket.
◆Colored LCD display visually display information such as voltage, current, power factor, electric energy, IP address, temperature and humidity, CAN/485 hardware address, etc
◆High efficient data processing methods, real-time data monitoring for input current, voltage, power, power factor, electrical energy, frequency, etc., also the monitoring and control PDU can display current, power factor and energy of each socket, with curve image display function
◆ Available for remotely turn on/off a single socket
Monitor and control PDU could management each sockets through HTTP, SNMP, SSH and other network protocols , At the same time, various protocols can provide encrypted SSL to make remote control more secure and reliable.
◆Socket metering function provided
Provide users with a basis for accurate calculation of PUE, plan and optimize the energy consumption of the data center based on this, reduce costs for load balancing and IT environment set up.
◆ Customized allowed alarm threshold set can warn potential circuit overload by real-time and remote alarm lower the risk.
◆ Advanced switch function, can realize user-defined logic control and independently realize the switch action and schedule of each socket position, also take intelligent actions according to environmental changes.
The user can control the PDU output switch according to the current threshold and temperature threshold, and provide multiple alarm at the same time. There is a parameter copy function between the sockets. After setting the parameters of one socket, it can be quickly copied to other sockets. With socket management function PDU, each socket can be controlled according to the time setting by user, it can realize 20 user-defined time period editing to meet the complex needs .
◆ Socket sequencing delay, in order to avoid circuit overload, and can customize the time
When switching sockets or powering on, the power-on time interval can be flexibly set between sockets, which is conducive to stable operation of the load and avoids surges.
◆ With socket grouping management function
PDU with single socket management, users can customize socket grouping, flexible socket grouping is conducive to user classification management of sockets. The hardware is also divided into 3 groups independently, each with 8 sockets. Each 8-bit socket of the three-phase PDU is also electrically isolated.
◆ Users can access and configure via a secure Web, SNMP, SSH or Telnet interface, easy to operate and integrate.
◆ Provide 2ways temperature and humidity sensor, 3 ways input and 1way output port
◆ Provide isolated CANbus, RS485 serial networking mode
◆ Compatible with Kotohira system SNMP Link network management system.
SNMP Link provides power equipment management and environmental parameter detection for the dynamic environment monitoring system of Kotohira system small and medium data centers. The equipment that SNMP Link can manage includes power distribution cabinets, PDUs, ATS, UPS, air conditioners and other equipment. For details, please refer to the SNMP Link description.
2.2、Multiple network service
Provide HTTPS management, support TLS Encrypted authentication HTTP supports standards above TLS1.0
Provide SNMP v3 Agent, support DES or AES authentication method. Provide MD5 or SHA private encryption Provides SNMP function for re-developing and facilitate the integration of other software with SNMP network management SNMPv3 also provides encryption protection.
Support Telnet and SSH
Support network firewall, Provide data packet filtering, anti-PING Provide NTP time synchronization settings
Network clock synchronization,
Provide operation, event log and battery time record
Event log records operation, alarm, device data, input and output sockets data information etc.
Support PDU upload and download power records.
Above function is mainly used for rapid configuration of batch PDU. Users can set the parameters then download , and upload the parameters to other PDUs of the same type to achieve rapid device configuration.
2.3、Safety
Support TLS Encrypted authentication, SNMPV3 communication, Alternative encryption, SSL mail sending, support network firewall
All external sensor interfaces and communication interfaces are isolated.
Support Memory recovery speedy under abnormal
Latest Linux kernel version 4.0 and encryption library available for security vulnerabilities restorage Online software upgrade available
3、Specification ：
Function
Types
Basic Centralized Monitoring
Each Socket Monitoring and
Control
Input power detection ● ● ●
Input voltage detection ● ● ●
Input current detection ● ● ●
Input capacity detection ● ● ●
Input power factor detection ● ● ●
Input frequency detection ● ● ●
Temperature/Humidity detection ● ● ●
Dry contact detection ● ● ●
Relay alarm output linkage ● ● ●
Each sockets output current detection ● ●
Each sockets output capacity detection ● ●
Each sockets current Upper/Lower limited ● ●
Each sockets output power calculate ● ●
Each sockets output switch control ●
Each sockets sockets on/off time setting ●
Sockets group management ● ●
4、Input and output specifications with size Horizontal PDU (single phase)
Pic. 4-1 Horizontal PDU outlook
No. Remark No. Remark
1 8*C13 or universal sockets 9 Scroll
2 8* light indicator 10 Reset
3 colored LCD display 11 Running indicator
4 NET 10/100M port 12 Hanger
5 Input 485/CANBUS 13 Input breaker 16A/1P (optional)
6 Output 485/CANBUS 14 PDU Input or IEC-C19
7 IO port 15 Input IEC-309 or IEC-C20
8 SENSOR (Temperature/Humidity)
Vertical PDU (Single phase)：
No. Remark No. Remark
1 24 outputs：21*IEC C13 20 outputs：16* IEC C13 16 outputs: 12* IEC C13
9 Confirm/ Scroll
2 24 outputs：21*IEC C19 20 outputs：16* IEC C19 16 outputs: 12* IEC C19
10 Reset
3 2.4inch LCD display 11 Running indicator
4 NET 10/100M network port 12 Hanger
5 Input 485/CANBUS 13 Input breaker 16A/1P or 32A/2P (optional）
6 Output 485/CANBUS 14 PDU input
7 IO port 15 Input IEC-309 16A (optional)
8 SENSOR port（Temperature & Humidity） 16 24outputs indicator, 16outputs indicator
Vertical PDU (Three phase)：
No. Remark No. Remark
1 21 Outputs*IEC C13, each phase 7outputs
9 Confirm/ Scroll
2 3 Outputs*IEC C19 each phase 1output 10 Reset
3 2.4inches LCD screen 11 Running indicator
4 NET 10/100M network port 12 Hanger
5 Input 485/CANBUS 13 Input breaker 32A/2P (optional）
6 Output 485/CANBUS 14 PDU input
7 IO port 15 Input IEC-309 32A (optional)
8 SENSOR port （ Temperature &
Humidity）
16 24outputs indicator
5、PDU Remote Monitoring
JPDU remote monitor topology
6、Intelligent PDU specification：
Horizontal PDU-- 8outputs（Single phase）：
Output Rated output voltage 220Vac
Overload protection Available Max. current consumption 16A
Output sockets 8*IEC 320 C13
Input Rated Input Voltage 200Vac/ 208Vac/230Vac Input Frequency 50/60 Hz
Input Terminal block IEC 309 32A 2P+E
Cable length 2.5m
Input voltage range 220-240Vac
Cable quantity 1（optional）
Bear capacity 3700VA
Max. input current 16A Max. circuit current 16A
Physical parameter
H 44mm，4.4cm（without connector）
W 436mm，43.6cm（without hander）
D 168mm，16.8cm （without air switch）
Installation cover distance 460mm，46.0cm（with hanger）
N.W. 2.9kg
G.W. 3.6kg
pkg height 120mm, 12.0cm
Pkg width 500mm，50.0cm
Pkg depth 400mm，40.0cm
Enclosure material SGCC metal sheet
Color Black
Environment Working Temperature -5 - 55 °C
Working Humidity 5 - 95 %
Working Altitude 0-3000 without de rate Storage Temperature -25 - 75 °C
Storage Humidity 5 - 95 % Storage Altitude 0-15000m
Warranty Standard warranty 2years
RoHS Complaint
Battery directive Available
Note: Above specification is subject to update without further notification.
Vertical PDU specification --24/20/16outputs（Single/ Three phase）： Output
Outputs quantity 24 20 16
Rated output voltage 220Vac Overload protection available Max. current consumption 16/32A
Output sockets 21*IEC 320 C13
3* IEC 320 C19
16*IEC 320 C13 4* IEC 320 C19
12*IEC 320 C13 4* IEC 320 C19 Input
Rated Input Voltage 200Vac/ 208Vac/230Vac Input Frequency 50/60 Hz
Input Terminal block IEC 309 32A 2P+E
Cable length 2.5m
Input voltage range 220-240Vac
Cable quantity 1（optional）
Bear capacity 3700VA /7400VA
Max. input current 16/32A Max. circuit current 16/32A
Physical parameter
Height 1829mm, 182.9cm
（without connector）
1400mm, 140.0cm（without connector）
Width 56mm，5.6cm
Depth 47mm，47cm （without air switch）
N.W. 8.23kg 6.83kg
G.W. 10.5kg 8.8kg
Pkg Height 2038mm，203.8cm
Pkg Width 162mm，16.2cm
Pkg Depth 118mm，11.8cm
Enclosure material SGCC metal sheet
Color Black
Environment Working Temperature -5 - 55 °C
Working Humidity 5 - 95 %
Working altitude 0-3000m non de rate Storage Temperature -25 - 75 °C
Storage Humidity 5 - 95 % Storage Altitude 0-1500m
Warranty Standard Warranty 2years
RoHS Complaint
Battery directive Available
Note: Above specification is subject to update without further notification
