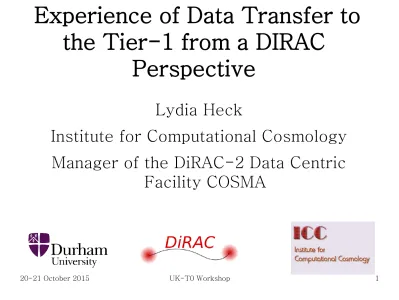

Experience of Data Transfer to the Tier-1 from a DIRAC Perspective

Experience of Data Transfer to

the Tier-1 from a DIRAC

Perspective

Lydia Heck

Institute for Computational Cosmology

Manager of the DiRAC-2 Data Centric

Talk layout

● Introduction to DiRAC ?

● The DiRAC computing systems ● What is DiRAC

● What type of science is done on the DiRAC facility ? ● Why do we need to copy data to RAL?

● Copying data to RAL – network requirements

● Collaboration between DiRAC and RAL to produce the archive ● Setting up the archiving tools

● Archiving ● Open issues

Introduction to

DiRAC

●

DIRAC -- Distributed Research utilising Advanced

Computing established in 2009 with DiRAC-1

●

Support of research in theoretical astronomy,

particle physics and nuclear physics

●

Funded by STFC with infrastructure money

allocated from the

Department for Business,

Innovation and Skills

(BIS)

●

The running costs, such as staff costs and

Introduction to

DiRAC

, cont’d

● 2009 – DiRAC-1

– 8 installations across the UK of which COSMA-4 at the

ICC in Durham is one. Still a loose federation.

● 2011/2012 – DiRAC-2

– major funding of £15M for e-Infrastructure

– in bidding to host – 5 installations identified – judged by

peers

– for successful bidders scrutiny and interview by

representatives for BIS to see if we could deliver by a tight deadline

Introduction to

DiRAC

, cont’d

●

DiRAC has full management structure.

●

Computing time on the DiRAC facility is allocated

through a peer-reviewed procedure.

●

Current director: Dr Jeremy Yates, UCL

●

Current technical director:Prof Peter Boyle,

The DiRAC computing systems

The Bluegene @ DiRAC

●

Edinburgh – IBM Blue

Gene

– 98304 cores

– 1 Pbyte of GPFS storage – designed around

COSMA @ DiRAC (Data Centric)

●

Durham – Data Centric

system –IBM IDataplex

– 6720 Intel Sandy Bridge

cores – 53.8 TB of RAM – FDR10 infiniband 2:1 blocking – 2.5 Pbyte of GPFS storage (2.2 Pbyte used!)

Complexity @ DiRAC

Leicester Complexity –

HP system

• 4352 Intel Sandy Bridge

cores

• 30 Tbyte of RAM

• FDR 1:1 non-blocking • 0.8 Pbyte of Panasas

Cosmos @ DiRAC (SMP)

●

Cambridge COSMOS

SGI shared memory

system

– 1856 Intel Sandy Bridge

cores

– 31 Intel Xeon Phi

co-processors

– 14.8 Tbyte of RAM – 146 Tbyte of storage

HPCS @ DiRAC (Data Analytic)

Cambridge Data Analytic

– Dell

• 4800 Intel Sandy Bridge

cores

• 19.2 TByte of RAM

• FDR Infiniband 1:1

non-blocking

What is DiRAC

●

A national service run/managed/allocated by the

scientists who do the science funded by BIS and

STFC

●

The systems are built around and for the

applications with which the science is done.

●

We do not rival a facility like ARCHER, as we do

not aspire to run a general national service.

●

DiRAC is classed as a major research facility by

What is DiRAC, cont’d

● Long projects with significant amount of CPU hours

allocated for 3 years typically on a specific system – for 2012 – 2015 with examples:

– Cosmos - dp002 : ~20M cpu hours on Cambridge Cosmos – Virgo-dp004 : 63M cpu hours on Durham DC

– UK-MHD-dp010 : 40.5M cpu hours on Durham DC – UK-QCD-dp008 : ~700M cpu hours on Edinburgh BG

– Exeter – dp005: ~15M cpu hours on Leicester Complexity

What type of Science is done on DiRAC ?

●

For the highlights of science carried out on

the DiRAC facility please see:

http://www.dirac.ac.uk/science.html

●

Specific example: Large scale structure

calculations with the Eagle run

–

4096 cores

–

~8 GB RAM/core

–

47 days = 4,620,288 cpu hours

200 TB of data

Why do we need to copy data (to RAL) ?

provisions for storing the research data

– requires additional storage resource at researchers’ home institutions – Not enough provision – will require additional funds.

– data creation considerably above expectation ?

Why do we need to copy data (to RAL) ?

● Research data must now be shared with/available to interested parties ● Install DiRAC’s own archive – requires funds and currently there is no

budget.

● we needed to get started:

– Jeremy Yates negotiated access to the RAL archive system

● Acquire expertise

● Identify bottlenecks and technical challenges

– submitted 2,000,000 files and created an issue at the file servers

● How can we collaborate and make use of previous experience. ● AND: copy data!

Copying data to RAL – network

requirements

●

network bandwidth – situation for Durham

–

now:

● currently possible 300-400 Mbytes/sec

● required investment and collaboration from DU CIS ● upgrade to 6GBit/sec to JANET - Sep 2014

● will be 10 Gbit/sec by end of 2015 – infra structure

already installed

–

past:

Copying data to RAL – network

requirements

●

network bandwidth – situation for Durham

investment to by-pass of external campus firewall:

 two new routers (~£80k) – configured for throughput

with minimal ACL enough to safeguard site.

 deploying internal firewalls – part of new security

infrastructure, essential for such a venture

 Security now relies on front-end system of Durham

Copying data to RAL – network

requirements

Result for COSMA and GridPP in Durham

guaranteed 2-3 Gbit/sec with bursts of up to 3-4Gbit/sec (3 Gbit/sec outside of term time)

 pushed the network performance for Durham GridPP from

bottom 3 in the country to top 5 of the UK GridPP sites

 achieves up to 300 – 400 Mbyte/sec throughput to

Collaboration between DiRAC

and GridPP/RAL

●

Durham Institute for Computational Cosmology

(ICC) volunteered to be the prototype installation

●

Huge thanks to Jens Jensen and Brian Davies -

there were many emails exchanged, many

questions asked and many answers given.

●

Resulting document

“Setting up a system for data archiving using

FTS3” by Lydia Heck, Jens Jensen and Brian

Davies

Setting up the archiving tools

●

Identify appropriate hardware – could mean

extra expense:



need freedom to modify and experiment with -

cannot have HPC users logged in and working!



free to do very latest security updates

requires optimal connection to storage -

Setting up the archiving tools

●

Create an interface to access the

file/archving service at RAL using the

GridPP tools

–

gridftp – Globus Toolkit – also provides Globus

Connect

–

Trust anchors (egi-trustanchors)

voms tools (emi3-xxx)

Archiving?

●

long-lived voms proxy?

– myproxy-init; myproxy-logon; voms-proxy-init;

fts-transfer-delegation

● How to create a proxy and delegation that lasts

weeks even months? – still an issue

●

grid-proxy-init; fts-transfer-delegation

– grid-proxy-init –valid HH:MM

– fts-transfer-delegation –e time-in-seconds

Archiving

● Large files – optimal throughput limited by network

bandwidth

● Many small files – limited by latency; using ‘-r’ flag to

fts-transfer-submit to re-use connection

● Transferred:

– ~40 Tbytes since 20 August – ~2M files

– challenge to FTS service at RAL

Open issues

●

ownership and permissions are not

preserved

●

depends on single admin to carry out.

●

what happens when content in directories

change? – complete new archive sessions?

●

tries to archive all the files again but then

‘fails’ as file already exists – should be

more like rsync

Conclusions

● With the right network speed we can archive the DiRAC

data to RAL.

● The documentation has to be completed and shared with

the system managers on the other DiRAC sites

● Each DiRAC site will have their own dirac0X account ● Start with and keep on archiving

● Collaboration between DiRAC and GridPP/RAL DOES

work!
