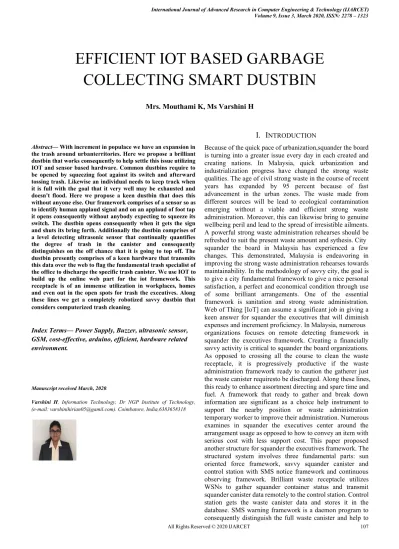

EFFICIENT IOT BASED GARBAGE COLLECTING SMART DUSTBIN



Abstract— With increment in populace we have an expansion in the trash around urbanterritories. Here we propose a brilliant dustbin that works consequently to help settle this issue utilizing IOT and sensor based hardware. Common dustbins require to be opened by squeezing foot against its switch and afterward tossing trash. Likewise an individual needs to keep track when it is full with the goal that it very well may be exhausted and doesn't flood. Here we propose a keen dustbin that does this without anyone else. Our framework comprises of a sensor so as to identify human applaud signal and on an applaud of foot tap it opens consequently without anybody expecting to squeeze its switch. The dustbin opens consequently when it gets the sign and shuts its bring forth. Additionally the dustbin comprises of a level detecting ultrasonic sensor that continually quantifies the degree of trash in the canister and consequently distinguishes on the off chance that it is going to top off. The dustbin presently comprises of a keen hardware that transmits this data over the web to flag the fundamental trash specialist of the office to discharge the specific trash canister. We use IOT to build up the online web part for the iot framework. This receptacle is of an immense utilization in workplaces, homes and even out in the open spots for trash the executives. Along these lines we get a completely robotized savvy dustbin that considers computerized trash cleaning.

Index Terms—Power Supply, Buzzer, ultrasonic sensor, GSM, cost-effective, arduino, efficient, hardware related environment.

Manuscript received March, 2020.

Varshini H, Information Technology, Dr NGP Institute of Technology, (e-mail: [email protected]). Coimbatore, India,6383658318

I. I

Because of the quick pace of urbanization,squander the board is turning into a greater issue every day in each created and creating nations. In Malaysia, quick urbanization and industrialization progress have changed the strong waste qualities. The age of civil strong waste in the course of recent years has expanded by 95 percent because of fast advancement in the urban zones. The waste made from different sources will be lead to ecological contamination emerging without a viable and efficient strong waste administration. Moreover, this can likewise bring to genuine wellbeing peril and lead to the spread of irresistible ailments. A powerful strong waste administration rehearses should be refreshed to suit the present waste amount and sythesis. City squander the board in Malaysia has experienced a few changes. This demonstrated, Malaysia is endeavoring in improving the strong waste administration rehearses towards maintainability. In the methodology of savvy city, the goal is to give a city fundamental framework to give a nice personal satisfaction, a perfect and economical condition through use of some brilliant arrangements. One of the essential framework is sanitation and strong waste administration. Web of Thing [IoT] can assume a significant job in giving a keen answer for squander the executives that will diminish expenses and increment proficiency. In Malaysia, numerous organizations focuses on remote detecting framework in squander the executives framework. Creating a financially savvy activity is critical to squander the board organizations. As opposed to crossing all the course to clean the waste receptacle, it is progressively productive if the waste administration framework ready to caution the gatherer just the waste canister requiresto be discharged. Along these lines, this ready to enhance assortment directing and spare time and fuel. A framework that ready to gather and break down information are significant as a choice help instrument to support the nearby position or waste administration temporary worker to improve their administration. Numerous examines in squander the executives center around the arrangement usage as opposed to how to convey an item with serious cost with less support cost. This paper proposed another structure for squander the executives framework. The structured system involves three fundamental parts: sun oriented force framework, savvy squander canister and control station with SMS notice framework and continuous observing framework. Brilliant waste receptacle utilizes

EFFICIENT IOT BASED GARBAGE

COLLECTING SMART DUSTBIN

www.ijarcet.org 108

5

Ardu ioNN NnO OOo NNN

1 0

6



₁₁

TX RX

R

X TX

Node

MCU

Ultrasonic Sensor-1

1

Sup p l y

Cloud _User

U

n i c send ready notice to junk jockey continuously, at that point

refreshes the waste container status. After the waste receptacle has been purged the savvy squander canister will refresh the waste container status and transmit the data again to the control station. An electronic application is created to screen the waste receptacle status and assortment movement.

II.LITERATURE SURVEY

Smart trash containers and frameworks have been in conversation for a serious long time.The advancements utilized at removal to build up this brilliant framework have likewise developed, Internet of Things (IoT). Every plan to be comparative yet is somewhat unique at its center and our proposed work is no exemption from the equivalent. After the IoT field, discovering its hold in our lives, this is our unique arrangement for planning a brilliant trash assortment framework which has arrangement for resident investment and investigation of information for better dynamic. At equipment level, the shrewd framework is a trash container with ultrasonic sensor, a small scale controller and Wi-Fi module for transmission of information. The overall usage of Internet of Things is conceivable with a Cloud driven vision. This work abuses the future prospects, key innovations and application that are probably going to drive IoT examine. Be that as it may, a solid establishment to our work is given, where the nuts and bolts and uses of Arduino board is clarified . It is very fascinating as it executes a GAYT (Get As You Throw) framework idea as an approach to support reusing among residents. As we would talk about further, the resident investment some portion of our framework is very impacted by their work.

III.EXISTING SYSTEM

Individuals arrange residential squanders in the dustbins set at the side of the road. This open dustbin gets topped off haphazardly. Consistent human checking is required to control the flood level of the dustbin, in light of the fact that occasionally the dustbins top off quicker than expected. At the point when dustbins flood individuals can't arrange their losses in the dustbin, so they arrange it outside the container. In blustery season, the circumstance deteriorates when downpour water enters the dustbin, discharging awful smells. The idea of city worker is to alarm the region in regards to the completion of the compartment. In Existence, the manual laboring and the expense of expelling trash here and there makes challenges among laborers whose wages are additionally low. In the event that the trash is filled, the programmed caution framework sends the message to the versatile application about the region and makes the work a lot simpler.

IV.PROPOSED SYSTEM

In our proposed framework a sensor is introduced in every dustbin with a force supply unit on each . The framework is upheld by a ultrasonic sensor, GSM module and an IOT module which all are interfaced with the Arduino Uno microcontroller. The ultrasonic sensor is utilized to check the measure of trash in the trash receptacles and can likewise send the sms alarm to the closest region office with the area of the canister with the assistance of Arduino Uno and the GSM module.

Fig:4.1 Proposed System Overview

V. BLOCK DIAGRAM

5V of power is supplied as input to Arduino and Node MCU via Micro USB Port. Arduino is an open-source platform used for building electronics projects. Arduino consists of both a physical programmable circuit board and a piece of software, that runs on your computer, used to write and upload computer code to the physical board. It has 14 digital input/output pins in which 6 can be used as PWM outputs, a 16 MHz ceramic resonator, an ICSP header, a USB connection, 6 analog inputs, a power jack and a reset button.Arduio is connected to MCU. Two Ultrasonic Sensors are used. One sensor senses the human arrival and opens the lid and the other sensor gives alert to the respective people when the bin is filled. Ardino helps for functioning the open and closure of lid. Node MCU is a network which provides signals to the Cloud where the location and other information are stored, which helps the user to clear the bins.

VI MODULE Arduino Board UNO:

Arduino is an open-source platform used for building electronics projects. Arduino consists of both a physical programmable circuit board (often referred to as a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that runs on your computer, used to write and upload computer code to the physical board. Unlike most previous programmable circuit boards, the Arduino does not need a separate piece of hardware (called a programmer) in order to load new code onto the board -- you can simply use a USB cable. Additionally, the Arduino IDE uses a simplified version of C++, making it easier to learn to program. Finally, Arduino provides a standard form factor that breaks out the functions of the micro-controller into a more accessible package. Arduino is an open source computer hardware and software company, project, and user community that designs and manufactures single-board microcontrollers and microcontroller kits for building digital devices and interactive objects that can sense and control objects in the physical world. The Arduino Uno board is a microcontroller based on the ATmega328. It has 14 digital input/output pins in which 6 can be used as PWM outputs, a 16 MHz ceramic resonator, an ICSP header, a USB connection, 6 analog inputs, a power jack and a reset button. This contains all the required support needed for microcontroller.

NODEMCU:

Node MCU is an open source IoT platform . It includes firmware which runs on the ESP8266 WiFi SoC from EspressIf Systems, and hardware which is based on the ESP-12 module. The term "Node MCU" by default refers to the firmware rather than the development kits. The firmware uses the Lua scripting language. Nodemcu pinout is having labels D0 to D8 and RX-TX but when programming it using

Fig. 6.2 Node MCU

Jumper Wires:

Ajump wire(also known as jumper wire, or jumper) is an electrical wire, or group of them in a cable, with a connector or pin at each end (or sometimes without them – simply "tinned"), which is normally used to interconnect the components of a breadboard or other prototype or test circuit, internally or with other equipment or components, without soldering. Though jumper wires come in a variety of colors, the colors don‟t actually mean anything. This means that a red jumper wire is technically the same as a black one. But the colors can be used to your advantage in order to differentiate between types of connections, such as ground or power.

Fig. 6.3 Jumper Wires Ultrasonic Sensor:

www.ijarcet.org 110 Buzzer:

A buzzer is an audio signalling device, which may be mechanical, electromechanical. Typical uses of buzzers include alarmdevices, timers.

Fig.6.5 Buzzer Servo Motor:

A servo motor is a rotary actuator or motor that allows for a precise control in terms of angular position, acceleration and velocity, capabilities that a regular motor does not have. It makes use of a regular motor and pairs it with a sensor for position feedback.

Fig. 6.6 Servo Motor

VII IMPLEMENTATION

 After setting up the Smart Dustbin and making all the necessary connections, upload the code to Arduino and provide 5V power supply to the circuit. Once the system is powered ON, Arduino keeps monitoring for any object near the Ultrasonic Sensor.

 If the Ultrasonic Sensor detects any object like a hand for example, Arduino calculates its distance and if it less than a certain predefined value, Arduino will activate the Servo Motor and with the support of the extended arm, it will list the lid open.

 After certain time, the lid is automatically closed.

 Another Ultrasonic Sensor detects the garbage level inside the dustbin. When the garbage reaches the particular distance the buzzer starts to alarm.

Fig. 6.7 Smart Dustbin VIII CONCLUSION

This paper gives fundamental thought regarding productive trash checking framework by utilizing the innovation of IoT. By asset enhancement, viable utilization of savvy dustbins should be possible. This framework in a roundabout way lessens traffic in the city. The incorporated detecting framework is structured utilizing ultrasonic sensor and burden cell to offer a capable and programmed dustbin status observing framework. It likewise comprises of Wi-Fi Module, Ultrasonic sensor, Arduino Uno, and Buzzer. This framework additionally assists with checking the phony reports and subsequently can decrease the defilement in the general administration framework. This lessens the absolute number of outings of trash assortment vehicle and consequently decreases the general consumption related with the trash assortment. It at last assists with keeping neatness in the general public. Notwithstanding this it likewise helps to decrease the requirement for high human mediation in trash upkeep of the district and contamination observing framework. The general framework is practical, easy to use and it assists with decreasing HR, endeavors and time utilization and consequently helps in asset optimization. Also the framework advises the status regarding every single dustbin progressively situated all through the city so the concerned authority can dispatch the trash assortment vehicle just when the dustbin is totally full or is going to full. Be that as it may, since the innovation is new in India, appropriate mindfulness ought to be made among people in general before it is actualized for an enormous scope. Something else, touchy gadgets like sensors may be harmed because of unpleasant activity of the clients. As the size of trash receptacle size expands, the need of sensors will likewise increment.
