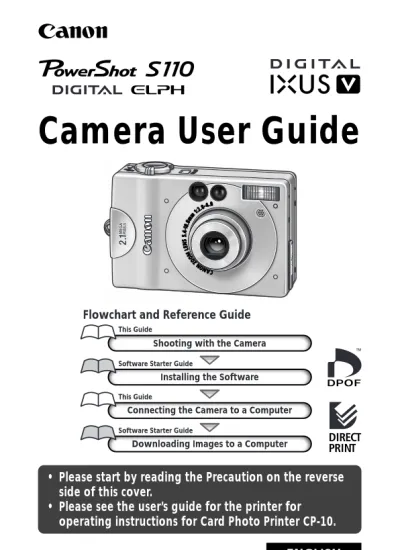

• Please start by reading the Precaution on the reverse side of this cover. • Please see the user’s guide for the printer for operating instructions for Card Photo Printer CP-10.

(1)

ENGLISH

• Please start by reading the Precaution on the reverse

side of this cover.

• Please see the user’s guide for the printer for

operating instructions for Card Photo Printer CP-10.

Flowchart and Reference Guide This Guide

This Guide Software Starter Guide

Software Starter Guide

Shooting with the Camera

Installing the Software

Connecting the Camera to a Computer

Downloading Images to a Computer

(2)

Precautions Camera Body Temperature

If your camera is used for prolonged periods, the camera body may become warm. Please be aware of this and take care when operating the camera for an extended period.

About the LCD monitor

The LCD monitor is produced with extremely high-precision manufacturing techniques. With more than 99.99% of the pixels operating to specifications, less than 0.01% of the pixels may occasionally misfire or appear as black, red or green dots. This has no effect on the recorded image and does not constitute a malfunction.

Notice: Please ensure that you read and follow the handling and safety precautions on pages 5 to 9 of this guide before attempting to use the camera.

Video Format

Please set the camera’s video signal format to the one used in your region before using it with a TV monitor (p. 82).

Language Setting

Please see page 83 to change the language setting.

Charging the Date/Time Battery

• The camera has a built-in rechargeable lithium battery that maintains the date, time and other camera settings. This battery recharges when the main battery pack is inserted into the camera. When you first purchase the camera, place a charged battery pack in it or use the AC adapter kit (sold separately) for at least 4 hours to charge the date / time battery. It will charge even when the camera power is set to Off.

(3)

Read This First

Please Read

Test Shots

Before you shoot images of subjects of importance to you, we strongly recommend that you shoot several trial images to confirm that you are operating the camera correctly. Please note that Canon Inc., its subsidiaries and affiliates, and distributors of its digital cameras are not liable for any consequential damages arising from any malfunction of the Canon digital camera or CompactFlash™ card (CF card) resulting in the failure of an image to be recorded or to be recorded in a format that is machine sensible.

Warning Against Copyright Infringement

Please note that Canon digital cameras are intended for personal use and must be used in a manner that respects international and domestic copyright laws and regulations. Please be advised that in certain cases the copying of images from performances, exhibitions, or commercial properties by means of a camera or other device may contravene copyright or other legal rights even if the image was recorded for personal use.

Warranty Limitations

This camera’s warranty is only effective in the country of sale. If a problem arises while the camera is in use abroad, please convey it back to the country of sale before proceeding with a warranty claim to a Canon Customer Support Help Desk.

Safety Precautions

• Before using the camera, please ensure that you have read and understood the safety precautions described below. Always ensure that the camera is operated correctly.

• The safety precautions noted on the following pages are intended to instruct you in the safe and correct operation of the camera and its accessories to prevent injuries or damage to yourself, other persons and equipment.

(8)

WARNINGS

• Do not aim the camera directly into the sun or at other intense light sources which could damage your eyesight.

• Do not trigger the flash in close proximity to human or animal eyes. Exposure to the intense light produced by the flash may damage eyesight. In particular, remain at least one meter (39 inches) away from infants when using the flash.

• Store this equipment out of the reach of children and infants. Accidental damage to the camera or batteries by a child could result in serious injury. In addition, placement of the wrist strap around the child’s neck could result in asphyxiation.

• Do not attempt to disassemble or alter any part of the equipment that is not expressly described in this guide. Disassembly or alteration may result in high-voltage electrical shock. Internal inspections, alterations and repairs should be conducted by qualified service personnel authorized by your camera distributor or a Canon Customer Support Help Desk.

• To avoid the risk of high-voltage electrical shock, do not touch the flash portion of the camera if it has been damaged. Similarly, never touch internal portions of the equipment which become exposed as a result of damage. There is a risk of high-voltage electrical shock. Please take the first opportunity to consult your camera distributor or a Canon Customer Support Help Desk.

(9)

• Do not allow the equipment to come into contact with, or become immersed in, water or other liquids. Do not allow liquids to enter the interior. The camera has not been waterproofed. If the exterior comes into contact with liquids or salt air, wipe it dry with a soft, absorbent cloth. In the event that water or other foreign substances enter the interior, immediately turn the camera’s power off and remove the camera battery or unplug the power cord from the electrical outlet. Continued use of the equipment may result in fire or electrical shock. Please consult your camera distributor or the closest Canon Customer Support Help Desk. • Do not use substances containing alcohol, benzene, thinners or other

flammable substances to clean or maintain the equipment. The use of these substances may lead to fire.

• Do not cut, damage, alter or place heavy items on the power adapter cord. Any of these actions may cause an electrical short circuit, which may lead to fire or electrical shock. Replace a broken or damaged power adapter cord.

• Do not handle the power cord if your hands are wet. Handling it with wet hands may lead to electrical shock. When unplugging the cord, ensure that you hold the solid portion of the plug. Pulling on the flexible portion of the cord may damage or expose the wire and insulation, creating the potential for fires or electrical shocks. • Use of power sources not expressly recommended for this equipment

may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards. Use only the recommended power accessories. • Do not place the batteries near a heat source or expose them to direct

flame or heat. Neither should you immerse them in water. Such exposure may damage the batteries and lead to the leakage of corrosive liquids, fire, electrical shock, explosion or serious injury. • Do not attempt to disassemble, alter or apply heat to the batteries.

There is serious risk of injury due to an explosion. Immediately flush with water any area of the body, including the eyes and mouth, or clothing, that comes into contact with the inner contents of a battery. If the eyes or mouth contact these substances, immediately flush with water and seek medical assistance.

• Avoid dropping or subjecting the batteries to severe impacts that could damage the casings. It could lead to leakage and injury.

(10)

• Before you discard a battery, cover the terminals with tape or other insulators to prevent direct contact with other objects. Contact with the metallic components of other materials in waste containers may lead to fire or explosions. Discard the batteries in specialized waste facilities if available in your area.

• Use of batteries not expressly recommended for this equipment may cause explosions or leaks, resulting in fire, injury and damage to the surroundings. Use only recommended batteries and accessories. • Use only the recommended battery charger to charge the Battery Pack

NB-1L rechargeable batteries. Use of chargers not expressly recom-mended may result in overheating, distortion, fire or electrical shock. • Disconnect the battery charger or the compact power adapter from

both the camera and electrical outlet after recharging and when the camera is not in use to avoid fires and other hazards.

• The camera terminal of the battery charger cord and the compact power cord is designed for exclusive use with your camera. Do not use it with other products or batteries. There is a risk of fire and other hazards.

CAUTIONS

• Avoid using, placing or storing the equipment in places subject to strong sunlight or high temperatures, such as the dashboard or trunk (boot) of a car. Exposure to intense sunlight and heat may cause the batteries to leak, overheat or explode, resulting in fire, burns or other injuries. High temperatures may also cause deformation of the casing. Ensure that there is good ventilation when using the compact power adapter to charge the battery pack or power the camera.

• Do not store the equipment in humid or dusty areas. Storage in such areas could lead to fire, electrical shock or other damage.

• Be careful not to bang the camera or subject it to strong impacts or shocks that could lead to injury or damage the equipment when wearing or holding it by the wrist strap.

• Be careful not to cover the flash with your fingers when shooting. In addition, do not touch the surface of the flash after taking several pictures in rapid succession. Either action could result in burns. • If your camera is used for prolonged periods, the camera body may

(11)

Preventing Malfunctions

Avoid Strong Magnetic Fields

Never place the camera in close proximity to electric motors or other equipment generating strong electromagnetic fields. Exposure to strong magnetic fields may cause malfunctions or corrupt image data.

Avoid Condensation Related Problems

Moving the equipment rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its external and internal surfaces. You can avoid this by placing the equipment in an airtight, resealable plastic bag and letting it adjust to temperature changes slowly before removing it from the bag.

If Condensation Forms Inside the Camera

Stop using the camera immediately if you detect condensation. Continued use may damage the equipment. Remove the CF card and battery or power cord (if connected) from the camera and wait until the moisture evaporates completely before resuming use.

Extended Storage

(12)

Quick Start

Charge the Battery Pack (➜ p. 15)

Place the battery pack in the battery charger and plug the charger into the electrical outlet. The charge indicator will glow orange while the battery pack is charging and change to green when it is fully charged. • Please note that the battery

charger shape varies between regions.

Install the Battery Pack (➜ p. 17)

Slide the battery cover to open it and press the battery lock while inserting the battery pack all the way in.

Install a CF Card (➜ p. 20)

Slide the lock down and open the CF card slot cover. Insert the CF card.

Turn the Power On (➜ p. 24)

Press and hold the main switch until the green indicator blinks.

• If the Set Date / Time menu appears, set the date and time (p. 22). Charge Indicator

Battery Lock

(13)

Slide the mode switch to (shooting) (➜ p. 25).

Focus (➜ p. 32)

Aim the camera at the subject and press the shutter button halfway. The camera will focus automatically and beep twice.

Shoot (➜ p. 32)

Press the shutter button down fully. One beep will sound when the image has been shot.

View the Image (➜ p. 33)

The image you shoot will appear in the LCD monitor for approximately 2 seconds. If you keep the shutter button held down and press the button, the image will remain displayed even if you release the shutter button.

• To view all of the images that you have shot, please read the Replaying section (p. 52).

(14)

Preparing the Camera

Guide to Components

Front View

* To connect Card Photo Printer CP-10 (Optional), use the direct interface cable provided with the printer. To connect a computer, use the USB interface cable supplied with the camera. Use the supplied AV cable to connect to a TV.

=Optical Viewfinder Window ➜ p. 26 =AF Auxiliary Light Emitter

=Red-Eye Reduction Lamp ➜ p. 39 =Self-Timer Lamp ➜ p. 43

=Flash ➜ p. 39

=Microphone ➜ p. 49

=Terminal Cover

=DIGITAL A/V OUT (Digital/Audio/Video Out) Terminal

(15)

Back View

=CF Card Slot Cover ➜ p. 20

=Strap Eyelet ➜ p. 23

=Battery Cover ➜ p. 17 =Viewfinder ➜ p. 26

=Lock for the CF Card Slot Cover ➜ p. 20

=LCD Monitor ➜ p. 27 =Tripod Socket

(16)

= (Display) Button ➜ p. 27 = (Menu) Button

= (Macro) / (Infinity) / (Right) Button ➜ p. 41 = (Continuous) / (Self-Timer) / (Left) Button ➜ p. 42 = (Flash) / (Set) Button ➜ p. 39

Operation Panel

=Indicators =₌Main Switch _{Shutter Button}➜ p. 24_➜_{p. 32} =Zoom Lever

Shooting: (Telephoto) / (Wide Angle) ➜ p. 35 Replay: (Magnify) /

(Index) ➜ pp. 53 - 55 =Mode Switch ➜ p. 25

Indicators

• The indicators will glow or flash at various stages when the main switch or shutter button is pressed.

Upper Indicator

Green: Ready to record/Connection preparations complete (in PC mode)

Flashing Green: During camera warm-up / Recording to CF card / Reading CF card / Deleting CF card images / Transmitting images to or from a CF card (while connecting to a computer)

Orange: Ready to record with flash

Flashing Orange: Ready to record but the camera blur warning is flashing Lower Indicator

(17)

Charging the Battery Pack

Recharge the battery pack with battery charger CB-2LS or CB-2LSE the first time you use the camera or when the “Change the battery pack” message is displayed.

Battery charger model names and types vary by region.

• Insert the battery pack all the way into the battery charger and plug the charger into an electrical outlet.

• The charging indicator will glow orange while the battery pack is charging. It will change to a steady green when the charge is complete.

• After charging, unplug the battery charger and remove the battery pack from it.

• Since this is a lithium ion battery pack, you need not completely use or discharge it before recharging.

• It takes approximately 130 minutes to fully charge the battery pack from a fully discharged state (based on standard Canon testing conditions). Please charge it at an ambient temperate ranging between 5 and 40 ºC (41 and 104 ºF).

• Charge times may vary according to the ambient temperature and the charge state of the battery pack.

• To protect and prolong the life of the battery pack, do not charge it for longer than 24 hours at a time.

CB-2LS

(18)

Handling Precautions

• Do not rapidly overturn or wave the battery charger around when the battery pack is in it. There is a danger of the battery pack flying out. • At low temperatures, the battery pack performance may be reduced

and the low battery icon may appear earlier than usual. Under these conditions, resuscitate the battery pack by warming it in a pocket immediately before use. However, ensure that there are no metallic items in the pocket that could cause the battery pack to short circuit, such as key holders, etc.

• Do not place anything, such as tablecloths, carpets, bedding or cushions, on top of the battery charger while it is charging. Heat will build up and could result in a fire.

• Do not charge batteries other than Battery Pack NB-1L in this charger. • The battery pack continues to discharge a minimal portion of its power

while installed in the camera, even with the camera power off or inserted into the battery charger. This will shorten battery life. To conserve the battery pack, store it in its case in a cool, dry place. Recharge it fully before using it again.

(19)

Installing the Battery Pack

Install Battery Pack NB-1L (supplied) as shown below.

• Please recharge the battery pack (p. 15) before you use it for the first time.

Battery Lock

• Slide the battery cover in the direction of the arrows.

• Press the battery lock while inserting the battery pack all the way in until the lock clicks.

• To remove the battery pack, press the battery lock and pull the battery pack out.

• Slide the battery cover closed.

• When the camera’s indicator flashes green, do not turn off the power or open the battery cover. The camera is writing, reading, erasing or transmitting an image to or from the CF card.

• Remove the battery pack from the camera when the camera is not in use. Please note, however, that the date, time and other camera settings may reset to the default settings if the battery pack has been removed for more than three weeks.

(20)

Battery Performance

Recordable Images

Replay Time LCD Monitor On LCD Monitor Off

Battery Pack NB-1L

Approx. 120 shots Approx. 270 shots Approx. 85 min. (fully charged)

• The actual performance may vary from the above data according to the shooting conditions and the shooting mode.

• Excludes movie data.

• At low operating temperatures, the battery performance may drop and the low battery icon may appear sooner than at high temperatures. To improve performance at these temperatures, warm the battery in your pocket just before using it in the camera.

Shooting: Room temperature (23ºC, 73ºF), alternating between wide angle and telephoto every 20 seconds, flash used one in four shots, power turned off and on again after every eighth shot

Replay: Room temperature (23ºC, 73ºF), continuous replay at 3 seconds per image

Battery Pack Charge

The following icons and messages will display when the charge of the battery pack is low.

Battery pack charge is low. Recharge it as soon as possible before it is required for an extended period.

When the LCD monitor is off, this icon will display when you press the , / or / button.

Battery charge is insufficient to operate the camera. Replace the battery pack immediately.

(21)

Using a Household Power Source

It is best to power the camera with AC Adapter Kit ACK500 (sold separately) when you are using it for long periods of time or connecting it to a computer.

• Turn the camera power off before connecting or disconnecting the AC adapter.

Compact Power Adapter CA-PS500

DC Coupler DR-500

• Connect the power cord to the compact power adapter first and then plug the other end into the electrical outlet.

• Open the battery cover and press the battery lock in the direction shown while inserting DC Coupler DR-500. Insert the DC coupler all the way in until the battery lock clicks. Slide the battery cover closed.

• Open the DC coupler terminal cover and attach the cord to the DC terminal.

• After you have finished using the camera, unplug the AC adapter from the electrical outlet.

Battery Lock

(22)

Installing a CF Card

Turn the camera power off and insert the CF card with the following procedures.

• Slide the lock down and open the CF card slot cover.

• Insert the CF card until the slot’s eject button fully extends. Close the CF card slot cover.

• To remove the CF card, push the eject button and pull the CF card out.

CF Card Eject Button

• When the camera’s indicator flashes green, do not turn off the power or remove the CF card. The camera is writing, reading, erasing or transmitting an image to or from the CF card. • Please note that CF cards from other manufacturers, or CF cards

(23)

Handling Precautions for CF Cards

• CF cards are high-precision electronic devices. Do not bend them, apply force to them, or subject them to shocks or vibration. • Do not attempt to disassemble or alter a CF card.

• Moving a CF card rapidly between temperature extremes will cause condensation to form in the card and lead to a malfunction. To avoid condensation, place the CF card in a sealed plastic bag before moving it into a different temperature zone and allow it to adjust slowly to the new temperature. If condensation forms on the CF card, store it at room temperature until the water droplets have evaporated naturally. • Place the CF card in the supplied case for storage.

• Do not use or store CF cards in the following types of location. - Location subject to dust or sand

- Locations subject to high humidity and high temperatures

CF Cards and Estimated Capacities (Recordable Images) FC-8M FC-16M FC-32M FC-64M FC-128M

7 15 31 64 128

(1600 x 1200 pixels) 11 24 49 100 200

24 48 99 200 401

16 32 67 135 271

(1024 x 768 pixels) 24 49 102 205 412

46 92 189 379 760

35 70 143 288 577

(640 x 480 pixels) 50 99 206 415 831

87 172 353 707 1417

(640 x 480 pixels) 6 sec. 13 sec. 27 sec. 56 sec. 113 sec. MOVIE (320 x 240 pixels) 18 sec. 36 sec. 75 sec. 152 sec. 305 sec. (160 x 120 pixels) 48 sec. 97 sec. 198 sec. 399 sec. 799 sec.

• These figures reflect standard shooting conditions established by Canon. Actual totals may vary according to the subject, shooting conditions and shooting mode. • The maximum length of a movie clip recording is approximately: 4 seconds

( ), 10 seconds ( ) or 30 seconds ( ). The times shown are the maximum continuous recording times.

• (Large), (Medium), (Small), , and indicate the recording resolution.

(24)

Setting the Date and Time

• The Set Date/Time menu will appear the first time the camera power is turned on or whenever the built-in rechargeable lithium battery charge is low. Start from Step 5 to set the date and time.

• Press and hold the main switch until the green indicator blinks.

• Press the button several times until the Rec. menu displays (p. 30).

• Use the or button to select the icon.

• The Set Date/Time menu will display.

• Select a field (month, day, year, hour, minutes and date format) with the

button.

• Use the or button to change the value in a field.

(25)

• After you select the date format, the date format will take effect when you press the button.

• The LCD monitor will return to the shooting mode.

Attaching the Wrist Strap

Thread the small loop of the wrist strap through the strap holder on the camera and pull the large loop through the small loop until the small loop fits snugly against the strap holder.

• Be careful not to wave the camera about or catch it on other items when dangling it from the wrist strap.

(26)

Basic Functions

Turning the Power On / Off

Press and hold the main switch until the green indicator blinks.

• The lens will extend when the mode switch is set to .

• The lens will retract approximately 1 minute after the mode switch is set to from .

• The LCD monitor will turn on regardless of its On/Off status when the mode switch is set to . Press the main switch again to turn off the power.

• The Set Date/ Time menu will appear the first time the camera is turned on. Please set the date and time (p. 22).

• If the auto power down function activates, press the main switch again to restore power.

Auto Power Down Function

The camera is equipped with an auto power down function (p. 81). It will power down when the auto power down function is set to On under the following circumstances.

• Shooting: shuts down approximately 3 minutes after the last action. • Replaying: shuts down approximately 5 minutes after the last action

(excluding auto replay mode).

• Connected to Card Photo Printer CP-10 (optional): shuts down approximately 5 minutes after the last action involving the camera or printer.

(27)

Switching between the Shooting / Replay Modes

Shooting

Slide the mode switch to the position.

Replay

Slide the mode switch to the position.

• You should also slide the mode switch to to print an image with Card Photo Printer CP-10 (optional) (p. 70). • You should also slide the mode

switch to to download or view images on the computer (p. 89).

• The (direct print) icon will display in the LCD monitor when the connection to Card Photo Printer CP-10 (optional) is complete.

(28)

This camera is equipped with an optical viewfinder.

Viewfinder

Align the square brackets (autofocus metering field) inside the viewfinder on the primary subject to compose the image.

About the Autofocus Function

This camera employs AiAF (artificial intelligence autofocus) technology which uses a broad metering field to calculate the focal distance with high precision. It delivers a crisp focus even when the photographic subject is slightly off-center.

Using the Focus Lock

The following types of subject may not be suited to autofocus photography. Use the focus lock in these situations. • Subjects with extremely low contrast to the surroundings

• Subjects with extremely bright objects at the center of the composi-tion

• Subjects that are moving quickly • Subjects through glass

Try to shoot as close to the glass as possible to reduce the chances of light reflecting back off the glass.

How to Use the Focus Lock

1. Aim the camera so that a subject at the same focal distance as the main subject is centered in the brackets in the optical viewfinder. 2. Press the shutter button halfway and wait until two beeps sound. 3. Re-aim the camera to compose the shot as desired and press the

(29)

Using the LCD Monitor

The LCD monitor can be used to compose images while shooting, adjust settings menus and replay images.

• The image in the LCD monitor will darken in strong sunlight or bright light. This does not constitute a malfunction.

LCD Monitor

Shooting Mode

(Mode switch set to )

• Pressing the button turns the LCD monitor on or off.

• The LCD monitor setting (On or Off) is saved by the camera when the power is turned off so that the same setting is automatically available when the power is turned on again. However, the setting may be lost when the power has been turned off after the “Change the battery pack” message has displayed, while the LCD monitor was on in shooting mode. • In macro mode, the parallax phenomenon may cause images

composed with the viewfinder to be off-center. Use the LCD monitor to compose close-ups in macro mode (p. 41).

(30)

Remaining Image Capacity

(Recordable seconds remaining for movies) p. 36 p. 44 p. 45 p. 37 p. 37 p. 39 p. 42 p. 41 p. 35 p. 27 Shooting Mode Exposure Compensation White Balance Compression Resolution Flash Shooting Method Macro/Infinity Zoom Setting* Camera Blur Warning

x2.5 / x3.1 / x4.0 / x5.0

Information Displayed on the LCD Monitor

Shooting Mode

In shooting mode, information about the current settings and remaining image capacity will display on the LCD monitor for approximately six seconds when the actions below are taken, regardless of whether the LCD monitor is set to On or Off. While this information is displayed, you may set the flash, continuous mode, self-timer, macro and infinity settings. • The power is turned on.

• The , , / , or / button is pressed. • The camera settings are changed.

• The Rec. menu is closed.

• The shutter button has been pressed and a shot has been taken. (LCD monitor must be on)

• The LCD monitor will turn on when the mode switch is set to the position. • In replay mode, pressing the

button cycles between display modes.

Information Displayed

Replay Mode

(Mode switch set to

)

Single Image Replay ...Standard ➞ Detailed ➞ No Display

Index Replay (9 Images) ...Standard ➞ No Display

* The displayed zoom setting is the combined effect of the optical and digital zooms. It displays when the digital zoom is activated.

(31)

The following information may also be displayed with some images. A sound file (WAVE file) is attached.

A sound file in a format other than the WAVE format is attached or the file format is not recognized.

JPEG file with format not conforming to Design rule for Camera File system standards

RAW format file

File with unrecognized format

Replay Mode

(Standard Display)

File Number

Image Number Shooting Date

In standard display mode, the following information is displayed.

• File Number

• Image Number (Image Number/Total Number of Images)

• Shooting Date

• Compression ( , , )

• Resolution ( , , , , , ) • Movie ( )

• Protection Status ( )

In detailed mode, the following supplementary information is displayed.

• The image information may not display correctly if images shot with this camera are replayed on other cameras or images from other cameras are replayed on this camera.

Replay Mode

(Detailed Display)

(32)

LCD Monitor Menus / Switching between Display Modes

Zoomed View Entire Image (Single Image Replay)

Replay

(Mode switch set to

)

Auto

Manual

Stitch Assist

Movie

Shooting

(Mode switch set to )

The following menus will show on the LCD monitor according to the selected shooting mode.

(33)

Switches between Sets of Nine Images Displays Nine Images

(Index Replay)

(34)

Pressing the Shutter Button

The shutter button features a two-stage action.

Pressing Halfway

The camera uses the first stage to automatically set the exposure, autofocus and white balance. When it has finished metering, two beeps sound and the upper indicator glows green. When the flash is used, the indicator glows orange when the flash is ready to fire. A flashing orange indicator warns of insufficient light and the risk of camera blur.

In macro mode, the lower indicator glows yellow.

Pressing Fully

Pressing the shutter button down fully activates the shutter and causes one beep to sound. While the image is being recorded to the CF card, the indicator flashes green.

Indicator

(35)

Reviewing an Image Immediately after

Recording It

Images display in the LCD monitor (regardless of its On/Off status) for 2 seconds immediately after recording even if you release the shutter button. Images can also be reviewed with the following procedures.

Continuing to Press the Shutter Button Fully

If you continue to press the shutter button fully after shooting, the image will display until the button is released.

Pressing the SET Button

If you press the SET button while continuing to press the shutter button fully, it will continue to display even when you release the shutter button. To cancel the review, press the shutter button halfway.

(36)

Changing the Default Review Setting

The default review time is approximately 2 seconds. This can either be turned off or set to approximately 10 seconds.

Display the Rec. menu (➜ p. 77)

• is not available in the modes.

• Use the or button to select the icon.

• Use the or button to select Off, 2 sec. or 10 sec.

• No image will display when the review function is set to Off unless you continue to press the shutter button fully after shooting. • With the 2- or 10-second options,

the image will display for the specified time even if the shutter button is released right after shooting.

• With the 2- or 10-second options, you can display the image for longer than the specified time as long as the shutter button is held down continuously.

(37)

Adjusting the Zoom (Angle of View)

The zoom can be adjusted to any setting in the 35 to 70 mm range in 35 mm film equivalent terms.

Telephoto / Wide Angle

Pressing (telephoto) on the zoom lever zooms in, making the subject appear larger in the composition.

Pressing (wide angle) on the zoom lever zooms out, making the subject appear smaller in the composition.

Digital Zoom

When the LCD monitor is on, you can digitally zoom in on a subject with the zoom lever once it is at the maximum optical telephoto setting. Images can be zoomed up to 5 times, which combines the effect of the optical zoom.

Press on the zoom lever until it reaches the maximum telephoto setting and stops.

Press on the zoom lever again to further zoom the image.

Press on the zoom lever to zoom back out.

• Please note that the image appears grainier, the more the image is digitally zoomed.

• The digital zoom is not available when the LCD monitor is set to Off or the shooting mode is set to ,

or . The displayed zoom setting

(38)

Shooting

Selecting a Shooting Mode

The camera features the following shooting modes.

Auto Most settings are automatically selected by the_camera.

Manual The exposure compensation, white balance and_{other settings can be manually selected.}

Stitch Assist Images are shot in overlapping series to create_{single panoramic images.}

Movie Shoots movie clips.

• Use the or button to select a shooting mode.

(39)

Changing Resolution/Compression Settings

Still image resolution and compression settings and movie resolution settings can be adjusted to suit your requirements. Resolution settings get progressively higher ranging from the (Small) and (Medium) to the (Large) settings. Use a high resolution setting to obtain the best quality for printing an image at a large size, but select a lower one to print on small labels, to send images by email or to fit more images on a CF card. Compression settings yield progressively higher image quality as one switches from the (Normal) and (Fine) to the (Superfine) setting.

Still Image Resolution

(Large) 1600 x 1200 pixels (Medium) 1024 x 768 pixels (Small) 640 x 480 pixels

Compression

Superfine Fine Normal

The following resolutions are available for movies. Movies Resolution

640 x 480 pixels 320 x 240 pixels 160 x 120 pixels

• Set the shooting mode to , , , or .

cannot be adjusted in mode.

• Press the button repeatedly until the Rec. menu appears (p. 30). • Use the or button to select

or for still images or for movies.

Resolution (Still Images)

Select [1600 x 1200], [1024 x 768] or [640 x 480].

(40)

Resolution (Movies)

Select [640 x 480], [320 x 240] or [160 x 120].

Compression

Select [Superfine], [Fine] or [Normal].

Compression Resolution

(1600 x 1200 pixels) 957 KB 611 KB 302 KB (1024 x 768 pixels) 450 KB 294 KB 155 KB (640 x 480 pixels) 208 KB 141 KB 79 KB

(640 x 480 pixels) 900 KB/s Movies (320 x 240 pixels) 380 KB/s

(160 x 120 pixels) 130 KB/s

Approximate Image Sizes

• These figures reflect standard shooting conditions established by Canon. Actual totals may vary according to the subject and shooting conditions.

• Please see page 21 for the available CF cards and their capacities. • Use the or button to select a

setting.

(41)

Red-Eye The main flash may fire automatically as required by

Reduction the light level. The red-eye reduction lamp fires whenever

Auto the flash fires.

Auto The flash fires automatically as required by the light level.

On The flash fires with every shot.

Off The flash will not fire.

Slow-Synchro

The flash timing is adjusted to slow shutter speeds. This reduces the chance that the background will be dark when shots are taken at night or in rooms with artificial lighting. The red-eye reduction lamp fires with each shot. Use of a tripod is recommended.

Using the Flash

• Set the shooting mode to , , or .

● Setting available.

▲ Can be selected for first image only.

• Press the button to cycle through the flash settings.

● ● -● -● ● ● ● ● -▲ ▲ ▲ -●

-• The flash can be fired when the upper indicator glows a steady orange.

• The flash takes approximately 10 seconds to charge. Recharging time may vary with the state of the battery charge.

(42)

Please note that a slow shutter speed will be selected in dark places when the flash is set to off or slow-synchro. Be careful to avoid camera blur under these conditions.

• Shooting in Mode

Be careful to hold the camera still to avoid camera blur. • Shooting in , or Mode

Fix the camera to a tripod to shoot in the , or mode since the shutter speed will be slower than in the mode. If an image is dark in mode, reshooting it in mode will make it brighter.

Red-Eye Reduction

• Light reflecting back from eyes can make them appear red when the flash is used in dark areas. Under these conditions, use the red-eye reduction mode. For this mode to be effective, the subject must be looking right at the red-eye reduction lamp. Try asking them to look directly at the lamp. Even better results can be obtained by shooting with the lens set to the wide angle, increasing the lighting in indoor settings or approaching closer to the subject.

• To improve the effect of the red-eye reduction lamp, the camera will not shoot for approximately 1 second after the shutter button is fully pressed. If you wish to shoot immediately, set the flash to any one of the auto, on or off settings.

(43)

/ Shooting Close-Ups/Infinity Shots

Macro Mode

Use this mode to record subjects in the range of 10 to 57 cm (3.9 in. to 1.9 ft.) from the lens tip when at maximum wide angle and in the range of 27 to 57 cm (10.6 in. to 1.9 ft.) when at the maximum telephoto setting.

Infinity Mode

Use this mode to record landscapes and distant objects. It can also be used for compositions combining both near and distant objects.

● Setting available.

▲ Selectable for first image only.

• Display or .

• Use the LCD monitor to compose close-ups in macro mode since the parallax phenomenon may cause images composed with the optical viewfinder to be off-center.

• The exposure may not be optimal when the flash is used in macro mode in the range of 10 to 27 cm (3.9 to 10.6 in).

●

-● ●

▲ ▲

● ● Select a Shooting Mode

(44)

Shooting Continuously

• Set the shooting mode to .

• Display .

• The camera will shoot continuously at approximately 2.5 images per second* (Large and Fine settings with the LCD monitor off) while the shutter button is held down. Recording ceases when the shutter button is released.

* This figure reflects standard shooting conditions established by Canon. Actual figures may vary according to the subject and shooting conditions.

Select a Shooting Mode (➜ p. 36)

• Images may be recorded consecutively in continuous mode until the CF card is full.

• The interval between shots lengthens slightly when the camera’s internal memory becomes full.

(45)

Using the Self-Timer

• Display .

• When the shutter button is pressed, the self-timer indicator will flash and the shutter will activate after 10 seconds. The self-timer indicator will flash at a faster rate two seconds before the picture is taken.

• To cancel partway through, press the button.

• Please see Step 4 on page 49 to learn how to stop shooting a movie clip.

(46)

Adjusting the Exposure Compensation

An image can be under-exposed if the subject is backlit or positioned in a bright location. Lights in night shots may also appear too bright. To avoid under-exposing the image, use the exposure compensation function.

• Press the button repeatedly until the Exposure Compensation menu appears (p. 30).

• Use the or button to select a setting.

• You can confirm the effect of the exposure compensation setting in the LCD monitor image when the LCD monitor is on.

• A shot can be taken immediately after. The menu will reappear after the shot, allowing you to adjust the setting.

(47)

Setting the White Balance

Setting the white balance to match the dominant light source when shooting will adjust the coloring of the image (excluding images) to the correct settings for the prevailing light conditions.

Auto The camera sets the white balance automatically.

Daylight Use this setting for recording outdoors on a bright day.

Cloudy Use this setting to record in shade or under overcast or_twilight.

Tungsten Use this setting for recording under tungsten lighting.

Fluorescent Use this setting to record under fluorescent lighting. Black and White Use this setting to record black and white images.

• Press the button repeatedly until the White Balance menu appears (p. 30).

• Use the or button to select a setting.

• You can confirm the effect of the setting adjustment in the LCD monitor image when the LCD monitor is on. • A shot can be taken immediately

after. The menu will reappear after the shot, allowing you to adjust the setting.

(48)

Shooting in Stitch Assist Mode

Stitch Assist mode can be used to shoot images, which overlap, and which can later be merged to create one panoramic image on a computer.

• To merge the images on the computer, use PhotoStitch, one of the supplied programs.

Framing a Subject

The PhotoStitch program detects the overlapping portions of adjoining images and merges them. When shooting, try to include a distinctive item (landmark) in the overlapping portions.

• Compose each frame so that it overlaps 30 to 50% of the adjoining image. Try to keep the vertical misalignment to less than 10% of the image height.

• Do not include moving items in the overlap.

• Do not try to stitch images that include both distant and close items. Objects may appear warped or doubled up.

(49)

• Set the shooting mode to or . • The LCD monitor will turn on.

• Shoot the first frame in the series. • The exposure and white balance

settings are set and locked with the first image. Successive images use the same settings.

• Make the brightness in each image consistent. The final image will appear unnatural if the difference in brightness is too great.

For good results, pan (swivel) the camera to take successive shots.

To shoot close-ups, slide the camera over the subject, keeping it parallel as you move.

Shooting

Images can be shot in two sequences.

Left Right Left to right horizontally

Left Right Right to left horizontally

Left to right horizontally Select a Shooting Mode

(50)

• Compose the second image so that it overlaps a portion of the first and shoot.

• Pressing the or button allows you to check the images that have been recorded.

• Minor discrepancies in the overlapping portions can be corrected when the images are stitched together.

• Repeat the procedure for additional images. A sequence may contain up to 26 images.

• Press the button to close Stitch Assist mode.

• The zoom, flash ( / / ), self-timer, resolution, compression, exposure compensation, white balance and macro/infinity mode ( / ) settings can only be adjusted for the first image. Additional images from the second shot onward are shot with the same settings as the first.

• The digital zoom, certain flash settings ( / ) and continuous shooting mode cannot be used with the Stitch Assist mode. • A TV monitor cannot be used when shooting in Stitch Assist mode. Shoot the second image

(51)

Shooting a Movie

Use the movie mode to shoot movie clips.

• Set the shooting mode to . • The LCD monitor will turn on.

• The available recording time (seconds) will display.

• Press the shutter button fully to start recording images and sounds. • A red dot and recorded time (in

seconds) will appear on the LCD monitor while recording is in process. • The maximum length of a movie clip

(at approximately 20 frames/second) is approximately 4 seconds ( ), 10 seconds, (( ) or 30 seconds ( ) (according to standard Canon testing conditions). These times may vary with the subject and shooting conditions. Recording will automatically stop when the maximum time is reached or when the CF card runs out of free capacity. • Recording will stop when the shutter

button is pressed again while a movie is recording.

• Be careful not to touch the microphone while recording. • The exposure compensation, focus, white balance and zoom

settings remained fixed at the values selected for the first frame. • After a clip is shot, the upper indicator will flash green while the

clip is being written to the CF card. You cannot shoot until the flashing stops.

• The digital zoom, flash, continuous shooting mode and compression settings cannot be selected for movies. Select a Shooting Mode

(52)

• Three resolution settings (640 x 480 pixels, 320 x 240 pixels, 160 x 120 pixels) are available for movies (p. 37).

• Sound is recorded monophonically.

• The beep will not sound in the middle of a movie clip recording. • QuickTime 3.0 or a later version of this software is required to

(53)

Functions Available in Each Shooting Mode

The chart below is a reference for the settings available for various shooting conditions. The settings selected in each shooting mode are saved when switching between shooting modes.

* Default value.

●Setting available.

▲Selectable for first frame only.

: The settings are saved when the power is turned off.

Red-Eye Reduction Auto Auto On Off Slow-Synchro Large Medium Small Superfine Fine Normal Single Continuous Self-Timer Digital Zoom Flash Resolution Compression Shooting Method Macro Mode Infinity Mode Exposure Compensation White Balance p. 35 p. 39 p. 37 p. 37 -p. 42 p. 43 p. 41 p. 41 p. 44 p. 45

(54)

Replaying

Displaying Images Singly

(Single Image Replay)

• The last recorded image will appear

in the display (single image replay).

• Press the button to switch the display to the previous image. The

button switches to the next image. Hold down the button to advance through the images more rapidly. Images will appear coarser at the faster speed.

Erasing Shortcut for the Displayed Image 1 Hold the button down and press

the button while the image is displayed.

2 Use the button to select [OK]. 3 Press the button.

(55)

• An image can be magnified approximately 2.5 times in the single image replay mode.

• Press the or button to move the selection area left or right and hold the button while pressing the or button to move the selection area up or down.

• Press on the zoom lever to return to single image replay mode.

Zooming an Image

Approximate Location of the Magnified Area

(56)

• The last recorded image will appear in the display (single image replay).

• A set of up to nine images will appear in the display (index replay).

• You can change the image selection with the or button. Pressing on the zoom lever displays the selected image in single image replay mode.

Displaying Images in Sets of Nine

(Index Replay)

Selected Image

Movie

(57)

Switching between Sets of Nine Images

• Successive sets of nine images can be shown in the display.

• Press the button to display the previous set of nine images. The button displays the next set of nine. • Pressing on the zoom lever restores

(58)

Replaying Movies

Movie clips can be replayed with the following procedures.

• Use the or button to select a movie.

• Movies cannot be played in the index replay mode.

• The movie images will play. • Pressing the or button during

replay stops it and displays the previous or next image. • When the movie finishes, the last

frame shows in the display.

Pausing/Resuming

• Pressing the button pauses the replay. Pressing the button again resumes it.

• Movies and other clips shot with other cameras may not replay on this camera (List of Messages, p. 95).

• Frames may be dropped or the audio may break up if there are insufficient memory resources when movies are replayed on a computer.

• Movies can also be replayed on a TV. Both audio and visual recordings can be replayed when connected to a TV (p. 84). • You can use a shortcut to erase the displayed movie by holding

(59)

Rotating Images in the Display

Images can be rotated 90º or 270º clockwise in the display.

0º (Original) 90º 270º

• Use the or button to select .

• Cycle between the 90º/270º/0º orientation each time you press the

button.

• Press the button several times until the replay screen reappears.

• If an image has been rotated in the camera before being loaded onto a computer, the particular software in use will determine whether or not the rotation settings are retained.

• Movie clips cannot be rotated.

(60)

Automating Playback

(Auto Play)

All of the images on a CF card can be displayed one-by-one automatically with the auto play function. Each image is displayed for approximately 3 seconds.

• The camera will read the images on the CF card and start auto play.

• As with the single image display mode, pressing the or button during auto play will advance through the images more rapidly (p. 52).

(61)

Pausing and Resuming Auto Play

• Pressing the button temporarily pauses auto play. Press the button again to resume auto play. • If the or button is pressed

while auto play is paused, the display can be switched to the previous or next image, respectively. Hold down the or button to advance through the images more rapidly.

• Stop the auto play by pressing the button several times until the LCD monitor returns to the standard replay mode.

(62)

• Use the or button to select an image. Press the button to protect it.

• Pressing the button protects the image. If the button is pressed a second time, the protection is removed.

Protecting Images

You can protect important images to prevent their accidental erasure.

Protected Icon

(63)

• Please note that erased images cannot be recovered. Exercise adequate caution before erasing a file. • Protected images cannot be erased

with this function.

• Use the or button to select the image you wish to erase.

• Use the or button to select [OK]. • To cancel instead of erasing, select

[Cancel].

Erasing Images

Erasing Images Singly

(64)

Erasing All Images

• Please note that erased images cannot be recovered. Exercise adequate caution before erasing a file.

• Protected images cannot be erased with this function.

• Use the or button to select [OK]. • To cancel the command, select

(65)

Print Settings (DPOF Settings)

Images on a CF card can be individually selected for printing in a specified number of copies. The print type and date or file number printing options can also be selected. These settings are compatible with Digital Print Order Format (DPOF) standards so that images can be printed conveniently on DPOF compliant digital printers or at participating photo labs.

• After you set the DPOF settings, you can connect Card Photo Printer CP-10 (sold separately) and print images directly from the camera (p. 69). Please note that images with the print type set to [Index] cannot be printed on Card Photo Printer CP-10.

• Adjust the settings in the Print Settings menu in the following order.

1 Set the Print Style (p. 64). 2 Select Images for Printing (p. 65) • Select Reset if you wish to reset all

settings (p. 68).

(66)

Setting the Print Style

The following settings can be selected.

Standard Prints one image per page.

Index Prints selected images at reduced size on a_{single sheet in an index format.} Print Type

Both Prints the images in both standard and index_formats.

Date Adds the date to the print. File No. Adds the file number to the print.

• Use the or button to select [Set up].

• Use the or button to select , or .

• Print settings cannot be set for movies.

• The mark will display on images that have had print marks set by another DPOF-compliant camera. These settings will be overwritten by any settings set by your camera.

• The output of some printers or developing labs may not reflect the specified print settings.

(Print Type)

You may select [Standard], [Index] or [Both] options.

(67)

(Date)

You may select either [On] or [Off].

(File No.)

You may select either [On] or [Off].

• Use the or button to select a setting. Press the button.

• Use the or button to select [Order].

Display the Print Order menu (➜ p. 63).

• The date is printed in the format selected in the date format field of the Set Date/Time menu (p. 22).

• The date and file number options cannot both be set to On when [Index] is selected as the print type.

(68)

• Use the or button to select an image.

• The zoom lever can be used to switch between the single and index replay (3 images) modes for image selection.

• Pressing the button displays the

34

icon so that the number of print copies can be specified. Pressing the button a second time causes the

34

icon to disappear and restores the image selection mode. • Use the or button to select the

number of copies. The maximum is 99 copies.

• Press the button several times

until the replay screen reappears.

The selection method will vary according to the print type ( ) (p. 64).

Standard/Both

(69)

Index

• Use the or button to select an image.

• Pressing the button causes a check mark icon to appear. Pressing the button a second time deselects the image.

Check Mark for Index Printing

• Images are printed in the order of the oldest image to the newest. • When the print type is set to [Both] and both the date and file

(70)

Resetting Print Settings

Resetting the print settings removes them from all the selected images and resets the print type to [Standard], the date setting to [Off] and the file number setting to [Off].

Display the Print Order menu (➜ p. 63)

• Use the or button to select [Reset].

• Use the or button to select [OK].

(71)

Printing with Card Photo Printer CP-10

The optional Card Photo Printer CP-10 can be used to print images directly and effortlessly from the camera. It can also print images marked with DPOF print settings.

Connecting Card Photo Printer CP-10

• Two direct interface cables are shipped with Card Photo Printer CP-10. Use the one with the symbol on its connectors.

• You are recommended to use a household power source (AC adapter sold separately) to power the camera when connecting it to a printer. When using a battery, ensure that it is fully charged. Monitor the battery charge closely when printing.

• Plug the power cable into the printer and then into an electrical outlet.

• Connect the direct interface cable to the printer.

• Open the terminal cover on the camera and attach the direct interface cable to the Digital A / V Out terminal.

• When detaching the cable, from the camera’s Digital A / V Out Terminal, always press the PUSH button on the connector.

Direct Interface Cable DIF-200

To an Electrical Outlet

(72)

• After you connect the printer, slide the mode switch to and turn on the camera. If you switch from mode to mode when the camera power is already on, the lens will retract immediately.

• Please refer to the Card Photo Printer CP-10 manual for instructions on feeding paper or installing the ink cassette. • All of the replay functions are available when the printer is

connected, except for the following: replaying a movie, erasing images using the button and button shortcut, and setting a language using the and buttons. • The (direct printer) icon will disappear from the upper left of

the LCD monitor and the normal replay mode will be restored when the connection with the printer is canceled.

Printing

Printing the Displayed Image

A single copy of an image can be printed while it is displayed in single image replay or index replay.

• The icon will display when the printer is connected correctly. • Select an image for printing.

• Use the or button to select [OK]. • Select [Style] if you wish to change the

print style (p. 75).

(73)

• Press the button to start printing.

• The LCD monitor returns to the replay mode when the print concludes successfully.

Printing Errors

• Use the or button to select [Stop] or [Resume].

• The [Resume] option does not display with some types of error. In that case, select [Stop].

• Printing will stop or resume.

(74)

Printing with DPOF Print Settings

Card Photo Printer CP-10 can print images marked with DPOF print settings, excluding those with the print type set to [Index].

• Use the or button to select [Print].

• Use the or button to select [OK]. • Select [Style] if you wish to change

the print style (p. 75).

• Select [Cancel] if you wish to stop printing.

DPOF Print Setting

Current Print Style Display the Print Order

menu (➜ p. 63)

(75)

Stopping Printing

• If the button is pressed while printing is underway, a confirmation message will appear.

• Use the or button to select [OK]. • Pressing the button stops the

print queue after the image currently printing is finished. The LCD monitor returns to the replay mode.

Resuming Printing

If printing is stopped with images left in the print queue, the remaining images can be printed with the following procedures.

Display the Print Order menu (➜ p. 63)

• Use the or button to select [Print].

Number of Images Left to Print

Current Print Style

• Use the or button to select [Resume].

• Select [Style] if you wish to change the print style (p. 75).

(76)

• Press the button to resume printing.

• The LCD monitor returns to the replay mode when printing concludes successfully.

Printing Errors

• Use the or button to select [Stop] or [Resume].

• The [Resume] option does not display with some types of error. In that case, select [Stop].

• Printing will stop or resume. Printing cannot be resumed, however, under the following circumstances. • When print setting are changed before printing is resumed. • When images marked for printing are deleted before printing is

resumed.

• When there is limited free capacity on the CF card when printing is stopped.

(77)

Setting the Print Style

The following settings can be selected.

Standard Prints one copy of one image per sheet.

Image _Multiple Prints 8 copies of one image on a single sheet. Use the Multiple setting to print on adhesive labels.

Borderless Prints the image to the edges of the sheet. Borders

Bordered Prints the image with borders.

Date Prints the date with the image.

• Use the or button to select [Style].

• Select [Cancel] if you wish to cancel the setting.

•Use the or button to select , or .


Select [Standard] or [Multiple].

Borders

(78)

Date

Select [On] or [Off].

• Use the or button to select the desired option and press the

button.

• Press the button to complete the procedure.

• The date and border settings cannot be selected for images set to [Multiple] in the [Image] menu (they will print without dates or borders).

• The date cannot be selected for images marked with DPOF print settings. The date is printed according to the DPOF settings (p. 63). • Printing with the [Bordered] setting prints virtually all of the

image shown in the LCD monitor.

(79)

Camera Settings

Displaying the Rec. Menu

Camera settings are adjusted with the Rec. menu according to the following procedures. For instructions on changing the resolution

and compression , please see page 37. Please see page 34 to learn how to change the review time for images.

• The Rec. menu can be displayed in mode. It can not be shown in mode.

• Press the button repeatedly until the Rec. menu appears (p. 30).

(80)

About File Numbers

• Images are assigned individual frame numbers ranging from 0001 to 9900 and organized in folders containing up to 100 images. The folders are assigned names from 100 to 998. (Folder numbers cannot contain 99 in the last two digits.)

• Since images shot in , or mode are always saved together in the same folder, some folders may contain 101 or more images.

• Use the or button to select [On] or [Off].

• Shooting with the File No. Reset set to [Off] is useful for avoiding file name duplication when the images are uploaded to a computer and organized in a single directory or album.

Resetting the File Number

You can select the method which the camera uses to assign file numbers with the File No. Reset function.

On

The starting file number is reset to 100-0001 each time a new CF card is inserted. New images recorded on previously recorded CF cards with existing files are assigned the next available number.

Off

The file number of the last recorded image is saved so that the next image recorded on any CF card, including a new one, is assigned the next available number.

Display the Rec. Menu (➜ p. 77)

(81)

Display the Rec. Menu (➜ p. 77)

Setting the Beep On / Off

A beep sounds for confirmation purposes when the shutter button is pressed or a camera setting is changed. The beep can be turned off.

• Use the or button to select [On] or [Off].

(82)

Formatting CF Cards

New CF cards must be formatted in accordance with the following procedures before use.

• Please note that formatting a CF card erases all its data, including protected images and other types of data.

• Use the or button to select [OK].

• To cancel formatting, select [Cancel]. Display the Rec. Menu

(➜ p. 77)

• When the camera is not operating as expected, reformatting the CF card may solve the problem.

• When a non-Canon brand CF card is malfunctioning, reformatting it may solve the problem.

(83)

Changing Other Settings

Switching the Auto Power Down Function On/Off

The auto power down function can be set to automatically turn the camera power off after a set period of time passes without the camera being used.

On

The camera shuts off after approximately 3 minutes in shooting mode or approximately 5 minutes in replay mode if the camera is not used. Press the main switch to restore power.

Off

If it is on, the LCD monitor shuts off after approximately 3 minutes in the shooting mode if the camera is not used. Pressing any button other than the main switch will turn the LCD monitor on again.

• Use the or

• Please start by reading the Precaution on the reverse side of this cover. • Please see the user’s guide for the printer for operating instructions for Card Photo Printer CP-10.

ENGLISH

Flowchart and Reference Guide This Guide

About the LCD monitor

Language Setting

Table of Contents

Print Settings (DPOF Settings)

Appendices

Read This First

Test Shots

Safety Precautions

CAUTIONS

Preventing Malfunctions

Avoid Strong Magnetic Fields

Extended Storage

Quick Start

Charge the Battery Pack (➜ p. 15)

Install a CF Card (➜ p. 20)

Slide the mode switch to (shooting) (➜ p. 25).

View the Image (➜ p. 33)

Preparing the Camera

Back View

Indicators

Charging the Battery Pack

Battery charger model names and types vary by region.

Handling Precautions

Installing the Battery Pack

Battery Performance

Battery Pack Charge

Using a Household Power Source

Installing a CF Card

Handling Precautions for CF Cards

Setting the Date and Time

Attaching the Wrist Strap

Auto Power Down Function

Switching between the Shooting / Replay Modes

Shooting

About the Autofocus Function

How to Use the Focus Lock

Using the LCD Monitor

Information Displayed on the LCD Monitor

Information Displayed

Replay Mode

Replay Mode

Replay Mode

Manual

Shooting

Pressing Halfway

Reviewing an Image Immediately after

Continuing to Press the Shutter Button Fully

Changing the Default Review Setting

Adjusting the Zoom (Angle of View)

Digital Zoom

Shooting

Changing Resolution/Compression Settings

Resolution (Still Images)

Using the Flash

• Shooting in Mode

/ Shooting Close-Ups/Infinity Shots

Shooting Continuously

Using the Self-Timer

Adjusting the Exposure Compensation

Setting the White Balance

Shooting in Stitch Assist Mode

Shooting

Shooting a Movie

Functions Available in Each Shooting Mode

Replaying

Zooming an Image

Displaying Images in Sets of Nine

Pausing/Resuming

Rotating Images in the Display

Automating Playback

Pausing and Resuming Auto Play

Protecting Images

Erasing Images

Print Settings (DPOF Settings)

Setting the Print Style

The selection method will vary according to the print type ( ) (p. 64).

Resetting Print Settings
