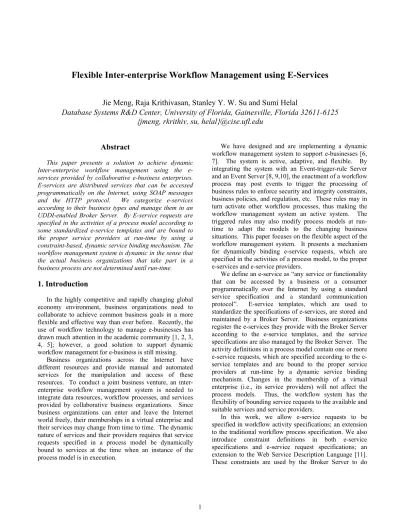

Flexible Inter-enterprise Workflow Management using E-Services
Jie Meng, Raja Krithivasan, Stanley Y. W. Su and Sumi Helal
Database Systems R&D Center, University of Florida, Gainesville, Florida 32611-6125
{jmeng, rkrithiv, su, helal}@cise.ufl.edu
Abstract
This paper presents a solution to achieve dynamic Inter-enterprise workflow management using the e-services provided by collaborative e-business enterprises. E-services are distributed services that can be accessed programmatically on the Internet, using SOAP messages and the HTTP protocol. We categorize e-services according to their business types and manage them in an UDDI-enabled Broker Server. By E-service requests are specified in the activities of a process model according to some standardized e-service templates and are bound to the proper service providers at run-time by using a constraint-based, dynamic service binding mechanism. The workflow management system is dynamic in the sense that the actual business organizations that take part in a business process are not determined until run-time.
1. Introduction
In the highly competitive and rapidly changing global economy environment, business organizations need to collaborate to achieve common business goals in a more flexible and effective way than ever before. Recently, the use of workflow technology to manage e-businesses has drawn much attention in the academic community [1, 2, 3, 4, 5]; however, a good solution to support dynamic workflow management for e-business is still missing.
Business organizations across the Internet have different resources and provide manual and automated services for the manipulation and access of these resources. To conduct a joint business venture, an inter-enterprise workflow management system is needed to integrate data resources, workflow processes, and services provided by collaborative business organizations. Since business organizations can enter and leave the Internet world freely, their memberships in a virtual enterprise and their services may change from time to time. The dynamic nature of services and their providers requires that service requests specified in a process model be dynamically bound to services at the time when an instance of the process model is in execution.
We have designed and are implementing a dynamic workflow management system to support e-businesses [6, 7]. The system is active, adaptive, and flexible. By integrating the system with an Event-trigger-rule Server and an Event Server [8, 9,10], the enactment of a workflow process may post events to trigger the processing of business rules to enforce security and integrity constraints, business policies, and regulation, etc. These rules may in turn activate other workflow processes, thus making the workflow management system an active system. The triggered rules may also modify process models at run-time to adapt the models to the changing business situations. This paper focuses on the flexible aspect of the workflow management system. It presents a mechanism for dynamically binding e-service requests, which are specified in the activities of a process model, to the proper e-services and e-service providers.
We define an e-service as “any service or functionality that can be accessed by a business or a consumer programmatically over the Internet by using a standard service specification and a standard communication protocol”. E-service templates, which are used to standardize the specifications of e-services, are stored and maintained by a Broker Server. Business organizations register the e-services they provide with the Broker Server according to the e-service templates, and the service specifications are also managed by the Broker Server. The activity definitions in a process model contain one or more service requests, which are specified according to the e-service templates and are bound to the proper e-service providers at run-time by a dynamic service binding mechanism. Changes in the membership of a virtual enterprise (i.e., its service providers) will not affect the process models. Thus, the workflow system has the flexibility of bounding service requests to the available and suitable services and service providers.
In this work, we allow e-service requests to be specified in workflow activity specifications; an extension to the traditional workflow process specification. We also introduce constraint definitions in both e-service specifications and e-service request specifications; an extension to the Web Service Description Language [11]. These constraints are used by the Broker Server to do
2 constraint-based matching of service requests with e-service specifications. Another new concept introduced in this paper is the specification of restrictions on the selection of providers (or performers) by taking into consideration the interdependencies among activities in a process model.
The organization of this paper is as follows. In Section 2, the architecture of the dynamic workflow management system is introduced. The e-services and the modeling of workflow processes based on e-services are introduced in Section 3. In Section 4, we introduce the constraint-based dynamic service binding mechanism. Section 5 describes the implementation. Section 6 summarizes our research.
2. System Architecture
The architecture of the dynamic workflow management system is shown in Figure 1.
Internet Broker Server
E-Service Adapter
Services
ETR Server Event Server
E-Service Adapter Services E-Service Adapter Services Dynamic WfMS Process
Definition Tool WorkflowEngine
Workflow Server
Figure 1. Architecture of the dynamic workflow management system
Business organizations across the Internet can perform and contribute different manual or automated tasks, which are useful for the operation of a joint business. An E-Service Adapter needs to be installed at each organization’s site to wrap the underlying services, which can be implemented in different ways, as e-services. Thus, these services can be made accessible on the Internet using SOAP [12] and HTTP protocol. A Broker Server works as a central repository for e-services and is typically used by the service requesters to find required e-services [13]. The Workflow Server is composed of two sub-components: namely, the Process Definition Tool and the Workflow Engine. The Process Definition Tool is responsible for modeling business processes, which integrate the e-services across the Internet. The Workflow Engine
schedules the enactment of business processes according to the defined process models.
The Event Server and the Event-Trigger-Rule (ETR) Server, which give the workflow system its active and adaptive properties [6], are also shown in Figure 1.
3. E-Services and Process Modeling
3.1 E-Service Template
To introduce a standard way to define e-services, it is useful to categorize e-services and their providers by the types of business in which these providers are involved. For example, some business organizations may function as the Distributor of a supply chain. For each business type, a set of useful e-services can be defined. Business organizations that are of the same business type may provide all or some of these e-services. The categorization of service providers and the specification of e-services are consistent with the Universal Description, Discovery and Integration (UDDI) specification [14].
To standardize the specification of an service, an e-service template can be jointly defined by those business organizations of the same business type. All e-service templates are managed by the Broker Server. An e-service template consists of one or more operations offered by the e-service. For each operation, there are three types of attributes. Input attributes are used to specify the data needed as input to invoke an operation. Output attributes are used to specify the returned data of an operation. Service attributes are used to specify other properties of an operation, such as the length of time the operation takes, the side-effect of the operation, etc. An e-service template itself can also contain service attributes for the e-service. These attributes specify the properties of an e-service, such as the cost for using the service, the quality of the e-service, etc., which may be useful for negotiation, contracting, or service selection.
A simple example of an service template of an e-service OrderProcessing provided by the business type Distributor is shown in Table 1. It contains an operation Process Order.
Table 1. E-Service Template of e-service OrderProcessing of Distributor
E-Service Operation Description
Name Type Input Attributes productDesc quantity userInfo ProdDesc Int UserInfo Output Attributes orderStatus Status
OrderPro-cessing Process Order
Service Attributes duration cost Time Float
3
3.2 E-Service Constraint
A service provider registers its e-services with the Broker Server by first browsing and selecting the proper e-service templates that are managed by the Broker Server. During the registration, the service provider first provides the Broker Server with its general information, such as its name, URL, telephone, email, etc. It then specifies the e-services it provides. For each e-service, the service provider needs to specify the e-service binding description, which contains the location of the service implementation and details on the protocol and the port to be used to access the server that hosts the e-service.
The service provider can also specify the constraints on the service attributes of the e-service, and the constraints on the input attributes and service attributes of the operations. By allowing attribute and inter-attribute constraints associated with e-service and its operations as well as e-service requests to be explicitly specified, we can extend the Web Service Description Language (WSDL) to increase its expressive power. These constraints restrict the selection of proper e-service providers for e-service requests.
For constraint specifications, we adopt the syntax and semantics of the Constraint-Based Requirement Specification Language used in [15]. We shall call these constraints e-service constraints. For example, a distributor named Worldwide who provides the e-service named OrderProcessing may specify the following constraint on the operation Process Order as shown in Figure 2. This constraint specification states that the operation Process Order of e-service OrderProcessing can only process the order of computer product with the quantity less than 1000. If the quantity of the order is larger than 500, this e-service needs to take more than 10 time units. Iac1 is the name of the inter-attribute constraint.
Figure 2. Constraint specification for operation
Process Order
For each service, the service template, the e-service binding description, and the e-e-service constraints defined by the service provider together form the e-service specification. After registration, the general information of the service provider and the e-service specifications of the e-services it provides are stored in a persistent store and managed by the Broker Server.
3.3 E-Service Request and Its Constraint
In our dynamic workflow management system, e-service requests are the main task items that can be specified in an activity definition. They are defined according to their corresponding e-service templates. The bindings of e-service requests to specific service providers occur at run-time when the available providers are known to the workflow management system through the Broker Server. During process modeling, the model designer first browses the e-service template information provided by the Broker Server. He/she then defines the e-service requests in the activities of a process model according to the corresponding e-service templates. In an e-service request, in addition to the values of the input attributes of the requested operation, the constraints on the service attributes of the operation and the e-service can also be specified. We shall call the constraints in an e-service request service request constraints. An example of an e-service request constraint for the operation ProcessOrder of the e-service OrderProcessing is shown in Figure 3. This constraint specification states that the requester expects that the Process Order operation should not take more than 10 time units, the cost of the e-service should not be more than $1,000, and if it takes more than 4 time units, then the cost must be less than $800.
Figure 3. A sample specification of an e-service request constraint
In summary, at build-time, the service providers register their e-services with the Broker Server according to these services’ corresponding templates. The e-service specifications are maintained at the Broker Server site. The process model designers define e-service requests according to the same corresponding e-service templates. The build-time relationship among the Broker Server, the service providers, and the process definition tool is shown in Figure 4.
3.4 E-Service Invocation
The E-Service Adapter at each organization’s site wraps services, which have been implemented in different ways, so that these services can be invoked using SOAP messages that are sent through the HTTP protocol, according to the format of the corresponding e-service templates. The E-Service Adapter thus hides the heterogeneity of service implementations and presents a
ATTRIBUTE_CONSTRAINT:
productDesc.name String ENUM [“Computer”] priority[1] productDesc.model String ANY priority[2] quantity Integer RANGE [1-1000] priority[3]
INTER_ATTRIBUTE_CONSTRAINT:
Iac1 quantity > 500 implies duration>10
ATTRIBUTE_CONSTRAINT:
duration int RANGE [0 .. 10] priority[1] cost float RANGE [0 .. 1000] priority[2] INTER_ATTRIBUTE_CONSTRAINT
4 uniform view of these services as services. During the e-service invocation, the E-Service Adapter parses the SOAP message from the e-service requester (in our case, the Workflow Engine) and determines the operation of the e-service to be invoked. The E-Service Adapter then determines the corresponding method of different service implementations, builds the parameter list as required by the method, and invokes the method. After the invocation is complete, the E-Service Adapter encapsulates the return data into a SOAP message and returns it to the e-service requester. The SOAP message that is used to invoke the operation ProcessOrder of the e-service OderProcessing is shown in Figure 5.
Figure 4. Build-time relationship among the Service Provider, the Broker Server, and the
Process Definition Tool
3.5 Process Modeling using E-Services
A process model consists of activities that are connected by conditional transitions, which specify the control flows. Additionally, we add data flows among activities. We shall describe only the activity definition below because activity is the main modeling construct in a process model and contains e-service requests. The syntax of the activity specification is shown below.
ACTIVITY <activity id>
[DESCRIPTION <description>]
[PERFORMER <business type name>
(<performer selection constraint>) IN_PARAMETER <input parameters>
OUT_PARAMETER <output parameters> [WF_EVENTS] <workflow event list> [ACTIVITY_VAR <variable list>] IMPLEMENTATION
……
(A) SOAP request message
(B) SOAP response message
Figure 5. SOAP messages for invocation of operation ProcessOrder in e-service
OrderProcessing Broker Server E-Service Requests Process Model Designer Service Provider Service E-Service Adapter Service Service register reference E-Services E-Service Specification E-Service Prototype E-Service Prototype E-Service Template <SOAP-ENV:Envelope xmlns="www.eservices.ufl.edu/services/OrderProcessing" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/- envelope/" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/- soap/encoding/"> <SOAP-ENV:Header> <serviceuri> www.eservices.ufl.edu/services/Distributor/OrderProcessing </serviceuri> </SOAP-ENV:Header> <SOAP-ENV:Body>
<!-- element holding remote call param info --> <ProcessOrder>
<productDesc>
<name> Computer </productname> <model> Pentium 800 </model> </productDesc>
<quantity> 500 </quantity> <userInfo>
<username> DB Center </username>
<address> 470 CSE, Univ. of Florida </address> </userInfo> <ProcessOrder> </SOAP-ENV:Body> </SOAP-ENV:Envelope> <SOAP-ENV:Envelope xmlns="www.eservices.ufl.edu/services/OrderProcessing" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/- envelope/" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/- soap/encoding/"> <SOAP-ENV:Header> <serviceuri> www.eservices.ufl.edu/services/Distributor/OrderProcessing </serviceuri> </SOAP-ENV:Header> <SOAP-ENV:Body>
<!-- element holding operation result --> <ProcessOrder_result>
<OrderStatus> order shipped </OrderStatus> </ProcessOrder_result>
5
ESERVICE <e-service name>.<operation name> INPUT <in_attributes mapping>
[OUTPUT <out_attributes mapping>] CONSTRAINT <constraint definition> END_ESERVICE
…… END_ IMPLEMENTATION END_ACTIVITY
The activity id is a unique identifier for the activity in the extent of a process model. The DESCRIPTION clause contains the description of the activity. The input/output parameters of the activity, which are defined in the IN_PARAMETER/OUT_PARAMETER clauses, specify the input/output data of the activity. The ACTIVITY_VAR clause defines the variables that can be used inside the activity body. The WF_EVENT clause specifies the events that this activity posts. The explanation of workflow events is beyond the scope of this paper.
The PERFORMER clause specifies the business type of the business organization whose e-services are requested in the activity. The performer selection constraint in the PERFORMER clause is defined to further restrict the selection of an organization as the service provider. There are four types of performer selection constraints as shown below. The last two types take into consideration the interdependencies between activities in the selection of providers for their e-service requests. (1) The performer is a particular organization specified by
the name of the organization. An example definition is shown below. Here, Distributor represents the business type of organizations that provide services as distributors, and worldwide is the designated distributor.
PERFORMER Distributor CONSTANT worldwide)
(2) The performer can be any suitable organization of the specified business type. In this case, the e-service requests in the corresponding activity definition will be dynamically bound to a proper organization at run-time in a dynamic service binding process. An example of the PERFORMER clause is shown below. PERFORMER Distributor (ANY)
(3) The performer of the activity should be the same as that of another specified activity. An example definition is shown below. Here, Activity1 is the name of another activity.
PERFORMER Distributor (SAME_AS Activity1)
(4) The performer of the activity is specified by the output parameter of a specified activity. An example definition is shown below. The performer of the current activity is computed by Activity2 and represented as the output parameter bestDistributor.
PERFORMER Distributor
(VARIABLE Activity2.bestDistributor)
The IMPLEMENTATION clause specifies the activity body, which contains a set of task items of this activity.
The e-service requests are the main task items in an activity body. An activity may contain several e-service requests, while all these e-services are to be provided by the same business organization.
The e-service request definition is shown inside the activity definition. E-service name is the name of the e-service to be requested, and operation name is the name of the operation to be invoked. The in_attributes mapping in the INPUT clause represents the mapping between the activity data (namely, input parameters of the activity and activity variables) and the input attributes of the e-service request. The mapping between the activity data (namely, output parameters of the activity and activity variables) and the output attributes of the e-service request is represented by the out_attributes mapping in the OUTPUT clause. The CONSTRAINT clause specifies e-service request constraints.
In addition to e-service requests, there can be two more kinds of task items in an activity definition: in-line code and event posting. Programming code can be included in the activity definition to do some computation. An activity can also explicitly post events. Remote systems that have subscribed to the events will receive event notifications, which report the execution milestones of a process model.
A sample activity definition, which is used to make an order from a distributor, is given in Figure 6. The only task item in this activity is an e-service request to the operation ProcessOrder of the e-service OrderProcessing. Since the performer selection constraint of this activity is ANY, the e-service request in this activity will be dynamically bound to a proper distributor during the execution of a workflow instance initiated from the process model, which includes this activity.
4. Constraint-based Dynamic Service Binding
4.1 Broker Server and Constraint-based Brokering Service
An important function of the Broker Server is to do constraint-based brokering and service provider selection. In our dynamic workflow management system, this function is used by the Workflow Engine to do the dynamic service binding. To achieve this, the Broker Server would match an e-service request with the e-service specifications given by service providers to identify the proper service provider(s) for the request. The data provided for the input attributes of the requested e-service operation and the constraints specified in the request will have to be compatible with (i.e., not conflict with) the attribute constraints and inter-attribute constraints specified by a service provider. The constraint matching is accomplished by using a Constraint Satisfaction Processor used in the system reported in [15].
6 Figure 6. A sample activity definition
In a matching operation, there are three possible results. First, the Broker Server cannot find a service provider that can provide the e-service that satisfies the constraints and input data given in the e-service request. In this case, the matching operation has failed. Second, there is a single service provider, which provides the e-service that satisfies all the requirements of the e-service request or matches the requirements within an acceptable threshold. In this case, the matching operation succeeds and the e-service of the provider is used to service the request. In the third case, multiple service providers can satisfy the request. A Cost-Benefit Evaluation Server [15] is then used to evaluate and rank the e-services provided by these service providers and the best provider is selected.
4.2 Dynamic Service Binding
The Workflow Engine accomplishes the dynamic service binding with the help of the Broker Server, which performs the constraint-based service provider selection. Before the Workflow Engine calls the Broker Server, some preprocessing work needs to be done to determine which e-services requested in the process model need to be provided by the same service provider. For example, the provider that processes a purchase order should also handle the shipping of the product and the issuing of an invoice.
In addition to the attribute constraints and/or inter-attribute constraints that are defined on the service attributes of an e-service operation during the process modeling, an e-service request constraint should also contain the input data of the requested e-service operation as attribute constraints. These values are obtained at the run-time before the e-service operation is to be invoked, and are added to the original e-service request constraint to generate a new one. A new e-service request constraint of the operation ProcessOrder of the e-service OrderProcessing is shown in Figure 7.
Figure 7. A new e-service constraint by adding the input data of the e-service operation The new e-service request constraint, along with the information about e-services that need to be provided by the same service provider, is given to the Broker Server to select the proper service provider. The Broker Server first gets the service providers that provide all the e-services requested from the same service provider. It then selects the proper one from them using the constraint-based service provider selection mechanism discussed above.
5. Implementation
We have implemented a prototype of the dynamic workflow management system. The Process Definition Tool [16] is a user-friendly graphical editor that can be used to specify the diagram of a business process model and the details of e-service requests. When using the Process Definition Tool to define a process model, the process model designer needs to make use of e-service templates, which are accessible from the Broker Server, to specify e-service requests inside activities. To facilitate the process modeling in our implementation, we store these e-service templates in a Metadata Manager implemented for another project [9].
The Workflow Engine is responsible for scheduling the execution of a workflow instance based on the process model. When an activity is scheduled for execution, if there are e-service requests inside the activity and the performer selection constraint of this activity is ANY, the
ACTIVITY Process_Order
DESCRIPTION “Process an order from a retailer”.
IN_PARAMETERS ProdDesc productDesc, Integer quantity, UserInfo user_info
OUT_PARAMETERS Boolean order_status
PERFORMER Distributor (ANY) IMPLEMENTATION
ESERVICE OrderProcessing.ProcessOrder INPUT productDesc, quantity, user_info
OUTPUT order_status
CONSTRAINT
ATTRIBUTE_CONSTRAINT:
duration Integer RANGE [0 .. 10] priority[1] cost Float RANGE [0..1000] priority[2] INTER_ATTRIBUTE_CONSTRAINT:
Iac1: duration > 4 implies cost < 800 END_CONSTRAINT
END_ESERVICE END_IMPLEMENTATION END_ACTIVITY
ATTRIBUTE_CONSTRAINT:
duration Integer RANGE [0 .. 10] priority [1] cost Float RANGE [0 .. 1000] priority [2]
productDesc.name String EQUAL “Computer” priority [0] productDesc.model String EQUAL “Pentium 800” priority [0] quantity Integer EQUAL 500 priority [0] userInfo.userName String EQUAL “DB Center" priority [0] userInfo.address String EQUAL “470, CSE priority [0] Univ. of Florida” userInfo.zipCode String EQUAL “32611” priority [0]
INTER_ATTRIBUTE_CONSTRAINT
7 Workflow Engine would contact the Broker Server to select a proper service provider for the e-service requests inside the activity in a constraint-based dynamic service binding process. The implementation of the constraint-based Broker Server is being carried out by extending the Constraint Satisfaction Processor and the Cost-benefit Evaluation Server used in an automated negotiation system [15, 17]. To invoke an e-service, the Workflow Engine generates a SOAP message, which contains the e-service request information and send the message to the E-service Adapter of the selected service provider. The interactions among the Process Definition Tool, the Workflow Engine, the Broker Server, and E-Service Adapter are shown in Figure 8. Internet WF Engine Workflow Server E-Service Adapter Services Process Definition Tool Broker Server Browse e-service templates Invoke e-services Select service providers Invoke services
Figure 8. Interactions among Workflow Server, Broker Server and E-Service Adapters
6. Conclusion
This paper presents a solution to achieve flexible inter-enterprise workflow management in an e-service infrastructure. In this infrastructure, providers of e-services register their e-services with a Broker Server based on standard templates pre-defined for different business types. The service requests specified in the activities of a workflow process model can be dynamically bound to these distributed e-services and their providers with the help of the Broker Server. E-service requests posed in XML SOAP messages can be sent to the identified provider sites through the HTTP protocol. We have extended the traditional workflow process modeling by including e-service requests in activity specifications and extended e-service specification proposed by WSDL by including constraint specifications so that the selection of e-service providers can be more accurately performed. The constraint-based dynamic e-service binding mechanism presented in this paper allows inter-enterprise workflow process models to be processed in the Internet environment, in which business organizations and their
services are changing constantly. The interdependencies among activities of a process model with respect to provider (or performer) selection are also considered.
7. References
[1] G. Alonso, U. Fiedler, C. Hagen, A. Lazcano, H. Schuldt, and N. Weiler, “WISE – Business to Business E-Commerce,” Proceedings of the 9th International Workshop on Research Issues on Data Engineering: Information Technology for Virtual Enterprises, Sydney, Australia, March 1999.
[2] A. Lazcano, H. Schuldt, G. Alonso, and H. Schek, “WISE: Process based E-Commerce,” IEEE Data Engineering Bulletin, Special Issue on Infrastructure for Advanced E-Services, Vol. 24, No. 1, March 2001, pp. 46-51.
[3] P. Grefen and Y. Hoffner, “CrossFlow - Cross-Organizational Workflow Support for Virtual Organizations,” Proceedings of 9th International Workshop on Research Issues on Data Engineering: Information Technology for Virtual Enterprises (RIDE-VE’99), Sydney, Australia, March 1999.
[4] C. Stricker, S. Riboni, M. Kradolfer, and J. Taylor, “Market-Based Workflow Management for Supply Chains of Services,” Proceedings of the 33rd Hawaii International Conference on System Sciences, Hawaii, USA, 2000. [5] A. Sheth, W. Aalst, and I. Arpinar, “Process Driving the
Networked Economy,” IEEE Concurrency, Vol. 7, No. 3, July-September 1999, pp. 18-31.
[6] J. Meng, S. Su, H. Lam, and A. Helal, “Achieving Dynamic Inter-Organizational Workflow Management by Integrating Business Processes, Events, and Rules,” Proceedings of the 35th Hawaii International Conference on System Sciences, Hawaii, USA, January 2002.
[7] A. Helal, S. Su, J. Meng, R. Krithivasan, and A. Jagatheesam, “The Internet Enterprise,” Proceedings of the 2nd IEEE/JPSJ Symposium on Applications and the Internet, Nara, Japan, January 2002.
[8] H. Lam and S. Su, “Component Interoperability in a Virtual Enterprise Using Events/Triggers/Rules,” Proceedings of OOPSLA ’98 Workshop on Objects, Components, and Virtual Enterprise, Vancouver, BC, Canada, Oct. 18-22, 1998, pp. 47-53.
[9] M. Lee, S. Su, and H. Lam, "A Web-based Knowledge Network for Supporting Emerging Internet Applications," WWW Journal, Vol. 4, No. 1/2, 2001, pp. 121-140.
[10]S. Su and H. Lam, “IKnet: Scalable Infrastructure for Achieving Internet-based Knowledge Network,” invited paper, Proceedings of the International Conference on Advances in Infrastructure for Electronic Business, Science, and Education on the Internet, l’Aquila, Rome, Italy, July 31-Aug.6, 2000.
8
[11]E. Christensen, F. Curbera, G. Meredith, and S. Weerawarana, “Web Services Description Language 1.1” W3C Note, March 2001,http://www.w3.org/TR/WSDL.html. [12]D. Box, D. Ehnebuske, G. Kakivaya, A. Layman, N.
Mendelsohn, H. Nielsen, S. Thatte, and D. Winer, “Simple Object Access Protocol (SOAP) 1.1,” W3C Note, May 2000, http://www.w3.org/TR/SOAP.
[13] A. Helal, M. Wang, A. Jagatheesan and R. Krithivasan, "Brokering Based SelfOrganizing E-Service Communities," Proceedings of the Fifth International Symposium on Autonomous Decentralized Systems (ISADS) With an Emphasis on Electronic Commerce, Dallas, Texas, USA, March 2001.
[14]Ariba Corporation, IBM Corporation, and Microsoft Corporation, ” UDDI Technical White Paper,” September 2000, http://www.uddi.org.
[15]S. Su, C. Huang, J. Hammer, Y. Huang, H. Li, L. Wang, Y. Liu, C. Pluempitiwiriyawej, M. Lee, and H. Lam, “An nternet-based Negotiation Server for E-Commerce,” VLDB Journal, Vol. 10, No. 1, August 2001, pp. 72-90.
[16]J. Xian, “Graphical User Interface for Dynamic Workflow Management,” Masters Thesis, Department of Electrical and Computer Engineering, University of Florida, 2001. [17]S. Su, C. Huang, and J. Hammer, “A Replicable Web-based
Negotiation Server for E-commerce,” Proceedings of the
Hawaii International Conference on System Sciences,
Minitrack on “Evolution of Business-to-Business Electronic Commerce,” Maui, Hawaii, January 4-7, 2000, p. 219, abstract only; full 9-page paper is included in the conference CD.
