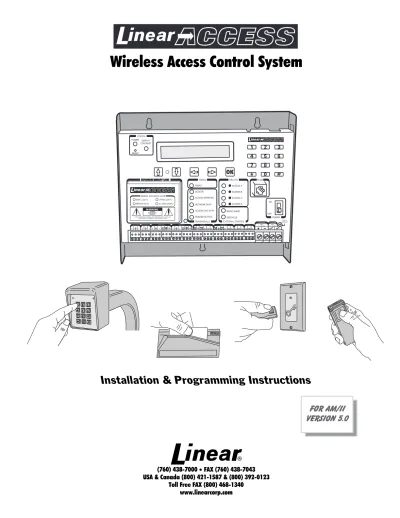

Wireless Access Control System

Installation & Programming Instructions

(760) 438-7000 • FAX (760) 438-7043 USA & Canada (800) 421-1587 & (800) 392-0123

Toll Free FAX (800) 468-1340 www.linearcorp.com RADIO RADIO DECODE ACCESS GRANTED PERIPHERALS READER KEYPAD ACCESS OUT DATA NETWORK DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D SYSTEM POWER RESET DISPLAY CONTRAST B

O 1 O 1 O 1 O 1 B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.

EARTH GROUND

ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL C CHANNEL D 12 - 35 VDC 14 - 24 VAC

AC POWER INPUT DC POWER INPUT NETWORK OFF ON POWER RS-232

MEMORY EXPANSION CARD MEDIUM (64 K)

SMALL (16 K) LARGE (128 K) X-LARGE (256 K)

WARNING

TURN THE POWER SWITCH OFF BEFORE INSTALLING OR REMOVING THIS MEMORY EXPANSION CARD

SEVERE ELECTRICAL DAMAGE RELAYS EXTERNAL CONTROL

For AM/II

Version 5.0

* 5 6 7 8 9 0 # 1 2 3 4

(2)

TABLE OF CONTENTS

FEATURES . . . 3

Remote Access Software . . . 3

AM/II ACCESSORIES . . . 4

AM/II FEATURES . . . 5

SYSTEM HARDWARE BLOCK DIAGRAM . . . 6

BUTTON SCHEDULE . . . 8

DOOR SCHEDULES . . . 9

TIME ZONES . . . 10

ANTI-PASSBACK & KEYPAD STRIKEOUT . . . 11

VALIDATION GROUPS . . . 12

EVENT LOG . . . 13

REMOTE DEVICES . . . 14

ACCESS MEDIA . . . 15

RELAY OUTPUTS & SENSING INPUTS . . . 16

RS-232 PORT . . . 17

ACCESS OUT & NETWORK TERMINALS . . . 18

MEMORY UTILITIES . . . 19

PRE-INSTALLATION PLANNING . . . 20

INSTALLATION OUTLINE . . . 20

WIRELESS INSTALLATION TIPS . . . 21

Signals Through Construction Materials . . . 21

Transmitters in Vehicles . . . 21

PRE-INSTALLATION . . . 21

Unpacking the System . . . 21

Installing the Memory Module . . . 21

MOUNT UNIT . . . 22

EARTH GROUND & POWER CONNECTIONS . . . 23

Earth Ground . . . 23

Power . . . 23

REMOTE DEVICE WIRING REQUIREMENTS . . . 24

Cable Type . . . 24

Load Number . . . 24

ANTENNA HOOK-UP . . . 25

REMOTE RADIO RECEIVER CONNECTIONS . . . 25

REMOTE KEYPAD CONNECTIONS . . . 26

REMOTE PROXIMITY RECEIVER . . . 26

CARD READER INTERFACE . . . 27

CONTROL INPUTS . . . 27

Open Request . . . 27

Door Sense . . . 27

RELAY OUTPUT CONNECTIONS . . . 28

Relay Operation Options . . . 28

RS-232 PORT CONNECTIONS . . . 30

Printer Connections . . . 30

Personal Computer and Data Terminal Connections . . . 31

Modem Connections . . . 31

ACCESS OUT CONNECTIONS . . . 32

NETWORK CONNECTIONS . . . 33

SYSTEM POWER-UP . . . . 34

First Time Power-up . . . . 34

Internal Diagnostic Checks . . . . 34

Watchdog Monitor . . . . 34

MEDIA ENCODING . . . . 34

Transmitter Coding . . . . 34

Block Coded Transmitters . . . . 34

Block Coded Cards . . . . 34

Keypad Entry Codes . . . . 34

DISPLAYS . . . . 35

Radio Indicator . . . . 35

Decode Indicator . . . . 35

Access Granted Indicator . . . . 35

KEYPAD FUNCTIONS . . . . 36

Data Entry Keys . . . . 36

Numeric Keypad . . . . 36

[

*

] Key . . . . 36

[#] Key . . . . 36

Alphanumeric Data Entry . . . . 36

SYSTEM PROGRAMMING . . . . 37

Entering Program Mode . . . . 37

Exiting Program Mode . . . . 37

PROGRAMMING MENU TREES . . . . 38

PROGRAMMING OUTLINE . . . . 40

AREA 01 SINGLE TRANSMITTER PROGRAMMING . . . . 41

Learning Single Transmitters . . . . 41

Suspending Single Transmitters . . . . 41

Reactivating Single Transmitters . . . . 41

Status of Single Transmitters . . . . 41

Deleting One Single Transmitter . . . . 41

Deleting All Single Transmitters . . . . 41

AREA 02 BLOCK TRANSMITTERS . . . . 42

Entering Block Transmitters . . . . 42

Suspending Block Transmitters . . . . 42

Reactivating Block Transmitters . . . . 42

Status of Block Transmitters . . . . 42

Deleting All Block Transmitters . . . . 42

AREA 03 OBSTACLE TRANSMITTERS . . . . 43

Naming Obstacle Transmitters . . . . 43

Learning Obstacle Transmitters . . . . 43

Deleting Obstacle Transmitters . . . . 43

AREA 04 MAGIC WAND TRANSMITTERS . . . . 44

Naming Magic Wand Transmitters . . . . 44

Learning Magic Wand Transmitters . . . . 44

(3)

AREA 05

ENTRY CODES . . . 45

Entering Entry Codes . . . 45

Suspending Entry Codes . . . 45

Reactivating Entry Codes . . . 45

Status of Entry Codes . . . 45

Deleting One Single Entry Code . . . 45

Deleting All Entry Codes . . . 45

AREA 06 BLOCK CARD CODES . . . 46

Entering Block Card Codes . . . 46

Suspending Block Card Codes . . . 46

Reactivating Block Card Codes . . . 46

Status of Block Card Codes . . . 46

Deleting All Block Card Codes . . . 46

AREA 07 TELEPHONE ENTRY NUMBERS . . . 47

Entering Tenant Names & Numbers . . . 47

Deleting Directory Entries . . . 47

AREA 10 VALIDATION GROUPS . . . 48

Configuring Validation Groups . . . 48

AREA 11 BUTTON SCHEDULES . . . 49

Setting the Channel “A” Button Schedule . . . 49

Setting the Channel “B” Button Schedule . . . 49

Setting the Channel “C” Button Schedule . . . 49

Setting the Channel “D” Button Schedule . . . 49

AREA 12 DOOR SCHEDULES . . . 50

Setting the Door Schedules . . . 50

AREA 13 TIME ZONES . . . 51

Setting the Time Zones . . . 51

AREA 20 TIME AND CALENDAR . . . 52

Setting the Time . . . 52

Setting the Date . . . 52

Daylight Savings Option . . . 52

Setting Keypad Downlight Time . . . 52

Setting Holiday Dates . . . 52

Setting Expiring Holiday Dates . . . 52

AREA 21 RELAY SETUP . . . 53

Relay Timing Options . . . 53

Relay Programming . . . 53

AREA 22 SYSTEM SETUP . . . 54

Setting Installation and Unit Names . . . 54

Setting Event Log Limits . . . 54

Setting Anti-Passback Time . . . 54

Setting Intregral Radio Direction . . . 54

Setting Network Address . . . 54

Setting Keypad Strike Outs . . . 54

Setting Door Ajar Time . . . 54

Setting Local Password . . . 54

Setting Remote Password . . . 54

Setting Priority Access Password . . . 54

AREA 23 Facility/Site Codes . . . 55

System Site Code . . . 55

Transmitter Facility Code . . . 55

Card Facility Codes . . . 55

AREA 24 RS-232 PORT SETUP . . . 56

Setting RS-232 Device . . . 56

Changing Modem Initialization Strings . . . 56

Setting Modem Termination String . . . 56

AREA 25 CONFIGURE REMOTE DEVICES . . . 57

Remote Device Programming . . . 57

AREA 26 CONFIGURE ACCESS OUT . . . 58

Access Out Application Note . . . 58

Access Out Setup . . . 58

AREA 27 TELEPHONE ENTRY SETUP . . . 59

Configuring Directory . . . 59

Setting PBX Dialing Digit . . . 59

Setting Talk Time . . . 59

Editing Display Messages . . . 59

Deleting All Telephone Entries . . . 59

Adjusting the Speaker/Microphone Balance . . . 59

Set Priority Access Function . . . 59

AREA 29 MEMORY MODULE UTILITIES . . . 60

Sending Memory Module . . . 60

Receiving Memory Module . . . 60

Copying Memory Module . . . 60

Printing Memory Module . . . 60

Initializing Memory Module . . . 60

AREA 30 SYSTEM REPORTS/UTILITIES . . . 61

Printing System Report . . . 61

Printing Single Transmitter Report . . . 61

Printing Block Transmitter Report . . . 61

Printing Entry Code Report . . . 61

Printing Block Card Report . . . 61

Printing Telephone Entry Report . . . 61

Printing Event Log . . . 61

OPERATION OVERVIEW . . . 62

Standard Operation . . . 62

Manual Operation . . . 62

Magic Wand Transmitters . . . 62

Obstacle Transmitters . . . 62 SPECIFICATIONS . . . 63 Outputs . . . 63 Inputs . . . 63 Hardware . . . 63 Construction . . . 63 INDEX . . . 64

(4)

INTRODUCTION

The AM/II is designed for a broad range of access control applications. Its wireless design with the proven MegaCode radio format, the Wiegand and RS-232 interfaces, make it easily adaptable for virtually any access control requirement. The AM/II contains a high-gain superheterodyne UHF receiver. When used with an external antenna, signals can be received from up to 200 feet away. Two lockable metal enclosures are available to house the AM/II.

Four dry contact relay outputs are provided to activate four access devices, such as door strikes, barrier gates, automatic sliding gates and automatic doors. The relay outputs can also be used for alarm contact shunting, operator obstacle triggering, and alarm activation. Two open request pushbutton inputs are supplied for hardwire activation of the access devices. Two door sense inputs allow detection of propped open doors.

The AM/II has an RS-232 interface (bi-directional). The system can be linked to a printer or personal computer. The event log feature, for example, makes it possible to keep track of how many employees are on premises, which employees are present, and when they clock in and out. With connection to a personal computer, the AM/II can be programmed locally or remotely through the telephone system with standard Hayes compatible modems. System reports can be printed or captured from the RS-232 port.

T h e W i e g a n d i n t e r f a c e i s f o r c o n n e c t i o n t o o t h e r manufacturer’s access control systems. The AM/II can act as a wireless receiver for an existing access control system. When interconnected to a Sentex Infinity system, the AM/II can simulate two Sentex card readers, receiving signals from thousands of transmitters. The AM/II also supports the industry standard Wiegand26 and Securakey31 data formats for connecting to other access control panels.

Up to eight AM/II’s can be networked together allowing information sharing between the units. A common event log is retained for all of the networked units.

Four different size memory modules are available. The small, medium, large and x-large modules allow tailoring the system to meet the requirements of the installation. The larger the memory module, the more transmitter ID codes and logged events can be stored.

Additional remote accessory devices can be connected to the AM/II. A rugged, die cast, weatherproof keypad (AM-KP) for manual input of entry codes. A card reader interface (AM-CRI) can connect to one or two card readers. A proximity receiver (AM-RPR) provides ultra-short range radio reception for transmitters. A remote radio receiver (AM-RRR) can be used to extend the reception capabilities of the AM/II. Up to six remote accessory devices can be used with each AM/II unit.

OK

BACK NEXT

AM/II

Barrier Gate with Controlled

Door, Remote Receivers and

Remote Keypads.

Access is Controled with

Time Zones.

Safety Edge Transmitter

Modem for Remote Access & Programming Barrier Gate Controlled Door Keypad & Remote Receiver User Tx User Tx Proximity Receiver STANDARD 2-WIRE DOOR STRIKE CONNECTION 6-WIRE LOCAL BUS Keypad Door Strike 6-WIRE LOCAL BUS STANDARD 2-WIRE SIGNAL CONNECTION

(5)

FEATURES

✶ Ideally suited for gated communities, condos, airports, parking garages, municipal gated parking, office buildings, government buildings, hospitals, factories, utility companies, computer facilities, museums, warehouses, dormitories, banks, libraries, retail stores, hotels/motels, educational facilities, small commercial buildings and recreational facilities.

✶ Controls up to four access devices.

✶ Supports thousands of transmitters, entry codes and card codes (depends on memory module size).

✶ MegaCode radio format features over one million possible transmitter identification codes.

✶ Remote activation from up to 200 feet away.

✶ Integral 2 line by 24 character backlit LCD display.

✶ Real-time print log (RS-232 output to a line printer).

✶ Remote and local programming with a personal computer.

✶ Sentex30, Securakey31, and Wiegand26 compatible output to connect to other access control panels.

✶ Block coding for transmitters and cards (just the first and last number in a “block” needs to be programmed).

✶ Magic wand support (special transmitter for maintenance personnel).

✶ Obstacle-sensing support with Linear’s MGT Safety Edge transmitter.

✶ Two door sensing inputs for propped open doors.

✶ Automatic door relock when door sense input is used.

✶ Two request to exit inputs for pushbutton or knox box activation.

✶ Time scheduled relay activation, 15 time zones with 4 periods each.

✶ Time zone access validation, 15 time zones with 4 periods each.

✶ Day of week and holiday access validation, up to 24 expiring holidays and 24 non-expiring holidays.

✶ Door access restriction for each validation group.

✶ Timed anti-passback modes.

Remote Access Software

Either of the following two Windowsbased software p r o g r a m s c a n b e d o w n l o a d e d f r o m o u r w e b s i t e (www.linearcorp.com)

✶ Access Base - used in networks or single AM/II installations.

✶ Account Manager - used in non-networked, single AM/II installations. 0 7 : 0 0 A C C E S S U S E R 2 0 7 : 1 0 A C C E S S U S E R 1 7 0 7 : 1 4 A C C E S S U S E R 3 4 0 7 : 1 5 A C C E S S U S E R 4 5 0 7 : 1 9 A C C E S S U S E R 2 7 0 7 : 2 3 A C C E S S U S E R 5 6 0 7 : 2 4 A C C E S S U S E R 1 2 0 7 : 2 6 A C C E S S U S E R 1 3 0 7 : 2 6 A C C E S S U S E R 2 3 0 7 : 2 7 A C C E S S U S E R 8 7 0 7 : 2 8 A C C E S S U S E R 6 7 0 7 : 2 9 A C C E S S U S E R 9 8 L O B B Y A C CO UNT ING S E R V I C E S A L E S P R E S I D E N T V . P . _{S A L E S}V . P . P U R C H . E N G I N E E R I N G B A T H B A T H CO M P UT E R R OOM S T O R . C O P I E R A R E A C H I E F E N G . L A B AM/II

(Two Networked Units)

Small Commercial Installation

with Two Time Zones. Four

Doors: Customer Entrance,

Employee Entrance, Computer

Room & President's Back Door

Printer for Event Logging Keypad Card Reader EMPLOYEE ENTRANCE CUSTOMER ENTRANCE CRT Event Logging RECEPTIONIST Door Release Card Reader COMPUTER ROOM SPECIAL ACCESS Modem for Remote Programming OK BACK NEXT Card Reader PRESIDENT'S OFFICE SPECIAL ACCESS

(6)

AM/II ACCESSORIES

* 5 6 7 8 9 0 # 1 2 3 4 M D T K 2 - B u t t o n M e g a C o d e T r a n s m i t t e r T o p a n d f r o n t b u t t o n s f u n c t i o n t h e s a m e t o c o n t r o l a s i n g l e r e l a y c h a n n e l . 3 - B u t t o n M e g a C o d e T r a n s m i t t e r T w o f r o n t b u t t o n s a n d a t o p b u t t o n c a n b e u s e d w i t h a n y r e l a y c h a n n e l . 2 - B u t t o n M e g a C o d e M i n i T r a n s m i t t e r D e s i g n e d t o b e u s e d w i t h t h e k e y c h a i n p r o v i d e d . A c t i v a t e s t w o r e l a y c h a n n e l s . 1 - B u t t o n M e g a C o d e M i n i T r a n s m i t t e r D e s i g n e d t o b e u s e d w i t h t h e k e y c h a i n p r o v i d e d . A c t i v a t e s o n e r e l a y c h a n n e l . M e g a C o d e W i r e l e s s K e y p a d U s e r c o d e i s e n t e r e d o n k e y p a d . K e y p a d h a s w e a t h e r - p r o o f c o n s t r u c t i o n , e a s y t o r e a d n u m b e r s a n d i s b a c k l i t f o r u s e a t n i g h t . C a n b e u s e d f o r u p t o 1 5 2 4 s i n g l e t r a n s m i t t t e r c o d e s . M D T - 2

SINGLE & BLOCK CODED

TRANSMITTERS

REMOTE ACCESSORY DEVICES

5 - B u t t o n M e g a C o d e T r a n s m i t t e r C a n c o n t r o l a l l r e l a y c h a n n e l s o r b e u s e d a s a m a g i c w a n d t r a n s m i t t e r . M D T - 4 M D T - 1 A C T - 2 2 A C T - 2 1 M G T A M - K P A M - R R R A M - C R I A M - R P R S u p e r v i s e d G a t e S a f e t y E d g e T r a n s m i t t e r C o n n e c t s t o s a f e t y e d g e s e n s o r . A c t i v a t e s o b s t a c l e r e l a y c h a n n e l . E n t r y K e y p a d O u t d o o r h o u s i n g w i t h l i g h t e d k e y p a d a n d t w o i n d i c a t o r s . A c t i v a t e s o n e r e l a y c h a n n e l . E X A - 1 0 0 0 E X A - 2 0 0 0 R e m o t e A n t e n n a s D i r e c t i o n a l a n d o m n i -d i r e c t i o n a l a n t e n n a s f o r r e m o t e p l a c e m e n t i n b e s t r e c e p t i o n a r e a s . R e m o t e R a d i o R e c e i v e r H i g h - g a i n r e m o t e r a d i o r e c e i v e r w i t h o u t d o o r h o u s i n g . C a r d R e a d e r I n t e r f a c e C o n n e c t s t o o n e o r t w o 2 6 - b i t o r 3 1 - b i t c a r d r e a d e r s . F u n c t i o n s a s t w o r e m o t e d e v i c e s . R e m o t e P r o x i m i t y R e c e i v e r R e c e i v e s t r a n s m i t t e r s i g n a l s f r o m i n c h e s a w a y . F o r t r a n s m i t t e r a c t i v a t i o n o f s p e c i f i c a c c e s s p o i n t .

(7)

AM/II FEATURES

1. MEMORY EXPANSION CARD

Plug-in memory module. Four sizes available: small, medium, large and jumbo.

2. RESET BUTTON

Resets and restarts the microprocessor. Runs startup tests. 3. POWER LIGHT

Indicates that DC or AC power is being applied to the unit and that the POWER switch is turned on.

4. DISPLAY CONTRAST CONTROL

Adjusts the contrast of the unit’s LCD display. Allows setting the display for maximum readability for different viewing angles.

5. LCD DISPLAY

Backlit, 24-character-per-line, 2-line LCD display. Displays system operation and programming information.

6. RADIO RANGE KNOB

Controls the gain of the radio receiver. Used to limit the maximum operating range of transmitters. Turn clockwise for more gain, counterclockwise for less gain.

7. ANTENNA INPUT

For connection to the EXA-1000 omni-directional or EXA-2000 directional remote antenna.

8. DATA ENTRY KEYS

Arrow keys are used to scroll through displayed menu trees. OK key is used as an enter key to accept data entered or selected.

9. RADIO INDICATOR

The RADIO light indicates the presence of RF signal into the unit’s receiver.

10. NUMERIC KEYPAD

Used for entering data while programming the AM/II. 11. RS-232 PORT

Connects to a serial line printer, PC or data terminal for logging access transactions. For local programming with a PC or remote programming with a PC and a modem. Also used to interconnect two AM/II units to copy the memory between systems.

12. POWER SWITCH

Controls the DC and AC power inputs. This is the master power switch for the AM/II.

13. EARTH GROUND TERMINAL

For connection to a good earth ground. For electrical safety and optimum lightning protection, this connection is mandatory.

14. POWER TERMINALS

DC power input terminals for 12 to 35 VDC. AC power input terminals for 14 to 24 VAC. Use either AC or DC power, DO NOT USE BOTH. 15. RELAY INDICATORS AND ACCESS BUTTONS

Indicators will light when an output relay is activated. Outputs can be activated (open) by a transmitter or locked open by pressing an ACCESS button.

16. EXTERNAL CONTROL INDICATORS

MAGIC WAND indicator lights when the special “MAGIC WAND” transmitter is activated by a system administrator. OBSTACLE indicator lights when a signal from a Model MGT safety edge transmitter is received.

17. RELAY TERMINALS

Connects to the access device to be controlled (door strike, gate operator, etc.). Open request switch inputs are provided for relay channels A & B. 18. WIRING STRAIN RELIEF HOOKS

Strain relief hooks are provided on the bottom of the AM/II case. After wiring is complete, wires can be zip-tied to the strain relief hooks. 19. PERIPHERALS INDICATORS

The DECODE light indicates that the data being received is a valid format that the unit recognizes. The ACCESS GRANTED indicator lights when a device that is allowed to have access is triggered. The ACCESS IN and ACCESS OUT indicators light when data is being sent or received from the remote devices.

20. READER IN TERMINALS

Connects to remote accessory devices. 21. KEYPAD IN TERMINALS

Connects to remote accessory devices. 22. ACCESS OUT TERMINALS

AccessNet Data Bus for connection to other access control units. Sentex access out format is programmable for connection to Sentex Infinity systems. Wiegand26 and SecuraKey31 access out formats are programmable for connection to Wiegand inputs on other access control units.

23. NETWORK TERMINALS

For connection to other AM/II units. Up to 8 units can be networked together.

EXPANSION MEMORY CARD RADIO

RADIO DECODE ACCESS GRANTED

PERIPHERALS READER KEYPAD ACCESS OUT DATA ACCESS IN DATA RELAYS ACCESS A ACCESS B ACCESS C EXTERNAL CONTROL OBSTACLE MAGIC WAND ACCESS D SYSTEM POWER RESET DISPLAY CONTRAST B

O 1O 1O 1 O 1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.

EARTH GROUND ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D 12 - 35 VDC 14 - 24 VAC

AC POWER INPUT DC POWER INPUT NETWORK O K OFF ON POWER RS-232

MEMORY EXPANSION CARD

MEDIUM (64 K)

SMALL (16 K) LARGE (128 K)

X-LARGE (256 K) WARNING

SEVERE ELECTRICAL DAMAGE

1 4

1 5

1 6

1 7

1 8

1 9

2 0

2 1

1

2

3

4

5

6

7

8

9

1 0

1 1

1 2

2 2

1 3

2 3

(8)

SYSTEM HARDWARE BLOCK DIAGRAM

RADIO

MICROPROCESSOR

INDICATORS

DISPLAY

KEYBOARD

MEMORY

MODULE

RS-232

PORT

NETWORK TERMINALS ACCESS OUT TERMINALS KEYPAD TERMINALS READER TERMINALS DOOR SENSE & OPEN REQ.

RELAY TERMINALS

USER'S

TRANSMITTERS

OBSTACLE

TRANSMITTERS

ANOTHER

AM/II

ANOTHER

AM/II

UP TO 8

NETWORK

UNITS

EXTERNAL

ACCESS

CONTROL

PANEL

AM-KP

KEYPAD

[DV4]

AM-KP

KEYPAD

[DV5]

AM-KP

KEYPAD

[DV6]

AM-RPR

RECEIVER

[DV1]

AM-RRR

RECEIVER

[DV2]

AM-CRI

READER

[DV3]

MAGNETIC

SWITCHES

& PUSHBUTTONS

ACCESS DEVICES

(DOOR STRIKES,

OPERATORS)

7

1

2

3

8

6

5

4

AM/II CONTROL

(9)

➀

AM/II CONTROL

The AM/II is a microprocessor based, world class access control system with a built-in superheterodyne radio receiver. The microprocessor runs the entire system, granting access, performing system “housekeeping” functions, displaying information, reading inputs and controlling outputs. Programming information and event logs are stored in the removable memory module. The soft touch silicone keypad and numeric keys are used for data entry. The plug-in terminal blocks connect to access devices, power, remote devices and sensing inputs. The RS-232 port connects to external computer equipment for event logging and system programming.

➁

RADIO TRANSMITTERS

Many models of transmitters can be used with the AM/II. Some are individually coded, others are coded in blocks of numbers. Both code types will appear to function the same to the end users. The users will activate their transmitter to attempt to gain access. When the transmitted signal is detected by an AM/II receiver, the control decides if the user is currently allowed access. If the programming in the AM/II determines that the user can have access at that time, the programmed output relay will activate. Model MGT gate obstacle transmitters can also send signals to the AM/II.

➂

EXTERNAL ANTENNA

The AM/II control has a type “F” antenna connector. The external antenna is connected with co-ax cable to the connector. A Model EXA-1000 (omni-directional), or Model EXA-2000 (directional) antenna is used to receive signals from the user’s transmitters. The radio gain control knob can be used to custom tailor the reception area to the installation.

➃

ACCESS DEVICES

The access devices wired to the relay terminals control specific access portals. When a user is granted access by the AM/II the access device activates (usually for a timed period).

➄

OPEN REQUEST AND DOOR SENSE

INPUTS

The open request inputs wire to pushbuttons or knox boxes so that users can activate access devices without needing their card code or transmitter. Open request pushbuttons are usually next to the controlled portal inside the controlled area. Door sense inputs are wired to normally closed magnetic or mechanical switches attached to the door.

➅

REMOTE DEVICES

The remote devices communicate with the AM/II through a common electrical buss. Each device is set to a unique device address so the AM/II can recognize each unit as an individual. Currently available remote devices include entry keypads, remote radio receivers, radio proximity receivers and card reader interfaces.

➆

EXTERNAL ACCESS CONTROL

Access control panels from other manufacturers can be connected to the AM/II. The AM/II can serve as a remote device for the external panel. The external panel can validate the data coming from the AM/II and perform its own access functions.

➇

NETWORKED UNITS

Up to eight AM/II’s can be networked together to function in unison. Each AM/II functions as an independent unit, but programming and event logging is shared between all units. Cards, codes and transmitters can be programmed to activate a specific AM/II unit.

(10)

BUTTON SCHEDULE

Select which transmitter buttons

activate which relay channels

CONCEPTS

The following pages provide a foundation for learning the access control concepts used in

the AM/II system.

BUTTON DEFAULTS

CHANNEL "A" = LEFT

CHANNEL "B" = RIGHT

CHANNEL "C" = BOTTOM-LEFT

CHANNEL "D" = BOTTOM-RIGHT

BOTH FUNCTION AS LEFT BUTTON LEFT BUTTON RIGHT BUTTON TOP BUTTON TOP BUTTON LEFT BUTTON RIGHT BUTTON BOTTOM-RIGHT BUTTON BOTTOM-LEFT BUTTON LEFT BUTTON LEFT BUTTON RIGHT BUTTON ANY TRANSMITTER BUTTON CAN BE PROGRAMMED TO ACTIVATE ANY RELAY CHANNEL

SPECIAL INFORMATION

The button schedule must be set before programming any validation group. Each validation group can have different button schedules.

To avoid confusion, using the same button schedule for all validation groups is recommended.

A

B

C

D

RELAY CHANNEL "A" RELAY CHANNEL "B" RELAY CHANNEL "C" RELAY CHANNEL "D" BOTH EQUALS TOP BUTTON ? ? ? ? BUTTON SCHEDULE

(11)

DOOR SCHEDULES

Select which relay channels a validation

group can access

CONCEPTS

SPECIAL INFORMATION

Program door schedules before programming validation groups. Door schedule 0 [DS0] always allows access to all four door relay channels. Up to 15 door schedules can be programmed.

UP TO 15 DIFFERENT DOOR

SCHEDULES [DS1 - DS15] CAN BE SET

RELAY CHANNEL "A" RELAY CHANNEL "B" RELAY CHANNEL "C" RELAY CHANNEL "D" EACH DOOR SCHEDULE SETS WHICH

RELAY CHANNEL(S) THAT THE SCHEDULE CAN ACTIVATE

DOOR SCHEDULE

A B C D

(12)

TIME ZONES

Select the days of the week & what

times that a validation group

will be active

CONCEPTS

TIME

ZONE

SPECIAL INFORMATION

Time zones also enables holiday schedules for a validation group.

Up to 15 time zones can be programmed. Note: 00:00 settings for all time periods in a time zone allows 24-hour access. Time zone 0 [TZ0] always allows 24-hour access.

VALID DAYS SET WHICH DAY(S) THE TIME ZONE IS ACTIVE. HOLIDAY OPTION ALLOWS ACCESS ON PROGRAMMED HOLIDAY DAYS.

UP TO 15 DIFFERENT TIME ZONES [TZ1 - TZ15] CAN BE SET

UP TO FOUR SEPARATE TIME PERIODS CAN BE SET FOR EACH TIME ZONE. ACCESS WILL ONLY BE GRANTED DURING A TIME PERIOD.

VALID DAYS ❍ SUN ❍ MON ❍ TUES ❍ WED ❍ THURS ❍ FRI ❍ SAT ❍ HOLIDY TIME PERIOD 1 BEGIN TIME: 00:00 END TIME: 00:00 TIME PERIOD 2 BEGIN TIME: 00:00 END TIME: 00:00 TIME PERIOD 3 BEGIN TIME: 00:00 END TIME: 00:00 TIME PERIOD 4 BEGIN TIME: 00:00 END TIME: 00:00

TIME

ZONE

(13)

ANTI-PASSBACK & KEYPAD STRIKEOUT

Timed anti-passback prevents

“tailgating” by unauthorized users,

keypad strikeout discourages

keycode “guessing”

CONCEPTS

ANTI-PASSBACK & STRIKEOUT

SPECIAL INFORMATION

Anti-passback time can be programmed to 1, 2, 3 or 4 minutes.

Intregral radio direction must be set to IN for anti-passback to function.

Keypad strikeout can be set from one to seven failed attempts.

*

5 6 7 8 9 0 # 1 2 3 4

*

5 6 7 8 9 0 # 1 2 3 4

YELLOW LIGHT SHOWS LOCKED OUT CONDITION WHEN ANTI-PASSBACK

OPTION IS ENABLED AND TRANSMITTER IS ACTIVATED...

THE TRANSMITTER WILL NOT HAVE ACCESS AGAIN UNTIL ANTI-PASSBACK TIME EXPIRES

WHEN KEYPAD STRIKEOUTS ARE SET, AFTER THE SET NUMBER OF WRONG CODE ATTEMPTS THE KEYPAD WILL "LOCKOUT" IGNORING FURTHER ATTEMPTS UNTIL ONE MINUTE PASSES

(14)

VALIDATION GROUPS

Control who gets access to which areas

and at what times

CONCEPTS

VALIDATION GROUP

DOOR SCHEDULE

ANTI-PASSBACK

& STRIKEOUT

TIME

ZONE

SPECIAL INFORMATION

Set door schedules, time zones, button schedules and anti-passback timer before programming validation groups.

Up to 15 validation groups can be programmed. Each selects a door

schedule, time zone, button schedule and anti-passback option.

Validation group "0" has full access at all times. ? ? ? ?

BUTTON

SCHEDULE

UP TO 15 VALIDATION GROUPS [VG1 - VG15] CAN BE SET

EACH VALIDATION GROUP SELECTS A DOOR SCHEDULE, BUTTON SCHEDULE, TIME ZONE AND ANTI-PASSBACK OPTION

(15)

EVENT LOG

Keeps a record of all access

transactions and supervisory conditions

CONCEPTS

10:52:42 06/20/95 0:0 sTx[00001] ->{A} Sherie Price AM/II Unit #1 10:52:42 06/20/95 0:2 Crd[01470] ->{D} Tony Lobianco Front Door Card Reader 10:54:14 06/20/95 0:0 sTx[00003] ->{A} John Phillips AM/II Unit #1 10:54:21 06/20/95 0:1 Kpd[2003] ->{C} Moe Howard Front Gate Keypad 10:54:28 06/20/95 0:0 sTx[00002] ->{A} Jack Hess AM/II Unit #1

EVENT LOG

SPECIAL INFORMATION

The number of possible stored events depends on the size of memory installed and the amoumt of other data stored. The stored event log can be set to retain up to 500, 1000, 2000, 5000, maximum or no events.

Stored event log can be printed in total, from the last report or from a selected date.

SAMPLE REAL-TIME EVENT PRINTOUT

Event Log Report Jun 22, 1995 09:56:39 Page 001 Installation: South Hills Apartments AM/II Unit #1

08:55:35 06/22/95 0:0 sTx[00003] ->{B} Unit #1 08:51:21 06/22/95 0:2 Crd[01470] ->{B}

Front Door Card Reader 08:45:49 06/22/95 0:0 sTx[00001] ->{A}

Unit #1

12:28:42 06/20/95 0:0 Obs[1] Obstacle Txmtr Trouble 11:02:42 06/20/95 0:0 Exit Program Mode 11:02:42 06/20/95 0:0 Program Mode Timed Out

SAMPLE STORED EVENT LOG

10:52:42 06/20/95 0:0 sTx[00001] ->{A} AM/II Unit #1 10:52:42 06/20/95 0:2 Crd[01470] ->{D}

Front Door Card Reader 10:54:14 06/20/95 0:0 sTx[00003] ->{A}

AM/II Unit #1 10:54:21 06/20/95 0:1 Kpd[2003] ->{C} Front Gate Keypad 10:54:28 06/20/95 0:0 sTx[00002] ->{A} AM/II Unit #1

REAL-TIME EVENT LOG PRINTS EACH EVENT AS IT HAPPENS

STORED EVENT LOG SHOWS ALL EVENTS FROM MOST RECENT TO OLDEST STORED EVENT

TOP LINE OF EVENT SHOWS:

TIME & DATE

NETWORK ADDRESS : REMOTE DEVICE ADDRESS MEDIA TYPE & ID#

DIRECTION OF ENTRY & RELAY LETTER

(16)

REMOTE DEVICES

Accept input from various media

CONCEPTS

REMOTE DEVICE

*

5 6 7 8 9 0 # 1 2 3 4

MODEL AM-KP ENTRY KEYPAD

ACCEPTS ENTRY CODES AS USERS KEY THEM IN

MODEL AM-CRI CARD READER INTERFACE

ACCEPTS CARD CODES FROM ONE OR TWO CARD SWIPE READERS

MODEL AM-RPR RADIO PROXIMITY RECEIVER

ACCEPTS ID CODES FROM

TRANSMITTERS AS USERS ACTIVATE THEM NEXT TO RECEIVER

MODEL AM-RRR REMOTE RADIO RECEIVER

ACCEPTS ID CODES FROM

TRANSMITTERS AS USERS ACTIVATE THEM WITHIN RANGE OF THE REMOTE RECEIVER'S ANTENNA

EACH REMOTE DEVICE CAN BE WIRED TO THE AM/II AND HAS A ROTARY SWITCH THAT SELECTS THE DEVICE ADDRESS

(17)

ACCESS MEDIA

Cards, keypad codes &

transmitters (CCT’s)

HARDWARE & MEDIA

The following pages provide a foundation for learning the hardware devices and access

control media used in the AM/II system. _{ACCESS MEDIA}

S I N G L E T R A N S M I T T E R S U N I Q U E L Y C O D E D A T T H E F A C T O R Y A N D P R O G R A M M E D O N E A T A T I M E N O T E : S I N G L E T R A N S M I T T E R S A R E N O T C O M P A T I B L E W I T H A C C E S S B A S E O R A C C O U N T M A N A G E R B L O C K C O D E D T R A N S M I T T E R S S E Q U E N T A L L Y C O D E D A T T H E F A C T O R Y A N D P R O G R A M M E D B Y E N T E R I N G T H E S T A R T I N G A N D E N D I N G B L O C K N U M B E R S B L O C K C O D E D C A R D S S E Q U E N T A L L Y C O D E D A T T H E F A C T O R Y A N D P R O G R A M M E D B Y E N T E R I N G T H E S T A R T I N G A N D E N D I N G B L O C K N U M B E R S K E Y P A D E N T R Y C O D E S P R O G R A M M E D B Y T H E I N S T A L L E R , C A N B E F R O M T W O T O E I G H T D I G I T S L O N G - R E C O M M E N D E D T H A T A L L C O D E S B E T H E S A M E L E N G T H - F O R H I G H E S T S E C U R I T Y , C O D E S S H O U L D B E A T L E A S T F O U R D I G I T S L O N G

(18)

RELAY OUTPUTS & SENSING INPUTS

Control access devices and sense

auxiliary inputs

HARDWARE & MEDIA

OUTPUTS & INPUTS

RELAY OUTPUTS

● ELECTRICALLY ISOLATED CONTACTS (3 AMPS, 30 VOLTS MAXIMUM)

● NORMALLY OPEN AND NORMALLY CLOSED CONTACTS

● PROGRAMMABLE FOR TIME DURATION, PULSE, TOGGLE AND LATCH OUTPUTS

SENSING INPUTS

● OPEN REQUEST INPUT AVAILABLE FOR RELAY CHANNELS A & B (NORMALLY OPEN SWITCH)

● DOOR SENSE INPUT AVAILABLE FOR RELAY CHANNELS A & B (NORMALLY CLOSED SWITCH)

B

RELAY CHANNEL "B"

C

RELAY CHANNEL "C"

D

RELAY CHANNEL "D"

A

RELAY CHANNEL "A" OPEN REQUEST DOOR SENSE DOOR STRIKE DOOR STRIKE CONTROLLED ACCESS DOOR 1 CONTROLLED ACCESS DOOR 2 BARRIER GATE OBSTACLE TRANSMITTER TYPICAL INSTALLATION PUSHBUTTON MAGNETIC SWITCH

(19)

RS-232 PORT

For printing event log, programming

and transferring memory between units

HARDWARE & MEDIA

RS-232

PORT

MODEL A2M MODEM CABLE MODEL A2C COMPUTER CABLE MODEL A2P PRINTER CABLE SERIAL PRINTER TERMINAL PERSONAL COMPUTER MODEM SERIAL PRINTER ● P R I N T S R E A L - T I M E E V E N T L O G ● P R I N T S S Y S T E M R E P O R T S ● U S E M O D E L A 2 P C A B L E COMPUTER TERMINAL ●_{D I S P L A Y S R E A L - T I M E E V E N T L O G} ●_{D I S P L A Y S S Y S T E M R E P O R T S} ●_{L O C A L L Y P R O G R A M A M / I I} ● U S E M O D E L A 2 C C A B L E PERSONAL COMPUTER ●_{D I S P L A Y S R E A L - T I M E E V E N T L O G} ●_{D I S P L A Y S S Y S T E M R E P O R T S} ●_{L O C A L L Y P R O G R A M A M / I I} ● S T O R E A M / I I M E M O R Y T O D I S K ● L O A D A M / I I M E M O R Y F R O M D I S K ● U S E M O D E L A 2 C C A B L E COMPUTER MODEM ● C O N N E C T S T O A M / I I R S - 2 3 2 P O R T ● A N S W E R S C A L L S F R O M R E M O T E C O M P U T E R ● R E M O T E L Y P R O G R A M A M / I I ● R E M O T E L Y S T O R E A M / I I M E M O R Y T O D I S K ●_{R E M O T E L Y L O A D A M / I I M E M O R Y F R O M D I S K} ●_{R E M O T E L Y D I S P L A Y S T O R E D E V E N T L O G} ●_{R E M O T E L Y D I S P L A Y S Y S T E M R E P O R T S} ● U S E M O D E L A 2 M C A B L E MODEL A2A INTERCONNECT CABLE AM/II INTERCONNECT ●_{C O N N E C T S T W O A M / I I U N I T S T O G E T H E R} ●_{T R A N S F E R M E M O R Y B E T W E E N U N I T S} ●_{U S E M O D E L A 2 A C A B L E}

(20)

ACCESS OUT & NETWORK TERMINALS

For linking an AM/II to an external

access control panel and connecting

multiple AM/II’s together

HARDWARE & MEDIA

ACCESS OUT

& NETWORK

EXPANSION MEMORY CARD RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D

14 - 24 VAC 12 - 35 VDCAC POWERINPUT DC POWERINPUT NETWORK WARNING RADIO PERIPHERALS RELAYS EXTERNAL CONTROL RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST SYSTEM

ACCESS OUT TERMINALS

● PASSES ACCESS OUT INFORMATION

TO AN EXTERNAL ACCESS CONTROL SYSTEM

● SUPPORTS WIEGAND26

SECURAKEY31, AND SENTEX30 DATA FORMATS

● EXTERNAL ACCESS PANEL CAN BE

USED FOR VALIDATION OF

PASS-THROUGH DATA FROM THE AM/II

● SIMPLE THREE-WIRE CONNECTION

NETWORK TERMINALS

● UP TO EIGHT AM/II UNITS CAN BE

CONNECTED TOGETHER

● EVENT LOG IS SHARED BETWEEN

THE NETWORKED UNITS

● SIMPLE TWO-WIRE

RS-485 CONNECTION

EXPANSION MEMORY CARD RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

14 - 24 VAC 12 - 35 VDC AC POWERINPUT DC POWERINPUT NETWORK RADIO PERIPHERALS RELAYS EXTERNAL CONTROL RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST SYSTEM

EXPANSION MEMORY CARD RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D 12 - 35 VDC14 - 24 VAC

AC POWER INPUT DC POWER INPUT NETWORK RADIO PERIPHERALS RELAYS EXTERNAL CONTROL RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST SYSTEM EXPANSION MEMORY CARD

RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

O 1O 1O 1 O 1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.

EARTH GROUND

ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D 12 - 35 VDCINPUT 14 - 24 VACINPUT

NETWORK RADIO PERIPHERALS RELAYS EXTERNAL CONTROL RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST SYSTEM AC POWER DC POWER

MEMORY EXPANSION CARD MEDIUM (64 K) SMALL (16 K) LARGE (128 K)

X-LARGE (256 K)

WARNING

SEVERE ELECTRICAL DAMAGE

X-LARGE (256 K)

WARNING

SEVERE ELECTRICAL

DAMAGE

X-LARGE (256 K)

WARNING

SEVERE ELECTRICAL DAMAGE

X-LARGE (256 K)

WARNING

SEVERE ELECTRICAL DAMAGE

(21)

MEMORY UTILITIES

For copying and transferring memory

module data

HARDWARE & MEDIA

MEMORY

UTILITIES

COPYING MEMORY DATA

● MEMORY MODULE INFORMATION

CAN BE SENT TO AND RECEIVED FROM ANOTHER AM/II THROUGH THE RS-232 PORT USING THE MODEL A2A CABLE

SENDING AND RECEIVING MEMORY DATA

● MEMORY MODULE DATA CAN BE

SENT AND RECEIVED THROUGH THE RS-232 PORT OVER THE PHONE LINE USING A MODEM WITH THE MODEL A2M CABLE

● MEMORY MODULE DATA CAN ALSO

BE SENT AND RECEIVED THROUGH THE RS-232 PORT WITH A PERSONAL COMPUTER DIRECTLY CONNECTED TO THE AM/II USING THE MODEL A2C CABLE

RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

14 - 24 VAC 12 - 35 VDCAC POWERINPUT DC POWER INPUT NETWORK RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

14 - 24 VAC 12 - 35 VDC AC POWER INPUT DC POWERINPUT NETWORK OFF ON POWER RESET DISPLAY CONTRAST MODEL A2A CABLE MODEM PERSONAL COMPUTER MODEL A2M CABLE MODEL A2C CABLE

X-LARGE (256 K)

WARNING

TURN THE POWER SWITCH OFF BEFORE INSTALLING OR REMOVING THIS MEMORY EXPANSION CARD

SEVERE ELECTRICAL

DAMAGE

X-LARGE (256 K)

WARNING

SEVERE ELECTRICAL DAMAGE RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

O 1O 1O 1 O 1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.

EARTH GROUND

14 - 24 VAC 12 - 35 VDCAC POWERINPUT DC POWER INPUT NETWORK RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST

X-LARGE (256 K)

WARNING

TURN THE POWER SWITCH OFF BEFORE INSTALLING ORREMOVING THIS MEMORY EXPANSION CARD

SEVERE ELECTRICAL DAMAGE RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

14 - 24 VAC 12 - 35 VDCAC POWERINPUT DC POWER INPUT NETWORK RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST

X-LARGE (256 K)

WARNING

SEVERE ELECTRICAL DAMAGE

(22)

PRE-INSTALLATION PLANNING

Before beginning, take time to plan the installation.

✶ Make a sketch of the installation floor plan showing all controlled access points.

✶ Select a good location to mount the AM/II.

✶ Determine a good location for the antenna.

✶ Select locations for the remote accessory devices (keypads, card readers, remote receivers, proximity receivers).

✶ Research possible places for wire runs to accessories and access devices.

INSTALLATION OUTLINE

The following outline is intended to guide you through the installation of an AM/II system.

1. Unpack the system. Identify the system components

(transformer, antenna, etc.).

2. Plan the installation by creating an installation diagram.

3. Mount the AM/II (in an optional cabinet if required).

4. Connect the antenna.

5. Install any remote accessory devices.

6. Wire connections to the AM/II terminals.

A. Install a ground stake and run the ground wire or use

a cold water pipe as earth ground for the AM/II.

B. Connect relay outputs to the access device(s) to be

controlled.

C. Turn AM/II POWER switch off and connect the

plug-in transformer or connect the AM/II to a 14-24 VAC or 12-35 VDC auxiliary power supply.

D. Turn the POWER switch on. The green POWER

indicator should light.

E. Adjust the display contrast as desired.

7. Program the system.

8. Test the system.

9. Adjust the red RADIO RANGE knob to limit the maximum range

of the receiver. LOBBY AC C O U N T ING SERVICE SALES PRESIDENT V.P. V.P. SALES PURCH. ENGINEERING BATH BATH CO M P UT ER RO O M STOR. COPIER AREA CHIEF ENG. LAB

(23)

WIRELESS INSTALLATION TIPS

Signals Through Construction Materials

When installing any wireless system, certain limitations must be considered. Low power wireless UHF transmitter signals will not broadcast equally through all types of construction materials. The AM/II contains a receiver that should allow reception of the transmitters in almost all locations. Refer to figure showing approximate signal strength that will occur with different types of building materials.

Transmitters in Vehicles

The radio range of a transmitter will also be affected when the transmitter is located in a vehicle. Depending on the location of the transmitter (on the visor, on the dash, in the center console) the range will vary. Most of the signal strength changes are related to the amount of metal in close proximity to the transmitter. If a transmitter is clipped to the top of the driver’s sun visor, with the visor flipped up, placing the transmitter between the metal roof and the metal reinforced visor, the transmitters range will be reduced.

PRE-INSTALLATION

Unpacking the System

The basic AM/II system package includes the following accessories:

✶ Plug-in Transformer. Provides low voltage power to the access control panel.

✶ Mounting Screws. Used to mount the AM/II inside the cabinet.

Installing the Memory Module

Four sizes of memory modules are available for the AM/II:

✶ SMALL (16K) MEMORY

✶ MEDIUM (64K) MEMORY

✶ LARGE (128K) MEMORY

✶ X-LARGE (256K) MEMORY

One of the memory modules must be installed for the AM/II to function.

✘ CAUTION! Be sure the AM/II is disconnected from power or that the AM/II’s POWER switch is off before removing of replacing the memory module.

STEP 1 With the system power off, plug the memory module

into the AM/II.

STEP 2 Secure the memory module with two screws.

90% - 100% OF FULL POWER 65% - 95% OF FULL POWER 10% - 70% OF FULL POWER WALLBOARD AND WOOD STUDS

CONCRETE WITH STEEL REINFORCEMENT OR METAL LATH AND PLASTER LIGHT CONCRETE

OR BRICK

AM/II UNIT WITH MEMORY INSTALLED

PLUG-IN TRANSFORMER CASE MOUNTING SCREWS RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA NETWORK DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

O 1O 1O 1 O 1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.

EARTH GROUND ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D 12 - 35 VDC 14 - 24 VAC

AC POWER INPUT DC POWER INPUT NETWORK OFF ON POWER RESET DISPLAY CONTRAST

MEMORY EXPANSION CARD MEDIUM (64 K)

SMALL (16 K) LARGE (128 K)

SEVERE ELECTRICAL

DAMAGE

INSTALL MEMORY MODULE

(24)

MOUNT UNIT

The AM/II can be mounted indoors directly to a wall or in the Model CAB-1 indoor cabinet. For outdoor mounting, the Model CAB-2 weather resistant cabinet is recommended. The two cabinets both provide some security for the unit.

Each cabinet has wiring knockouts for connection to wiring conduit.

STEP 1 Decide on a good location (near power and good

wiring access) to mount the AM/II. It should be in a secure location. The mounting area should be b e t w e e n - 2 2 a n d + 1 4 9 d e g r e e s Fahrenheit year-around.

STEP 2 If a cabinet is used, punch out the conduit knockouts

as required for the installation. Attach the cabinet to the wall with the appropriate fasteners.

STEP 3 Secure the AM/II with three screws.

DIRECT MOUNTING

FOR INDOOR INSTALLATIONS THE AM/II CAN BE MOUNTED DIRECTLY USING THREE SCREWS AND APPROPRIATE SCREW ANCHORS

DRIVE FOUR SCREWS INTO WALL AT THESE LOCATIONS (LEAVE SCREW HEAD 1/8" OUT FROM WALL)

USE PLASTIC SCREW ANCHORS IF REQUIRED

HANG CABINET ON SCREWS

DIRLL A HOLE AND DRIVE A FIFTH SCREW INTO THE HOLE TO LOCK CABINET TO WALL 8"

8-3/4"

CAB-1 MOUNTING

MOUNT AM/II UNIT INTO CABINET WITH THREE SCREWS SUPPLIED

O1O1O1 O1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. EARTH GROUND ACCESS OUTKEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D12 - 35 VDC14 - 24 VAC

AC POWERINPUT DC POWERINPUT NETWORK OK WARNING S E V E R E E L E C T R I C A LD A M A G E T U R N T H E P O W E R S W I T C H O F F B E F O R E I N S T A L L I N G O RR E M O V I N G T H I S M E M O R Y E X P A N S I O N C A R D

MEMORY EXPANSION CARD RADIO PERIPHERALS RELAYS EXTERNAL CONTROL RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST SYSTEM

SMALL MEDIUM LARGE

PUNCH OUT REQUIRED CONDUIT CONNECTION KNOCKOUTS FOR ANTENNA, POWER, GROUND AND SIGNALS

CAB-2 MOUNTING

CAB-2 MOUNTS WITH FOUR SCREWS AT THESE LOCATIONS

USE PLASTIC SCREW ANCHORS OR CONCRETE WEDGE ANCHORS 9"

9"

PUNCH OUT REQUIRED CONDUIT CONNECTION KNOCKOUTS FOR ANTENNA, POWER, GROUND AND SIGNALS

O1O1O1 O1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. EARTH GROUND ACCESS OUTKEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D12 - 35 VDC14 - 24 VAC

AC POWERINPUT DC POWERINPUT NETWORK OK WARNING S E V E R E E L E C T R I C A LD A M A G E T U R N T H E P O W E R S W I T C H O F F B E F O R E I N S T A L L I N G O RR E M O V I N G T H I S M E M O R Y E X P A N S I O N C A R D

MEMORY EXPANSION CARD RADIO PERIPHERALS RELAYS EXTERNAL CONTROL RS-232 OFF ON POWER POWER RESET DISPLAY CONTRAST SYSTEM

SMALL MEDIUM LARGE

MOUNT AM/II UNIT INTO CABINET WITH THREE SCREWS SUPPLIED

(25)

EARTH GROUND & POWER CONNECTIONS

Earth Ground

For the best ground, use size 14 gauge solid wire or larger to connect the EARTH GROUND terminal to an 8-foot copper ground rod. Locate the ground rod next to the Power and Telephone company rods and bond the rods together with a new clamp. Do not disturb the clamps installed by the

Power or Telephone Company.

Alternately, connect the EARTH GROUND terminal to a cold water pipe or to the GND terminal on the AC transformer.

Power

The AM/II is powered by a 16.5 Volt, 20 VA to 50 VA, internally fused, UL listed, Class 2 transformer. This transformer is included with the AM/II system pack.

The system can alternately be powered from a 12-35 VDC or 14-24 VAC auxiliary power supply. Refer to the chart below for selecting wire size for the distance to the power source. Typically DC power is used when battery backed-up uninterruptable operation is required. The externally charged battery must be capable of supplying the power requirements of the AM/II and it’s complement of devices.

✘ WARNING! Never short the terminals of the transformer together. This will cause the internal fuse to blow. The transformer must be connected to a 120 VAC 60 Hz unswitched (24 hour) power outlet not controlled by a wall switch.

STEP 1 Be sure that the AM/II POWER switch is off. STEP 2 Connect the transformer to the AC terminals or

connect the AM/II to the operator’s auxiliary power output.

✘ WARNING! Do not connect both AC and DC power.

STEP 3 If used, plug transformer into AC outlet and secure

with case screw (if provided).

☞NOTE: Never power door strikes or other high current

magnetic devices from the same power source as the AM/II.

AM/II EARTH GROUND TERMINAL

AM/II & POWER CO. GROUND STAKES BONDED TOGETHER 14 GA SOLID DO NOT DISTURB POWER CO. GROUND!

A COLD WATER PIPE OR THE AC TRANSFORMER GND TERMINAL MAY ALSO BE USED FOR EARTH GROUND

POWER OFF ON EARTH GROUND 14 - 24 VAC 12 - 35 VDC AC POWER INPUT DC POWER INPUT TRANSFORMER 16 VAC, 20 VA AC AC GND CONNECT EITHER AC OR DC POWER

NOT BOTH!

POWER WIRE DISTANCE MINIMUM WIRE SIZE

1-50 FEET 18 AWG

51-150 FEET 16 AWG 151-250 FEET 14 AWG 251-500 FEET 12 AWG

(26)

REMOTE DEVICE WIRING REQUIREMENTS

Cable Type

Each remote device requires a 6-wire connection to the AM/II. Depending on the distance of the cable run, two different types of cable are recommended.

✶ For cable distance up to 300 feet, use BELDEN 9931 (24 AWG).

✶ For cable distance up to 500 feet, use WEICO 9405 (20 AWG).

Load Number

Each hardwired remote accessory device has been assigned a “load number”. Homerun wiring is recommended for accessories, although multiple accessories can be wired on the same cable run if the following formulas are used.

✶ For cable distance up to 300 feet:

CABLE RUN IN FEET x LOAD UNITS = 3,000 OR LESS

✶ For cable distance up to 500 feet:

CABLE RUN IN FEET x LOAD UNITS = 10,000 OR LESS

REMOTE DEVICE LOAD NUMBER

AM-KP 9

AM-RRR 4

AM-CRI 25

(27)

ANTENNA HOOK-UP

If using a remote antenna, construct the antenna kit as described in its instructions. Mount the antenna as high as possible. Connect the coax lead to the AM/II antenna connector. Up to 25 feet of coax cable may be used to connect the antenna.

☞NOTE: Mount the antenna at least 10 feet from the AM/II control.

REMOTE RADIO RECEIVER CONNECTIONS

The Model AM-RRR remote radio receiver can be used to extend the radio range and remote the radio input of the AM/II. Use the AM-RRR with its local whip antenna or with the EXA-1000 or EXA-2000 remote antennas.

The receiver is connected to the READER IN terminals on the AM/II. Follow the instructions supplied with the remote receiver and the hook-up diagram shown.

The DEVICE ADDRESS SELECTOR switch in the unit selects the device address. It must be set from 1-6, and be different from any other remote accessory device.

ANTENNA MOUNTED AS HIGH AS POSSIBLE CO-AX TO RECEIVER U-BOLT 2" MAX DIA.

ATTIC MOUNTING POST MOUNTING

(RED)

(BLK)

(GRN) (WHT) (BLU)

(ORG/YEL)

PWR GND DAT1 DAT0 DVAL CLK

RADIO RANGE CONTROL RADIO SIGNAL INDICATOR ACCESS GRANTED INDICATOR RED = POWER GREEN = ACCESS DEVICE ADDRESS SELECTOR ANTENNA CONNECTOR EXA-2000 DIRECTIONAL ANTENNA MOUNTED ON WOOD POST

(28)

REMOTE KEYPAD CONNECTIONS

The Model AM-KP access control keypads can be used for manual code entry for the AM/II. The keypad can be mounted on a pedestal or directly to a wall.

The keypad is connected to the KEYPAD IN terminals on the AM/II. Follow the instructions supplied with the keypad and the hook-up diagram shown.

REMOTE PROXIMITY RECEIVER

The Model AM-RPR proximity receiver can be used for ultra-short range transmitter reception at access portals. The transmitter will have to be activated right next to this receiver to activate it. The receiver is mounted in a single-gang plastic outlet box.

The receiver is connected to the READER IN terminals on the AM/II. Follow the instructions supplied with the proximity receiver and the hook-up diagram shown.

* 5 6 7 8 9 0 # 1 2 3 4

FOR LOCAL POWER, DISCONNECT RED WIRE AND CONNECT EXTERNAL 12 VDC POWER SUPPLY TO PWR & GND

B O 1 O O O 1 1 1 B B O 1

PWR GND DAT1 DAT0 DVAL CLK

GRN BLK WHT BLU ORG/YEL RED

PWR GND DAT1 DAT0 DVAL CLK

AM/II TERMINALS

B

(29)

CARD READER INTERFACE

The Model AM-CRI card reader interface can support two card readers. It would be located between the card readers and the AM/II, usually near the card readers.

The card reader is connected to the READER IN terminals on the AM/II. Follow the instructions supplied with the keypad and the hook-up diagram.

Two rotary switches in the unit selects the device address for each card reader. They must be set to different numbers from 1-6, and also be different from any other remote accessory device.

CONTROL INPUTS

Open Request

The open request terminals for relays A & B are available for connection to an external switch. When the switch closes to ground, if the relay channel is not locked closed, the relay will activate.

Common uses would be with a knox box, pushbutton, or key lock where someone would need to open the access portal from inside the controlled area.

Door Sense

The door sense terminals for relays A & B are used with normally closed door contacts. The contacts monitor the position of the access door. When the door opens, the contacts open.

Door sensing is required to use the door ajar and door relock features. Door sensing can detect when a door is propped open and cause an alarm relay to activate when the door is open longer than the door ajar time. Door sensing also detects when the door is closed, deactivating the control relay the moment the door closes.

AM-CRI PWR GND DAT1 DATO DVAL CLK (RED) (BLK) (GRN) (WHT) (BLU) (ORG/YEL) CARD READER " B" DEVICE ADDRESS SELECTOR

(1-6)

MAG LOCK

OPEN REQUEST PUSHBUTTON

N.O. COM. N.C. N.O. COM. N.C.

CHANNEL A CHANNEL B CHANNEL "A" OPEN REQUEST PUSHBUTTON CHANNEL "B" OPEN REQUEST PUSHBUTTON AM/II TERMINALS

CONTACT OPENS WHEN DOOR OPENS AND MOVES

MAGNET AWAY FROM SWITCH _{N.O. COM. N.C.} _{N.O. COM. N.C.}

CHANNEL A CHANNEL B CHANNEL "A" DOOR SENSE CONTACT CHANNEL "B" DOOR SENSE CONTACT (DOOR CLOSED) (DOOR OPEN) AM/II TERMINALS

(30)

RELAY OUTPUT CONNECTIONS

The AM/II provides four relay outputs. Each relay has isolated, dry contact, Form “C” (N/O & N/C) contacts rated at 3 amps 30 volts maximum.

Relay Operation Options

Relays can be programmed for access control, alarm contact shunting, alarm triggering, obstacle triggering and CCTV triggering. Relay wiring method depends on the option selected and the type of device controlled.

Control Relay Option

Relays programmed with the control option will activate when access is granted to access media. Relays set with the control option would be connected to access devices (door strikes, mag-locks, automatic operators, etc.).

☞NOTE: Relay channels “A” & “B” are always set as control relays.

Shunt Relay Option

Relay channels “C” & “D” can be programmed for shunt operation. A shunt relay would be wired across a set of alarm contacts, shunting their operation, preventing the alarm from triggering when genuine access is granted. If the door or gate is forced open, without having access granted by the AM/II, the alarm would be triggered.

When programmed for shunt operation, relay channel “C” will mirror the activation of relay channel “A”. Relay channel “D” will mirror the activation of relay channel “B”.

ELECTRIC DOOR STRIKE N.O. COM. N.C. CHANNEL A RELAY CHANNEL A, B, C OR D DOOR STRIKE HOOK-UP TRANSFORMER OR POWER SUPPLY FOR DOOR STRIKE

NOTE: REFER TO DOOR STRIKE INSTRUCTIONS FOR ANY SPECIAL HOOK-UP REQUIREMENTS

MAGNETIC DOOR LOCK N.O. COM. N.C. CHANNEL A RELAY CHANNEL A, B, C OR D MAG LOCK HOOK-UP TRANSFORMER OR POWER SUPPLY FOR MAG LOCK

NOTE: REFER TO DOOR LOCK INSTRUCTIONS FOR ANY SPECIAL HOOK-UP REQUIREMENTS

N.O. COM. N.C. CHANNEL A RELAY CHANNEL A, B, C OR D DOOR OR GATE OPERATOR HOOK-UP DOOR OR GATE OPERATOR 1 2 3

WIRE RELAY OUTPUT TO OPERATOR "PUSHBUTTON" OR "RADIO" INPUT NOTE: REFER TO OPERATOR

INSTRUCTIONS FOR ANY SPECIAL HOOK-UP REQUIREMENTS

N.O. COM. N.C. RELAY CHANNEL C OR D SHUNT RELAY HOOK-UP N/C DOOR ALARM CONTACT CHANNEL C

RELAY CHANNEL "C" SHUNTS FOR RELAY CHANNEL "A" RELAY CHANNEL "D" SHUNTS FOR RELAY CHANNEL "B"

WHEN RELAY CHANNEL "C" OR "D" ACTIVATES, IT SHUNTS THE ALARM CONTACT PREVENTING THE ALARM FROM TRIGGERING WHEN THE DOOR IS OPENED

TO ALARM CONTROL PANEL

(31)

Alarm Relay Option

Relay channels “C” & “D” can be programmed for alarm operation. An alarm relay would be wired to a noisemaker or to the loop input of an alarm control panel.

Relay channel “C” can function as an alarm relay for relay channel “A”. Relay channel “D” can function as an alarm relay for relay channel “B”. The door sense input must be wired for relay channel “A” and/or “B” for the alarm relay function to work. If door “A” or “B” is held open longer than the Door Ajar Time time programmed, the alarm relay for the appropriate relay channel will activate.

Obstacle Relay Option

Relay channels “C” & “D” can function as obstacle relays when Model MGT obstacle transmitters are used. Relay channel “C” activates for MGT obstacle transmitter #1, relay channel “D” activates for MGT obstacle transmitter #2.

Obstacle relays are used to trigger obstacle inputs on automatic door and gate operators. Triggering the obstacle input will reverse or stop the operator.

CCTV Relay Option

Relay channels “C” & “D” can function as CCTV relays. They can be used only when a Model AE-1 or AE-2 telephone entry module is installed with the AM/II.

When a telephone connection is made to a directory party, they can press the “5" digit on their telephone to activate the CCTV relay. A CCTV camera would activate to send a picture of the entry area to the directory party.

N.O. COM. N.C. RELAY CHANNEL C OR D ALARM RELAY HOOK-UP ALARM CONTROL PANEL CHANNEL C

RELAY CHANNEL "C" ALARMS FOR RELAY CHANNEL "A" RELAY CHANNEL "D" ALARMS FOR RELAY CHANNEL "B"

TRANSFORMER OR POWER SUPPLY FOR NOISEMAKER NOISEMAKER N.O. COM. N.C. CHANNEL C RELAY CHANNEL C OR D

ALARM RELAY ACTIVATES WHEN DOOR IS OPEN LONGER THAN DOOR AJAR TIME OR WHEN DOOR IS FORCED OPEN WITHOUT VALID ACCESS BEING GRANTED

GATE OPERATOR OBSTACLE INPUT N.O. COM. N.C. RELAY CHANNEL C OR D OBSTACLE RELAY HOOK-UP CHANNEL C

RELAY CHANNEL "C" ACTIVATES FOR OBSTACLE TX #1 RELAY CHANNEL "D" ACTIVATES FOR OBSTACLE TX #2

WHEN RELAY ACTIVATES, IT TRIGGERS THE OBSTACLE INPUT OF THE OPERATOR, STOPPING OR REVERSING THE OPERATOR

WIRE RELAY OUTPUT TO OPERATOR OBSTACLE INPUT

NOTE: REFER TO OPERATOR INSTRUCTIONS FOR ANY SPECIAL HOOK-UP REQUIREMENTS

CCTV CAMERA IRIS ENABLE N.O. COM. N.C. RELAY CHANNEL C OR D CCTV RELAY HOOK-UP CHANNEL C

WHEN RELAY ACTIVATES, IT ALLOWS THE CAMERA TO SEND VIDEO TO THE DIRECTORY PARTY'S MONITOR

WIRE RELAY OUTPUT TO CAMERA IRIS ENABLE OR VIDEO ENABLE INPUT

NOTE: REFER TO CCTV CAMERA INSTRUCTIONS FOR ANY SPECIAL HOOK-UP REQUIREMENTS

(32)

RS-232 PORT CONNECTIONS

The AM/II RS-232 port can be used to connect to a serial input line printer, a personal computer, modem or data terminal.

Printer Connections

☞NOTE: The installation of a printer is optional. The AM/II may be used without a printer if activity logging is not required.

The AM/II can connect to virtually any standard personal computer printer that accepts a 9600 baud serial RS-232 input. Connecting a printer to the AM/II allows for a printed copy of each transmitter activation showing the transmitter number, time and date of activation as well as the various system reports. Use the Model A2P cable to connect the AM/II to a

printer.

Personal computer printers contain switches for setting the printer’s data format and options. The printer’s switches must be set correctly to match the output of the AM/II before the printer will function properly. Refer to the specific printer’s instruction manual for the location and possible settings of the printer’s switches.

The printer may have additional options that may or may not be useful with the AM/II.

The printer options that must be set are:

✶ Baud Rate 9600

✶ 8 Data Bits

✶ No Parity

✶ 1 Stop Bit

✶ No Auto Line Feed after Carriage Return

✶ X-ON/X-OFF Data Flow Control

2 3 7 20 8-PIN 2 1 8 6 RD TD GND CTS DB-25 SIGNAL TD RD GND DTR SIGNAL AM/II PRINTER MALE DB-25 8-PIN MODULAR PIN 1 A2P CABLE RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA ACCESS IN DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

O 1O1O 1 O1B N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.

EARTH GROUND

ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNEL B CHANNEL CCHANNEL D12 - 35 VDC14 - 24 VAC

AC POWERINPUT DC POWER INPUT NETWORK OFF ON POWER RESET DISPLAY CONTRAST

SEVERE ELECTRICAL DAMAGE

MODEL A2C CABLE

SAMPLE REAL-TIME EVENT PRINTOUT

10:52:42 06/20/95 0:0 sTx[00001] ->{A} AM/II Unit #1 10:52:42 06/20/95 0:2 Crd[01470] ->{D} Front Door Card Reader 10:54:14 06/20/95 0:0 sTx[00003] ->{A} AM/II Unit #1 10:54:21 06/20/95 0:1 Kpd[2003] ->{C} Front Gate Keypad 10:54:28 06/20/95 0:0 sTx[00002] ->{A} AM/II Unit #1

REAL-TIME EVENT LOG PRINTS EACH EVENT AS IT HAPPENS

TOP LINE OF EVENT SHOWS:

TIME & DATE

NETWORK ADDRESS : REMOTE DEVICE ADDRESS MEDIA TYPE & ID#

DIRECTION OF ENTRY & RELAY LETTER

Event Log Report Jun 22, 1995 09:56:39 Page 001 Installation: South Hills Apartments AM/II Unit #1 08:55:35 06/22/95 0:0 sTx[00003] ->{B}

Unit #1 08:51:21 06/22/95 0:2 Crd[01470] ->{B} Front Door Card Reader 08:45:49 06/22/95 0:0 sTx[00001] ->{A} Unit #1

12:28:42 06/20/95 0:0 Obs[1] Obstacle Txmtr Trouble 11:02:42 06/20/95 0:0 Exit Program Mode 11:02:42 06/20/95 0:0 Program Mode Timed Out

SAMPLE STORED EVENT LOG

STORED EVENT LOG SHOWS ALL EVENTS FROM MOST RECENT TO OLDEST STORED EVENT

BOTTOM LINE OF EVENT SHOWS: DEVICE NAME

PIN 1 PIN 2 PIN 3 PIN 4 PIN 5 PIN 6 PIN 7 PIN 8

SEND DATA RECIEVE DATA REQUEST TO SEND N/C N/C CLEAR TO SEND N/C GROUND 8-PIN MODULAR PLUG PINOUT

(33)

Personal Computer and Data Terminal Connections

☞NOTE: The installation of a personal computer (PC) or data terminal for event logging and system programming is optional, but recommended. Programming the AM/II is much easier, especially when using names, with a PC or data terminal.

The AM/II can connect to virtually any PC’s serial port. Use the Model A2C-DB25 (25-pin) or A2C-DB9 (9-pin) cable to connect the AM/II to a computer.

When using a data terminal, connecting the cable and setting the terminal port options is all that’s required. When using a PC, a communications program (AccessBase, Account Manager, Windows Terminal, Procomm, Quick Link, BitComm, etc.) must be used to communicate with the AM/II. The computer’s software will have settings for the PC’s port options. The software port options must be set correctly to

match the output of the AM/II before the PC software will function properly. Refer to the specific software’s instructions

for details on how to set the port options.

The serial port (COM port) options that must be set are:

✶ Baud Rate 9600

✶ 8 Data Bits

✶ No Parity

✶ 1 Stop Bit

✶ X-ON/X-OFF Data Flow Control

Setting the AM/II RS-232 port output to the “PRINTER” option will show the ongoing event log on the computer screen. Setting the AM/II RS-232 port output to the “TERMINAL” option will allow the computer to access the AM/II just like the keyboard on the AM/II. The only keyboard differences when using a PC or terminal to access the AM/II are:

✶ The ENTER key equals the AM/II’s OK key.

✶ The ESCAPE (Esc) key is similar the AM/II’s * (star) key. Press ESCAPE twice to enter program mode, once to jump back to the main menu.

✶ The A-Z & 0-9 keys are used for character inputs.

✶ Hold the CONTROL (Ctrl) key and press “Z” to exit programming.

Modem Connections

☞NOTE: The installation of a modem is optional. It will allow remote programming of the AM/II.

The AM/II can connect to most personal computer external modems. Use the Model A2M cable to connect the AM/II to a modem. Connection to a modem allows you to call the AM/II over the telephone with a personal computer and another modem. All of the same programming functions that can be performed locally can be made remotely, off-site. System reports and the event log can be retrieved remotely.

2 3 7 20 8-PIN 2 1 8 6 RD TD GND CTS DB-25 SIGNAL TD RD GND DTR SIGNAL AM/II COMPUTER FEMALE DB-25 PIN 1 8-PIN MODULAR A2C-DB25 CABLE RADIO DECODE ACCESS GRANTED READER KEYPAD ACCESS OUT DATA NETWORK DATA ACCESS A ACCESS B ACCESS C OBSTACLE MAGIC WAND ACCESS D B

EARTH GROUND

ACCESS OUT KEYPAD IN READER IN CHANNEL A CHANNE
