lpackaging specifications Switching Packing Tube Packing code

(1)

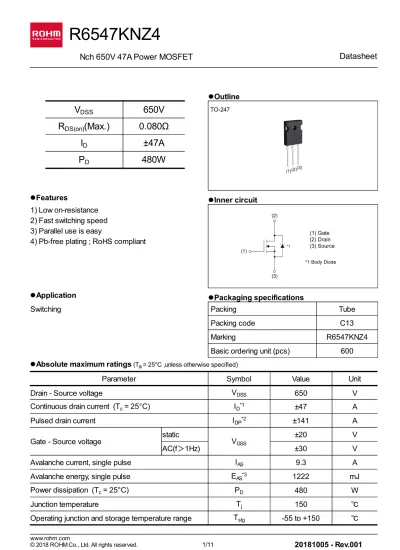

R6547KNZ4

　　

Nch 650V 47A Power MOSFET

Datasheet

l

Outline

V

DSS

650V

TO-247 　

R

DS(on)

(Max.)

0.080Ω

I

D

±47A

P

D

480W

l

Features

_l

_{Inner circuit}

1) Low on-resistance

2) Fast switching speed

3) Parallel use is easy

4) Pb-free plating ; RoHS compliant

l

Application

_l

_{Packaging specifications}

Switching

Packing

Tube

Packing code

C13

Marking

R6547KNZ4

Basic ordering unit (pcs)

600 l

l

Absolute maximum ratings

(T

_a

= 25°C ,unless otherwise specified)

Parameter

Symbol

Value

Unit

Drain - Source voltage

V

DSS

650 V

Continuous drain current (T

c

= 25°C)

I

D*1

±47

A

Pulsed drain current

I

DP*2

±141

A

Gate - Source voltage

static

V

GSS

±20

V

AC(f

＞

1Hz)

±30

V

Avalanche current, single pulse

I

_AS

9.3 A

Avalanche energy, single pulse

E

_AS*3

₁₂₂₂

_mJ

Power dissipation (T

_c

= 25°C)

P

_D

480 W

Junction temperature

T

j

150 ℃

Operating junction and storage temperature range

T

stg

-55 to +150

℃

(2)

l

Thermal resistance

Parameter

Symbol

Values

Unit

Min.

Typ.

Max.

Thermal resistance, junction - case

R

thJC*4

-

0.26 ℃

/W

Thermal resistance, junction - ambient

R

_thJA

-

30 ℃

/W

Soldering temperature, wavesoldering for 10s

T

sold

-

265 ℃

l

Electrical characteristics (T

a

= 25°C)

Parameter

Symbol

Conditions

Values

Unit

Min.

Typ.

Max.

Drain - Source breakdown

voltage

V

(BR)DSS

V

GS

= 0V, I

D

= 1mA

650 -

-

V

Zero gate voltage

drain current

I

DSS

V

DS

= 650V, V

GS

= 0V

　

μA

T

j

= 25°C

-

100 T

_j

= 125°C

-

1000

Gate - Source leakage current

I

GSS

V

GS

= ±20V, V

DS

= 0V

-

±100

nA

Gate threshold voltage

V

GS(th)

V

DS

= V

GS

, I

D

= 1.72mA

3 -

5 V

Static drain - source

on - state resistance

R

DS(on)

*5

V

_GS

= 10V, I

_D

= 25.8A

　

Ω

T

_j

= 25°C

-

0.070

0.080 T

j

= 125°C

-

-Gate resistance

R

_G

f = 1MHz, open drain

-

1.3 -

Ω

　　　　 www.rohm.com

(3)

R6547KNZ4

　　　　　　

Datasheet

l

Electrical characteristics (T

a

= 25°C)

Parameter

Symbol

Conditions

Values

Unit

Min.

Typ.

Max.

Input capacitance

C

iss

V

GS

= 0V

-

4100

-pF

Output capacitance

C

oss

V

DS

= 25V

-

4000

-Reverse transfer capacitance

C

rss

f = 1MHz

-

110 -Turn - on delay time

t

_d(on)*5

_V

DD

⋍

300V, V

GS

= 10V

-

50 -ns

Rise time

t

_r*5

_I

D

= 23.5A

-

120 -Turn - off delay time

t

d(off)*5

R

L

⋍

12.7Ω

-

150 -Fall time

t

f*5

R

G

= 10Ω

-

85 -l

l

Gate charge characteristics (T

_a

= 25°C)

Parameter

Symbol

Conditions

Values

Unit

Min.

Typ.

Max.

Total gate charge

Q

g*5

V

DD

⋍

300V

-

100 -nC

Gate - Source charge

Q

gs*5

I

D

= 47A

-

26 -Gate - Drain charge

Q

gd*5

V

GS

= 10V

-

40 -Gate plateau voltage

V

(plateau)

V

DD

⋍

300V, I

D

= 47A

-

6.2 -

V

*1 Limited only by maximum channel temperature allowed

*2 Pw ≤ 10μs, Duty cycle ≤ 1%

*3 L

≒

20mH, V

DD

=50V, R

G

=25Ω, Starting T

j

=25

℃

*4 T

_C

=25

℃

*5 Pulsed

(4)

l

Body diode electrical characteristics (Source-Drain) (T

_a

= 25°C)

Parameter

Symbol

Conditions

Values

Unit

Min.

Typ.

Max.

Source current

I

S*1

T

_C

= 25

℃

-

47 A

Pulsed source current

I

SP*2

-

141 A

Source-Drain voltage

V

SD*5

V

GS

= 0V, I

S

= 47A

-

1.5 V

Reverse recovery time

t

_rr*5

I

_S

= 47A

di/dt = 100A/μs

-

690 -

ns

Reverse recovery charge

Q

_rr*5

_-

_17.3

_-

_μC

Peak reverse recovery current

I

rr*5

-

50 -

A

(5)

R6547KNZ4

　　　　

Datasheet

l

Electrical characteristic curves

Fig.1 Power Dissipation Derating Curve

Fig.2 Drain Current Derating Curve

Fig.3 Normalized Transient Thermal

　　　　　

Resistance vs. Pulse Width

Fig.4 Maximum Safe Operating Area

(6)

l

Electrical characteristic curves

Fig.5 Avalanche Energy Derating

　　　　　

Curve vs. Junction Temperature

Fig.6 Normalized Breakdown Voltage

　　　　　

vs. Junction Temperature

Fig.7 Typical Output Characteristics(I)

Fig.8 Typical Output Characteristics(II)

(7)

R6547KNZ4

　　　　

Datasheet

l

Electrical characteristic curves

Fig.9 Typical Transfer Characteristics

Fig.10 Normalized Gate Threshold

　　　　　

Voltage vs. Junction Temperature

Fig.11 Static Drain - Source On - State

　　　　　

Resistance vs. Drain Current

Fig.12 Static Drain - Source On - State

　　　

Resistance vs. Gate - Source Voltage

(8)

l

Electrical characteristic curves

Fig.13 Normalized Static Drain - Source

　　　

On - State Resistance

　　　　

vs. Junction Temperature

Fig.14 Typical Capacitance vs.

　　　　　

Drain - Source Voltage

Fig.15 Switching Characteristics

Fig.16 Typical Gate Charge

(9)

R6547KNZ4

　　　　

Datasheet

l

Electrical characteristic curves

Fig.17 Source Current

　　　　　

vs. Source - Drain Voltage

Fig.18 Reverse Recovery Time

　　　　　

vs. Source Current

(10)

l

Measurement circuits

Fig.1-1 Switching Time Measurement Circuit

Fig.1-2 Switching Waveforms

Fig.2-1 Gate Charge Measurement Circuit

Fig.2-2 Gate Charge Waveform

Fig.3-1 Avalanche Measurement Circuit

Fig.3-2 Avalanche Waveform

Fig.4-1 trr Measurement Circuit

Fig.4-2 trr Waveform

(11)

R6547KNZ4

　

_Datasheet

l

Dimensions

(12)
