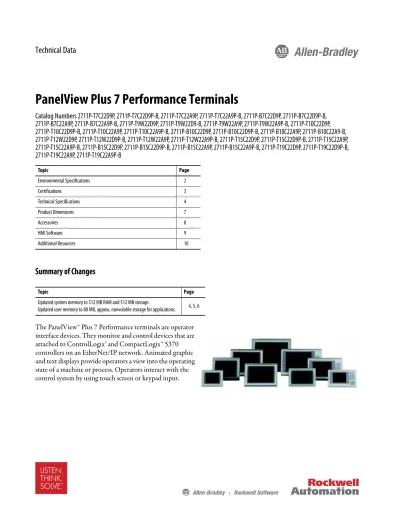

PanelView Plus 7 Performance Terminals

(1)

PanelView Plus 7 Performance Terminals

Catalog Numbers 2711P-T7C22D9P, 2711P-T7C22D9P-B, 2711P-T7C22A9P, 2711P-T7C22A9P-B, 2711P-B7C22D9P, 2711P-B7C22D9P-B,

2711P-B7C22A9P, 2711P-B7C22A9P-B, 2711P-T9W22D9P, 2711P-T9W22D9-B, 2711P-T9W22A9P, 2711P-T9W22A9P-B, 2711P-T10C22D9P,

2711P-T10C22D9P-B, 2711P-T10C22A9P, 2711P-T10C22A9P-B, 2711P-B10C22D9P, 2711P-B10C22D9P-B, 2711P-B10C22A9P, 2711P-B10C22A9-B,

2711P-T12W22D9P, 2711P-T12W22D9P-B, 2711P-T12W22A9P, 2711P-T12W22A9P-B, 2711P-T15C22D9P, 2711P-T15C22D9P-B, 2711P-T15C22A9P,

2711P-T15C22A9P-B, 2711P-B15C22D9P, 2711P-B15C22D9P-B, 2711P-B15C22A9P, 2711P-B15C22A9P-B, 2711P-T19C22D9P, 2711P-T19C22D9P-B,

2711P-T19C22A9P, 2711P-T19C22A9P-B

Summary of Changes

The PanelView™ Plus 7 Performance terminals are operator

interface devices. They monitor and control devices that are

attached to ControlLogix® and CompactLogix™ 5370

controllers on an EtherNet/IP network. Animated graphic

and text displays provide operators a view into the operating

state of a machine or process. Operators interact with the

control system by using touch screen or keypad input.

Topic

Page

Environmental Specifications

2 Certifications

3 Technical Specifications

4 Product Dimensions

7 Accessories

8 HMI Software

9 Additional Resources

10 Topic

Page

Updated system memory to 512 MB RAM and 512 MB storage.

(2)

Features include the following:

• FactoryTalk® View Machine Edition software, version 8.1, provides a familiar environment for creating HMI

applications

• Windows CE operating system with desktop access for configuration and third-party applications

• Connection to ControlLogix or CompactLogix 5370 controllers

• Ethernet communication that can support Device Level Ring (DLR), linear, or star network topologies

• Web browser, Microsoft file viewers, text editor, PDF viewer, remote desktop connection, and media player on the

terminal desktop

Environmental Specifications

This table lists environmental specifications for the PanelView Plus 7 Performance terminals.

Attribute

Value

Temperature, operating

(1)

(1) The 19-inch terminals (2711P-T19C22D9P, 2711P-T19C22D9P-B, 2711P-T19C22A9P, and 2711P-T19C22A9P-B) are rated up to 50 °C (122 °F) operating temperature.

0…55 °C (32…131 °F)

Temperature, nonoperating

-25…+70 °C (-13…+158 °F)

Heat dissipation

(2)

(2) Typical BTU measurements were taken at 25 °C (77 °F).

7-in. DC (touch, and touch with keypad), 51 BTU (typical)

7-in. AC (touch, and touch with keypad), 53 BTU (typical)

9-in. DC, 55 BTU (typical)

9-in. AC, 58 BTU (typical)

10-in. DC (touch, and touch with keypad), 51 BTU (typical)

10-in. AC (touch, and touch with keypad), 56 BTU (typical)

12-in. DC, 60 BTU (typical)

12-in. AC, 67 BTU (typical)

15-in. DC (touch, and touch with keypad), 61 BTU (typical)

15-in. AC (touch, and touch with keypad), 68 BTU (typical)

19-in. DC, 114 BTU (typical)

19-in. AC, 119 BTU (typical)

Altitude, operating

2000M

Relative humidity

5…95% without condensation

Vibration

0.012 pk-pk, 10…57 Hz

2 g peak at 57…500 Hz

(3)

(3) The 15-inch and 19-inch terminals (2711P-T15C22D9P, 2711P-T15C22D9P-B, 2711P-T15C22A9P, 2711P-T15C22A9P-B, 2711P-B15C22D9P, 2711P-B15C22D9P-B, 2711P-B15C22A9P, 2711P-B15C22A9P-B, 2711P-T19C22D9P, 2711P-T19C22D9P-B, 2711P-T19C22A9P, 2711P-T19C22A9P-B) are rated to: 0.006 in. pk-pk, 10...57 Hz, 1 g peak at 57...640 Hz.

Shock, operating

15 g at 11 ms

Shock, nonoperating

30 g at 11 ms

(3)

Certifications

This table lists certifications for the PanelView Plus 7 Performance terminals.

Certification

(1)

(1) When marked. See the Product Certification link at http://www.rockwellautomation.com/global/certification/overview.page for Declarations of Conformity, Certificates, and other certification details.

Value

cULus

cULus Listed Industrial Control Equipment for use in Hazardous Locations (E10314) per standards ANSI / ISA 12.12.01

and CSA C22.2 No. 213. rated:

• Class I, Div 2, Groups A, B, C, D

Enclosure type ratings per UL50 and CSA C22.2 No. 94.2-07.

Enclosure ingress protection classified by UL per IEC 60529.

CE (EMC)

European Union 2004/108/EC EMC Directive, compliant with:

• EN 61000-6-2; Industrial Immunity

• EN 61000-6-4; Industrial Emissions

• EN 61131-2; Programmable Controllers

CE (LVD)

European Union 2006/95/EC Low Voltage Directive, compliant with:

• EN 61131-2; Programmable Controllers

RCM

Australian Radiocommunications Act, compliant with:

• AS/NZS CISPR 11; Industrial Emissions

RoHS

China RoHS, Turkey RoHS, European RoHS

KCC

Certificate of compliance

(4)

Technical Specifications

The tables in this section provide technical specifications for the PanelView Plus 7 Performance terminals.

PanelView Plus 7 Performance 7-in and 9-in Terminals

Attribute

7-in. Touch

2711P--T7C22D9P, 2711P--T7C22D9P-B (1) 2711P-T7C22A9P, 2711P-T7C22A9P-B

(1) Catalog numbers with a -B extension denote terminals that exclude the Allen-Bradley brand marking. Customers can put their own brand labels on these terminals. 7-in. Touch with Keypad

2711P-B7C22D9P, 2711P-B7C22D9P-B (1) 2711P-B7C22A9P, 2711P-B7C22A9P-B

9-in. Touch

2711P-T9W22D9P, 2711P-T9W22D9P-B (1) 2711P-T9W22A9P, 2711P-T9W22A9P-B

Operator input Touch Touch with keypad Touch

Display type TFT Color

Display size, diagonal 6.5-in. 9-in. widescreen

Viewing area (W x H) 132 x 99 mm (5.2 x 3.9 in.) 196 x 118 mm (7.7 x 4.6 in.)

Display resolution 640 x 480 VGA, 18-bit color graphics 800 x 480 WVGA, 18-bit color graphics

Aspect ratio 4:3 5:3

Brightness, typical 300 cd/m2 (Nits)

Backlight life White light-emitting diode, solid-state

Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable Touch screen

Analog resistive

Actuation rating: 1 million presses Operating force: 100 grams Battery (real-time

clock backup)

Accuracy: +/-2 minutes per month. Battery life: 4 years min at 25 °C (77 °F) Replacement: CR2032 lithium coin cell Memory:

• System • User

• 512 MB RAM and 512 MB storage

• 80 MB, approx, nonvolatile storage for applications

Secure Digital (SD)

card slot One SD card slot for external storage; supports cat. no. 1784-SDx cards

USB ports:

• Host • Device

• Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage • One high-speed 2.0 device port (type B) that will be functional in a future release

Operating system Windows CE with Extended Features and MS Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support)

Ethernet ports Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies

Software FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later

Electrical

Input voltage 24V DC nom

(18…30V DC) 100…240V AC

24V DC nom

(18…30V DC) 100…240V AC

24V DC nom

(18…30V DC) 100…240V AC

Power consumption 50 W max

(2.1 A at 24V DC) 105VA

50 W max

(2.1 A at 24V DC) 105VA

50 W max

(2.1 A at 24V DC) 105VA

Power supply Supports (SELV) and _{(PELV) 24V DC supplies}(2)

(2) DC-powered terminals support safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC power supplies such as cat. nos. 1606-XLP95E, 1606-XLP100E, 2711P-RSACDIN.

— Supports (SELV) and _{(PELV) 24V DC supplies}(2) — Supports (SELV) and _{(PELV) 24V DC supplies}(2) —

Mechanical Weight, approx 1.2 kg (2.65 lb) 1.47 kg (3.25 lb) 1.58 kg (3.48 lb) Dimensions, approx (H x W x D) 170 x 212 x 69.6 mm 6.69 x 8.35 x 2.74 in. 179 x 285 x 69.6 mm 7.05 x 11.22 x 2.74 in. 190 x 280 x 69.6 mm 7.48 x 11.02 x 2.74 in. Cutout dimensions, approx (H x W) 142 x 184 mm 5.59 x 7.24 in. 142 x 237 mm 5.59 x 9.33 in. 162 x 252 mm 6.38 x 9.92 in.

(5)

PanelView Plus 7 Performance 10-in and 12-in Terminals

. Attribute 10-in. Touch 2711P-T10C22D9P, 2711P-T10C22D9P-B (1) 2711P-T10C22A9P, 2711P-T10C22A9P-B

12-in. Touch

2711P-T12W22D9P, 2711P-T12W22D9P-B (1) 2711P-T12W22A9P, 2711P-T12W22A9P-B

Display size,

diagonal 10.4-in. 12.1-in.

Display resolution 800 x 600 SVGA, 18-bit color graphics 1280 x 800 WXGA, 18-bit color graphics

Analog resistive

clock backup)

Secure Digital (SD)

USB ports:

Electrical

Input voltage 24V DC nom

(18…30V DC) 100…240V AC

24V DC nom

(18…30V DC) 100…240V AC

24V DC nom

(18…30V DC) 100…240V AC

Power consumption 50 W max

(2.1 A at 24V DC) 105VA

50 W max

(2.1 A at 24V DC) 105VA

50 W max

(2.1 A at 24V DC) 105VA

Mechanical Weight, approx 2.28 kg (5.03 lb) 2.58 kg (5.69 lb) 2.54 kg (5.60 lb) Dimensions, approx (H x W x D) 252 x 297 x 69.6 mm 9.92 x 11.69 x 2.74 in. 252 x 385 x 69.6 mm 9.92 x 15.16 x 2.74 in. 240 x 340 x 69.6 mm 9.69 x 13.39 x 2.74 in. Cutout dimensions, approx (H x W) 224 x 269 mm 8.82 x 10.59 in. 224 x 335 mm 8.82 x 13.19 in. 218 x 312 mm 8.58 x 12.28 in.

(6)

PanelView Plus 7 Performance 15-in and 19-in Terminals

. Attribute 15-in. Touch 2711P-T15C22D9P, 2711P-T15C22D9P-B (1) 2711P-T15C22A9P, 2711P-T15C22A9P-B

19-in. Touch

2711P-T19C22D9P, 2711P-T19C22D9P-B (1) 2711P-T19C22A9P, 2711P-T19C22A9P-B

Display size,

diagonal 15-in. 19-in.

Display resolution 1024 x 768 XGA, 18-bit color graphics 1280 x 1024 SXGA, 18-bit color graphics

Analog resistive

clock backup)

Secure Digital (SD)

USB ports:

Electrical

Input voltage, DC 24V DC nom

(18…30V DC) 100…240V AC 24V DC nom (18…30V DC) 100…240V AC 24V DC nom (18…30V DC) 100…240V AC Power consumption, DC 50 W max (2.1 A at 24V DC) 105VA 50 W max (2.1 A at 24V DC) 105VA 50 W max (2.1 A at 24V DC) 105VA

Mechanical Weight, approx 3.69 kg (8.14 lb) 4.14 kg (9.13 lb) 5.62 kg (12.40 lb) Dimensions, approx (H x W x D) 318 x 381 x 69.6 mm 12.52 x 15.00 x 2.74 in 329 x 484 x 69.6 mm 12.95 x 19.06 x 2.74 in 411 x 485 x 69.6 mm 16.18 x 19.09 x 2.74 in Cutout dimensions, approx (H x W) 290 x 353 mm 11.42 x 13.90 in 290 x 418 mm 11.42 x 16.46 in 383 x 457 mm 15.08 x 17.99 in

(7)

Product Dimensions

The table provides product dimensions. The 10.4-inch touch and combination keypad with touch devices are shown for

illustrative purposes. All other terminal sizes look similar.

PanelView Plus 7 Performance Dimensions - 10.4-in. Model

Product Dimensions - PanelView Plus 7 Performance Terminals

Terminal

Size

Input

Type

Height (a)

mm (in.)

Width (b)

mm (in.)

Overall Depth (c)

mm (in.)

Mounted Depth (d)

mm (in.)

6.5-in.

Key/touch

179 (7.05)

285 (11.22)

69.6 (2.74)

63.6 (2.50)

Touch

170 (6.69)

212 (8.35)

9-in.

Touch

190 (7.48)

280 (11.02)

10.4-in.

Key/touch

252 (9.92)

385 (15.16)

Touch

252 (9.92)

297 (11.69)

12.1-in.

Touch

246 (9.69)

340 (13.39)

15-in.

Key/touch

329 (12.95)

484 (19.06)

Touch

318 (12.52)

381 (15.00)

19-in.

Touch

411 (16.18)

485 (19.09)

TIP

When mounted in a panel, the front of the bezel extends less than

6.36 mm (0.25 in.) from the front of the panel.

1 6 6 1 F1 Esc 7 8 9 4 5 6 1 2 3 0 . – F2 F3 F6 F4 F5 F9 F7 F8 F10 F12 F11 F14 F13 F16 F15 1 6 6 6 1 1 c c a b a b d d

(8)

Accessories

The tables in this section list accessories for the PanelView Plus 7 Performance terminals.

Protective Overlays

Power Supplies and Power Terminal Blocks

Mounting Hardware

Secure Digital (SD) Cards

Battery Replacement

Cat. No.

(1)

(1) Three overlays are shipped with each catalog number.

Display Size

Operator Input

Touch

Key and Touch

2711P-RGT7SP

6.5-in.

• 2711P-RGB7P

• 2711P-RGT9SP

9-in. (wide)

• 2711P-RGT10SP

10.4-in.

• 2711P-RGB10P

• 2711P-RGT12SP

12.1-in. (wide)

• 2711P-RGT15SP

15-in.

• 2711P-RGB15P

• 2711P-RGT19P

19-in.

• Cat. No.

Description

Quantity

1606-XLP95E

DIN rail power supply, 24…28V DC output voltage, 95 W

1 1606-XLP100E

DIN rail power supply, 24…28V DC output voltage, 100 W

1 2711P-RSACDIN

DIN rail power supply, AC-to-DC, 85…265V AC, 47…63 Hz

1 2711P-RTBAP

3-pin AC power terminal block

10 2711P-RTBDSP

3-pin DC power terminal block

10 Cat. No.

Description

Quantity

2711P-RMCP

(1)

(1) Catalog number 2711P-RMCP mounting levers are used with PanelView Plus 7 Performance terminals. Do not use gray mounting levers; they are not compatible with PanelView Plus 7 Performance terminals.

Mounting levers (black)

16 Cat. No.

Description

1784-SD1

1 GB SD card

1784-SD2

2 GB SD card

2711C-RCSD

USB to SD adapter for SD card

Cat. No.

Description

Quantity

(9)

HMI Software

All PanelView Plus 7 terminals are configured with FactoryTalk

View Studio software and have an integrated runtime system called

FactoryTalk View Machine Edition Station.

Machine Edition Station runs projects that are developed with

FactoryTalk View Studio software and is included on all PanelView

Plus 7 terminals.

Two versions of FactoryTalk View Studio software support

application development for PanelView Plus 7 terminals.

You can import PanelView Standard/PanelBuilder® 32 and PanelView applications into FactoryTalk View Studio

software as Machine Edition applications by using the Machine Edition Import Wizard. The Import Wizard steps you

through a few options such as scaling to a new screen resolution size, and then converts objects, text, tags, and

communication configurations to ones that are available in Machine Edition.

FactoryTalk ViewPoint software, an add-on to FactoryTalk View Studio software,

allows plant managers, production supervisors, system integrators, and other key

stakeholders to view and control real-time plant floor operations remotely from a

web browser. FactoryTalk ViewPoint enabled displays are fully scalable and

animated in the browser. The remote user can also view displays that are not the

active display of the terminal.

Each PanelView Plus 7 terminal contains one license that supports one client

connection to the terminal. No additional software is required.

For a complete list of available HMI software, visit

http://www.rockwellautomation.com/rockwellsoftware

.

Cat. No.

(1)

(1) To order localized versions of the software, replace EN in the catalog number with DE for German, FR for French, JP for Japanese, or ZH for Chinese.

Description

9701-VWSTMENE

FactoryTalk View Studio for Machine Edition software - Configuration software for developing and testing

machine-level human machine interface (HMI) applications. Includes RSLinx® Enterprise and KEPServer Enterprise

software.

9701-VWSTENE

FactoryTalk View Studio software - Configuration software for developing and testing machine-level and

supervisory-level human machine interface (HMI) applications.

(10)

Additional Resources

These documents contain more information about related products from Rockwell Automation.

You can view or download publications at

http://www.rockwellautomation.com/global/literature-library/

overview.page

. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or

Rockwell Automation sales representative.

Resource

Description

PanelView Plus 7 Performance Terminals User Manual, publication

2711P-UM008

Provides instructions on how to install, configure, and operate the PanelView Plus 7

Performance terminals.

Industrial Automation Wiring and Grounding Guidelines, publication

1770-4.1

Provides general guidelines on how to install a Rockwell Automation industrial

system.

Product Certifications website,

http://www.rockwellautomation.com/global/

(11)

(12)

Allen-Bradley, CompactLogix, ControlLogix, FactoryTalk, PanelBuilder, PanelView, LISTEN. THINK. SOLVE, Rockwell Automation, Rockwell Software, and RSLinx are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
