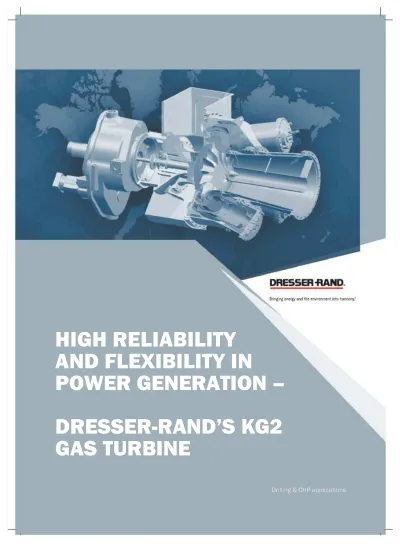

AND FLEXIBILITY IN
AND FLEXIBILITY IN
POWER GENERATION –
POWER GENERATION –
DRESSER-RAND’S
DRESSER-RAND’S
K
K
G2
G2
GAS TURBINE
GAS TURBINE
Drilling & CHP applications
The legendary KG2 gas turbine was rst installed in 1972. Since then, close to 1,000 units have been installed in 62 countries worldwide, onshore and offshore, in continuous duty operations in all types of environments. The versatile gas turbine generator sets are used for a variety of base load and emergency power generation applications – from xed and oating installations offshore, to onshore oil elds, on rooftops, and integrated into buildings for simple cycle and combined heat and power (CHP) duties.
With the acquisition of Kongsberg Dresser Power in 1985, Dresser-Rand became the original equip-ment manufacturer (OEM) of the well-proven and highly reliable KG2 product family. Since 1972, Dresser-Rand Norway Operations has developed and implemented a number of improvements and changes for the KG2 gas turbine. These im-provements have increased its power output and efciency, as well as help control and lower emis
-sions. The product has proven itself in many instal-lations, clocking more than 25 million operating hours with 99% availability. Some engines have been running more than 245,000 hours of con-tinuous duty and achieved a lifetime of more than 30 years of run time.
KG2 gas turbine generator set at the Trans-Tunisian pipeline station in Korba, Tunisia.
The newly released KG2-3G gas turbine is the third generation of this legendary product. It is based upon the same architecture as its earlier ratings, but is equipped with advanced fuel efciency and dry-low emission (DLE) combustion technologies to meet today’s evermore demanding emission regulations.
While the turbine is still composed of the same proven engine parts (a compact rotor and a
The KG2-3G gas turbine is designed to meet future efciency and emissions requirements.
THE LATEST GENERATION OF KG2 GAS TURBINES
We maintained the simplicity of the earlier KG2 models, while adding state-of-the-art turbine ma-terials and combustion technology. This allows KG2 gas turbine users to operate their equipment with minimum maintenance and high availability. Maintenance intervals for the KG2-3G gas turbine are 8,000 hours between inspections and 40,000 hours between major overhauls.
The compressor and turbine sections are mounted back-to-back. The rotor assembly is cantilevered so that both rotor bearings are located in the cold end of the gas turbine. As there are no “hot” bear-ings in the KG2-3G gas turbine, the bearbear-ings are effectively designed without life limitation. The speed-reduction gearbox is an integral part of the gas turbine and reduces the output speed of the gas turbine to match the generator, while driving the lubrication system and liquid fuel pumps. single-stage radial compressor and turbine wheel), Dresser-Rand has rened the design and materi-als. With signicant improvements in the air-foil design, the efciency of the KG2-3G gas turbine has increased by 50% compared to the previous KG2 rating. This represents the highest efciency available for comparably sized gas turbine genera-tor sets. The KG2-3G turbine’s four DLE combus-tors allow for operation below 24 ppm NOx and CO, without any catalytic exhaust remediation.
KG2 users benet from the turbine’s capability to accept a wide variety of fuels, ranging from pipe-line quality natural gas to low heating value gas (e.g., well head or synthetic gas fuel with signi -cant hydrogen content). With the capability of ac-cepting fuel gas with 1.5% H2S as standard (high-er levels are subject to review), the KG2-3G gas turbine offers a reliable source of electrical power from associated gas otherwise ared at the well head.
SFC – specic fuel consumption
Note – for operation below -40°C (-40°F), additional inlet and package heating is required.
EGT – exhaust gas temperature
OUTSTANDING FUEL ACCEPTANCE AND OPERATIONAL
BENEFITS
The new KG2-3G gas turbine features highly c ompetitive technical data.
Additional operating benets include the following:
• Requires a low fuel gas supply pressure of 12 bar for operation (and even lower pressure at start-up)
• Allows for major load changes of up to 100% with insignicant change in generator
frequency
• Able to operate with a heat recovery unit to produce more than 6 tons of steam at 12 bar; operating the installation in CHP mode, overall efciency may exceed 90%.
KG2-3G gas turbine
Technical data Metric Imperial Metric Imperial ISO (15°C/59°F) shaft output 2,000 kW Emission NOx (15% O2) CO (15% O2) less than 24 ppm 10 ppm
Output shaft speed 1,500/1,800 rpm Fuel gas inlet pressure 12 barg 174 psig Fuel type Natural gas Generators 400 V to 13.8 kV Fuel rate 14,118 kj/kWh 13,381 btu/kWh Weight, gas turbine/gear 1,800 kg 3,968 lbs Exhaust gas
temperature
577.3°C 1,071°F Typical package weight 16,000 kg 35,300 lbs Exhaust mas ow 9.4 kg/sec 20.7 lb/sec Package dimensions
(L x W x H) - approx.
KG2-3G GAS TURBINE FOR OIL AND GAS EXPLORATION
APPLICATIONS
With its compact design and low weight, the KG2-3G gas turbine is ideally suited for both on-shore and offon-shore drilling applications. KG2 gas turbines have an excellent block load capability, which means they can tolerate considerable load changes without having to go ofine. This was ex -amined and proven by Esso’s Odin study in 1984; thereafter, the KG2 gas turbine was chosen for several drilling projects.
The KG2-3G gas turbine has good weight to power ratio, and can operate on wellhead or are gas which offers signicant fuel cost savings to the operator. The turbine’s dual fuel capability with seamless changeover under load ensures con-tinuous operation in the event of gas fuel curtail-ment.
Thanks to its small footprint, a KG2-3G genera-tor set can be easily integrated into an existing rig to cover additional power or heating demand. The package can be shipped without load permit which facilitates transport and handling. Our rug-ged package can also withstand transport along
rough oileld roads. A view of Esso’s Odin platform, where three KG2 gas turbine generator packages are installed. These gas turbines were
selected in part for their excellent block load capability.
Three KG2 gas turbine generator sets are running on dual fuel on the Doyon onshore drilling site in Alaska.
Four KG2 gas turbine generator sets deliver power to a Dubai Petroleum Company platform.
KG2-3G GAS TURBINE FOR COMBINED HEAT AND POWER
APPLICATIONS
Cogeneration or combined heat and power (CHP) is another suitable application for the versatile KG2-3G gas turbine. CHP systems facilitate elec-tricity production and provide useful heat at very high efciency. By locating a power generation system at the heart of a facility or process it is possible to capture the heat (usually a wasted by-product of electricity generation). The KG2 cogen-eration system combines the KG2-3G gas turbine with a pre-engineered steam heat recovery pack-age. The system provides a continuous base load supply of both electricity and steam, while lower-ing energy costs and CO2 emissions. With a wide range of steam pressure congurations, this sys -tem can be matched to almost any process need.
CHP 2000 system output Metric Imperial Electric output 1,950 kWe 2,615 hp Electric generator frequency 50/60 Hz 50/60 Hz CHP output choices:
Steam output at 10 bar (145 psi)
7.5 t/h 16.5 klb/hr Chilling at 37/30°C
(98.6/86°F)
5.5 MW 7,375 hp Hot water from 10-80°C
(50-176°F) 16kg/sec 35 lbs/sec CHP 2000 package data LTHW ow temperature 82.2°C/180°F LTHW return temperature 71.1°C/160°F Noise dB(A) at 25’ <75
GPM of hot water (20°F delta T) 520
CHP 2000 dimension data Metric Imperial Length 12.192 m 40 ft Height 2.438 m 8 ft Height 2.591 m 8 ft 6 in Weight 17.2 t 38,000 lbs
Packaged CHP systems deliver the maximum pos-sible energy cost savings when deployed in appli-cations where the electrical and thermal outputs of the system can be consumed at all times by the host facility. The standard CHP 2000 system delivers high-quality steam for heating purposes. Alternatively, the exhaust energy can be used for chilling and delivers approximately 5.5 MW of chilling power. A balance of both is also possible, as well as the possibility of extracting hot water from the lubricant oil cooler.
Adding a steam condenser can boost the total ef-ciency of the gas turbine to the mid-90% range. Dresser-Rand CHP systems can be designed to meet a wide range of application-specic
requireEnergy consumers demand high efciency and re -liability in order to minimize operating costs and maximize uptime. KG2-3G CHP systems are sup-plied as comprehensive, factory-tested packages that can be easily integrated into existing site op -erations. Items such as synchronizing switchgear, heat recovery equipment, emissions treatment, attenuation, and lube oil systems are included “within the box.” This dramatically reduces the risk of cost overruns and performance issues as-sociated with traditional “site-built” systems.
The KG2 gas turbines at the McKittrick enhanced oil recov-ery site in California, USA , generate steam that is injected into the oil well to facilitate the oil ow.
Dresser-Rand’s long standing experience with installations for a large variety of applications, combined with the KG2-3G gas turbine’s compet-itive technical features, make these gas turbine packages an ideal solution for the oil and gas and energy markets.
Dresser-Rand’s KG2-3G gas turbine …
• offers an upgraded version of the well-proven KG2 gas turbine.
• operates on gaseous and liquid fuels.
• accepts a wide fuel range which includes well-head gas and sour gas with a signicant H2S content.
• is an excellent solution for recovering are gas for energy production.
• has a dr y low emission combustion system for NOx and CO to 24 ppmv at 15% O2 over a wide operating range.
• allows for excellent heat recovery in CHP applications.
• can operate at extremely low temperatures (as low as -60°C/-76°F).
• is designed to operate for 40,000 hours between major overhauls (and one annual visual inspection).
• is designed for easy maintenance at low ambient temperatures.
• is small and light-weight, built for non-permit shipping loads.
• allows for local and remote monitoring and op-eration, and is also suitable for installations with limited access.
Dresser-Rand’s KG2-3G gas turbine generator packages are delivered completely factory tested. We offer OEM service for operation and mainte-nance for all our KG2 installations.
KG2-3G GAS TURBINE– A RELIABLE ASSET FOR POWER
GENERATION
With its rugged steel base frame design, its compact dimensions and low weight, the KG2 gas turbine generator set allows for easy on-site maintenance, as well as simple
transport to other locations.
Three KG2 gas turbine packages installed on Shell Malay - sia’s SSB drilling platform.
