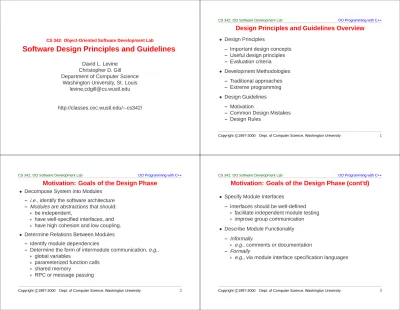

Software Design Principles and Guidelines

(1)

CS 342: Object-Oriented Software Development Lab

Software Design Principles and Guidelines

David L. Levine

Christopher D. Gill

Department of Computer Science Washington University, St. Louis

levine,[email protected]

http://classes.cec.wustl.edu/cs342/

Design Principles and Guidelines Overview

Design Principles

– Important design concepts – Useful design principles – Evaluation criteria Development Methodologies – Traditional approaches – Extreme programming Design Guidelines – Motivation

– Common Design Mistakes – Design Rules

Copyright c1997-2000 Dept. of Computer Science, Washington University 1

CS 342: OO Software Development Lab OO Programming with C++

Motivation: Goals of the Design Phase

Decompose System into Modules

– i.e., identify the software architecture

– Modules are abstractions that should:

be independent,

have well-specified interfaces, and have high cohesion and low coupling. Determine Relations Between Modules

– Identify module dependencies

– Determine the form of intermodule communication,e.g.,

global variables

parameterized function calls shared memory

RPC or message passing

Motivation: Goals of the Design Phase (cont’d)

Specify Module Interfaces

– Interfaces should be well-defined

facilitate independent module testing improve group communication Describe Module Functionality

– Informally

e.g., comments or documentation

– Formally

(2)

Primary Design Phases

Preliminary Design

– External design describes the real-world model

– Architectural design decomposes the requirement specification into software subsystems

Detailed Design

– Formally specify each subsystem

– Further decomposed subsystems, if necessary

Note: in design phases the orientation moves

– from customer to developer – fromwhat to how

Key Design Concepts and Principles

Important design concepts and design principles include:

– Decomposition

– Abstraction

– Subset Identification

– Information Hiding

– Virtual Machine Structuring

– Modularity

– Separating Policy and Mechanism

– Hierarchy

Main purpose of these concepts and principles is to manage software

system complexity and improve software quality factors.

Decomposition

Decomposition is a concept common to all life-cycle and design

techniques.

Basic concept is very simple:

1. Select a piece of the problem (initially, the whole problem)

2. Determine its components using the mechanism of choice, e.g.,

functional vs data structured vs object-oriented 3. Show how the components interact

4. Repeat steps 1 through 3 until some termination criteria is met (e.g., customer is satisfied, run out of money, etc.;-))

Decomposition (cont’d)

Some guiding decomposition principles

– Because design decisions transcend execution time, modules might not correspond to execution steps . . .

– Decompose so as to limit the effect of any one design decision on the rest of the system

– Remember, anything that permeates the system will be expensive to change

– Modules should be specified by all information needed to use the module andnothing more

(3)

Abstraction

Abstraction provides a way to manage complexity by emphasizing

essential characteristics and suppressing implementation details.

Allows postponement of certain design decisions that occur at

various levels of analysis,e.g.,

– Representational/Algorithmic considerations – Architectural/Structural considerations – External/Functional considerations

Abstraction (cont’d)

Three basic abstraction mechanisms

– Procedural abstraction

e.g., closed subroutines

– Data abstraction

e.g., ADTs

– Control abstraction

iterators, loops, multitasking,etc.

Information Hiding

Motivation: details of design decisions that are subject to change

should be hidden behind abstract interfaces,i.e., modules.

– Information hiding is one means to enhance abstraction.

Modules should communicate only through well-defined interfaces. Each module is specified by as little information as possible.

If internal details change, client modules should be minimally affected

(may require recompilation and relinking, however . . .)

Information Hiding (cont’d)

Information to be hidden includes:

– Data representations

i.e., using abstract data types

– Algorithmse.g., sorting or searching techniques

– Input and Output Formats

Machine dependencies,e.g., byte-ordering, character codes

– Policy/mechanism distinctions

i.e., when vs how

e.g., OS scheduling, garbage collection, process migration

– Lower-level module interfaces

(4)

Modularity

A Modular System is a system structured into highly independent

abstractions calledmodules.

Modularity is important for both design and implementation phases. Module prescriptions:

– Modules should possess well-specifiedabstract interfaces.

– Modules should have highcohesion and low coupling.

Modularity (cont’d)

Modularity facilitates certain software quality factors,e.g.:

– Extensibility - well-defined, abstract interfaces

– Reusability - low-coupling, high-cohesion

– Compatibility - design “bridging” interfaces

– Portability - hide machine dependencies

Modularity is an important characteristic of good designs because it:

– allows forseparation of concerns

– enables developers to reduce overall system complexity via

decentralized software architectures

– enhances scalability by supporting independent and concurrent

development by multiple personnel

Modularity (cont’d)

A module is

– A software entity encapsulating the representation of an abstraction,e.g., an ADT

– A vehicle for hiding at least one design decision

– A “work” assignment for a programmer or group of programmers – a unit of code that

has one or more names has identifiable boundaries

can be (re-)used by other modules encapsulates data

hides unnecessary details

can be separately compiled (if supported)

Modularity (cont’d)

A module isnot necessarily a subroutine or arbitrary pieces of code

. . .

All ADTs are modules

– Note all modules are ADTs, however.

e.g., groups of functionally related procedures (such as sorting)

(5)

Modularity (cont’d)

A module interface consists of several sections:

– Imports

Services requested from other modules

– Exports

Services provided to other modules

– Access Control

not all clients are equal! (e.g., C++’s distinction between

protected/private/public)

– Heuristics for determining interface specification

define one specification that allows multiple implementations anticipate change

e.g., use structures and classes for parameters

Modularity Dimensions

Modularity has several dimensions and encompasses specification,

design, and implementation levels:

– Criteria for evaluating design methods with respect to modularity

Modular Decomposability Modular Composability Modular Understandability Modular Continuity

Modular Protection

– Principles for ensuring modular designs:

Language Support for Modular Units Few Interfaces

Small Interfaces (Weak Coupling) Explicit Interfaces

Information Hiding

Criteria for Evaluating Modular Designs

Modular Decomposability

– Does the method aid decomposing a new problem into several separate subproblems? (e.g., top-down functional design)

Modular Composability

– Does the method aid constructing new systems from existing software components? (e.g., bottom-up design)

Modular Understandability

– Are modules separately understandable by a human reader,e.g.,

howtightly coupled are they?

Criteria for Evaluating Modular Designs (cont’d)

Modular Continuity

– Do small changes to the specification affect a localized and limited number of modules?

Modular Protection

– Are the effects of run-time abnormalities confined to a small number of related modules?

(6)

Principles for Ensuring Modular Designs

Language Support for Modular Units

– Modules must correspond to syntactic units in the language used.

Few Interfaces

– Every module should communicate with as few others as possible.

Small Interfaces (Weak Coupling)

– If any two modules communicate at all, they should exchange as little information as possible.

Principles for Ensuring Modular Designs (cont’d)

Explicit Interfaces

– Whenever two modules A and B communicate, this must be obvious from the text of A or B or both.

Information Hiding

– All information about a module should be private to the module unless it is specifically declared public.

The Open/Closed Principle

A satisfactory module decomposition technique should yield modules

that areboth open and closed:

– Open Module: is one still available for extension. This is necessary

because the requirements and specifications are rarely completely understood from the system’s inception.

– Closed Module: is available for use use by other modules, usually

given a well-defined, stable description and packaged in a library. This is necessary because otherwise code sharing becomes unmanageable because reopening a module may trigger changes in many clients.

The Open/Closed Principle (cont’d)

Traditional design techniques and programming languages do not

offer an elegant solution to the problem of producing modules that areboth open and closed.

Object-oriented methods utilize inheritance and dynamic binding to

(7)

Case Study: Arithmetic Expression Evaluation

Initial specification: write a four-function calculator utility that

evaluates arithmetic expressions of the form:

(10 + 20) * 30.0 / 49 - 37

Typical solution in Ada, Pascal, or C makes use of enumerated types

and acaseorswitchstatement,e.g.,

enum op_type { ADD, SUB, MUL, DIV }; // . . .

void apply (op_type op_code, double v1, double v2) { switch (op_code) { case ADD: // . . . case SUB: // . . . case MUL: // . . . case DIV: // . . . } }

Case Study: Arithmetic Expression Evaluation (cont’d)

However, problems arise when the calculator’s functionality is

enhanced by adding new operations, e.g., extending it to handle

complete C or C++ expression syntax.

Programs that utilize case analysis and enumerated types are often

difficult to update, enhance, and maintain.

OOD/OOP provide a more flexible and extensible solution using

inheritance and dynamic binding.

Virtual Machine Structuring

A virtual machine architecture is used to decompose system into

smaller, more manageable units.

A virtual machine provides an extended “software instruction set”

– Extensions provide additional data types and associated “software instructions”

– Modeled after hardware instruction set primitives that work on a limited set of data types

Virtual machines allow incremental extensions

– But beware of overly narrow interfaces in lower layer virtual machines . . .

Virtual Machine Structuring (cont’d)

A virtual machine component provides a set of operations that are

useful in developing afamily of similar systems

Reusability is limited if virtual machine operations merely correspond

to steps in processing from input to output, i.e., use the “shopping

list” approach.

It is difficult to obtain good performance at levelN, if levels below N

(8)

Virtual Machine Structuring (cont’d)

Good examples of virtual machine concept:

– Computer Architectures

e.g., compiler!assembler!obj code!microcode !gates,

transistors, signals,etc.

– Communication protocol stacks,e.g., ISO, TCP/IP

– Operating systems,e.g., Mach, BSD UNIX, e.g.,

HARDWARE MACHINE SOFTWARE VIRTUAL MACHINE instruction set set of system calls

restartable instructions restartable system calls interrupts/traps signals

interrupt/trap handlers signal handlers blocking interrupts masking signals interrupt stack signal stack

Hierarchy

Motivation: reduces module interactions by restricting the topology of

relationships

A relation defines a hierarchy if it partitions units into levels (note

connection to virtual machines)

– Level 0 is the set of all units that use no other units

– Leveli is the set of all units that use at least one unit at level< i

and no unit at leveli.

Hierarchical structure forms basis of design

– Facilitates independent development – Isolates ramifications of change – Allows rapid prototyping

Hierarchy (cont’d)

Relations that define hierarchies:

– Uses

– Is-Composed-Of

– Is-A

– Has-A

The first two are general to all design methods, the latter two are

more particular to object-oriented design and programming.

The Uses Relation

X Uses Y if the correct functioning of X depends on the availability of

a correct implementation ofY

Note,uses is not necessarily the same as invokes:

– Some invocations are not uses

e.g., error logging

– Some uses don’t involve invocations

e.g., message passing, interrupts, shared memory access Auses relation does not necessarily yield a hierarchy (avoid cycles .

(9)

The Uses Relation (cont’d)

AllowX to use Y when:

– X is simpler because it uses Y

e.g., Standard C library routines

– Y is not substantially more complex because it is not allowed to

useX

i.e., hierarchies should be semantically meaningful

– there is a useful subset containingY and not X

i.e., allows sharing and reuse of Y

– there is no conceivably useful subset containingX but not Y

i.e., Y is necessary for X to function correctly.

The Uses Relation, (cont’d)

How should recursion be handled?

– GroupX and Y as a single entity in the uses relation.

A hierarchy in theuses relation is essential for designing non-trivial

reusable software systems.

Note that certain software systems require some form of controlled

violation of a useshierarchy

– e.g., asynchronous communication protocols, call-back schemes,

signal handling,etc.

– Upcalls are one way to control these non-hierarchical dependencies

“Rule of thumb”:

– Start with an invocation hierarchy and eliminate those invocations (“calls”) that are not uses relationships.

The Is-Composed-Of Relation

The is-composed-of relationship shows how the system is broken

down in components.

X is-composed-of fx i

g if X is a group of units x

i that share some

common purpose

The system structure graph description can be specified by the

is-composed-of relation such that:

– non-terminals are “virtual” code

– terminals are the only units represented by “actual” (concrete) code

The Is-Composed-Of Relation, (cont’d)

Many programming languages support the is-composed-of relation

via some higher-level module or record structuring technique.

Note: the following are not equivalent:

1. level (virtual machine)

2. module (an entity that hides a secret) 3. a subprogram (a code unit)

Modules and levels need not be identical, as a module may have

(10)

The Is-A and Has-A Relations

These two relationships are associated with object-oriented design

and programming languages that possess inheritance and classes.

Is-A or Descendant relationship

– class X possesses Is-A relationship with class Y if instances of

class X are specialization of class Y.

– e.g., a square is a specialization of a rectangle, which is a

specialization of a shape . . .

Has-A or Containment relationship

– class X possesses aHas-B relationship with class Y if instances

of class X contain one or more instance(s) of class Y. – e.g., a car has an engine and four tires . . .

Separate Policy and Mechanism

Very important design principle, used to separate concerns at both

the design and implementation phases.

Multiple policies can be implemented by shared mechanisms.

– e.g., OS scheduling and virtual memory paging

Same policy can be implemented by multiple mechanisms.

– e.g., FIFO containment can be implemented using a stack based

on an array, or a linked list, or . . .

– e.g., reliable, non-duplicated, bytestream service can be provided

by multiple communication protocols.

Program Families and Subsets

Program families are a collection of related modules or subsystems

that form aframework

– e.g., BSD UNIX network protocol subsystem.

– Note, a framework is a set ofabstract and concrete classes.

Program families are natural way to detect and implement subsets.

– Reasons for providing subsets include cost, time, personnel resources,etc.

– Identifying subsets:

Analyze requirements to identify minimally useful subsets. Also identify minimal increments to subsets.

Program Families and Subsets (cont’d)

Advantages of subsetting:

– Facilitates software system extension and contraction – Promotes reusability

– Anticipates potential changes

Note: it is most important to design for flexibility, not necessarily for

(11)

Program Families and Subsets (cont’d)

Families provide integrated support for

– different services for different markets,e.g.,

different alphabets, different vertical applications, different I/O

formats

– different hardware or software platforms

e.g., compilers or OSs

– different resource trade-offs

e.g., speed vs space

– different internal resources

e.g., shared data structures and library routines

– different external events

e.g., UNIX I/O device interface

– backward compatibility

e.g., sometimes it is important to retain bugs!

A General Design Process

Given a specification, design involves an iterative decision making

process with the following general steps:

– List the difficult decisions and decisions likely to change – Design a module specification to hide each such decision

Make decisions that apply to whole program family first Modularizemost likely changes first

Then modularize remaining difficult decisions and decisions

likely to change

Design the uses hierarchy as you do this (include reuse

decisions)

A General Design Process (cont’d)

General steps (cont’d)

– Treat each higher-level module as a specification and apply above process to each

– Continue refining until all design decisions are:

hidden in a module

contain easily comprehensible components

provide individual, independent, low-level implementation

assignments

Traditional Development Methodologies

Waterfall Model

– Specify, analyze, implement, test (in sequence) – Assumes that requirements can be specified up front

Spiral Model

– Supports iterative development – Attempts to assess risks of changes

Rapid Application Development

– Build a prototype – Ship it :-)

(12)

eXtreme Programming

Stresses customer satisfaction, and therefore, involvement

– Provide what the customer wants, as quickly as possible – Provideonly what the customer wants

Encourages changes in requirements Relies on testing

XP Practices

– Planning, designing, coding, testing

eXtreme Programming: Planning

Technology

Spike

System

Prototype

User

Story

Planning

Game

Iteration

Commitment Schedule

Change in Requirements, Risk, or Developement Environment

Risk Estimates

Time

Requirements

based on http://www.extremeprogramming.org/rules/planninggame.html

Start withuser stories

– Written by customers, to specify system

requirements

– Minimal detail, typically just a few sentences on a card

– Expected development time: 1 to 3 weeks each, roughly

Planning game creates

commitment schedule for entire project

Each iteration should take

2-3 weeks

eXtreme Programming: Designing

Defer design decisions as long as possible

Advantages:

– Simplifies current task (just build what is needed) – You don’t need to maintain what you haven’t built

– Time is on your side: you’re likely to learn something useful by the time you need to decide

– Tomorrow may never come: if a feature isn’t needed now, it might never be needed

Disadvantages:

– Future design decisions may require rework of existing implementation

– Ramp-up time will probably be longer later

Therefore, always try to keep designs as simple as possible

eXtreme Programming: Coding

Pair programming

– Always code with a partner

– Always test as you code

Pair programming pays off by supporting good implementation,

reducing mistakes, and exposing more than one programmer to the design/implementation

If any deficiencies in existing implementation are noticed, either fix

(13)

eXtreme Programming: Testing

Unit tests are writtenbefore code.

Code must pass both its unit test and all regression tests before

committing.

In effect, the test suite defines the system requirements.

– Significant difference from other development approaches. – If a bug is found, a test for it must be added.

– If a feature isn’t tested, it can be removed.

eXtreme Programming: Information Sources

Kent Beck, Extreme Programming Explained: Embrace Change,

Addison-Wesley, ISBN 0201616416, 1999.

Kent Beck, “Extreme Programming”,C++ Report 11:5, May 1999, pp.

26–29+.

John Vlissides, “XP”, interview with Kent Beck in the Pattern Hatching

Column,C++ Report 11:6, June 1999, pp. 44-52+.

Kent Beck, “Embracing Change with Extreme Programming”, IEEE

Computer 32:10, October 1999, pp. 70-77.

http://www.extremeprogramming.org/ http://www.xprogramming.com/

http://c2.com/cgi/wiki?ExtremeProgrammingRoadmap

Design Guidelines: Motivation

Design is the process of organizing structured solutions to tasks from

a problem domain.

This process is carried out in many disciplines, in many ways.

– There are many similarities and commonalities among design processes.

– There are also many common design mistakes . . .

The following pages provide a number of “design rules.”

– Remember, these rules are simply suggestions on how to better organize your design process,not a recipe for success!

Common Design Mistakes

Depth-first design

– only partially satisfy the requirements – experience is best cure for this problem . . .

Directly refining requirements specification

– leads to overly constrained, inefficient designs

Failure to consider potential changes

– always design for extension and contraction

Making the design too detailed

(14)

Common Design Mistakes (cont’d)

Ambiguously stated design

– misinterpreted at implementation

Undocumented design decisions

– designers become essential to implementation

Inconsistent design

– results in a non-integratable system, because separately developed modules don’t fit together.

Rules of Design

Make sure that the problem is well-defined

– All design criteria, requirements, and constraints, should be enumerated before a design is started.

– This may require a “spiral model” approach.

What comes before how

– i.e., define the service to be performed at every level of abstraction

before deciding which structures should be used to realize the services.

Separate orthogonal concerns

– Do not connect what is independent. – Important at many levels and phases . . .

Rules of Design (cont’d)

Design external functionality before internal functionality.

– First consider the solution as a black-box and decide how it should interact with its environment.

– Then decide how the black-box can be internally organized. Likely it consists of smaller black-boxes that can be refined in a similar fashion.

Keep it simple.

– Fancy designs are buggier than simple ones; they are harder to implement, harder to verify, and often less efficient.

– Problems that appear complex are often just simple problems huddled together.

– Our job as designers is to identify the simpler problems, separate them, and then solve them individually.

Rules of Design (cont’d)

Work at multiple levels of abstraction

– Good designers must be able to move between various levels of abstraction quickly and easily.

Design for extensibility

– A good design is “open-ended,”i.e., easily extendible.

– A good design solves a class of problems rather than a single instance.

– Do not introduce what is immaterial. – Do not restrict what is irrelevant.

Use rapid prototyping when applicable

– Before implementing a design, build a high-level prototype and verify that the design criteria are met.

(15)

Rules of Design (cont’d)

Details should depend upon abstractions

– Abstractions should not depend upon details – Principle of Dependency Inversion

The granule of reuse is the same as the granule of release

– Only components that are released through a tracking system can be effectively reused

Classes within a released component should share common closure

– That is, if one needs to be changed, they all are likely to need to be changed

– i.e., what affects one, affects all

Rules of Design (cont’d)

Classes within a released component should be reused together

– That is, it is impossible to separate the components from each other in order to reuse less than the total

The dependency structure for released components must be a DAG

– There can be no cycles

Dependencies between released components must run in the

direction of stability

– The dependee must be more stable than the depender

The more stable a released component is, the more it must consist

of abstract classes

– A completely stable component should consist of nothing but abstract classes

Rules of Design (cont’d)

Where possible, use proven patterns to solve design problems When crossing between two different paradigms, build an interface

layer that separates the two

– Don’t pollute one side with the paradigm of the other

Rules of Design (cont’d)

Software entities (classes, modules, etc) should be open for

extension, but closed for modification

– The Open/Closed principle – Bertrand Meyer

Derived classes must usable through the base class interface without

the need for the user to know the difference – The Liskov Substitution Principle

(16)

Rules of Design (cont’d)

Make it work correctly, then make it work fast

– Implement the design, measure its performance, and if necessary, optimize it.

Maintain consistency between representations

– e.g., check that the final optimized implementation is equivalent to

the high-level design that was verified. – Also important for documentation . . .

Don’t skip the preceding rules!

– Clearly, this is the most frequently violated rule!!! ;-)
