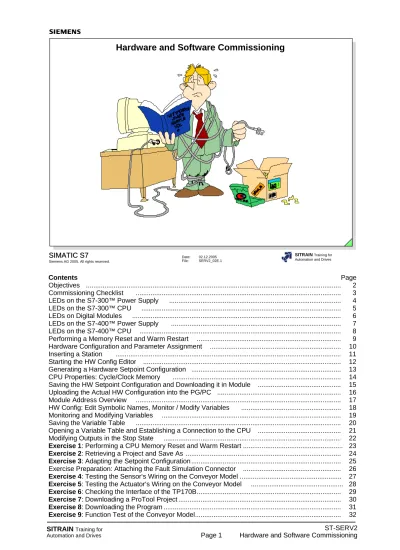

Date: 02.12.2005 File: SERV2_02E.1 SIMATIC S7

SIMATIC S7 SITRAINTraining for

Automation and Drives

Hardware and Software Commissioning

Contents Page

Objectives ... 2

Commissioning Checklist ... 3

LEDs on the S7-300™ Power Supply ... 4

LEDs on the S7-300™ CPU ... 5

LEDs on Digital Modules ... 6

LEDs on the S7-400™ Power Supply ... 7

LEDs on the S7-400™ CPU ... 8

Performing a Memory Reset and Warm Restart ... 9

Hardware Configuration and Parameter Assignment ... 10

Inserting a Station ... 11

Starting the HW Config Editor ... 12

Generating a Hardware Setpoint Configuration ... 13

CPU Properties: Cycle/Clock Memory ... 14

Saving the HW Setpoint Configuration and Downloading it in Module ... 15

Uploading the Actual HW Configuration into the PG/PC ... 16

Module Address Overview ... 17

HW Config: Edit Symbolic Names, Monitor / Modify Variables ... 18

Monitoring and Modifying Variables ... 19

Saving the Variable Table ... 20

Opening a Variable Table and Establishing a Connection to the CPU ... 21

Modifying Outputs in the Stop State ... 22

Exercise 1: Performing a CPU Memory Reset and Warm Restart ... 23

Exercise 2: Retrieving a Project and Save As ... 24

Exercise 3: Adapting the Setpoint Configuration ... 25

Exercise Preparation: Attaching the Fault Simulation Connector ... 26

Exercise 4: Testing the Sensor‘s Wiring on the Conveyor Model ... 27

Exercise 5: Testing the Actuator‘s Wiring on the Conveyor Model ... 28

Exercise 6: Checking the Interface of the TP170B... 29

(2)

Date: 02.12.2005 File: SERV2_02E.2

SIMATIC S7

Objectives

Upon completion of this chapter the participant will ...

... know the meanings of the LEDs on the S7 modules ... be able to perform a CPU memory reset

... with the "Monitor/Modify Variables" tool...

• ...be able to create and save a variable table • ...be able to check the wiring of the sensors • ...be able to check the wiring of the actuators

(3)

Checklist The checklist shows the individual preparatory steps for commissioning the hardware. If you do not want to use the default setting, it may be necessary to assign parameters to the modules before you check the inputs and outputs. The individual steps are described in more detail on the following pages.

Commissioning Checklist

• Perform a CPU memory reset. • Carry out a CPU warm restart. • Check the LEDs on the modules. • Start the SIMATIC Manager.

• Download the hardware configuration

• Check inputs using the Monitor/Modify Variable tool. • Check outputs using the Monitor/Modify Variable tool.

(4)

LED The power supply has a diagnostic LED "DC24V" on the front side of the module. Use this LED to determine the state of the power supply.

LEDs on the S7-300™ Power Supply

LED "DC24V" State Reaction of the Power Supply

Continuous On 24 V available 24 V available

Flashing

• Voltage dip,

voltage recovery when overload no longer exists • up to 130% (static)

voltage depression, reduces the service life Output circuit is overloaded:

• up to 130% (dynamic)

• up to 130% (static)

Off Short circuit in output circuit

Voltage interruption, automatic recovery when short circuit eliminated

Off

Overvoltage or undervoltage on the primary side

(permissible range: 187V to 264 VAC)

Overvoltage can cause destruction. With undervoltage, automatic interruption.

(5)

Status Displays SF = System Fault: group error, programming error or fault from a

( LEDs ) diagnostics-capable module

BATF = Battery fault: battery is empty or is not present

DC 5V = 5V supply voltage present.

FRCE = Lights up when a forcing is active.

RUN = Flashes when the CPU starts up and is steady on in the RUN mode.

STOP = Is steady on in the STOP mode,

Flashes slowly when a memory reset is requested and flashes quickly when a memory reset is carried out.

SF DP = System Fault DP: group error in the Distributed Peripherals is steady on when there is a fault in the distributed peripherals

BUSF(BF) = Bus fault, is steady on when there is an interrupted cable, for example.

Flashes when there is a station failure, for example Date: 02.12.2005

File: SERV2_02E.5 SIMATIC S7

(6)

Status LEDs There are LEDs for diagnostics purposes for every input and output channel on the module. These LEDs can be helpful in locating program errors.

The LEDs indicate:

• the process state for digital inputs

• the process state for S7-300 digital outputs

• the internal state before the optocoupler for S7-400 digital outputs. Date: 02.12.2005

File: SERV2_02E.6 SIMATIC S7

LEDs on Digital Modules

S7-400 S7-300

Status LEDs for every individual channel

Signal state at the terminals

• Signal state at the terminals

(for digital inputs)

• Internal state, before the opto-coupler

(7)

"INTF" -> internal fault "BAF" -> battery fault

"BATT1F"-> Battery 1 empty or missing "BATT2F"-> Battery 2 empty or missing "DC 5V" -> 5 V OK

"DC 24V"-> 24 V OK

LEDs on the S7-400 Power Supply

"FMR" Acknowl. switch (Fault Message Reset) On/Off switch (Standby) Battery compartment

Selection switch for battery monitoring "BATT INDIC"

"VOLTAGE" selector 3-pin power connection

Power Supply The power supply (PS) supplies the internal 5V voltage for the modules. Automatic adjustment is made for line frequencies from 48 to 64 Hz. LED "INTF" Lights up in the event of internal faults, such as

• Short circuit or overload at 5V/24V

• Standby switch on "0" and impermissible external supply • Battery fault

LED "BAF" Battery fault. Lights up if the battery voltage on the backplane bus is too low. Example: No batteries present or battery failure and there is no external power supply available.

LED "BATT1F/ Lights up in the case of battery reversal, if no battery is present, or the battery BATT2F" is half discharged. The BATT.INDIC switch for battery monitoring is set to the

1BATT position (for one battery), the 2BATT position (for 2 batteries) or OFF (no battery monitoring).

LED "DC 5V/DC 24V" Is lit when the 5V/24V DC output voltage is within the tolerance limits and flashes to indicate voltage recovery after a short circuit or overload. "FMR" Ackn.Switch Acknowledgement switch for acknowledging and resetting a fault message

when the fault has been eliminated.

ON/OFF Switch Switches the output voltage (5/24 VDC) to 0V and switches off the LEDs by (Standby) interrupting the control current circuit. (The power supply is then in standby

(8)

LEDs on the S7-400 CPU

CPU with one interface INTF

EXTF

FRCE BUS1F

CPU with two interfaces INTF

EXTF

FRCE BUS1F BUS2F

Fault LEDs CPUs have fault LEDs that provide first information about an occurred error or that give the CPU status:

LED "INTF" Indicates an internal fault (error in the user program ). LED "EXTF" Indicates an external fault (fault in an I/O module). LED “BUS1F" Indicates a bus fault of the MPI/DP interface. LED “BUS2F" Indicates a bus fault of the DP interface. LED "FRCE" Indicates that inputs/outputs are forced.

(9)

Memory Reset When a memory reset is performed on an S7 CPU, the following happens: • all CPU user data as well as the entire load and work memory are cleared • the CPU interrupts all connections to other communications partners • the CPU parameters and all modules are set to default values

• in the case that a memory card is used, the CPU copies the relevant portion of the stored program needed for execution into the internal RAM

Warm Restart During a warm restart, the process images and the non-retentive data are deleted. A new cycle begins after the process image input tables (PII) are read in.

Performing a Memory Reset and a Warm Restart

RUN-P

RUN

STOP

MRES

1. Set the mode selector switch to STOP

within 1 sec RUN STOP MRES RUN-P RUN STOP MRES

2. Hold the mode selector switch in the MRES position until the STOP LED has flashed twice slowly.

Release the mode selector switch so that it returns to the STOP position.

RUN STOP MRES RUN-P RUN STOP MRES

3. Turn the mode selector switch to the MRES position once more until the STOP LED begins to flash quickly.

Release the mode selector switch so that it returns to the STOP position.

RUN STOP MRES RUN-P RUN STOP MRES

4. Set the mode selector switch to the RUN-P (RUN) position ! (A warm restart is carried out in the transition from STOP to RUN/RUN-P)

RUN STOP MRES

(10)

Hardware Configuration and Parameter Assignment

Actual configuration

Actual configuration and parameter assignment of existing hardware.

Parameter assignment

Parameter assignments such as retentive areas, scan cycle time, and set-up of analog input cards

Setpoint configuration

Planned hardware configuration and parameter assignment.

Configuration

Assignment of racks, blocks and distributed I/O in the Hardware Configuration tool. You can select the components from a hardware catalog.

HW Configuration The modules are supplied from the factory with preset parameters. If these default settings are OK, a hardware configuration is not necessary.

A configuration is necessary:

• if you want to modify preset parameters or addresses of a module (such as to enable the hardware interrupt of a module)

• if you want to configure communication connections

• with stations that have distributed peripherals (PROFIBUS-DP) • with S7-400™ stations that have several CPUs (multicomputing) or

expansion racks

• with fault-tolerant programmable logic controllers (option package).

Setpoint When you configure a system, a setpoint configuration is created. It contains a Configuration hardware station with the planned modules and the associated parameters. The

PLC system is assembled according to the setpoint configuration. During commissioning, the setpoint configuration is downloaded to the CPU. Actual Configuration In an assembled system, the actual existing configuration and parameter

assignment of the modules can be uploaded from the CPU. This creates a new HW station in the project.

A configuration upload is necessary, for example, if the project structure does not exist locally at the PG. After the actual configuration is read out, you can set parameters and add part numbers.

Notes With the S7-400™, the CPU can be assigned parameters in such a way, that when there are differences between the setpoint configuration and the actual configuration, the CPU startup is interrupted.

To call the HW Config tool, there must be a hardware station in the SIMATIC® Manager.

(11)

Insert Station

You insert a new station in the current project by selecting the menu options

Insert -> Station -> SIMATIC®300 Station or SIMATIC®400 Station.

You can then change the name that is automatically given to this station -"SIMATIC®300 (1)" - to one of your choice.

(12)

HW Config This tool helps you configure, assign parameters to and diagnose the hardware. Starting HW Config To start the HW Config tool:

• select a hardware station in the SIMATIC®Manager and choose the

Edit --> Open Object menu or

• double-click the hardware object.

"Hardware This is a window in the "HW Config“ application you use for inserting Configuration" components from the "Hardware Catalog" window.

The title bar of this window contains the name of the project and the station name.

"Hardware Catalog" To open the catalog:

• select the View -> Catalog menu or • click the icon in the toolbar.

If “Standard” is selected as the catalog profile, all racks, modules and interface modules are available in the "Hardware Catalog" window.

You can create your own catalog profiles containing frequently used elements by selecting the menu options Options -> Edit Catalog Profiles.

You can add Profibus Slaves that do not exist in the catalog later on. To add slaves, you use GSE files that are provided by the manufacturer of the slave device. The GSE file contains a description of the device. To include the slave in the hardware catalog, use the Options -> Install New GSE Files menu and then

Options -> Update Catalog. You will find the new devices in the catalog under

Profibus, additional field devices. Date: 02.12.2005 File: SERV2_02E.12 SIMATIC S7

(13)

Generating a This means specifying how the modules are to be arranged in the rack. This Setpoint configuration, specified by you, is referred to as the setpoint configuration. Configuration

Rack For example, you open a SIMATIC®300 station in the Hardware Catalog. Opening the "RACK-300" folder shows the icon for a DIN rail. You can insert this in the "Hardware Configuration" window by double-clicking on it (or using drag & drop).

Two rack component lists then appear in the two-part window: a plain list in the top part and a detailed view with order numbers, MPI addresses and I/O addresses in the bottom part.

Power Supply If a load current power supply is required double click or use drag & drop to insert the appropriate "PS-300" module from the catalog in slot no.1 in the list. CPU You select the CPU from the "CPU-300" folder, for example, and insert it in slot

no. 2.

Slot No. 3 Slot no. 3 is reserved as the logical address for an interface module (for multi-tier configurations).

If this position is to be reserved in the actual configuration for the later installation of an IM, you must insert a dummy module DM370 (DUMMY). "Inserting" Modules From slot no. 4 onwards, you can insert a choice of up to 8 signal modules

(SM), communications processors (CP) or function modules (FM) from the HardwareCatalog using drag & drop or with a double-click.

The slots on which the selected module can be inserted are automatically highlighted in green.

(14)

Cycle • "Scan cycle monitoring time (ms):"

- If this time is exceeded, the CPU goes into the STOP mode. Possible causes why this time is exceeded: communications processes,

frequently from interrupt events, errors in the CPU program. - If you have programmed an error OB 80, the scan cycle time is

doubled. After that, the CPU also goes into the STOP mode. • "Cycle load from communication (%):"

- Communication (such as data transmission to another CPU through MPI or test functions the PG/PC triggered) is restricted to the specified percentage of the current scan cycle time.

- Restricting the cycle load can slow down communication between the CPU and PG.

- Example: Restricting communication to 20% results in a maximum communication load of 20ms for a scan cycle time of 100ms.

Size of the With the CPU 318-2 and several S7-400™ CPUs, you can specify the size of Process Image the process image (in bytes). The process image area always begins with input

and output byte 0.

Clock Memory Clock memories are bit memories that change their binary value periodically (pulse-to-pause ratio 1:1).

Each bit in the clock memory byte is assigned a particular period/frequency. Example of a flashing light with a flashing frequency of 2Hz :

CPU Properties: Cycle / Clock Memory

Clock Memory Bit 7 6 5 4 3 2 1 0

Frequency (Hz) 0.5 0.62 1 1.25 2 2.5 5 10

Period (s) 2 1.6 1 0.8 0.5 0.4 0.2 0.1

(15)

Save You select the Station->Save menu to save the current configuration in the current project (without generating system data blocks).

Save and Compile When you select the Station->Save and Compile menu or click the icon in the toolbar, the configuration and parameter assignment data are also saved in system data blocks.

Consistency Check You select the Station -> Consistency Check menu to check whether it is possible to generate configuration data from the entries made.

Download in Module You select the PLC -> Download menu or click the icon in the toolbar to download the selected configuration to the PLC.

The PLC must be in "STOP" mode!

System Data Blocks The system data blocks (SDBs) are generated and modified when you configure the hardware and compile the hardware configuration. SDBs contain

configuration data and module parameters. When a system data block is downloaded, it is stored in the CPU‘s work memory.

This makes it easier to replace modules, because the parameter assignment data is downloaded to the new module from the system data blocks on startup. In the programming device, the system data blocks are saved under: Project \ Station \ CPU \ S7_program \ Blocks \ System_data.

You double-click the System data briefcase icon to see the list of system data blocks.

If you use a memory card as Flash EPROM, you should save the SDBs there as well. That way, the configuration is not lost if you operate without battery backup and there is a power failure.

Saving the HW Setpoint Configuration and Downloading it in Module

Download

(only when CPU is in STOP mode)

(16)

Introduction A configuration is necessary only in the following cases: • if you want to modify the basic module settings • for stations with distributed I/O

• for S7-400™ with several CPUs or with expansion racks

You can read out the actual configuration from the CPU and look at the set parameters in an existing system.

Actual Configuration During startup, the CPU generates an actual configuration. That is, the CPU saves the arrangement of the modules and allocates the addresses in accordance with a fixed algorithm. If no parameters have been assigned, the default parameters defined at the factory are used.

The system stores this actual configuration in system data blocks. Uploading to PG/PC There are two ways of uploading the actual configuration to the PG/PC:

1. In the SIMATIC®Manager:

select the PLC -> Upload Station menu. 2. In the HW Config tool:

select the PLC -> Upload menu or click the icon.

Storage on PG/PC The actual configuration read from the hardware is inserted as a new station in the selected project on the PG/PC.

Note When you read out the actual configuration, the order numbers of the modules cannot be completely identified. For this reason, you should check the

configuration. If required, insert the exact module type of the existing modules. To do so, choose the module, and then select the Options -> Specify Module menu.

(17)

Address Views the I/O addresses of the station configured. Overview Select: View -> Address Overview …

Abbreviations: R Rack number

S Slot number of the relevant module

DP Relevant only when Distributed Peripherals (I/O) are used IF Interface module ID when programming the M7 system (in C++).

Module Address Overview

(18)

HW Config: Edit Symbolic Names, Monitor/Modify Variables

Once with right

Edit Symbolic Names You can directly access the symbol table from the "HW Config" tool. This allows you to assign symbolic names to the inputs and outputs during hardware configuration or at a later date when you can make suppliments or changes. You open the symbol table with a right mouse click on the module. Select Edit

Symbolic Names in the follow-up box. A section of the symbol table with the

relevant addresses is then opened.

Monitor/Modify You can monitor or modify the addresses of the configured modules directly Variables from the HW Config tool. The signals of the input modules can be "checked" and

the signals of the output modules can be "controlled" using the Monitor/Modify (Variables) function.

Product Support Directly from the Internet, you can fetch information on modules or components Information from the Product Support pages. As well, it is also possible to update HW Config

by incorporating individual components such as new CPUs or new DP devices into the current STEP 7 version.

Requirements:

The PG/PC has an Internet connection, a browser for displaying Internet pages, and the function is enabled in the HW Config Settings along with the

specification of the Internet address.

Note "Symbolic Addressing" and the editing of symbol tables is dealt with in depth in the "Symbols" chapter. The Monitor / Modify Variables function is dealt with in the "Troubleshooting" chapter.

(19)

Monitor You can monitor variables in two ways:

• The monitor values can be updated once when you select the Variable ->

Update Monitor Values menu option or click the icon.

• The monitor values can be updated every cycle when you select the

Variable -> Monitor menu option or click the icon.

Modify Procedure for modifying variables:

1. With the left mouse button, click the line in the “Modify Value” column for the variable that you want to modify.

2. Enter the value in the correct form for the data type selected.

3a. To activate the modify values once, select the Variable -> Activate Modify

Values menu option or click the icon (or item 3b).

3b. To activate the modify values every cycle, select the Variable -> Modify menu option or click the icon.

4. Use the "Monitor" function to confirm that the modify value has been entered in the variable you selected.

Modify Value Valid You can make the "Modify value" entered in a table invalid by selecting that value and clicking on the icon.

The now "invalid" value is displayed like a comment. You can make the modify value "valid" again when you click on the icon again. Only valid modify values can be activated.

(20)

Saving the You can use Table -> Save or Table -> Save as... to save a variable table. Variable Table The first time a variable table is saved, the Save As... dialog window opens.

The Save as ... window allows the user to select the Blocks folder that the variable table will be stored in.

You can give the variable table any name you choose. The name is inserted as the symbolic name in the symbol table.

You can reuse saved variable tables for monitoring and modifying, making it unnecessary to re-enter the variables.

(21)

Area of Use You can double-click to reopen variable tables that are stored in a Blocks folder of an S7 program at a later time for test purposes.

However, before you can activate the "Monitor" and "Modify" functions, an online connection to a CPU has to be established.

Using the menu commands PLC -> Connect to . . . provides three connection choices: Configured CPU, Direct CPU and Accessible CPU. There are toolbar icons for connecting to the Configured CPU or Direct CPU.

Configured CPU If the variable table is stored in the Blocks folder of a hardware-dependent S7 program (assigned to a CPU in the project view), a connection to the station with the MPI address is established. This station was also assigned to the higher-level CPU with the help of the HW Config tool.

If the variable table is stored in the Blocks folder of a hardware-independent S7 program folder (assigned directly to the project root in the project view), the MPI address of the hardware-independent S7 program can be established using the Properties dialog of the program folder while in the online view of the SIMATIC®

Manager.

Direct CPU This menu command establishes an online connection between the active variable table and the CPU to which the MPI cable from the PG/PC to the programmable controller is connected. The PG can determine to which PLC it is connected through the MPI cable.

Accessible CPU This menu command establishes an online connection between the active variable table and a CPU that you select. If the user program is already linked to a CPU, this menu command can be used to change the CPU.

Select a CPU to which you want to establish an online connection in the dialog box. You can choose between configured and accessible CPUs.

Date: 02.12.2005 File: SERV2_02E.21

SIMATIC S7

Opening a Variable Table and Establishing a Connection to the CPU

Configured CPU (VAT from HW Station "Station 2") Station 2 Station 1 Directly connected CPU Station 1 PG Station 3 Accessible CPUs

(22)

Date: 02.12.2005 File: SERV2_02E.22

SIMATIC S7

Modifying Outputs in the Stop State

Function and The "Enable Peripheral Outputs" function can only be activated when the CPU is Area of Use in the STOP state. It switches off the output disable of the peripheral outputs

(PQ). This enables you to modify the peripheral output when the CPU is in the STOP mode.

The "Enable Peripheral Outputs" function is used mainly to check the wiring of the peripheral outputs. It can, however, also be used to continue to control actuators in the process, even though the CPU has gone into the STOP mode because an error has occurred.

What To Do To enable the peripheral outputs, proceed as follows:

1. Open or edit a variable table (VAT) that contains the peripheral outputs that you want to test or modify

(specify the peripheral outputs byte-by-byte, word-by-word or doubleword-by- doubleword; you cannot modify individual output bits!)

2. Select the PLC -> Connect to… menu option to establish a connection to the CPU you want

3. Switch the CPU to the STOP state

4. Enter the appropriate values for the peripheral outputs you want to modify in the "Modify Value" column.

Examples: PQB 7 Modify Value: 2#01000011

PQW 2 W#16#0027

PQD 4 DW#16#0001

5. Use Variable -> Enable Peripheral Outputs to activate the modifying of the outputs

6. Use Variable -> Activate Modify Values to modify the peripheral outputs. 7. To assign new modify values, enter these and then activate them with

Variable -> Activate Modify Values

Note Modifying or "Enable Peripheral Outputs" remains active until you deactivate it using Variable -> Enable Peripheral Outputs or you press the ESC key. When

(23)

Exercise 1: Performing a CPU Memory Reset and Warm Restart

From the PG

- Mode selector in “RUN-P” position - Menu options:

PLC -> Diagnostic/Setting -> Operating Mode -> Stop

- Menu options:

PLC -> Diagnostic/Setting

-> Clear/Reset

- Confirm memory reset by clicking the “OK” button (fast flashing of "STOP" LED

indicates memory reset being performed) - Menu options: PLC -> Diagnostic/Setting -> Operating Mode -> Warm Restart - Mode selector in “STOP” position - Insert Memory Card

(slow flashing of "STOP" LED indicates request for memory reset)

- Switch the mode selector quickly to the "MRES" position and release (fast flashing of "STOP" LED indicates memory reset being performed)

After Inserting a Memory Card

- Switch mode selector to "RUN" or "RUN-P" position

- Mode selector in “STOP” position - Hold mode selector

in “MRES” position until the “STOP” LED flashes twice (slowly) - Release mode

selector (returns automatically to the “STOP” position) - Switch the mode

selector quickly to the "MRES" again and release (fast flashing of "STOP" LED

indicates memory reset being performed)

Manually

- Switch mode selector to "RUN" or "RUN-P" position Memory Re set Function Request Memory Reset Perform Memory Reset Perform Warm Restart

Task You are to perform a CPU memory reset and check whether the memory reset was successful.

What to Do 1. Carry out the memory reset according to the steps in the slide above 2. Check the success of the memory reset (only if you have a CPU previous to

Oct. 2002. The memory reset was successful when only system blocks (SDBs, SFCs, SFBs) are left in the CPU .

In the SIMATIC Manager -> switch to the Online View using -> double-click on MPI=2 -> double-click on Blocks

Notes When the CPU memory is reset, all user data in the CPU are deleted. To make sure that no “old” blocks are left in the CPU, a memory reset of the CPU should be performed. The following takes place during a memory reset: • All user data are deleted

(with the exception of the MPI parameter assignments). • Hardware test and initialization

• If an Eprom memory card or a Micro Memory Card is installed, the CPU copies the memory card contents back into the internal RAM after the memory reset.

• If no memory card or Micro Memory Card is installed, the preset MPI

address is retained. If, however, a memory card is installed, the MPI address stored on it is loaded.

• The contents of the diagnostic buffer (which can be displayed with the PG) are retained

(24)

Exercise 2: Retrieving a Project and Save As

Task You are to retrieve a project and save it under the name "My_Project". What to Do 1. Start the SIMATIC Manager

2. Delete the old project "My_Project" (should it exist):

File -> Delete -> User Projects -> select "My_Project" from the list -> confirm

3. Retrieve the project “SERV2_A":

File -> Retrieve -> select "SERV2_A.ZIP" from the list ->

acknowledge with "OK" -> select "S7-Courses" from the list of target directories -> acknowledge message with "YES"

4. Save the project under the name "My_Project"

File -> Save as... -> User projects -> enter "My_Project" as the name -> confirm

Notes The project contains the program for the conveyor model as you edited it in the previous course - ST-SERV1, a hardware station and a ProTool/Pro project for the TP170B.

(25)

Task Since different training units and CPUs are used for the courses, the available CPU has to be integrated into the setpoint configuration.

During the course, corrections to the hardware configuration also have to be made.

Note If you have an S7-400 training unit, use the HW Station "S7-400". What to Do 1. Start the "HW Conf" tool

2. Adapt the hardware configuration for the training unit 3. Exchange the CPU for correct one

4. Save and compile the configuration 5. Download the configuration into the CPU

(26)

Exercise Preparation: Attaching the Fault Simulation Connector

Fault simulation connector

Task In the following two exercises, you are to check the wiring of the sensors and actuators of the conveyor model to the digital input and output modules. The errors that you are to determine are simulated using a fault simulation connector. This connector must first be attached to the conveyor model. What to Do 1. Remove the 32-pin Sub-D plug on the conveyor model

2. Attach the fault simulation connector to the conveyor model 3. Attach the 32-pin Sub-D plug to the fault simulation connector

(27)

Exercise 4: Testing the Sensor‘s Wiring on the Conveyor Model

Task In this exercise, you are to check the wiring of the conveyor model‘s sensors to the digital input modules according to the symbol table (see slide). You will check the wiring of the actuators in the next exercise.

Note The errors that occur are simulated by the fault simulation unit that you just attached. Your task is to determine the errors, not to eliminate them! What to Do 1. Start the "Monitor/Modify Variable" function

SIMATIC®

Manager -> PLC -> Monitor/Modify Variable

2. Enter the inputs shown in the slide into the variable table. Activate variable monitoring using

Insert -> Range of Variables -> as of Address: I 4.0, Number: 8, Display Format: BIN

3. To check the input wiring, press the sensors on the conveyor model one after the other and observe whether the associated input states are displayed on the screen

4. After you have completed the input wiring test, save the variable table under the name "I/O Conveyor Model"

Table -> Save as... -> in the dialog, open the Blocks folder of the HW Station "S7_300 _Station" -> enter the object name "I/O Conveyor Model" -> OK

5. Exit the Monitor / Modify Variable function

Result 1st. error: ... Possible Cause: ... 2nd. error: ...

(28)

Exercise 5: Testing the Actuator‘s Wiring on the Conveyor Model

Example:

Conveyor to the right

Task Now check the wiring of the conveyor model‘s actuators to the digital output modules using the function "Enable Peripheral Outputs" .

What to Do 1. Open the "I/O Conveyor Model" variable table from the previous exercise

SIMATIC®_{Manager -> open the Blocks folder of the HW Station}

"S7_300_Station" -> double-click on "I/O Conveyor Model"

2. Add the peripheral output byte PAB 0 Display format "binary" to the variable table

3. Even if it isn‘t necessary here:

Establish a connection to the directly connected CPU

PLC -> Connect to -> Direct CPU

4. Activate the function "Enable Peripheral Outputs"

Variable -> Enable Peripheral Outputs

5. To test the output wiring, enter the state 1 for the respective output in the column "Modify Value", activate it using and observe whether the associated actuator on the conveyor model is energized.

6. Exit the Monitor / Modify Variable function.

Result 1st. error: ... Possible cause: ... 2nd. error: ... Possible cause: ... 3rd. error: ...

(29)

Exercise 6: Checking the Interface of the TP170B

Loader B6.0.2.16 Transfer Start Control Panel Transfer Settings Channel Directories X OK Advanced Enable Channel Remote Control Serial: Channel 1: Enable Channel Remote Control Channel 2: MPI S7-Transfer Settings OKX Properties... MPI Profibus MPI OK_X Address: Station Parameters

Panel is the only master on bus

1 s Time-out: Transmission Rate: NetworkParameters 31 Highest Station: 1 187,5 kbits\s

Task The interface of the TP170B is to be set up as in the slide, so that the ProTool/Pro project can then be downloaded from the PG.

What to Do 1. Exit Runtime on the TP170B 2. Press the "Control Panel" button 3. Double-click on the "Transfer" icon 4. Define the settings as in the slide

5. With "OK", accept the settings until you get back to the "Control Panel" 6. Double-click on the "OP" icon

7. Press the "Save Registry" button

8. With "OK", accept the settings until you get back to the screen with the "Transfer", "Start" and "Control Panel" buttons

9. Press the "Transfer" button. The TP 170B then waits for a connection from the PG.

(30)

Exercise 7: Downloading a ProTool Project

Task You are to download the ProTool/Pro project to the TP170B. What to Do 1. Open the ProTool/Pro project by double-clicking on the object

"TP170B_Colour"

2. Click on the "Download" icon

3. Acknowledge the messages that follow 4. Exit ProTool/Pro.

(31)

Exercise 8: Downloading the Program

Task The "Demo_1" S7 program contains the program for the conveyor model from the previous course - ST-SERV1.

This program is to be downloaded and in the next exercise the function is to be tested.

What to Do 1. Select the "Blocks" object from the "Demo_1" S7 program 2. Click on the icon

3. Acknowledge the message "Do you want to load the system data?" with "No".

4. Switch on the conveyor model with S5 = ON

5. Connect the TP 170B and the PG to the MPI interface and the ET 200S and the Micromaster to the Profibus interface 6. Carry out a warm restart on the CPU.

(32)

Exercise 9: Function Test of the Conveyor Model

System Function The conveyor model is to be operated through a screen on the TP170B as follows.

System ON/OFF The system is switched on through the "System On" button and off through the "System Off" button.

When the system is on, you can then set the manual mode or the automatic mode.

Manual Mode The manual mode is selected with the "Auto/Manual" switch and is accepted with the "Accept" button.

In manual mode, a part can be moved in the direction of the light barrier with "Jog right" or in the other direction with "Jog left" as long as the appropriate button is pressed.

Automatic Mode When the system is on, automatic mode can be selected with the "Auto/Manual" switch and can be accepted with the "Accept" button.

In automatic mode, the parts are placed on the conveyor in front of the proximity sensor "Ini1" or "Ini2". After acknowledging with the appropriate "S1" or "S2" momentary-contact switch, the conveyor moves until the part has crossed the light barrier. If the conveyor doesn‘t reach the light barrier within 6 seconds, the conveyor stops and a fault is indicated on an LED on the simulator. This fault can be acknowledged by pressing the momentary-contact switch I1.0 ("T_Ackn_Fault).

The number of completed parts are counted as they cross the light barrier and are displayed on the output field "Actual_Quantity". When the preset setpoint quantity is reached, it is indicated on the LED "H4" on the conveyor model. Until this is acknowledged with the momentary-contact switch "S4", no new transport function can be started.
