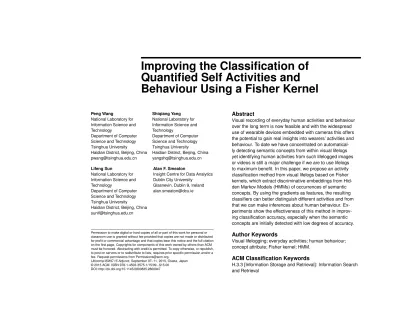

Improving the Classification of

Quantified Self Activities and

Behaviour Using a Fisher Kernel

Peng Wang

National Laboratory for Information Science and Technology

Department of Computer Science and Technology Tsinghua University

Haidian District, Beijing, China [email protected]

Shiqiang Yang

Lifeng Sun

Alan F. Smeaton

Insight Centre for Data Analytics Dublin City University

Glasnevin, Dublin 9, Ireland [email protected]

Permission to make digital or hard copies of all or part of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies bear this notice and the full citation on the first page. Copyrights for components of this work owned by others than ACM must be honored. Abstracting with credit is permitted. To copy otherwise, or republish, to post on servers or to redistribute to lists, requires prior specific permission and/or a fee. Request permissions from [email protected].

DOI: http://dx.doi.org/10.1145/2800835.2800947

Abstract

Visual recording of everyday human activities and behaviour over the long term is now feasible and with the widespread use of wearable devices embedded with cameras this offers the potential to gain real insights into wearers’ activities and behaviour. To date we have concentrated on automatical-ly detecting semantic concepts from within visual lifelogs yet identifying human activities from such lifelogged images or videos is still a major challenge if we are to use lifelogs to maximum benefit. In this paper, we propose an activity classification method from visual lifelogs based on Fisher kernels, which extract discriminative embeddings from Hid-den Markov Models (HMMs) of occurrences of semantic concepts. By using the gradients as features, the resulting classifiers can better distinguish different activities and from that we can make inferences about human behaviour. Ex-periments show the effectiveness of this method in improv-ing classification accuracy, especially when the semantic concepts are initially detected with low degrees of accuracy.

Author Keywords

Visual lifelogging; everyday activities; human behaviour; concept attribute; Fisher kernel; HMM.

ACM Classification Keywords

H.3.3 [Information Storage and Retrieval]: Information Search and Retrieval

(2)

Introduction

As an important source of quantified self information, lifel-ogging [5] is concerned with digitally capturing media-rich representations of everyday activities, making available a person’s experiences in the form of events, interactions and relationships. Such rich pools of information are collect-ed by individuals to characterize their own activities and behaviour for a variety of use cases. Visual recordings of events contain rich semantics which can be used to in-fer information about underlying activities including ‘Who’, ‘What’, ‘Where’ and ‘When’. Visual lifelogging has now de-veloped as an important aspect of the quantified self field which represents human behaviour using image-based or video-based media.

Whatever the reason for collecting such personal lifelog images or videos, be it for posterity, medical or well-being reasons, memory support or just for leisure, finding discrete human activities of interest from large lifelog collections and interpreting them via semantic meaning is crucial if we are to build real-world applications which focus on hu-man behaviour. State-of-the-art approaches to identifying semantics from visual media use statistical techniques to map low-level local or global features like colour, texture or shape, to high-level semantic concepts like “indoor", “build-ing" or “walk", a process termed “concept detection”. The natural progression is from a lifelog image or video, to a set of such semantic concepts occurring in the image, and then to infer an activity the wearer was participating in while the image was taken based on the presence or absence of se-mantic concepts. Following that, we can then to aggregate activities over a long period of time in order to reason about the wearer’s behaviour or identify changes in it.

Figure 1: The dynamics of concept

attributes quantified by confidences returned by concept detections.

Though effective in annotating visual media with individu-al concepts, concept detection in lifelogging has, to date,

mostly failed to exploit temporal relationships among con-cepts which could provide useful information for activity or event classification. Some previous work has looked at temporal modeling of activities on top of concept detection in order to enhance the accuracy of either the underlying semantic concept detection [12], or the resulting activity characterization [11]. In [2], the authors showed that com-bining concept detection with temporal representations of those concept occurrences is promising when detecting more complex events on top of which events can then be inferred. In [8], Fisher kernel techniques were applied to encode the transitions between concept occurrences and absences over time. This encoding was into a compact and fixed-length feature vector which was used as the basis for further classification. Motivated by this previous work on modelling of events from a temporal viewpoint, we pro-pose to apply Hidden Markov Models (HMMs) to model the time-varying dynamics of concept attributes, capturing the streams of occurrence and absense of semantic concept-s individually and in combination. The Ficoncept-sher concept-scoreconcept-s are then extracted from the resulting generative model to form a set of even more compact and discriminate features. In theory this method has the capability of combining the ad-vantages of generative and discriminative approaches in both temporal modeling and classification and we shall see how effective it is in practice.

Dynamics of Semantic Attributes

Using state-of-the-art concept detection methods, accept-able results can be achieved in some cases particular-ly for narrow domains and for concepts for which there exists enough annotated training data, according to the TRECVid benchmark [7]. The technology of automatic de-tection of concepts enables searching through visual lifel-ogs based on semantic attributes and this kind of content-based search on visual media has been validated as

(3)

use-ful for carrying out analysis of lifestyle behaviour patterns [3], [4]. However, despite recent progress, automatic con-cept detectors are still far from perfect and how to classify high-level events/activities based on such noisy semantic attributes needs to be tackled. This is especially important for cases where we then build upon the detected concepts such as using them to infer activities and then behaviour. For quantified self applications, there is a further challenge because of the diverse range of usable concepts, and the generally noisy nature of the lifelog data because of the wearers’ movements and because even the images cap-tured passively within the same lifelogged event may have significant perceptual differences.

Inspired by recent work on attribute-based temporal mod-eling [8], [11], we model the dynamic evolution of human activities using concept detection results as input. In ef-fect this means that streams of activities are represent-ed as sequences of units such as clips or frames. Con-cept detections are applied to each of units and by con-catenating the output results (confidences) of pre-trained concept detectors at the same timestep as a vector, one activity stream can be represented by a temporally or-dered sequence of vectors, as shown in Fig. 1. In a set of activity samplesX, each activity can be structured as Xn ={xn1, xn2, ..., xnt, ...}withxnt ∈ Rdrepresenting a

fixed length confidence vector whose dimension is equal to d, the number of concepts detected.

Using a HMM Fisher Kernel for Activity

Classifi-cation

Since HMMs have previously been validated as effective in characterising lifelogging activities [11], we employed HMM-s to encode the dynamic diHMM-stributionHMM-s of conceptHMM-s through-out lifelog events. Assume there arelhidden states in the HMM and each pair of states have a transition probability

aij = P (si|sj). The parameters of the HMM can be

denot-ed asλ = (A, B, π), whereA ={aij},π = {πi}stands

for the initial state distribution.bj(Xt)is the distribution of

the concept observationXtat time steptwith respect to

statej. Because the confidence vectorXthas

continu-ous values, we employed Gaussian emission distributions bj(Xt) =N (Xt, µi, σi)andB ={µi, σi}. Parametersµi

andσiare the mean and covariance matrix of the Gaussian

distribution in stateirespectively.

The principle of the Fisher kernel is that similar samples should have similar dependence on the generative model, i.e. the gradients of the parameters [6]. Instead of directly using the output of generative models, using a Fisher kernel tries to generate a feature vector which describes how the parameters of the activity model should be modified in order to adapt to different samples. Based on the above formal-ization of a HMM,X can be characterized as Fisher scores with regard to the parametersλ:

UX =∇λlogP (X|λ) = [ ∂logP ∂aij ,∂logP ∂uik ,∂logP ∂σik ,∂logP ∂πi ]T (1) where1 ≤ i ≤ land1 ≤ k ≤ d. Therefore, the Fisher kernel can be formalized asK(Xi, Xj) = UXTiIFU

T Xj, whereIF = EX(UXUXT)denotes the Fisher information

matrix.

Experiments and Evaluation

Experimental Setup

To evaluate our proposed activity classification algorith-m, we performed a comprehensive assessment of our ap-proach using datasets with various accuracies for semantic concept detection [11]. The 16 everyday activity types list-ed in Table 1 are uslist-ed in the evaluation for which 10,497 lifelogged images have been collected from the SenseCam

(4)

wearable camera, worn by 4 people with different demo-graphics. SenseCam1is a camera, worn around the neck and facing forward, which continuously captures images from a first-person view of the wearer. Note that the activi-ties in Table 1 are chosen based on time dominance, gen-erality and high frequency of occurrence [10], and can be used to support applications like independent living assis-tance, obesity analysis, and chronic disease diagnosis.

Eating Drinking Cooking

Clean/Tidy Use computer Watch TV

Child care Food shopping Shopping (non-food)

Reading Using phone Driving

Taking bus Walking (listen to) Presentation

Talking

Table 1: Everyday activity types in our evaluation. Since we wish to explore the impact of the accuracy of se-mantic concept detection as a variable in the recognition of activities, concept detection results are simulated based on groundtruth annotations, following the work of [1] and [11]. By simulating downgrading of the detection accuracy based on a 100% accurate ground truth as a starting point we can control the levels of concept detection accuracies and in this way a comprehensive comparison can be car-ried out to evaluate our proposed activity classification in a realistic setting. In this experiment, concept detectors for 85 concepts are simulated by changing the controlling parame-terµ1[11] and Fig. 2 shows averaged concept MAP (mean

average precision) by 20 simulation runs. Baselines

Figure 2: Averaged concept MAP

with differentµ1values.

Figure 3: Confusion matrix when

using HMM log-likelihood representation as features.

Figure 4: Confusion matrix for our

proposed Fisher kernel-based classification.

In order to evaluate the performance of the Fisher kernel in a discriminative classifier, we employed two widely used

1_{www.research.microsoft.com/sensecam/}

classifiers: support vector machines (SVMs) and k-nearest neighbor classifiers (KNNs).

The generative method based on HMMs as used in [11] is employed as one baseline. The HMMs are first trained for each activity class and we concatenate the log-likelihood representations of per-class posteriors into a vector. The LibSVM2implementation of SVMs with the linear kernel is employed to perform SVM classifications on log-likelihood representations.

For the KNN classifier, dynamic time warping (DTW) is ap-plied to the activity samples based on Euclidian similarity, i.e. minimizing the sum of distances between correspond-ing samples. As previously pointed out, the length of the human activity will naturally vary across different classes or samples and this step is to perform temporal alignment on these variable-length time series.

Results

To alleviate the sub-optimal problem of Fisher kernels in-duced by (nearly) zero gradient representations of a gener-ative model, we employed a model parameter learning as proposed in [9], to train the model so that samples of the same class will have more similar gradients than the other classes. The Fisher kernel is then embedded in the SVMs for activity classification. To simplify the computation, we approximateIF by the identity matrix in the implementation.

In Table 2, activity classification accuracies are listed for all methods at different performance levels for concept de-tection. For classifications based on log-likelihood (HM-M+SVM) and on Fisher kernel (FK+SVM), the generative models are obtained with two-state ergodic HMMs to mod-el the sequence of concept occurrences. Following [11],

(5)

Concept Detection Performances (MAPs) Methods 0.095 0.157 0.265 0.412 DWT+KNN 10.0± 1.7 20.8± 2.8 40.1± 6.4 59.1± 2.6 HMM+SVM 26.2± 2.2 65.2± 1.6 69.8± 1.8 77.4± 2.1 FK+SVM 50.0± 2.8 72.7± 2.2 80.6± 2.6 85.1± 1.5 0.580 0.731 0.848 0.925 DWT+KNN 73.5± 4.8 81.3± 2.8 85.8± 1.7 89.1± 0.8 HMM+SVM 82.1± 3.1 85.1± 1.6 85.9± 1.5 86.6± 1.2 FK+SVM 86.1± 2.6 87.6± 0.3 90.2± 2.0 89.2± 0.8

Table 2: Accuracy comparison (in percentages) at different

concept detection accuracies.

we applied latent semantic analysis to map the original attribute space to a more compact 35-dimensional space according to the contextual correlation of concept occur-rences. Multivariate Gaussian emission probabilities with full covariance matrices are employed in the HMMs to mod-el the high dimensional features.

Hidden States MAPs 5 10 20 0.095 0.50 0.50 0.50 0.157 0.72 0.73 0.75 0.265 0.81 0.82 0.84 0.412 0.87 0.88 0.89 0.580 0.90 0.91 0.93 0.731 0.92 0.93 0.95 0.848 0.93 0.95 0.96 0.925 0.94 0.95 0.97 Table 3: Performances of FK+SVM

with different numbers of hidden states.

As shown in Table 2, the classification based on the Fisher kernel significantly out-performs the baselines across var-ious concept detection accuracies. Most especially, when concept detection accuracies are not high, such as when theM AP < 0.5which is a realistic expectation accord-ing to the TREVid benchmark [7], the improvement can be as high as greater than10%for most cases. This suggests that our proposed method can encode the dynamic features of concept occurrences into more discriminative features. This is especially useful for real-world quantified self appli-cations where concept detections are noisy and inaccurate due to reasons including visual diversity, user movemen-t of movemen-the camera causing blurring, image qualimovemen-ty, emovemen-tc. The discriminative capability of the proposed method is also

il-lustrated by Fig. 3 and 4 in which the two features extracted from HMMs are used at the same concept detectionM AP (0.157). While more samples are mistakenly classified us-ing HMM log-likelihood representations (average accuracy

65.2%), less mis-classifications are made when embedding SVMs with Fisher scores and kernels (average accuracy

72.7%).

In addition to the performances demonstrated in Table 2 us-ing two hidden states, the results for the proposed FK+SVM methods with 5, 10, and 20 states are also shown in Ta-ble 3. As shown in the taTa-ble, similar results to TaTa-ble 2 are obtained across different numbers of hidden states. This reflects the robustness of the Fisher kernel-based activity classification method.

Conclusions

Automatic detection of human activities based on visual lifelogs represents a natural use of such lifelogs. However, due to the variety of activities humans are involved in com-bined with the movement of the wearable lifelog camera as images are taken, the diversity of concepts and the quali-ty of images poses challenges to reliably detecing human activities form visual media. This is partly due to the diffi-culty of discriminating activities of interest from others. In this paper, we propose to employ a Fisher kernel to extract embedding from HMMs which model human activities, for more accurate activity classification based on concept oc-currences. Experimental results have shown the advantage of reflecting temporal features and making classification more accurate, especially when concept detection has poor performance as measure byM AP, which is common in real-world quantified self applications.

(6)

Acknowledgements

This work was funded by the National Natural Science Foundation of China under Grant No. 61272231, 61472204, Beijing Key Laboratory of Networked Multimedia and by Science Foundation Ireland under grant SFI/12/RC/2289.

REFERENCES

1. Robin Aly, Djoerd Hiemstra, Franciska de Jong, and Peter Apers. 2011. Simulating the future of

concept-based video retrieval under improved detector performance. Multimedia Tools and Applications (2011), 1–29.

2. Subhabrata Bhattacharya, Mahdi Kalayeh, Rahul Sukthankar, and Mubarak Shah. 2014. Recognition of Complex Events exploiting Temporal Dynamics between Underlying Concepts. In CVPR 2014. 2243–2250.

3. Daragh Byrne, AidenR. Doherty, CeesG.M. Snoek, GarethJ.F. Jones, and AlanF. Smeaton. 2010. Everyday concept detection in visual lifelogs: validation,

relationships and trends. Multimedia Tools and Applications 49, 1 (2010), 119–144.DOI: http://dx.doi.org/10.1007/s11042-009-0403-8

4. Aiden R. Doherty, Niamh Caprani, Ciaran O’Conaire, Vaiva Kalnikaite, Cathal Gurrin, Noel E. O’Connor, and Alan F. Smeaton. 2011. Passively recognising human activities through lifelogging. Computers in Human Behavior 27, 5 (2011), 1948–1958.

5. Cathal Gurrin, Alan F. Smeaton, and Aiden R. Doherty. 2014. LifeLogging: Personal Big Data. Foundations and

Trends in Information Retrieval 8, 1 (2014), 1–125.

DOI:http://dx.doi.org/10.1561/1500000033

6. Tommi S. Jaakkola and David Haussler. 1999. Exploiting Generative Models in Discriminative Classifiers. In NIPS 1999. 487–493.

7. Alan F. Smeaton, P. Over, and W. Kraaij. 2008. High Level Feature Detection from Video in TRECVid: a 5-year Retrospective of Achievements. In Ajay Divakaran (Ed.), Multimedia Content Analysis, Theory and Applications. Springer, 151–174.

8. Chen Sun and Ram Nevatia. 2013. ACTIVE: Activity Concept Transitions in Video Event Classification. In ICCV 2013. 913–920.

9. Laurens van der Maaten. 2011. Learning Discriminative Fisher Kernels. In ICML 2011. 217–224.

10. P. Wang and A.F. Smeaton. 2012. Semantics-based selection of everyday concepts in visual lifelogging. International Journal of Multimedia Information Retrieval 1, 2 (2012), 87–101.

11. Peng Wang and Alan F. Smeaton. 2013. Using visual lifelogs to automatically characterize everyday activities. Information Sciences 230, 0 (2013), 147–161.DOI:http://dx.doi.org/10.1016/j.ins.2012.12.028

12. Peng Wang, Alan F. Smeaton, and Cathal Gurrin. 2015. Factorizing Time-Aware Multi-way Tensors for

Enhancing Semantic Wearable Sensing. In MMM 2015. 571–582.
