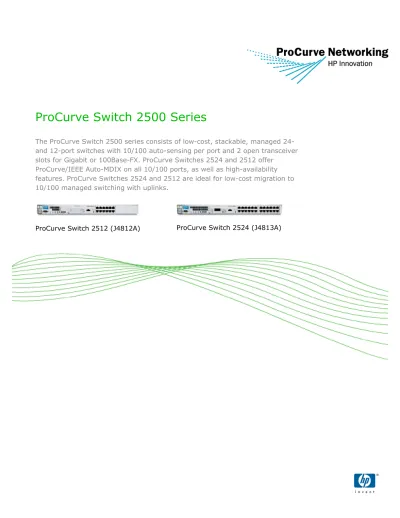

ProCurve Switch 2500 Series
The ProCurve Switch 2500 series consists of low-cost, stackable, managed
24-and 12-port switches with 10/100 auto-sensing per port 24-and 2 open transceiver
slots for Gigabit or 100Base-FX. ProCurve Switches 2524 and 2512 offer
ProCurve/IEEE Auto-MDIX on all 10/100 ports, as well as high-availability
features. ProCurve Switches 2524 and 2512 are ideal for low-cost migration to
10/100 managed switching with uplinks.
Features and benefits
• 9.6 Gbps switch fabric integrated
on-chip:
high-performance switch design with a
non-blocking architecture
• ProCurve/IEEE Auto-MDIX:
automatically
adjusts for straight-through or crossover cables on
all 10/100 ports
• RMON, XRMON, and SMON:
provide advanced
monitoring and reporting capabilities for statistics,
history, alarms, and events
• Stacking capability:
single IP address management
for a virtual stack of up to 16 switches, including
the ProCurve 2500 series, 2600 series, 2800 series,
3400cl series, 6108, 6400cl series, and 4100gl
series
• Web interface:
allows you to configure the switch
from any Web browser on the network
• 802.3ad Link Aggregation Control Protocol
(LACP) and ProCurve trunking:
support a single
trunk with up to 4 links (ports)
• VLAN support and tagging:
support up to 30
port-based VLANs and dynamic configuration of
802.1Q VLAN tagging, providing security between
workgroups
• Group VLAN Registration Protocol
(GVRP):
allows automatic learning and dynamic
assignment of VLANs
• IP multicast (IGMPv3):
automatically prevents
flooding of IP multicast traffic
• Port security:
prevents unauthorized access using
MAC address lockdown
• Spanning Tree Protocol:
provides redundant links
while preventing network loops
• IEEE 802.1p prioritization:
delivers data to
devices based on the priority and type of traffic
• TACACS+:
eases switch management security
administration by using a password authentication
server
• Cisco Fast EtherChannel® (FEC):
supports Cisco's
proprietary FEC trunking protocol
• 802.1w Rapid Convergence Spanning Tree
Protocol :
increases network uptime through faster
recovery from failed links
• 802.1X and RADIUS network login:
control
port-based access for authentication and
accountability
• Cisco Discovery Protocol (CDP):
enables real-time
mapping of nodes to switch ports
• Friendly port names:
allows assignment of
descriptive names to ports
• Lifetime warranty:
for as long as you own the
product, with next-business-day advance
replacement (available in most countries)
Services
ProCurve Switch 2512
•
Installation with minimum configuration,
system-based pricing (U4826A/E)
•
Installation with HP-provided configuration,
system-based pricing (U4830A/E)
•
3-year, 4-hour onsite, 13x5 coverage for hardware
(U4683A/E)
•
3-year, 4-hour onsite, 24x7 coverage for hardware
(U4835A/E)
•
3-year, 4-hour onsite, 24x7 coverage for hardware,
24x7 software phone support (U6321A/E)
ProCurve Switch 2524
•
Installation with HP-provided configuration,
system-based pricing (U4830A/E)
•
Installation with minimum configuration,
system-based pricing (U4826A/E)
ProCurve Switch 2500 Series
•
3-year, 4-hour onsite, 13x5 coverage for hardware
(U4683A/E)
•
3-year, 4-hour onsite, 24x7 coverage for hardware
(U4835A/E)
•
3-year, 4-hour onsite, 24x7 coverage for hardware,
24x7 software phone support (U6321A/E)
Specifications
ProCurve Switch 2512 ProCurve Switch 2524 Ports
12 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX)
24 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX)
2 open transceiver slots 2 open transceiver slots 1 RS-232C DB-9 console port 1 RS-232C DB-9 console port
Physical characteristics
Dimensions 17.4(d) x 8.0(w) x 1.8(h) in. (44.2 x 20.32 x 4.57 cm) (1U height)
17.4(d) x 8.0(w) x 1.8(h) in. (44.2 x 20.32 x 4.57 cm) (1U height) Weight 6.0 lb. (2.72 kg), fully loaded 6.0 lb. (2.72 kg), fully loaded
Memory and processor
Processor type and speed ARM7TDMI, 62.5 MHz ARM7TDMI, 62.5 MHz Packet buffer size: 6 MB Packet buffer size: 6 MB
RAM/ROM capacity 26 MB 26 MB
Flash capacity 2 MB 2 MB
Mounting Mounts in a standard 19 in. rack (hardware included)
Mounts in a standard 19 in. rack (hardware included)
Performance
Latency < 10 µs (LIFO) < 10 µs (LIFO)
Throughput 4.8 million pps (64-byte packets) 6.6 million pps (64-byte packets)
Switching capacity 9.6 Gbps 9.6 Gbps
Routing table size 4,096 entries 4,096 entries
Environment
Operating temperature 32 °F to 131 °F (0 °C to 55 °C) 32 °F to 131 °F (0 °C to 55 °C) Operating relative humidity 15 % to 95 % at 104 °F (40 °C),
non-condensing 15 % to 95 % at 104 °F (40 °C), non-condensing Non-operating/storage temperature -40 °F to 158 °F (-40 °C to 70 °C) -40 °F to 158 °F (-40 °C to 70 °C) Non-operating/storage relative humidty 15 % to 95 % at 149 °F (65 °C), non-condensing 90 % to 90 % at 149 °F (65 °C), non-condensing
Shock and vibration HP759, HP760 (similar to EN 60068, IEC 68)
HP759, HP760 (similar to EN 60068, IEC 68)
Electrical characteristics
Maximum Heat Dissipation 123 BTU/hr 123 BTU/hr
Voltage 100-127 VAC/200-240 VAC 100-127 VAC/200-240 VAC
Current 2.4 A /1.2 A 2.4 A /1.2 A
Power consumption 36 W 36 W
Frequency 50/60 Hz 50/60 Hz
Safety cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition
cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition
Emissions FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Immunity
Generic EN 50082-1 EN 50082-1
ESD IEC/EN 61000-4-2; 4 kV CD, 8 kV AD IEC/EN 61000-4-2; 4 kV CD, 8 kV AD Radiated IEC/EN 61000-4-3; 3V/m IEC/EN 61000-4-3; 3V/m
EFT/Burst IEC/EN 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
IEC/EN 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
ProCurve Switch 2500 Series
Management ProCurve Manager Plus; ProCurve Manager (Included); Command line interface; Web browser;
Configuration menu; Out-of-band management (serial RS-232C)
ProCurve Manager Plus; ProCurve Manager (Included); Command line interface; Web browser;
Configuration menu; Out-of-band management (serial RS-232C)
Standards and protocols IEEE 802.3x Flow Control; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol; Cisco Fast EtherChannel® (FEC); RFC 1492 TACACS+; IEEE 802.1X Network Login; IEEE 802.1Q VLANs; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c; Cisco Discovery Protocol v1 (CDPv1); RFC 1493 Bridge MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm), and 9 (events); RFC 3164 Syslog; XRMON; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
IEEE 802.3x Flow Control; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol; Cisco Fast EtherChannel® (FEC); RFC 1492 TACACS+; IEEE 802.1X Network Login; IEEE 802.1Q VLANs; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c; Cisco Discovery Protocol v1 (CDPv1); RFC 1493 Bridge MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm), and 9 (events); RFC 3164 Syslog; XRMON; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
Accessories
ProCurve 100-FX SC Transceiver (J4853A)
with one 100Base-FX port
Ports
1 100Base-FX ports (IEEE 802.3u Type 100Base-FX)
Connectors: SC
Duplex: half or full (full duplex only when installed in
Duplex: unmanaged switches and 2500 series Physical characteristics Dimensions: 3.8 (d) x 2.05 (w) x 0.95 (h) in. (9.65 x 5.21 x 2.41 cm) Weight: 0.09 lb. (0.04 kg) Cabling 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively
Maximum Distance
2 km (full-duplex) or 412 m (half-duplex)
ProCurve 100/1000-T Transceiver (J4834A)
with one 100/1000 auto-sensing port
Ports
1 auto-sensing 10/1000 ports (802.3u Type 100Base-TX; 802.3ab Type 1000Base-T) Connectors: RJ-45
Duplex: 100Base-TX: half or full Duplex: 1000Base-T: full
Physical characteristics
Dimensions: 3.8 (d) x 2.05 (w) x 0.95 (h) in. (9.65 x 5.21 x 2.41 cm)
Weight: 0.11 lb. (0.05 kg)
Cabling
100Base-TX: Category 5 (or better), 100 ohm differential unshielded twisted pair (UTP) or shielded twisted pair (STP), complying with IEEE 802.3u 100Base-TX 1000Base-T: Category 5 (5E or better recommended), 100 ohm differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000Base-T
Maximum Distance
100 m
ProCurve Switch 2500 Series
ProCurve Gigabit-LX Transceiver (J4132A)
with one 1000Base-LX port
Ports
1 1000Base-LX port (IEEE 802.3z Type 1000Base-LX) Connectors: SC Duplex: full Physical characteristics Dimensions: 3.8 (d) x 2.05 (w) x 0.95 (h) in. (9.65 x 5.21 x 2.41 cm) Weight: 0.09 lb. (0.04 kg) Cabling
Either single mode or multimode
62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively
9/125 µm (core/cladding) diameter, 1310 nm, low metal content, single-mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2 Type B1
Maximum Distance
10 km (single mode) or 550 m (multimode)
Notes
A mode conditioning patch cord may be needed in some multimode fiber installations.
ProCurve Gigabit-SX Transceiver (J4131B)
with one 1000Base-SX port
Ports
1 1000Base-SX port (IEEE 802.3z Type 1000Base-SX) Connectors: SC Duplex: full Physical characteristics Dimensions: 3.8 (d) x 2.05 (w) x 0.95 (h) in. (9.65 x 5.21 x 2.41 cm) Weight: 0.09 lb. (0.04 kg) Cabling 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively Maximum Distance 220 m (62.5 µm core diameter, 160 MHz/km bandwidth) 275 m (62.5 µm core diameter, 200 MHz/km bandwidth) 500 m (50 µm core diameter, 400 MHz/km bandwidth) 550 m (50 µm core diameter, 500 MHz/km bandwidth)
ProCurve Switch Gigabit Stacking Kit (J4116A)
with 2 Gigabit transceivers plus interconnecting cable
Ports
2 Gigabit transceivers (1 HSSDC port each) Connectors: HSSDC Duplex: full Physical characteristics Dimensions: 3.8 (d) x 2.05 (w) x 0.95 (h) in. (9.65 x 5.21 x 2.41 cm) Weight: 0.09 lb. (0.04 kg) Cabling
Included with product
Maximum Distance
23.5 inches
