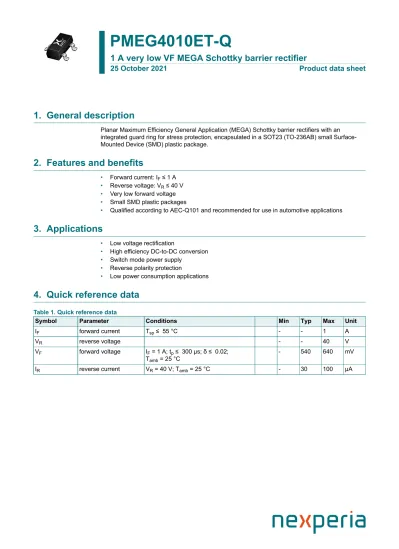

PMEG4010ET-Q. 1. General description. 2. Features and benefits. 3. Applications. 4. Quick reference data

(1)

25 October 2021 Product data sheet

1. General description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in a SOT23 (TO-236AB) small Surface- Mounted Device (SMD) plastic package.

2. Features and benefits

• Forward current: I

_F

≤ 1 A

• Reverse voltage: V

_R

≤ 40 V

• Very low forward voltage

• Small SMD plastic packages

• Qualified according to AEC-Q101 and recommended for use in automotive applications

3. Applications

• Low voltage rectification

• High efficiency DC-to-DC conversion

• Switch mode power supply

• Reverse polarity protection

• Low power consumption applications

4. Quick reference data

Table 1. Quick reference data

Symbol Parameter Conditions Min Typ Max Unit

I

_F

forward current T

_sp

≤ 55 °C - - 1 A

V

_R

reverse voltage - - 40 V

V

_F

forward voltage I

_F

= 1 A; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 540 640 mV

I

_R

reverse current V

_R

= 40 V; T

_amb

= 25 °C - 30 100 µA

(2)

5. Pinning information

Table 2. Pinning information

Pin Symbol Description Simplified outline Graphic symbol

1 A anode

2 n.c. not connected

3 K cathode

1 2

3

SOT23

006aaa436 A

K

n.c.

6. Ordering information

Table 3. Ordering information

Package Type number

Name Description Version

PMEG4010ET-Q SOT23 plastic, surface-mounted package; 3 terminals; 1.9 mm

pitch; 2.9 mm x 1.3 mm x 1 mm body SOT23

7. Marking

Table 4. Marking codes

Type number Marking code[1]

PMEG4010ET-Q %AW

[1] % = placeholder for manufacturing site code

Product data sheet 25 October 2021 2 / 10

(3)

8. Limiting values

Table 5. Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

V

_R

reverse voltage - 40 V

I

_F

forward current T

_sp

≤ 55 °C - 1 A

I

_FRM

repetitive peak forward

current t

_p

≤ 1 ms; δ ≤ 0.25 - 5 A

I

_FSM

non-repetitive peak

forward current t

_p

= 8 ms; square wave - 9 A

[1] - 280 mW

P

_tot

total power dissipation T

_amb

≤ 25 °C

[2] - 420 mW

T

_j

junction temperature - 150 °C

T

_amb

ambient temperature -65 150 °C

T

_stg

storage temperature -65 150 °C

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm².

9. Thermal characteristics

Table 6. Thermal characteristics

Symbol Parameter Conditions Min Typ Max Unit

[1] - - 440 K/W

R

_th(j-a)

thermal resistance from

junction to ambient [2] - - 300 K/W

R

_th(j-sp)

thermal resistance from

junction to solder point - - 120 K/W

[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm².

(4)

10. Characteristics

Table 7. Characteristics

Symbol Parameter Conditions Min Typ Max Unit

I

_F

= 0.1 mA; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 95 130 mV

I

_F

= 1 mA; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 155 210 mV

I

_F

= 10 mA; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 220 270 mV

I

_F

= 100 mA; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 295 350 mV

I

_F

= 500 mA; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 420 470 mV

V

_F

forward voltage

I

_F

= 1 A; t

_p

≤ 300 µs; δ ≤ 0.02;

T

_amb

= 25 °C - 540 640 mV

V

_R

= 10 V; T

_amb

= 25 °C - 7 20 µA

I

_R

reverse current

V

_R

= 40 V; T

_amb

= 25 °C - 30 100 µA

C

_d

diode capacitance V

_R

= 1 V; f = 1 MHz; T

_amb

= 25 °C - 43 50 pF

006aaa253

V_F (V)

0 0.1 0.2 0.3 0.4 0.5 0.6

1

10^{- 1} 10²

10 10³ I_F (mA)

10^{- 2}

(1) (2) (3) (4) (5)

pulsed condition (1) T

_amb

= 150 °C (2) T

_amb

= 125 °C (3) T

_amb

= 85 °C (4) T

_amb

= 25 °C (5) T

_amb

= -40 °C

Fig. 1. Forward current as a function of forward voltage; typical values

006aaa254

VR (V)

0 10 20 30 40

I_R (µA)

1

10^{- 2} 10^{- 1} 10⁴ 10³ 10² 10 10⁵

10^{- 3}

(1) (2) (3)

(4)

(5)

pulsed condition (1) T

_amb

= 150 °C (2) T

_amb

= 125 °C (3) T

_amb

= 85 °C (4) T

_amb

= 25 °C (5) T

_amb

= −40 °C

Fig. 2. Reverse current as a function of reverse voltage; typical values

Product data sheet 25 October 2021 4 / 10

(5)

VR (V)

0 10 20 30 40

40 60

20 80 100 C_d (pF)

0

f = 1 MHz; T

_amb

= 25 °C

Fig. 3. Diode capacitance as a function of reverse voltage; typical values

11. Test information

t1 t₂ P

t 006aaa812 duty cycle δ = t1

t2

Fig. 4. Duty cycle definition

Quality information

This product has been qualified in accordance with the Automotive Electronics Council (AEC)

standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in

automotive applications.

(6)

12. Package outline

18-03-12 Dimensions in mm

0.450.15

1.9

1.10.9 3.02.8

2.52.1 1.4 1.2

0.480.38 0.15 0.09

1 2

3

Fig. 5. Package outline SOT23

Product data sheet 25 October 2021 6 / 10

(7)

13. Soldering

solder lands solder resist

occupied area solder paste

sot023_fr (3×)0.5

(3×)0.6

(3×)0.6 (3×)0.7

3

1 3.3 2.9

1.7

1.9

2

Dimensions in mm

Fig. 6. Reflow soldering footprint for SOT23

solder lands solder resist occupied area

preferred transport direction during soldering

sot023_fw 2.8

4.5 1.4

4.6

(2×)1.4

(2×)1.2

2.2

2.6

Dimensions in mm

Fig. 7. Wave soldering footprint for SOT23

(8)

14. Revision history

Table 8. Revision history

Data sheet ID Release date Data sheet status Change notice Supersedes

PMEG4010ET-Q v.1 20211025 Product data sheet - -

Product data sheet 25 October 2021 8 / 10
