Received: January 17, 2021 Revised: April 7, 2021 Accepted: June 1, 2021
OPEN ACCESS
HORTICULTURAL SCIENCE and TECHNOLOGY 39(5):560-571, 2021
URL: http://www.hst-j.org pISSN : 1226-8763 eISSN : 2465-8588
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyrightⓒ2021 Korean Society for Horticultural Science.
The present study was supported by a grant from the Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, Forestry and Fisheries (IPET) through Export Promotion Technology Development Program (No. 617075-5) and Advanced Production Technology Development Program (No. 318065 -03) funded by the Ministry of Agriculture, Food and Rural Affairs (MAFRA).

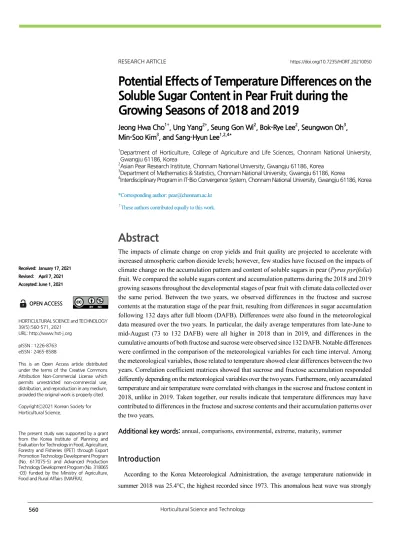

Potential Effects of Temperature Differences on the Soluble Sugar Content in Pear Fruit during the
Growing Seasons of 2018 and 2019
Jeong Hwa Cho 1† , Ung Yang 2† , Seung Gon Wi 2 , Bok-Rye Lee 2 , Seungwon Oh 3 , Min-Soo Kim 3 , and Sang-Hyun Lee 1,2,4*
1
Department of Horticulture, College of Agriculture and Life Sciences, Chonnam National University, Gwangju 61186, Korea
2
Asian Pear Research Institute, Chonnam National University, Gwangju 61186, Korea
3
Department of Mathematics & Statistics, Chonnam National University, Gwangju 61186, Korea
4
Interdisciplinary Program in IT-Bio Convergence System, Chonnam National University, Gwangju 61186, Korea
*Corresponding author: [email protected]
†
These authors contributed equally to this work.
Abstract
The impacts of climate change on crop yields and fruit quality are projected to accelerate with increased atmospheric carbon dioxide levels; however, few studies have focused on the impacts of climate change on the accumulation pattern and content of soluble sugars in pear (Pyrus pyrifolia) fruit. We compared the soluble sugars content and accumulation patterns during the 2018 and 2019 growing seasons throughout the developmental stages of pear fruit with climate data collected over the same period. Between the two years, we observed differences in the fructose and sucrose contents at the maturation stage of the pear fruit, resulting from differences in sugar accumulation following 132 days after full bloom (DAFB). Differences were also found in the meteorological data measured over the two years. In particular, the daily average temperatures from late-June to mid-August (73 to 132 DAFB) were all higher in 2018 than in 2019, and differences in the cumulative amounts of both fructose and sucrose were observed since 132 DAFB. Notable differences were confirmed in the comparison of the meteorological variables for each time interval. Among the meteorological variables, those related to temperature showed clear differences between the two years. Correlation coefficient matrices showed that sucrose and fructose accumulation responded differently depending on the meteorological variables over the two years. Furthermore, only accumulated temperature and air temperature were correlated with changes in the sucrose and fructose content in 2018, unlike in 2019. Taken together, our results indicate that temperature differences may have contributed to differences in the fructose and sucrose contents and their accumulation patterns over the two years.
Additional key words: annual, comparisons, environmental, extreme, maturity, summer
Introduction
According to the Korea Meteorological Administration, the average temperature nationwide in
summer 2018 was 25.4°C, the highest recorded since 1973. This anomalous heat wave was strongly
affected by high atmospheric pressure from Tibet and the North Pacific anticyclone. However, in summer 2019, the extension of the North Pacific anticyclone to the Korean peninsula was delayed by frequent inflows of cold air from the northern Bering Sea, resulting in fewer heat waves than those in summer 2018.
The global changes in climate have largely been attributed to increased CO
2emissions and human activities (Masson- Delmotte et al., 2018). The global mean surface temperature has increased by approximately 1°C above the average in the pre-industrial era (1,850-1,900). Global warming is estimated to increase by 0.2°C per decade owing to ongoing anthropogenic emissions (greenhouse gases). Over the coming decades, climate change and increased CO
2levels are projected to impact the yield of all crops (Lobell and Gourdji, 2012; Sultan et al., 2019).
Extreme high temperatures owing to global warming caused a drastic reduction in the yield of pome fruit (Thomson et al., 2014; Darbyshire et al., 2015). Extreme high temperature, which occurs during summer seasons, can adversely affect the quality of pome fruit through sunburn damage (Schrader et al., 2003; McClymont et al., 2016), poor color development (Steyn et al., 2004; Thomson et al., 2018), and reduced carbon assimilation (Han et al., 2012). In addition, extreme heat may result in increased insect pests and disease incidence (Rosenzweig et al., 2001). In recent years, pear orchards have frequently experienced weather conditions that have compromised the quantity and quality of the fruit.
Many previous studies have focused on the relationship between the content of soluble sugars and the gene expression and enzyme activities involved in the sugar metabolism during the developmental stages of pear fruit (Moriguchi et al., 1992; Tanase and Yamaki, 2000; Yamada et al., 2007; Zhang et al., 2014; Jia et al., 2021; Lee et al., 2021). However, to date, there is little research on the impact of climate change on the accumulation patterns and composition of soluble sugars during the developmental stages of pear fruit through comparisons of annual meteorological variables.
In this study, we aimed to identify whether differences in fruit sugar composition are related to changes in atmospheric and soil conditions observed over the two years. We investigated the content of three major soluble sugars (glucose, fructose, and sucrose) and their accumulation patterns throughout the developmental stages of pear fruit and collected atmospheric and soil environmental data during the growing seasons of 2018 and 2019 through real-time sensor-based monitoring. Therefore, the results obtained may provide a better understanding of the impacts of climate change on the sugar composition of pear fruit.
Materials and Methods Experimental Site
This study was conducted at a pear orchard (34°58'34.1"N 126°42'12.7"E; 25-30 m above sea level; 0.83 ha) utilizing Information and Communication Technology (ICT)-based equipment, located in Naju, Korea.
Plant Material
Pear (Pyrus pyrifolia) cv. Niitaka fruit were harvested throughout two successive seasons (2018 and 2019) from the
pear orchard, which received standard horticultural management including fertilizer application, irrigation, and disease
control. Between 10 and 15 fruit were randomly sampled from the same fruit-bearing position at 15-day intervals during
the period of 42 to 177 days after full bloom (DAFB) in each year. The fruit collected at each sampling period were frozen
in liquid nitrogen and then stored at -60°C until analyzed. Unless otherwise stated, all experiments were performed independently and in triplicate.
Analysis of Soluble Sugar
The stored samples were freeze-dried and then ground into a fine powder. Soluble sugars were extracted from 30 mg of the powdered samples with occasional shaking for 3 hours in 3 mL of distilled water. The extracts were centrifuged at 13,000 × g for 5 min. The supernatants were passed through a 0.45 µm membrane filter and then injected into the chromatographic system. Soluble sugars were analyzed using high-performance liquid chromatography equipped with a refractive index detector (2414, Waters, MA, USA) and a REZEX RPM (Phenomenex, CA, USA) column (300 × 7.8 mm).
Measurement of Atmosphere and Soil Conditions in the Pear Orchard
Meteorological data were recorded automatically on a data logger (Xspark, Nare Trend Inc., Korea) at 5-min intervals.
Soil temperature and soil moisture were measured at a 15-cm depth using Hydra Probe II soil sensors (SDI-12, Stevens Water Monitoring System Inc., OR, USA). The daily mean values of temperature, atmospheric humidity, and solar insolation were calculated during the period of 80 to 180 DAFB in 2018 and 2019. The mean daily values were determined by calculating the average of all the 5-min interval values for each day. Daily mean temperature and humidity values for soil were calculated during the same period using similar metrics.
Statistical Analysis
To confirm whether there was a difference in the meteorological data over the two years, we compared the meteorological data measured prior to 147 DAFB, when the difference in the contents of fructose and sucrose occurred, at 15-day intervals. That is, t-1, t-2, t-3, t-4, and t-5 indicate 15, 30, 45, 60, or 75 days before 147 DAFB, respectively. For meteorological data at 15-day intervals, we used 15 observations per time interval, and each observation was assumed to be independent. Seven meteorological variables—air temperature, atmospheric humidity, accumulated temperature, diurnal temperature range, solar insolation, soil temperature, and soil humidity—were analyzed.
All analyses were performed using python (version 3.8.3). Pearson correlation analysis, Shapiro-Wilk test, T-test, and Wilcoxon signed-rank test were performed in the python packages “scipy” (version 1.6.1). Normality of the meteorological data for each time interval was assessed using the Shapiro–Wilk test of normality (α= 0.05) (Shapiro and Wilk, 1965). T-tests were conducted when the distribution of both groups satisfied normality (when the value of the Shapiro-Wilks test for both groups is greater than 0.05). However, if normality is not valid (when the value of the Shapiro-Wilks test is less than 0.05 in either or both groups), the Wilcoxon signed-rank tests were performed (Wilcoxon, 1945). The significance level was set to 0.05.
Results
Accumulation Pattern of Soluble Sugars
As illustrated in Fig. 1A , a steady increase in the content of total soluble sugars occurred during the period from 87 to
147 DAFB, and then remained at a high level until maturity. We noted a difference in the accumulation of total soluble
A B
C D
Fig. 1. Changes in the soluble sugar content during pear fruit development. Measurements were taken at 15-day intervals during the period from 42 to 177 days after full bloom (DAFB) in 2018 (closed circles) and 2019 (open reversed triangles).
The solid line represents a smooth trend line for the data points in 2018. The dotted line represents a smooth trend line for the data points in 2019. (A) Total soluble sugars. (B) Glucose. (C) Fructose. (D) Sucrose. Values represent the mean ± SD of three replicates. Asterisks indicate a significant difference at each sampling time. * p < 0.05, ** p < 0.01, *** p <
0.001.
sugars between the two years; their contents were higher in 2019 than in 2018 during the period from 87 to 132 DAFB.
There was no significant difference in glucose accumulation between the two years. In both years, a negligible amount of glucose was detected during the period from 42 to 72 DAFB, but thereafter, the glucose content increased gradually until maturity (Fig. 1B) . However, the accumulation pattern of fructose and sucrose during the two years differed from that of glucose; differences in fructose and sucrose contents were observed between the two years at the maturation stage of pear fruit. In both years, the fructose content steadily increased during the period from 87 to 147 DAFB and then remained at the highest level until maturity, with little fluctuation (Fig. 1C) . A notable difference in the fructose content was observed in mature fruit harvested at 177 DAFB, with contents of 247.27 mg · g
-1DW and 355.3 mg · g
-1DW in 2018 and 2019, respectively. In 2018, no sucrose was detected during the period from 42 to 87 DAFB, but thereafter, the sucrose content increased gradually until 132 DAFB, followed by a rapid increase from 132 DAFB until maturity, accounting for about 36.13% of the total soluble sugars (Fig. 1D) . The sucrose accumulation after 87 DAFB differed between the two years; the sucrose content at maturation in 2018 was about 1.8-fold higher than that observed in 2019.
Measurement of Environmental Factors Over the Two Years
Climate data were collected over the two years from multiple sensors installed in the pear orchard with an applied
A B
C D
E F
Fig. 2. Seasonal patterns of (A) temperature, (B) accumulated temperature, (C) atmospheric humidity, (D) solar insolation, (E) soil temperature, and (F) soil moisture content from 2018 to 2019 at the study site. Each value represents a daily observation during the period from 80 to 180 days after full bloom (DAFB) in 2018 (solid maroon line) and 2019 (solid orange line). Values represent the mean ± SD.
ICT-based platform. Similar patterns in both air temperature and humidity were observed for both years; however, average daily temperatures from late-June to mid-August (73-132 DAFB) varied, with a mean temperature 2°C higher in 2018 (26.3°C) than in 2019 (24.3°C) (Fig. 2A) . The mean diurnal temperature range over the same period was 1.4°C higher in 2018 (7.8°C) than in 2019 (6.4°C). The mean air humidity values from late-June to mid-August were 82.2% and 89.7% in 2018 and 2019, respectively, with values ranging from 66.5 to 94.2% in 2018 and 77.7 to 96.0% in 2019 (Fig.
2C) . The total accumulated temperature from late-June to mid-August was calculated as 1373.6°C in 2018 and 1277.5°C
in 2019; the accumulated temperature in 2018 was 96.1°C greater than that in 2019 (Fig. 2B) . In the comparison of average
solar insolation from late-June to mid-August, the mean value was 0.7 kWh/m
2higher in 2018 (7.4 kWh/m
2) than in 2019
(6.7 kWh/m
2) (Fig. 2D) .
Table 1. Comparison of meteorological variables for each time difference at 15-day intervals between 2018 and 2019 Meteorological variables Time interval Mean ± SD (2018) Mean ± SD (2019) p value comparison
Temperature
zt-5 24.379 ± 1.026 22.304 ± 1.179 < 0.001* 18 > 19
Temperature
yt-4 25.219 ± 1.597 22.774 ± 1.168 < 0.001* 18 > 19
Temperature
zt-3 27.946 ± 0.530 26.515 ± 0.645 < 0.001* 18 > 19
Temperature
yt-2 27.391 ± 1.003 26.132 ± 1.176 < 0.001* 18 > 19
Temperature
zt-1 24.904 ± 1.406 22.543 ± 1.421 < 0.001* 18 > 19
Atmospheric humidity
zt-5 85.036 ± 7.902 88.617 ± 5.374 0.172 18 = 19
Atmospheric humidity
yt-4 85.047 ± 3.589 91.876 ± 3.905 < 0.001* 18 < 19 Atmospheric humidity
zt-3 78.916 ± 3.132 90.436 ± 4.304 < 0.001* 18 < 19 Atmospheric humidity
yt-2 80.302 ± 5.843 88.488 ± 4.006 < 0.001* 18 < 19 Atmospheric humidity
yt-1 87.472 ± 6.422 92.164 ± 3.826 < 0.001* 18 < 19
Accumulated temp
zt-5 18.513 ± 2.211 18.713 ± 1.554 0.784 18 = 19
Accumulated temp
yt-4 22.020 ± 1.932 19.160 ± 1.332 < 0.001* 18 > 19
Accumulated temp
yt-3 24.787 ± 0.776 23.287 ± 1.275 < 0.001* 18 > 19
Accumulated temp
yt-2 24.440 ± 1.093 22.973 ± 1.353 < 0.001* 18 > 19
Accumulated temp
zt-1 21.260 ± 1.567 18.807 ± 1.564 < 0.001* 18 > 19
Diurnal temp range
zt-5 7.915 ± 3.087 7.427 ± 2.458 0.647 18 = 19
Diurnal temp range
zt-4 7.267 ± 2.188 5.391 ± 2.609 0.049* 18 > 19
Diurnal temp range
yt-3 8.556 ± 1.718 5.930 ± 2.582 < 0.001* 18 > 19
Diurnal temp range
zt-2 7.434 ± 1.553 6.459 ± 1.988 0.159 18 = 19
Diurnal temp range
zt-1 5.245 ± 2.586 5.450 ± 2.208 0.823 18 = 19
Solar insolation
yt-5 5.989 ± 2.762 6.929 ± 2.730 < 0.001* 18 < 19
Solar insolation
yt-4 7.680 ± 2.354 5.383 ± 2.620 < 0.001* 18 > 19
Solar insolation
yt-3 8.475 ± 1.542 7.073 ± 2.617 < 0.001* 18 > 19
Solar insolation
zt-2 7.634 ± 0.953 6.994 ± 1.744 0.238 18 = 19
Solar insolation
zt-1 5.250 ± 2.616 4.491 ± 2.093 0.404 18 = 19
Soil temp
zt-5 23.391 ± 0.729 22.565 ± 0.631 0.003* 18 > 19
Soil temp
zt-4 25.248 ± 0.886 23.270 ± 0.498 < 0.001* 18 > 19
Soil temp
zt-3 26.420 ± 0.589 25.896 ± 0.661 0.035* 18 > 19
Soil temp
yt-2 26.836 ± 0.739 26.373 ± 0.509 < 0.001* 18 > 19
Soil temp
zt-1 25.563 ± 0.568 24.631 ± 0.914 0.003* 18 > 19
Soil moisture
zt-5 38.980 ± 4.507 37.122 ± 6.370 0.381 18 = 19
Soil moisture
yt-4 33.994 ± 5.754 40.581 ± 4.651 < 0.001* 18 < 19
Soil moisture
yt-3 37.419 ± 5.737 40.383 ± 4.319 < 0.001* 18 < 19
Soil moisture
yt-2 42.634 ± 2.537 37.309 ± 5.539 < 0.001* 18 > 19
Soil moisture
yt-1 46.052 ± 3.753 39.281 ± 1.623 < 0.001* 18 > 19
Temp = temperature.
z
T-test.
y
