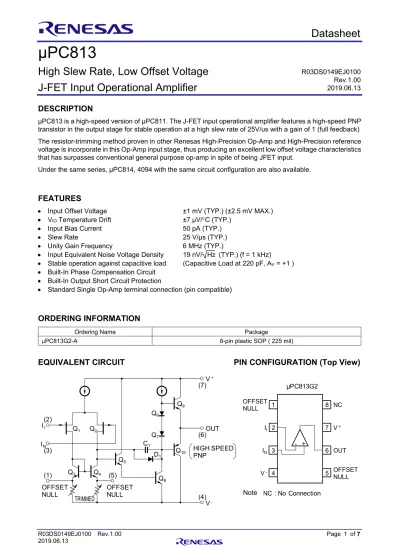

µPC813
High Slew Rate, Low Offset Voltage J-FET Input Operational Amplifier
DESCRIPTION
μPC813 is a high-speed version of μPC811. The J-FET input operational amplifier features a high-speed PNP transistor in the output stage for stable operation at a high slew rate of 25V/us with a gain of 1 (full feedback) The resistor-trimming method proven in other Renesas High-Precision Op-Amp and High-Precision reference voltage is incorporate in this Op-Amp input stage, thus producing an excellent low offset voltage characteristics that has surpasses conventional general purpose op-amp in spite of being JFET input.
Under the same series, μPC814, 4094 with the same circuit configuration are also available.
FEATURES
Input Offset Voltage ±1 mV (TYP.) (±2.5 mV MAX.)
V IO Temperature Drift ±7 µV/C (TYP.)
Input Bias Current 50 pA (TYP.)
Slew Rate 25 V/µs (TYP.)
Unity Gain Frequency 6 MHz (TYP.)
Input Equivalent Noise Voltage Density 19 nV/ Hz (TYP.) (f = 1 kHz)
Stable operation against capacitive load (Capacitive Load at 220 pF, A V = +1 )
Built-In Phase Compensation Circuit
Built-In Output Short Circuit Protection
Standard Single Op-Amp terminal connection (pin compatible)
ORDERING INFORMATION
Ordering Name Package
μPC813G2-A 8-pin plastic SOP ( 225 mil)
EQUIVALENT CIRCUIT PIN CONFIGURATION (Top View)
TRIMMED OFFSET
NULL OFFSET
NULL
HIGH SPEED PNP
Q 3 Q 4 Q 1 Q 2
Q 5
Q 8 Q 10
Q 9 Q 6
Q 7 C 1
D 1 I N
I I (2)
(3)
(1) (5)
(7)
(6)
(4) V +
V - OUT
OFFSET 1 NULL
6 V + I I 2
I N
V -
8
OUT 7
4 3
NC
OFFSET NULL - +
5 µPC813G2
備考 NC : No Connection
R03DS0149EJ0100 Rev.1.00 2019.06.13
Note
ABSOLUTE MAXIMUM RATINGS (T A = 25 C)
PARAMETER SYMBOL μPC813G2 UNIT
Supply Voltage Note1 V + - V - -0.3 ~ +36 V
Differential Input Voltage V ID ±30 V
Input Voltage Note2 V I V - -0.3 ~ V + +0.3 V
Output Applied Voltage Note 3 V O V - -0.3 ~ V + +0.3 V
Total Power Dissipation Note 4 P T 440 mW
Output Short Circuit Duration Note 5 Indefinite s
Operating Ambient Temperature T A -40 ~ +85 C
Storage Temperature T stg -55 ~ +125 C
【Note】 1. Note that reverse connections of the power supply may damage the ICs.
2. The input terminal must be apply within the input voltage range to avoid deteriorating or damaging the device characteristic. Do not exceed the ratings including during transition state such as ON/OFF, etc. The Op-Amp input voltage must operates within the electrical characteristics range of input common-mode voltage.
3. The output terminal must be apply within the output voltage range to avoid deteriorating or damaging the device characteristic. Do not exceed the ratings including during transition state such as ON/OFF, etc. The Op- Amp output voltage must operates within the electrical characteristics range of maximum output voltage.
4. This is the value at T A ≦ +25 C. De-rate value at -4.4 mW/C when T A ＞ 25 C 5. Please use the total loss and the de-rating value from Note 4.
RECOMMENDED OPERATING CONDITIONS
PARAMETER SYMBOL MIN. TYP. MAX. UNIT
Power Supply Voltage V ± ±5 ±16 V
Load Current I O ±10 mA
Load Capacitance
(When A V = +1) C L 220 Note 6 pF
【Note】 6. This is the value when the feedback resistor (R f ) = 0 Ω. The higher the R f value, the more likely it is to oscillate due to the influence of the input capacitance. So connect a capacitor of about 100 pF in parallel with R f
OFFSET ADJUSTMENT METHOD
Note OFFSET NULL pin should be open or connected to V – via a resistor as shown above. Any connection other than V – may cause malfunction, characteristics degradation or damage
+ -
V
-5 1
6 2
3
10 kΩ
VR
1ELECTRICAL CHARACTERISTICS (T A = 25 C, V ± = ±15 V)
PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION
Input Offset Voltage V IO ±1 ±2.5 mV R S ≦ 50 Ω
Input Offset Current Note 7 I IO ±25 ±100 pA
Input Bias Current Note 7 I B 50 200 pA
Large Signal Voltage Gain A V 25000 200000 R L ≧ 2 kΩ, V O = ±10 V
Circuit Current I CC 2.5 3.4 mA I O = 0 A
Common Mode Rejection Ratio CMR 70 100 dB
Supply Voltage Rejection Ratio SVR 70 100 dB
Output Voltage Swing V om ±12 +14.0
-13.3 V R L ≧ 10 kΩ
Output Voltage Swing V om ±10 +13.5
-12.8 V R L ≧ 2 kΩ
Common Mode Input Voltage
Range V ICM ±11 +14
-12 V
Slew Rate SR 25 V/μs A V = 1
Unity Gain Frequency f unity 6 MHz
Input Equivalent Noise Voltage
Density e n 19 nV/ Hz R S = 100 Ω, f = 1 kHz
Input Offset Voltage V IO ±5 mV R S ≦ 50 Ω, T A = -20 ~ +70 C
Average V IO Temperature Drift ΔV IO/ ΔT ±7 μV/C T A = -20 ~ +70 C
Input Offset Current Note 7 I IO ±2 nA T A = -20 ~ +70 C
Input Bias Current Note 7 I B 7 nA T A = -20 ~ +70 C
【Note】7. The direction of the input bias current is the same direction that flows into the IC because the first stage is composed of Pch J-FET. When T J = 25 C or higher, it increases exponentially with increase in temperature
(please see I B - T A characteristics). During measurement, please kindly take care of T J ≒ T A Caution
Since µPC813 has high input impedance characteristics, please be careful of insulation between the
terminals on the board
ELECTRICAL CHARACTERISTICS CURVE (T A = 25 C, TYP.)
μPC813G2
0 100 200 300 400 500 600
0 20 40 60 80 100
T otal Pow er Dissipation P
T[mW]
Operating Ambient Temperature T A [C]
P T vs. T A (Absolute maximum rating)
0 20 40 60 80 100 120
1 10 100 1k 10k 100k 1M 10M
Open Loop Voltage Gain A
V[dB]
Frequency f [Hz]
A V vs. f
V ± = ±15 V R L = 2 kΩ
-5 -4 -3 -2 -1 0 1 2 3 4 5
-40 -20 0 20 40 60 80
Input Offset V oltage V
IO[mV]
Operating Ambient Temperature T A [C]
V IO vs. T A
V ± = ±15 V Any sample data
0.01 0.1 1 10 100
-20 0 20 40 60 80
Input Bias Current I
B[nA]
Operating Ambient Temperature T A [C]
I B -vs.T A
V ± = ±15 V
0 10 20 30
100 1k 10k 100k 1M 10M
Max imum Output Voltage V
om[V
p-p]
Frequency f [Hz]
V om vs. f
R L = 10 kΩ V ± = ±15 V
V ± = ±10 V
V ± = ±5 V
0 10 20 30 40
0 ±10 ±20
Maximum Output Voltage V
om[V
p-p]
Power Supply Voltage V ± [V]
V om vs. V ±
R L = 10 kΩ
0 +5 +10 +15
0 10 20 30
Positive O utput Voltage V
O+[V]
Output Source Current I O SOURCE [mA]
V O + vs. I O SOURCE
V ± = ±15 V T A = 70 C
T A = 25 C
T A = -20 C
-15
-10
-5
0
0 10 20 30
Negative Output Voltage V
O-[V]
Outout Sink Current I O SINK [mA]
V O - vs. I O SINK
V ± = ±15 V T A = 70 C
T A = 25 C
T A = -20 C
0 0.5 1.0 1.5 2.0 2.5 3.0 3.5
0 ±5 ±10 ±15 ±20
Circuit C urrent I
CC[mA]
Supply Voltage V ± [V]
I CC vs. V ±
0 10 20 30 40 50
10 100 1k 10k 100k
Frequency f [Hz]
e n vs. f
V ± = ±15 V R S = 100Ω
Input Equivalent N oise D ensity e
n[nV/ Hz]
-5 0 5
-5 0 5
0 0.5 1 1.5 2
Input Voltage V
I[V] O utput Voltage V
O[V]
time, t [μs]
Pulse Response Characteristics A V = +1 R L = 10 kΩ C L = 100 pF V ± = ±15 V 5
0
-5
USE WITH PRECAUTIONS
Power Supply (Dual Power Supply / Single Power Supply)
The op amp operates when a predetermine voltage is applied between V + - V – . Therefore, while it operates from a single power supply (V - = GND), it is not possible to operate the input and output near GND. So please be careful of the common-mode input voltage range and maximum output voltage.
Ratings of input/output pin voltage
When the voltage of input/output pin exceeds the absolute maximum rating, the parasitic diode within the IC may conduct, causing characteristics degradation or damage. In addition, if the input pin is lower than V − , or the output pin exceeds the power supply voltage, it is recommended to make a clamping circuit using a diode with low forward voltage (e.g.: Schottky diode) as protection.
Range of common-mode input voltage
When the supply voltage does not meet the condition of electrical characteristics, the range of common- mode input voltage is as follows.
V ICM (TYP.) : V - +3 ~ V + -1 [V] (T A = 25 C)
During designing, do include some margin by considering characteristics variation, temperature characteristics etc.
Maximum Output Voltage
The TYP. value range of the maximum output voltage when the supply voltage does not meet the condition of electrical characteristics is as follows:
V om + (TYP.) : V + -1 [V] (T A = 25 C), V om - (TYP.) : V - +1.7 [V] (T A = 25 C)
During designing, do include some margin by considering characteristics variation, temperature characteristics and so on. In addition, also note that the output voltage range (V om+ − V om− ) will become narrow when the output current increases.
Handling of ICs
When stress is added to the ICs due to warpage or bending of a board, the characteristic may fluctuates
due to piezoelectric (piezo) effect. Therefore, pay attention to warpage or bending of a board.
PACKAGE DRAWINGS
8-PIN PLASTIC SOP
JEITA Package code RENESAS code Previous code MASS (TYP.) [g]
P-SOP8-0225-1.27 PRSP0008DL-A S8GM-50-225B 0.08
ITEM
A 5.2 +0.17
-0.20 B
C
D 0.42 +0.08
-0.07 E
F
G 1.49
H I J
K 0.17 +0.08
-0.07 L
M N
P 3° +7°
1.1 ±0.2
0.6 ±0.2 0.12 0.10 MILLIMETERS
6.5 ±0.3 4.4 ±0.15 0.78 MAX 1.27 (T.P)
0.1 ±0.1 1.59 ±0.21 Unit : mm
NOTE
Each lead centerline is located within 0.12 mm of its true position (T.P.) at maximum material condition.
detail of lead end
