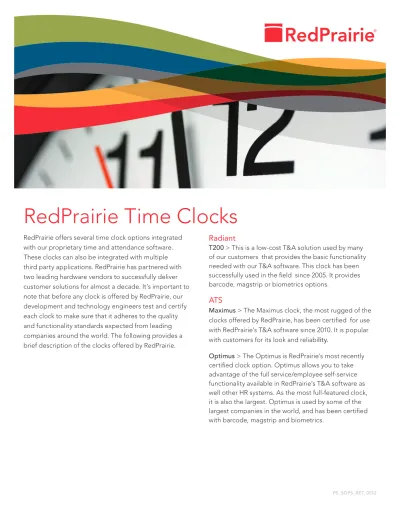

RedPrairie offers several time clock options integrated
with our proprietary time and attendance software.
These clocks can also be integrated with multiple
third party applications. RedPrairie has partnered with
two leading hardware vendors to successfully deliver
customer solutions for almost a decade. It’s important to
note that before any clock is offered by RedPrairie, our
development and technology engineers test and certify
each clock to make sure that it adheres to the quality
and functionality standards expected from leading
companies around the world. The following provides a
brief description of the clocks offered by RedPrairie.
Radiant
T200 > This is a low-cost T&A solution used by many
of our customers that provides the basic functionality
needed with our T&A software. This clock has been
successfully used in the field since 2005. It provides
barcode, magstrip or biometrics options.
ATS
Maximus > The Maximus clock, the most rugged of the
clocks offered by RedPrairie, has been certified for use
with RedPrairie’s T&A software since 2010. It is popular
with customers for its look and reliability.
Optimus > The Optimus is RedPrairie’s most recently
certified clock option. Optimus allows you to take
advantage of the full service/employee self-service
functionality available in RedPrairie’s T&A software as
well other HR systems. As the most full-featured clock,
it is also the largest. Optimus is used by some of the
largest companies in the world, and has been certified
with barcode, magstrip and biometrics.
Time Clock 200
The Time Clock 200 provides an alternative to the outdated technology and
proprietary software architecture often found in the time and attendance industry.
This data collection terminal design, based upon proven hardware technology, creates
an open software system that enables it to work flawlessly with RedPrairie’s
®solutions.
This scalable client/server architecture fits the needs of businesses both large and small
and is your affordable solution that meets your specific time and attendance needs.
The Windows CE-based data collection terminal offers a complete selection of data collection and connectivity choices including bar code, magnetic stripe, keypad, ethernet, USB, RS232 and Weigand. Its wall-mounted enclosure is sealed and water-resistant. Security and reliability are its key design features. The time clock can only be programmed remotely, and all its ports are hidden and secure.
FEATURES
• Integrated Magnetic Stripe Reader (MSR) • Integrated barcode (optical) reader • Integrated biometric fingerprint swipe reader (optional configuration) • Integrated battery backupBENEFITS
• Provides fast input of user data through card or badge with encoded magnetic stripe • Provides fast input of user data through card or badge with barcode • Allows for biometric fingerprint sensor to read fingerprint. Used for verification of identity, not identification • Provides limited duration power for clock operationin the event of site power lossCapabilities
Aesthetic, fully integrated, water-resistant housing enclosure in Polycarbonate/ABS impact resistant, high strength blend, environmentally sealed, passively cooled and tamper resistant for durability and long product life. Key features include:
• Microsoft Windows CE 5.0 OS
- CE for dedicated
hardware devices provides a stable and reliable platform.
• 10/100 Mbps with RJ-45 interface
- Can act as a network
device requiring no local mass storage, uses mass-market
cabling and hubs, TCP/IP networking.
• 4x20 LCD back lit display
- Capable of displaying
characters using a combined US/International font set.
• Diagnostic LEDs
- for power, valid/invalid card read,
and network status. Easy support and trouble-shooting.
• Battery Backup
- In the event of power loss, full
functionality excluding the LCD back light can be
supported.
• Keypad
- Allows numeric entry and entry of special
function keys configurable at manufacturing.
• One powered serial RS-232 Port
- Provides data I/O and
power (12 V 500 mA) with any RS-232 peripheral
• Weigand Port
- Allows for connection to Weigand reader
device and acts as a Weigand reader device connected
to a security system.
• Two USB 2.0 ports
- Provides data I/O with any
USB peripheral.
• Concealed Reset button
- Provides a hardware
reset to the timeclock.
• Integrated tamper-proof wall mount bracket
-
Wall mount provides tamper-resistance into the
I/O of the clock.
SPECIFICATIONS
CPU Intel IXP 420, 266 Mhz
Enclosure Polycarbonate/ABS impact
resistant, high strength blend, environmentally sealed, passively cooled, tamper resistant
Operating System Windows CE 5.0
Networking Integrated 100Base-T Ethernet LAN
Wireless Networking IEEE 802.11 a, b, g (optionally) Optional
Memory 32MB SDRAM; 133MHz Bus Speed
Storage 64 MB USB Disk On Chip (UDoC)
Power Supply External Power Brick
(PW00052) Input: 120VAC, 60 Hz, .15A Output: 12VDC, .4A Speaker Two-tone piezo Dimensions 10.0” L x 8.0” W x 3.2” H Weight 2.5 lbs, 1.13 kg Operating Temperature 32° - 113° F (0°C - 45° C) Storage Temperature 32°F – 158°F (0°C – 70°C) Humidity (operating) 5% to 95%, non-condensing Humidity (storage) 0-85% non condensing EMI Certifications FCC Class A
Time Clock Maximus
™
Maximus™ — The state-of-the-art Internet appliance that removes limitations through
use of open standards. Designed for those who demand more: Java™ programmability,
plug and play, Web services, open standards, complete field upgradeability, keypad
and function customization, varied auto-ID readers, biometrics, and more! HR-expert™
— 15 years of workforce management expertise in one easy-to-use module to greatly
simplify development and integration.
Maximus continues the legacy of ATS by maintaining the highest level of quality and reliability – not to mention the most robust terminal in the business thanks to its die-cast aluminum housing!
FEATURES
• Internet appliance • HR-expert available • Java™ programmable • Plug and play • Fully interactive • Eight programmable function keys • On-board and remote diagnostics • Field-upgradeable – never out dated • Biometric option eliminates costly buddy-punching • Optional power-over-Ethernet moduleSPECIFICATIONS
Display 128 x 64 pixel LCD
Clock Battery-backed real-time clock,
12- or 24-hour format, USA or international
(quartz precision)
Keypad 20-key tactile 4x5 matrix Numeric keypad, 0-9
Eight software-defined function keys In/Out and Clear/Enter keys
Ten software-controlled illuminated keys
via LEDs Customizable overlay allows for unique graphic options Memory 16 or 128 MB of RAM (Java: 128 MB) 32 or 128 MB of flash memory (Java: 128 MB) Programming Java™
Web services enabled
ATS Universal Command Set or third-party custom application packages
Platform Linux®
Diagnostics Plug and play, on-board diagnostics, and remote diagnostic capability
Interface Standard 802.3 10/100BASE-T Ethernet with DHCP, HTTP, FTP, XML
Optional WiFi communication
Optional EIA standard RS232 or RS485
Optional internal modem (FCC Part 68 certified) USB port for mass storage devices, printers, etc.
Enclosure Die-cast aluminum housing hinged to key-lockable base
Power 12 VDC (nominal) 1.25A, 15W maximum Optional non-interruptible power source with charger
Optional IEEE 802.3af-compliant power over Ethernet
Environment Operation Temperature: 0˚ to 50˚C (32˚ to +122˚F) Storage Temperature:
-30˚ to 80˚C (-22˚ to +176˚F)
Physical 8.4” x 8.75” x 3.9”
(21.33cm x 22.22cm x 9.91cm) Certifications CE Mark, FCC Part 15 Class A Accessories > Biometric readers – 1:1 and 1:n – fingerscan
> Integrated visible or infrared bar code readers
> Integrated magnetic readers > Smartcard readers – contact and contactless (Mifare™, iClass®)
> Integrated proximity readers
> Solid-state or dry-contact relay modules
Time Clock OPTIMUS
™
Online Personal Time and Information Management Utility System. On the outside, a
large, easy-to-read display and familiar ATM-style interface. On the inside, functionality
far beyond old fashioned Time & Attendance and Payroll terminals. The OPTIMUS
station is a full-service/self-service terminal that allows for both the input and output of
information to help HR professionals manage their business.
The OPTIMUS packs a powerful processor and open programming, so UCS and/or Java™ development is a snap to deploy. The biometric option protects employees’ personal information and eliminates costly buddy-punching.
The OPTIMUS – the solution for human asset management.
FEATURES
• Large, easy to read display • Familiar ATM-style interface – self service functionality • Biometric options for increase personal security • Modular, field-upgradeable readers and memory • 100% compatible with full line of ATS Global Series terminals • Works in WAN and LAN environments • On-board and remote diagnostics • Expandable memory for increased functionality • Optional power-over-Ethernet module • Optional transmissive color LCD • Optional transmissive color touchscreenSPECIFICATIONS
1.877.733.7724 [email protected] RedPrairie.com
Display 5.7” QVGA backlit LCD (optional transmissive color and transmissive color touchscreen)
Clock Battery-backed real-time clock,
12- or 24-hour format, USA or
international (quartz precision)
Keypad Ten software-defined function keys Numeric keypad 0-9
In and Out keys Scroll and select keys
Memory Linux: 16 MB RAM and 32 MB flash
Optional Java: 128 MB RAM and
128 MB flash Programming Java™ option
Web services capable
ATS Universal Command Set or third- party custom application packages
Platform Linux®
Diagnostics On-board diagnostics, and remote diagnostic capability
Interface Standard 802.3 10/100BASE-T
Ethernet with DHCP
HTTP, FTP, XML capable
Optional USB port for mass storage devices, printers, etc.
Enclosure Ultra-rugged, advanced composite molded housing hinged to key- lockable base
Power 12 VDC (nominal) 1.25A, 15W maximum Optional non-interruptible power source with charger
Optional IEEE 802.3af-compliant power over Ethernet
Environment Operating temperature: 0˚ to 50˚C (32˚ to +122˚F) Storage temperature:
-20˚ to 80˚C (-4˚ to +176˚F)
Physical 11.8” x 8.5” x 3.7” (30.0cm x 21.6cm x 9.4cm) Certifications CE Mark, FCC Part 15 Class A
Accessories > Biometric readers – 1:1 and 1:n – fingerscan and finger geometry > Integrated visible or infrared bar code slot readers
> Integrated magnetic slot readers
> Smartcard readers – contact and contactless > Integrated or external proximity readers > Solid-state or dry-contact relay modules > Serial interface printer port
> Printer, wand, CCD scanner
